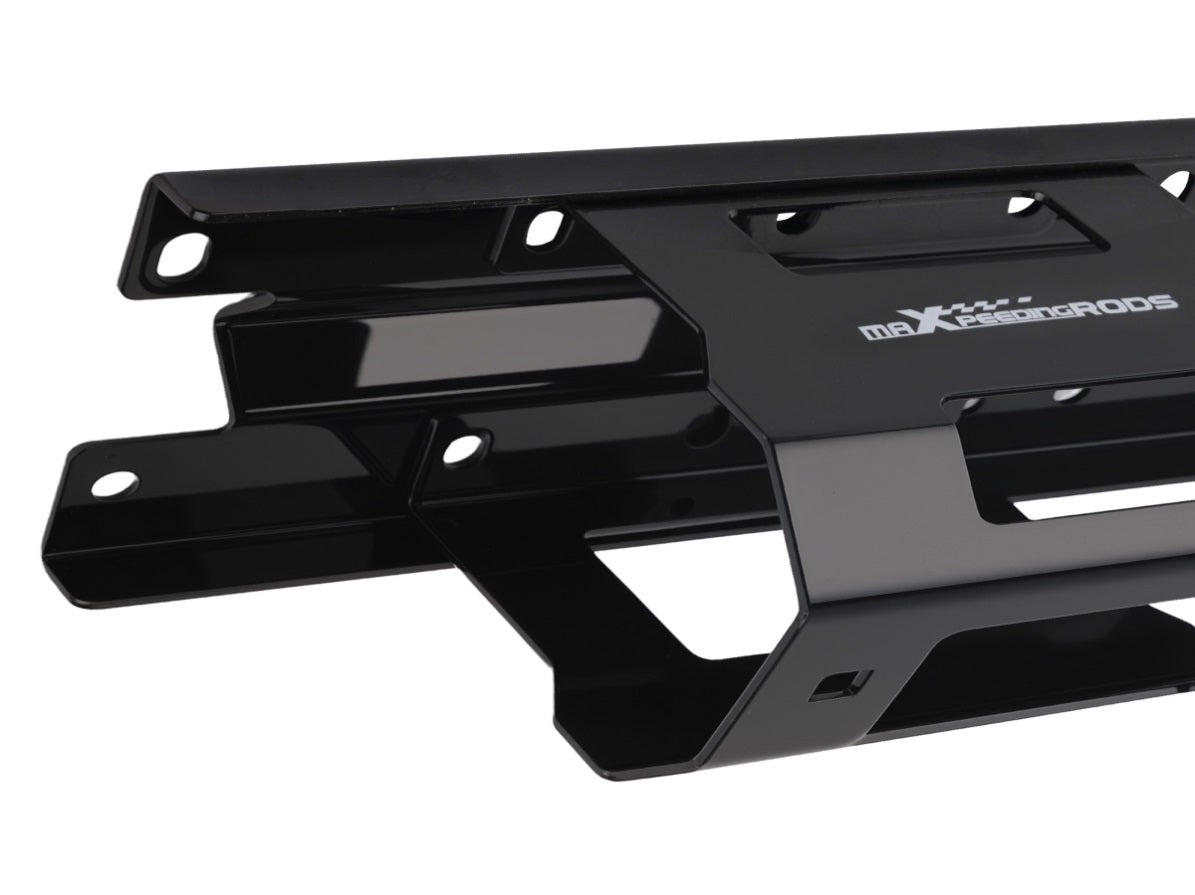

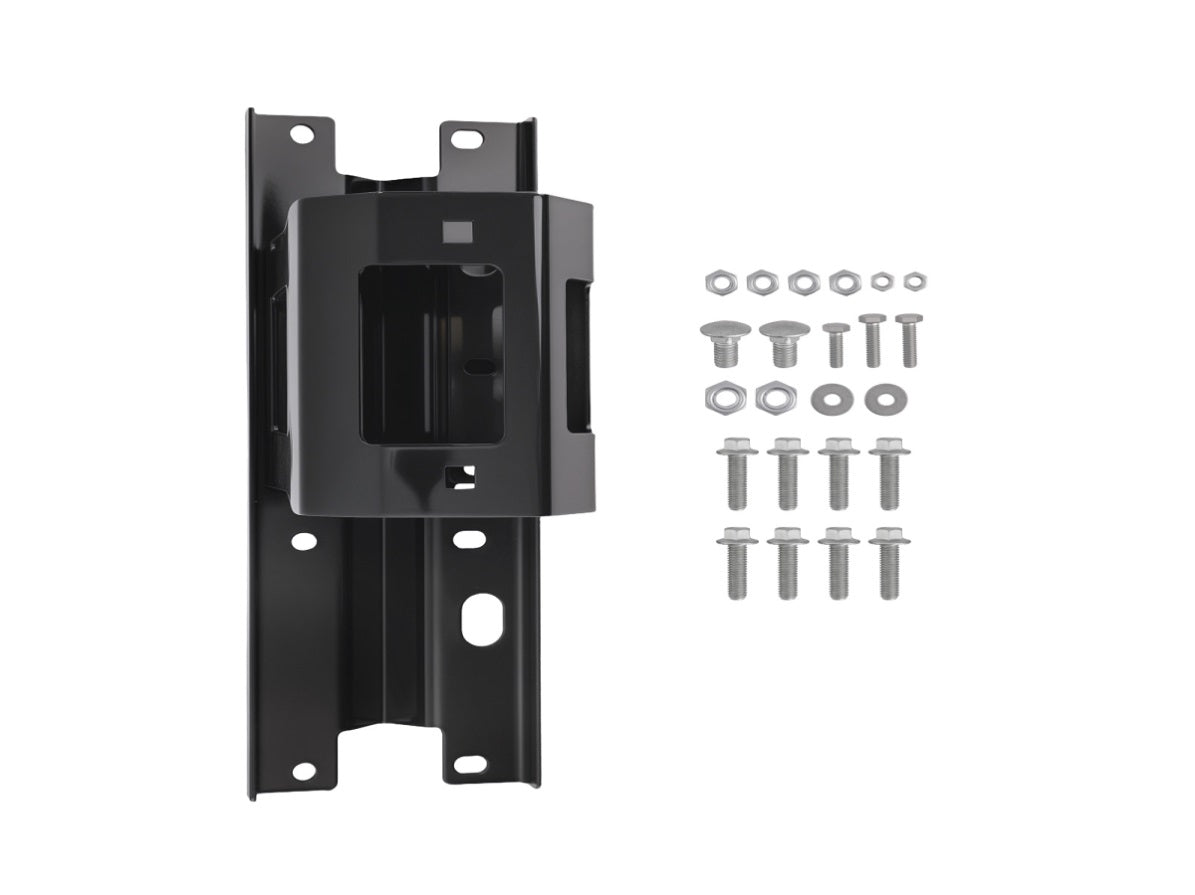

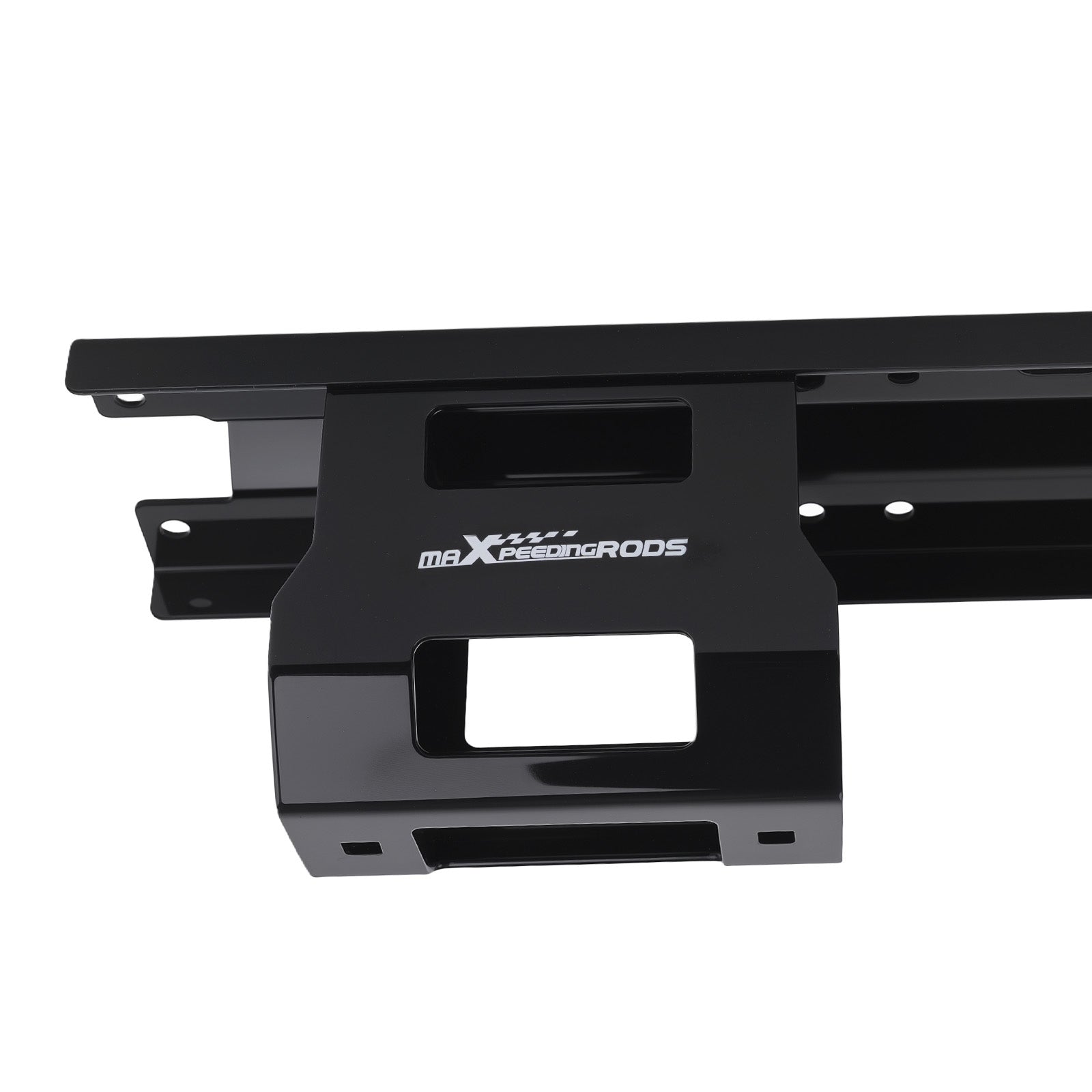

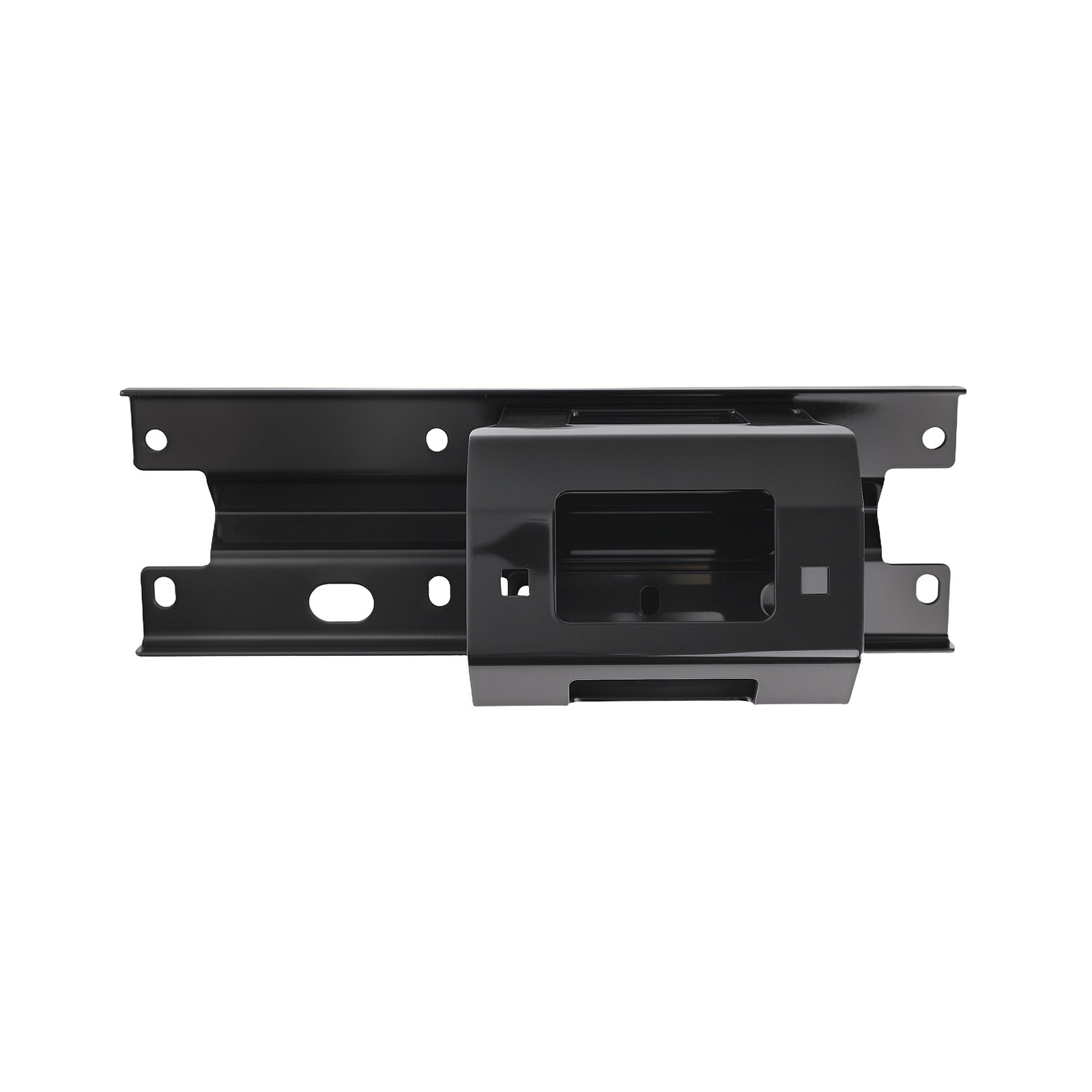

Winch Mount fit for Polaris Sportsman 400/450/500 2005-2010 Black Powder Coated 39631549

Application

Fit fit for 2005-2010 Polaris Sportsman 400 450 500 800

ONLY fit fit for the Polaris Sportsman's that have the front end pictured above

Fit fit for 2005 Polaris Sportsman 400, 500 H.O., 600, 700, 700EFI, 800EFI

Fit fit for 2006 Polaris Sportsman 450, 500 H.O., 500EFI, 700, 700EFI, 800EFI, X2

Fit fit for 2007 Polaris Sportsman 450, 500EFI, 500EFI X2, 700EFI, 800EFI, 800EFI X2

Fit fit for 2008 Polaris Sportsman 500 HO, 500 EFI, 800 EFI HO, 500 EFI X2,700 EFI X2, 500 EFI TOURING, 800 EFI TOURING

Fit fit for 2009 Polaris Sportsman 500 HO, 500 EFI, 800 EFI, 500 EFI X2, 800 EFI X2, 500 EFI TOURING, 800 EFI TOURING, BIG BOSS 6x6

Fit fit for 2010 Polaris Sportsman 500 HO, 800, 500 HO TOURING, 800 BIG BOSS 6x6

Dimension

Winch Mounting Pattern:

Wide 4-Hole 6 5/8" x 3" (76mm x 169mm)

Standard 4-Hole 3"x4 7/8" (76mm x 124mm)

2-Hole 3.10"(78mm )/3"(76mm)

Fairlead Mounting Pattern:

4 7/8" (124mm)

Feature

【FUNCTION】Offers a winch mounting Positon on front of Your ATV.

【WIDE APPLICATION】Can work with most US Standard winches and fairleads.

【MATERIAL】Made of Premium Solid Steel to achieve better durability and higher strength.

【PROCESS】Black powder coated: can further improve the overall corrosion resistance, prolong the service life, and maintain an attractive appearance in the next few years.

【PRECISION】Computer-aided design and laser-cut to ensure the perfect fit.

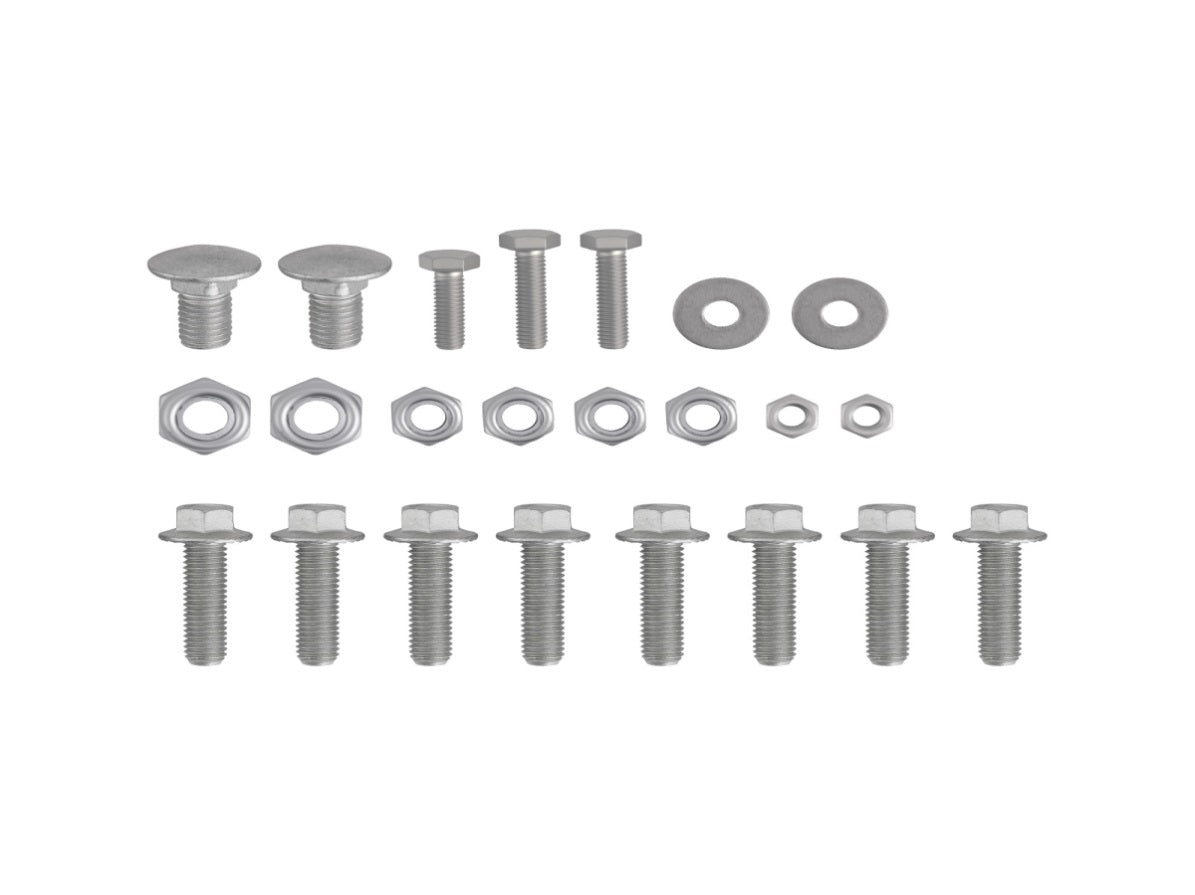

【INSTALLATION】Easy Bolt-on installation and takes about 45 minutes.（No drilling or modification required）
