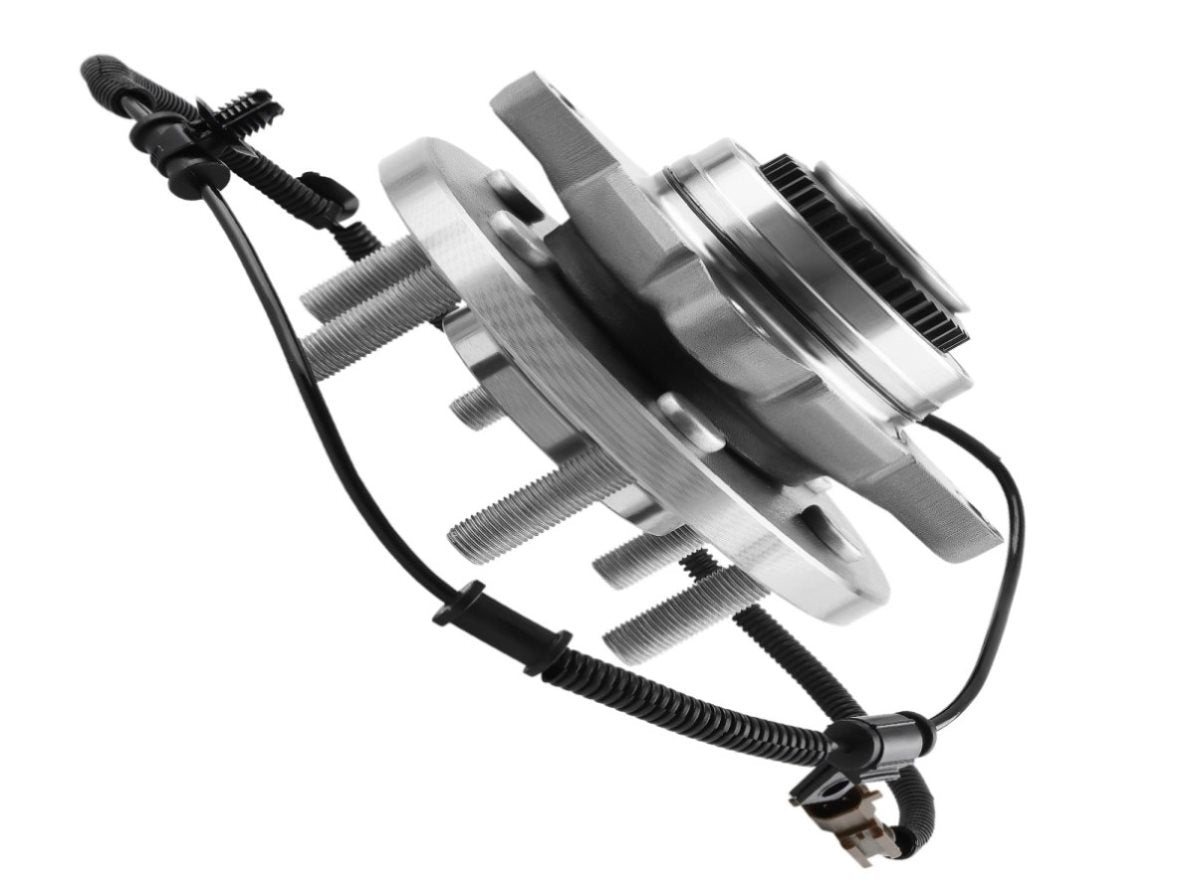

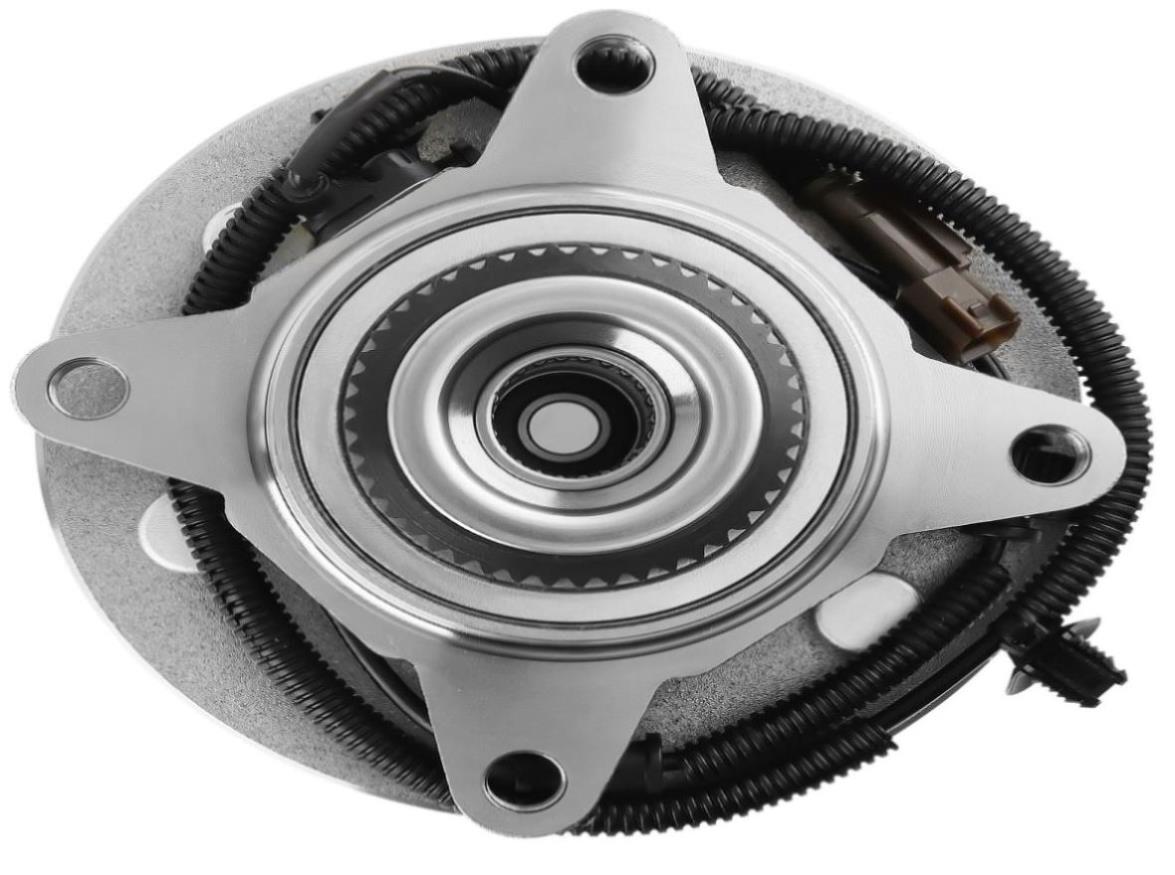

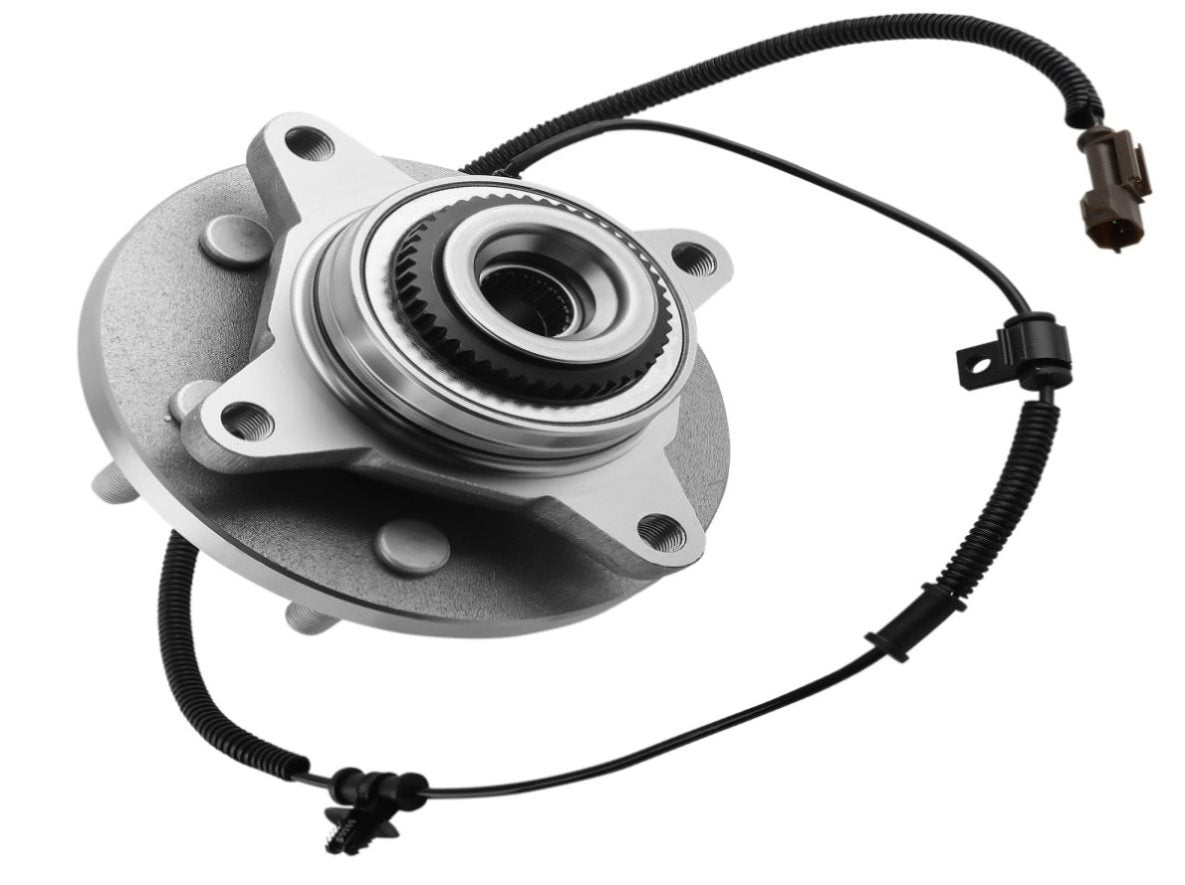

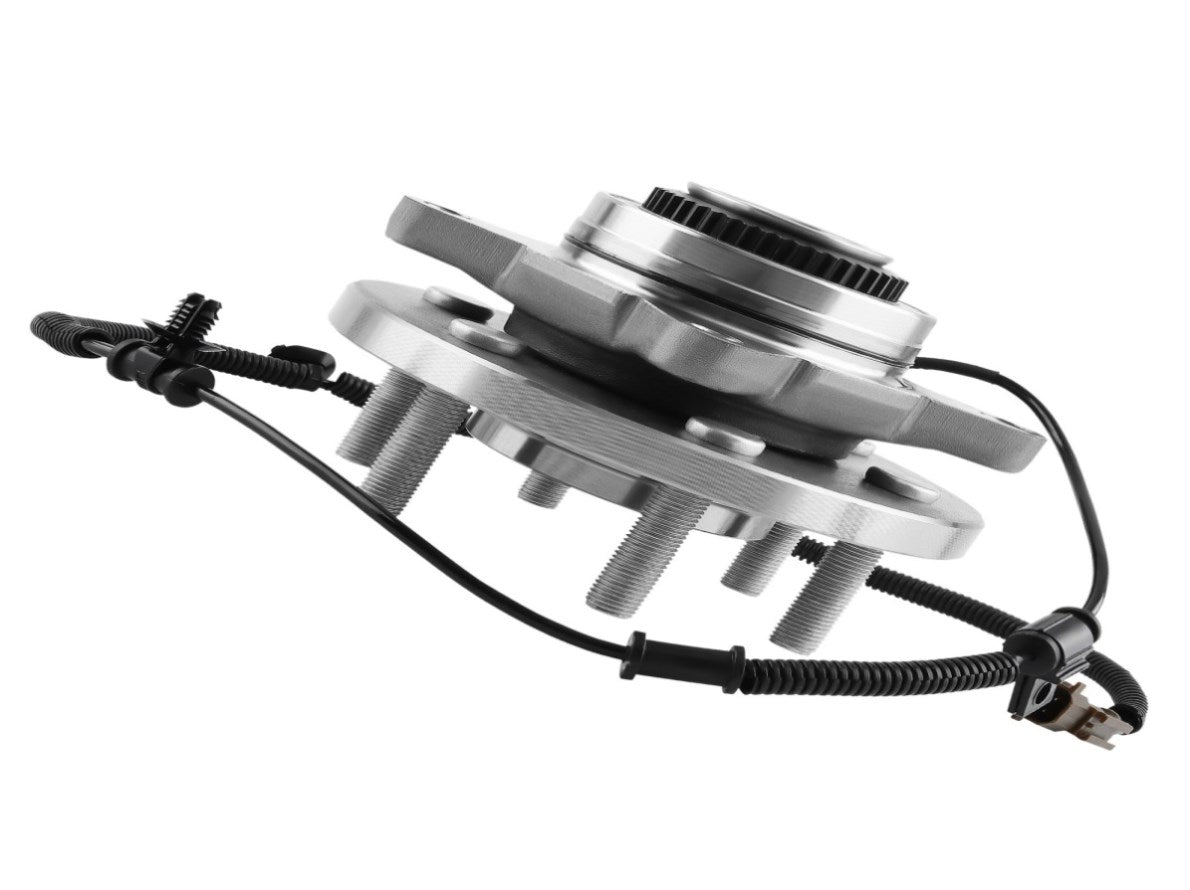

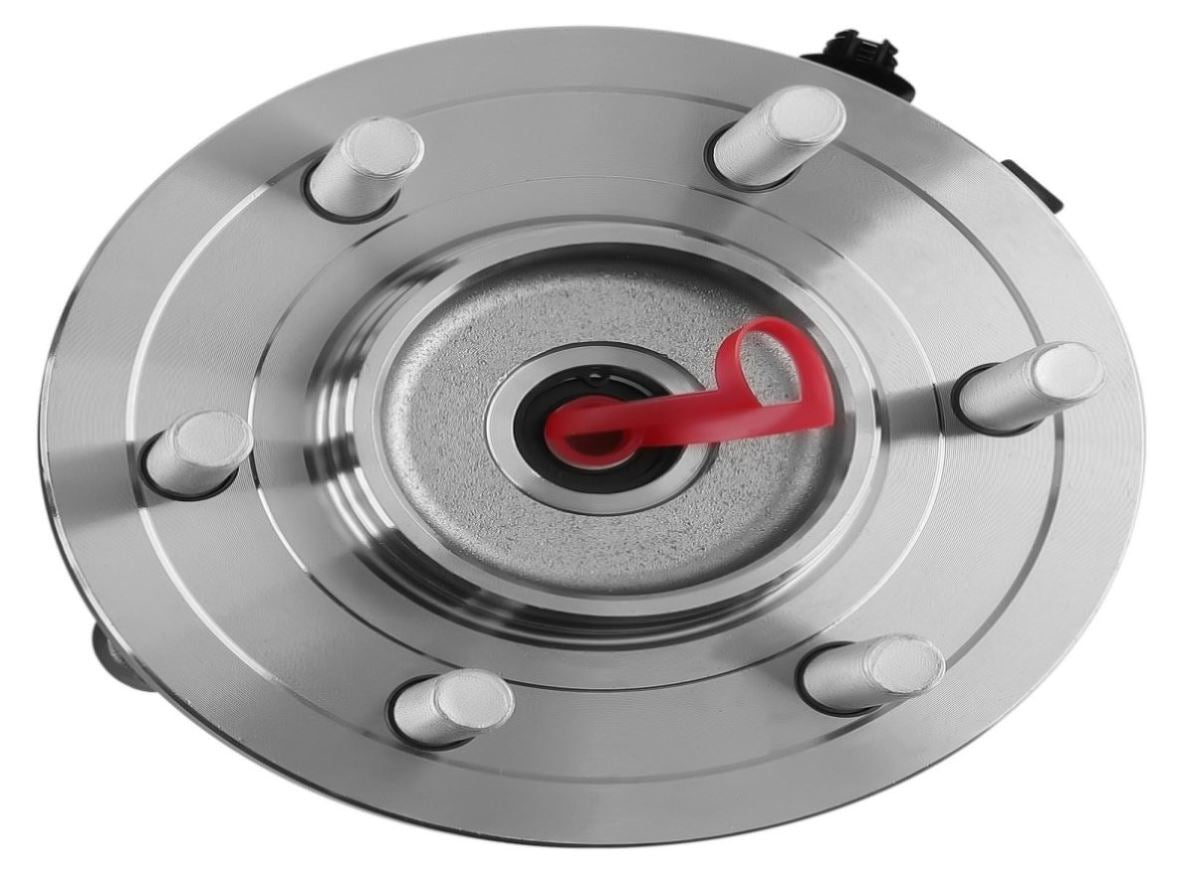

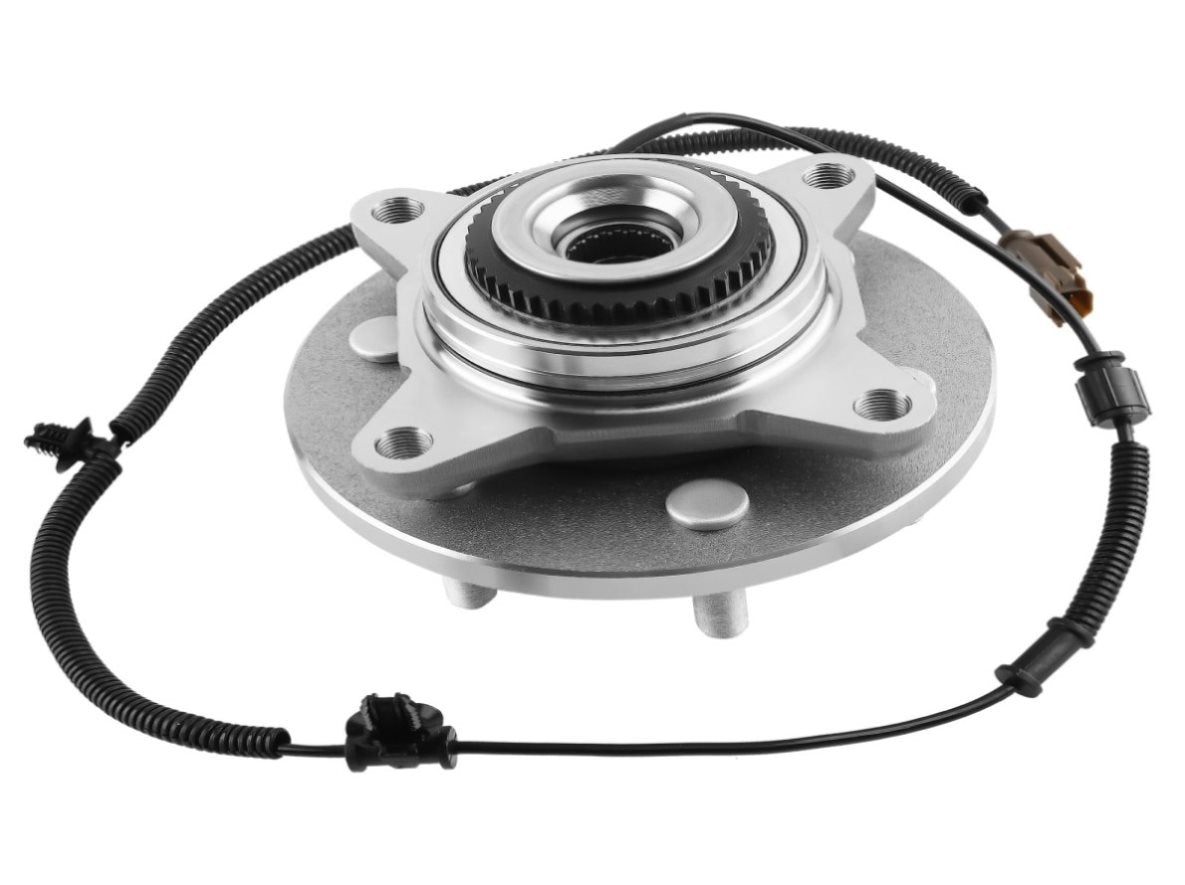

Wheel Bearing and Hub Assembly fit for 15-17 Ford F-150 FL3Z1104C BHA51553 SK515169 65681483
GT-65681483
6 In stock
$152.20
Application fit for: fit for F-150 2015-2017 V6 2.7L fit for F-150 2015-2017 V6 3.5L fit for F-150 2015-2017 V6 3.5L fit for F-150 2015-2017 V8 5.0L fit for F-150 2015-2017 V8 5.0L Replace OEM Number: 515169, HA590594, BR931007， FL3Z1104A, FL3Z1104C, FL3Z1104E, FL3Z1104F, FL3Z1104H, PT515169, 531196, MB40325, NT515169, WH515169, SK515169,...
customers are viewing this product
Application fit for:
fit for F-150 2015-2017 V6 2.7L
fit for F-150 2015-2017 V6 3.5L
fit for F-150 2015-2017 V6 3.5L
fit for F-150 2015-2017 V8 5.0L
fit for F-150 2015-2017 V8 5.0L
fit for F-150 2015-2017 V6 3.5L
fit for F-150 2015-2017 V6 3.5L
fit for F-150 2015-2017 V8 5.0L
fit for F-150 2015-2017 V8 5.0L
Replace OEM Number: 515169, HA590594, BR931007， FL3Z1104A, FL3Z1104C, FL3Z1104E, FL3Z1104F, FL3Z1104H, PT515169, 531196, MB40325, NT515169, WH515169, SK515169, BHA51553
096509615096515096
Specifications:096509615096515096
Anti Lock Brake Sensor Include: Yes
Flange Bolt Hole Quantity: 4
Flange Bolts Included: No
Flange Shape: Modified
Wheel Stud Quantity: 6
Spline Quantity: 45
Bolt Circle Diameter (IN): 5.31
Bolt Circle Diameter (MM): 135.1
Flange Bolt Hole Quantity: 4
Wheel Pilot Diameter (MM): 86.7
Brake Pilot Diameter (MM): 89.9
Wheel Stud Quantity: 6
Hub Pilot Diameter (MM): 99.2
Flange Offset (MM): 45.8
Flange Diameter (MM): 183.0
Position: Front Left or Right Side
Wheel Stud Quantity: 6
Flange Bolt Hole Quantity: 4
ABS Sensor Included: Yes
Flange Shape: Modified
Material: Bearing Steel
Bearing Generation: Gen 3
Bearing Type: Taper
Wheel Bearing Grease: Yes (Pre-Greased)
Sealings Type: Inboard and Outboard
Axle Splines Type: Insert CV Axle Directly
Feature:
Intended to meet strict fatigue requirements to reduce premature failure.
Perform heat treatment process to harden the surface, ensuring high temperature resistance and durability.
By rigorously testing, measuring, and inspecting materials and components, assembly and performance are ensured.
Includes an integrated seal made of self-lubricating rubber that has been optimized to maximize the removal of dirt and contaminants.
High carbon clean steel ensures smooth and quiet operation.
Perform heat treatment process to harden the surface, ensuring high temperature resistance and durability.
By rigorously testing, measuring, and inspecting materials and components, assembly and performance are ensured.
Includes an integrated seal made of self-lubricating rubber that has been optimized to maximize the removal of dirt and contaminants.
High carbon clean steel ensures smooth and quiet operation.
Package included:
1× Front Wheel Hub and Bearing Assembly
Note:
Installing on 2WD models will cause hub failure!
