Weld On Triangulated 4 Link Suspension w/ Rear Bag Brackets Air Ride 2.75"axle 07403404

Feature:

• Provide better handing and comfort ride fit for you.
• Design fit for comfort suspension

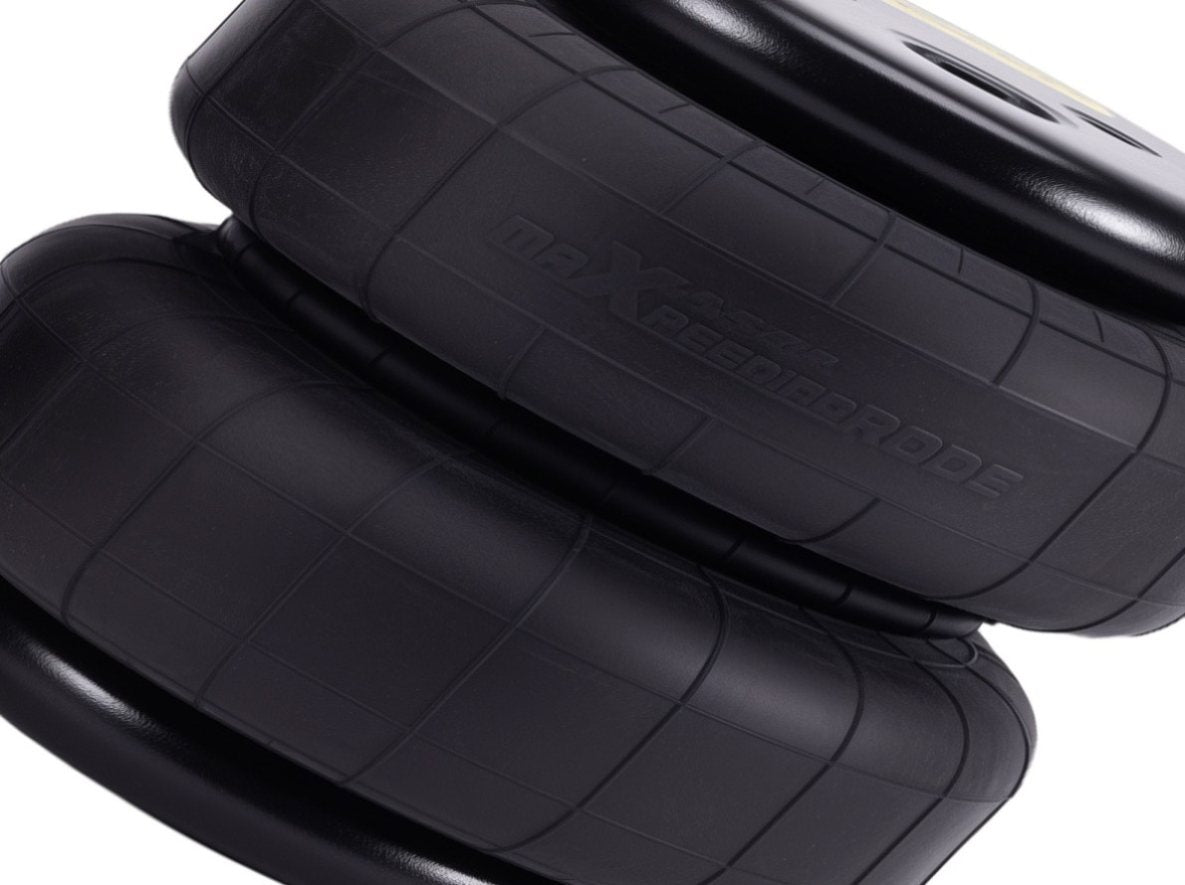

• Heavy duty double convoluted crimped

Application:

fit for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two 2500 Air spring Bags & Rear Air spring Bag Mounts;
fit for Ford F150/F250, fit for GMC Sierra；
fit for Chevrolet Silverado;
fit for Dodge Ram 1500 2500 3500, etc;
fit for Most Pickup Trucks, Hotrod, Ratrod or Classic Car with 2.75" Axle Tube.

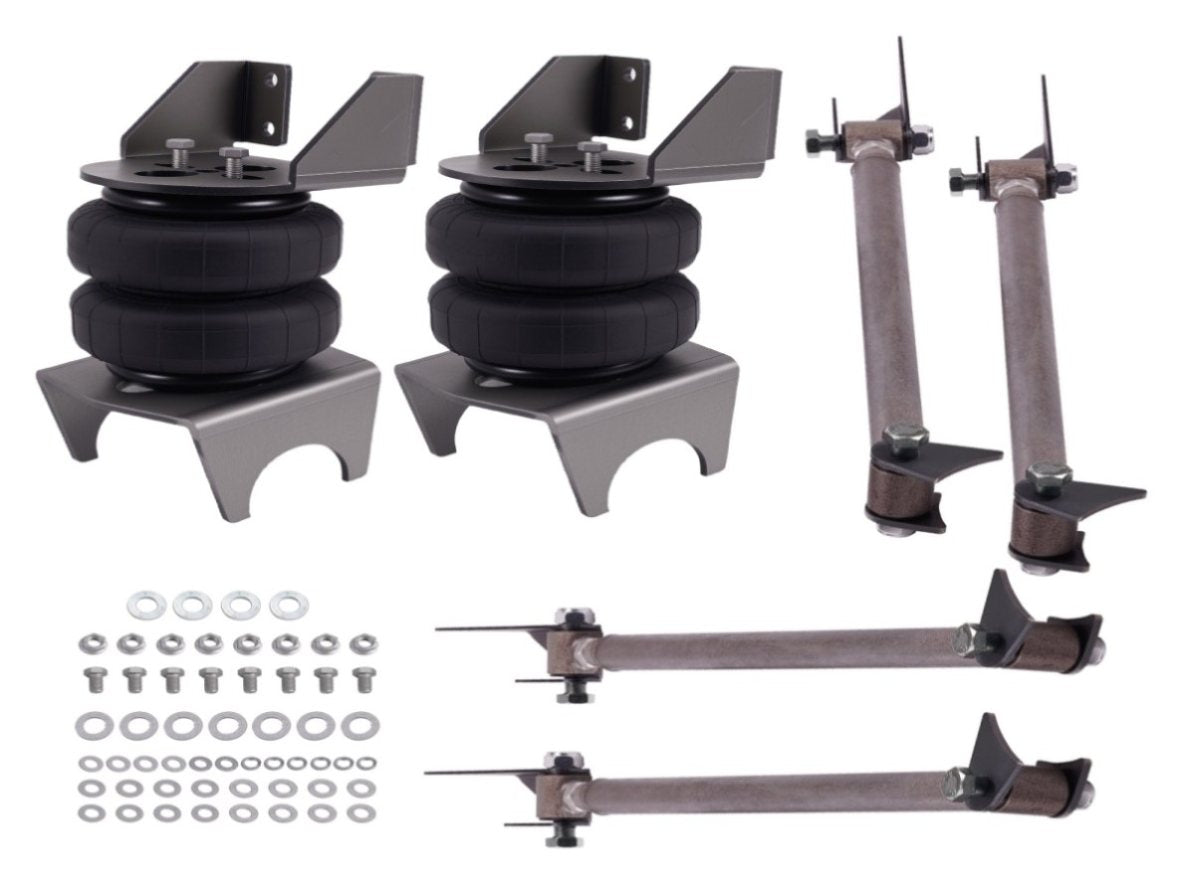

Package Includes:

4 x Heavy Duty Steel Bars
4 x Rod Ends W/ Urethane Bushings
2 x Weld-On Triangulated Frame Mounts
2 x Weld-On Lower Axle Tube Mounts
4 x Weld-On Center Link Axle Mounts
2 x Weld-On Side Frame Mounts
8 x Button Head Bolts with Nyloc Nuts

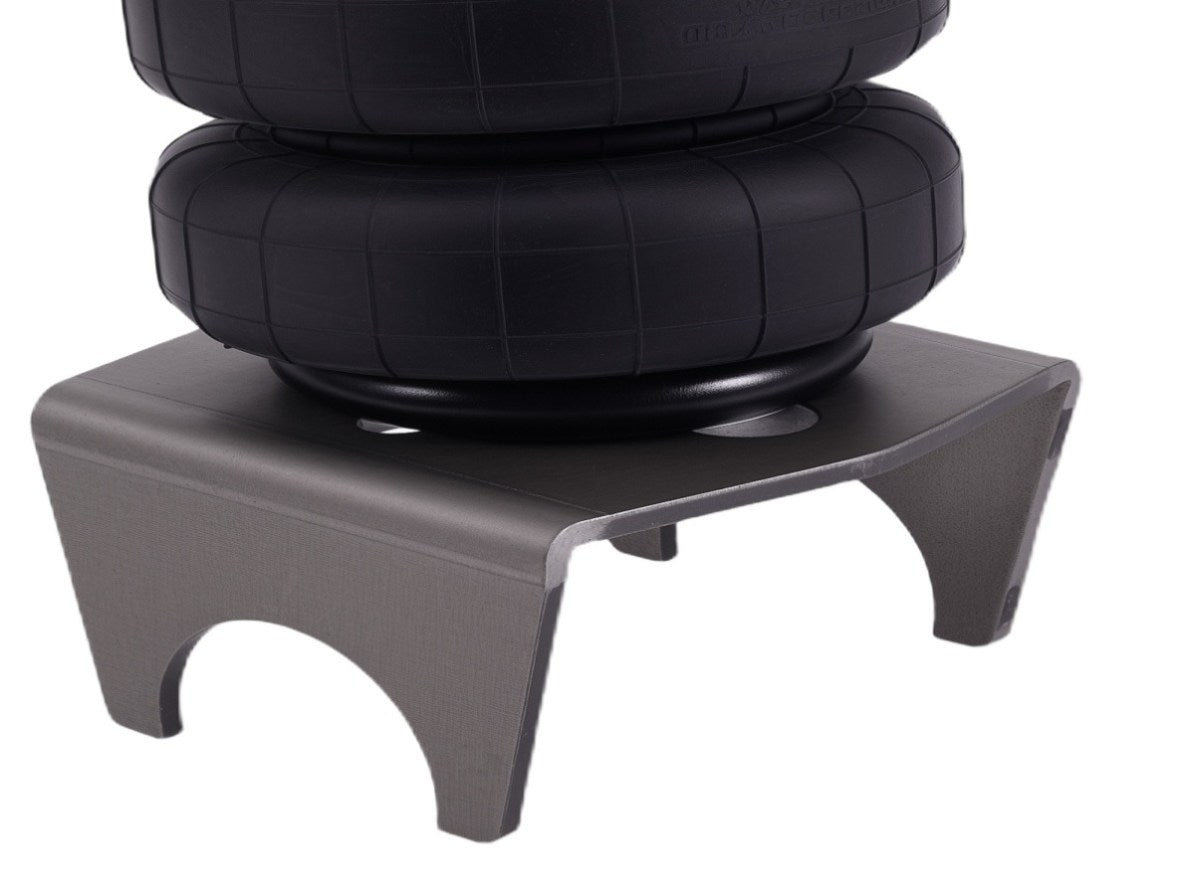

2 x Weld-On Lower Axle Bag Mount

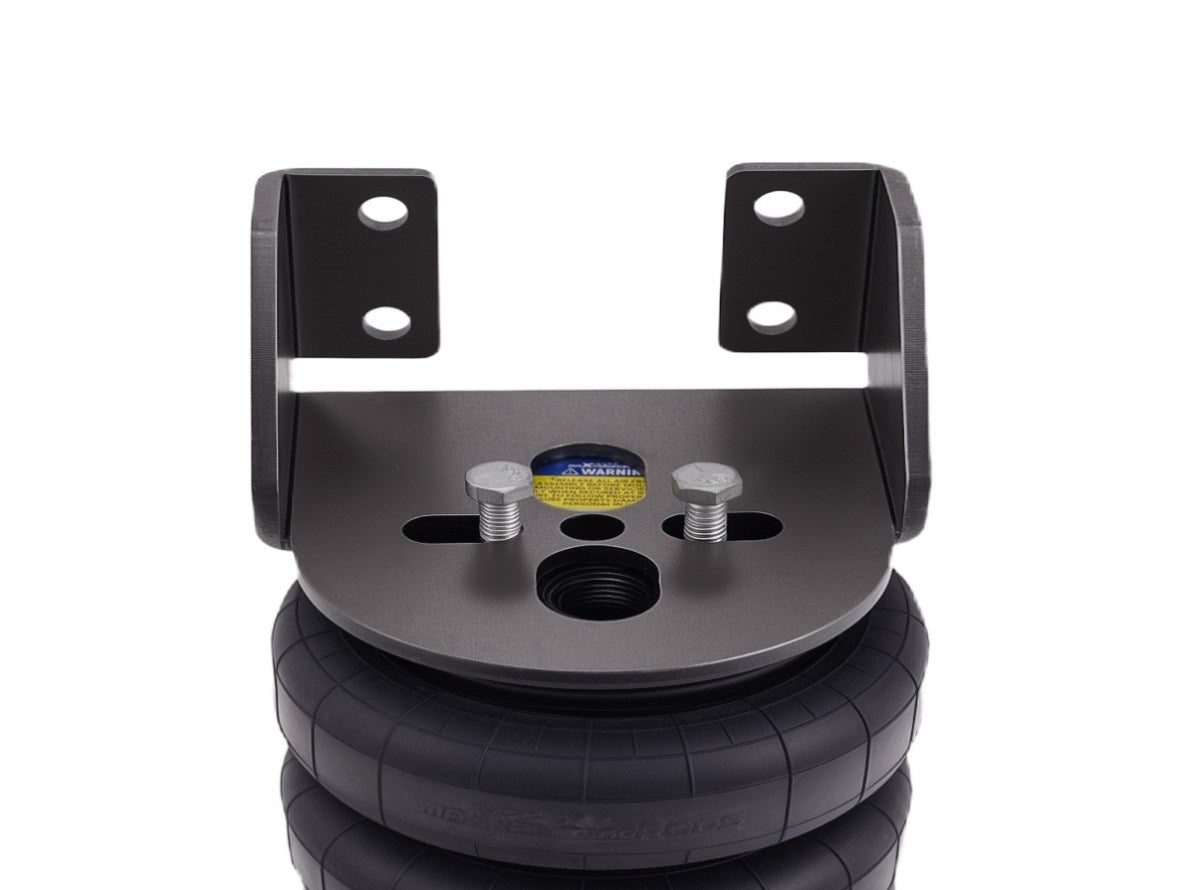

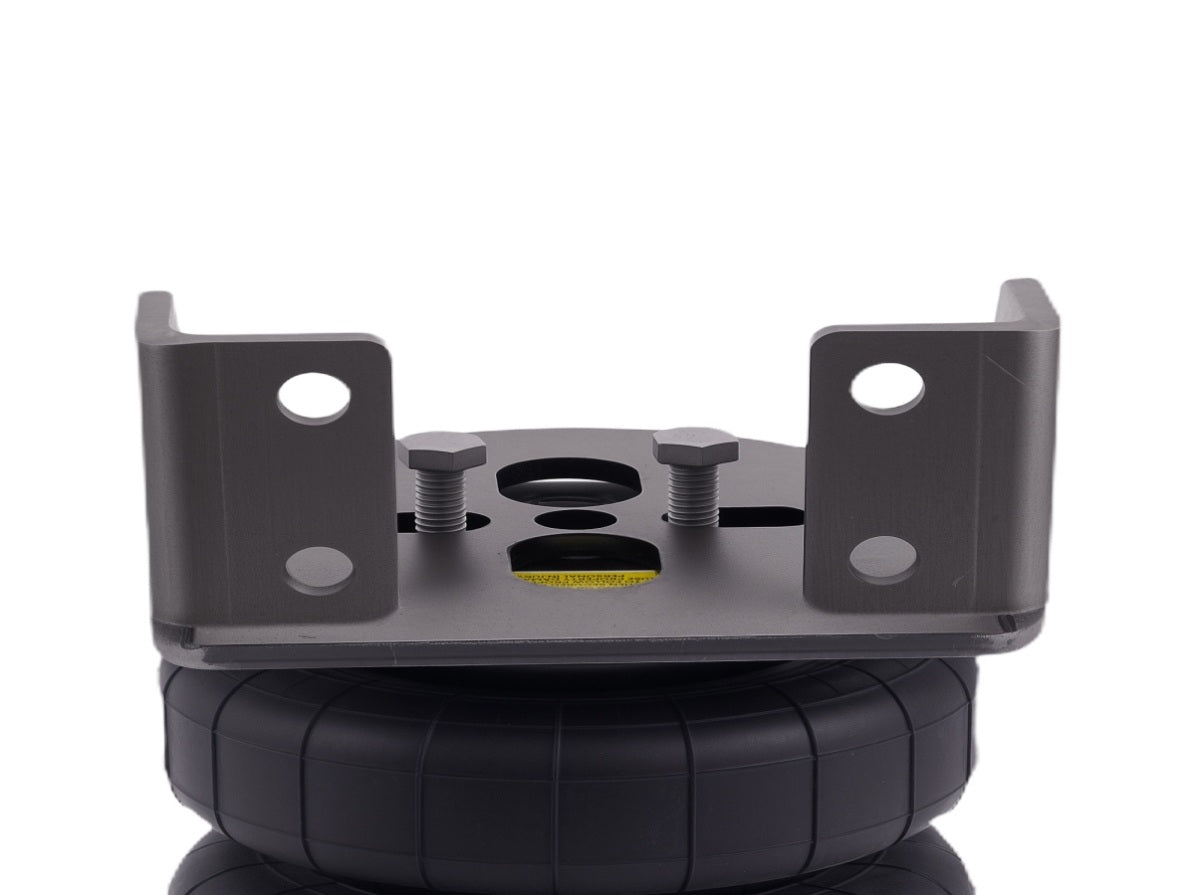

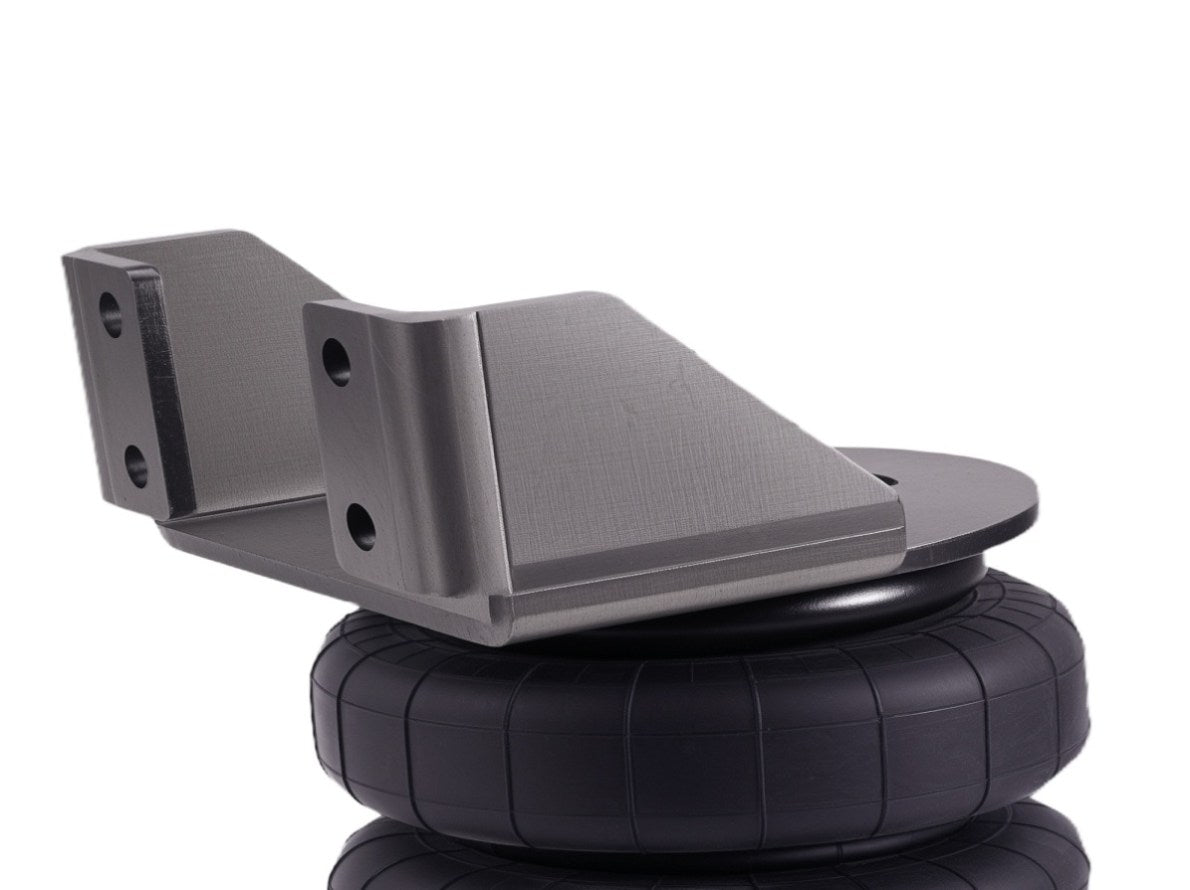

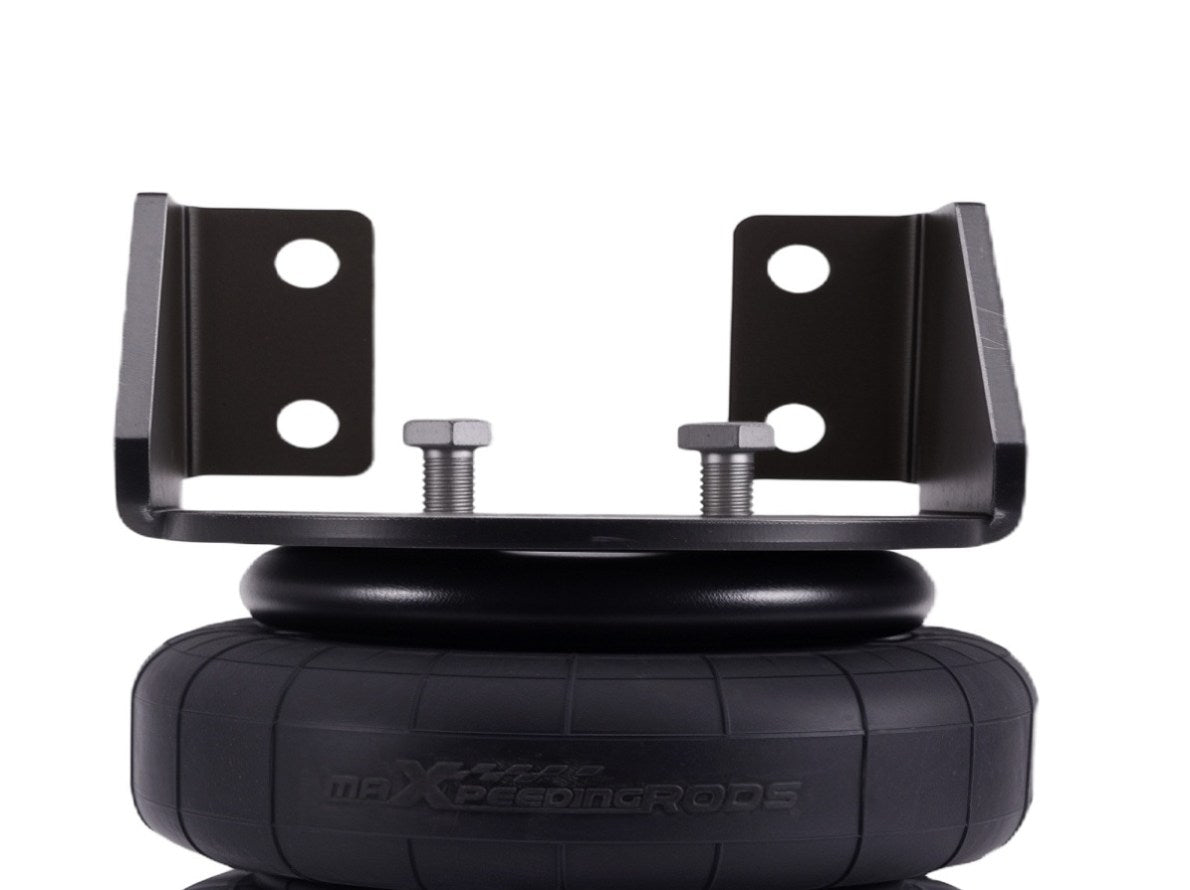

2 x Weld-On Upper Frame Bag Mount
2x Standard 2500 Single 1/2"npt Port Air Spring Bags

4 Link Bar Dimensions:
Tubing Outside Diameter: 1.25"
Tubing Thick Wall: 0.197"
All Four Bars: 24.00"
(Center To Center Adjusted All The Way In)

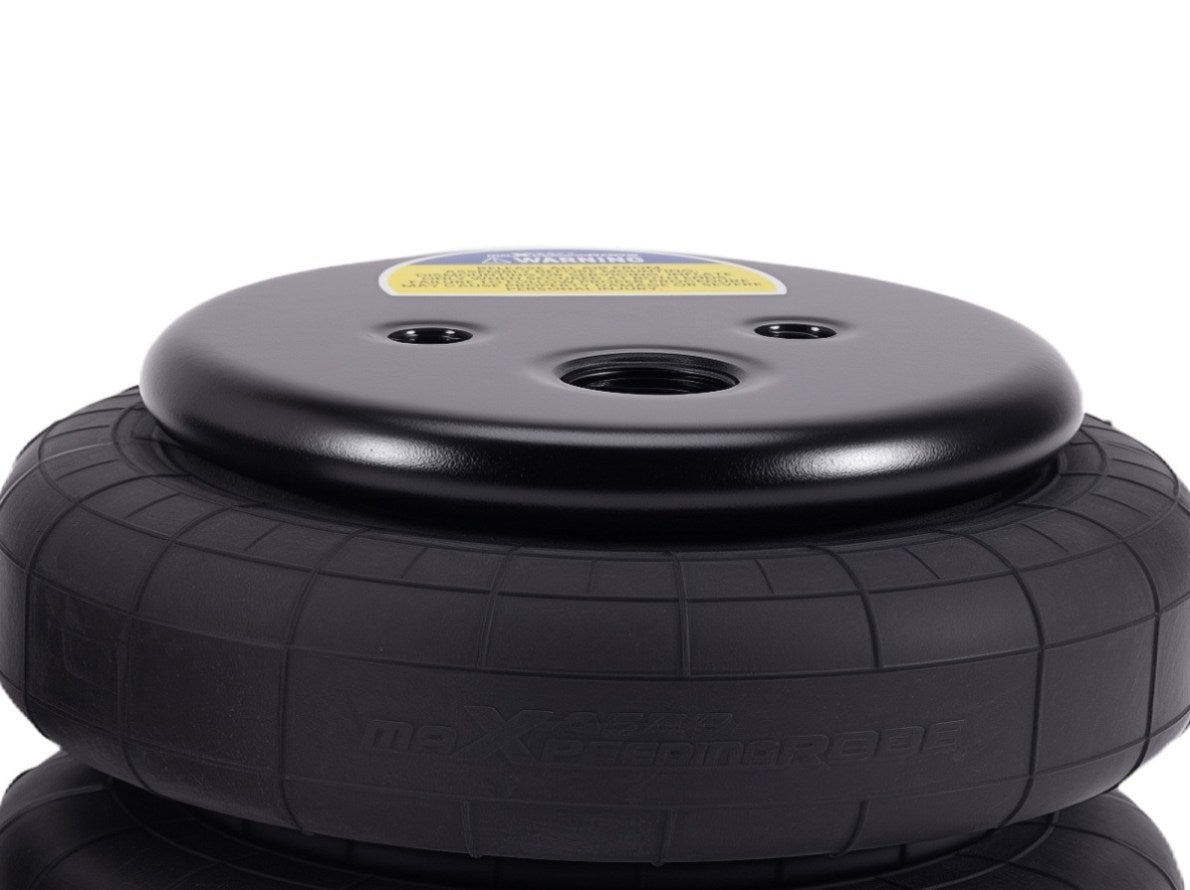

Specs of bag:
2500 LBS
Diameter: 6"
Extended: 8"
Closed: 2.75"
Hex Head Bolt A: M16*1.5*75-40
Hex Head Bolt B: M16*1.5*90-40

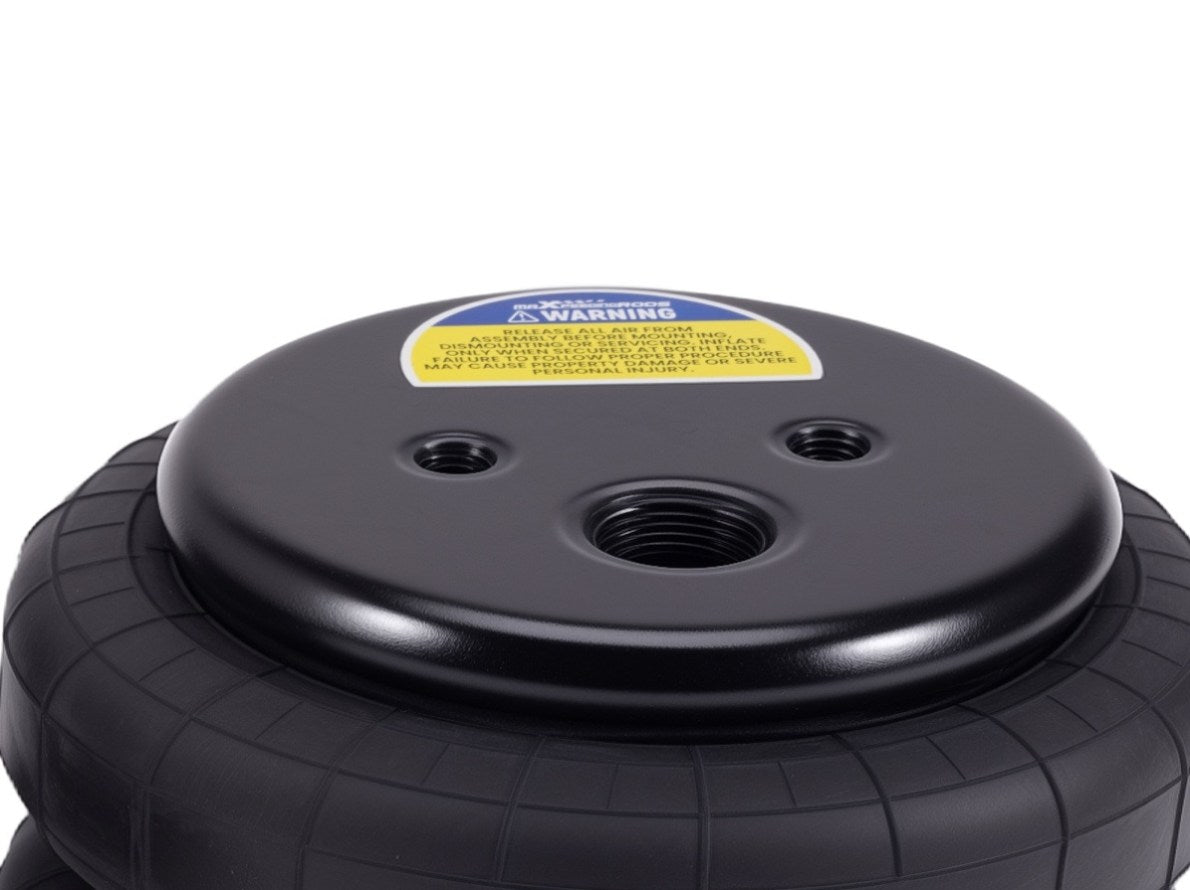

Two Top Mounting Holes: Approx 1-3/4" from Eye to Eye
Bottom has One Mounting Hole in Center
All mounting holes are 3/8"-16 UNC

Note: The rod is available in silver and black, please refer to the actual product received.

Notice:

Please feel free to contact fit for whatever we can help!
Instructions are Included
We Recommend Professional Installation
