Turbocharger Fit for Suzuki ALTO Works with YA1, F6AT Engine VZ21/ 13900-62D51 57856786

OEM NUmber:

1390062D51,1390062D50, 13900-62D50,13900-62D511390062D51, 1390062D50,

13900-62D50,VA110069VB110069, VC110069, VD110069, VE110069VF110069,

VI110069, VJ110069, VH110069, VG110069

Part Number: VZ21, 13900-62D51

Application

fit for Small engine snowmobiles

FIT For Rhino Quads Motorcycle ATV 500-600ccm  100HP

Fit for Suzuki ALTO Works with YA1, F6AT Engine

Fit for Generac with 21R707-0011-G1 Engine

Fit for Suzuki  ALTO Works with 21R707-0011-G1 Engine

Turbo Model：RHB31

Specific:

Engine : YA1, F6AT,

Fit for Isuzu 4TNA, 21R707-0011-G1 Engine Cooled

Type: water and oil cooled

Bearing Type: Journal Bearing

Thrust Bearings: 360 Degrees

Fit for : 500 cc to about 1000cc

Internal-wastegate: 15psi

Horse Power: 23-100HP

Compressor Exducer: 37.1mm

Compressor Inducer: 24.2 mm

Compressor Trim: 42.5

Compressor A/R: 0.7Turbine Inducer: 35mmTurbine Exducerr:26.7mm

Turbine Trim: 58.2

Turbo Type: Individual

Universal Fitment: Yes

Finish: No

Package Size:26x 25 x 23 cm

Package Weight: 3400g

Condition:   100% Brand NEW & Factory Balanced

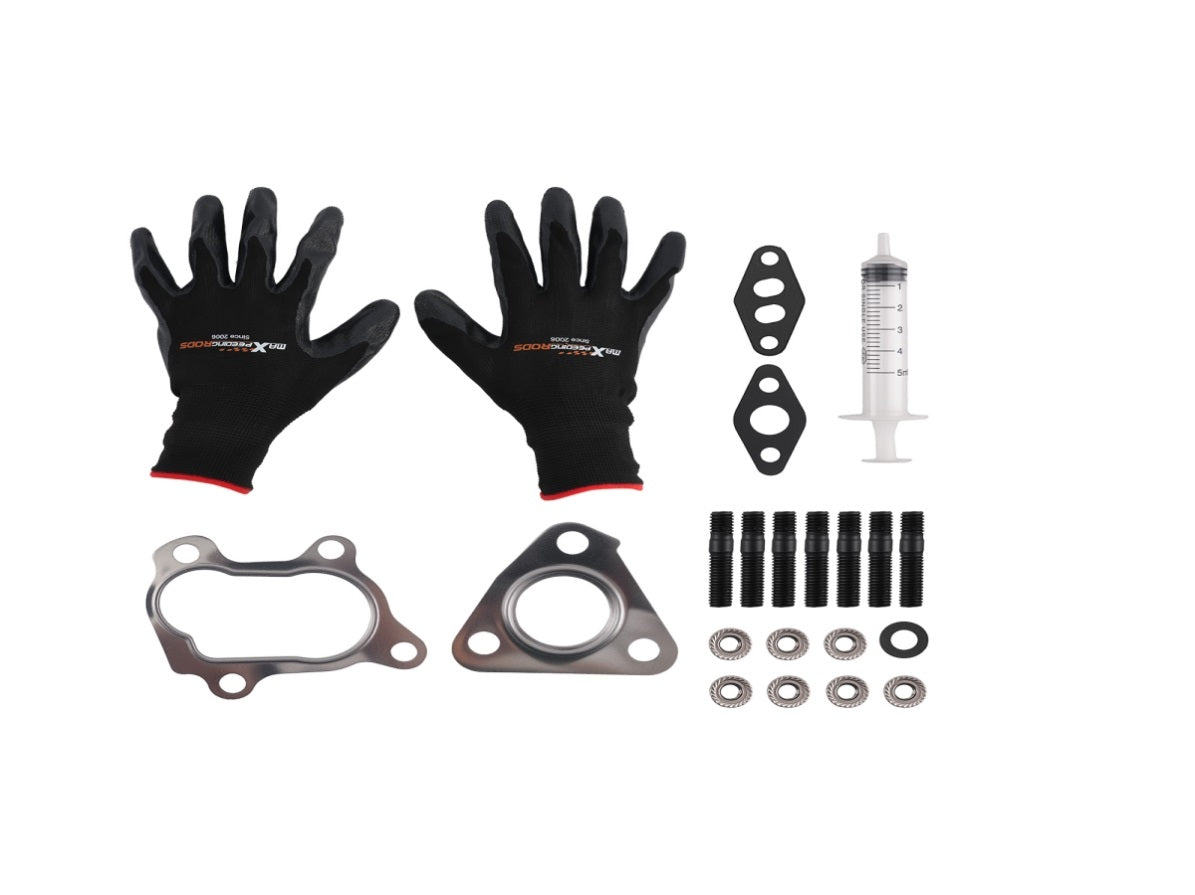

Accessories:   You will get exactly as shown in the picture above

* Please confirm your old turbo part number matches up with one of the part numbers above.

* Professional installation is highly recommended (No Instruction Included)

* It is for repairing or rebuilding the complete turbo.*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
