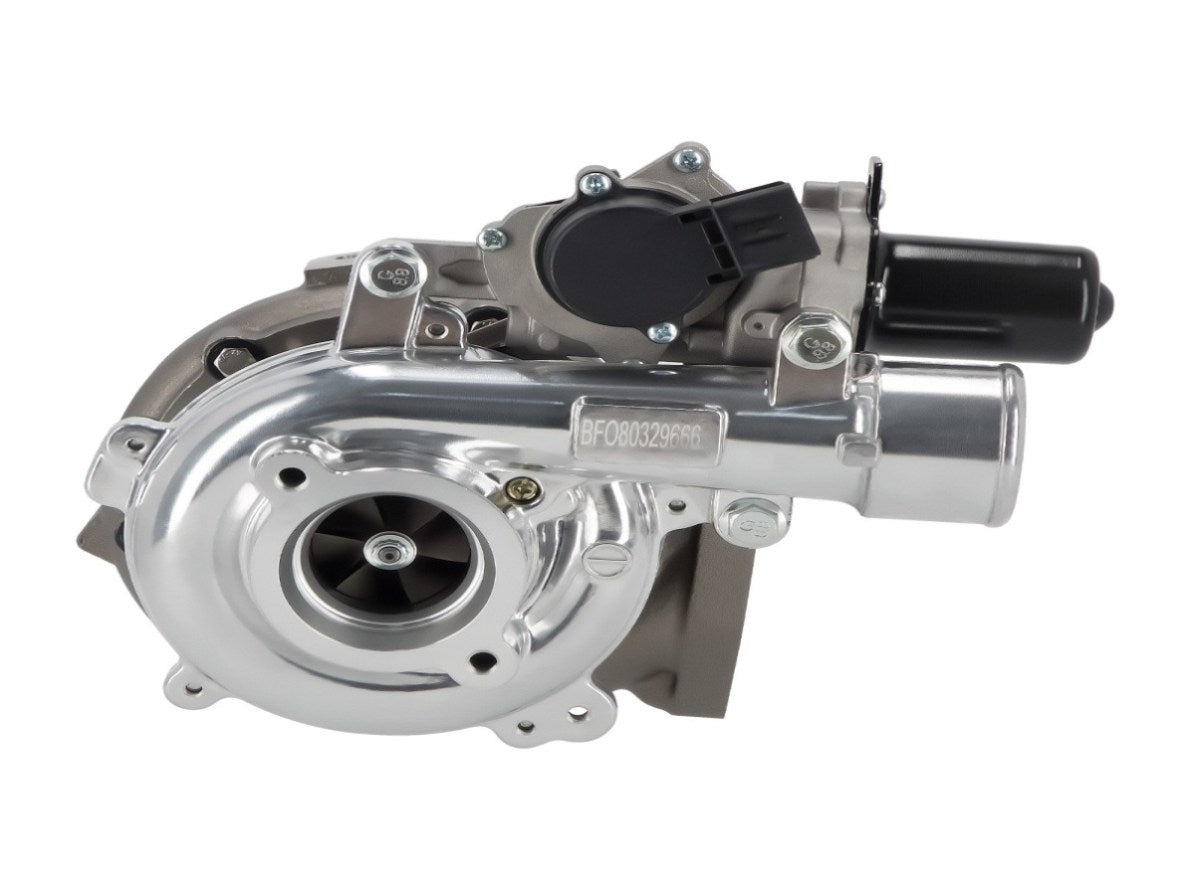

Turbo Turbocharger fit for Toyota Hiace 1KD-FTV D4-D3.0LD 171HP 2007- 17201-30110 53993097

Applications:

fit for Toyota Land Cruiser 1KD-FTV D4D, 3.0L, 126kW/171HP  2005-
fit for Toyota Hilux 1KD-FTV D4D, 3.0L, 126kW/171HP 2005-
fit for Toyota SW4 1KD-FTV D4D, 3.0L, 126kW/171HP 2005-

Turbo Model: CT16V
Engine Code: 1KD-FTV

Part Number:

17201-30110, 1720130110, 17201 30110,
17201-0L040, 172010L040, 17201 0L040,
17201-OL040, 17201OL040, 17201 OL040,

Specification:

Turbo Model:  CT16V
Engine: 1KD-FTV
Cooling Type:  Oil+Water Cooled
Bearing Type:  Journal Bearing / Floating Bearing
Trust bearings: 270 Degrees
Hosepower:  Up to 170HP
Compressor: 2 Bolt Inlet Flange
Turbine: 3 Bolt Inlet/Outlet Flange
Compressor Wheel: 6/6 blades
Turbine Wheel: 11 blades

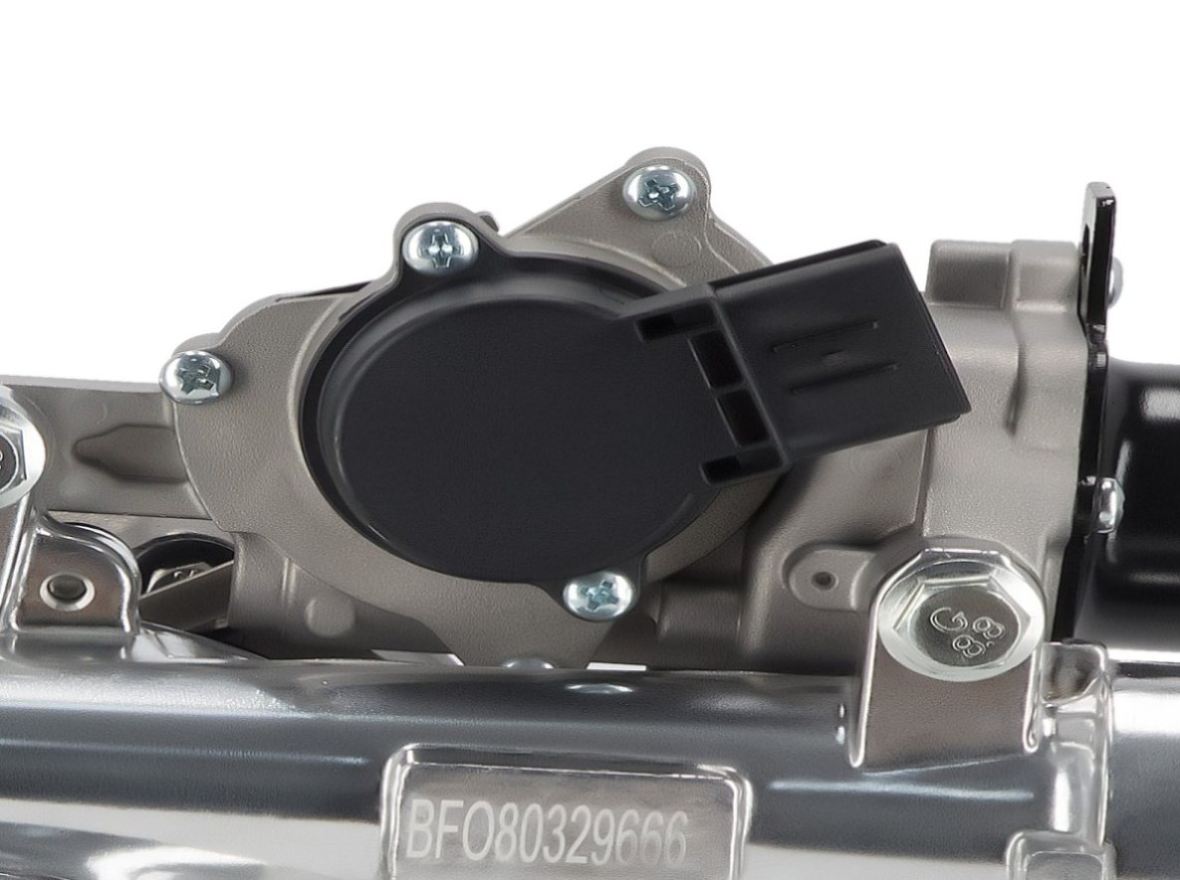

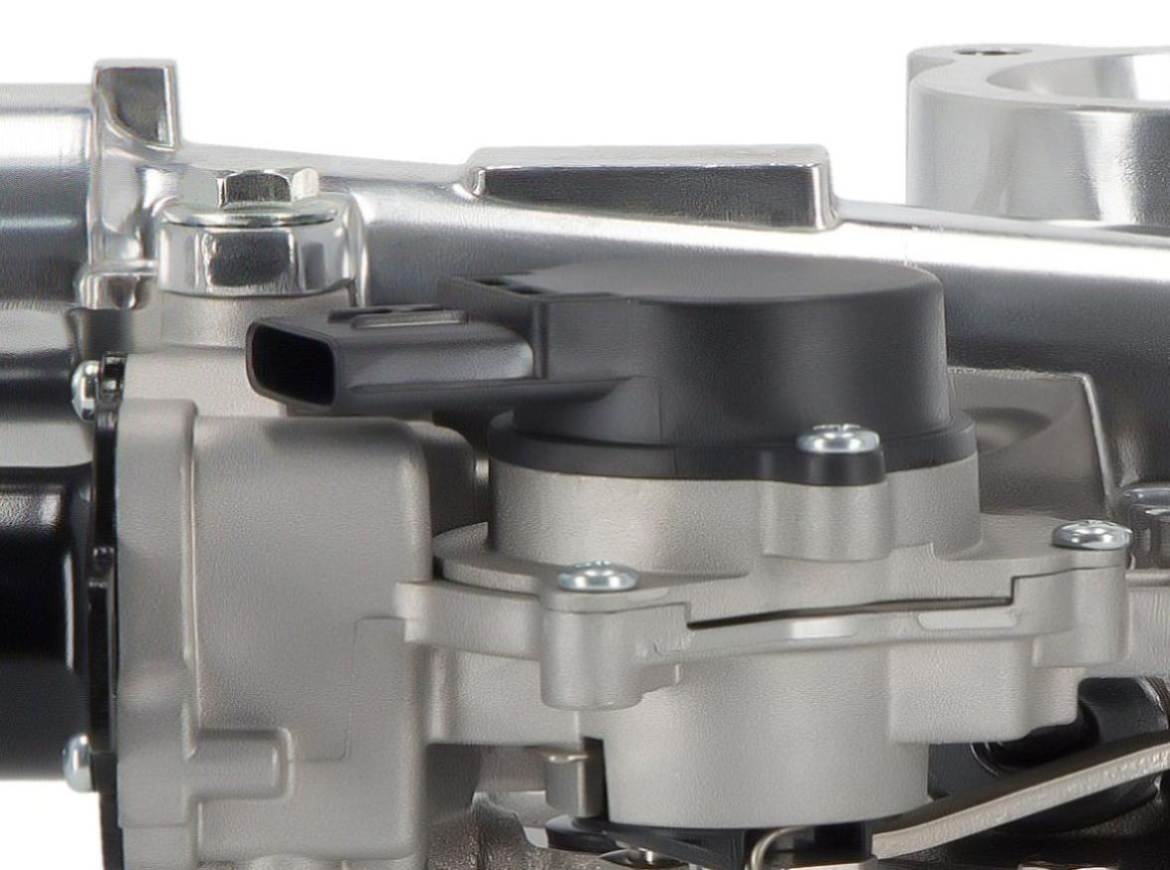

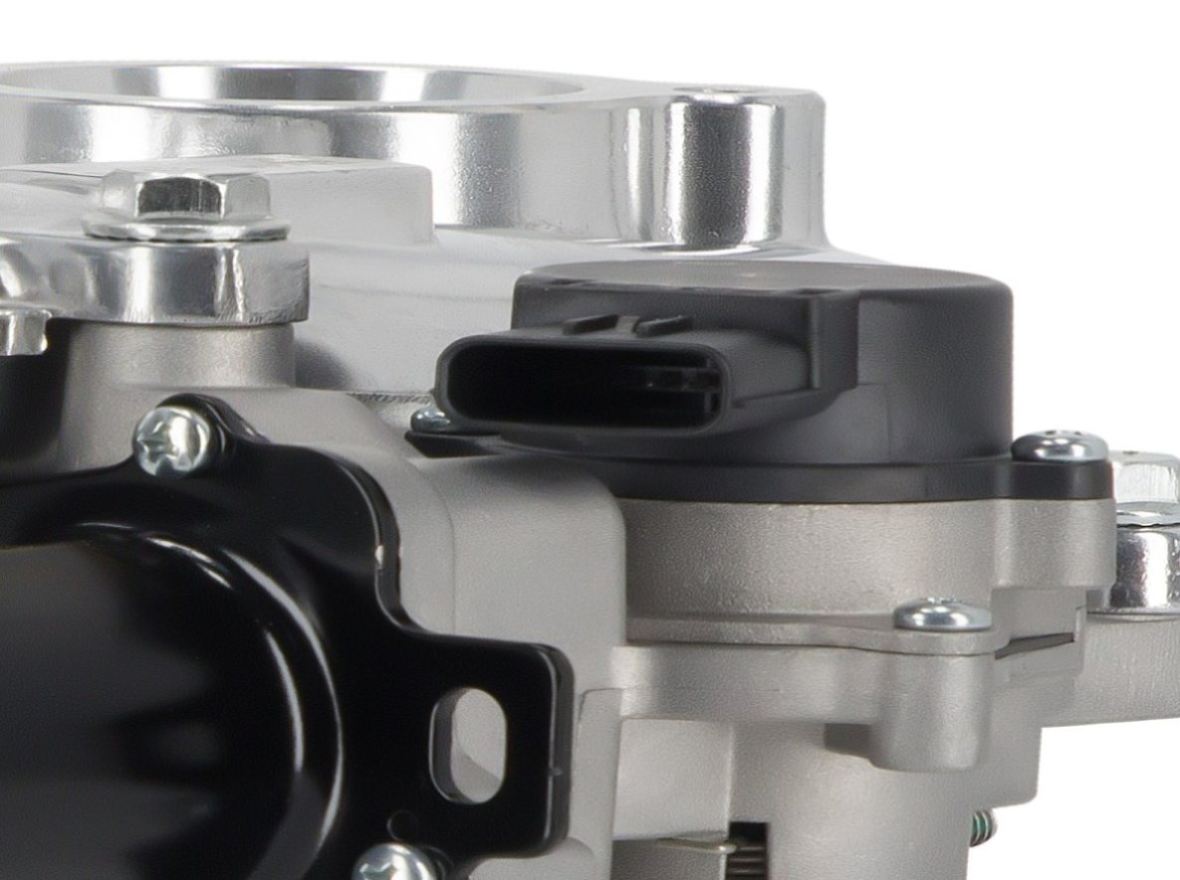

Actuator Type: Electronic Actuator Included
Turbo Type: Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New
Accessories: You will receive the parts exactly as shown in the picture above.
Package Size: 29x 27 x 24 cm
Package Weight: 8350g

Our Product Feature

Product Material：

1. Turbine housing: Ductile iron QT450-10 shell with high-temperature resistance up to 700 degrees Celsius
2. Steel Turbine Wheel：Made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900 degrees Celsius
3. Compressor housing：ZL104 aluminum with lightweight
4. compressor wheel/blades：Cast aluminium with good gas tightness and corrosion resistance

Product  Features：

1. OEM-quality and size with little modification
2. Rich Experience In Turbo Production And Own Factory
3. Quality Assurance
4. High-Speed Oil Seal Ring
5. Strict Quality Inspection
6. Precision Clearance
7. High-speed Accessories VNT Turbo are flow tested to ensure the critical minimum-flow stop is at the correct setting before your turbo leaves our workshop.

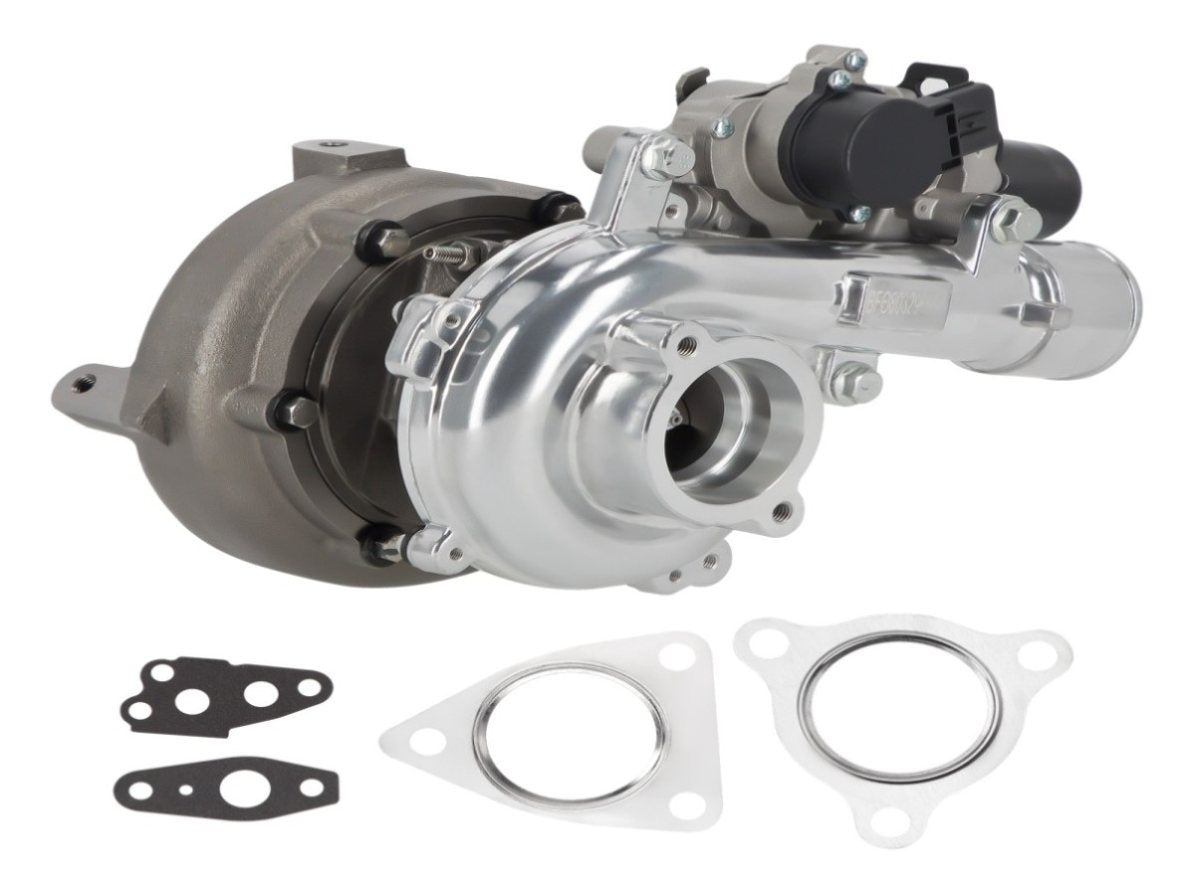

8. All necessary gaskets included fit for ease of installation

NOTE:
*Please check the Turbo Model, Turbo Part Number and OEM Part Number on your original Turbo to make sure this turbo is the right one fit for your engine. If you are not sure about these information, Please feel free to contact us
*Professional installation is highly recommended (No Instruction Included)
