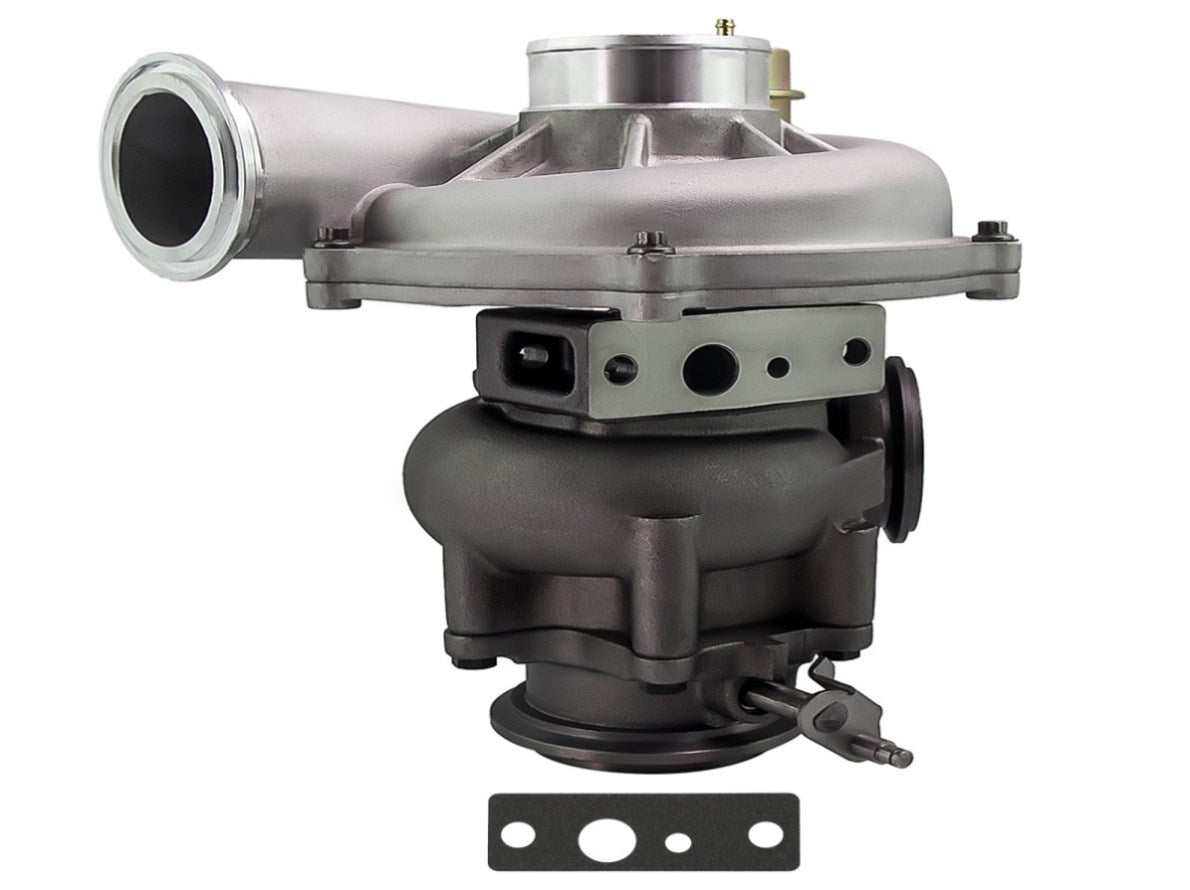

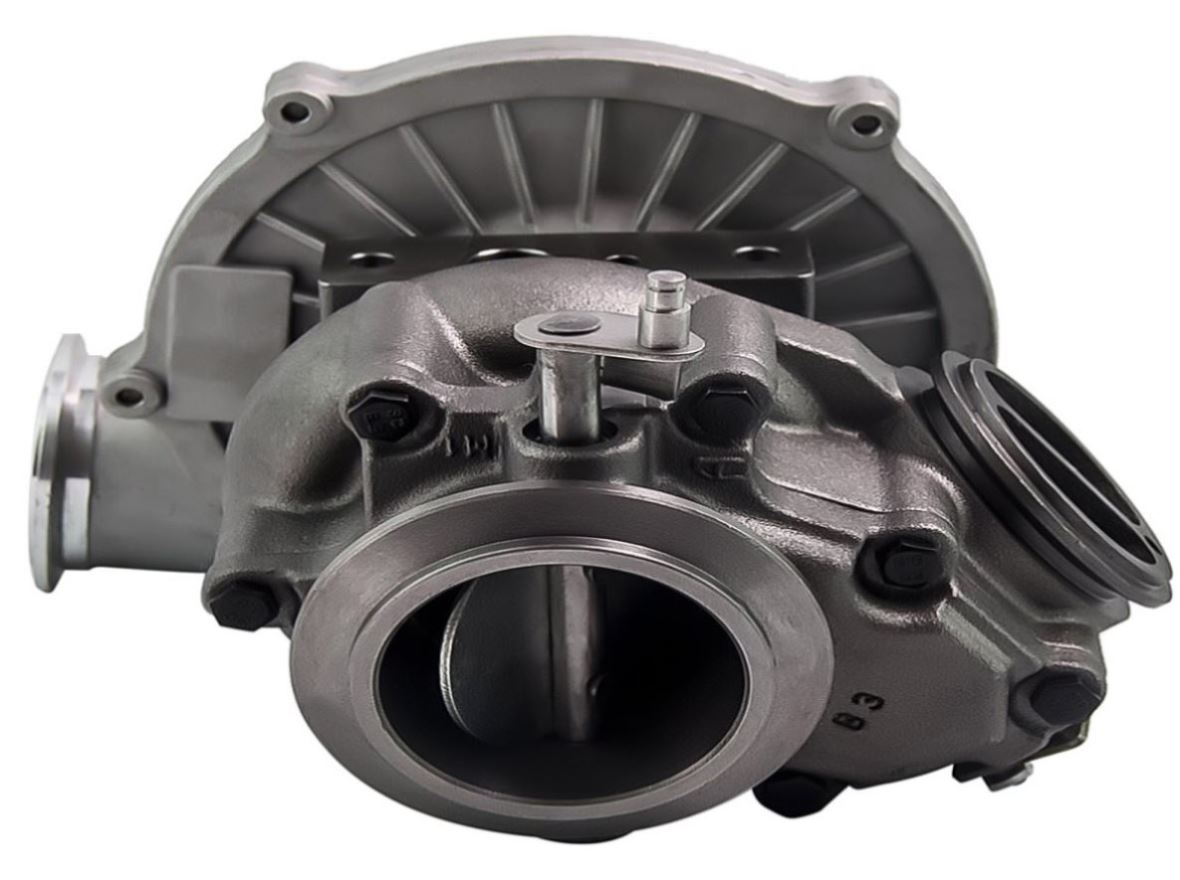

Turbo Turbocharger fit for Ford F250 F350 F450 7.3L Powerstroke Diesel 1999-2003 GTP38 36124178
Fit for:
fit for Ford Excursion 7.3L Powerstroke Diesel Engine 2000-2003
fit for Ford F Series Trucks 7.3L Powerstroke Diesel Engine 1999.5-2003
fit for Ford Pick-up Truck 7.3L Powerstroke Diesel Engine 1999.5-2003
Note!!!!!
* Our turbo only fits for Late models.
* 1999 Model Identification
* Early 1999 Models: V8 Powerstroke Fender Badge and 4 Bolts Securing the Compressor Housing.
* Late 1999 Models: Powerstroke Badges on Doors and 5 Bolts Securing the Compressor Housing.
Turbo model: GTP38
Engine Model: Power-stroke
Interchange Part Number:
GTP38, 1831383C92, 702012-9006,7020129006
F81Z6K682CARM ,
1831383C93, 1831383C94, 7020120010, 702012-0010,
1831450C91, 1831450C94, 1831452C91, 1831660C92,
7020120005, 702012-0005, 7020120006, 702012-0006,
7020120012, 702012-0012, 7020125012S, 702012-5012S,
7064475003, 706447-5003, 7064479003, 706447-9003,
Specification:

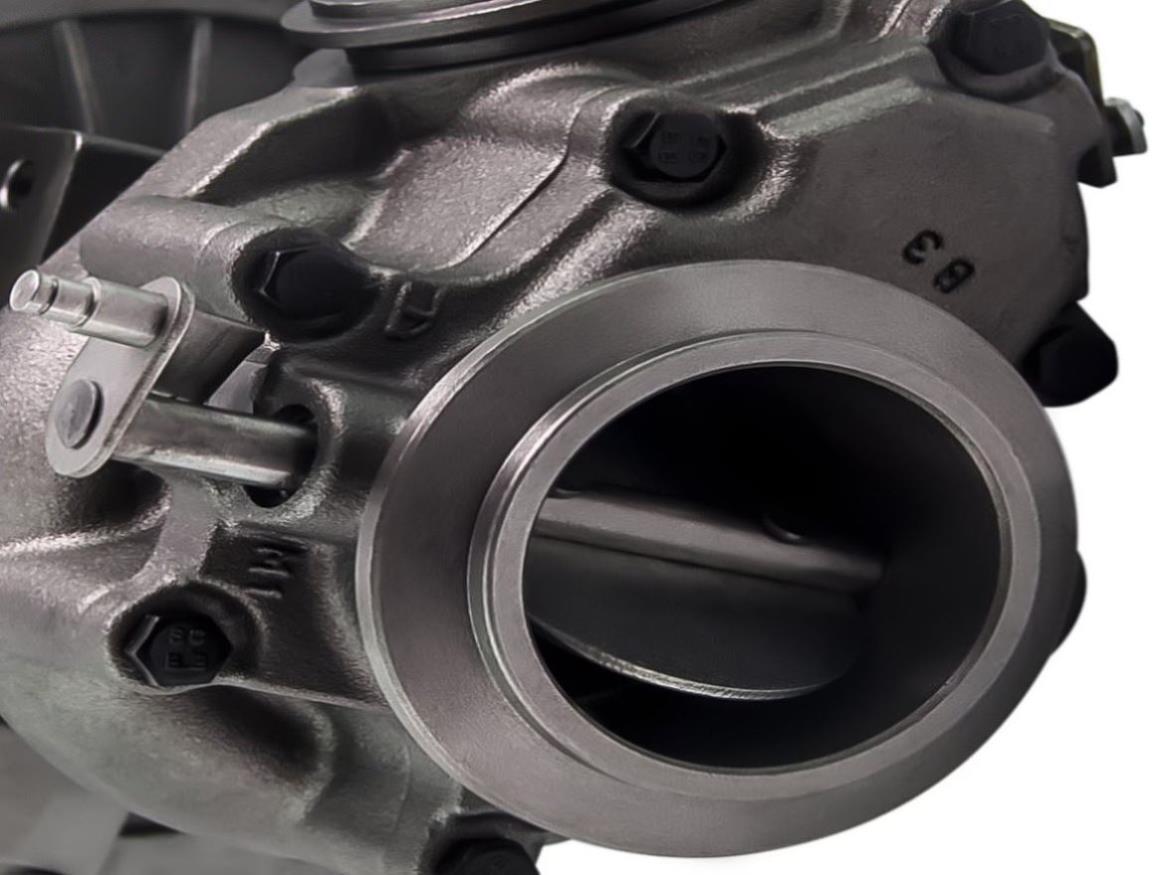

Turbine:
Turbine Wheel Diameter:76.9mm / 67.7mm
Turbine Trim: 77.5

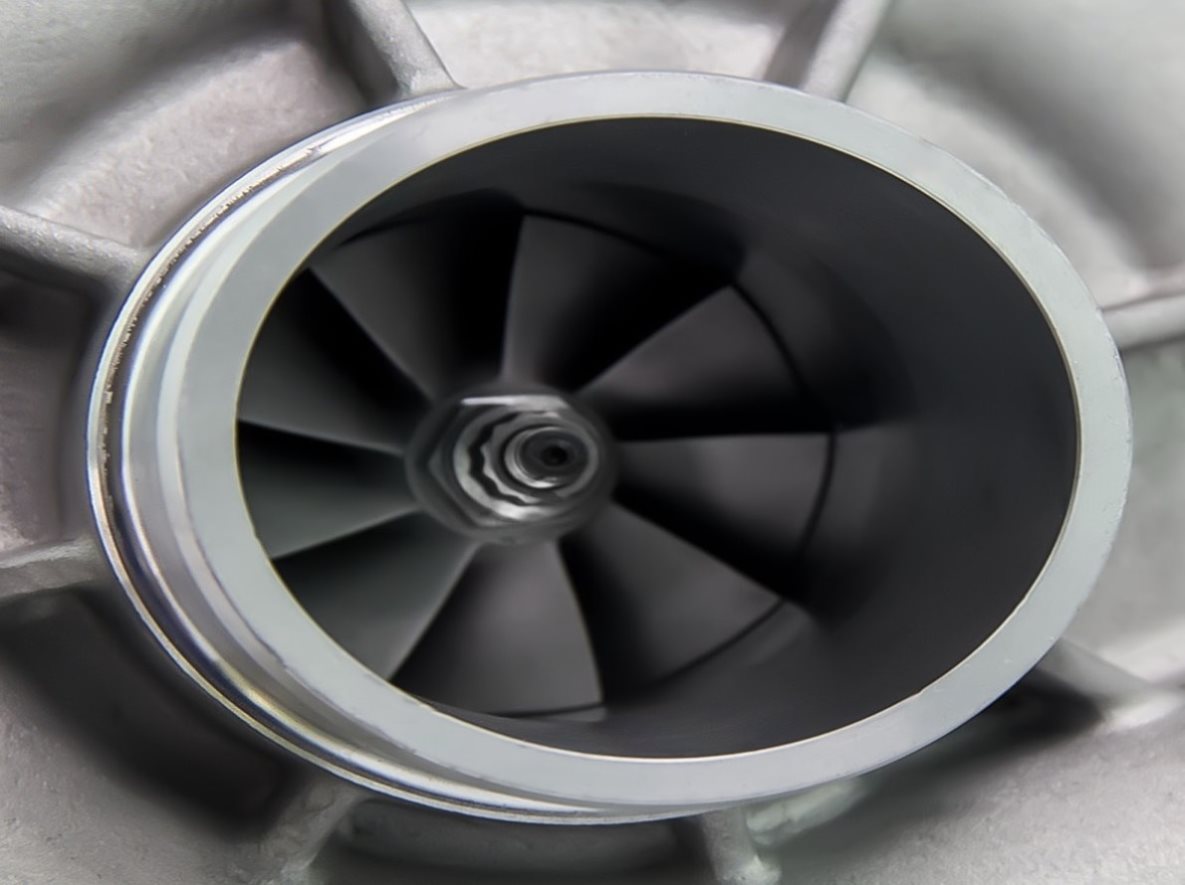

Compressor:
Compressor Wheel Diameter:80mm / 59.3mm
Compressor Trim:54.9
Turbo Model: GTP38
Engine Code: 7.3L
Cooling Type: Oil cooling
Bearing Type: Floating Bearing
Thrust Bearing: 270 degree
Turbo Type: Twin-Scroll
Horsepower: Up to 275 HP
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New
Accessories: You will get exactly as shown in the picture above
Package Size:38x36 x 34 cm
Package Weight: 15850g
Features
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
NOTE:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Friendly Suggestions
The following situation indicate the turbo failure:
1. Black Exhaust Smoke
2. Excessive Engine Oil Consumption
3. Blue Exhaust Smoke
4. Turbo Noisy
5. Cyclic sound from turbo
6. Oil Leak from compressor seal
7. Oil Leak from turbine seal
Our product would not come with the instruction of installation, highly suggest you find professional mechanic to help you install it, here are somecheck list before installation.
1. Replace oil supply lines and fittings. These lines often become plugged with decomposed oil which restricts oil flow and drainage.
2. Do not used silicone or thread tape
3. Make sure all openings to turbo are open and not plug or capped off.
4. Shut off fuel or disable ignition and crank the engine for at least 15 seconds or until oil pressure is raised
5. Allow engine to fast idle (1,000 RPM) for 3 - 5 minutes to for Seat turbo seals
6. Always let engine idle for 3 -5 minutes before shut down, otherwise the turbo will continue to spin without oil lubrication and pressure
7.When changing oil, be sure to prime oil filter
