Turbo Charger Replacement for Subaru Impreza WRX STI EJ20 EJ25 2002-2006, TD05-20G 420HP 18717201

Part Number

TD05-20G, TD05 20G, TD0520G

Specification

Hosepower: Up to 420 HP
Bearing Type: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Turbo Model: TD05 20G
Thrust Bearing: 270 degree
Turbo Type:Individual
Finish: Matte

Exhaust Outlet Flange:5-Bolt Flange

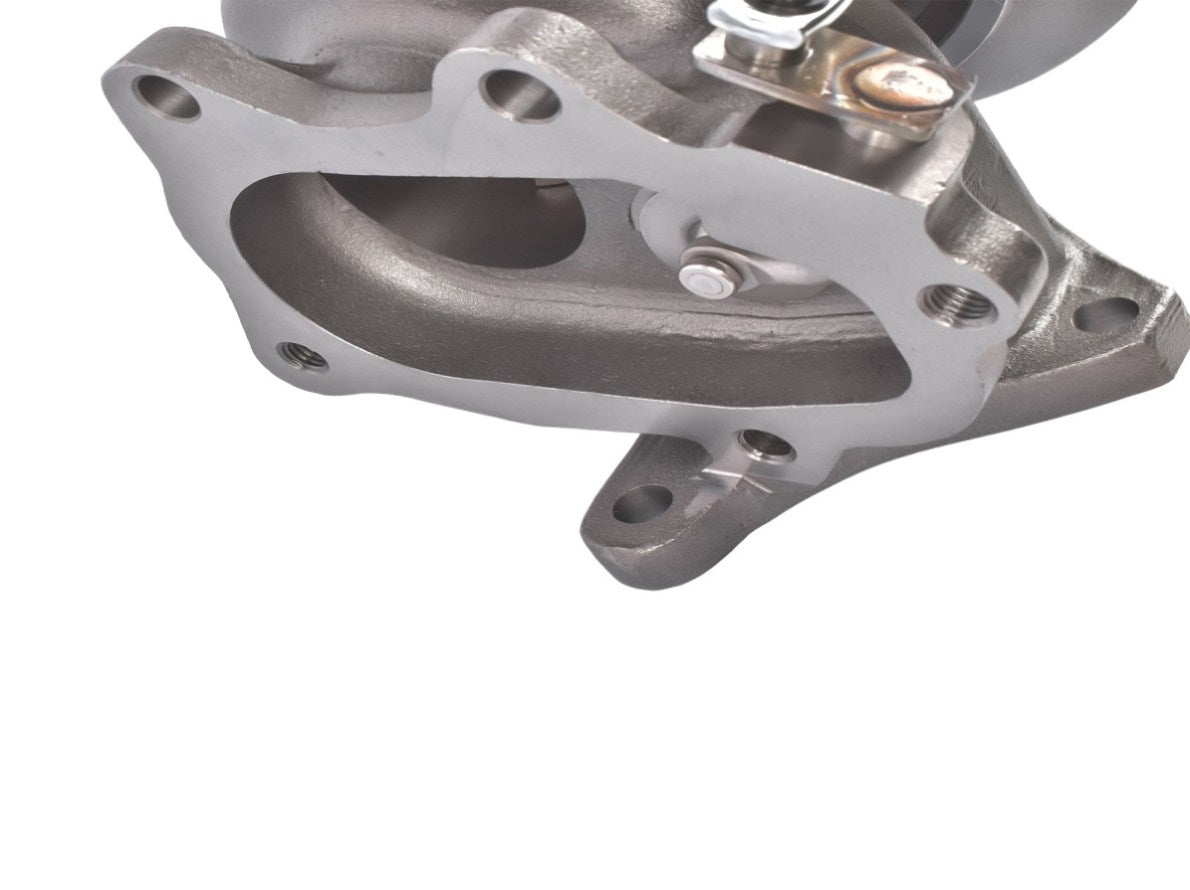

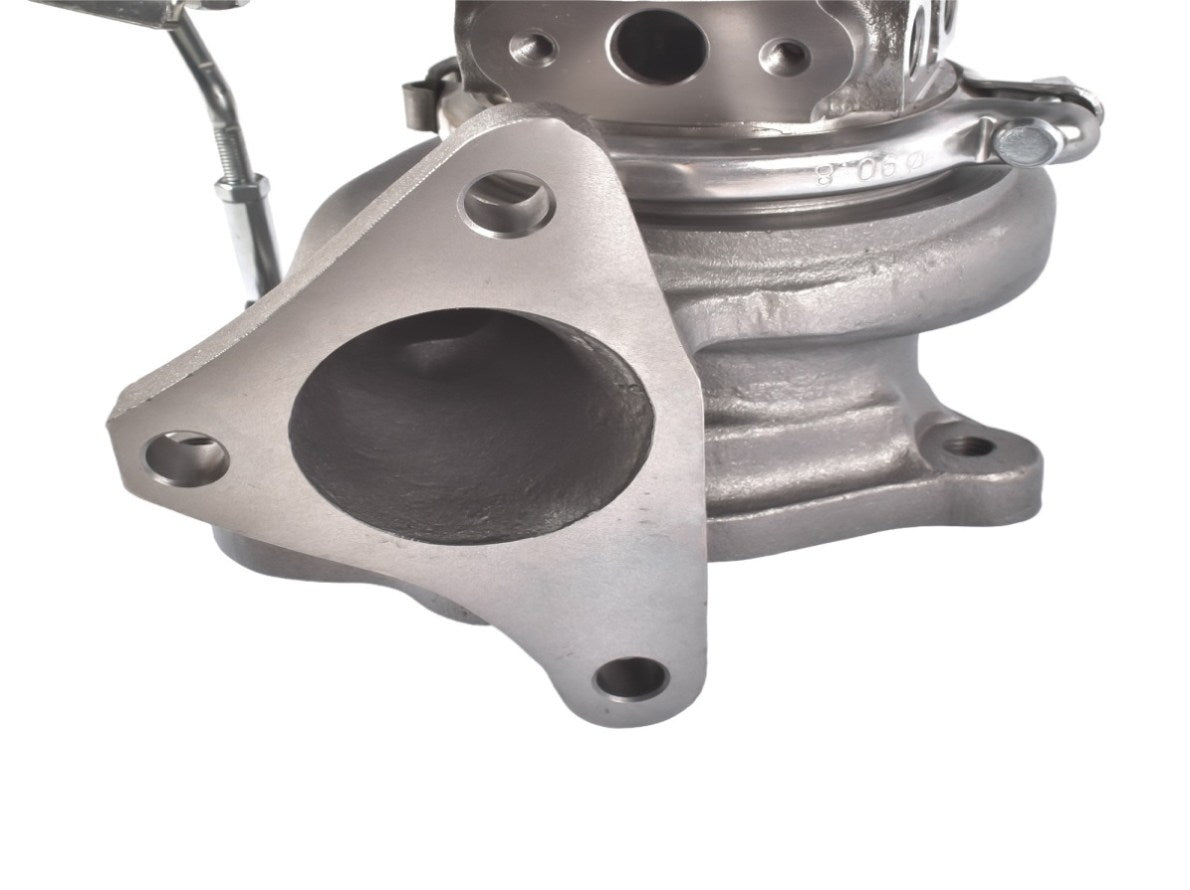

Exhaust Intlet Flange:3-Bolts Flange

Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm²
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm

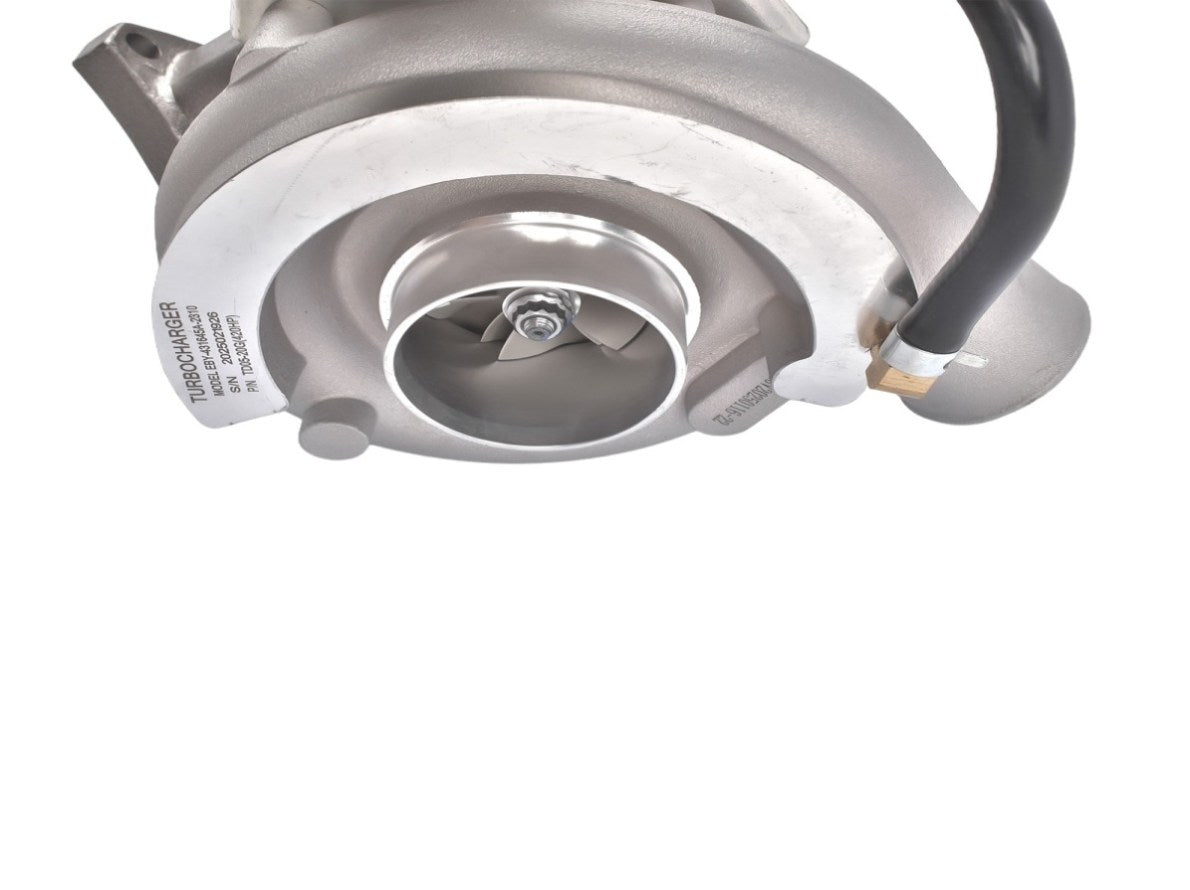

Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm
Oil Feed: M10*1.5
Oil Drain: 2*M6*1.0
Water In/Out: M14*1.5
Turbine housing: 7cm²
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Application

Fits for Subaru IMPREZA WRX / STI EJ20 EJ25 engine 2002-2006
Fits for Subaru Impreza WRX Limited Sedan 4-Door
Fits for Subaru Impreza WRX Limited Wagon 4-Door
Fits for Subaru Impreza WRX Sedan 4-Door
Fits for Subaru Impreza WRX STI Limited Sedan 4-Door
Fits for Subaru Impreza WRX STI Sedan 4-Door
Fits for Subaru Impreza WRX TR Sedan 4-Door
Fits for Subaru Impreza WRX Wagon 4-Door
Fits for 2.5L 2458CC H4 GAS DOHC Turbocharged
Fits for 2.0L 1994CC H4 GAS DOHC Turbocharged
*Notice: All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.

Features:
100% new and high quality.
Professional installation is highly recommended
All parts are inspected before shipment.

Package Include:

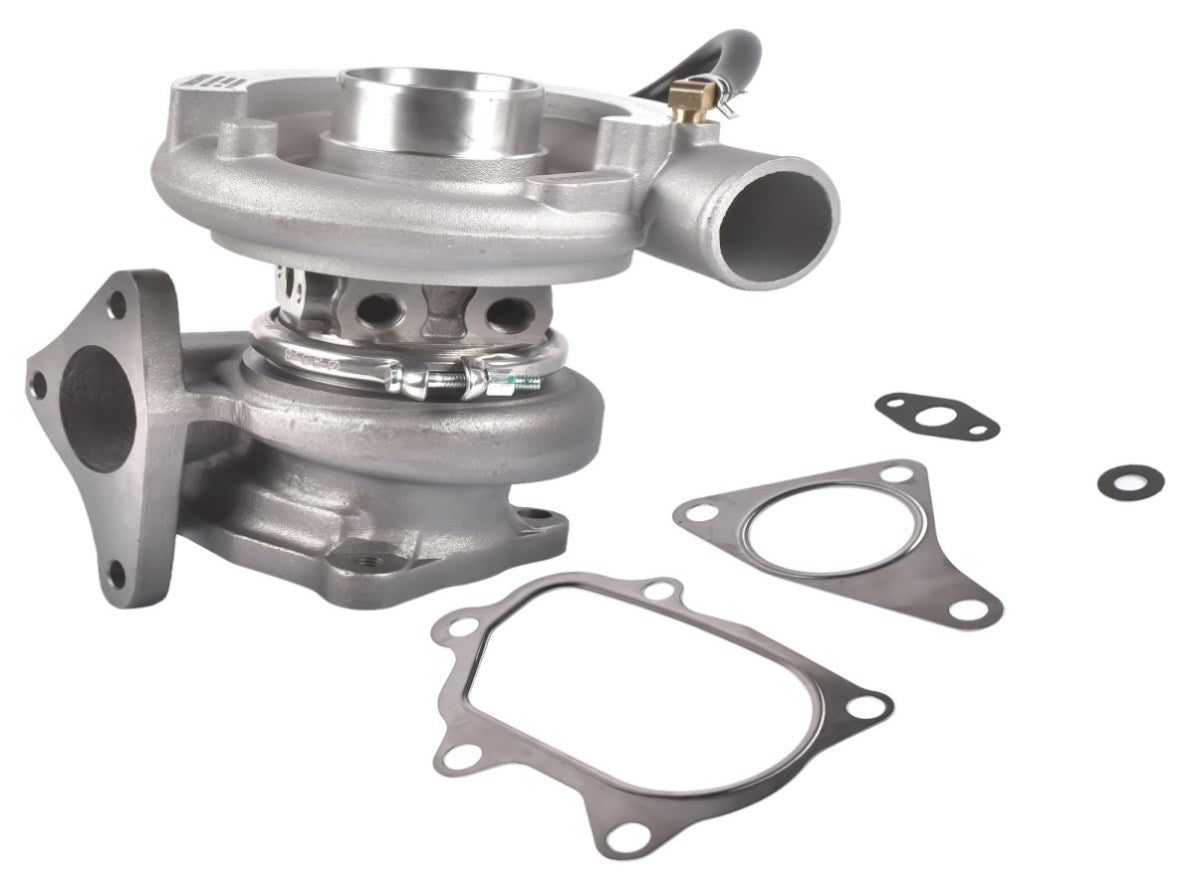

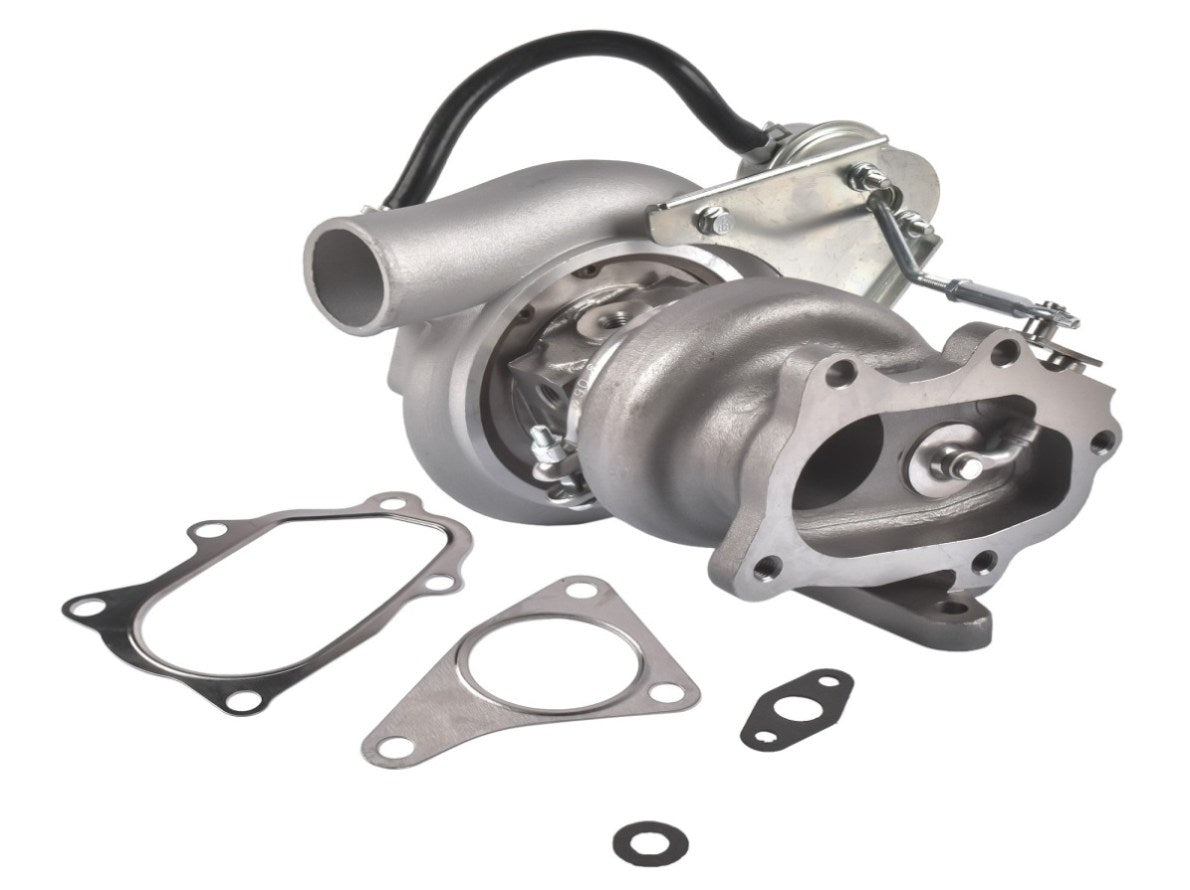

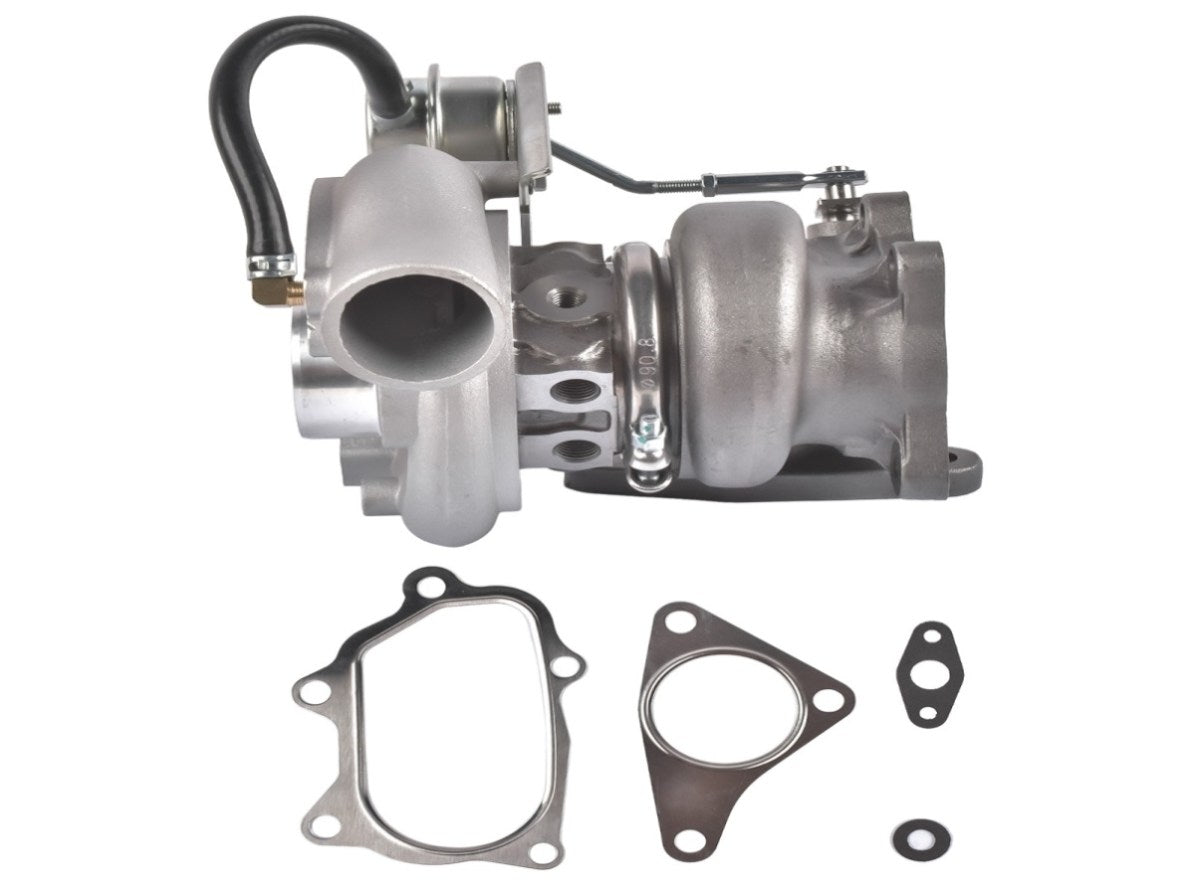

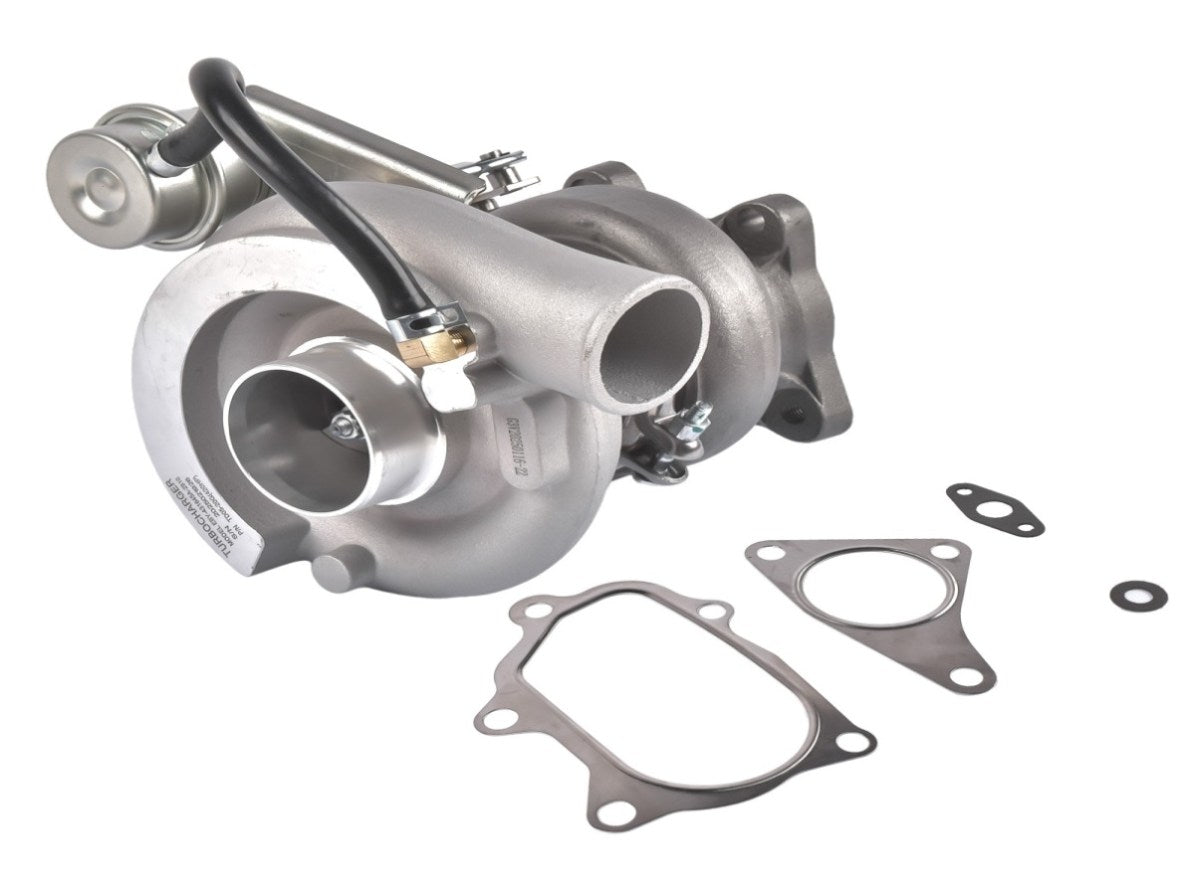

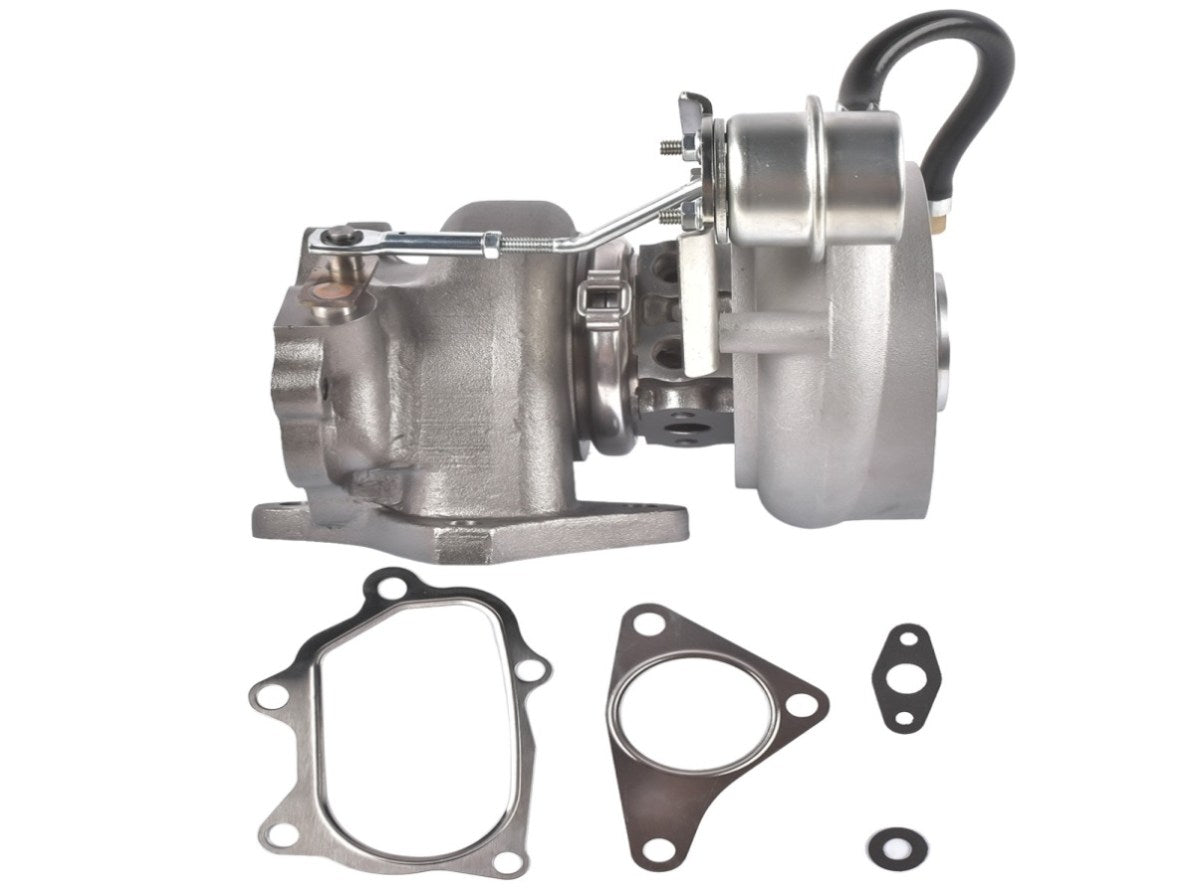

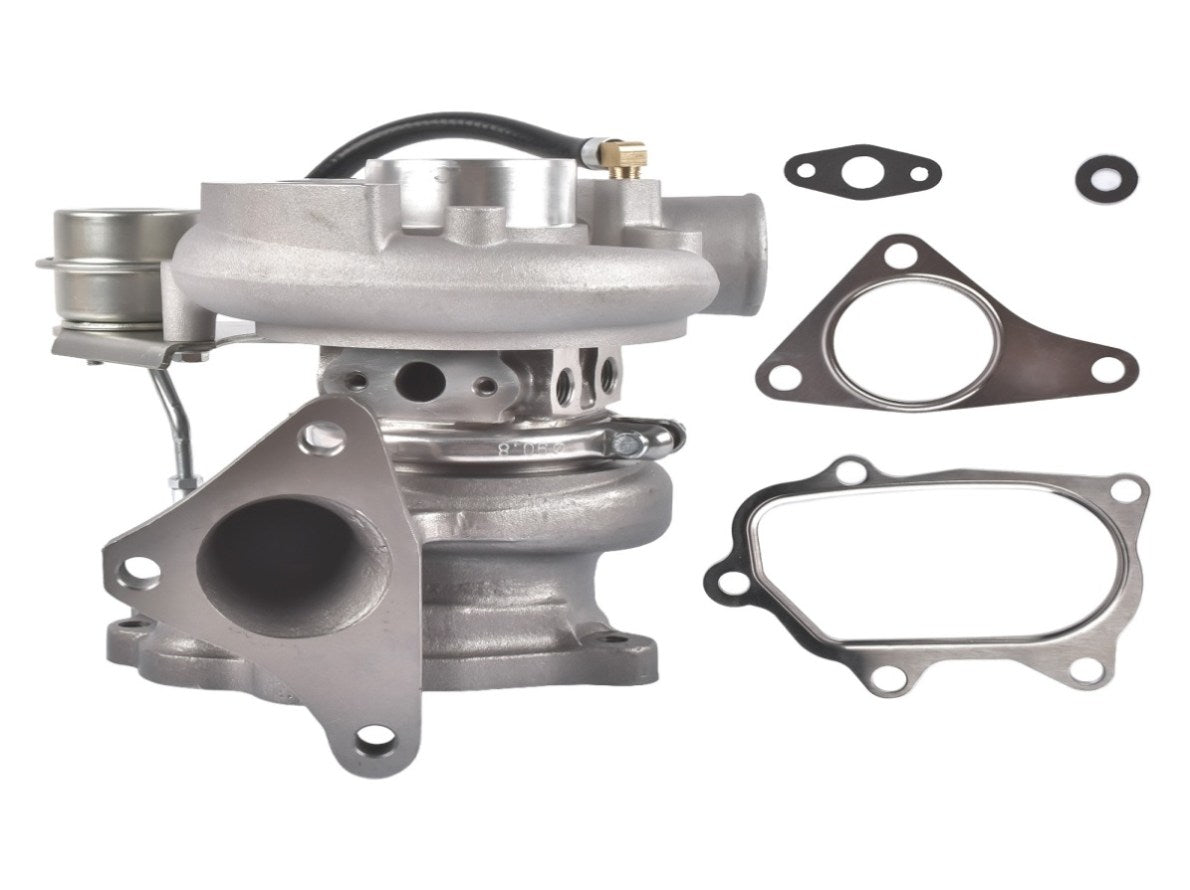

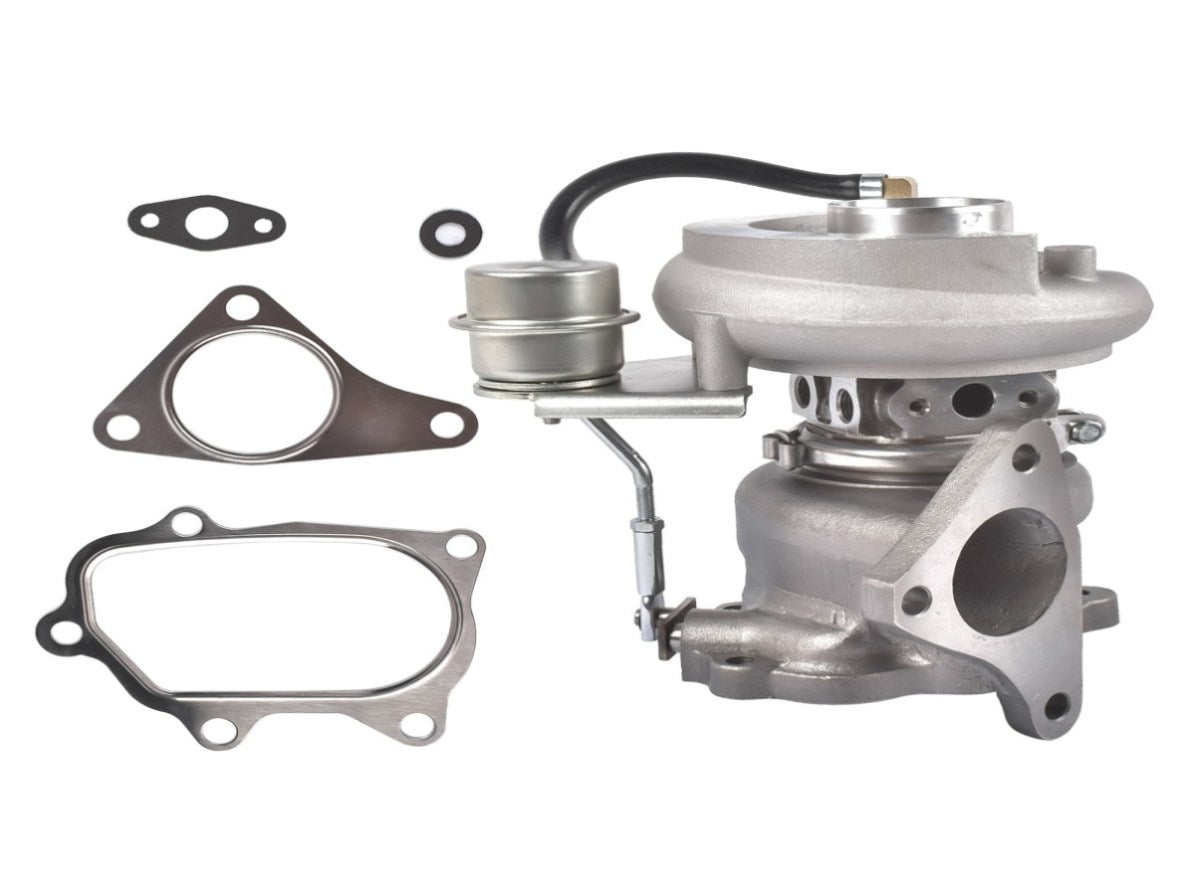

As pics shown
1x Turbocharger
