Timing Belt Water Pump Kit fit for Lexus ES300 Toyota Camry Sienna 3.0L 3.3L 94-01 92093628

OE/Part number：

Timing belt: 1356809050, 1356809080, 135680A010, 135680A011, 1356820010, 1356820020, 1356829015, 1356829025
Water Pump: 1610009070, 1610025025, 1610029085, 1610029085A, PA10124
Tensioner: 1350520010, 1350520020, 1350562050, 6006RRID, 60071, 60107
Pulley: 135030A010
Tensioner Spring: 1354020010, 1354020020, 1354020021

Specification:

Condition: 100% Brand New
Type: Timing Belt Kit
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Manufacturer Warranty: 1 Year

Timing Belt
Cog Quantity: 211
Length: 1708.15 mm / 67.25 in
Pitch: 79.50 mm / 3.13 in
Timing Mark Quantity: 4
Color: Black
Material: Rubber

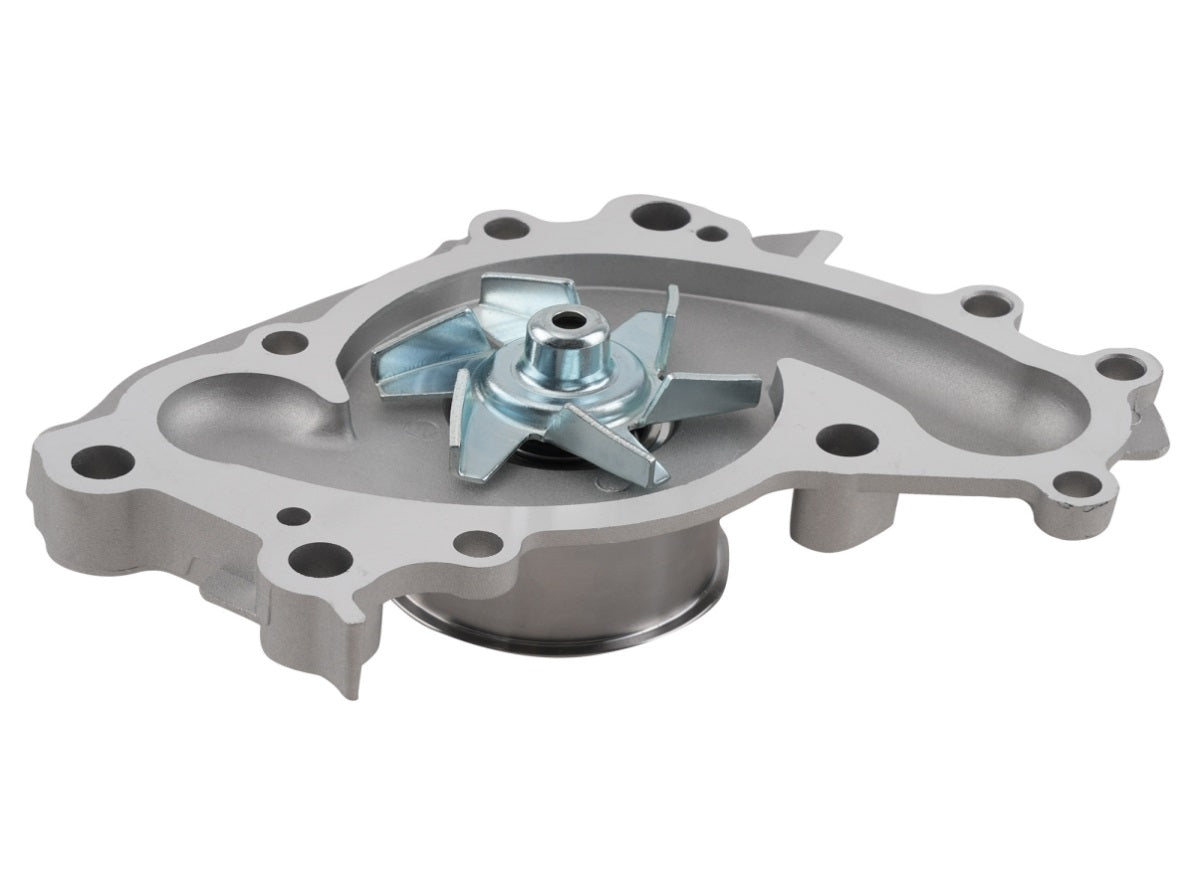

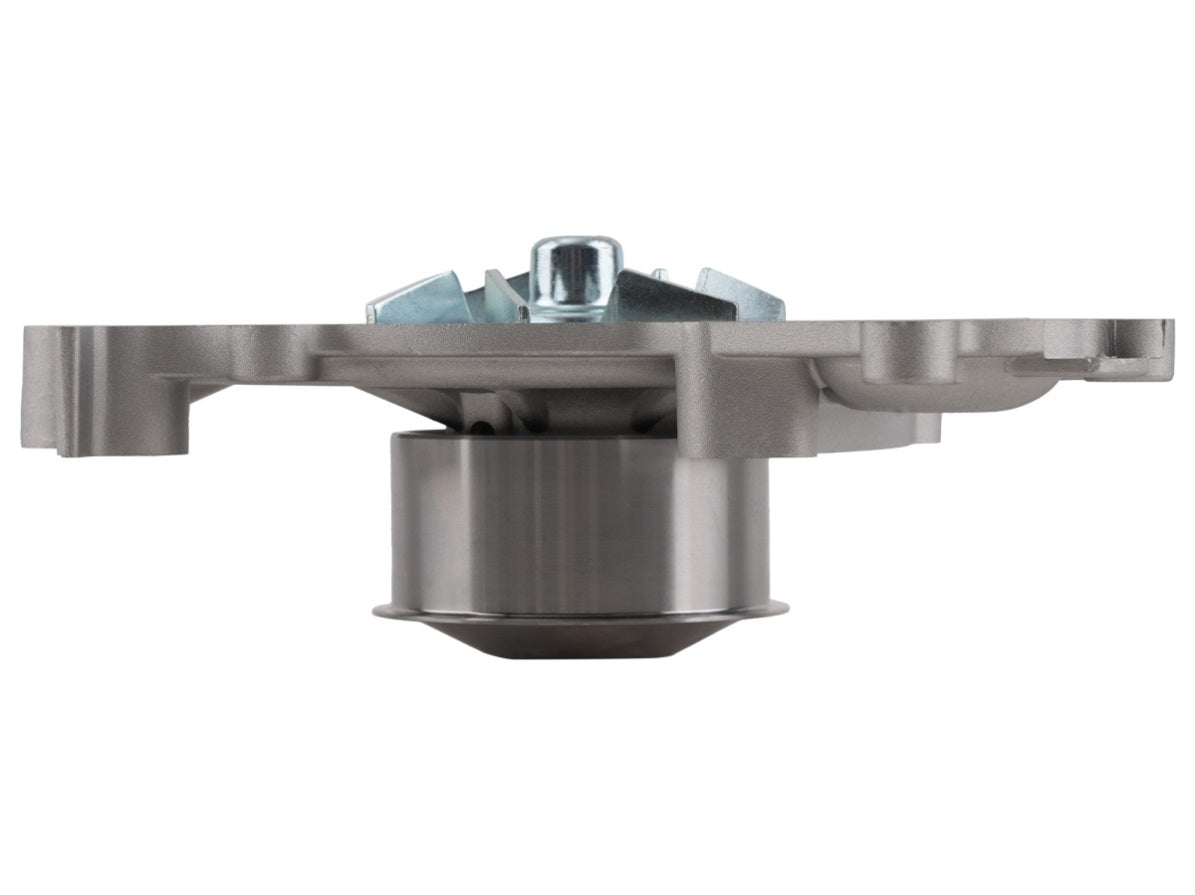

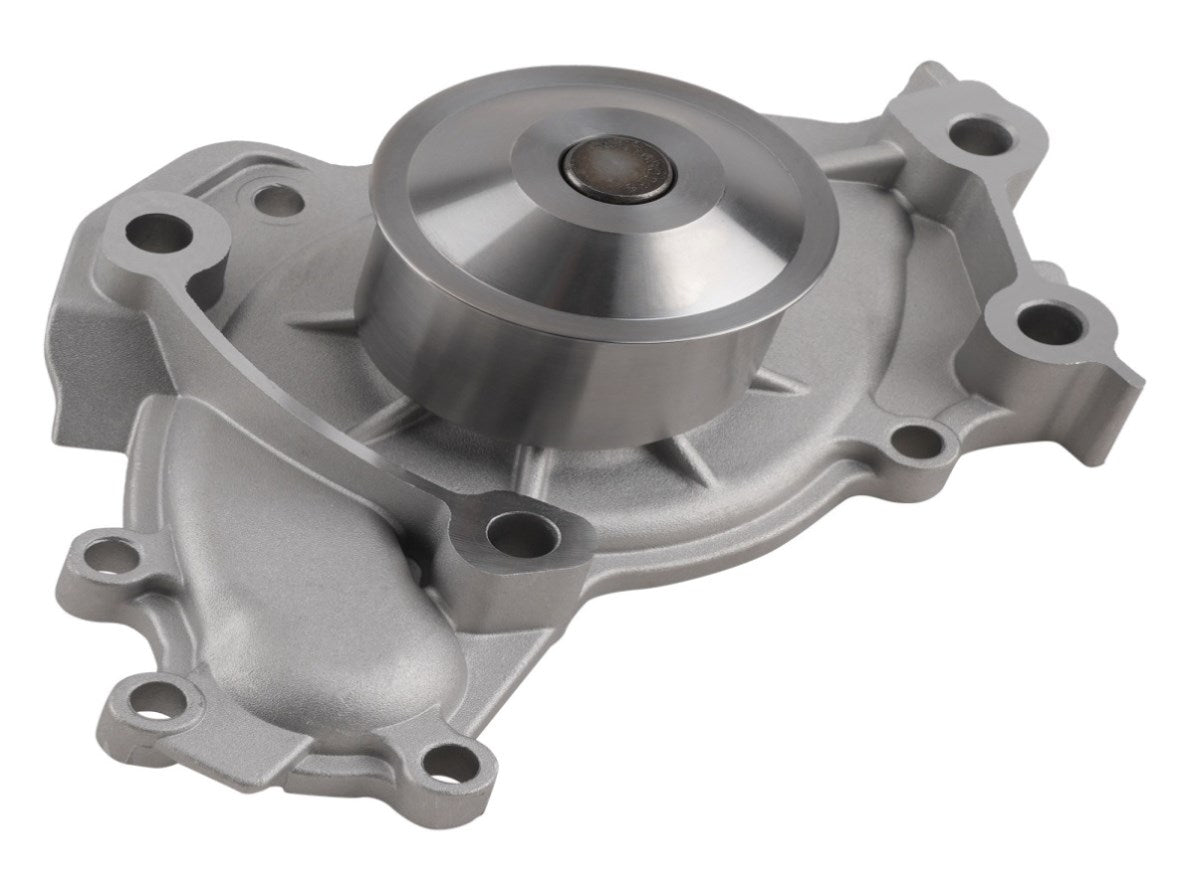

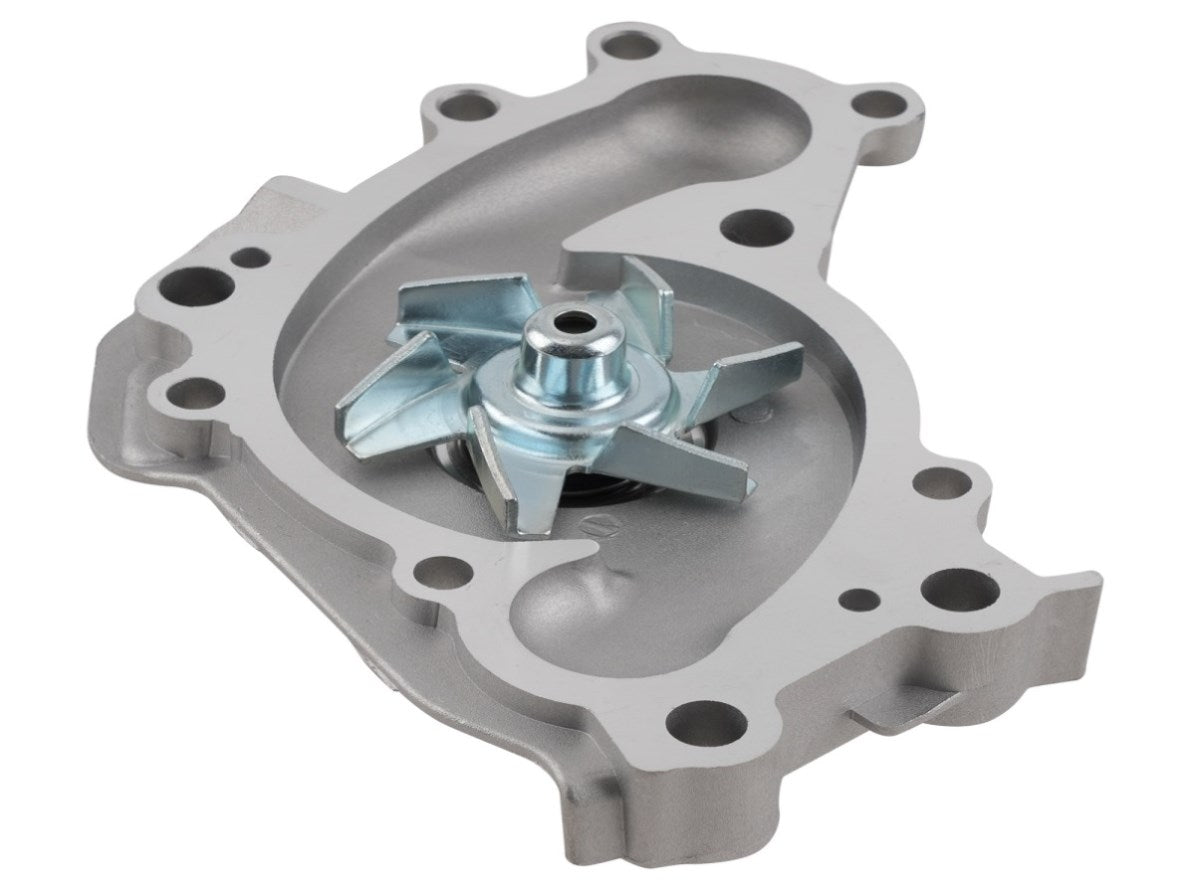

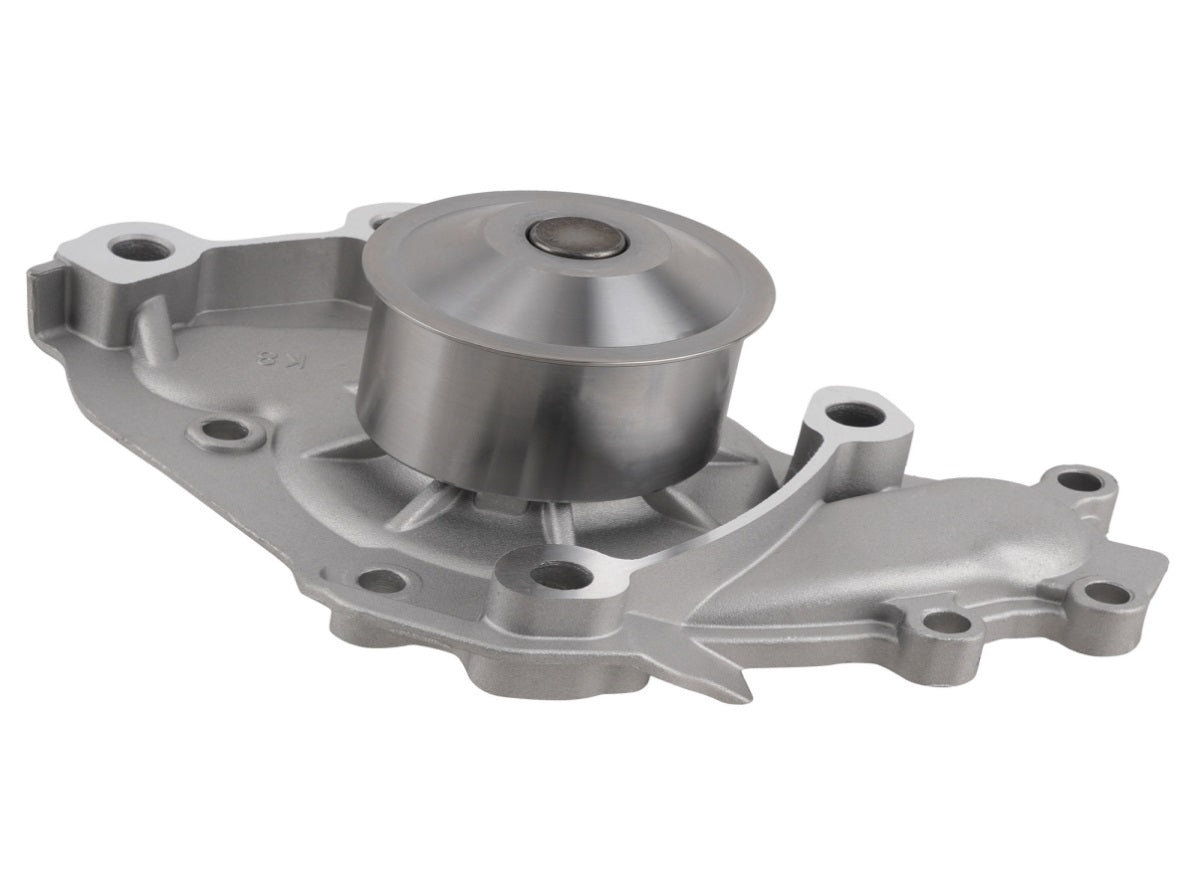

Water Pump
Housing Material: Cast Aluminum
Impeller Material: Cast Iron
Impeller Rotation: Reverse
Water Pump Drive Type: Timing Belt
Activation Type: Mechanical
Includes Back Housing: No
Inside Diameter: 56 mm / 2.20 in
Outside Diameter: 62.22 mm / 2.45 in
Material: Aluminum
Contact Surface Material: Steel

Pulley
Tensioner Type: Mechanical
Outside Diameter: 62 mm / 2.44 in
Width: 36.55 mm / 1.44 in
Inside Diameter: 27.75 mm / 1.09 in

Tensioner
Tensioner Type: Mechanical
Activation Type: Mechanical
Inside Diameter: 56 mm / 2.20 in
Outside Diameter: 62.22 mm / 2.45 in
Width: 36.55 mm / 1.44 in
Pulley Quantity: 1
Pulley 1 Flanged: No
Pulley 1 Mount Hole Quantity: 1
Mounting Bracket Included: Yes
Material: Aluminum
Contact Surface Material: Steel

Application:

fit for Lexus ES300 MCV30 3.0L 2002 - 2003
fit for Lexus ES330 MCV30 3.3L 2004 - 2006
fit for Lexus RX330 GGU30 3.3L 2004 - 2006
fit for Lexus RX400h GGU35 3.3L 2006 - 2008
fit for Toyota Camry ACV30 / MCV30 3.0L 2002 - 2006
fit for Toyota Camry ACV40 / MCV40 3.3L 2005 - 2006
fit for Toyota Camry MCV40 3.3L 2004
fit for Toyota Highlander ACU20 / MCU20 3.0L 2001 - 2003
fit for Toyota Highlander GGU35 3.3L 2006 - 2010
fit for Toyota Highlander ACU20 / MCU20 3.3L 2005 - 2007
fit for Toyota Highlander MCU20 3.3L 2004
fit for Toyota Sienna ACM30 / MCM30 3.3L 2004 - 2006
fit for Toyota Solara ACV20 / MCV20 3.3L 2005 - 2008
fit for Toyota Solara MCV20 3.3L 2004

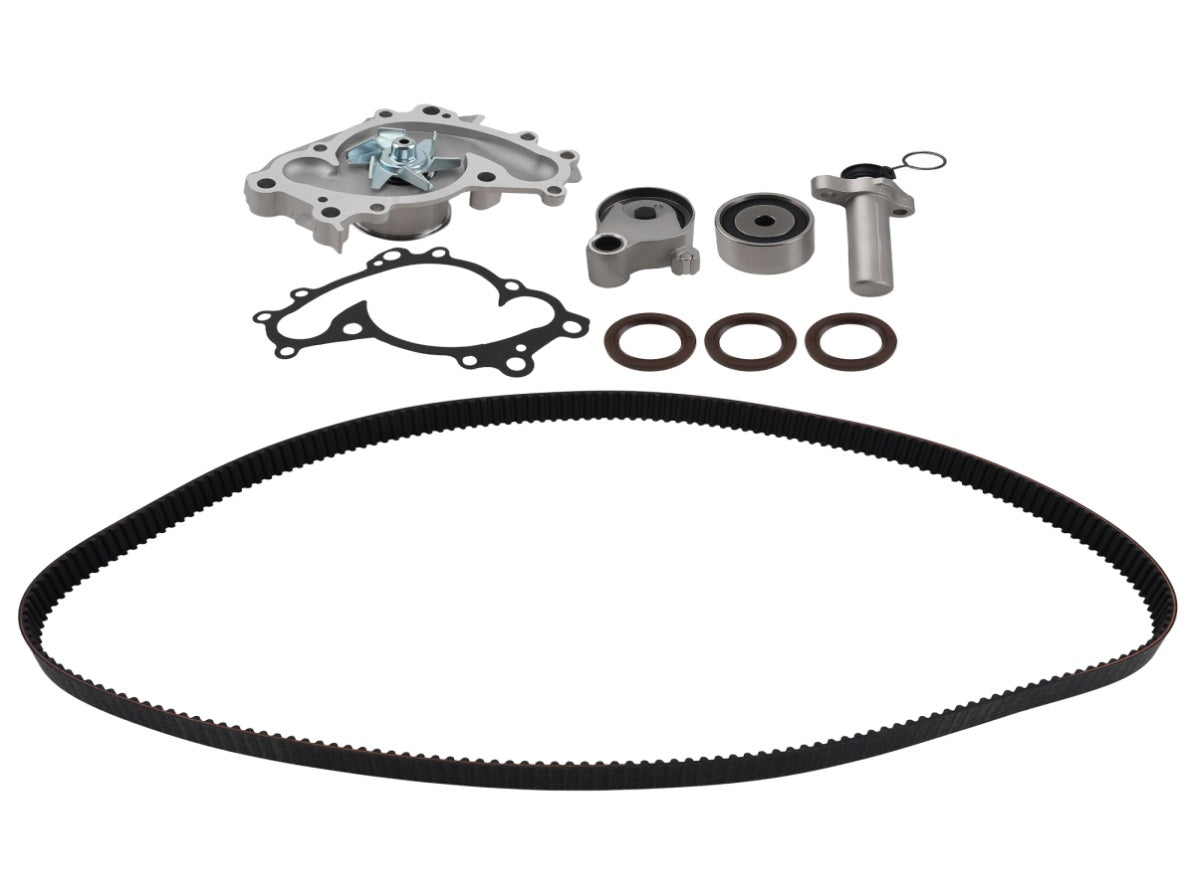

Package included：

1* Timing Belt
1* Timing Belt Tensioner
1* Timing Belt Idler Roller
2* Camshaft Front Seals
1* Crankshaft Front Seal
1* Timing Belt Tensioner Adjuster
1* New Water Pump & Gasket

Feature：

1.100% NEW.
Every product has quality inspection before leaving the factory.
2.High Quality
Components and materials ensure a longer service life.
3.Direct Fit
Less expensive, easier to install.

Note:

1.Professional installation is highly recommended.
2.Please make sure it will fit your machine before purchasing it.
3.Please check pictures fit for more details.
