Timing Belt Water Pump Kit fit for Acura EL Honda Civic 1.7L 2001-2005 94080716

Application:

fit for HONDA CIVIC DX, LX V-TEC 1.7L 1668CC L4 SOHC, (16 VALVE), ENG CODE "D17A1" 2001-2005

fit for HONDA CIVIC DX, LX V-TEC 1.7L 1700CC L4 SOHC, (16 VALVE), ENG CODE "D17A1" 2002-2004

fit for HONDA CIVIC EX V-TEC 1.7L 1668CC L4 SOHC, (16 VALVE), ENG CODE "D17A2" 2001-2005

fit for HONDA CIVIC EX V-TEC 1.7L 1700CC L4 SOHC, (16 VALVE), ENG CODE "D17A2" 2002-2004

fit for HONDA CIVIC HX V-TEC 1.7L 1700CC L4 SOHC, (16 VALVE), ENG CODE "D17A6" 2002-2004

fit for HONDA CIVIC HX V-TEC 1.7L 1668CC L4 SOHC, (16 VALVE), ENG CODE "D17A6" 2001-2005

fit for HONDA CIVIC GX V-TEC 1.7L 1668CC L4 CNG SOHC, (16 VALVE), ENG CODE "D17A7" 2001-2005

fit for HONDA CIVIC GX V-TEC 1.7L 1700CC L4 CNG SOHC, (16 VALVE), ENG CODE "D17A7" 2002-2004

fit for ACURA EL Base Sedan 4-Door 1.7L 1668CC l4 GAS SOHC Naturally Aspirated 2001-2005

OE/Part number:

WPHO034, 41460317 , TCKWP312, 91213-P2F-A01,

135-2420, H-46, WPH-044, TKH003, WP312K1A,

TS26312, ITM312, TBK220WP, 14516-PCL-000,

TS26312, ITM312, TBK220WP, 14516-PCL-000

Specification:

Condition: 100% Brand New
Type: Timing Belt Kit
Product Material: Metal, Plastic
Fitment Type: Direct Replacement
Placement on Vehicle: Front
Manufacturer Warranty: 1 Year
Chain Pitch: 9.53 mm / 0.38 in
Cog Quantity: 104
Grade Type: Regular
Material: Rubber
Overall Length: 1000.24 mm / 39.38 in
Profile Type: Circular
Timing Mark Quantity: Yes
Tooth Quantity: 104
Width: 20.65 mm / 0.81 in
Tensioner
Inside Diameter: 10 mm / 0.39 in
Material: Steel
Pulley Outside Diameter: 55 mm / 2.17 in
Pulley Quantity: 1
Pulley Width: 24 mm / 0.94 in
Tensioner Type: Spring

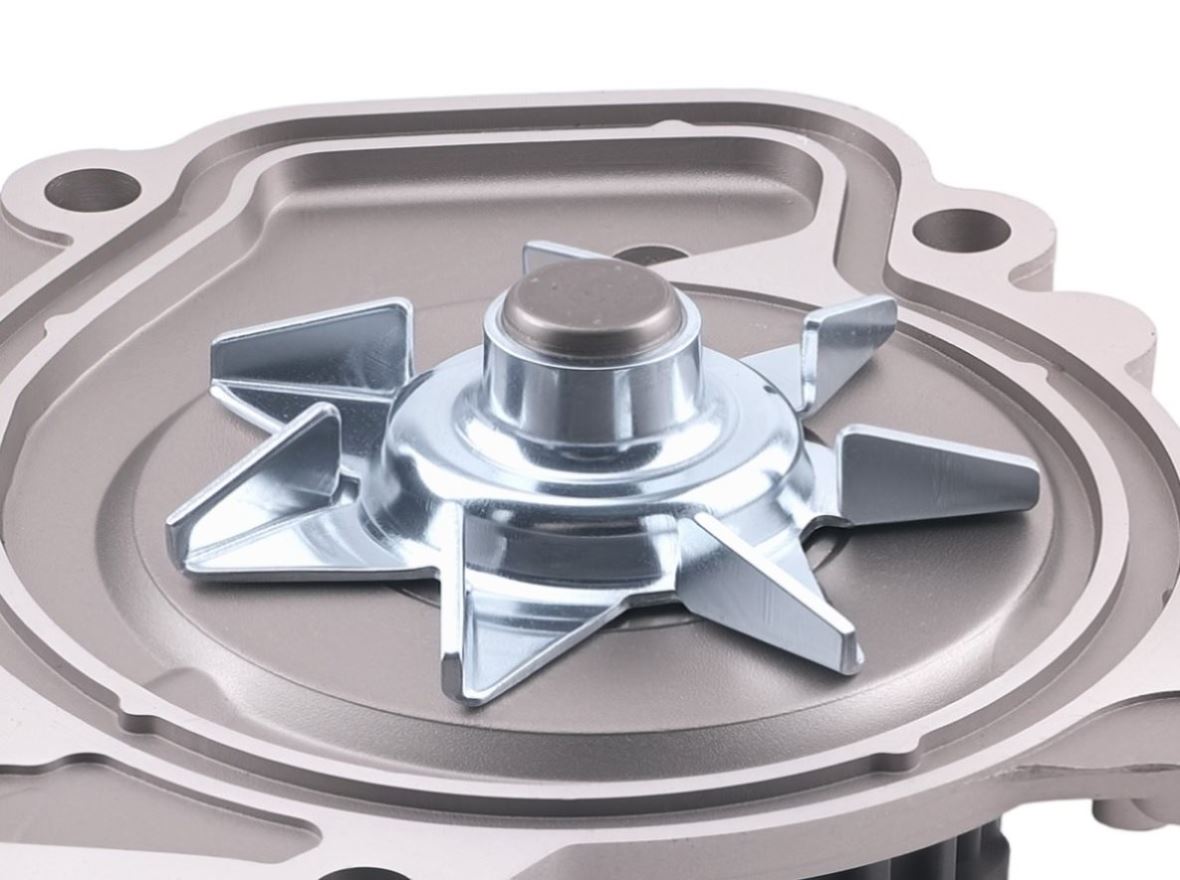

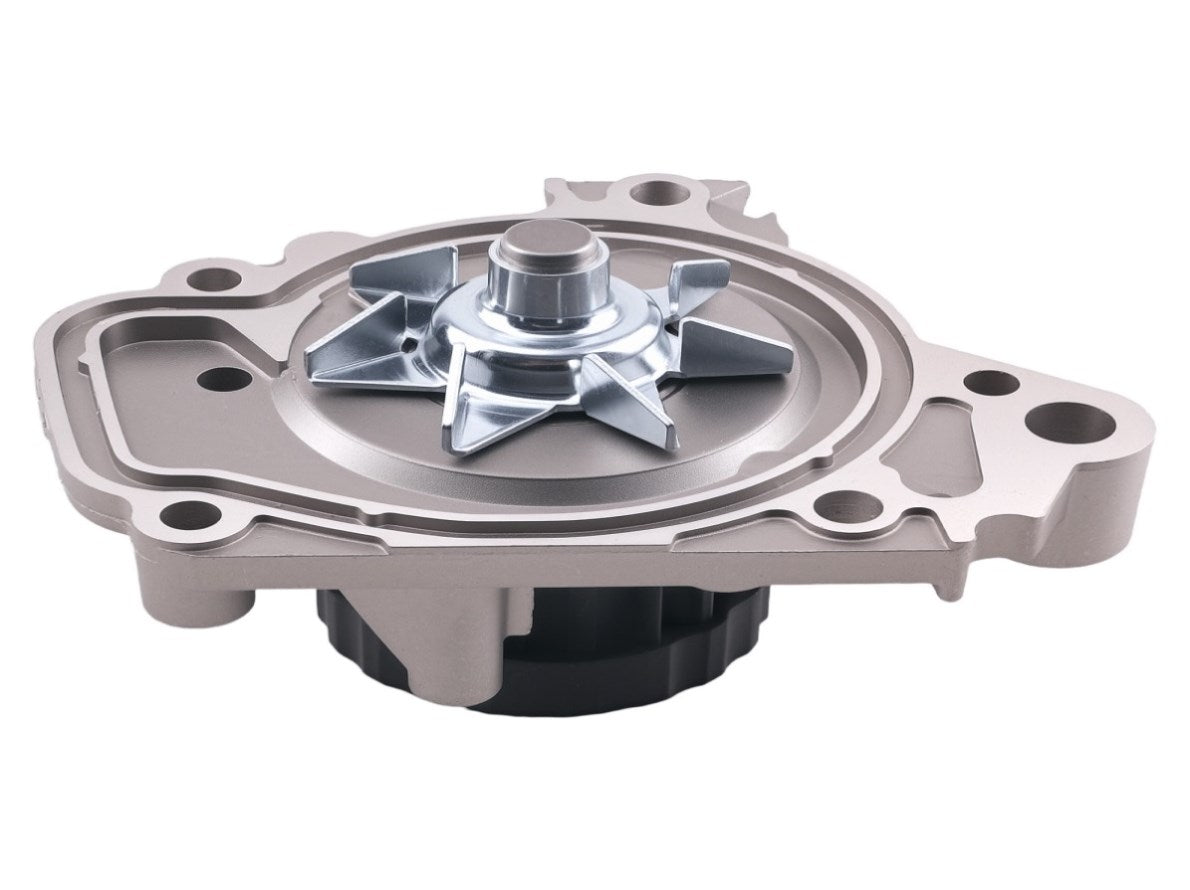

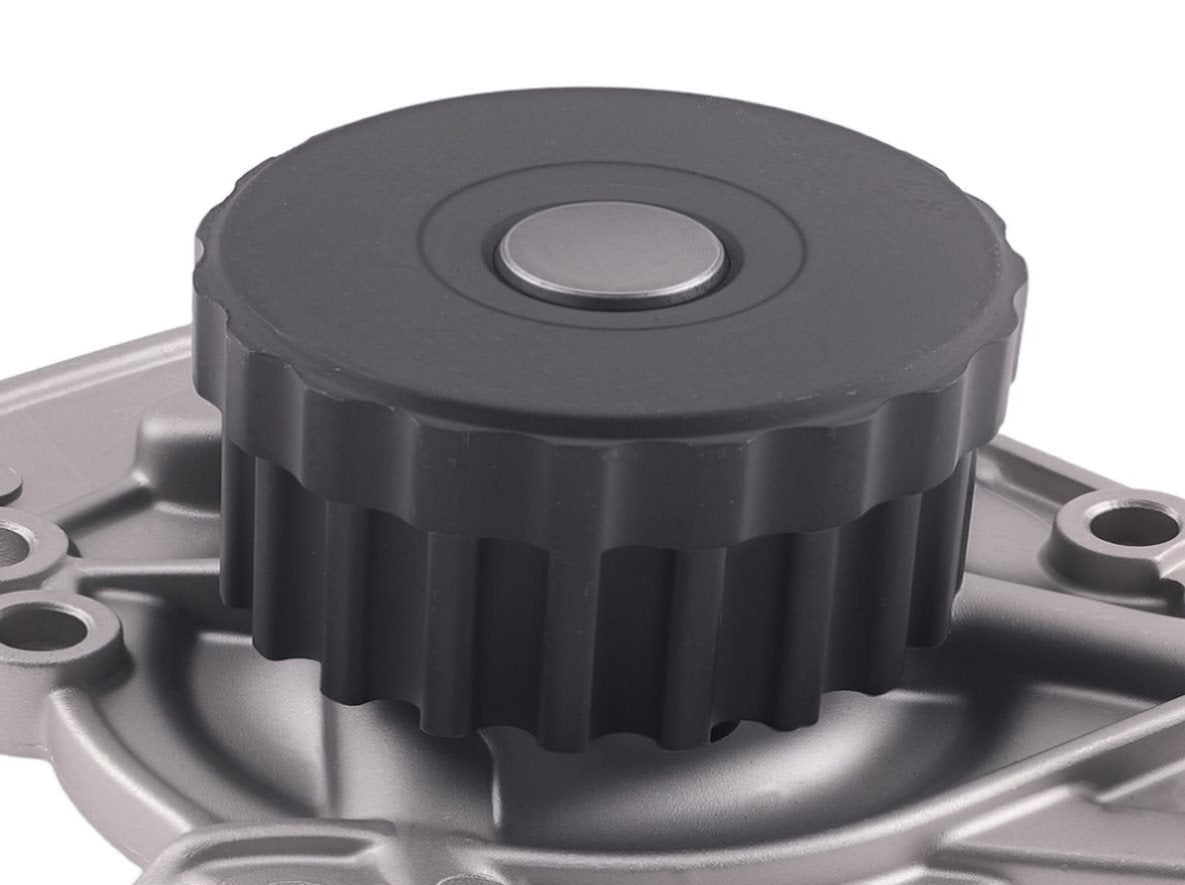

Water Pump
Housing Material: Aluminum
Hub Height: 41.91 mm / 1.65 in
Hub Pilot Diameter: 56.13 mm / 2.21 in
Impeller Material: Metal
Impeller Rotation: Reverse
Includes Back Housing: No
Pulley Included: Yes
Water Pump Drive Type: Timing Belt

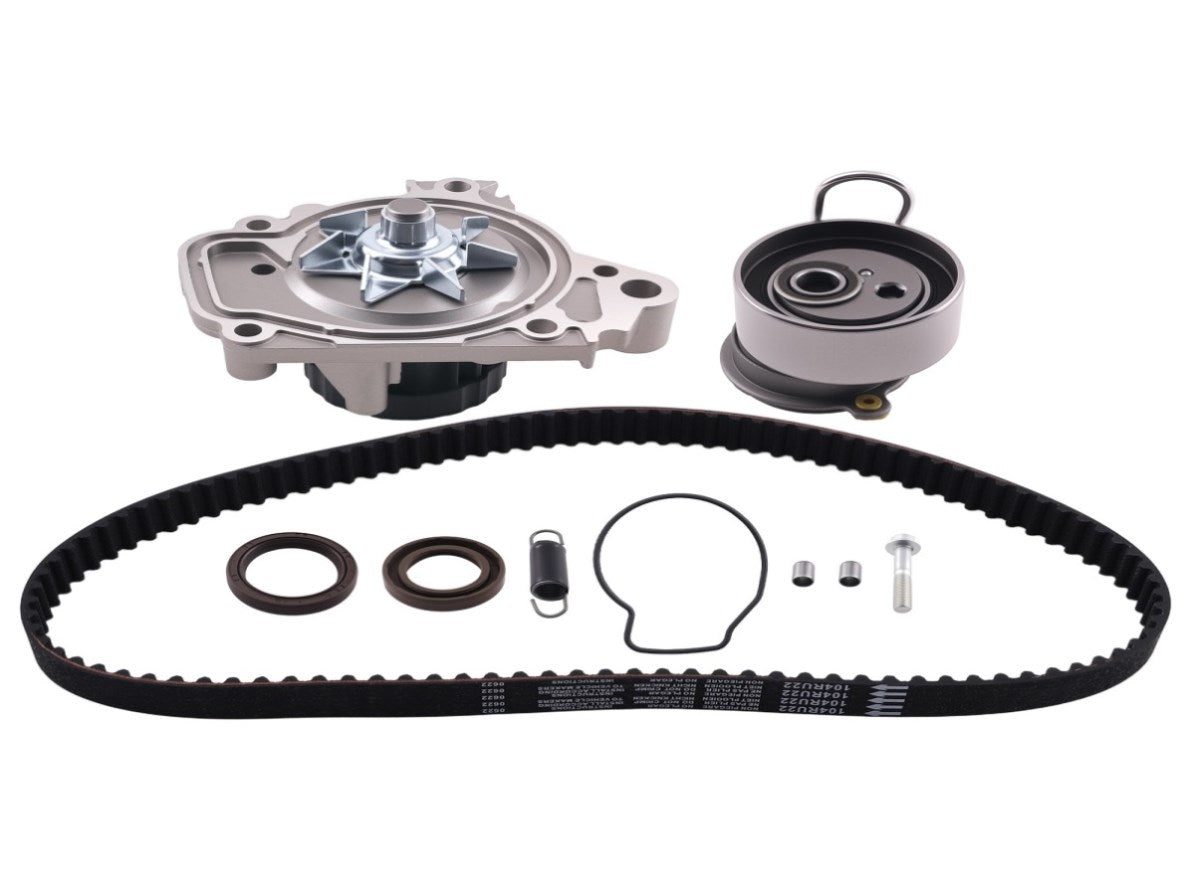

Package included:

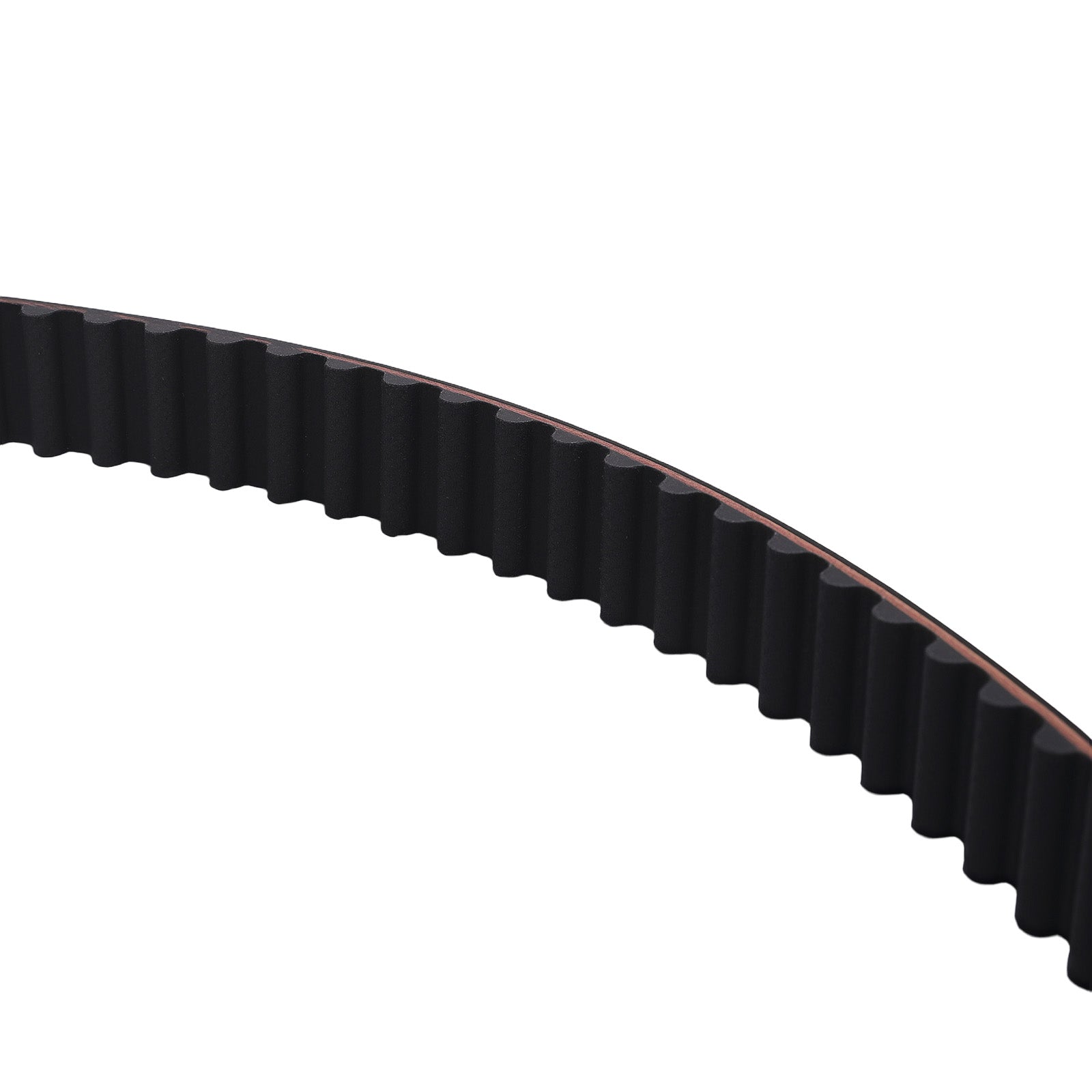

1x Timing Belt (104 teeth)

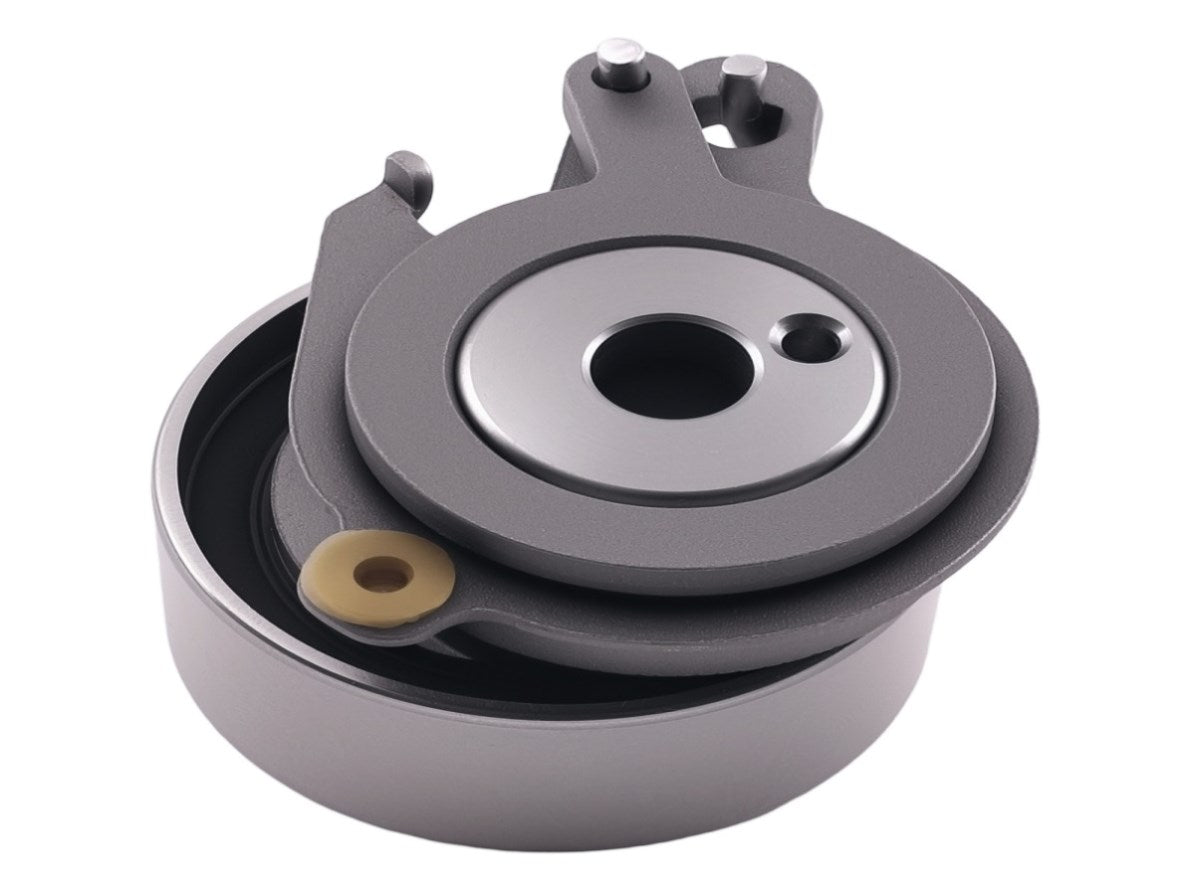

1x Tensioner Roller Bearing

1x Camshaft Seal

1x Front Crankshaft Seal

1x Water Pump with Seal

As the picture shown

Feature:

1.100% NEW.

Every product has quality inspection before leaving the factory.

2.High Quality

Components and materials ensure a longer service life.

3.Direct fit for

Less expensive, easier to install.

Note:

1.Professional installation is highly recommended.

2.Please make sure it will fit for your machine before purchasing it.

3.Please check pictures fit for more details.
