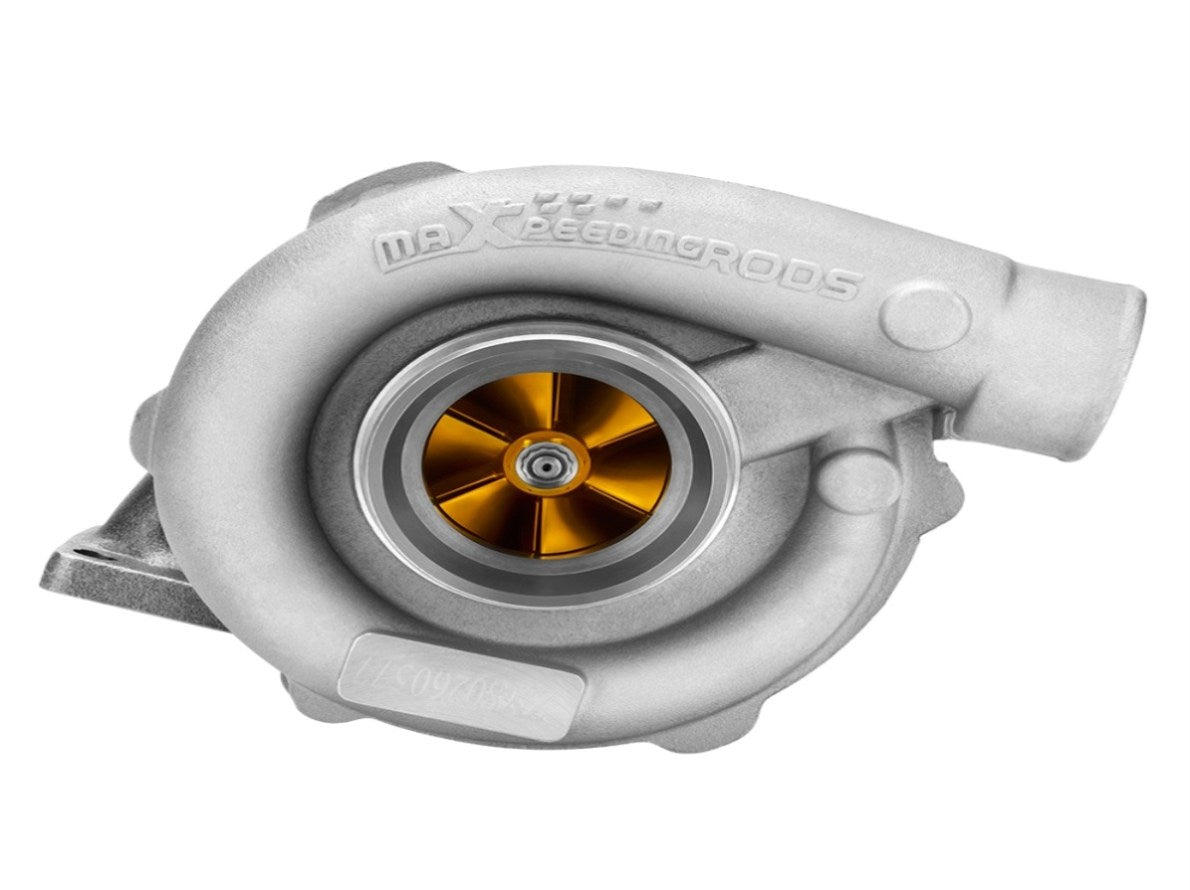

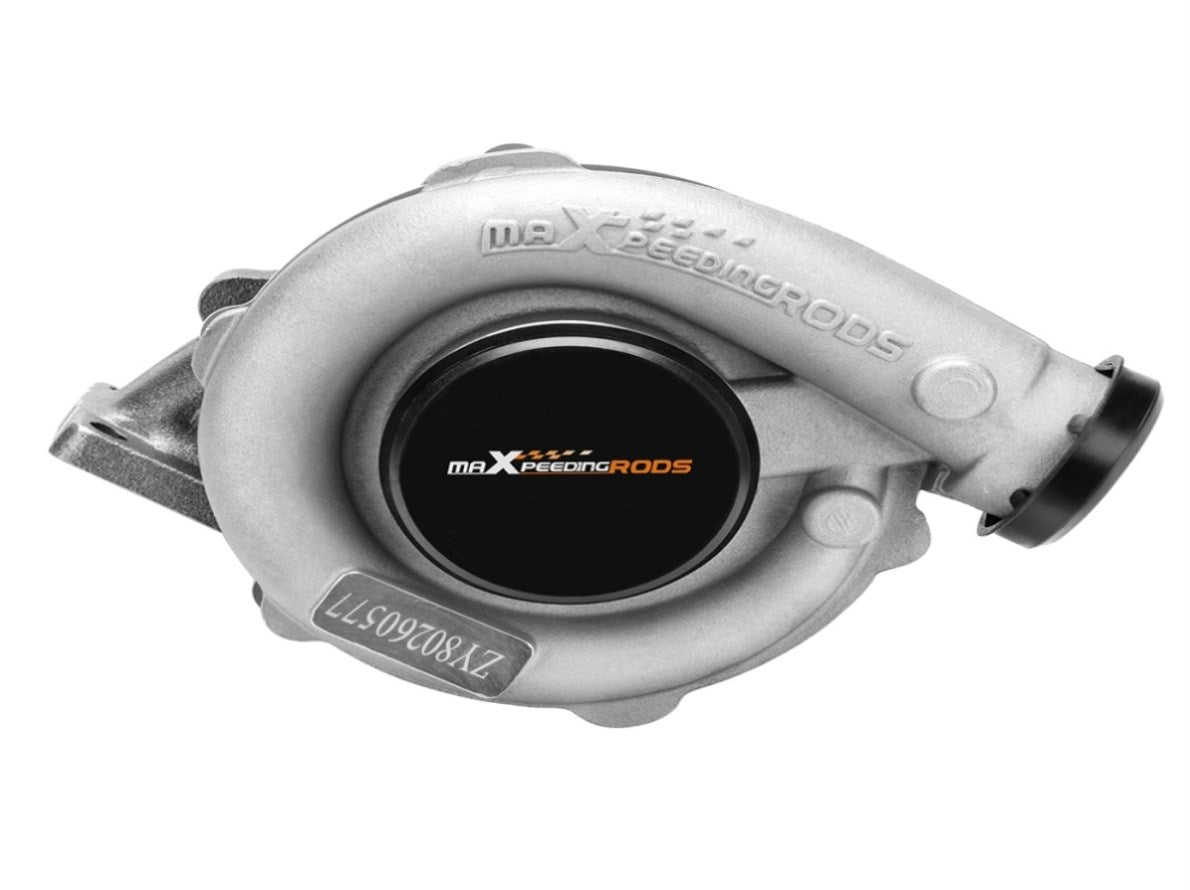

T3/T4 Upgrade Billet Turbocharger 0.63 A/R T04E 400HP fit for BMW 325 228 74345380

T04E T3/T4 .63 A/R TURBINE TURBOCHARGER BILLET COMPRESSOR WHEEL 400+HP BOOST STAGE III

Fit fit for:
Universal fit for 1.5L to 2.5L any 4/6 cylinder engine up to 400+HP

Specification:

Turbine:

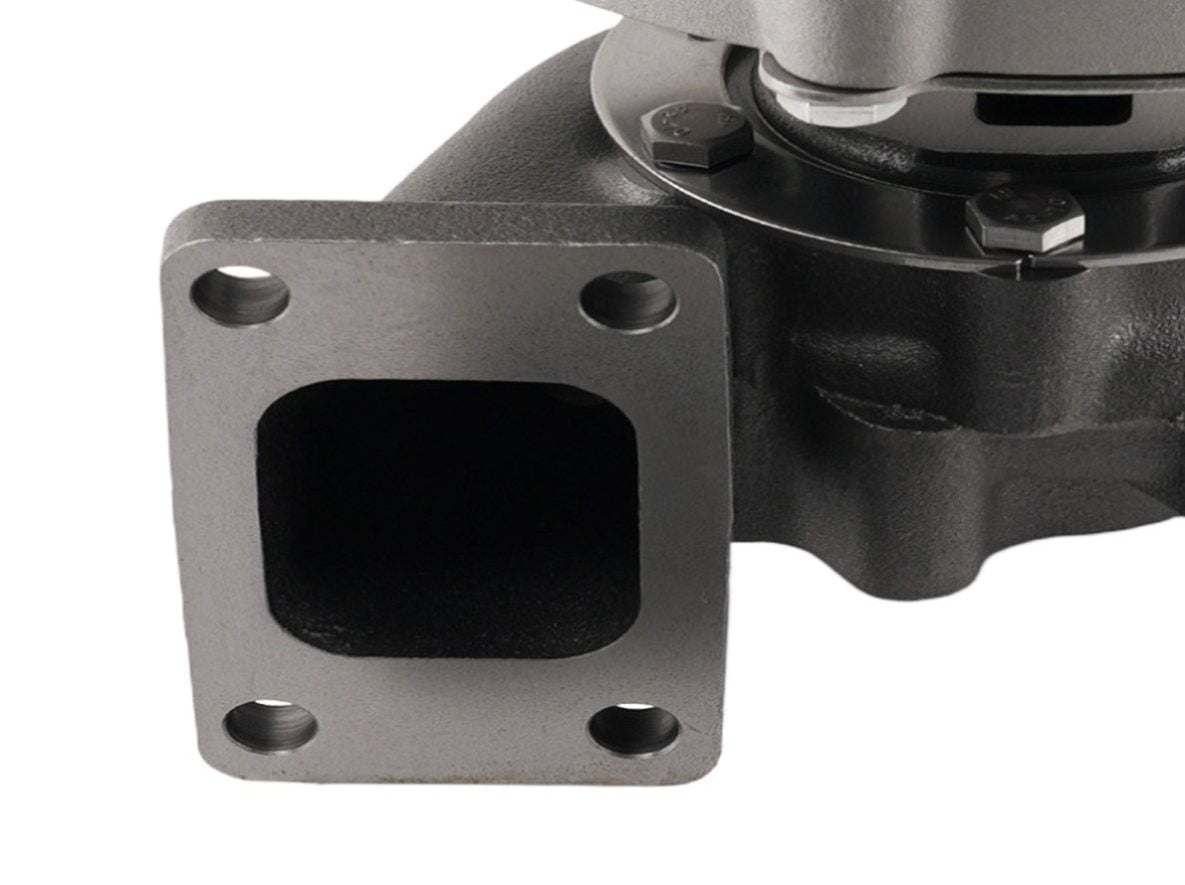

Turbine Intake Flange: T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange: Standard T3 5 bolt flange pattern
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust inlet: 44.5mm/81mm
Compressor:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet: 45mm(inside diameter)/53mm(outer diameter)
Compressor inlet: 68 mm(inside diameter)/72mm(outer diameter)

Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25

Wastegate: W/O Wastegate
Cooling Type: Oil Cooled
Bearing Type: Floating Bearing
Trust Bearing: 270 degree
Hosepower:  Up to 400+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New

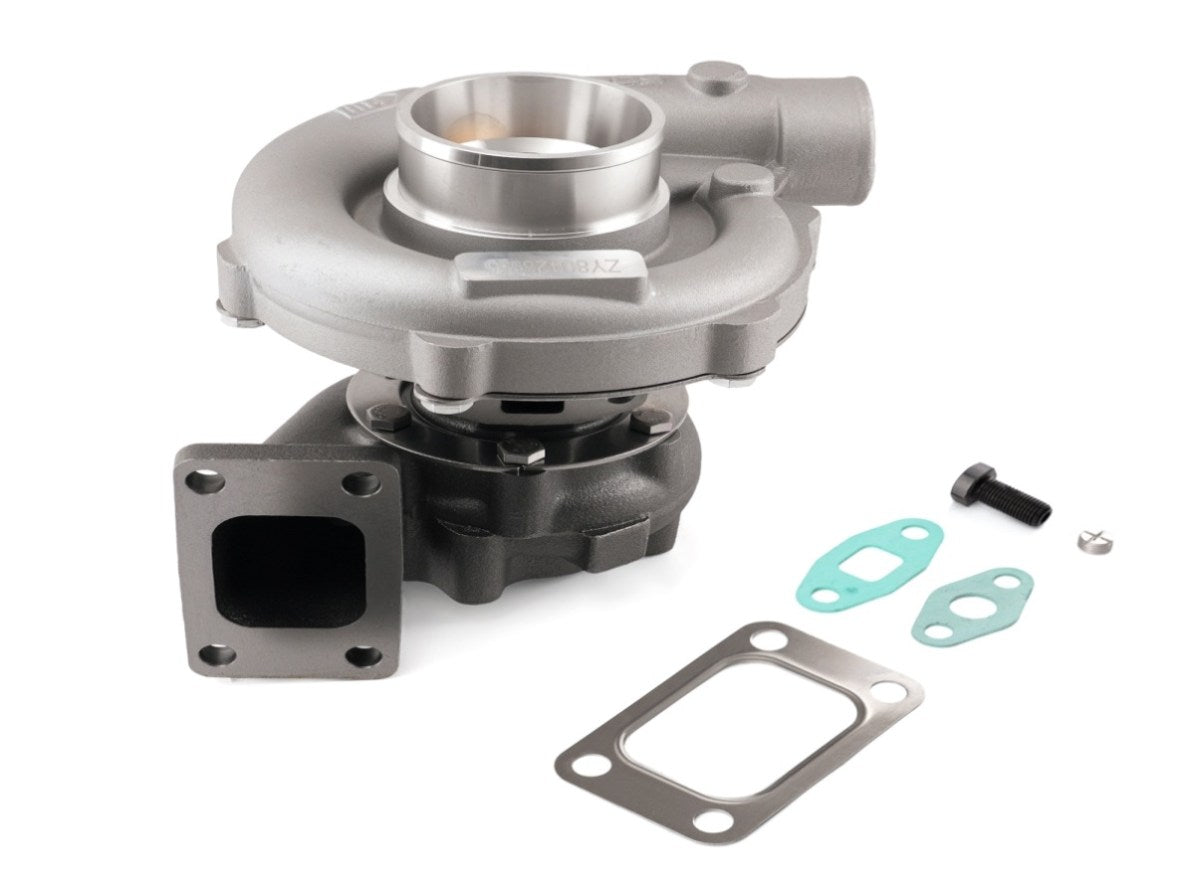

Accessories: You will get exactly as shown as picture above
Package Size: 27x 25x 23 cm
Package Weight: 7220g

Features:

1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.

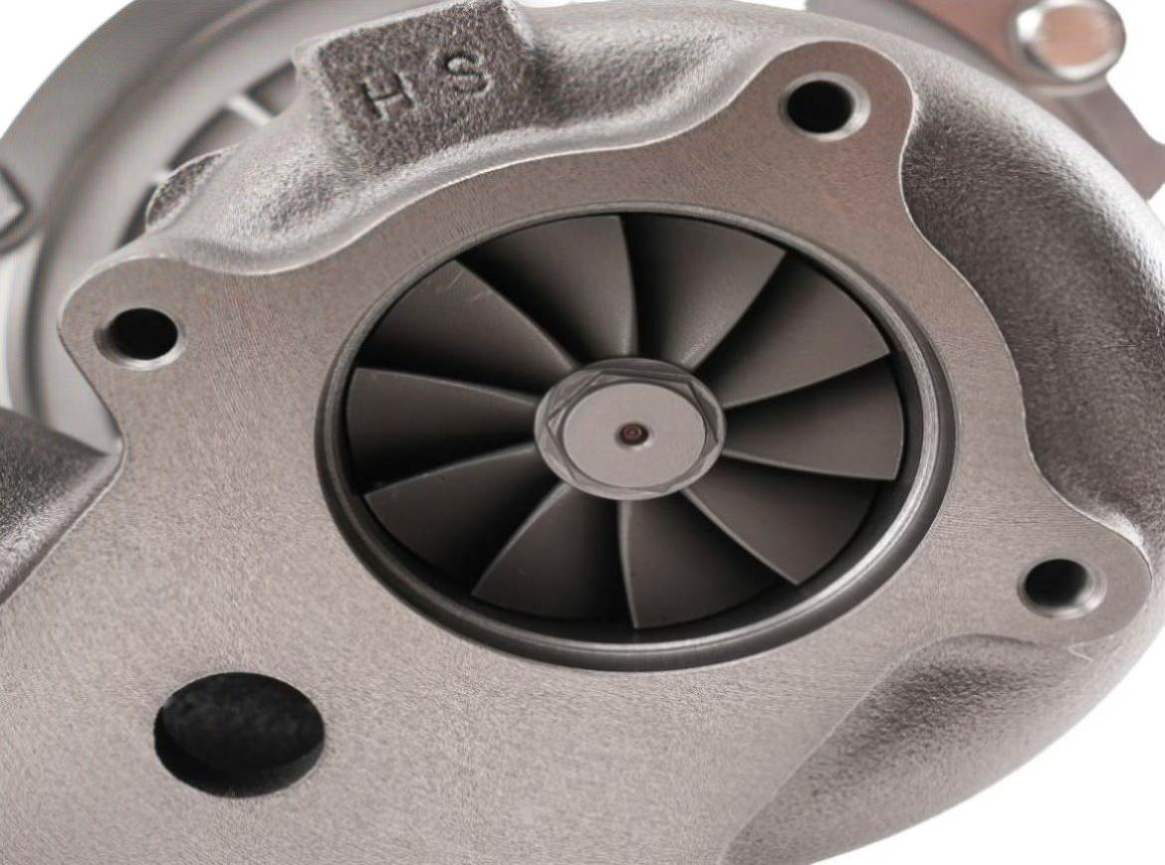

2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown fit for smooth reliable operation.

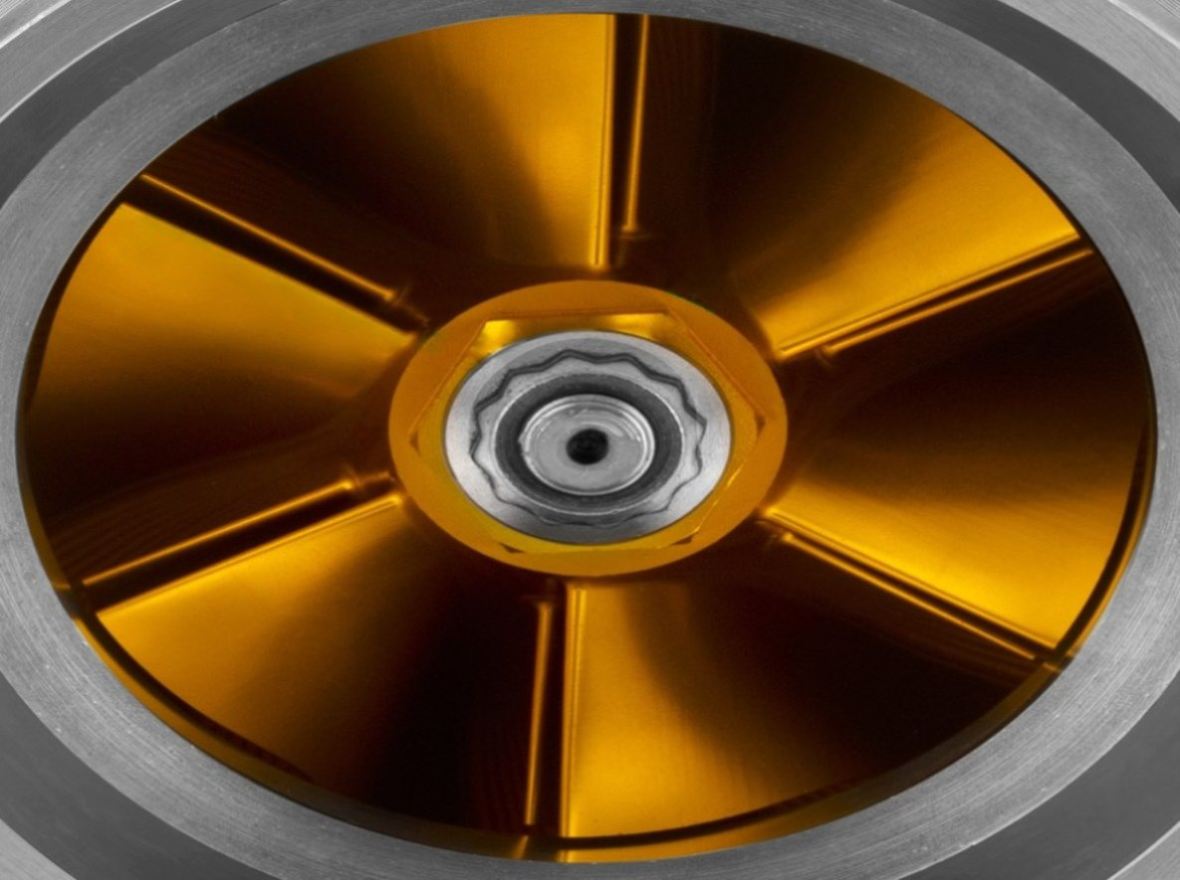

3. Billet Compressor Wheel: Forged billet aluminum CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

NOTE:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
