Replacement Damper 2 Wire Spring Motor Actuator fit for Honeywell's M847D, M847D1004 83812573
Application：
fit for Honeywell’s M847D, M847D1004 & similar HVAC damper actuators.
Also works on these models:
fit for Jackson HD series
fit for Jackson D XX series
fit for Zonefirst ZDS
fit for EWC URD
fit for Robert Shaw DAR
fit for Trol a temp RDMZ, RDMH, and MARD
fit for Hansen
OE/Part number:
M847D,RZ3-1M
Features:
Extremely reliable. Statistical life reliability exceeds 120,000 cycles at 90% reliability and 100% confidence with no decay in delivery torque over life of the actuator.
Torque is consistently delivered throughout the full 90º rotational operating range to open and close the damper, irrespective of whether the actuator is operating in Power Advance Mode (energized) or Spring Return Mode (de-energized).
Specifications:
Condition:100% new
Voltage: 24 VAC +/- 10%, 60 Hz, 0.36A
Torque Rating: Power open 32 in. oz./spring close 32 in. oz.
Speed Stroke: Motor driven 30 sec./spring return 6 sec.
Rotating Angle: 93.5º
Noise Level: Very quiet operation, typically ≦ 40dB at 3'

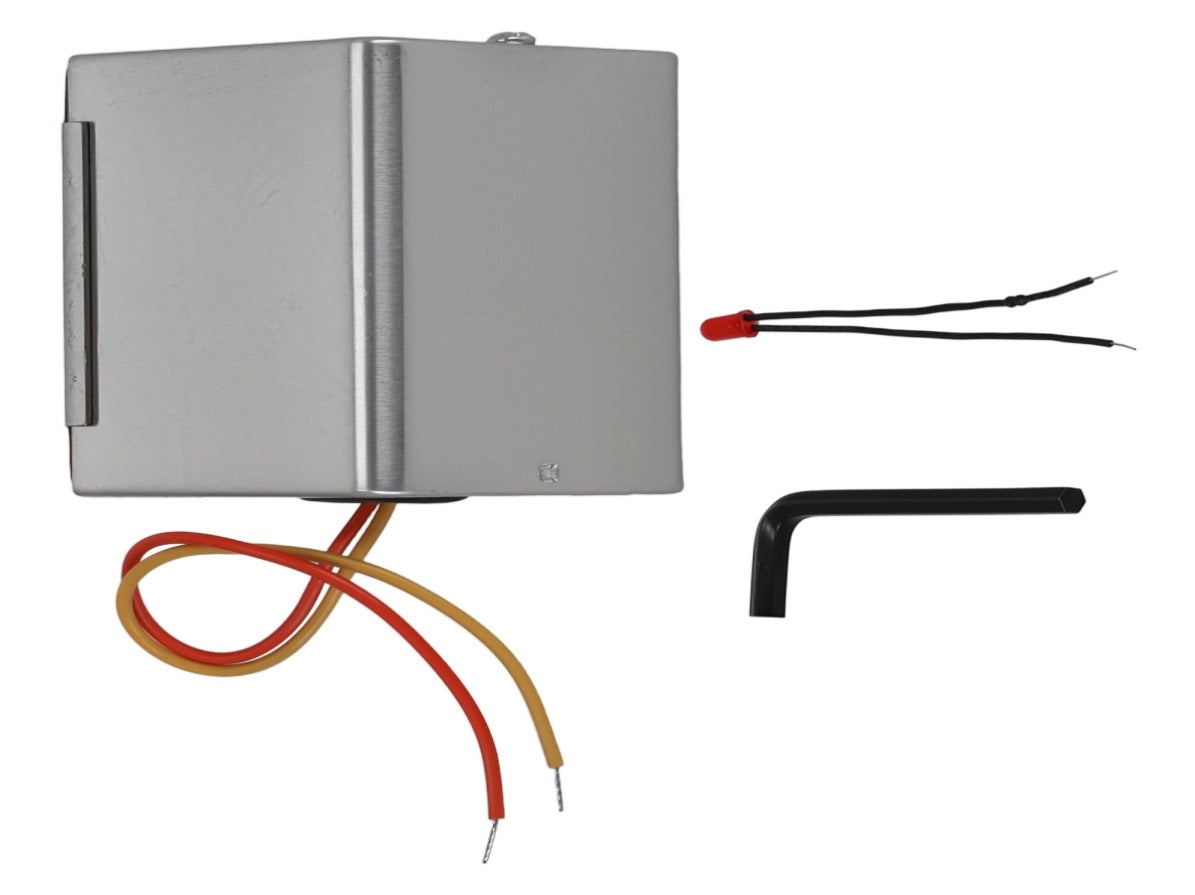

Package includes：
1×Motor Actuator

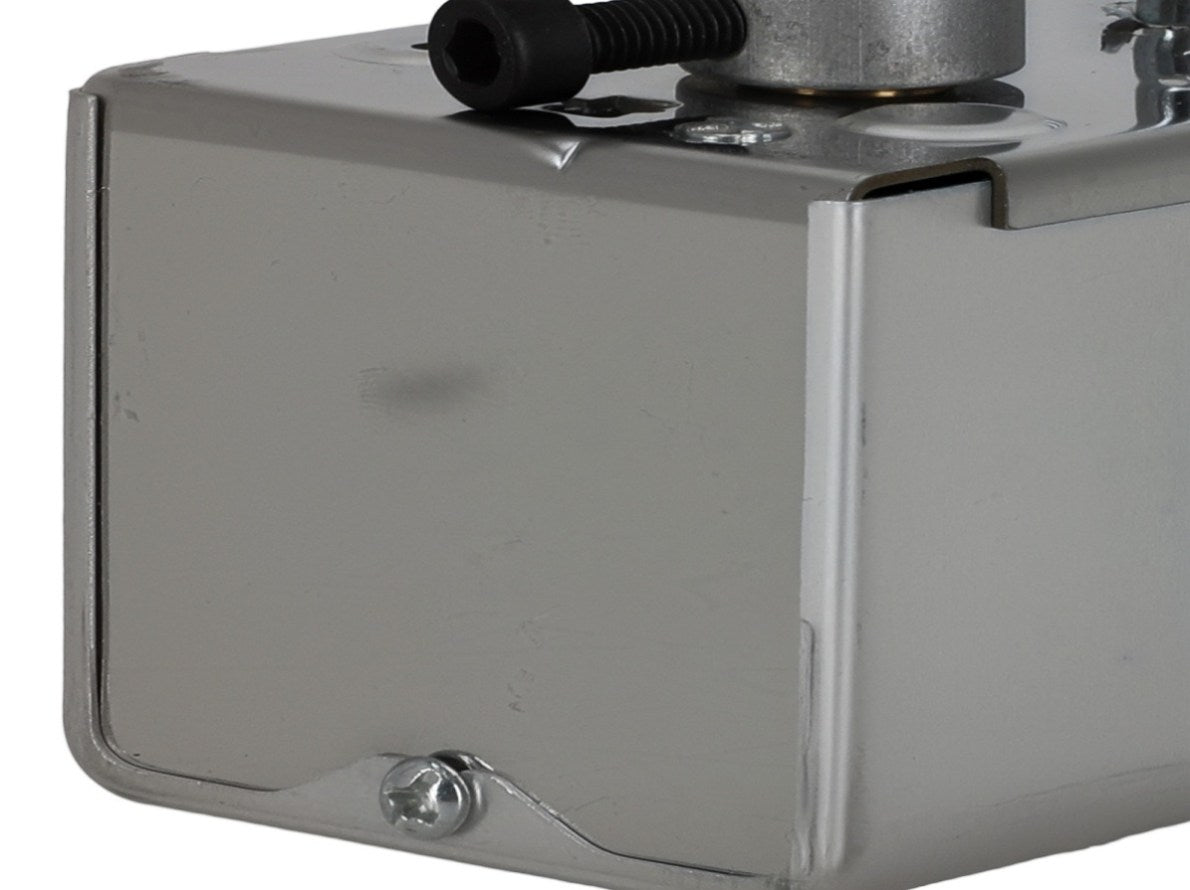

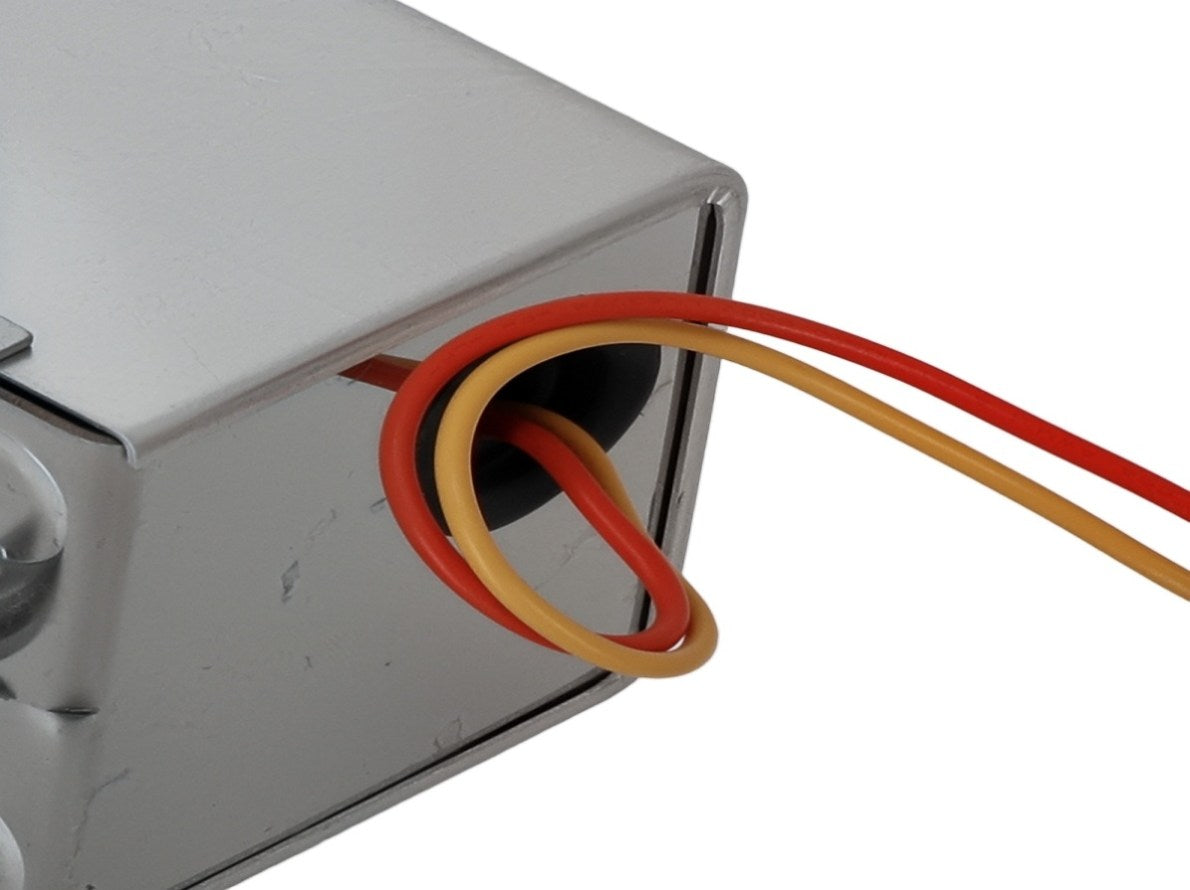

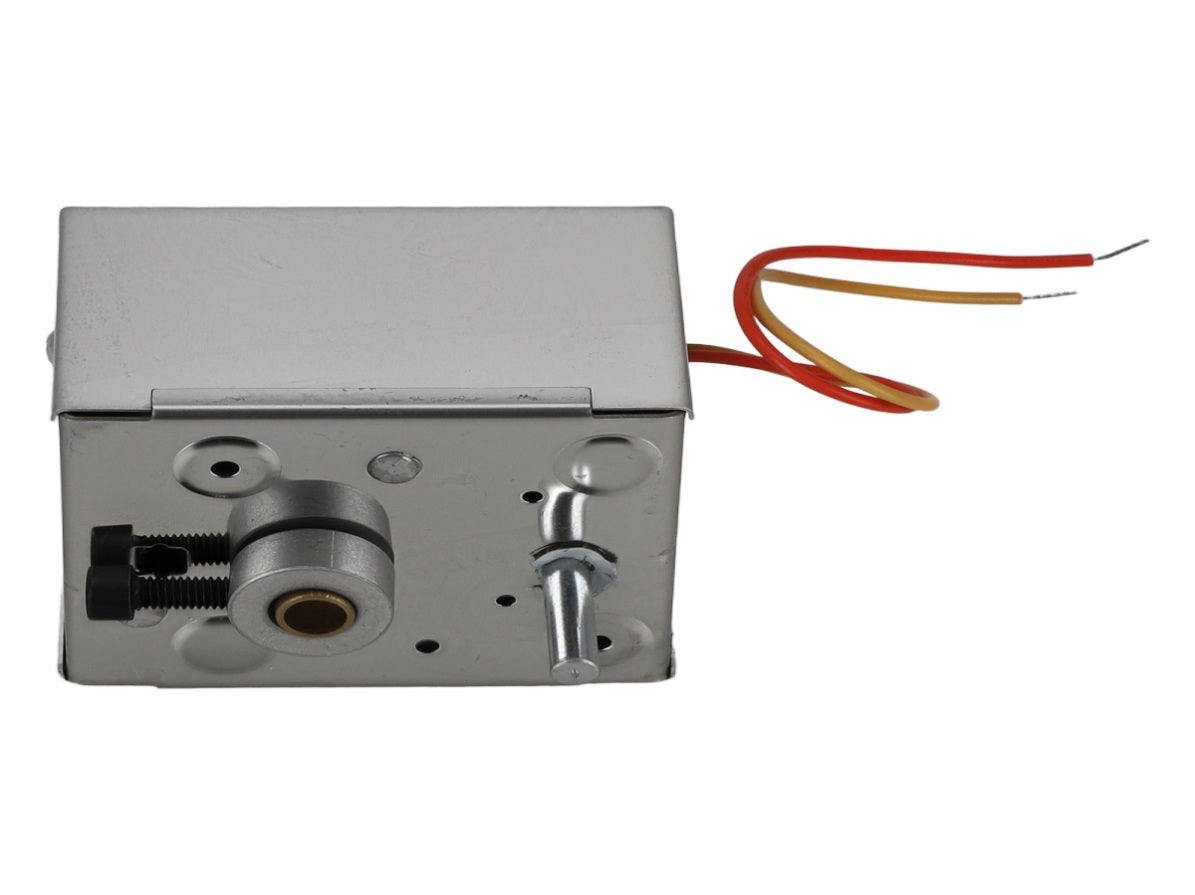

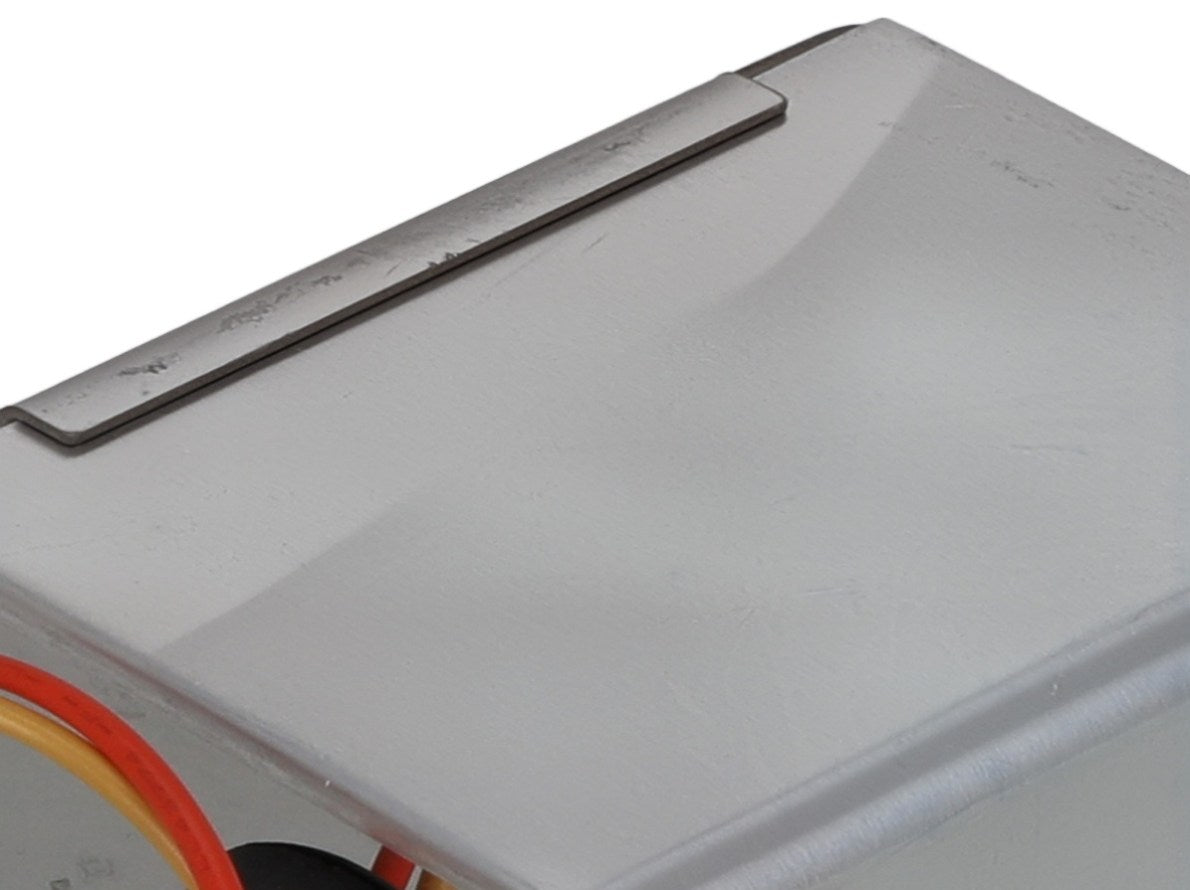

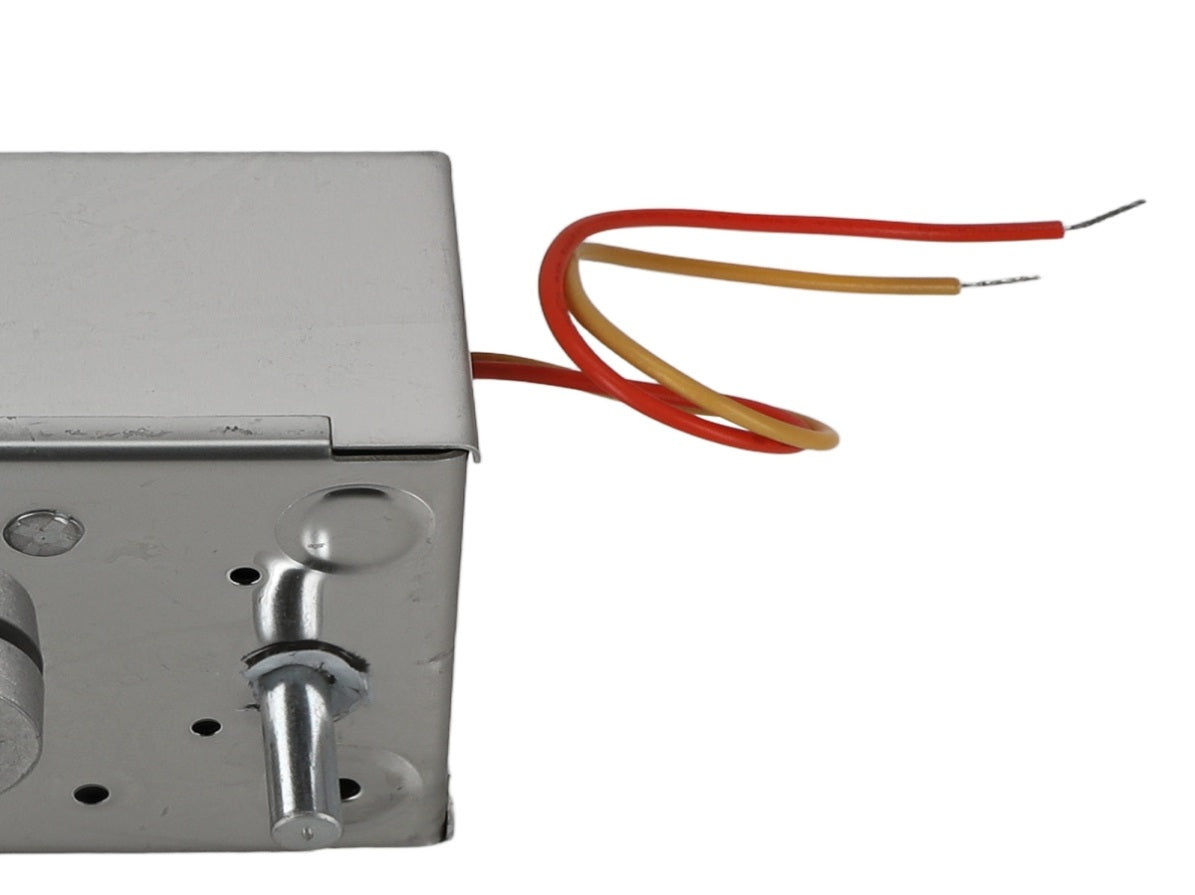

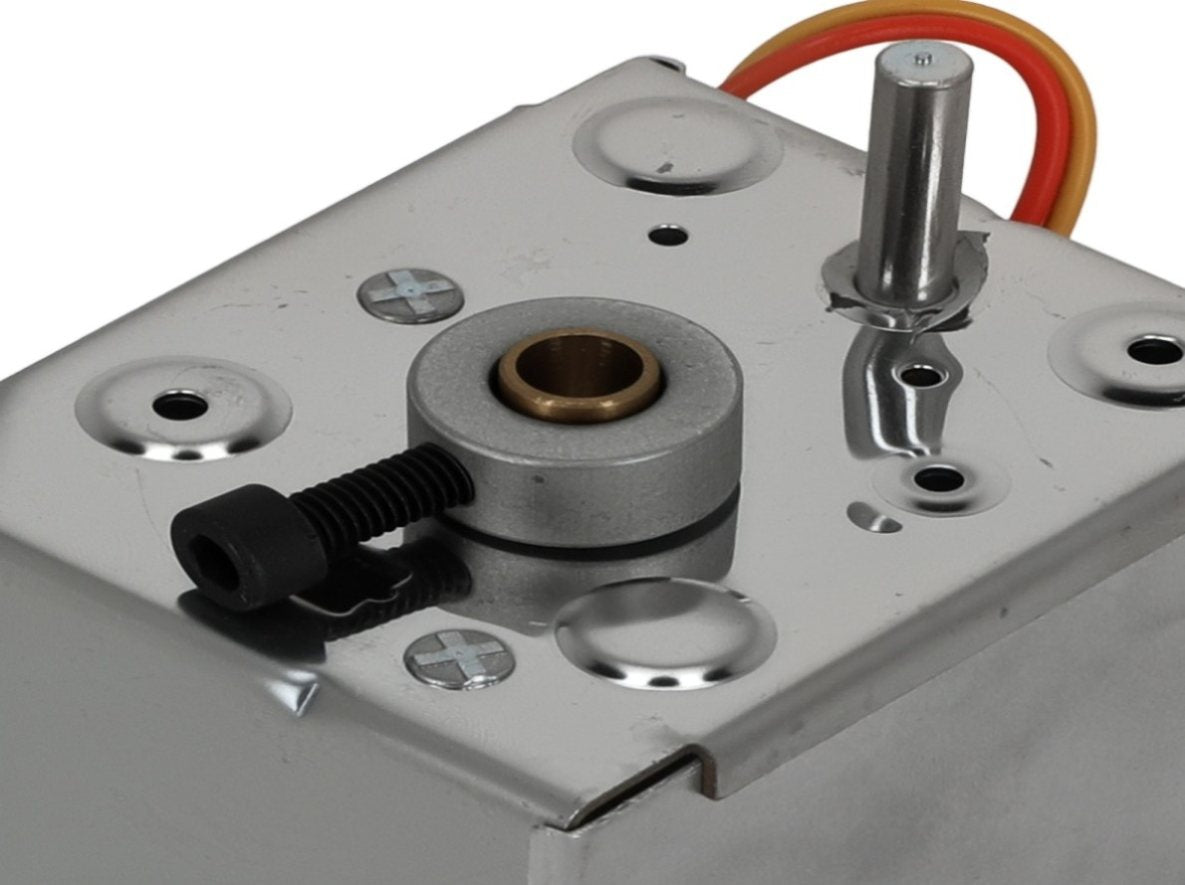

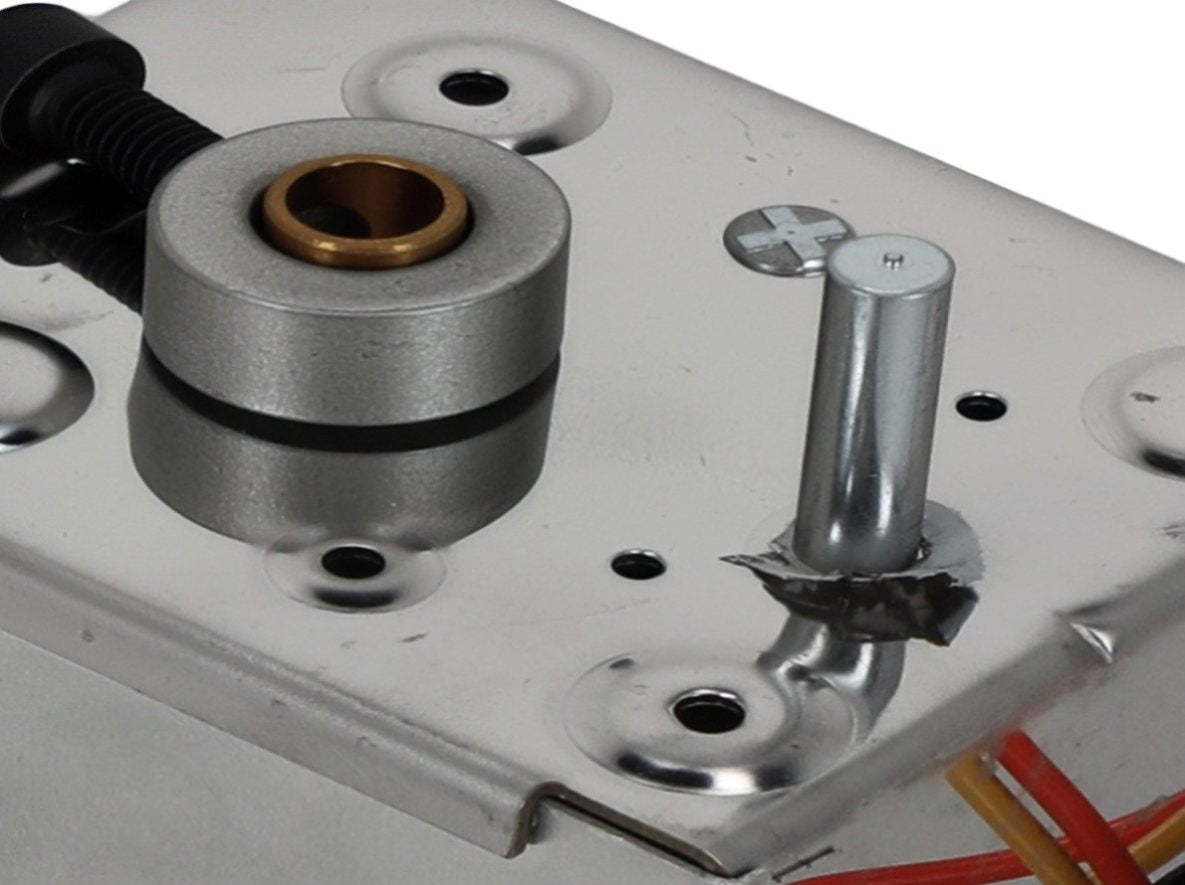

(Showing as the picture)
Note:
No instruction included.
Professional installation of the product is highly recommended.
