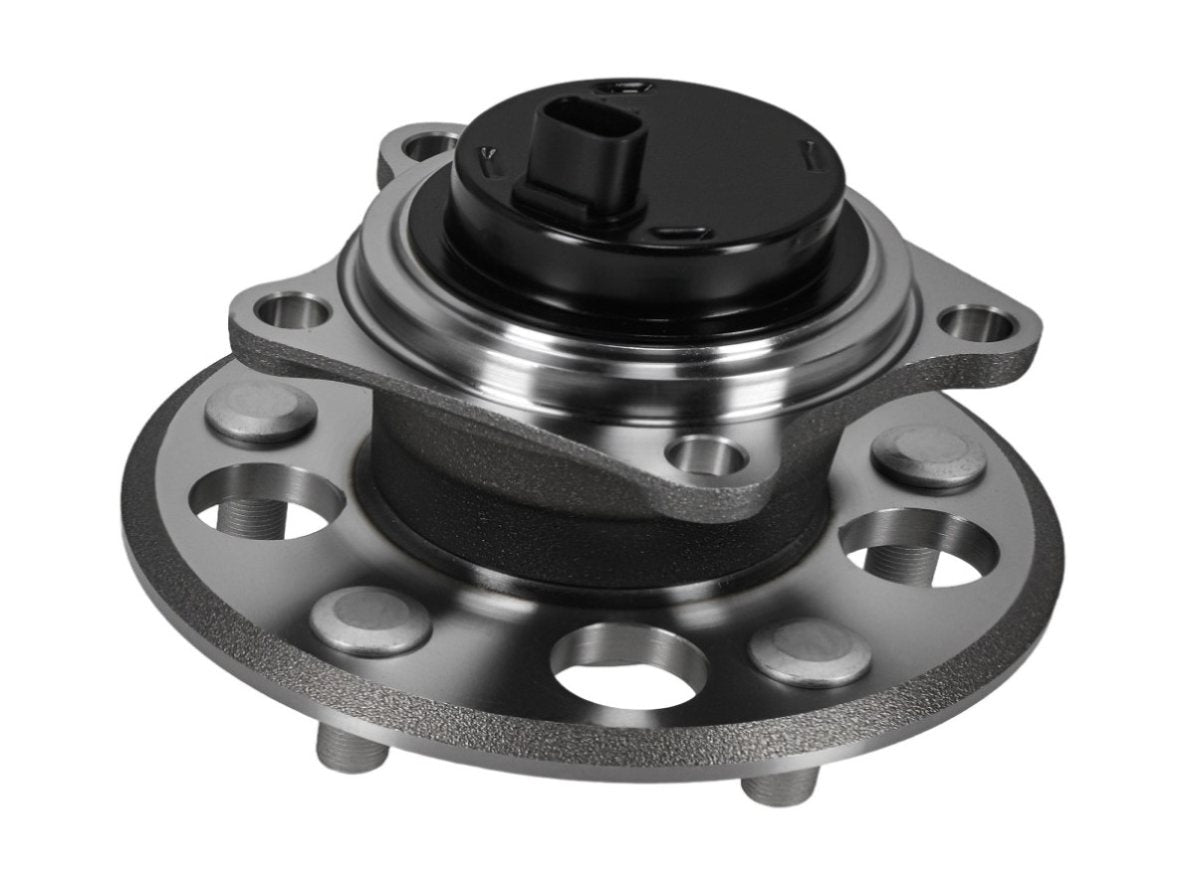

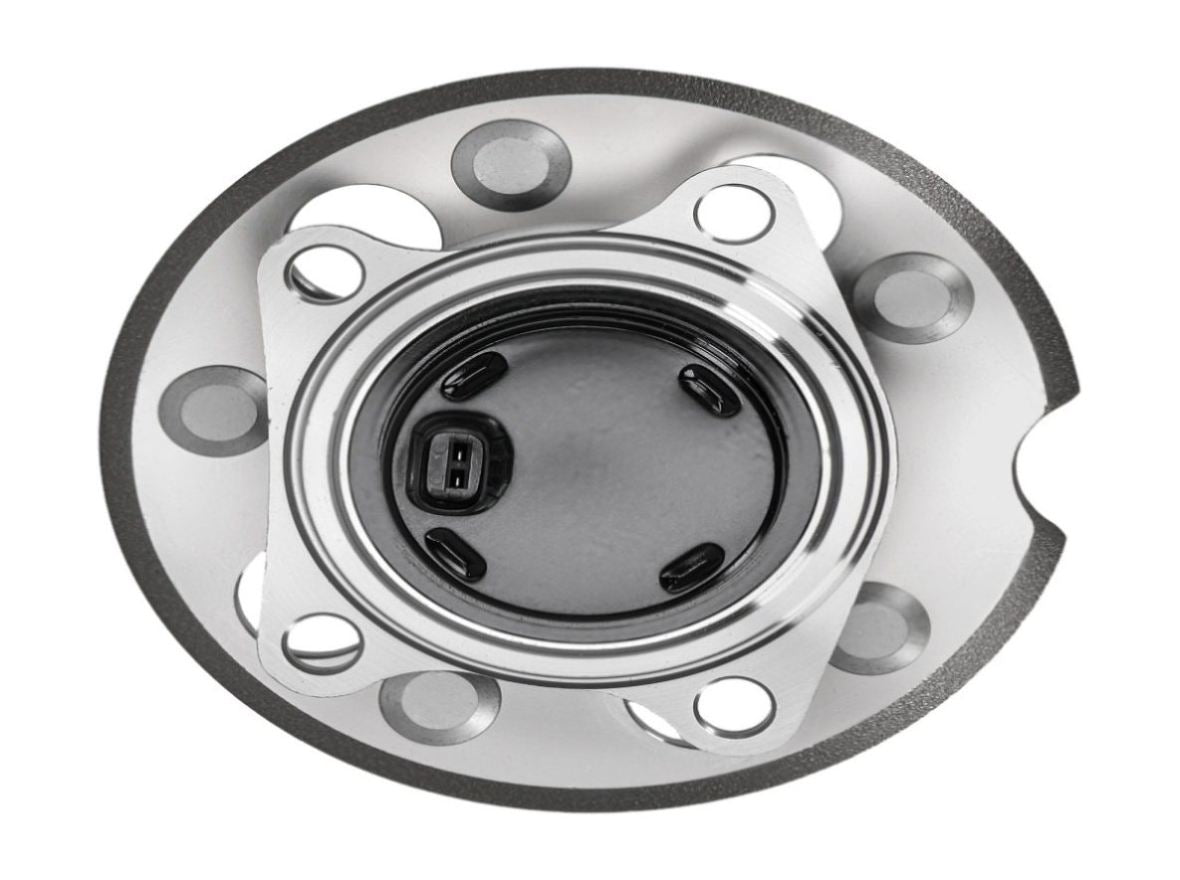

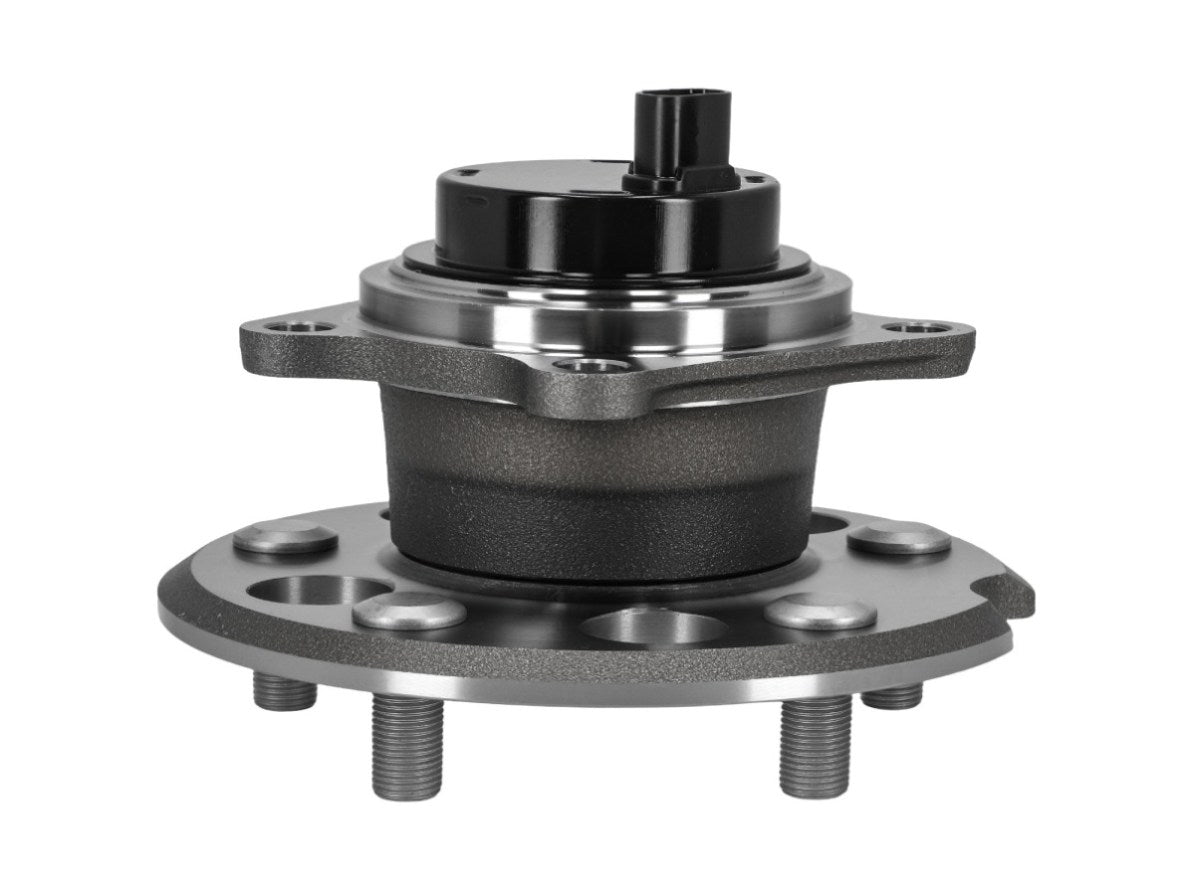

Rear Wheel Hub Assembly fit for Toyota Sienna FWD 2004-2010 WE60770 5 Bolt 46592206

Application:

fit for TOYOTA SIENNA FWD Models 2004 - 2010

OE/Part number:

WE60770, 0516144, SKFBR930437, 40744010, 512280, EP49BWKHS31, H512280, 40744010E, WH512280, 29512280, SK512280, WA512280

Specification:

Position: Rear Left & Right
ABS Included: Yes

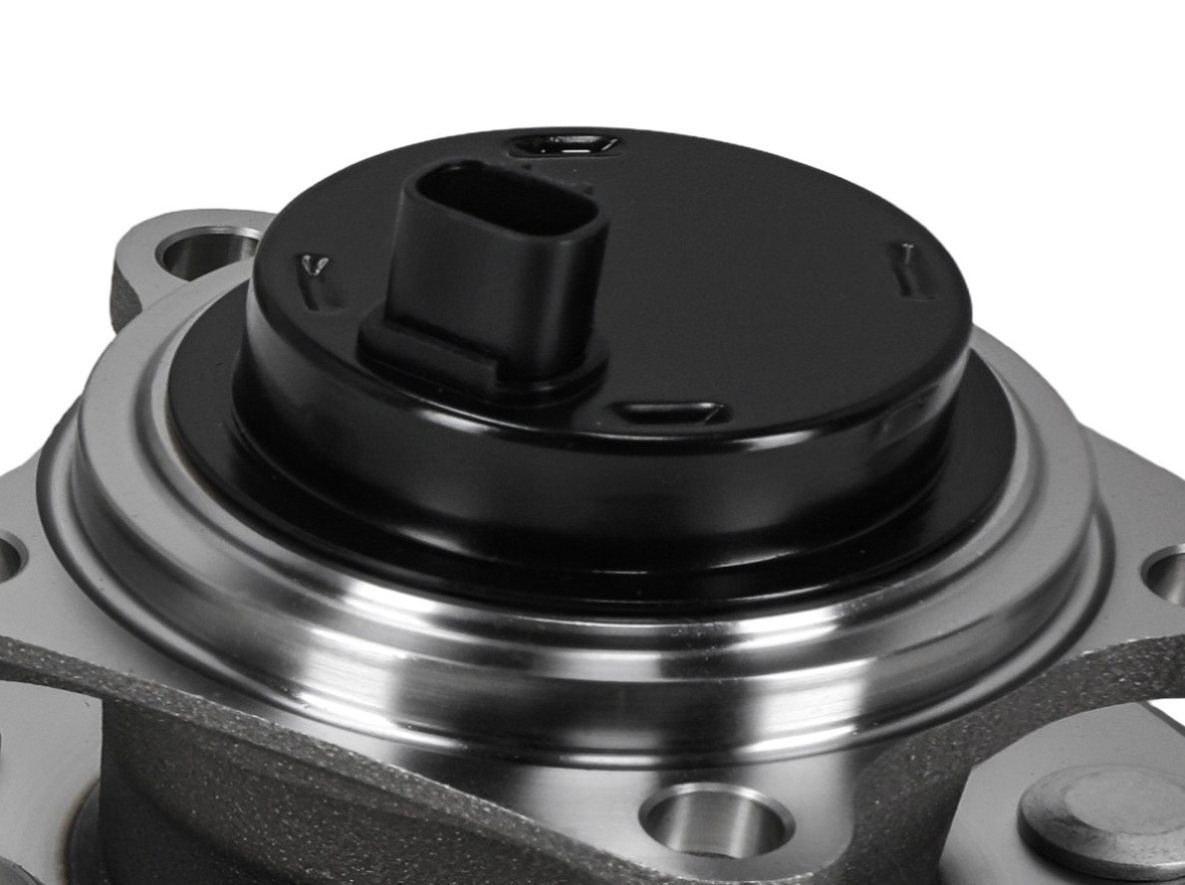

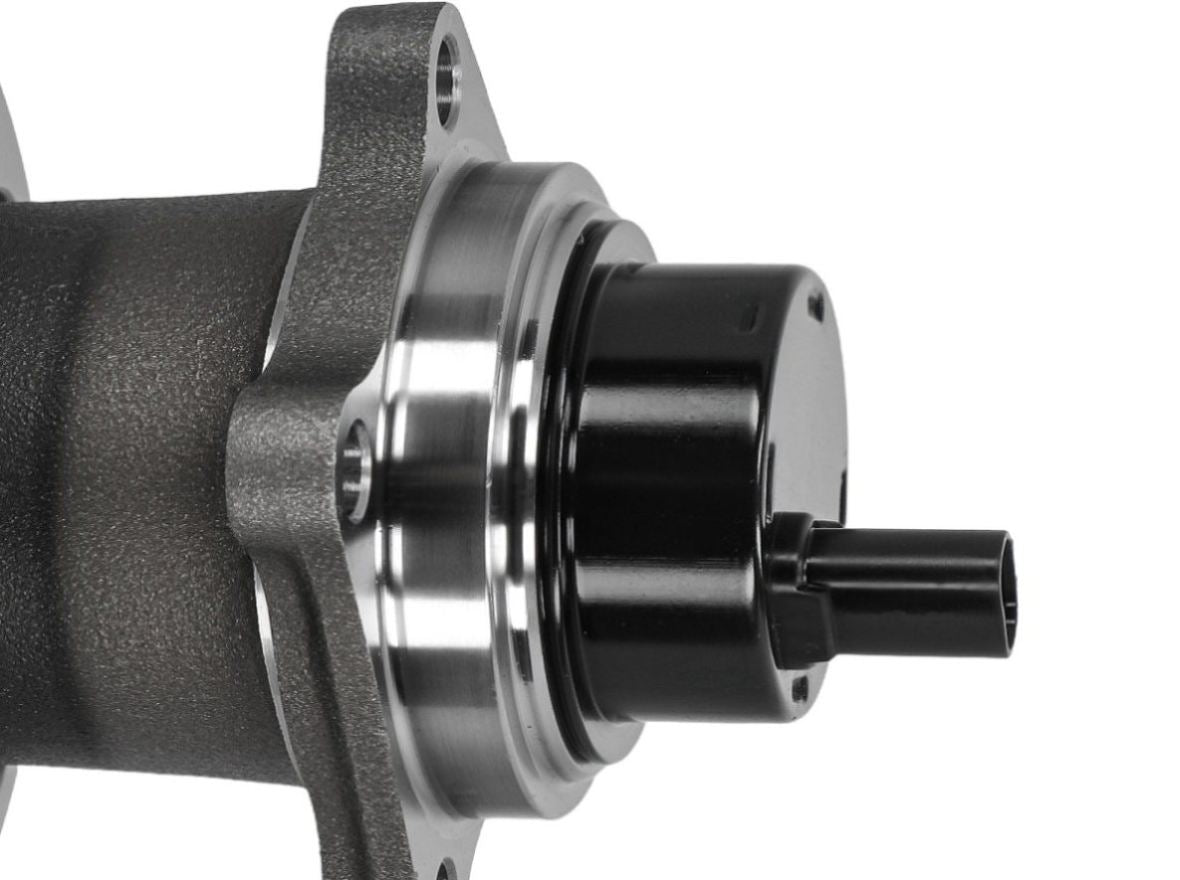

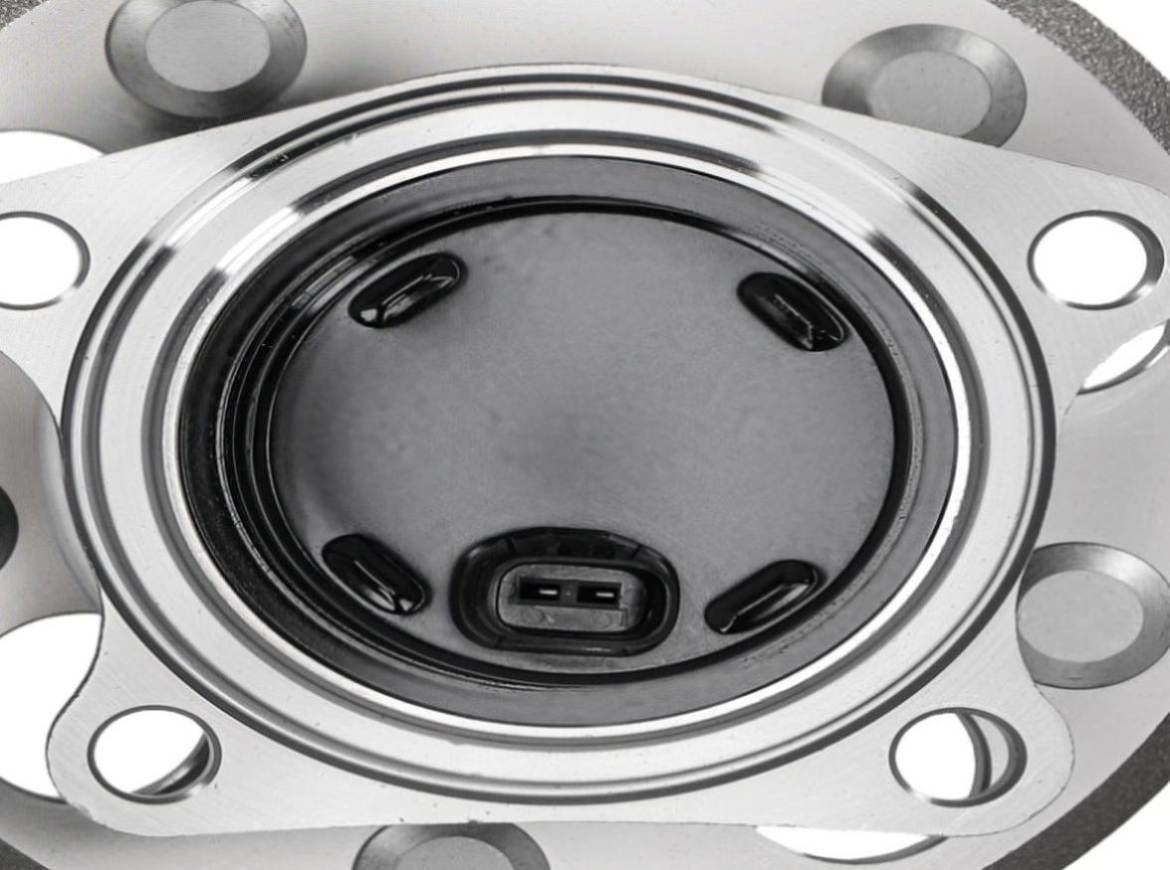

ABS Type: Sensor
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (mm): 114.3
Brake Pilot Diameter (IN): 2.44
Brake Pilot Diameter (mm): 62
Driven Or Non-Driven Type Hub Assembly: Non-Driven
Flange Bolt Hole Diameter (IN): 0.42
Flange Bolt Hole Diameter (mm): 10.7
Flange Bolt Hole Quantity: 4
Flange Bolts Included: No
Flange Diameter (IN): 5.98
Flange Diameter (mm): 152
Flange Offset (IN): 2.72
Flange Offset (mm): 69
Flange Shape: Offset
Hub Pilot Diameter (IN): 3.31
Hub Pilot Diameter (mm): 84
Wheel Pilot Diameter (IN): 2.36
Wheel Pilot Diameter (mm): 60

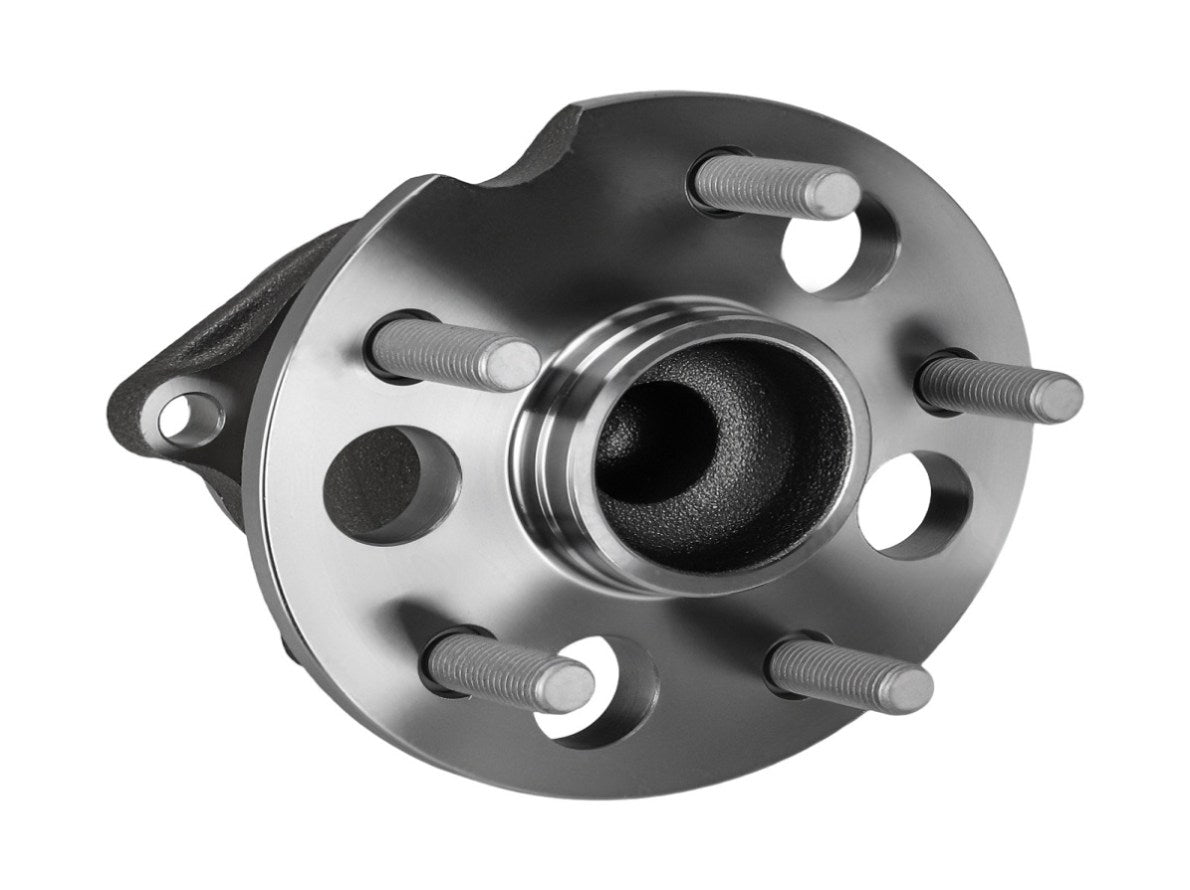

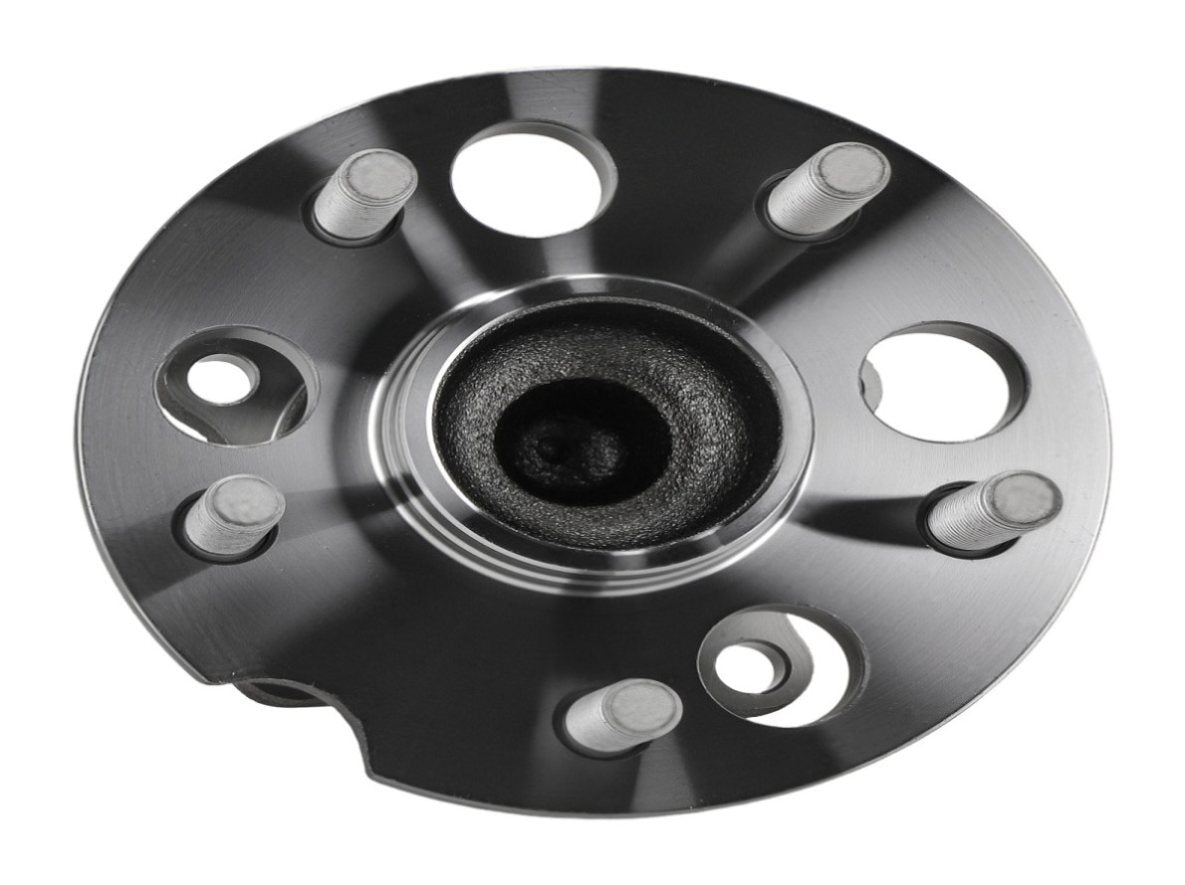

Wheel Stud Quantity: 5
Wheel Stud Size (mm): M12 x 1.5
Wheel Studs Included: Yes
Type: Wheel Hub & Bearing Assembly

Package included:

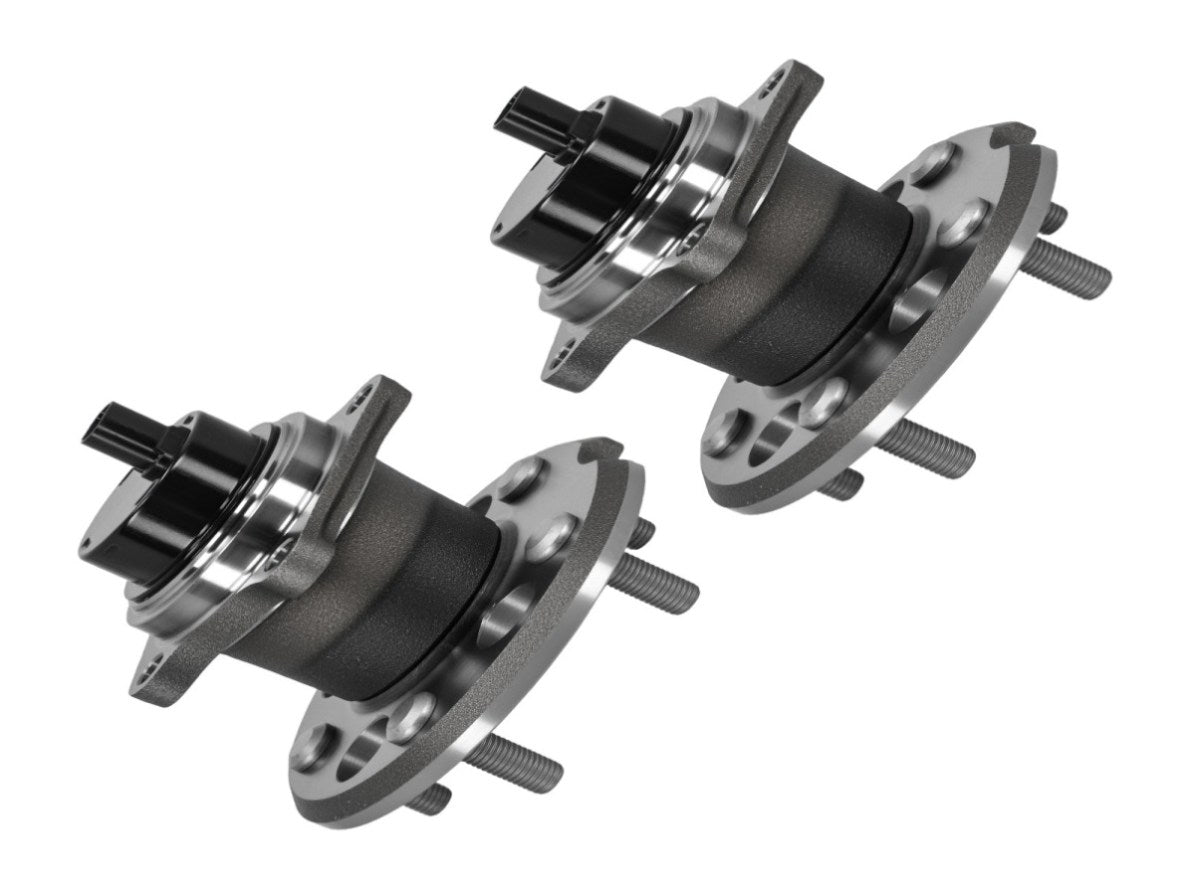

2x Rear Wheel Bearing and Hub Assembly - Driver and Passenger Side -512280

Feature:

・OEM Standard Specifications

Meet OE performance standards

・High-Quality Steel Materials

Provide optimal performance and durability

・Bolt Design

Balance force better, boost safety

・Built-In Seals

Stop contaminants and keep lubrication

Note:

Professional installation is highly recommended.

Please double confirm the compatibility as well as the OEM number before purchasing
