Rear Fuel Pump Assembly fit for Chevy S10 GMC Sonoma 1985-1991 SP06B1H 29970336

Application:

fit for Chevrolet  S10 L4 2.5L 1985-1991
fit for Chevrolet  S10 V6 2.8L 1986-1991
fit for Chevrolet  S10 V6 4.3L 1988-1991
fit for GMC S15 L4 2.5L 1985-1990
fit for GMC S15 V6 2.8L 1986-1990
fit for GMC S15 V6 4.3L 1988-1990
fit for GMC Sonoma L4 2.5L 1991
fit for GMC Sonoma V6 2.8L 1991
fit for GMC Sonoma V6 4.3L 1991

OEM / Part Number

SP06B1H,E3637S,25004154,

P77226S,HP10041,PN4035,

25093914,HP10020,SP03B1H,

530-6014,150325,5306014,

A25011,A47131,AFS0787S,

150325,C0464H,E3031H,P77395H,

PU422A,TNKSP06B1H,USEP3637S

Specification:

Drive Type: Electrical
Fuel Type: Gasoline
Voltage(V): 12
Flow Rate(Gallons/Hour): ≥19.8
Pressure(MPa): 0.08
Weight(kg): 0.6637
Inlet Type: Hose connector
Inlet Quantity: 1
Outlet Type: Hose connector
Outlet Quantity: 1
Material: Plastic(POM)+Steel(Q235)
Housing Material: Plastic
Fuel Sending Unit Included: Yes
Fuel Pressure Sensor Included: No
Fuel Level Sensor Included: Yes
Float Included: Yes
Fuel Reservoir Included: No
Fuel Strainer Included: Yes
Seal Ring Included : Yes
Placement on Vehicle: Rear

Package Includes:

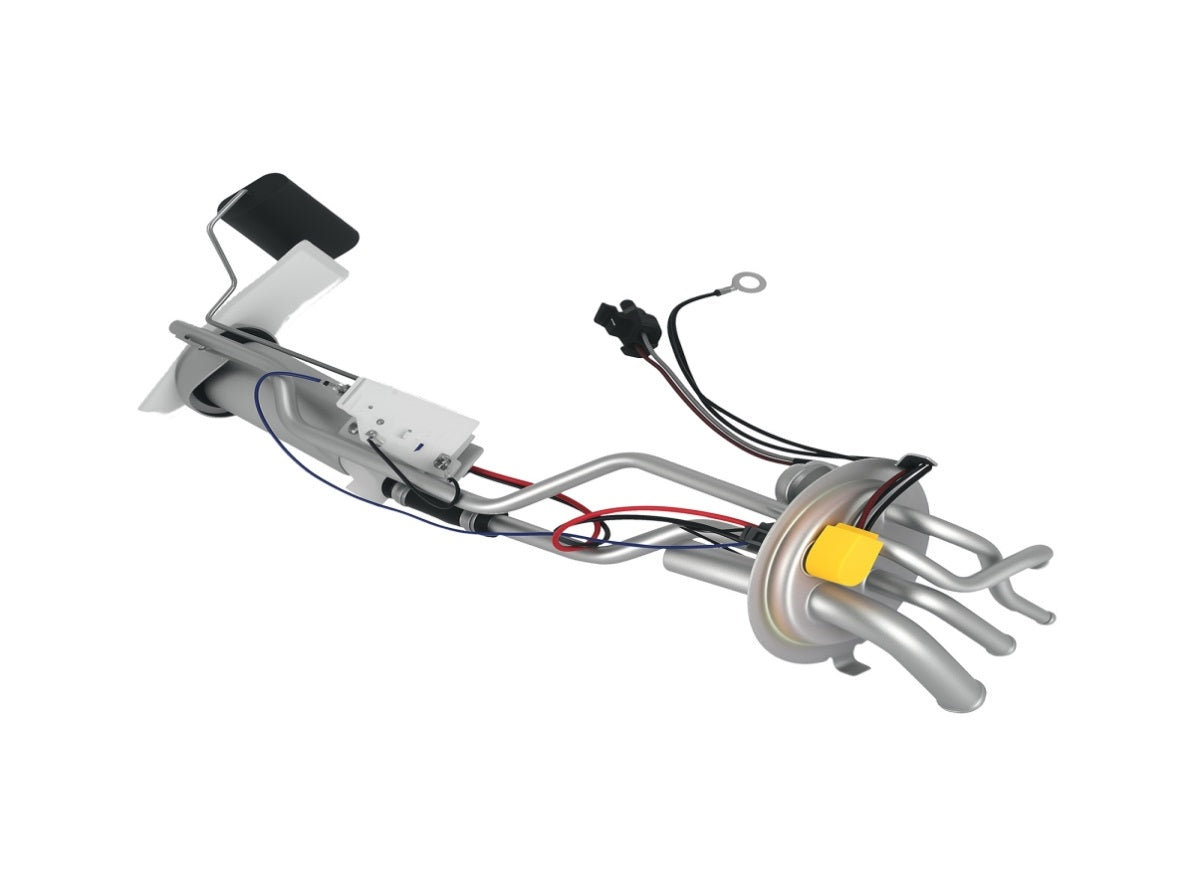

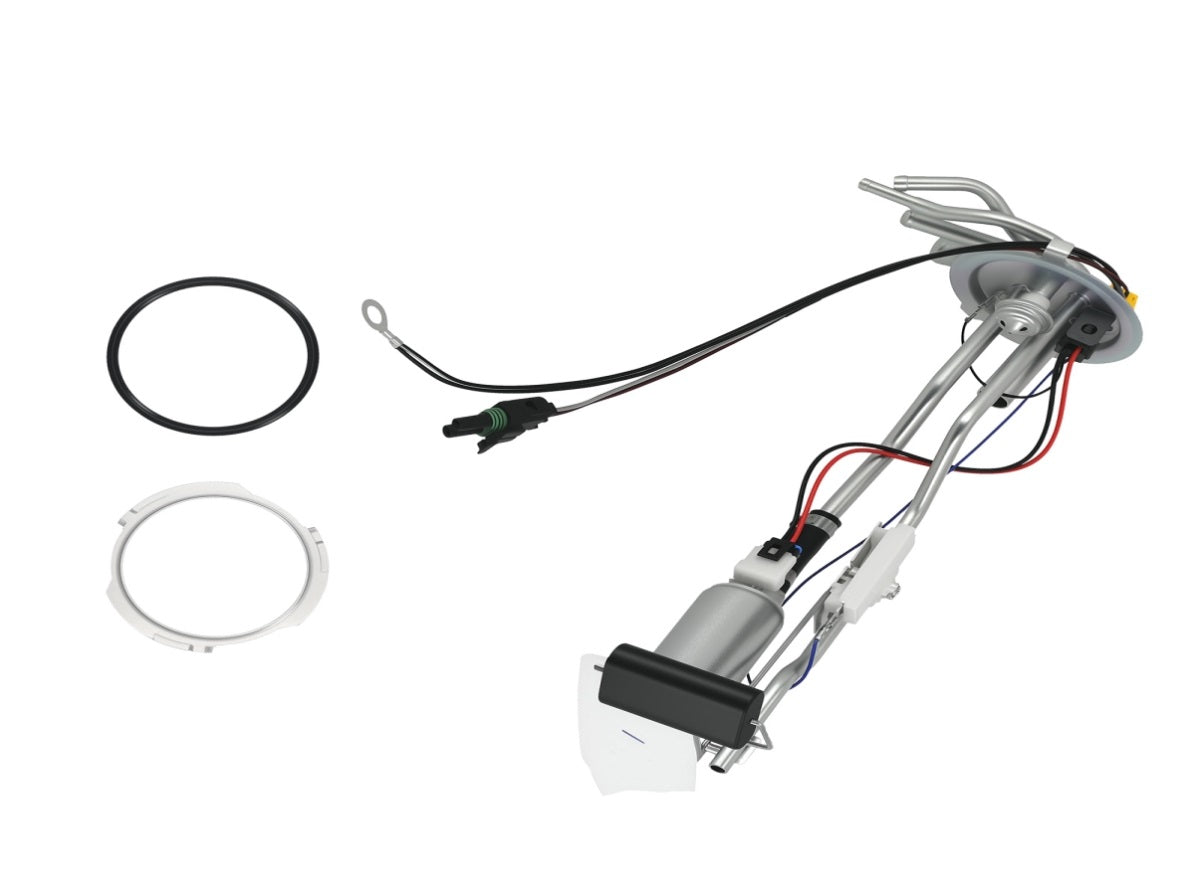

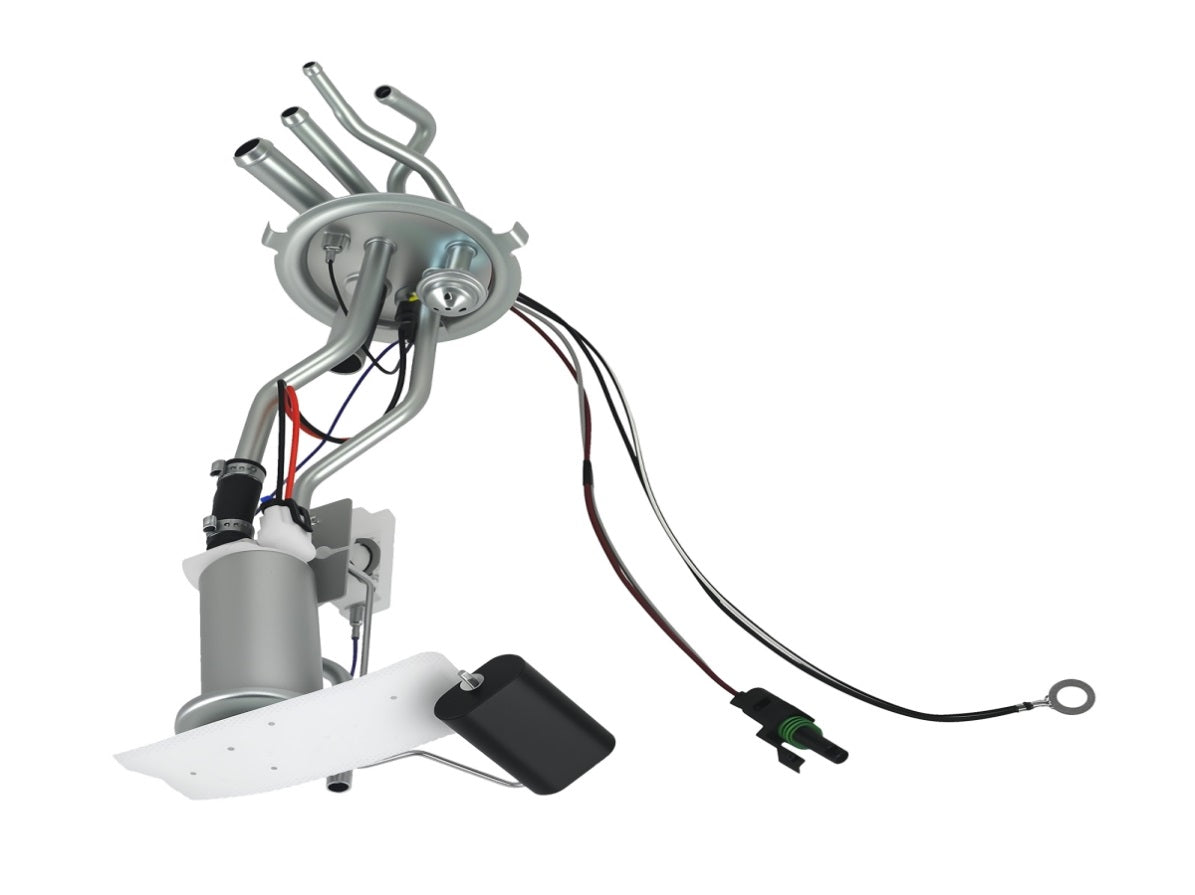

1X Fuel Pump Module Assembly

(as shown in the picture)

Feature:
1.Raw Material fit for key parts from same supplier as OE
2.Fuel Level Sensor Wet Durability Testing ≥ 1 Million times
3.Pressure Valve Durability Test ≥ 500,000 times
4.High temperature durability testing≥ 600 hours(60℃)
5.100% test

Notes:

1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
