Rear Drop Kit 3" Lowering Blocks for GMC C15/C1500 C25 for Chevy C20 C10 1963-1972 50020612

Introduction:

Both lifts and leveling kits are designed to raise the truck body away from the axles to fit larger tires and increase ground clearance. A leveling kit involves hardware to slightly raise the front of the vehicle so it matches the stock height in the back.

Feature:

- For use on short wheel-base, one-piece drive line pickups with 5" drop or more

- Adjustable for up to 4 degrees of anti squat

- Lower hole is for factory trailing arm position

- Eliminates interference with the drive shaft when running a lowered truck

- Exhaust passages allow to run up to 3" dual exhaust

- Allow for the use of 5 different trailing arm settings

- No welding/modifications required

Specifications:

1.Description:

- A simple and practical way to reduce the height of the rear of a C-10 or C-20 truck without affecting the driving quality.

- These lowering kits are specially made for Chevy 1960-1972 and for GMC C-10/C-20-2WD trucks equipped with factory rear coil springs.

- Installed between the axle housing and the trailing arm of the rear coil spring.

- Located between the axle housing and the rear lower trailing arm, it provides you with a 3" lowering volume.

2.Application :

for Chevy C10 Panel 1963-1967

for Chevy C10 Pickup 1963-1972

for Chevy C10 C10 Suburban 1967-1972

for GMC C15/C1500 Pickup 1967-1972

for GMC C15/C1500 Suburban 1968-1972

for Chevy Blazer 2wd 1969-1972

for Chevy C10 / C1000 Truck 2wd 1960-1972

for Chevy C20 / C2000 Suburban 2wd 1967-1972

for Chevy C20 / C2000 Truck 2wd 1960-1972

for GMC C25 / C2500 Truck 2wd 1960-1972

for GMC Jimmy 2wd 1969-1972

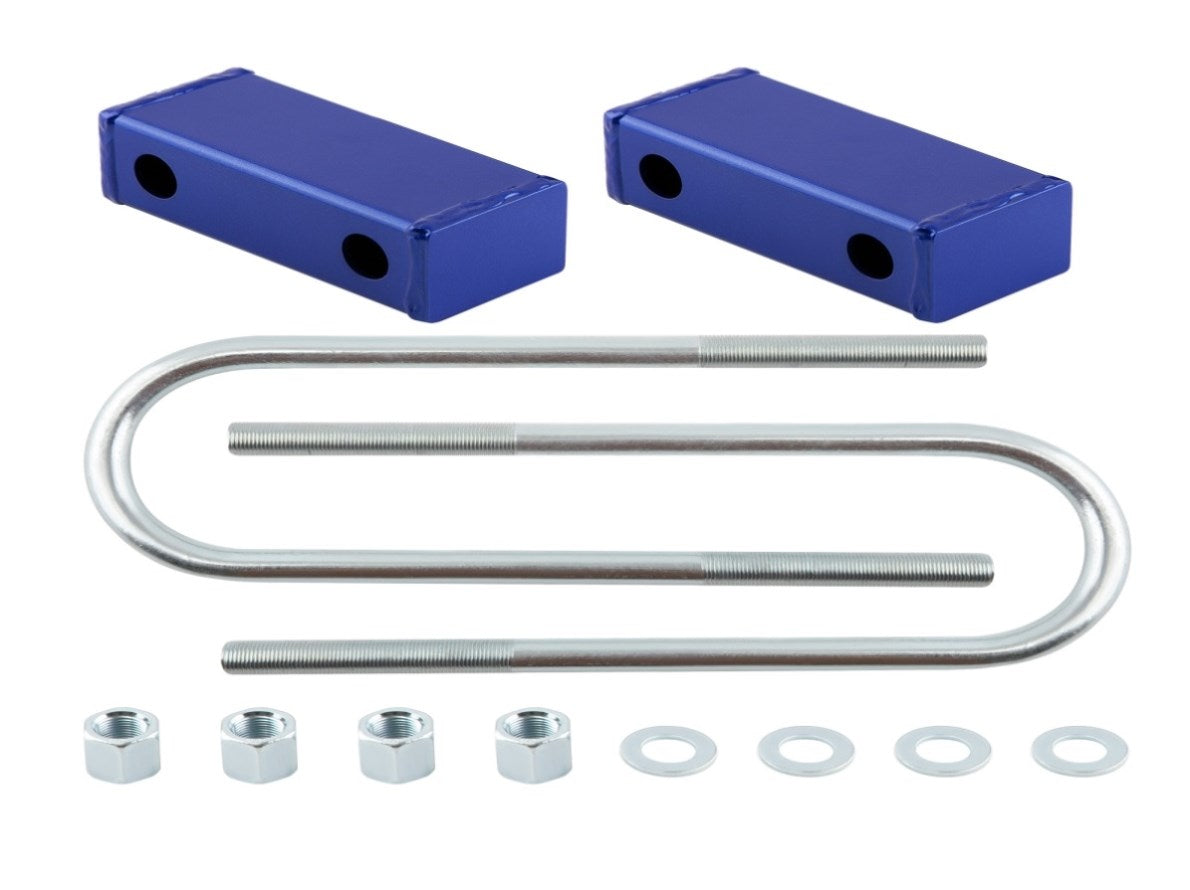

Package includes:

3" inch Lowering Blocks Drop Kit as the picture shows
