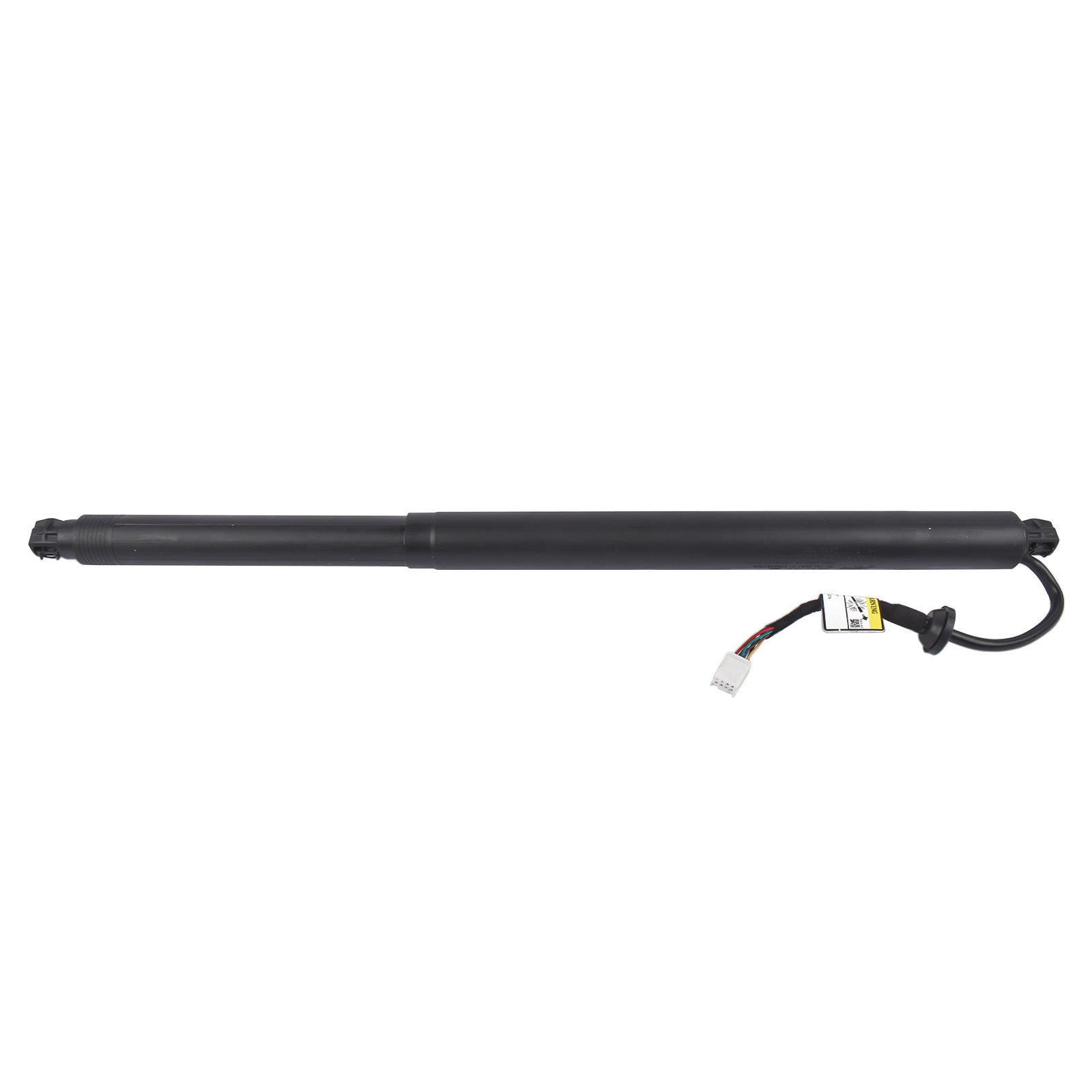

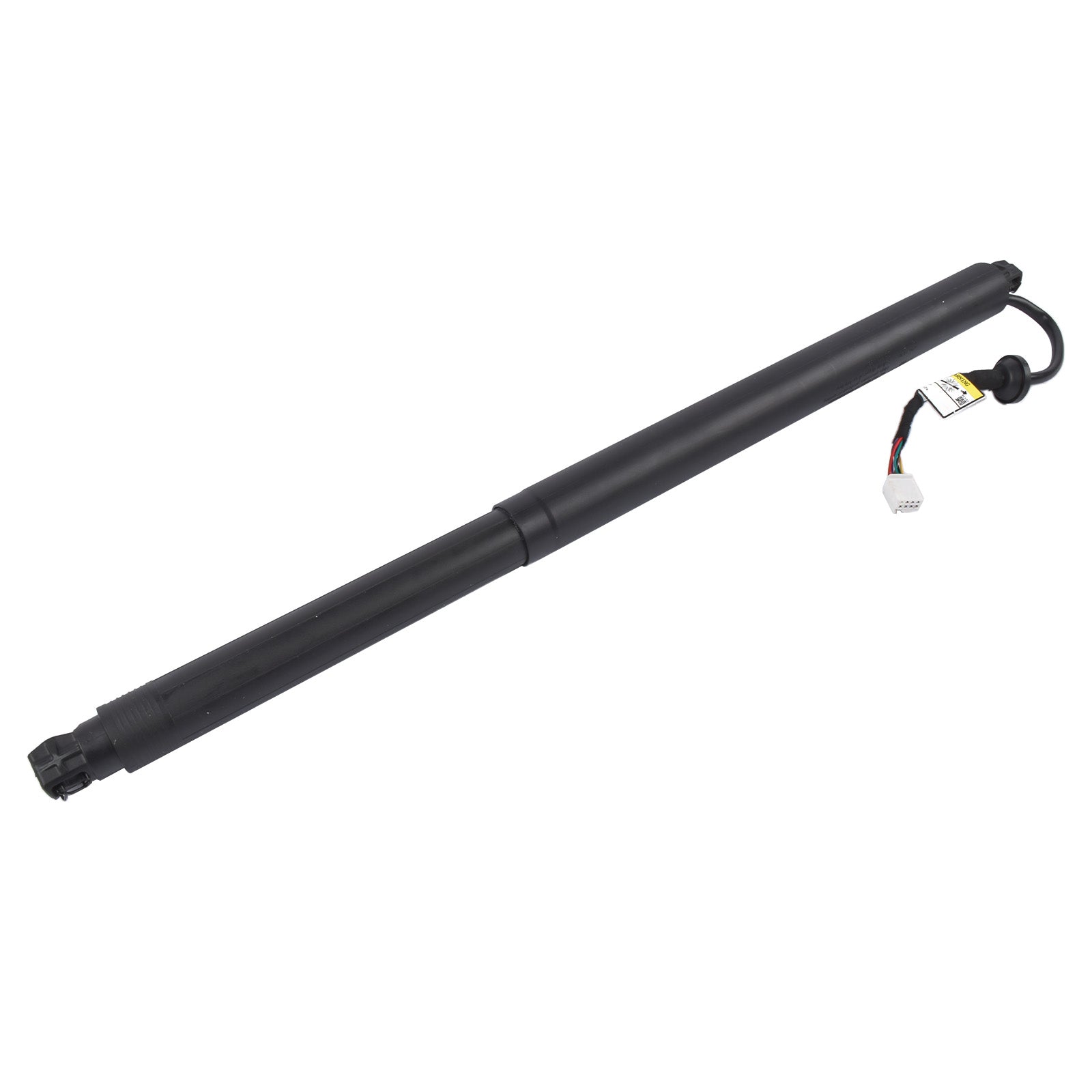

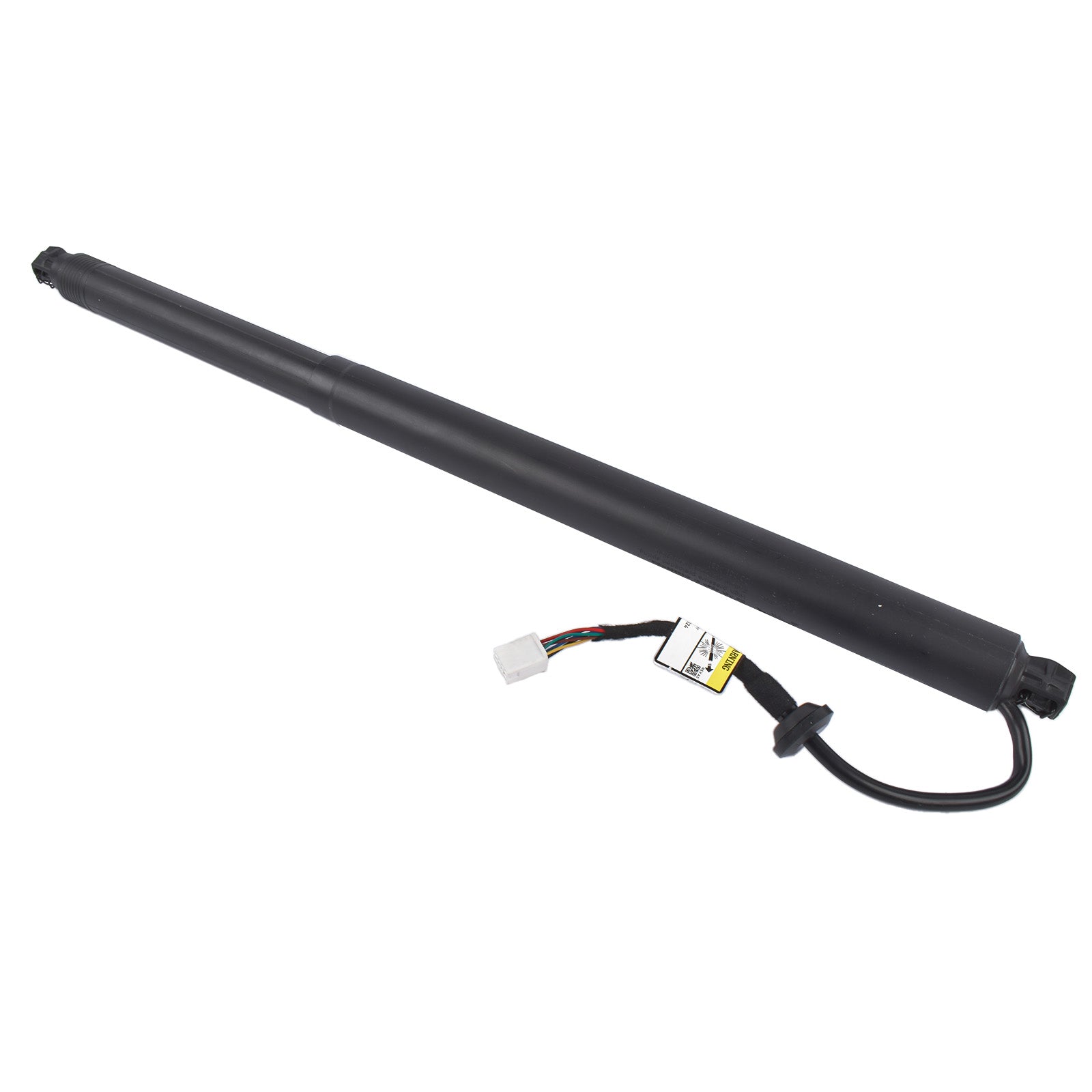

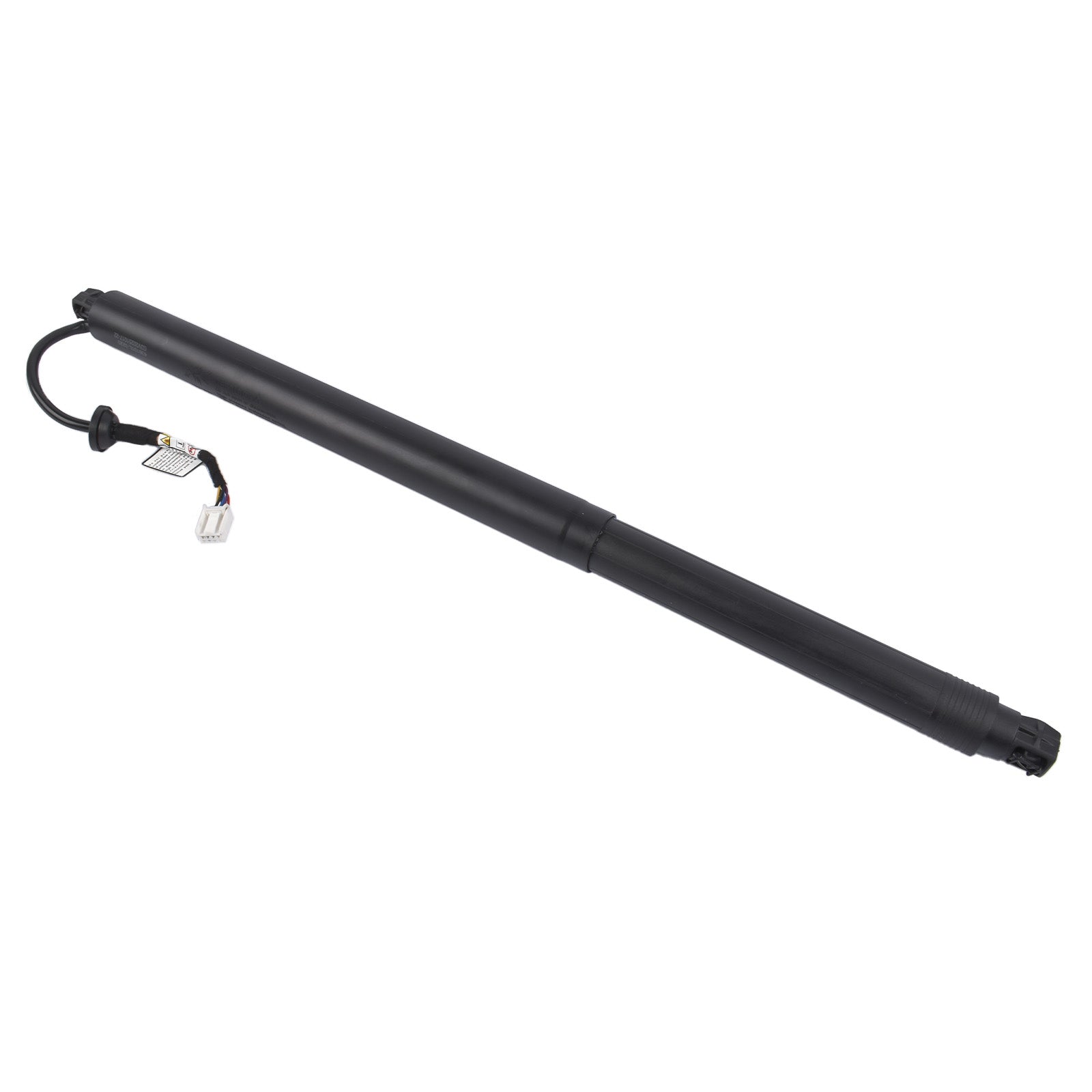

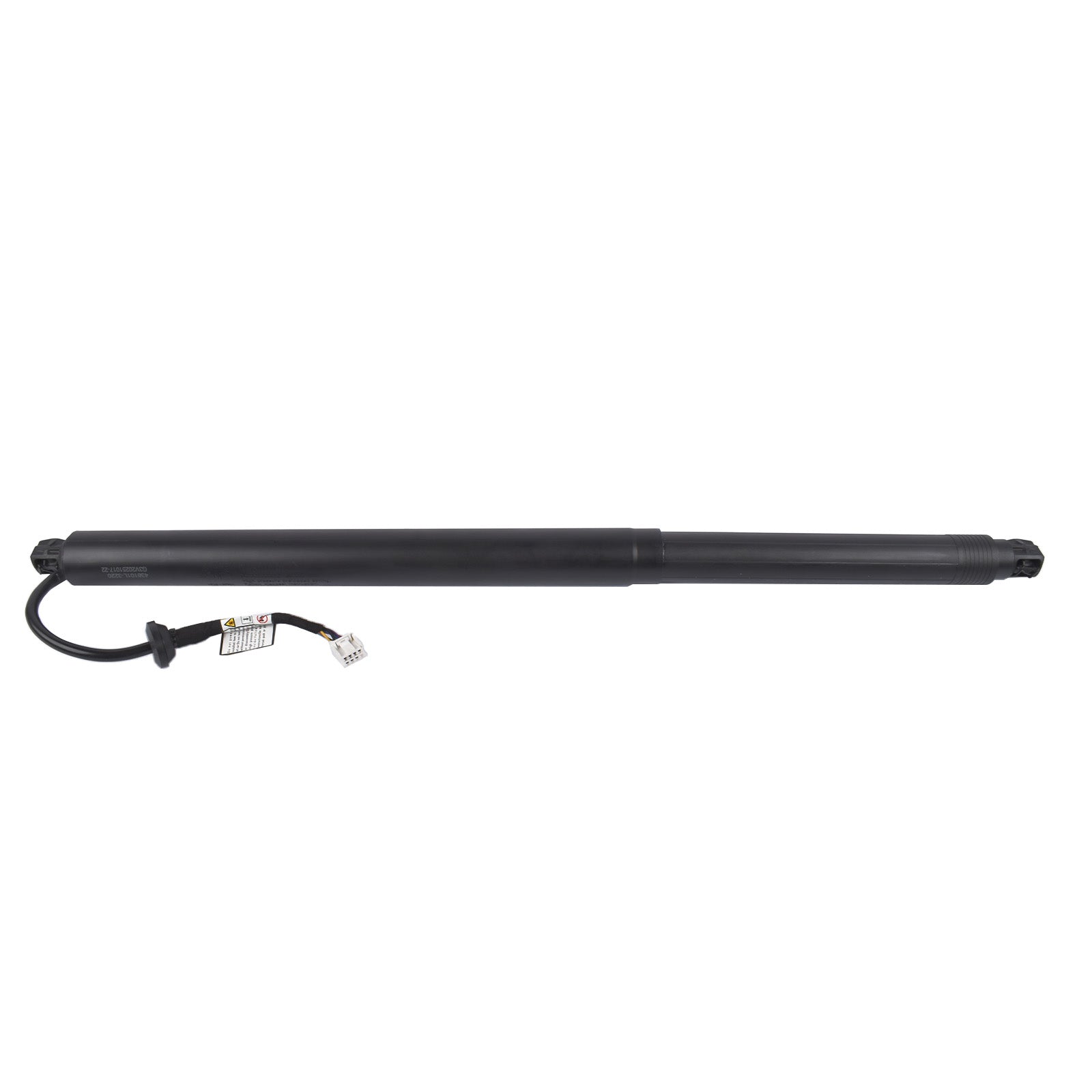

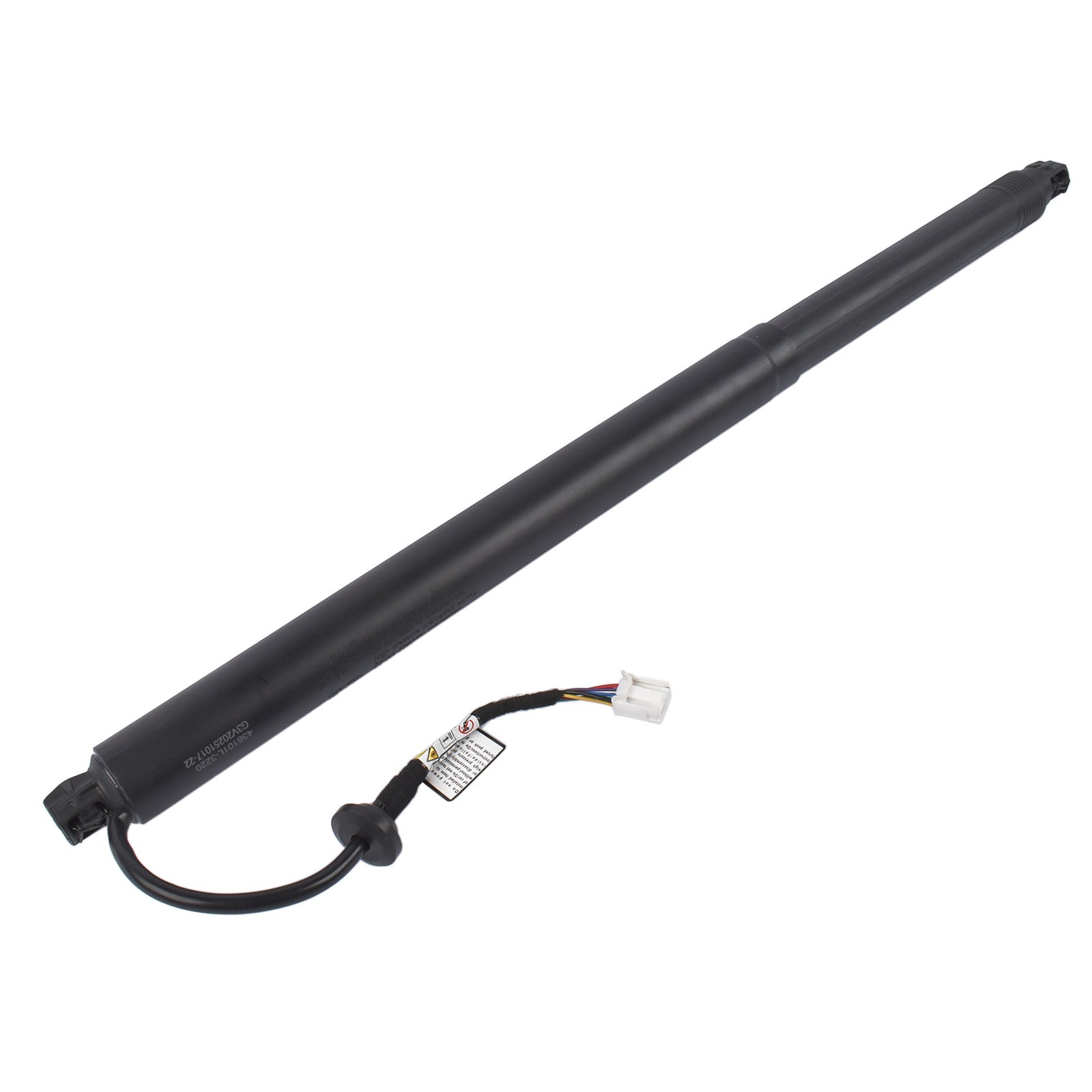

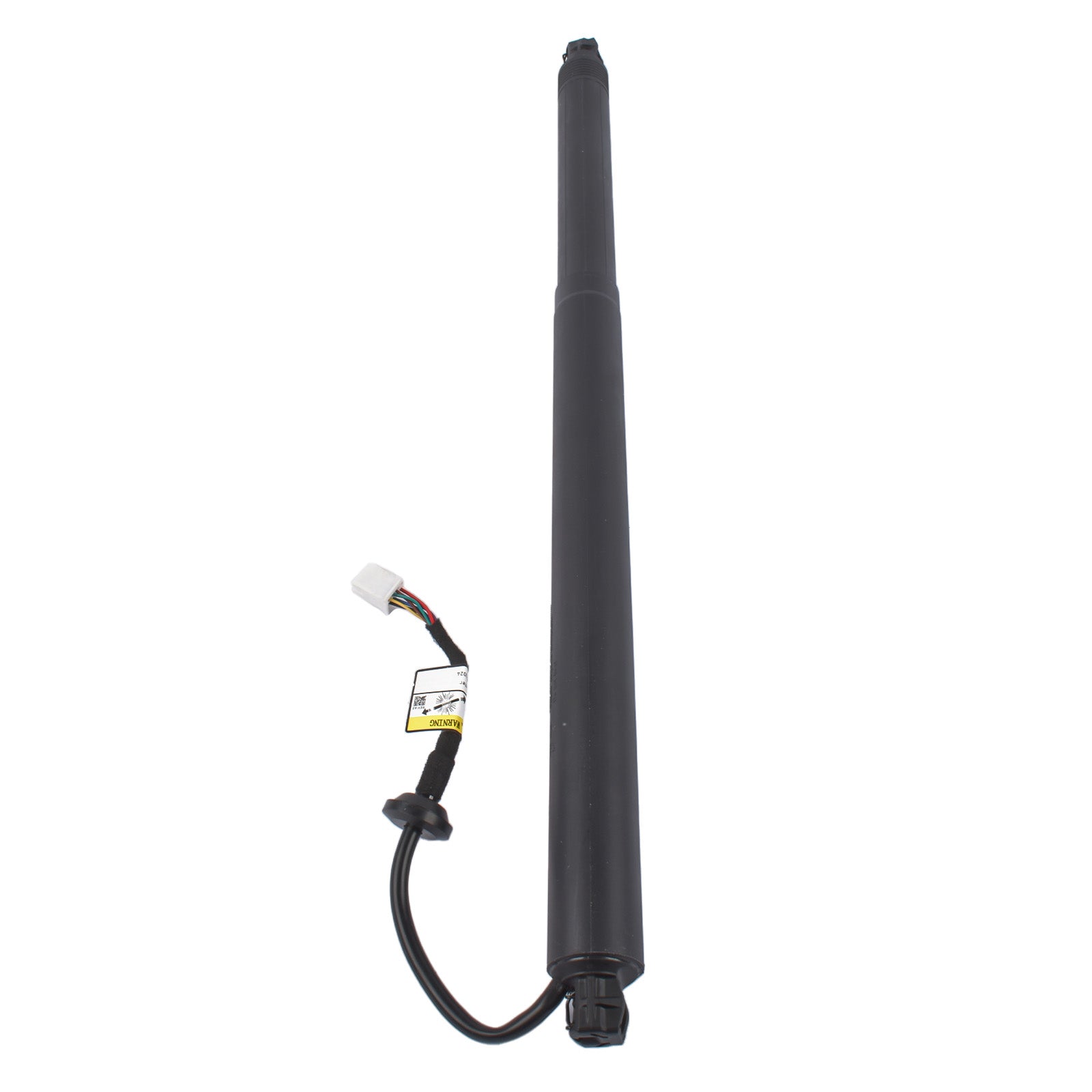

Rear Driver Side Power Hatch Lift Support Replacement for 2019-2024 Subaru Forester Ref 63329SJ010, 43321953
GT-43321953
Out of stock
$105.87
$121.75
? Key Specifications Parameter Details Part Type Electric Tailgate Lift Support (Power Hatch Strut) Color Black Material Steel + High-Quality Plastic Installation Position Rear Left (Driver Side) Extended Length 26.10 inches Compressed Length 17.99 inches Stroke Length 8.11 inches Shaft Diameter 34.7mm Body Diameter 38.6mm Connection Size (Shaft/Body) 10mm /...
customers are viewing this product
? Key Specifications
| Parameter | Details |
|---|---|
| Part Type | Electric Tailgate Lift Support (Power Hatch Strut) |
| Color | Black |
| Material | Steel + High-Quality Plastic |
| Installation Position | Rear Left (Driver Side) |
| Extended Length | 26.10 inches |
| Compressed Length | 17.99 inches |
| Stroke Length | 8.11 inches |
| Shaft Diameter | 34.7mm |
| Body Diameter | 38.6mm |

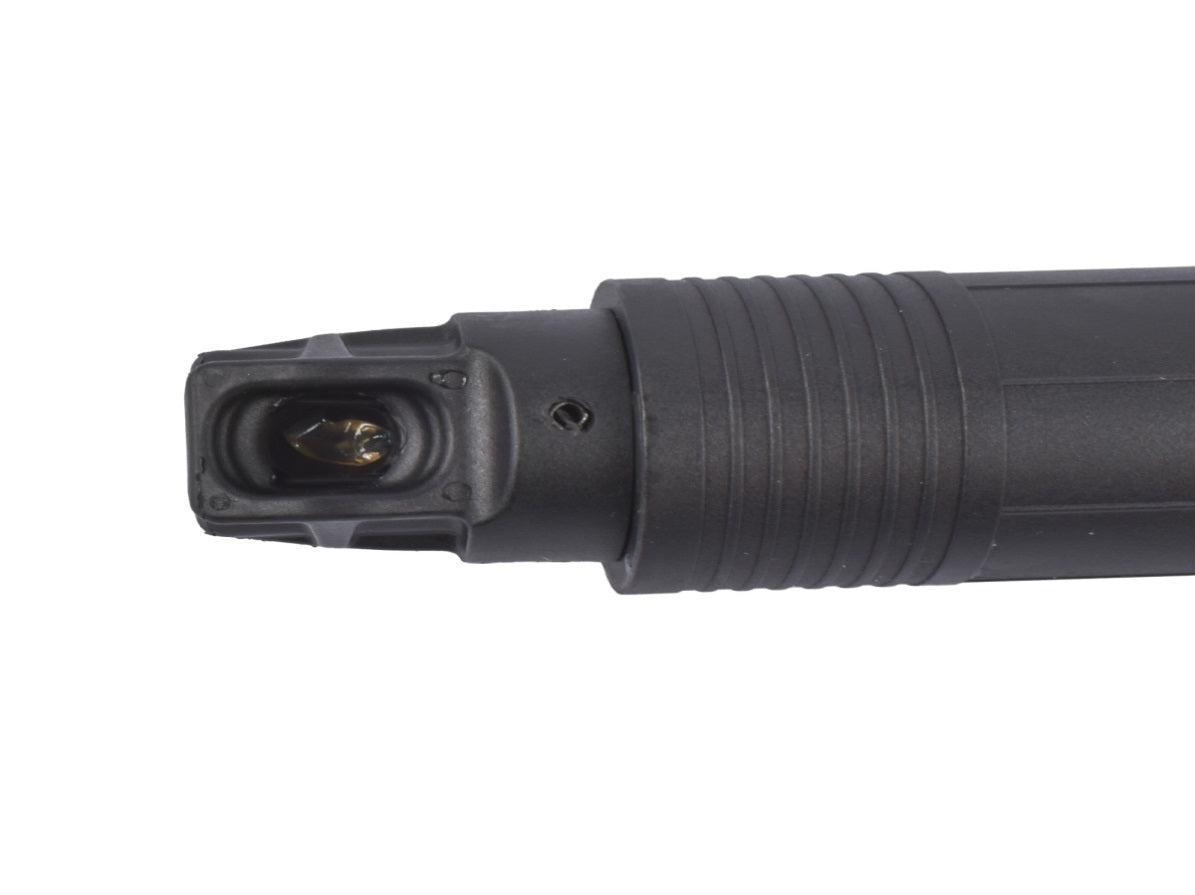

| Connection Size (Shaft/Body) | 10mm / 10mm |
| Fitment Type | Direct Replacement |
? OE/OEM Cross Reference Numbers
- 63320-SJ011 (63320SJ011)
- 63329-SJ010 (63329SJ010)
- 63329-SJ011 (63329SJ011)
? Vehicle Compatibility
- Replacement for Subaru Forester (2019–2024) — fits all body styles
- Installation Location: Rear Left (Driver Side)
? Package Includes
- 1 x Electric Tailgate Strut (exactly as shown in product images)
?️ Step-by-Step Installation Instructions
- Pre-Installation Check: Verify the "L/R" marking on the strut to confirm it matches the rear left (driver side) installation position.
- Prepare the Tailgate: Open the tailgate to its maximum height and remove the interior trim panel.

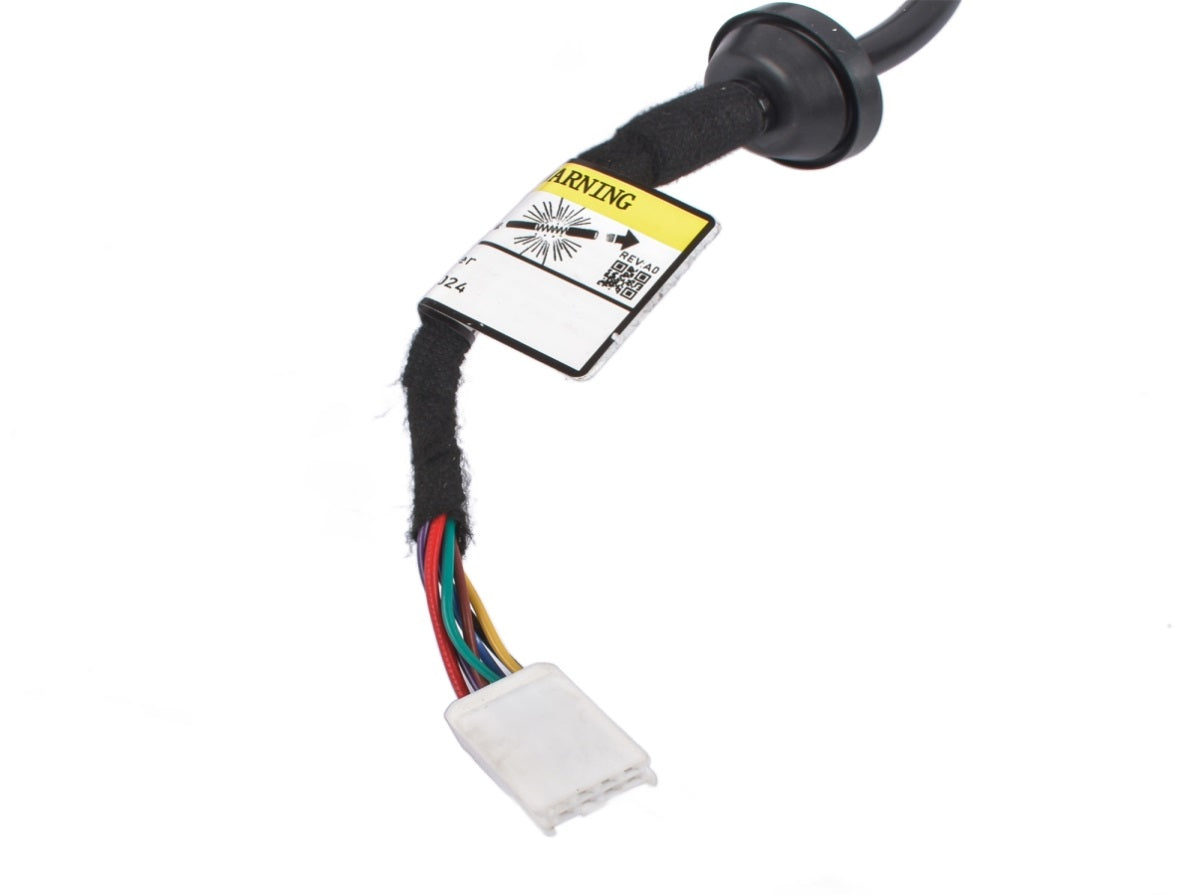

- Remove Old Strut: Disconnect the original connector, then use a tool to loosen and detach the old ball joint.
- Install New Strut: Precisely align and insert the new strut’s joint into the designated mounting position, then reconnect the tailgate connector.
-
Reassemble & Diagnose: Reinstall the interior trim panel. Use a diagnostic scanner to clear error codes:
- Clear immediately if the code shows "Negative / Intermittent".
- Replace the strut if the code displays "Permanent".
