Rear Air Suspension Helper Spring Kit For for Mercedes-Benz Sprinter 2006-2020 28610035

Fitment:

• For Mercedes-Benz Sprinter 2006-2020 Single rear wheel RWD and FWD

Feature:

• 1. No-drill systems.
• 2. Easy installation that typically takes 1 to 2 hours.
• 3. Can be installed on most light commercial vehicles, motorhomes and vans.
• 4. The air suspension kit comes with portable air compressor.
• 5. Use high-quality steel with high load-bearing capacity and long life.
• 6. Excellent and practical bolt-on installation.
• 7. Improves stability and reduces roll and improve handling.
• 8. Assists with towing.
• 9. High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel.

Specification:

• Condition: Brand New
• Placement on Vehicle: Rear left and right
• Charge: 5000LB / 2268 KG
• Package Length, width and height: 710*190*195mm
• Package Wight: 14.25KG
• Air spring---
• Stroke: 140mm
• Max. Extended: 230mm
• Min. Compressed: 90mm
• Operating Pressure: ≤2.0Mpa
• Temperature range：≤+70° , ≥-40°
• Air pump---
• Power: 150W
• Output Voltage: 12V
• Maximum current: 10A
• Maximum Working Voltage: 10bar（1MPa ）

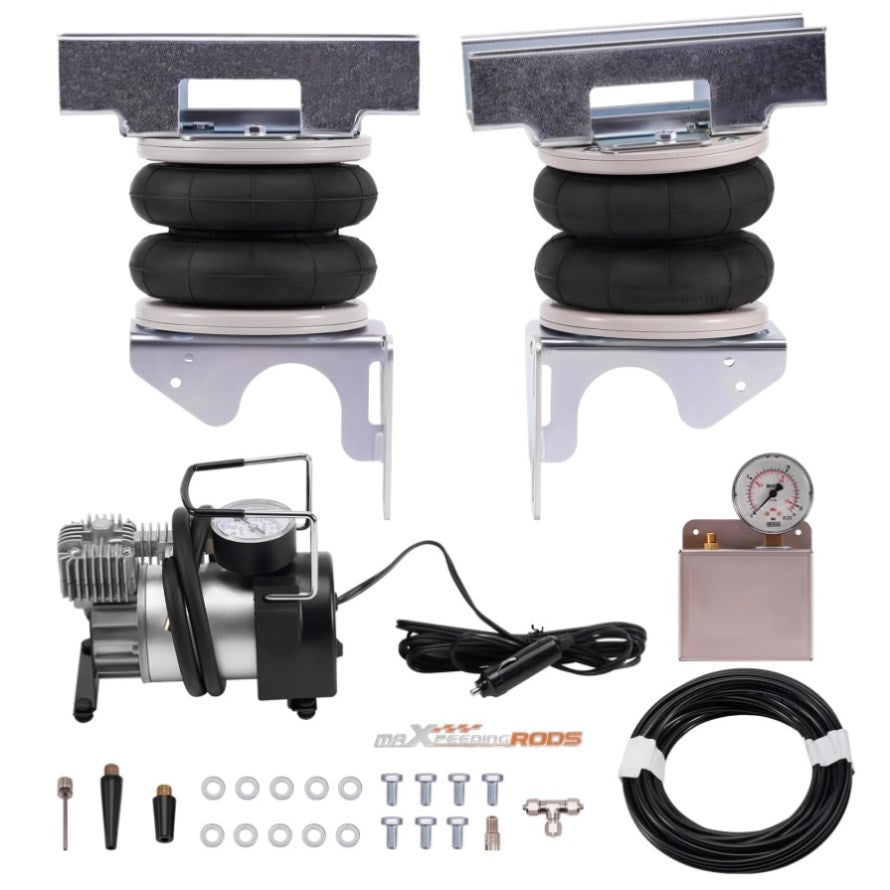

Package Includes:

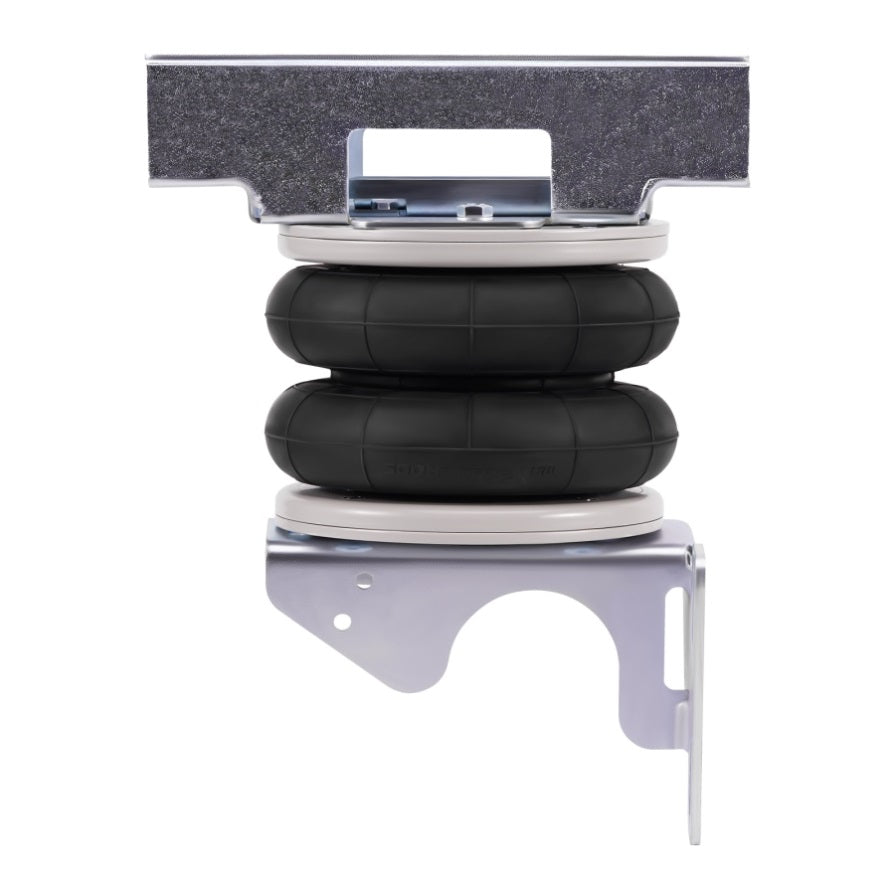

• 2x Air spring
• 2x Top mounting bracket

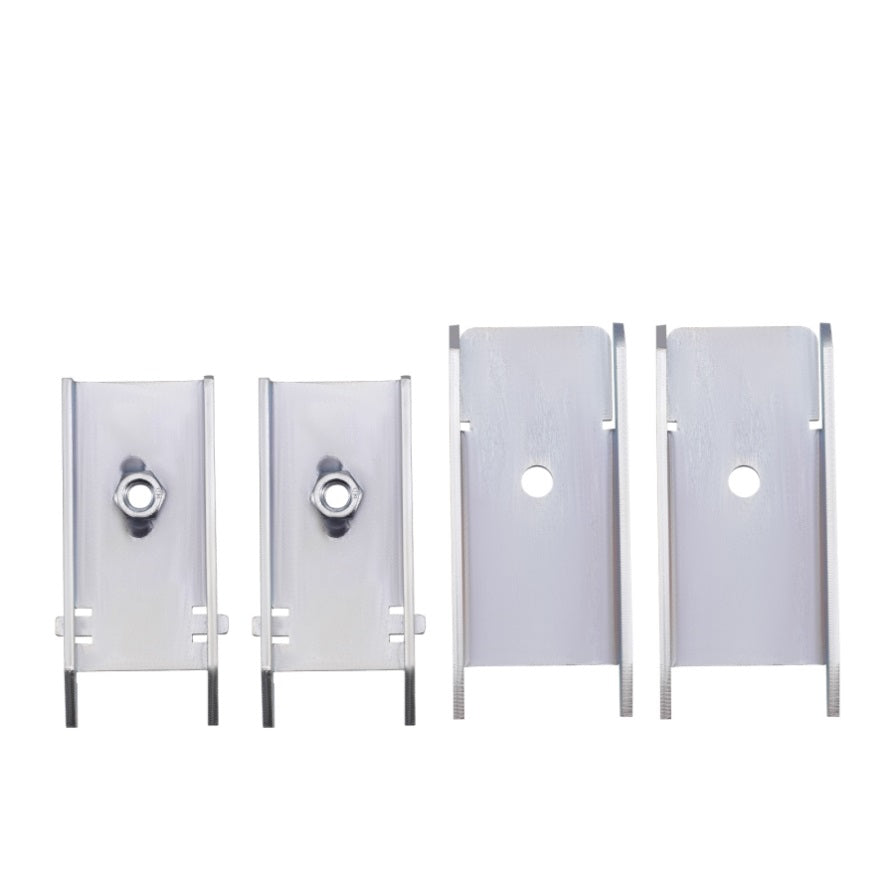

• 2x Top fixed slider
• 2x Top fixed slider bracket
• 2x  Bottom mounting bracket

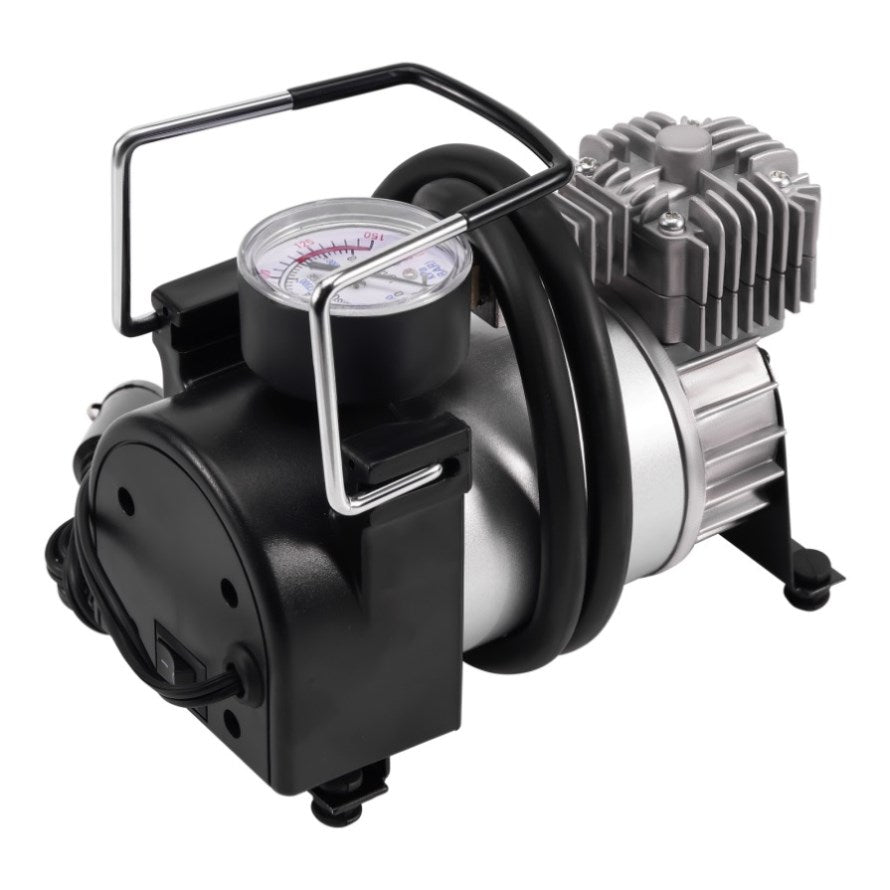

• 1x Air suspension compressor

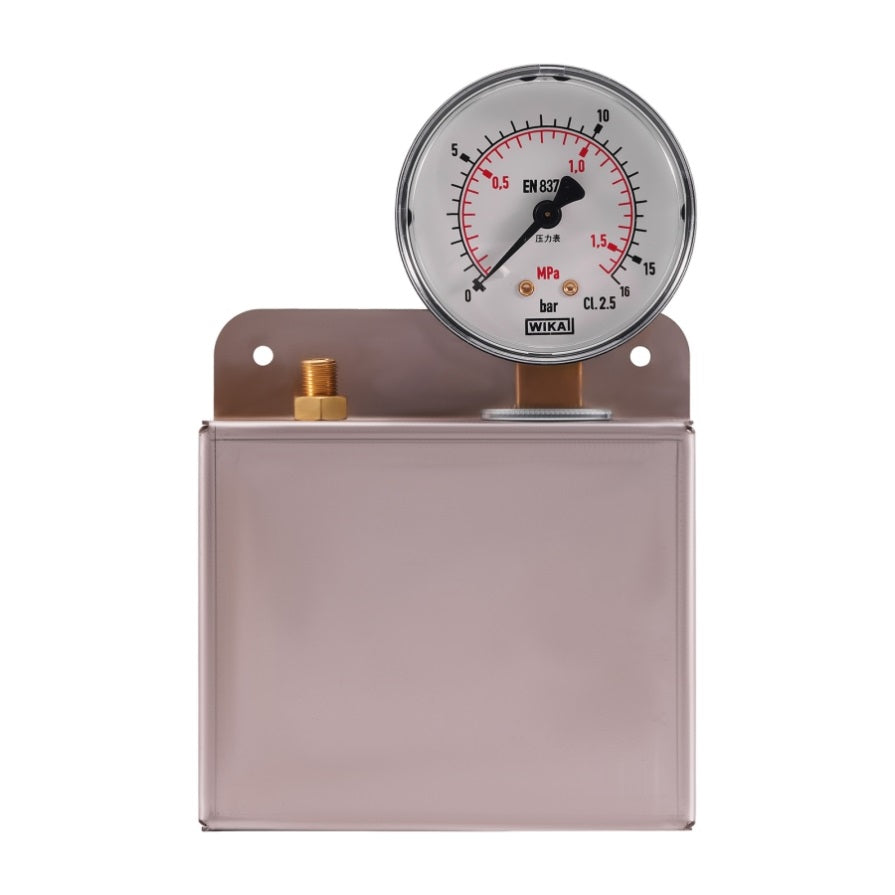

• 1x Installation box & Barometer Air nozzle

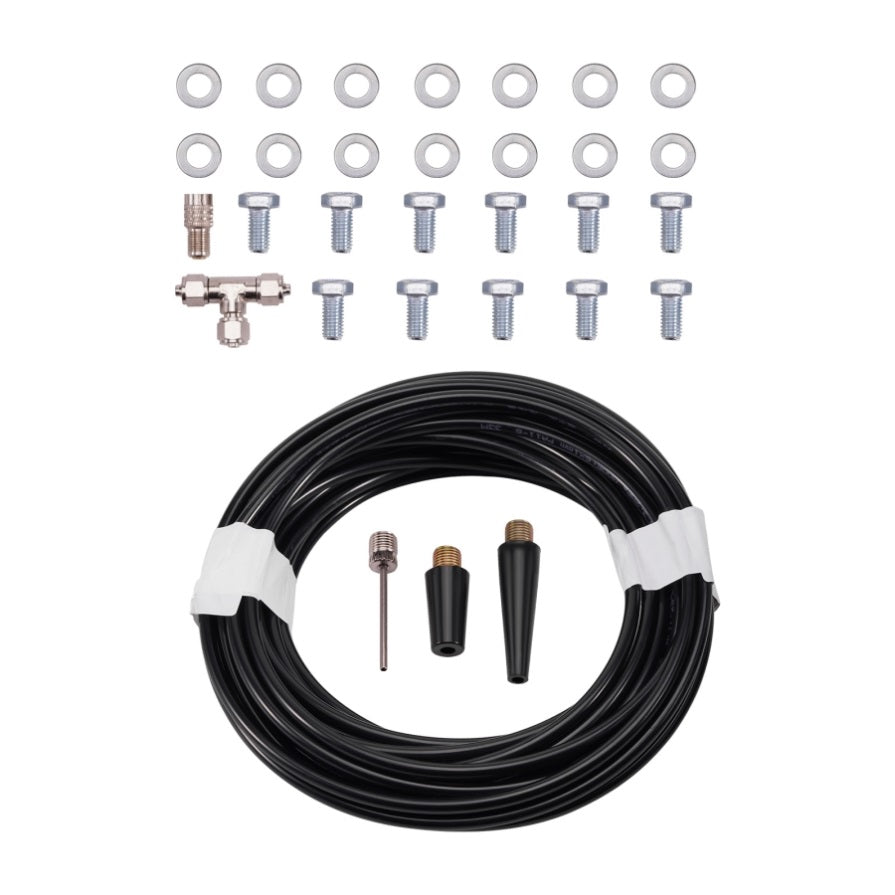

• 4x Air fiting
• 1x Air line 12m
• Mounting bolts and gaskets

Notice:

• We Recommend Professional Installation
• For any questions, please contact us freely
•
