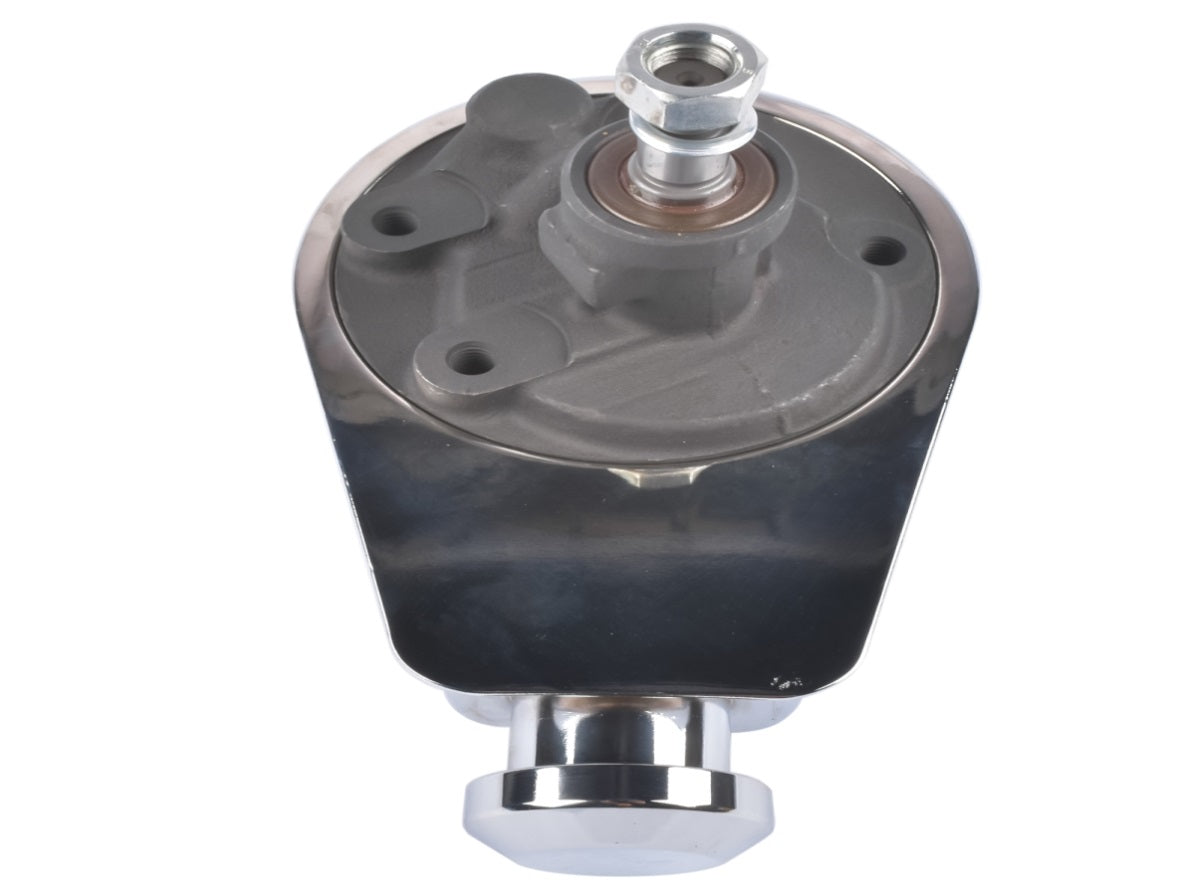

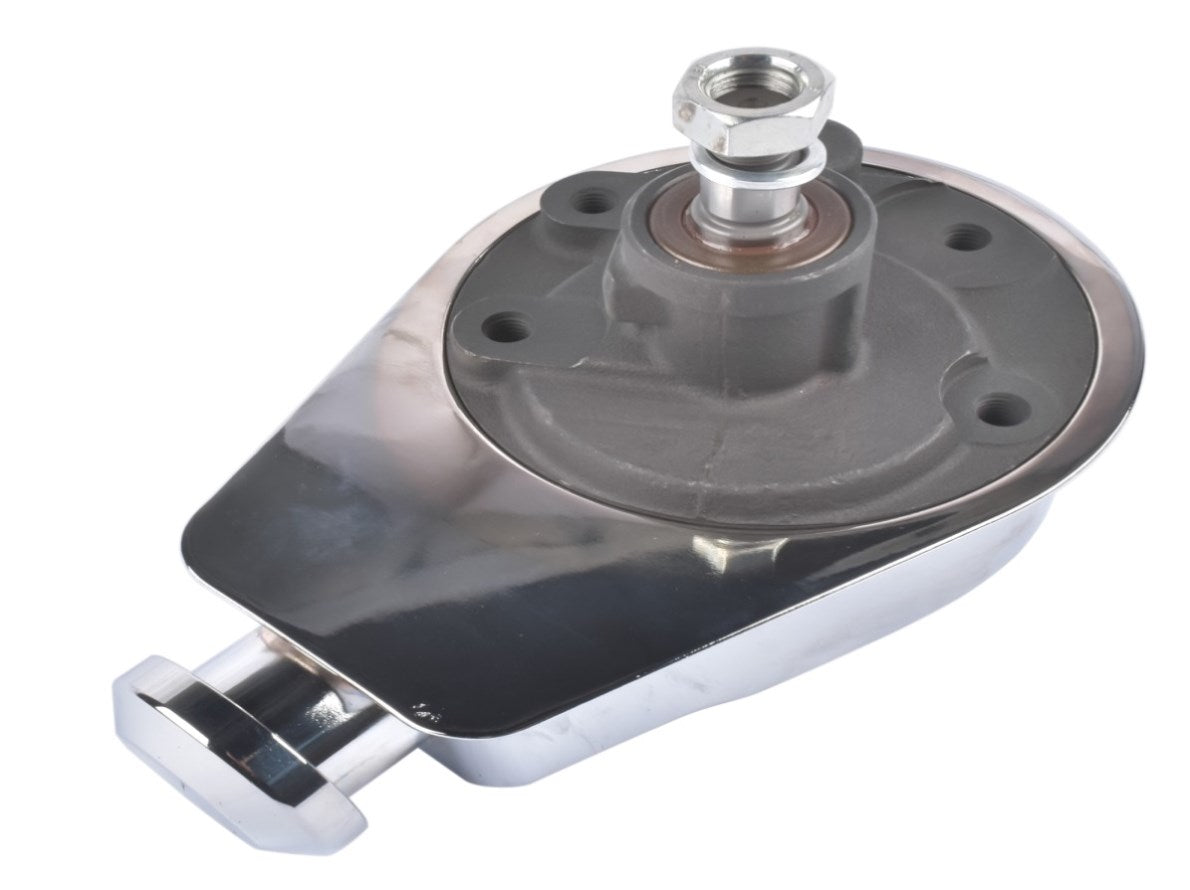

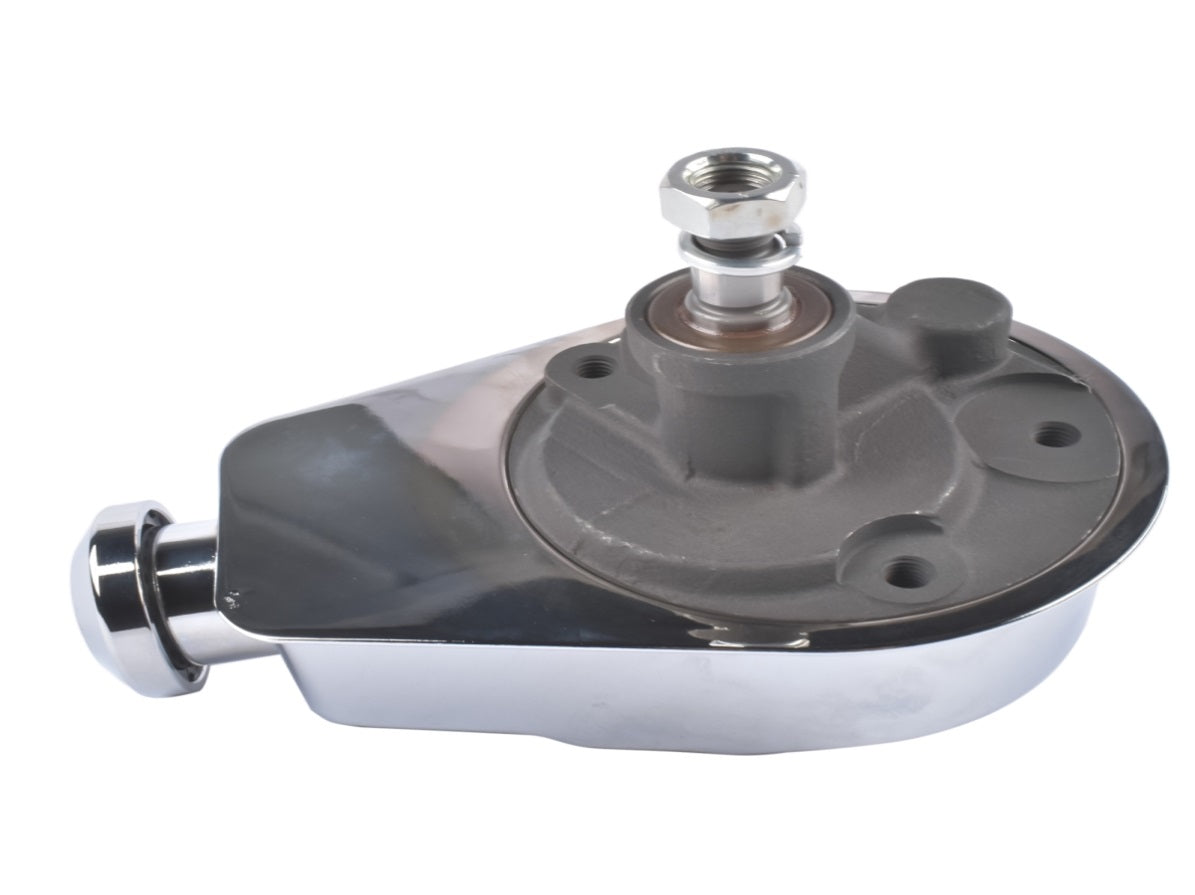

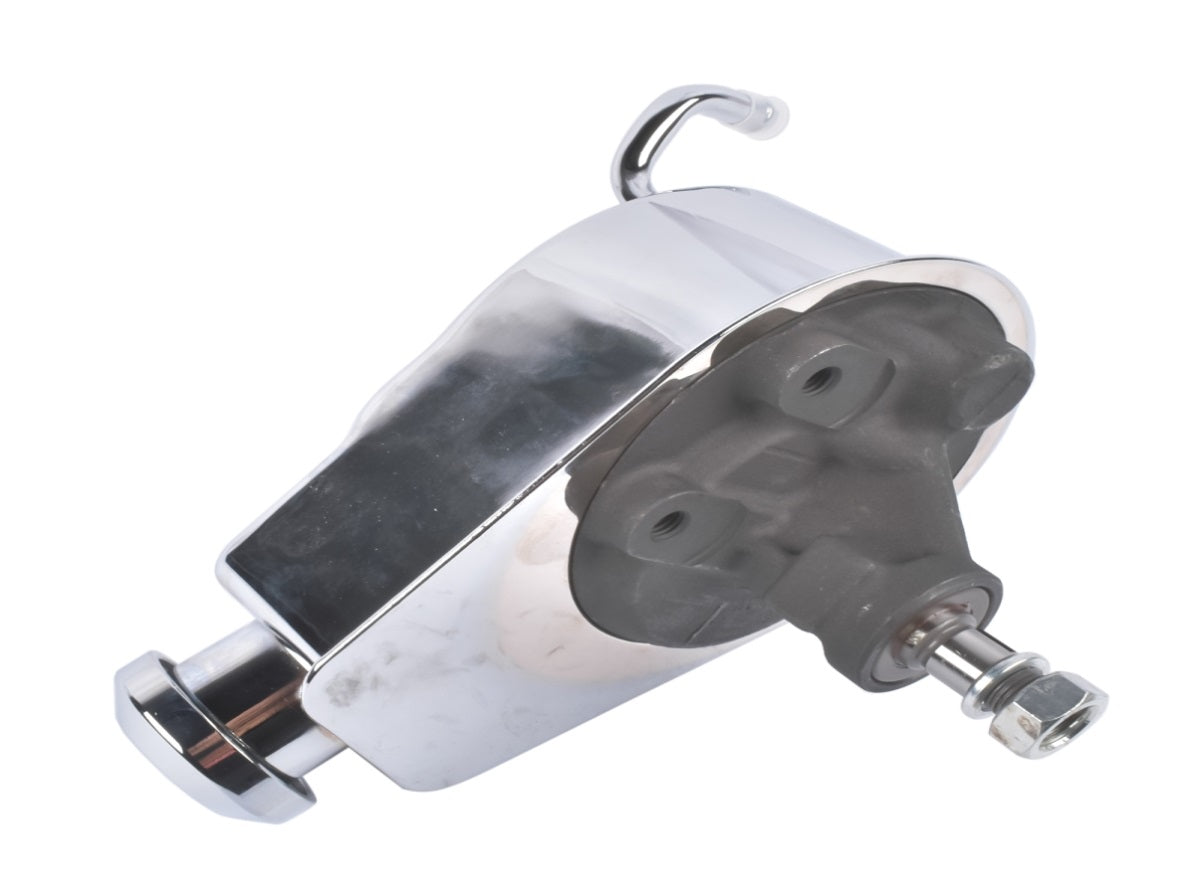

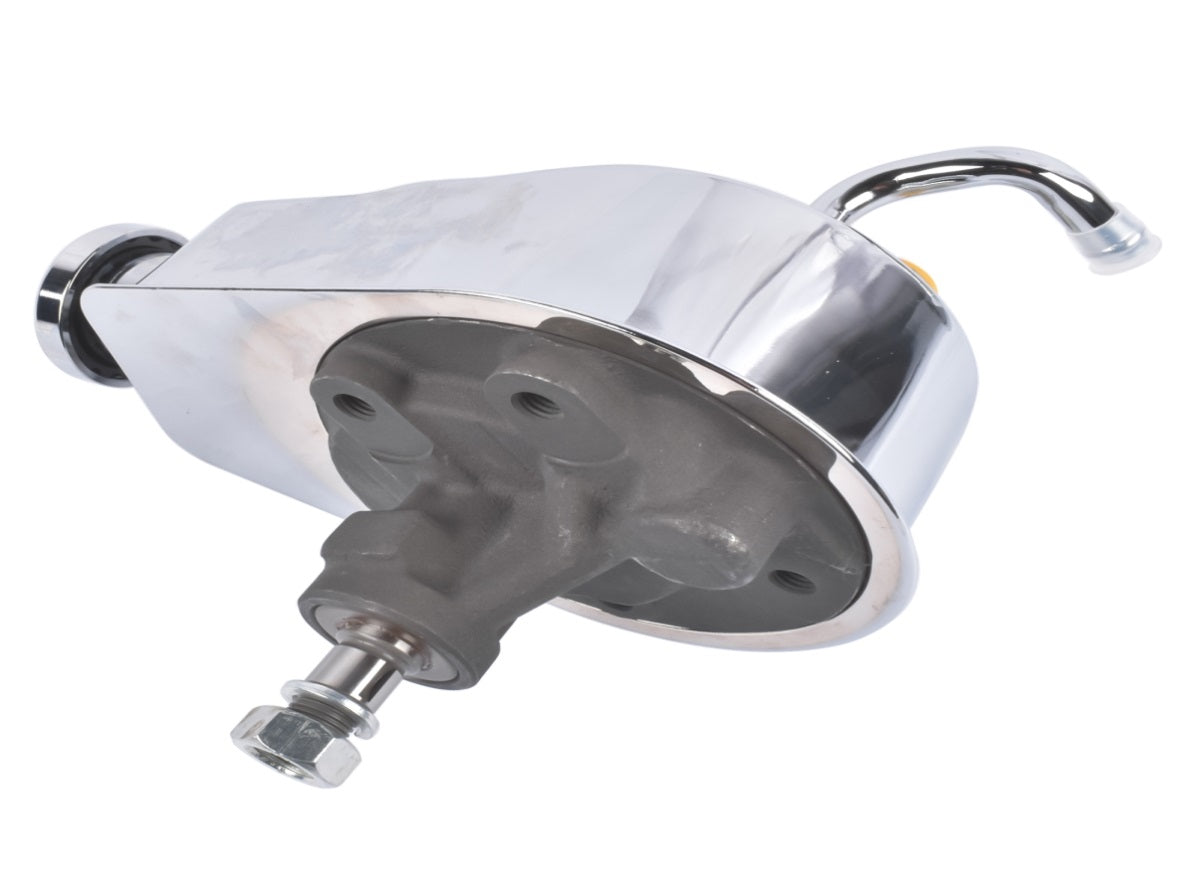

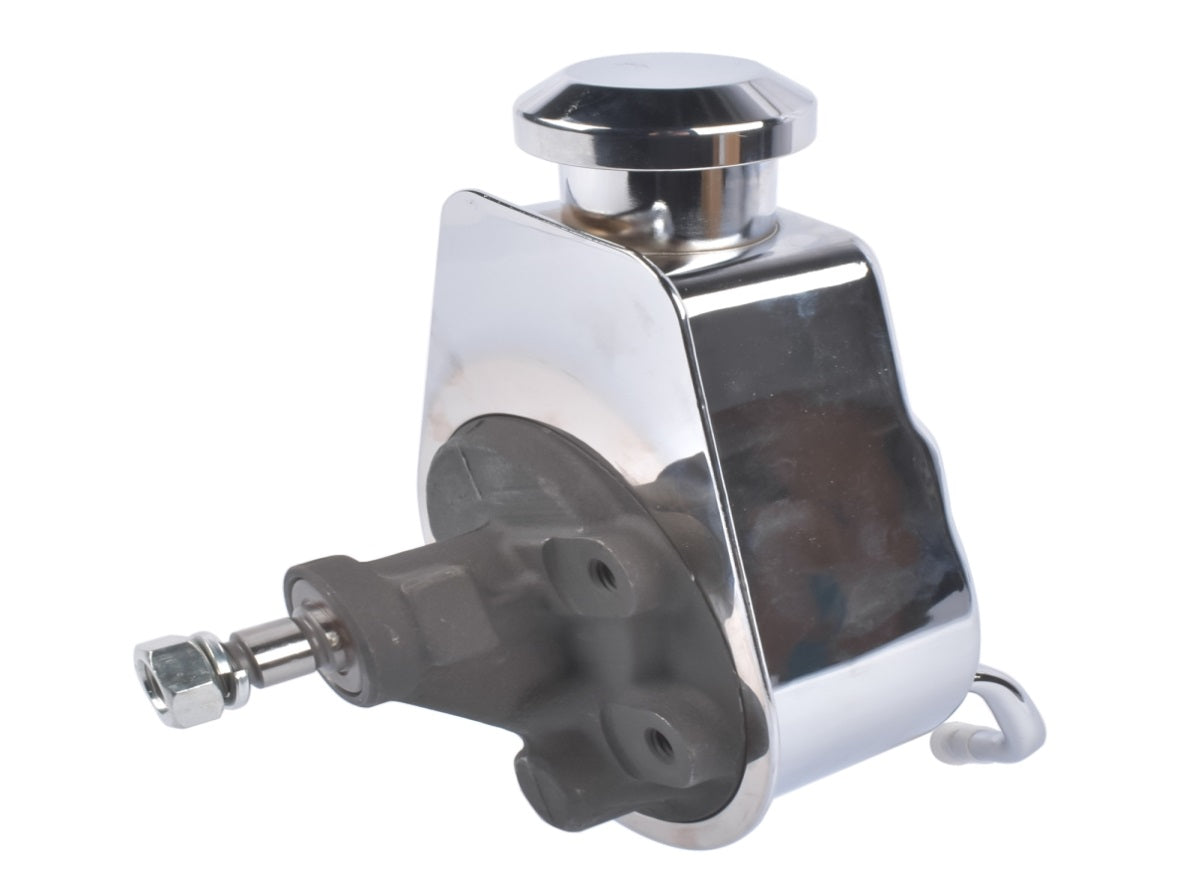

Power Steering Pump Fit for Chevy BBC SBC 350 454 Chrome 5/8" Key Way Style Monte Carlo Camaro 97119362

Specifications:

100% quality assurance tested, more responsive, less expensive, easier to install.

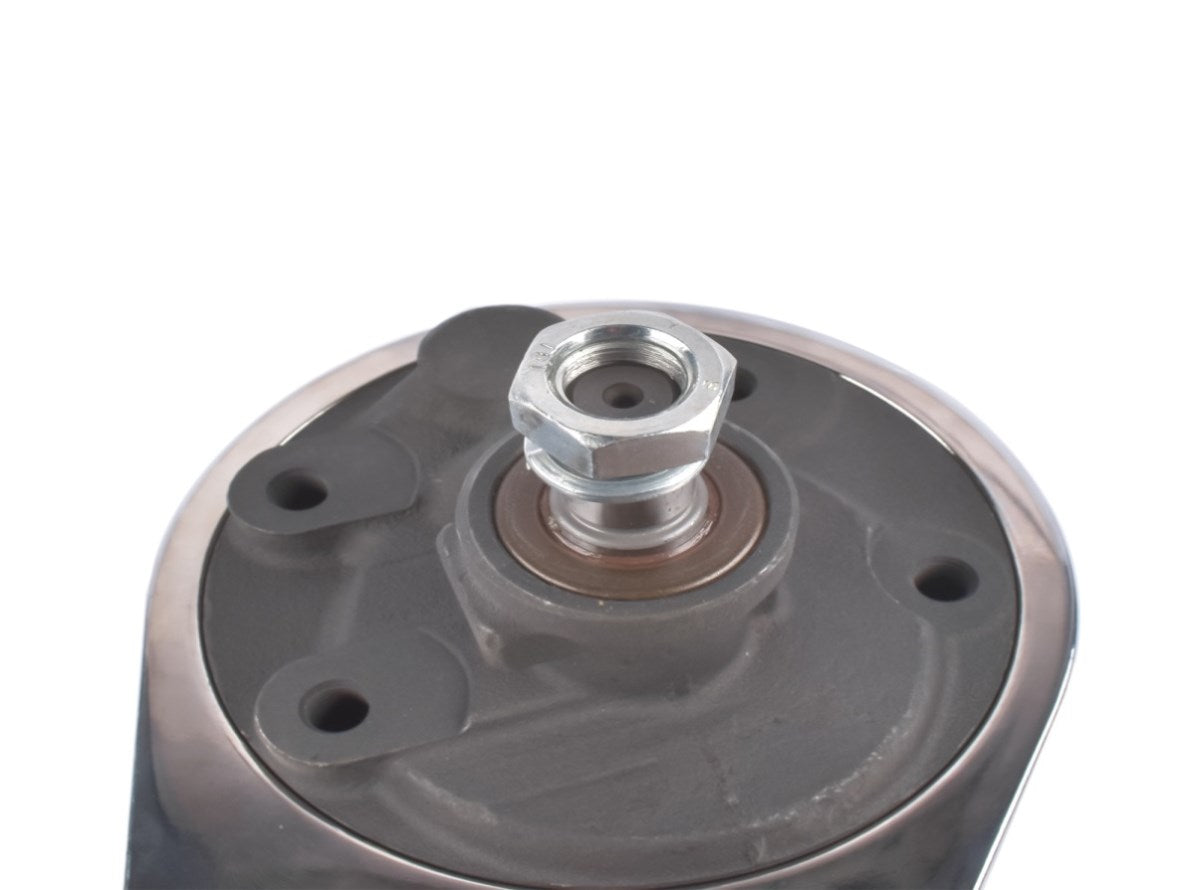

Desirable early style "Type 1" pump with threaded and keyed shaft for easy pulley installation.

Pump Pressure is 1200-1450 PSI with a 1.3-3.2 GPM Flow Rate.

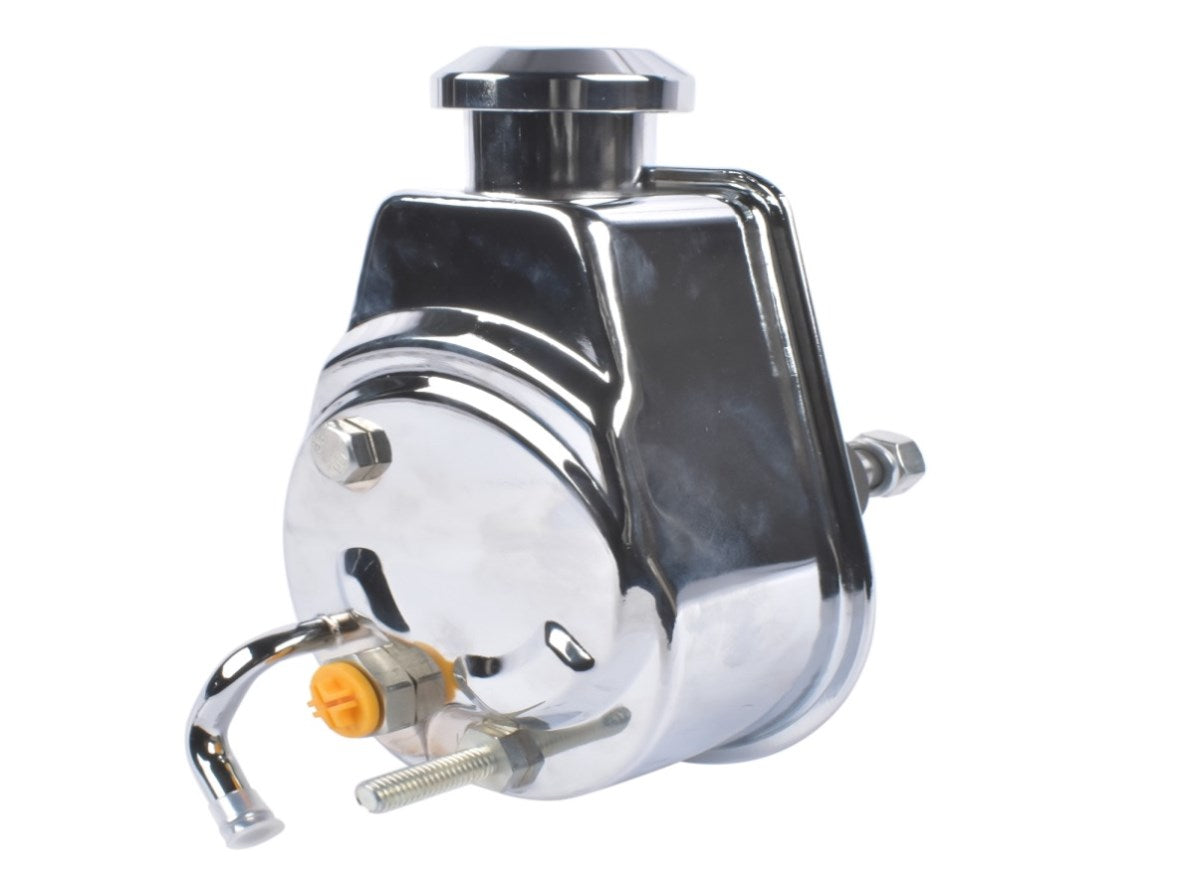

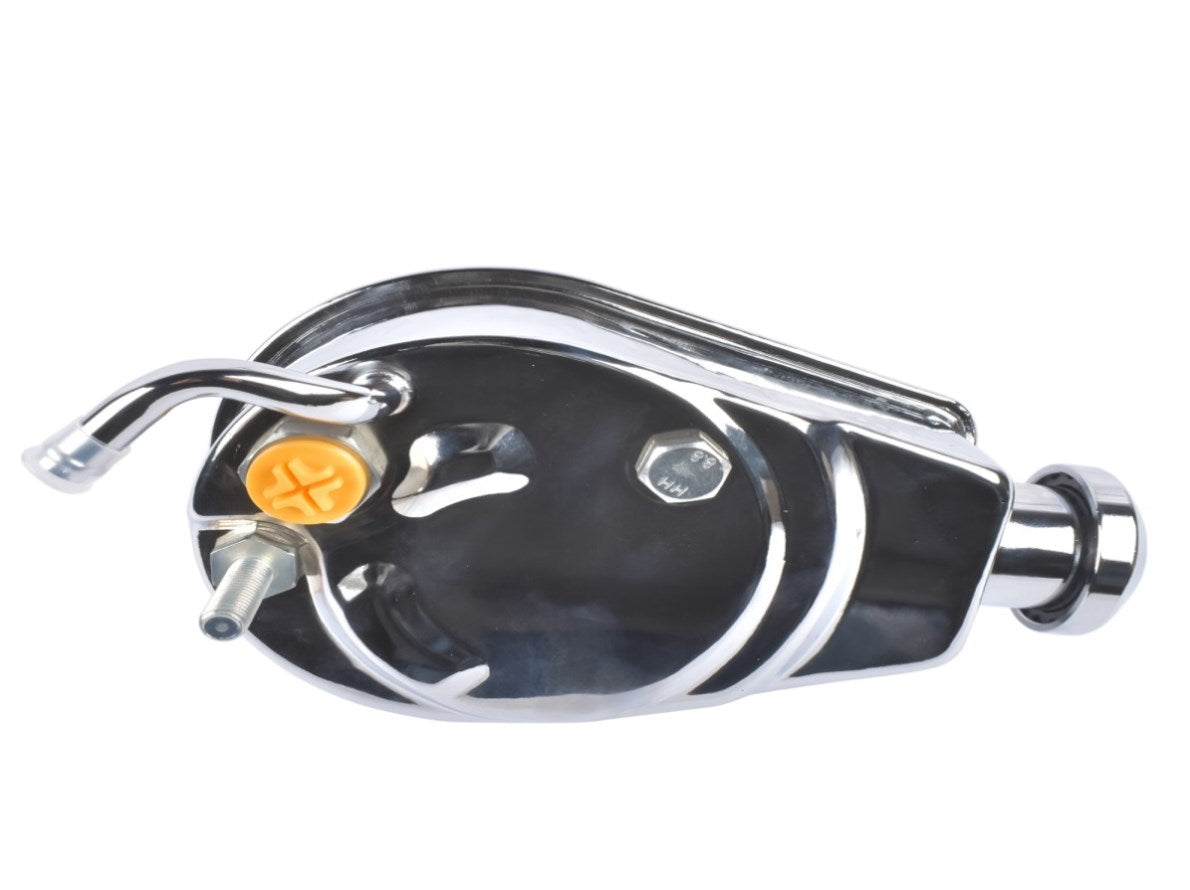

Have a 0.3" hose barb for the return line, a female M16*1.5 inverted flare fitting and  3/8 "  mounting holes.

Precise and smooth steering, get maximum out of your steering system.

Material: Made of High Quality Chrome and Stainless Steel.

Color: Silver

Placement on Vehicle: Front, Left, Rear, Right

OE Number:

STP01S, DA-STP01S, DA-STP01S-2, STP01S-2

Will Fit Following Models:

Fit most GM 66-74 5/8" Keyed Shaft Style.

For 70-74 Chevrolet Monte Carlo V8 5.7L / 6.6L / 7.4L.

For 74 Chevrolet Camaro V8 5.7L.

For 73 Chevrolet Camaro V8 5.0L / 5.7L.

For 70-72 Chevrolet Camaro V8 5.0L / 5.7L / 6.6L.

For 70 Chevrolet El Camino V8 6.5L.

For 70-73 Chevrolet El Camino V8 5.0L.

For 70-74 Chevrolet El Camino V8 5.7L / 6.6L / 7.4L.

For 74 Chevrolet Malibu V8 5.0L.

For 73-74 Chevrolet Malibu V8 5.7L / 6.6L / 7.4L.

For 70 Chevrolet Chevelle V8 6.5L.

For 70-73 Chevrolet Chevelle V8 5.0L / 5.7L / 6.6L / 7.4L.

For 66-68, 70-72 Chevrolet Bel Air.

For 66-68, 70-72 Chevrolet Biscayne.

For 70-72 Chevrolet Brookwood.

For 67-69 Chevrolet Camaro.

For 66-72 Chevrolet Caprice.

For 66-68 Chevrolet Chevelle.

For 66-67 Chevrolet El Camino.

For 66-72 Chevrolet Impala.

For 69-71 Chevrolet Kingswood.

For 69-74 Chevrolet Nova.

For 69-71 Chevrolet Townsman.

For 73-74 Chevrolet Vega.

Note: Please compare your item carefully with photo and OE Number to avoid mistake!!!

Package Includes:

1x Power Steering Pump (same as picture show)

Installation Instructions:

Begin by removing the power steering belt and disconnecting the pressure and return hoses from the pump. The fluid will drain out of the pump and lines, so have a waste oil container available.

Emove all bolts that retain the pump and its mount brackets to the engine. Remove the pump assembly from the vehicle.

Using a power steering pump pulley remover, remove the pulley from the pump. Remove the mounting bracket from the pump.

Install the pump mount bracket onto the new pump. Install the pump pulley onto the pump.

Attach the arm by removing the lower bolt and install the arm. Add washers as needed to keep the arms straight with the pump face.

Tighten up all bolts and install the belt. Adjust for tension. Check that all bolts are tight and the pump is properly aligned.

Line from hose barb to low-pressure port, then line from SAE inverted flare to high pressure.

Add fluid into the inlet port, then start the vehicle, test the steering power.

Note:

No installation guides are included, we highly recommend to seek professional installation.

Will come with everything you see in the picture. Please allow difference due to manual measurement.

Please check that the picture matches before purchase. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
