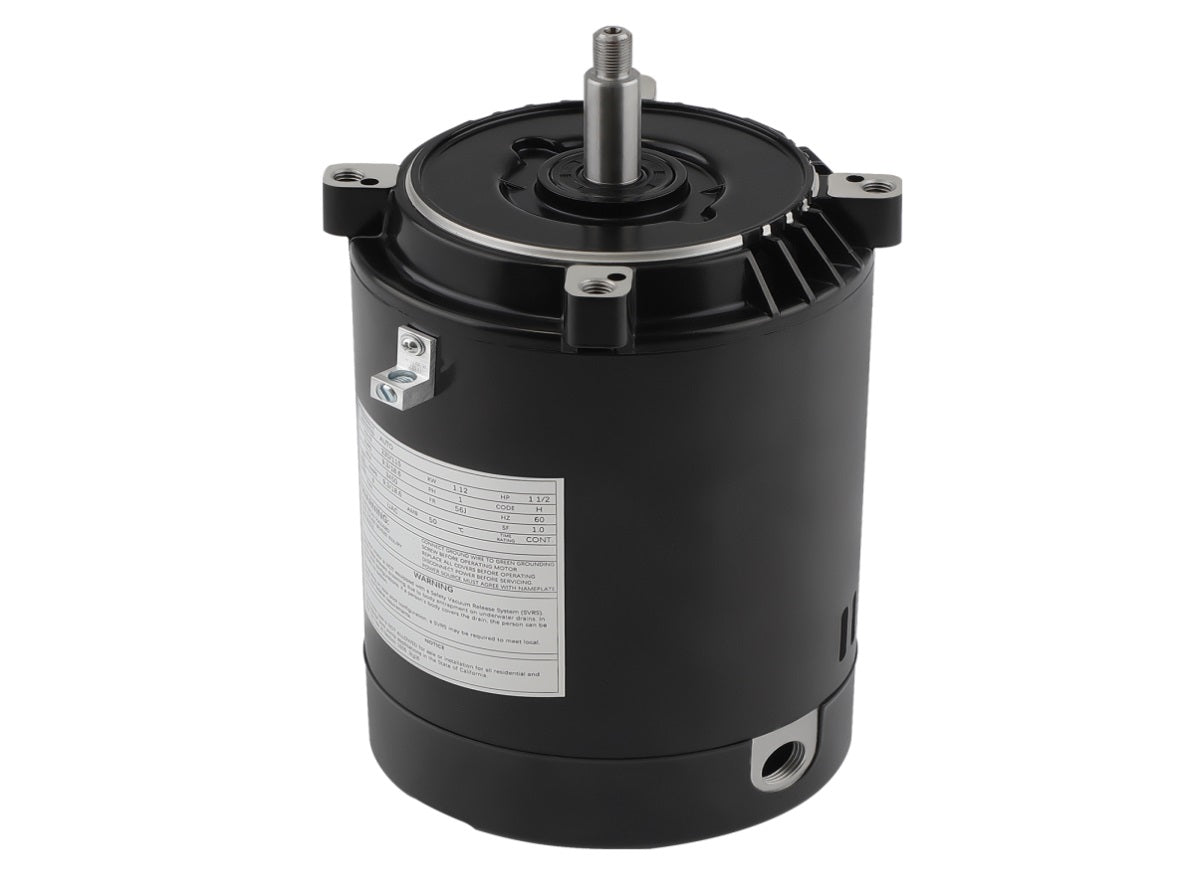

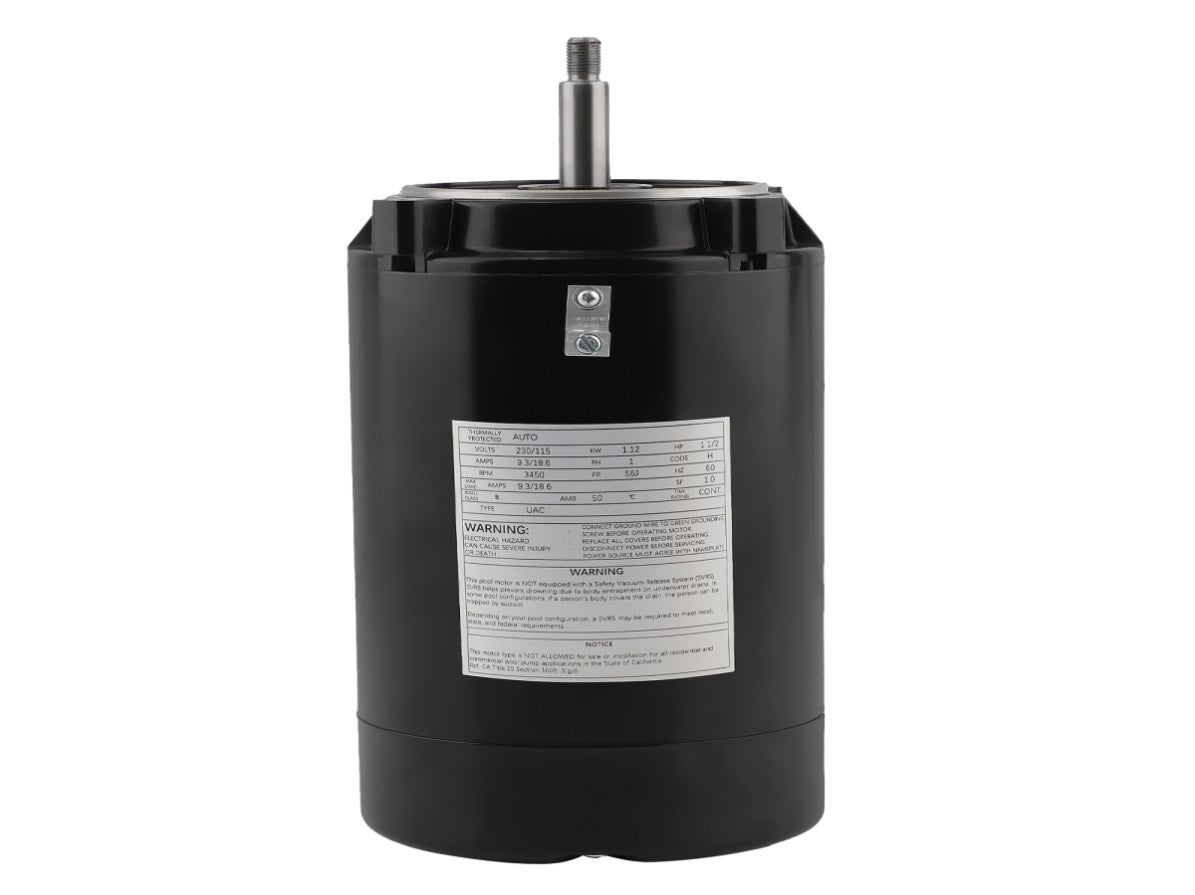

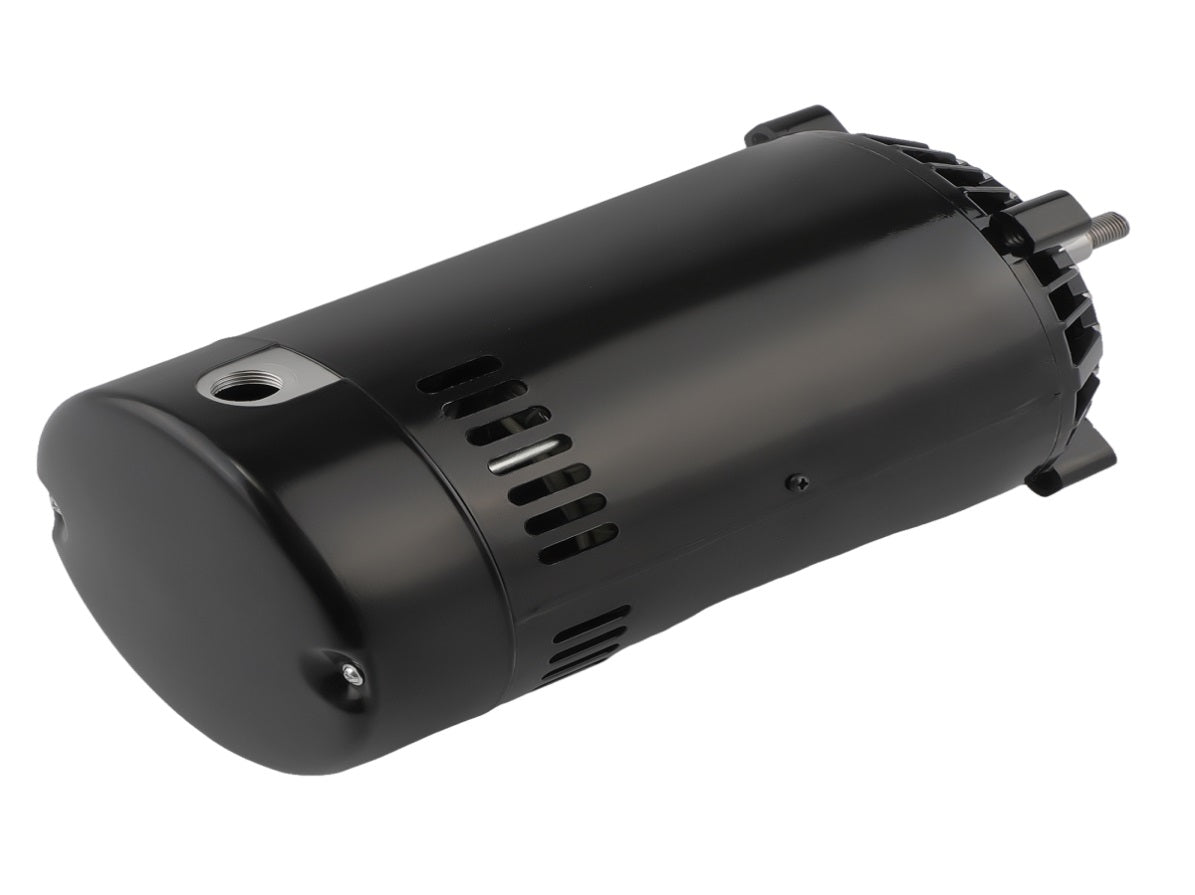

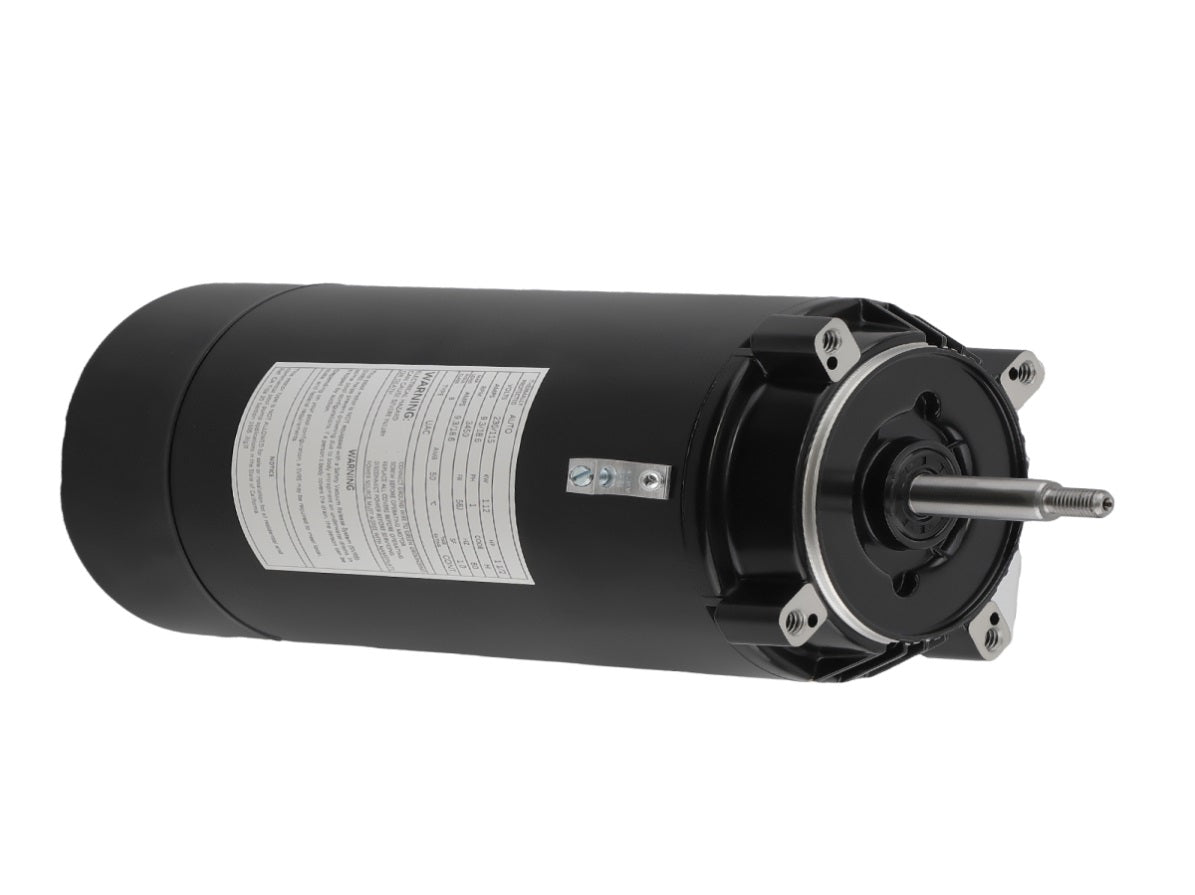

Pool Pump Motor fit for Hayward Super Pump Maxflo Super II 56J Frame Motor UST1152 69212916
GT-69212916
Out of stock
$323.23
$371.72
Compatibility: Fit fit for Sta-Rite Fit fit for Dura-Glas Fit fit for Max-e-Glas Fit fit for Century Fit fit for Hayward Super Pump Fit fit for Maxflo Fit fit for Super II Fit fit for other pumps requiring a 56J frame motor Part number: UST1152 Condition: New VOLTS:115/230...
customers are viewing this product
Compatibility:
Fit fit for Sta-Rite
Fit fit for Dura-Glas
Fit fit for Max-e-Glas
Fit fit for Century
Fit fit for Hayward Super Pump
Fit fit for Maxflo
Fit fit for Super II
Fit fit for other pumps requiring a 56J frame motor
Fit fit for Dura-Glas
Fit fit for Max-e-Glas
Fit fit for Century
Fit fit for Hayward Super Pump
Fit fit for Maxflo
Fit fit for Super II
Fit fit for other pumps requiring a 56J frame motor
Part number: UST1152
Condition: New
VOLTS:115/230
Note: NOT California Title 20 Compliant.
Fitment Type: Direct Replacement
Package size(cm):43.2*28*25.3
Package weight(kg):13.85
Package Includes:

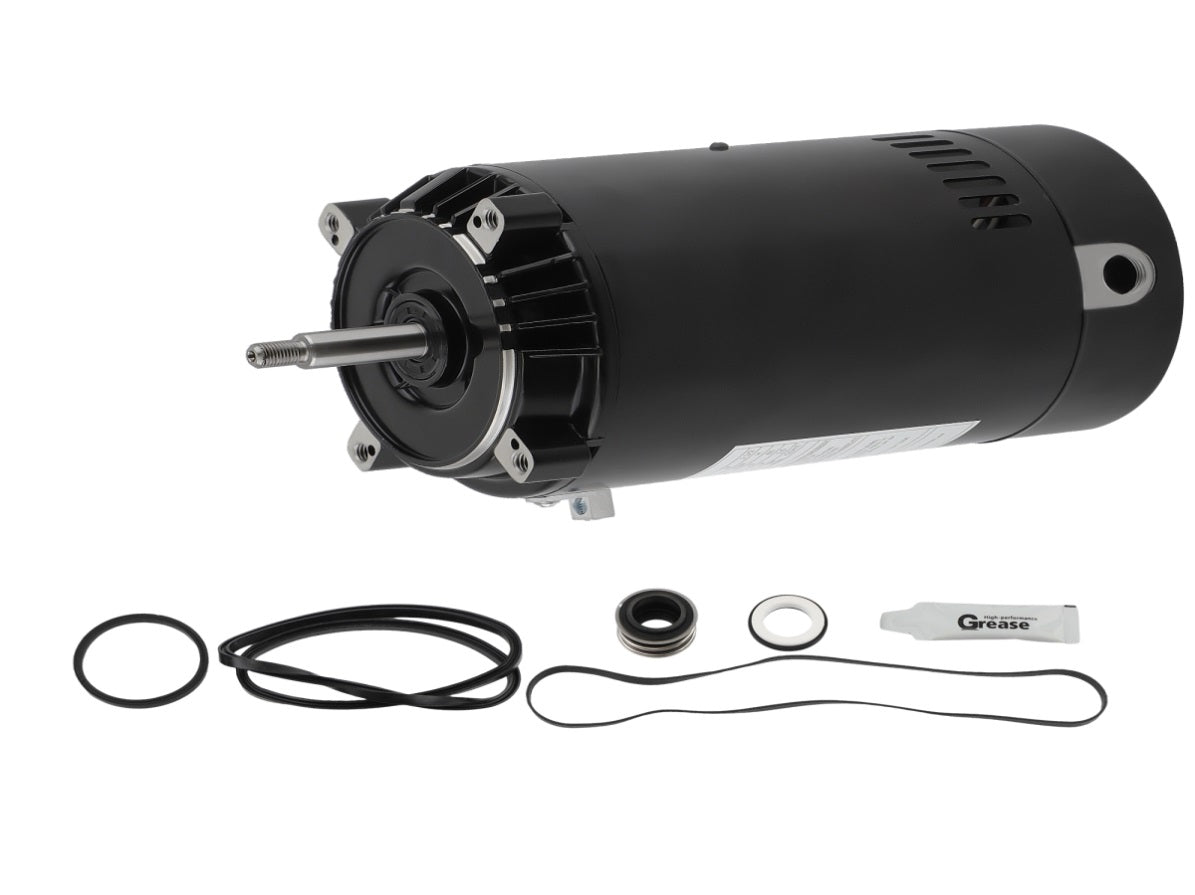

1x Swimming Pool Pump Motor and Seal Kit (Showing as the picture)
VOLTS:115/230
Note: NOT California Title 20 Compliant.
Fitment Type: Direct Replacement
Package size(cm):43.2*28*25.3
Package weight(kg):13.85
Package Includes:
1x Swimming Pool Pump Motor and Seal Kit (Showing as the picture)
Specification:
Horsepower: 1.5 hp
Volts: 115/230
Shaft Type: Threaded
Flange Type: C-Face
Seal: PS-201
Speed: 3450 RPM
Type: Standard Pool Pump
Phase Type: Single Phase
Enclosure: Open Drip Proof (ODP)
Frame: 56J
Service factor: 1.0
Shaft diameter: 5/8"
Rotation: CCWPE (counterclockwise pump end)
Bearings: Ball
Ambient temperature: 50°C (122°F)
Insulation class: B
Duty: Continuous
Sealed Switch Design
50°C Ambient
Bearing Shaft End
Stainless Steel Shaft
Threaded Shaft
Capacitor Start Capacitor Run
Volts: 115/230
Shaft Type: Threaded
Flange Type: C-Face
Seal: PS-201
Speed: 3450 RPM
Type: Standard Pool Pump
Phase Type: Single Phase
Enclosure: Open Drip Proof (ODP)
Frame: 56J
Service factor: 1.0
Shaft diameter: 5/8"
Rotation: CCWPE (counterclockwise pump end)
Bearings: Ball
Ambient temperature: 50°C (122°F)
Insulation class: B
Duty: Continuous
Sealed Switch Design
50°C Ambient
Bearing Shaft End
Stainless Steel Shaft
Threaded Shaft
Capacitor Start Capacitor Run
Features:
Specification: 18.6/9.3 Max Amps, 1.00 Service Factor, Threaded Shaft, 56J Frame, 3450 RPM, 60 HZ.
Compatibility: Fit fit for Sta-Rite Dura-Glas and Max-e-Glas models, Replace Century Hayward Super Pump, Maxflo, Super II and many other pumps which requires a 56J frame motor.
Wide Application: fit for sorts of pools and spas, including residential pools, resorts, public swimming pools and hotels. Whether you are maintaining or building a new swimming pool, this motor can suit your requirements.
Effect: this Motor has a effective and reliable pool pump system, be sure of circulated and clean pool water.
Easy Installation: We have comprehensive consideration, including every detail,such as the size, interface.
Compatibility: Fit fit for Sta-Rite Dura-Glas and Max-e-Glas models, Replace Century Hayward Super Pump, Maxflo, Super II and many other pumps which requires a 56J frame motor.
Wide Application: fit for sorts of pools and spas, including residential pools, resorts, public swimming pools and hotels. Whether you are maintaining or building a new swimming pool, this motor can suit your requirements.
Effect: this Motor has a effective and reliable pool pump system, be sure of circulated and clean pool water.
Easy Installation: We have comprehensive consideration, including every detail,such as the size, interface.
Stable performance, and long service life.
Note:
*Applies to single speed pool pumps manufactured prior to July 2021 only.
*Not legal fit for sale in California.
