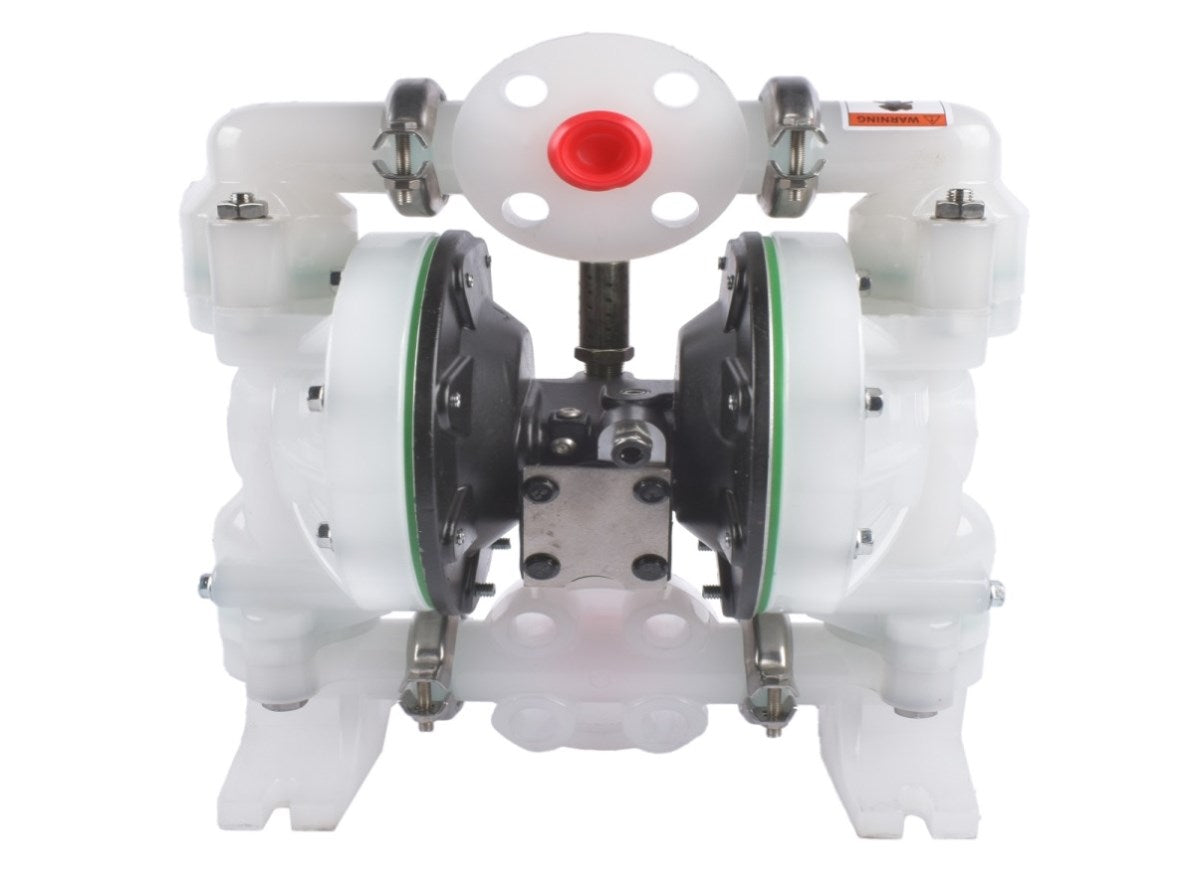

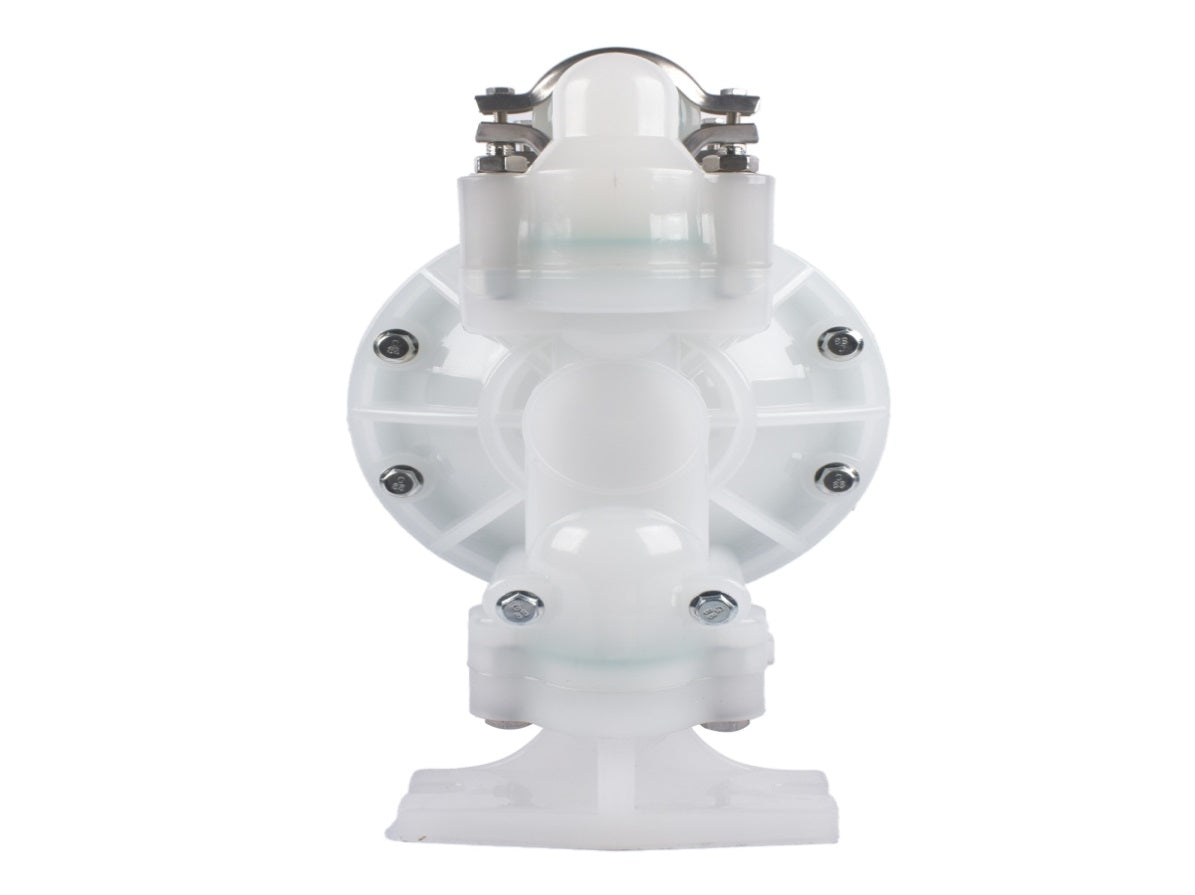

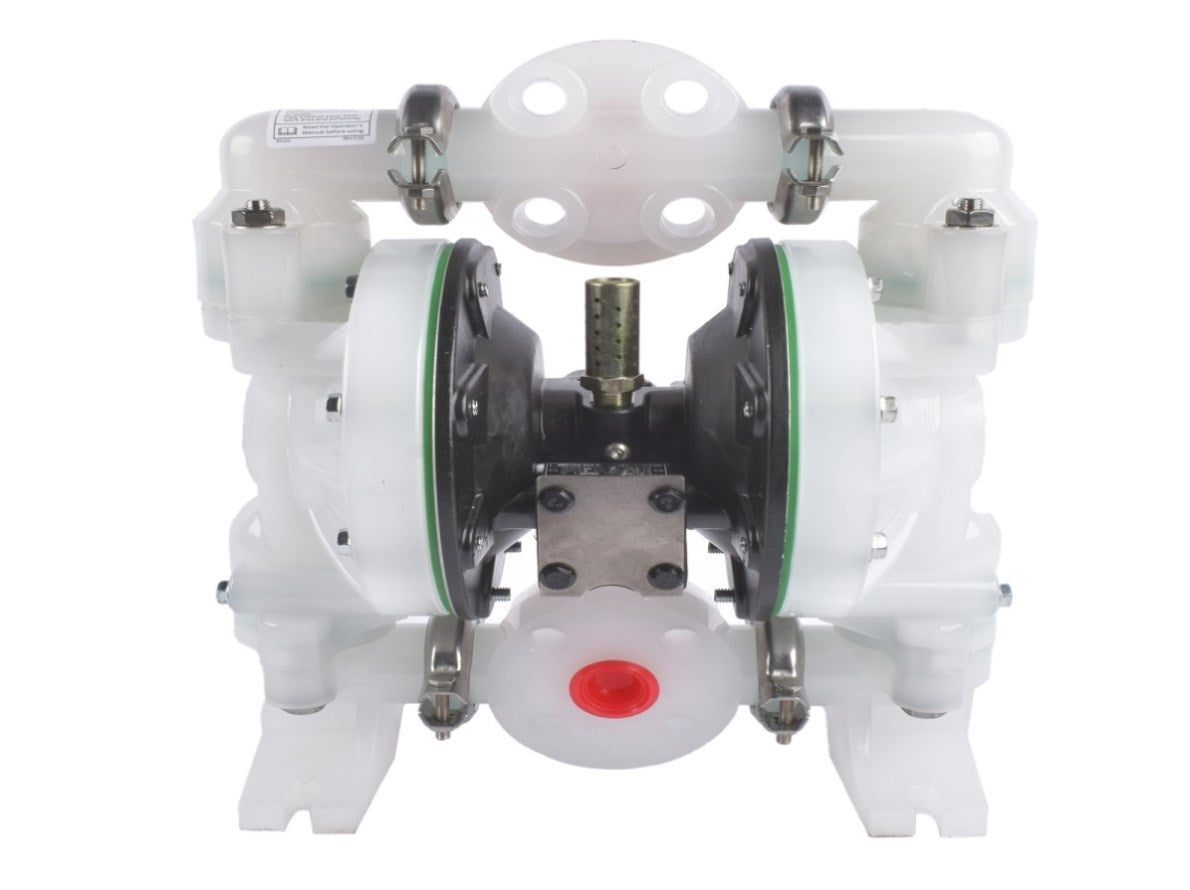

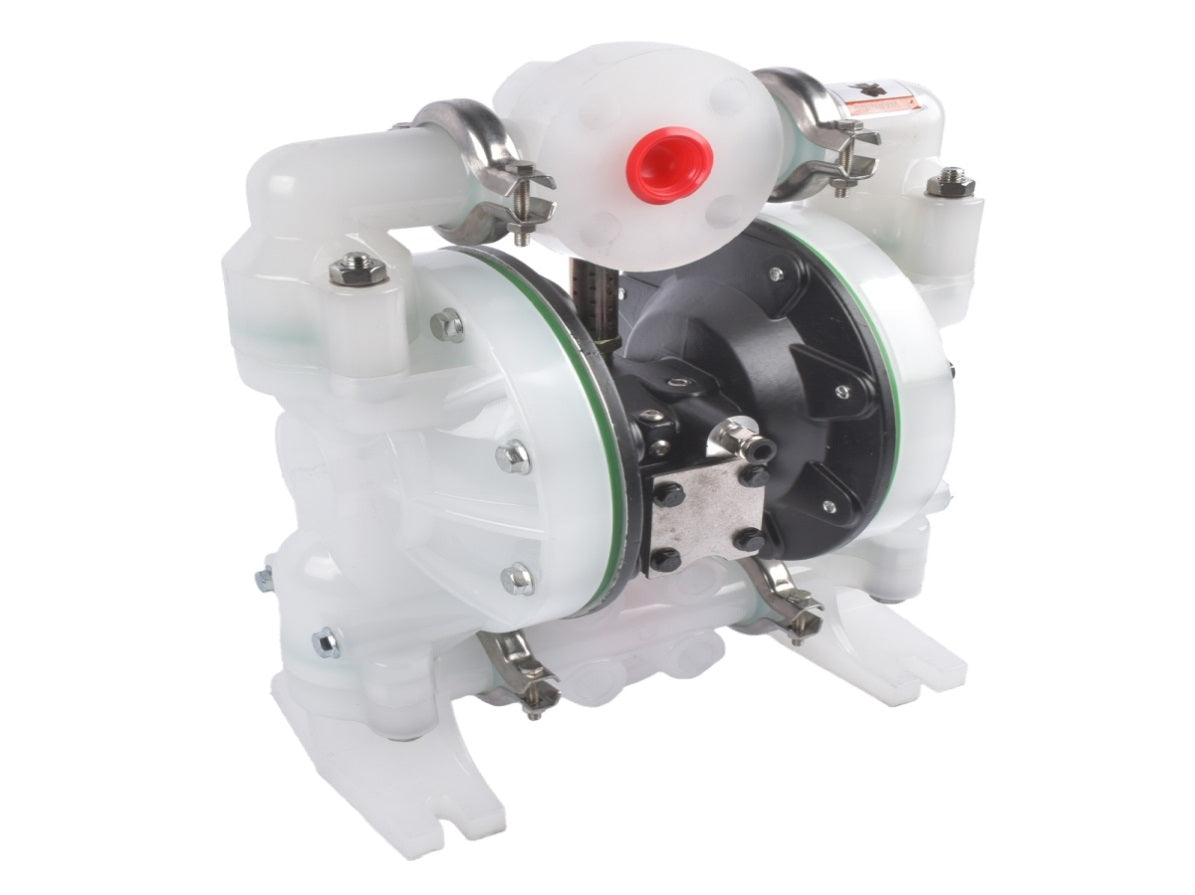

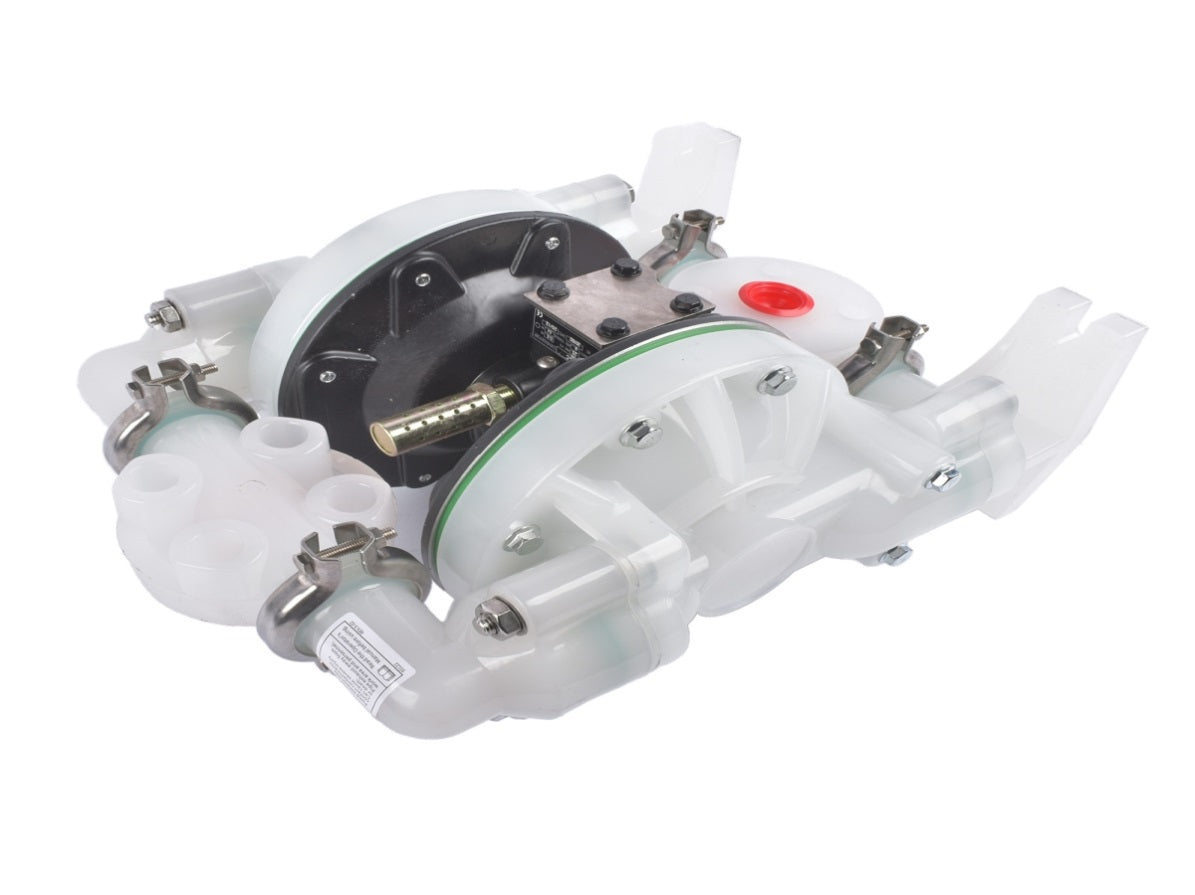

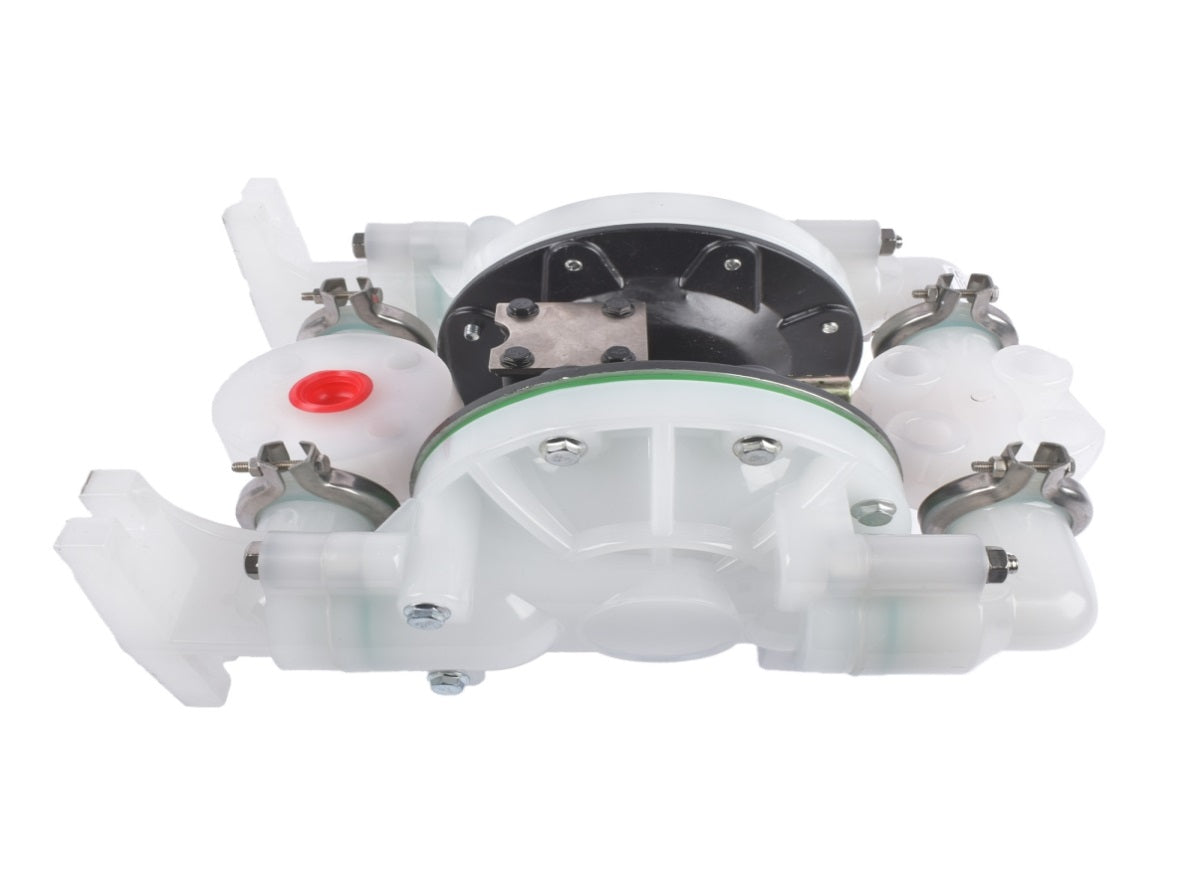

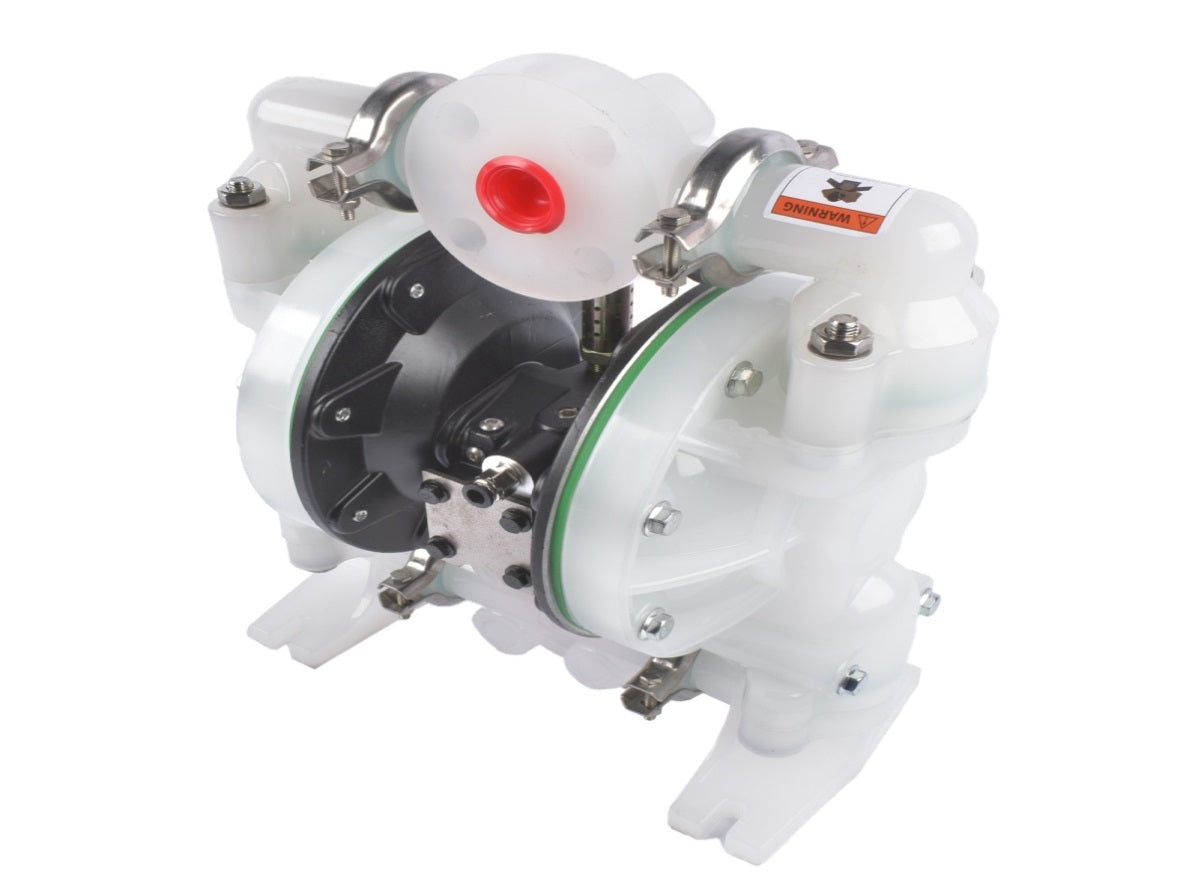

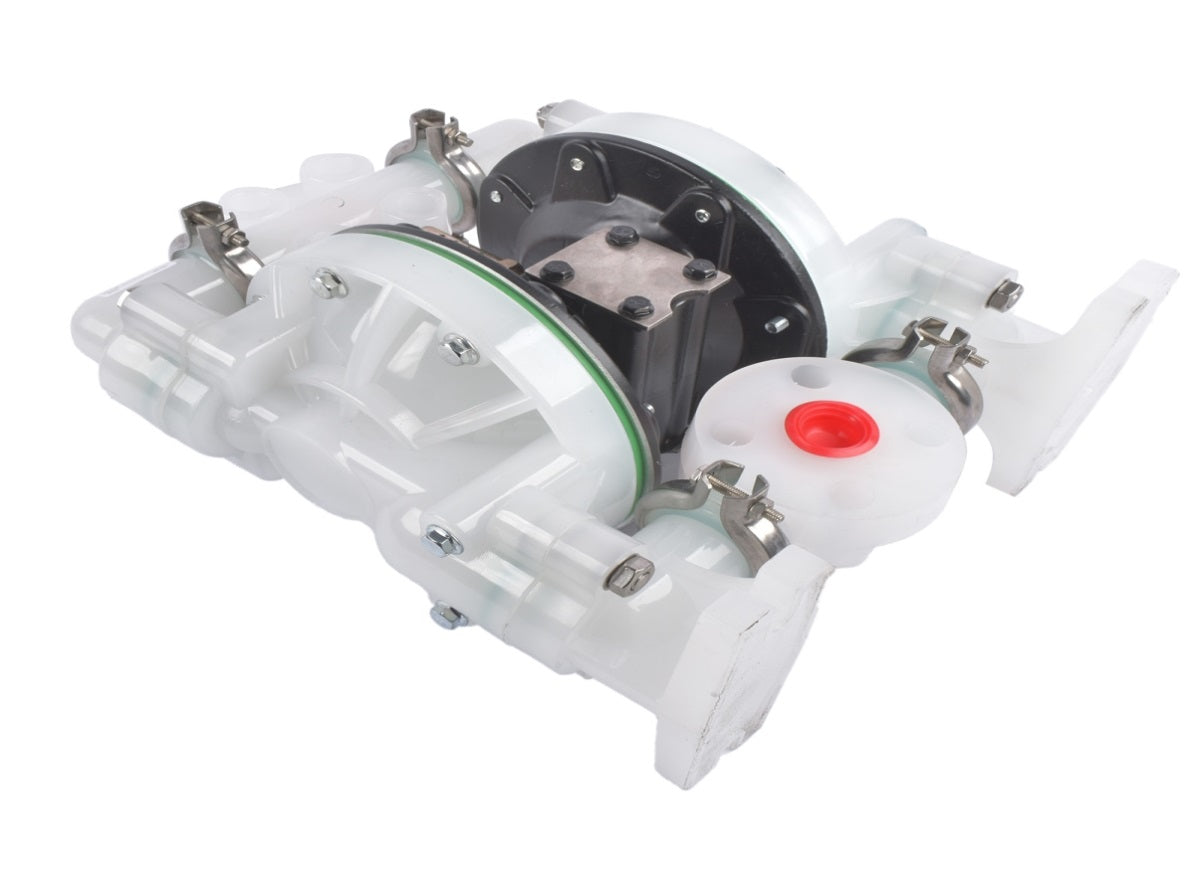

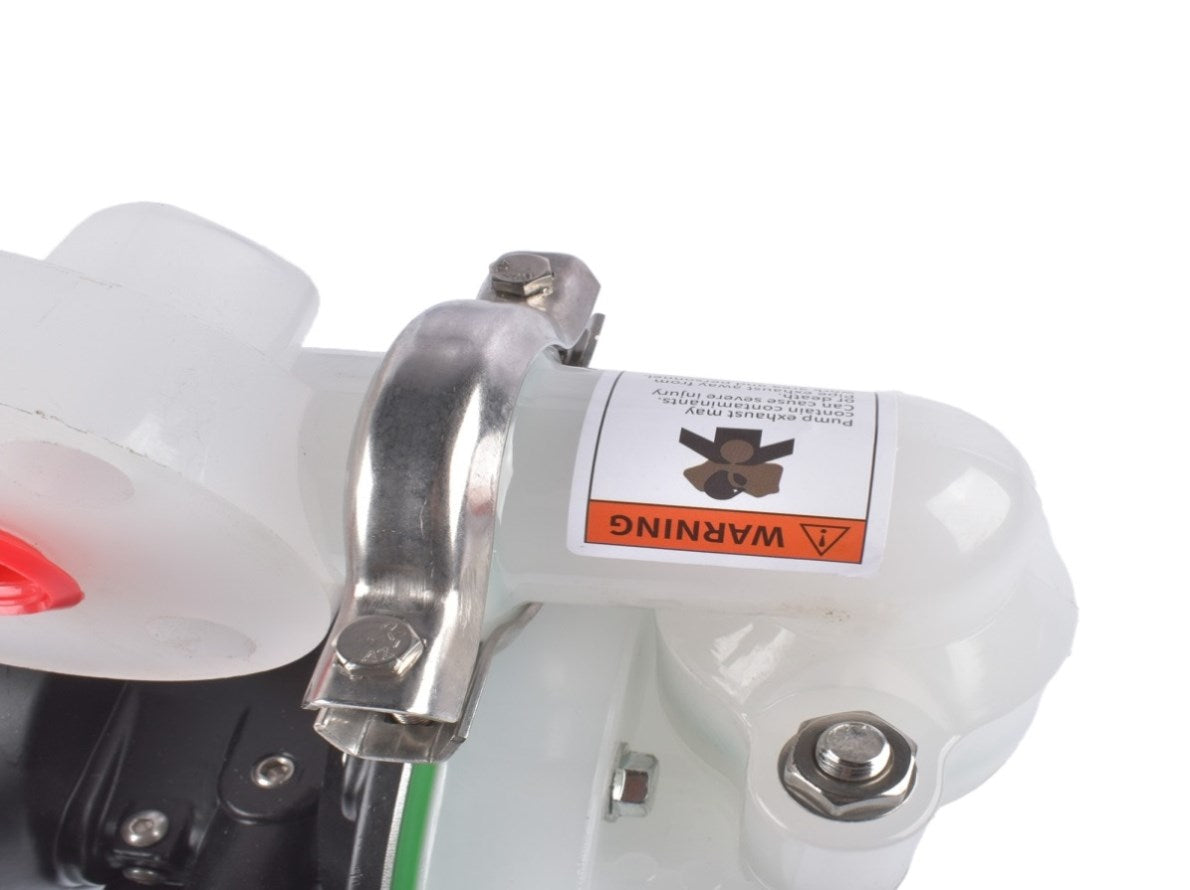

Pneumatic Plastic Diaphragm Pump 6661A3-344-C Replacement for Ingersoll Rand Aro 6661A3344C 22958296
GT-22958296
Out of stock
$1,066.00
OE Part Numbers: 6661A3-344-C 6661A3344C Fits For the Following: Performance Parameters: Maximum Flow Rate: 177.9 L/min (≈10.67 m³/h) Working Pressure: 8.3 bar (≈0.83 MPa) Head: 70–83 m Dry Suction Height: 4.6 m Maximum Particle Diameter: 3.2 mm Air Consumption: 0.8 m³/min (standard working condition) Connections: Air Inlet Size: 1/4 inch NPT thread Fluid Inlet &...
customers are viewing this product
OE Part Numbers:
6661A3-344-C
6661A3344C
Fits For the Following:
Performance Parameters:
Maximum Flow Rate: 177.9 L/min (≈10.67 m³/h)
Working Pressure: 8.3 bar (≈0.83 MPa)
Head: 70–83 m
Dry Suction Height: 4.6 m
Maximum Particle Diameter: 3.2 mm
Air Consumption: 0.8 m³/min (standard working condition)
Connections:
Air Inlet Size: 1/4 inch NPT thread
Fluid Inlet & Outlet: 1-inch NPTF/BSP thread
Package Includes: 1X Pneumatic Plastic Diaphragm Pump
