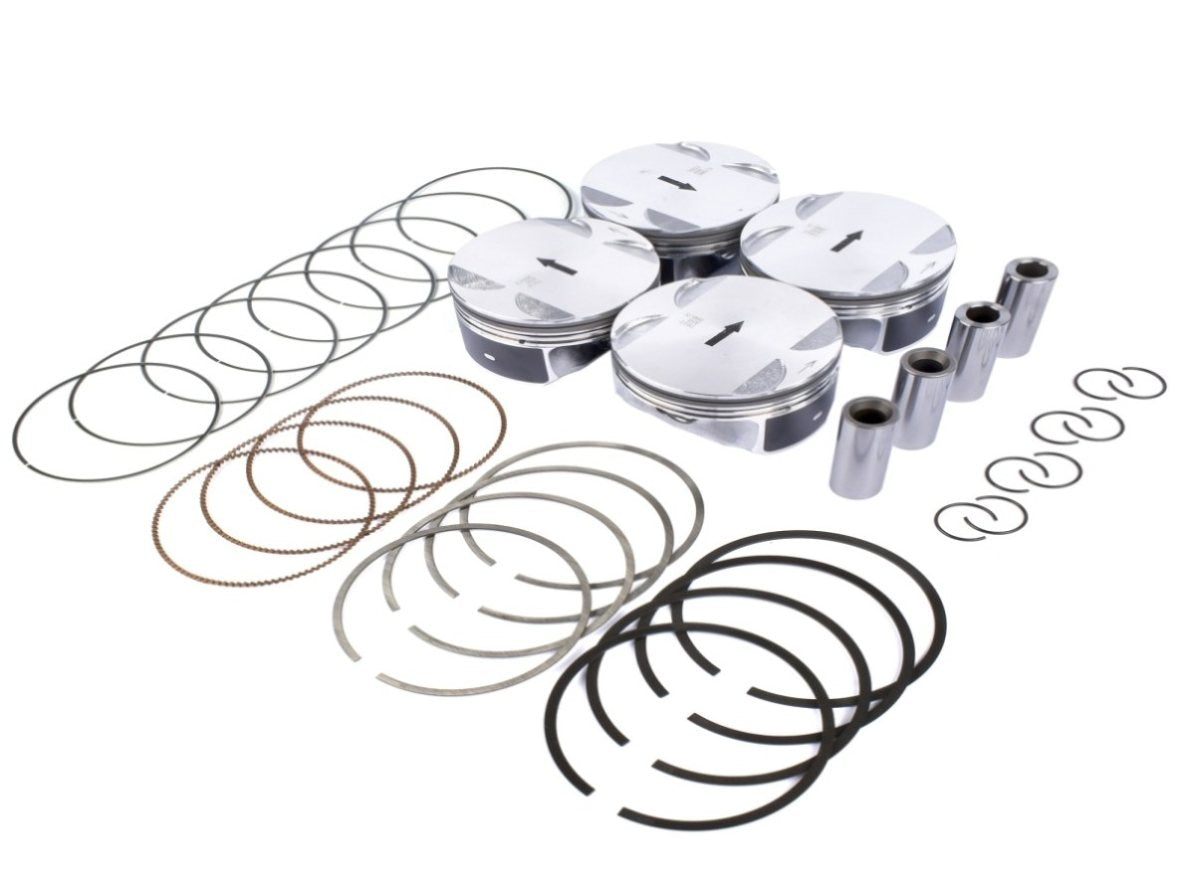

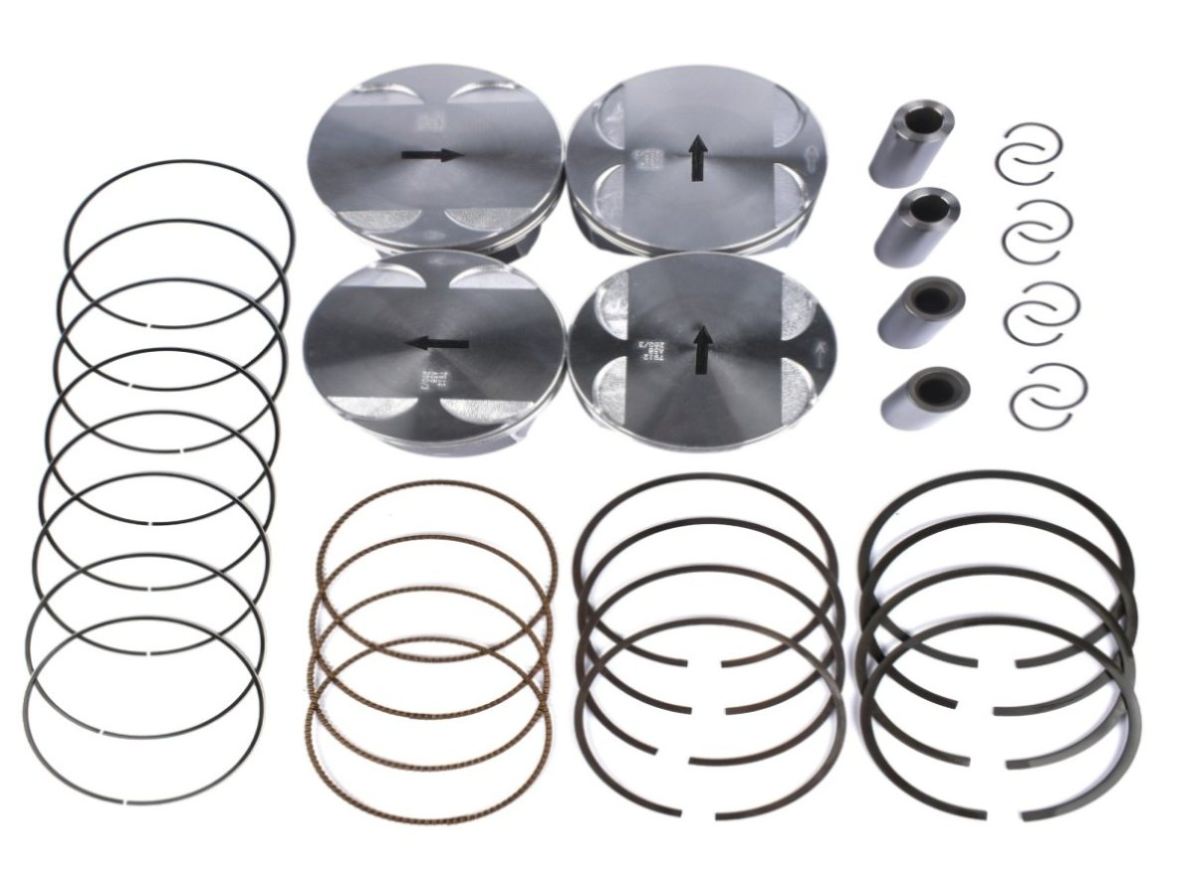

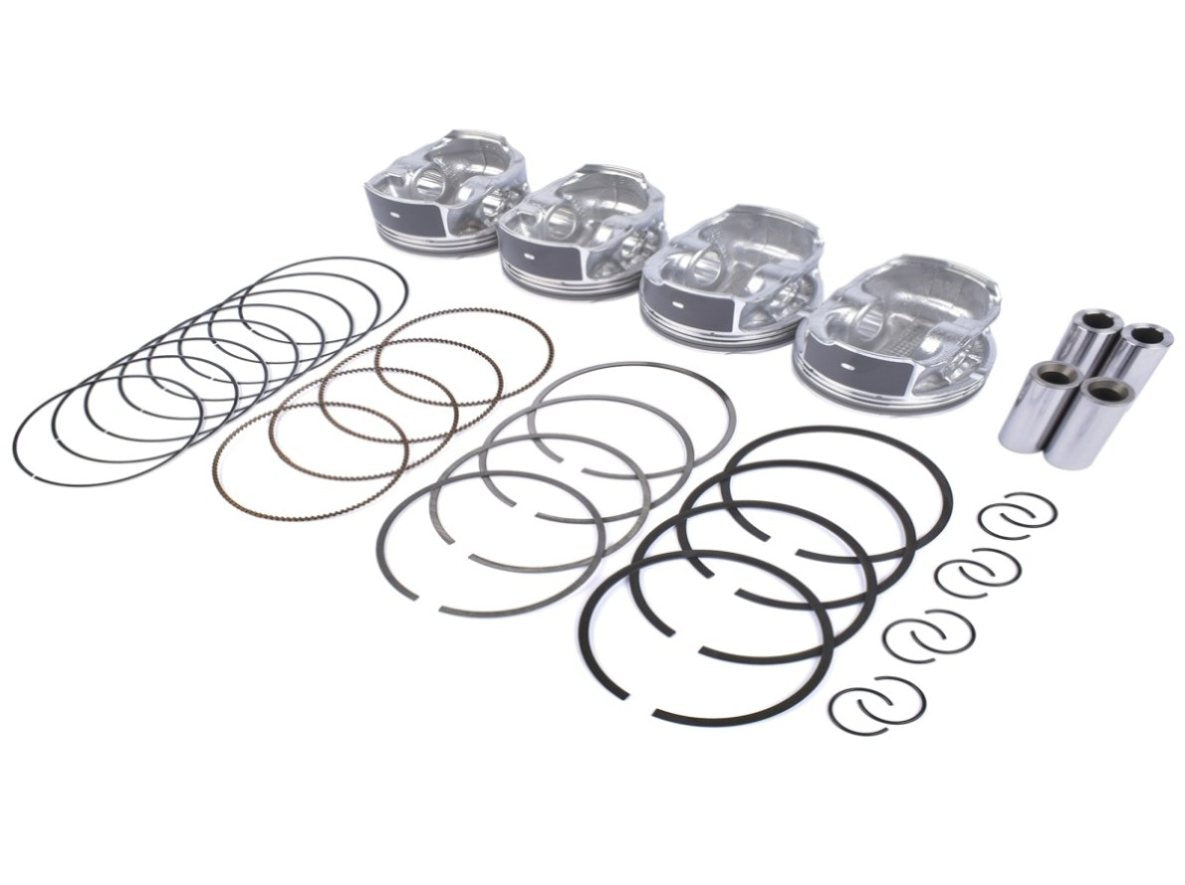

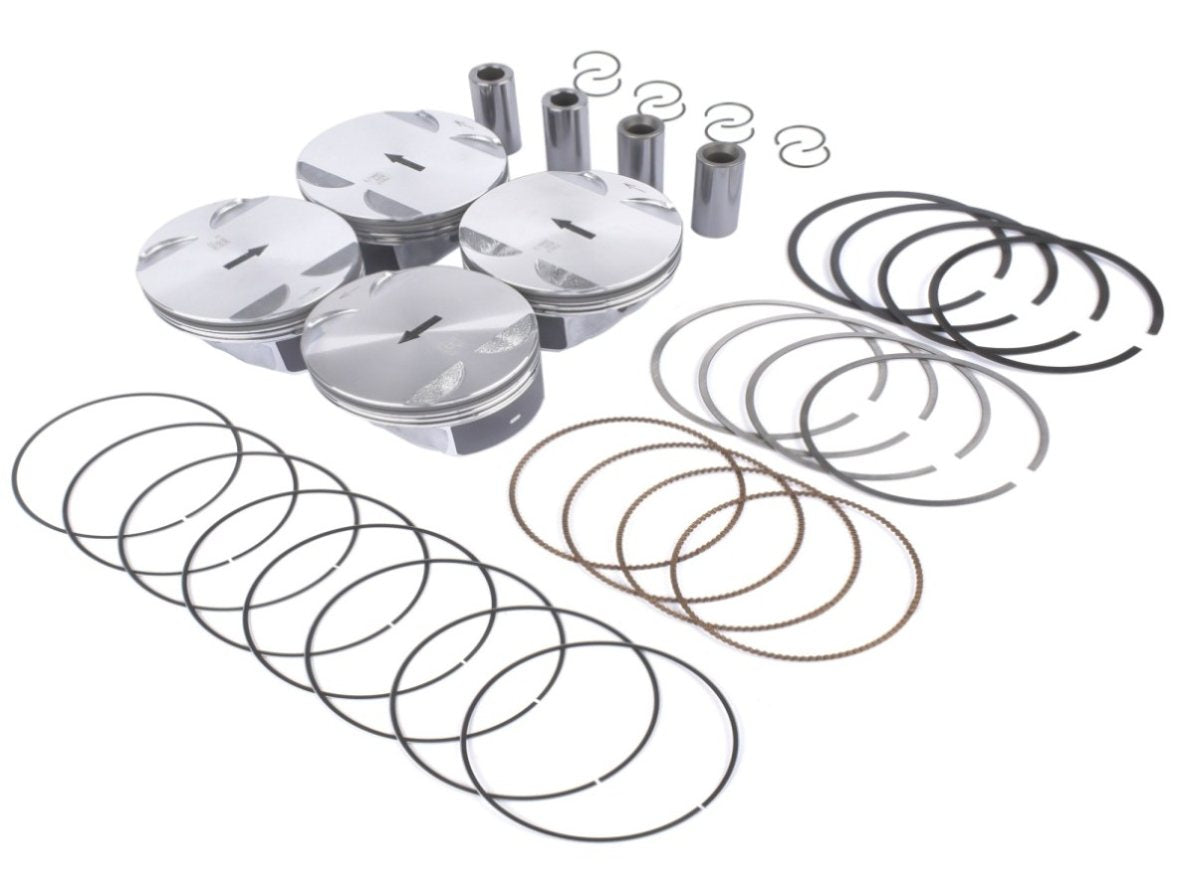

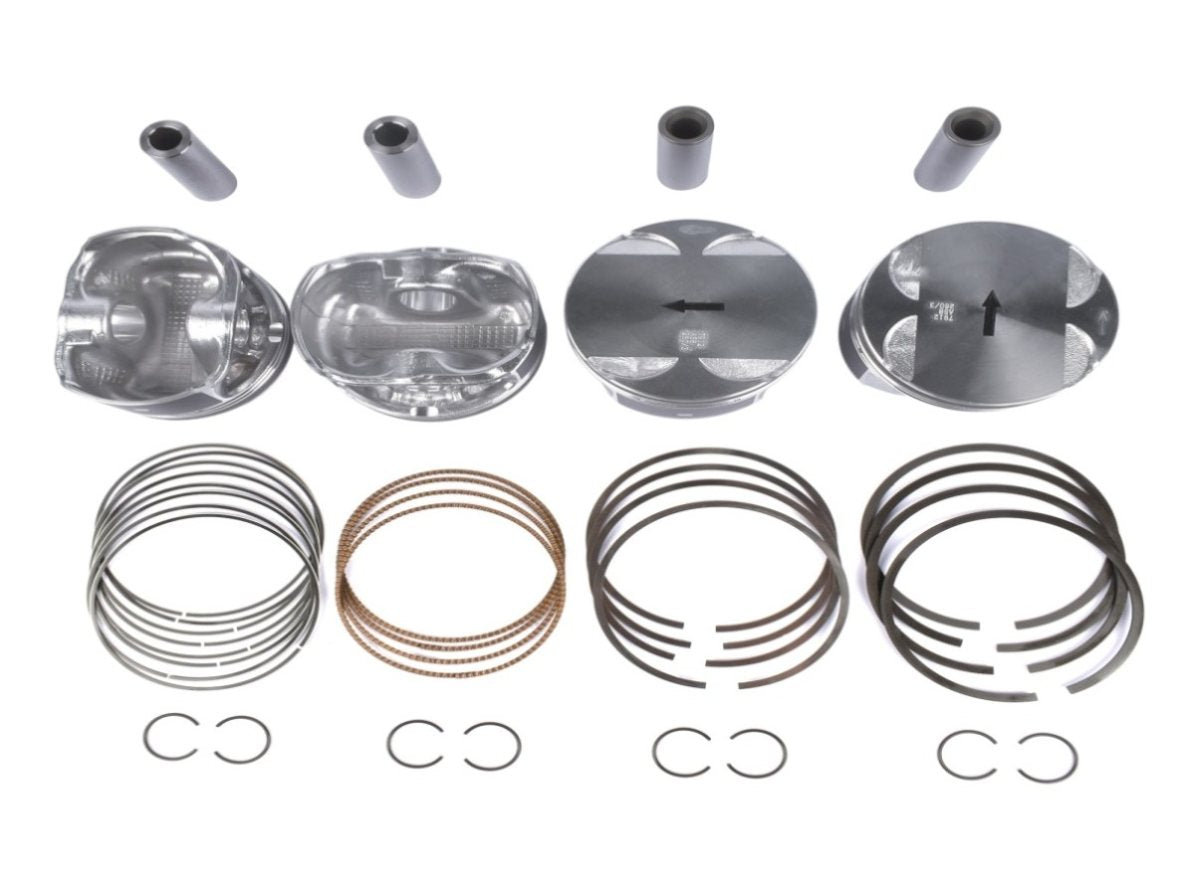

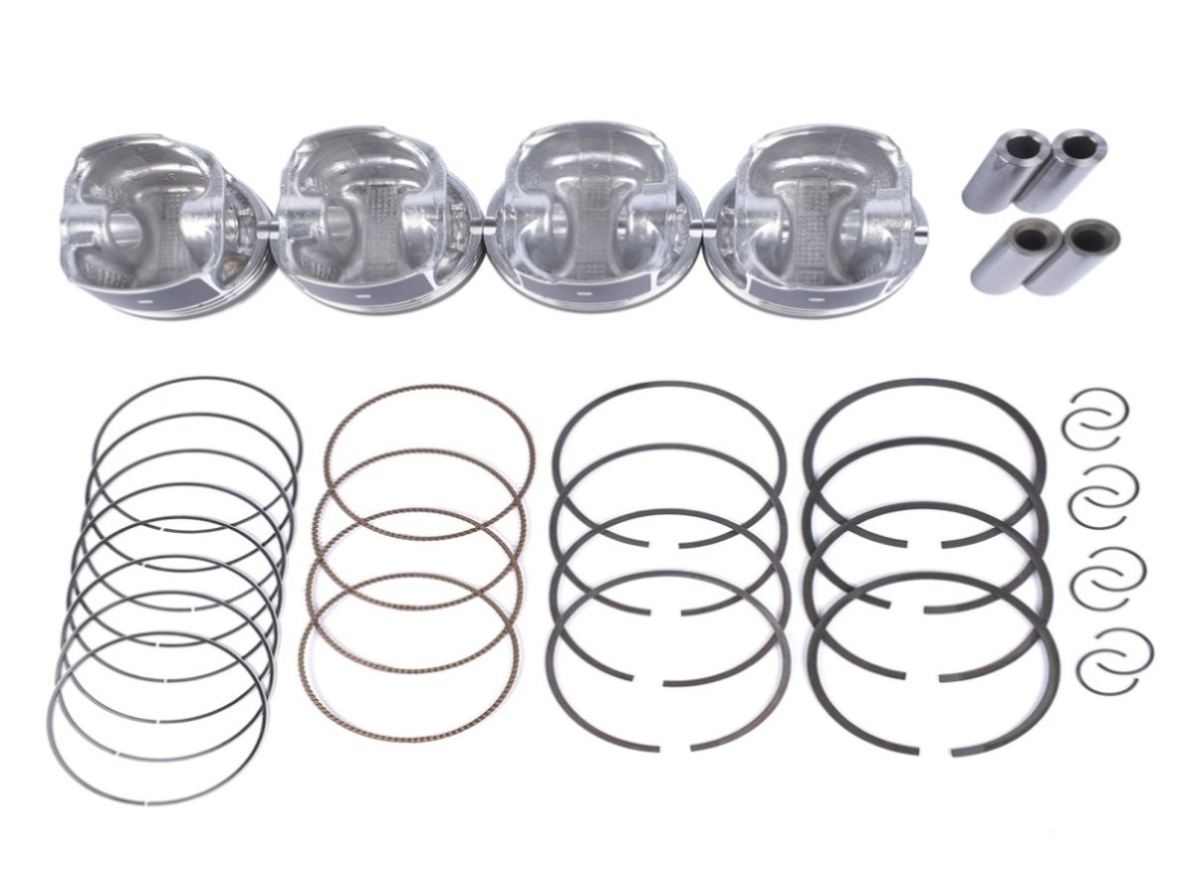

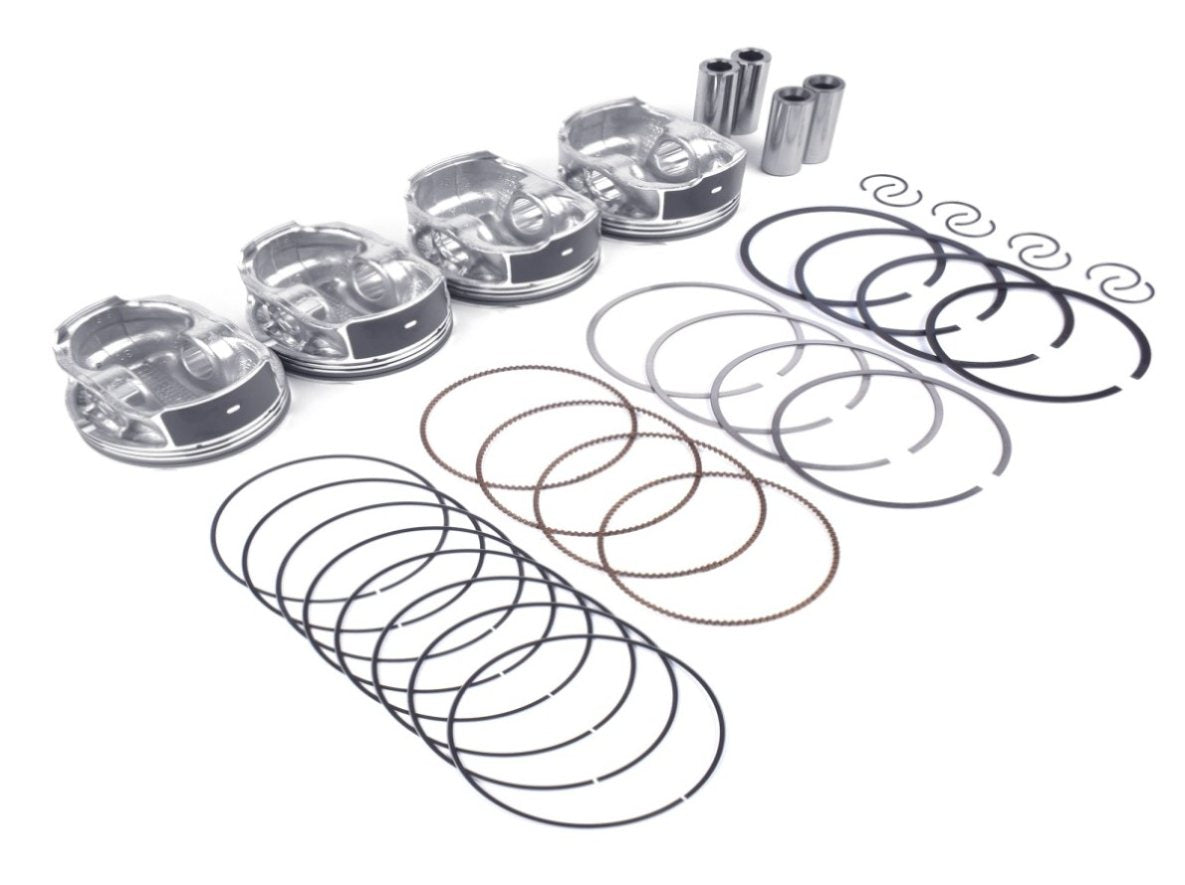

Pistons and Rings Kit S224-3959 Fit for Chevy Equinox GMC Terrain Buick Regal 2.4L 2010-2017 24010763
OE Number
S224-3959, GA9034
12578324, 12578326, 12593744
12593745, 12603910, 12608531
12609858, 12616970, 12621251
12631102, 12631103, 12631967
12643172, 12646457, 12657184
12659419, 12665165, 12784490
19180835, 19180836, 89018112
Will fit Following Models
Buick 2.4L
LaCrosse: 2010 - 2016
Regal: 2011 - 2017
Verano: 2012 - 2017
Chevrolet 2.4L
Captiva Sport: 2012 - 2015
Cobalt: 2006 - 2008
Equinox: 2010 - 2017
HHR: 2006 - 2011
Impala: 2014
Malibu: 2008 - 2014
GMC 2.4L
Terrain: 2010 - 2017
Pontiac 2.4L
G5: 2007 - 2008
G6: 2006 - 2010
Solstice: 2006 - 2009
Saturn 2.4L
Aura: 2007 - 2009
Ion: 2006 - 2007
Sky: 2007 - 2010
Vue: 2008 - 2010
Size:
Pistons dimensions:
Cylinder Bore Ø [mm]: 88 mm
Length [mm]: 49.25 mm
Compression Height [mm]: 27.75 mm
Bolt length [mm]: 58 mm
Bolt Ø [mm]: 20 mm
RINGS DETAILS:
Top ring 88 * 1.20 mm
2nd ring 88 * 1.50 mm
Oil ring 88 * 2.50 mm
Package Includes:
1x Pistons and Rings Kit
