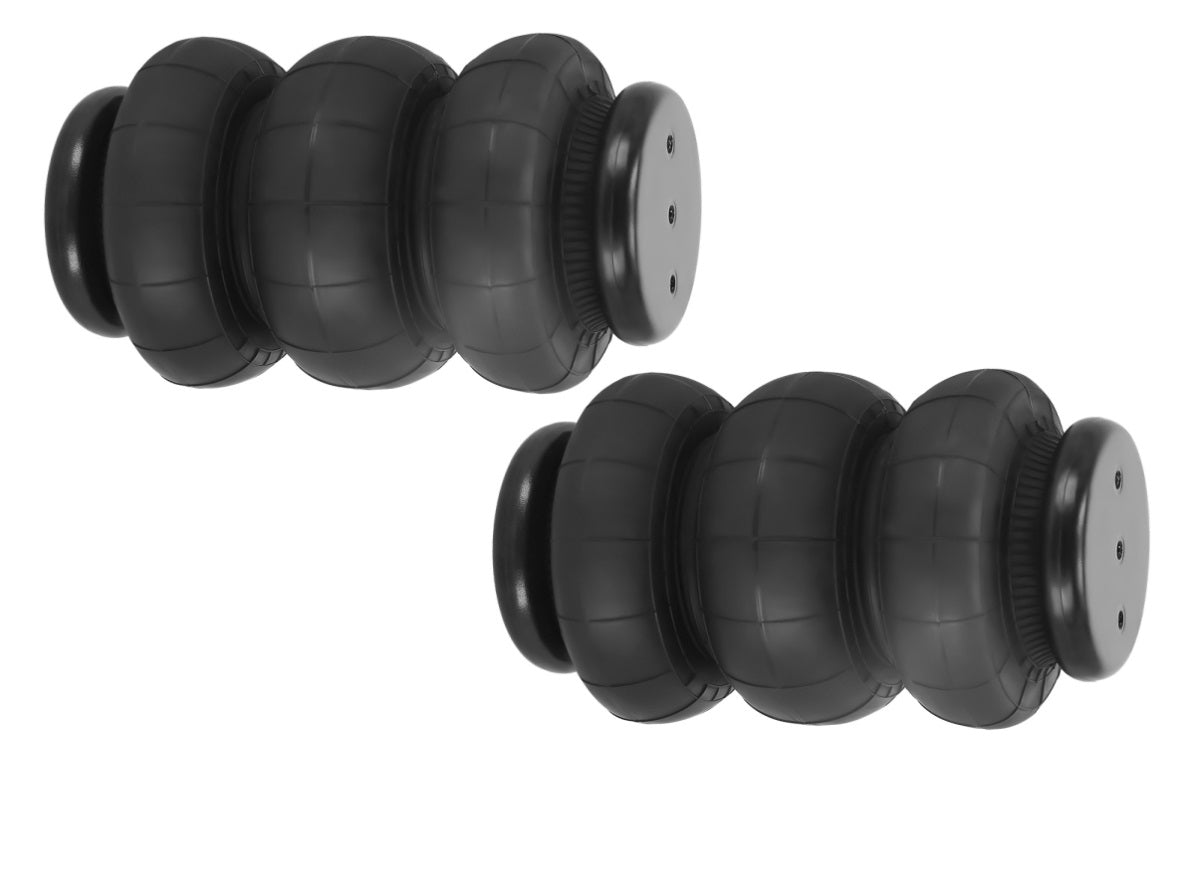

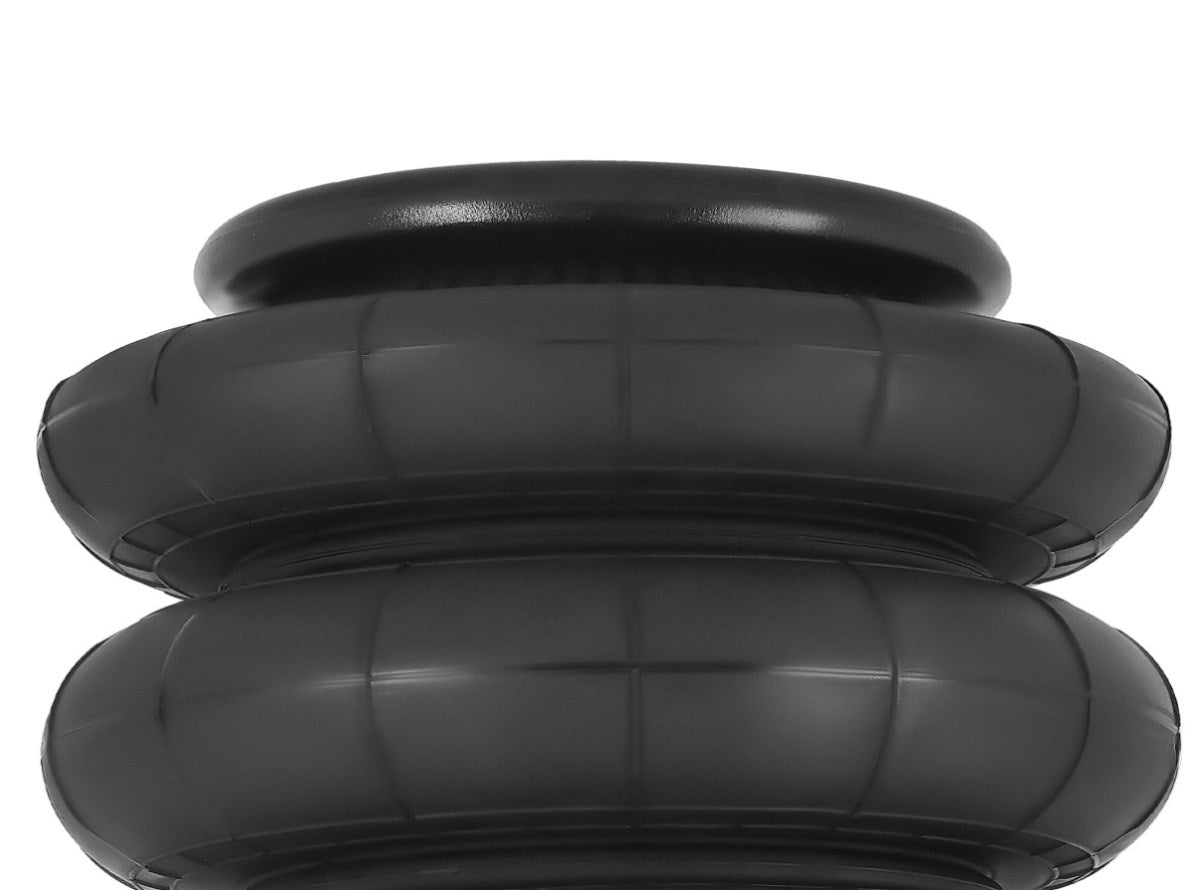

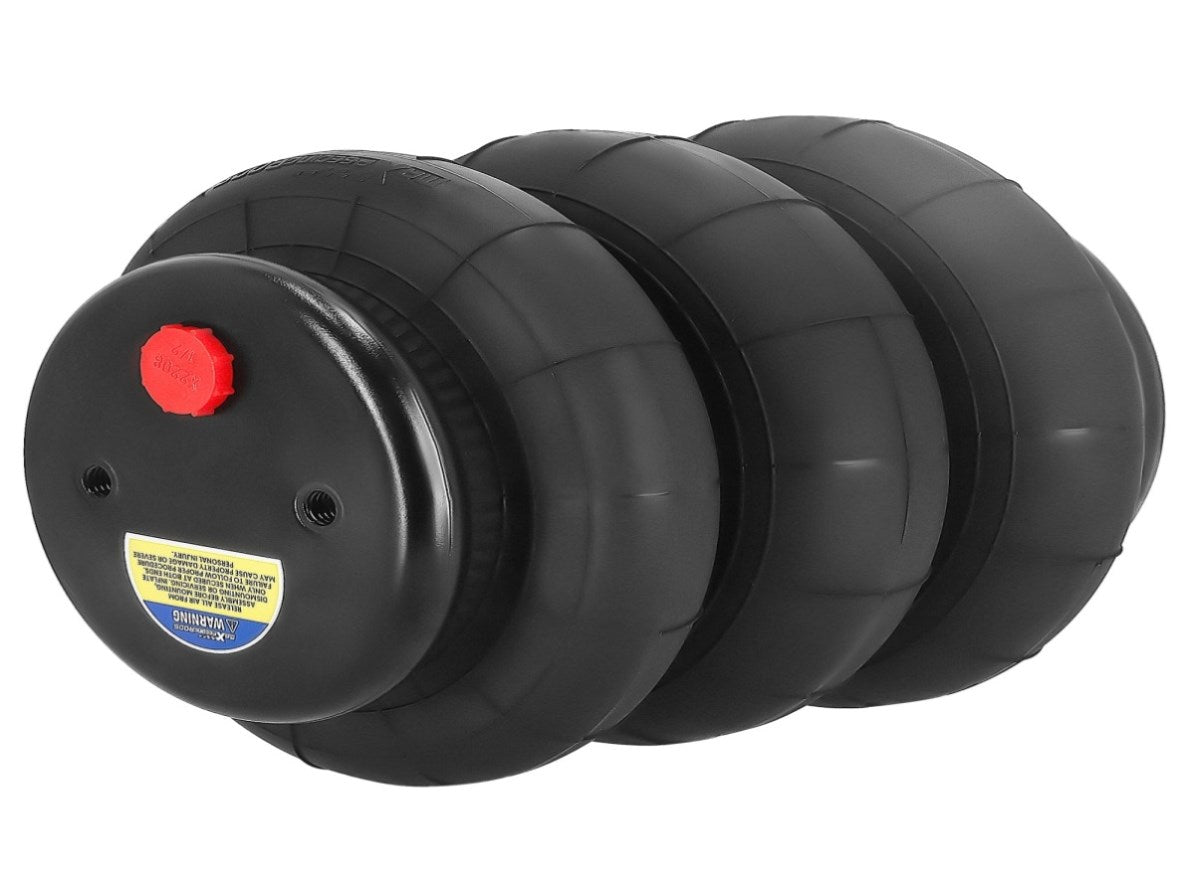

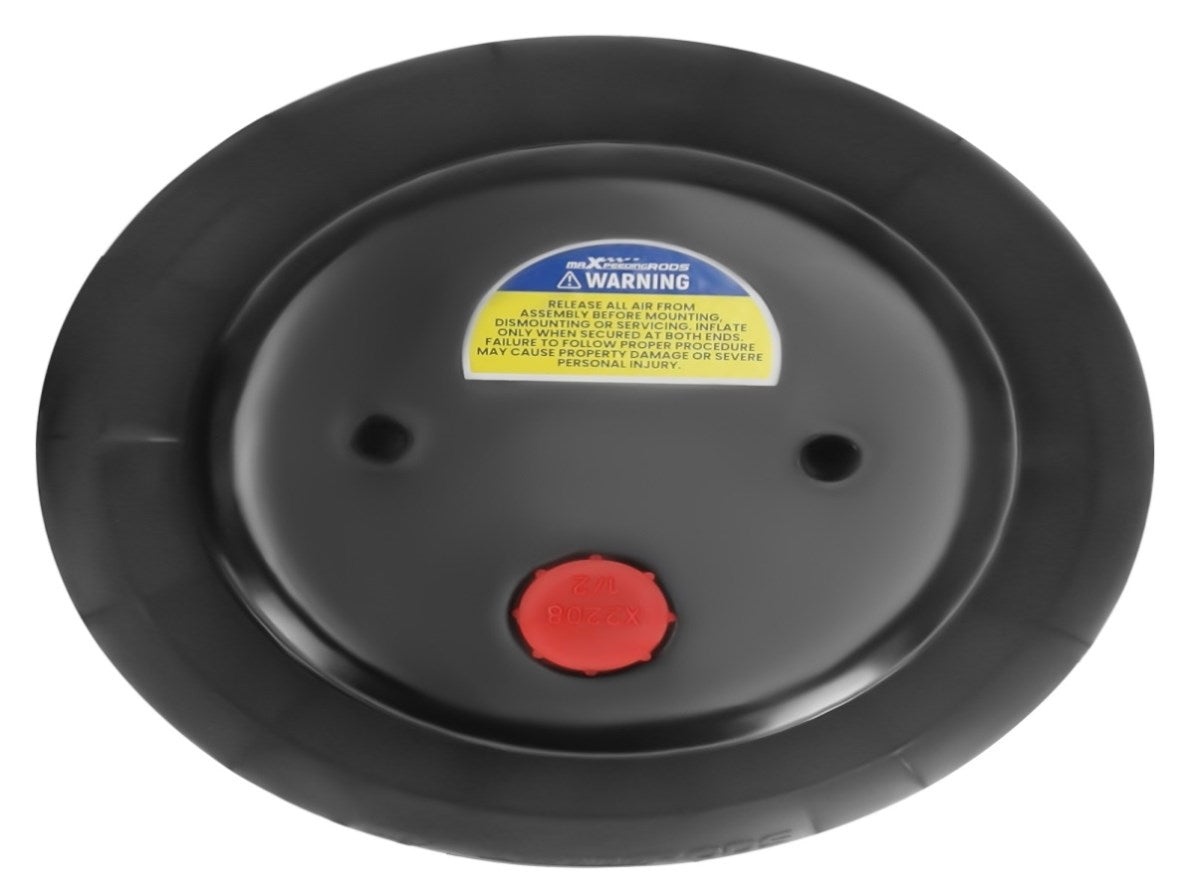

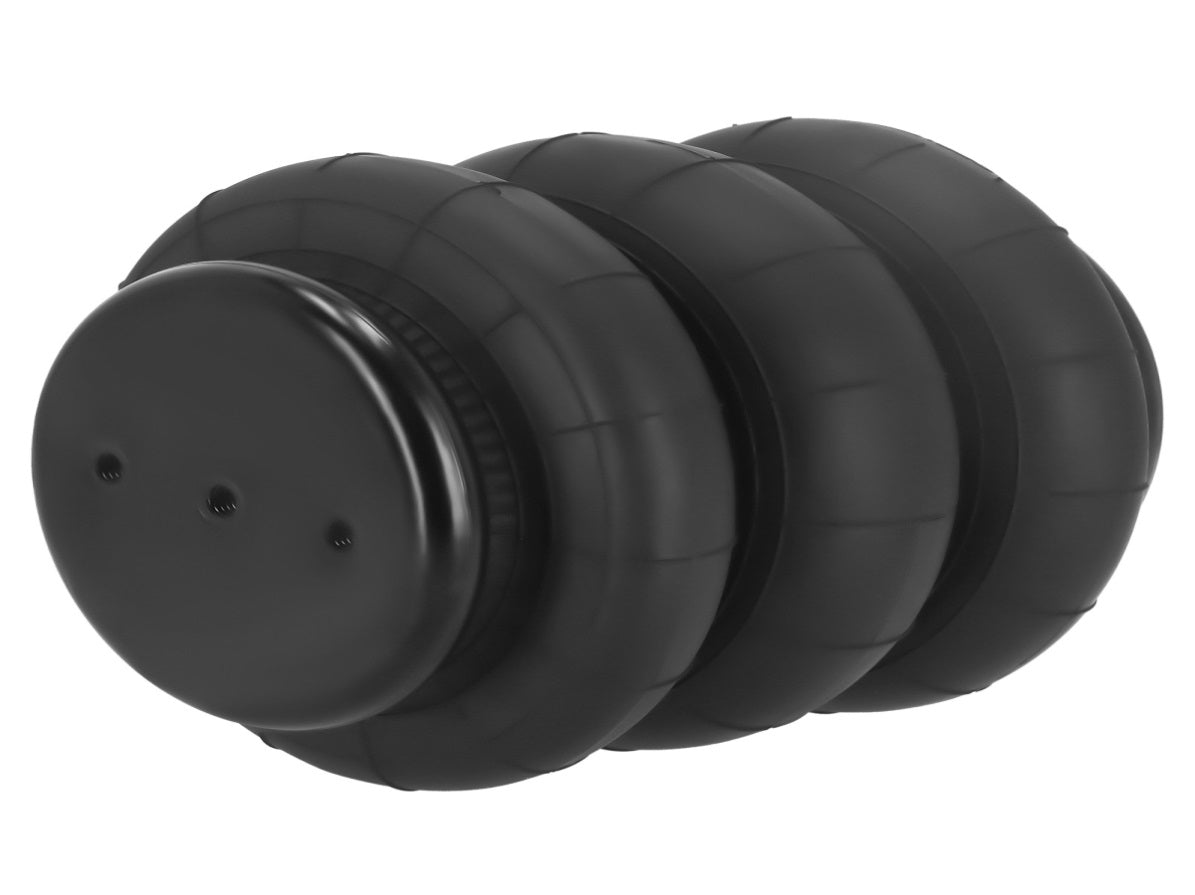

Pair Triple Bellow Air Spring Bag fit for Dodge Ram 1500 3500 fit for GMC 2600 lb 14234644

Fit fit for:

• It's Universal fit for most bus/truck&trailer, Mini Trucks, Light Duty, and Subframe Vehicles

OE/Part number:

• Stroke/Closed: 220 mm
• Max height: 330 mm
• Min height: 110 mm
• Design Height: 250 mm/9.8"

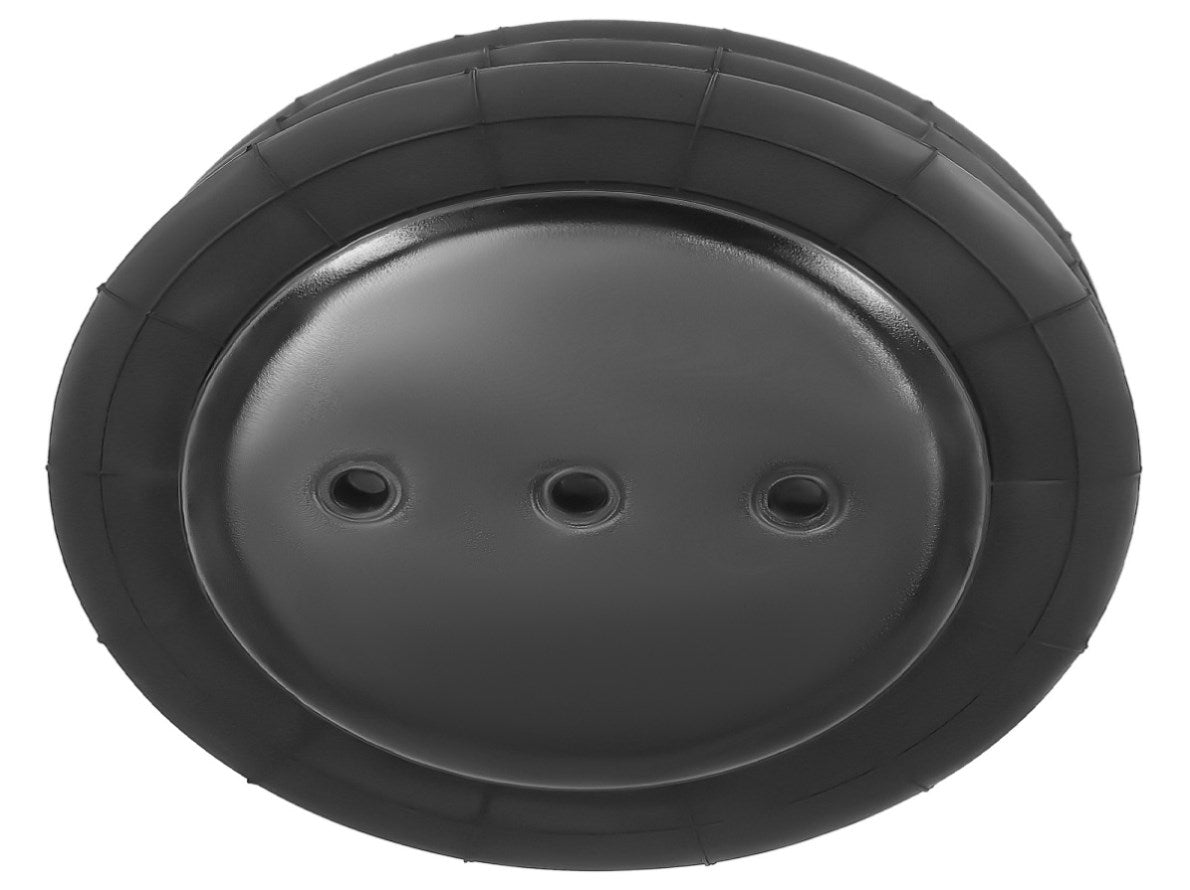

• Top plate diameter: 131 mm
• Airport size: 1/2-14NPT Single Port
• All mounting holes size:3/8-16UNC
• Independent Test Pressure: at least 290psi
• Recommended working range: 0psi - 170psi
• Air spring bag capacity：2600LBS/Side

Features:

• 1、OEM Product: Easy to install
• 2、Test more than 5,000,000 times: Durable and Safe
• 3、24 hours air tightness test ≤0.02MPa: Air Tightness Guarantee
• 4、Temperature Range ≥ -40℃/ ≤ 70℃: Premium Natural Rubber Material
• 5、Enable vehicles to cope with uneven or heavy loads
• 6、Helps maintain control of loaded vehicle

Item Specifications:

• Condition: New
• Part Type: Air Suspension Spring
• Placement on Vehicle: Rear
• Quantity: 2 pieces (fit for rear right and left side)
• Length, width and height (cm): 40*29*22 cm
• Weight: 5.8 Kg

Notice

These air suspension bags are aftermarket ones. They will replace the original air spring bags.

Please double check the picture and drawing carefully before purchasing to ensure you will get the right items.

Professional installation is recommended

Contact us please fit for whatever we can help
