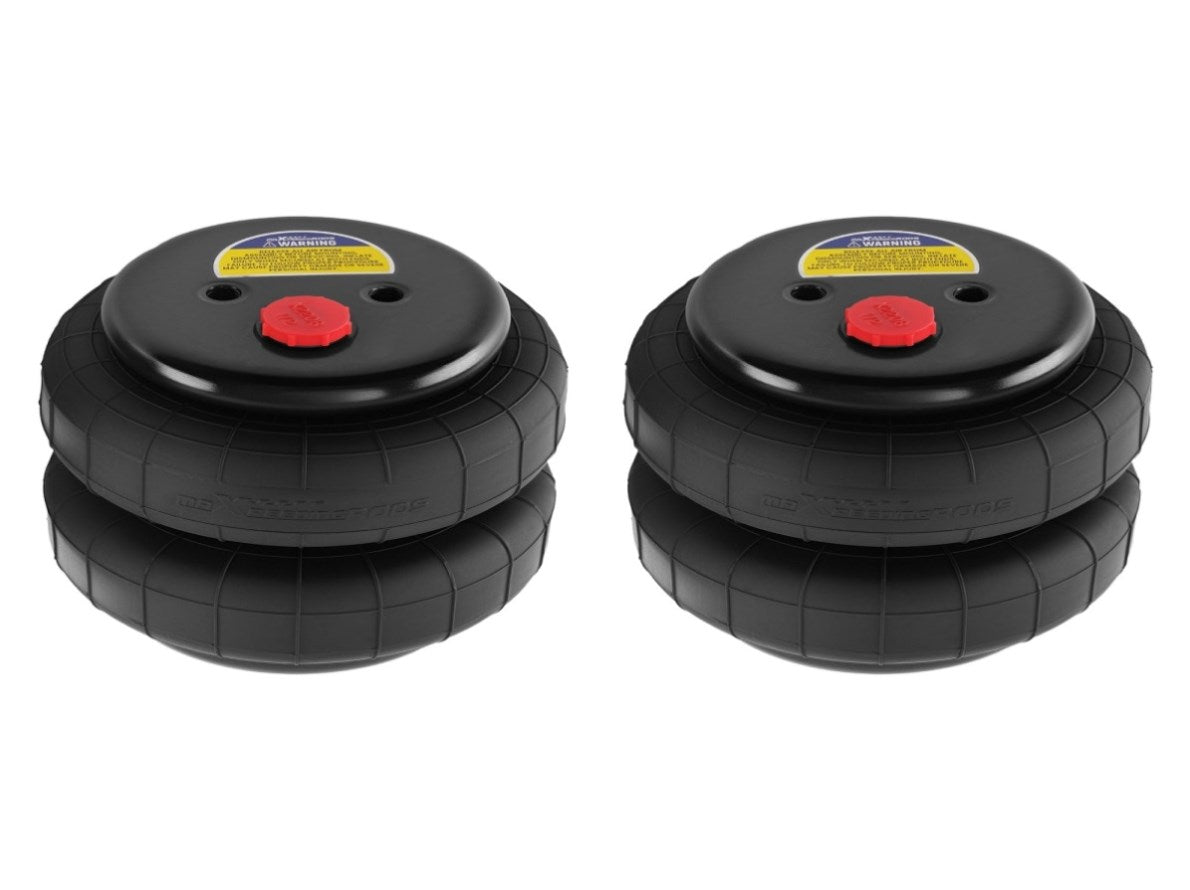

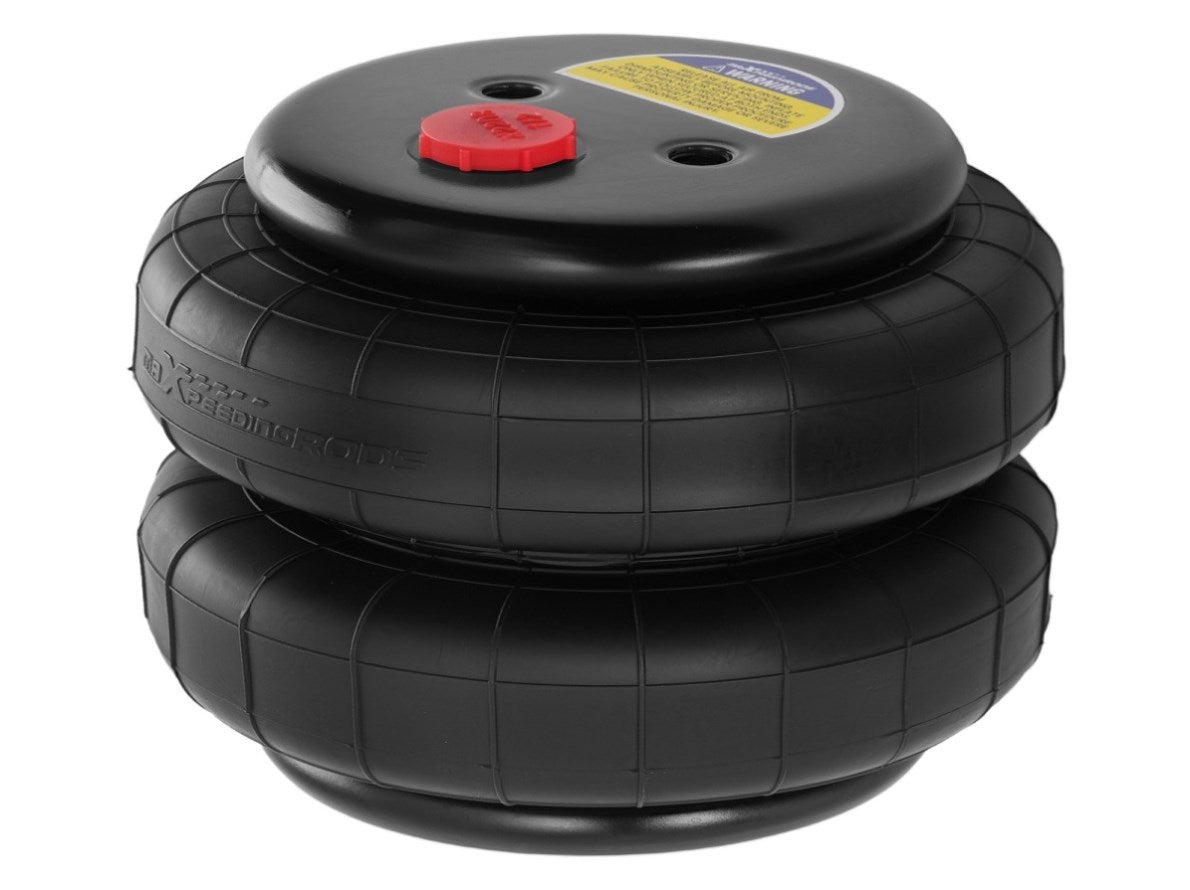

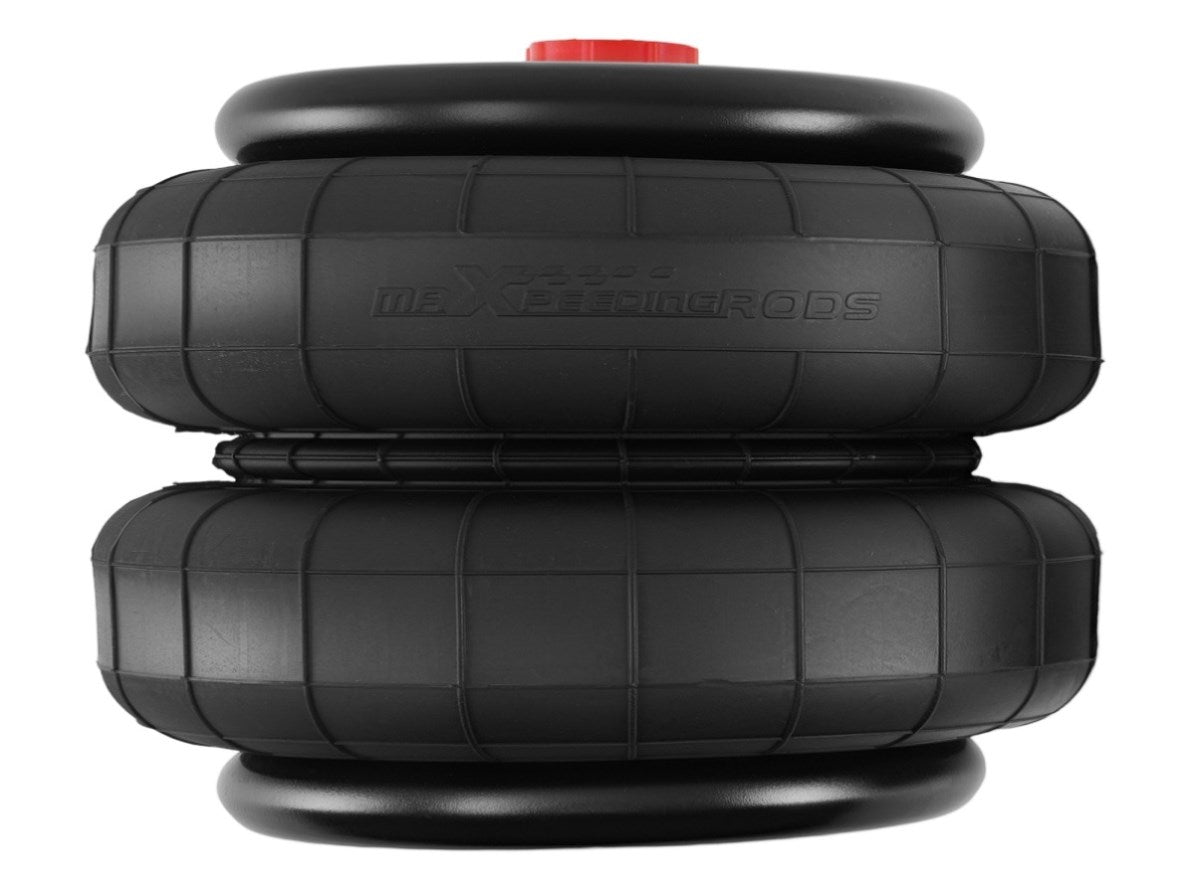

Pair 2500 lb 1/2"npt Single Port Air Suspension Bags Air Line Air Fitting 55834353
Package Includes(based on you choose under the tittle):
- Option 1: Only 2x Air Suspension Bags
- Option 2: 2x Air Suspension Bags + Air Line + Fitting + Inflation Valve
Standard 2500 lb Air Spring Bag Part 1/2"npt Single Port Air Shock Suspension
Fit fit for:
Universal Air Suspension Bags fit for For most mini trucks, compact pickups, classic cars & hot rods, and custom suspension setups
Please confirm whether the air spring bag parameters below (especially height, diameter, bolt specifications) are consistent with ours before purchasing.
Features:
1、OEM Product: Easy to install
2、Test more than 5,000,000 times: Durable and Safe
3、24 hours air tightness test ≤0.02MPa: Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃: Premium Natural Rubber Material
Item Specifications:
- Condition: 100% Brand New
- Loading cap. at 3.0bar:2.88KN
- Loading cap. at 7.0bar:7.25KN
- Placement on Vehicle: Left,Right,Front,Rear
- Air spring bag capacity: 2500LBS
- Min height: 72mm±5mm
- Max height: 218MM±5mm
- Working stroke: 146mm±5mm
- Single air port size: 1/2NPT
- Air fitting elbow connector: NPT1/2-14-Φ6
- Install hole size: 3/8-16UNC
- Top plate diameter:113mm
- Air spring bag body diameter:148mm±2mm
Packages(based on you choose under the tittle):
- 2 x Heavy Duty Double Bellow Air Ride Suspension bag
- 1 x Air Line 10 m (1/4" OD)
- 1 x Quick-connect fitting 1/4"
- 2 x Air fitting 1/2” NPT - 1/4"
- 2 x Inflation valve 1/4"
- 1 x Air Line Cutter
Notice
- These air suspension bags are aftermarket ones. They will replace the original air spring bags.
- Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.
-Instruction is not included. Professional installation is recommended
-Contact us please fit for whatever we can help
