Oil Pan Kit fit for Camaro / Firebird F-Body Low Profile 98-2002 12551577 27855206
Application：
fit for 1998-2002 Camaro / Firebird F-Body Low Profile Oil Pan Kit.
OE/Part number：
12628771,12558899,12684259,12558762,
12551577,12551581,12558253,19210283,
12551571,GMP77A,12598151
Specification：
Type：Oil Pan
Condition: New
Fitment Type: Direct Replacement
Material: Aluminum
Color :Silver
Oil pan fitment :this oil pan will fit all GM LS-Series engines

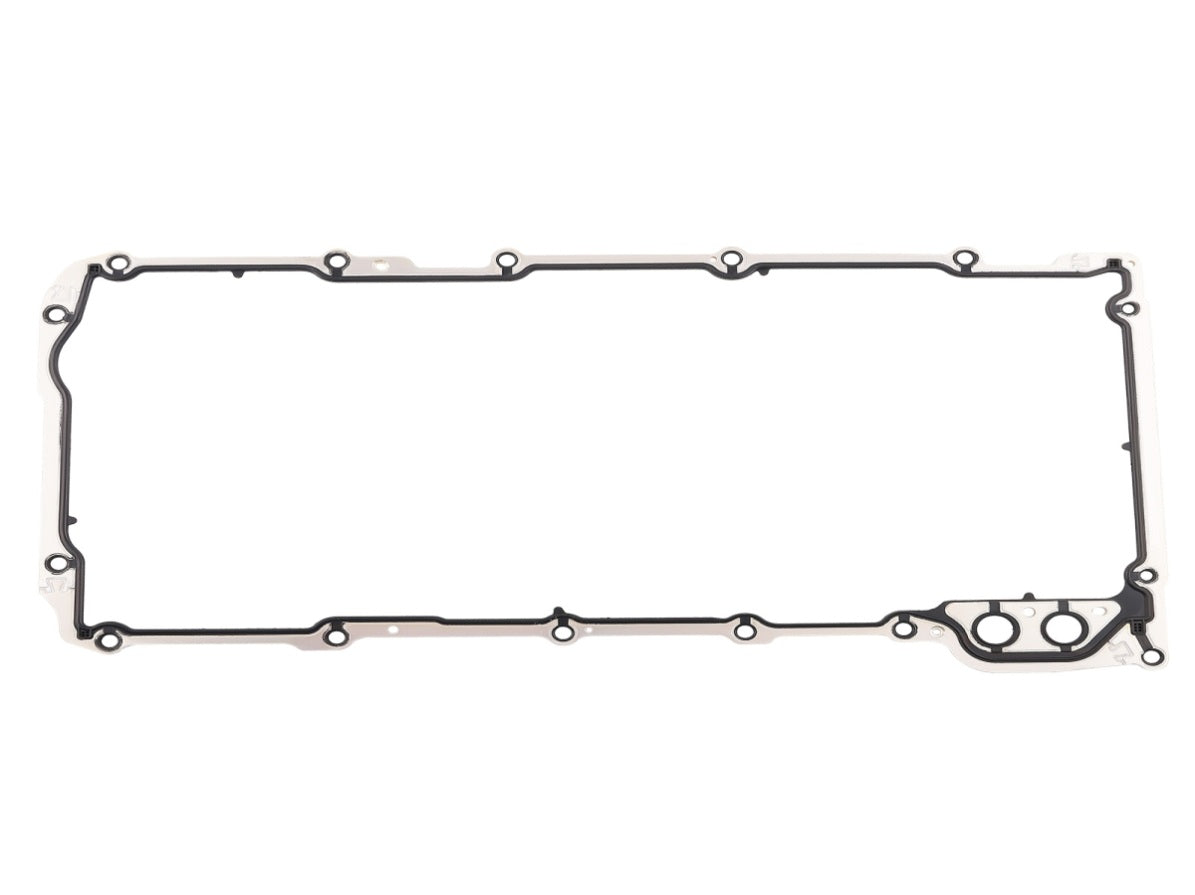

Gasket or Seal Included：Yes

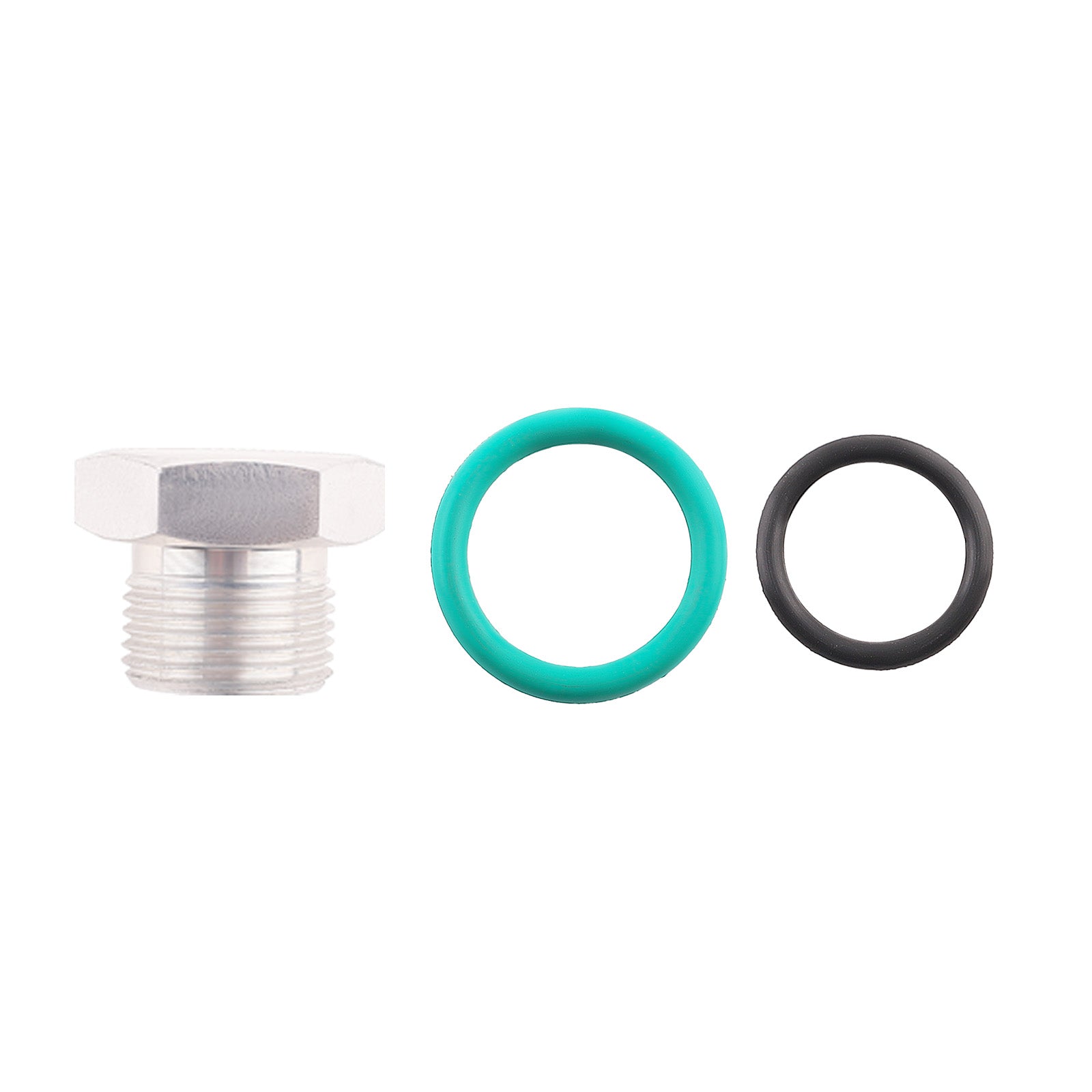

Drain Plug Included：Yes
Drain Thread Size：M12x1.75mm
Bolt Hole Quantity：14
Sump Type：Wet
Sump Location：Rear
Length：21.7 IN
Maximum Depth：5.3 IN
Maximum Width：12.5 IN
Capacity：4.8 LT
Color：Silver
Crank Shaft Wiper Included：Yes
Oil Level Sensor Port：Yes
Pickup Included：No
Windage Tray Included：Yes
Dipstick Port：Yes
Engine Oil Cooler Return Fitting：No
Kick Out Type Pan：No

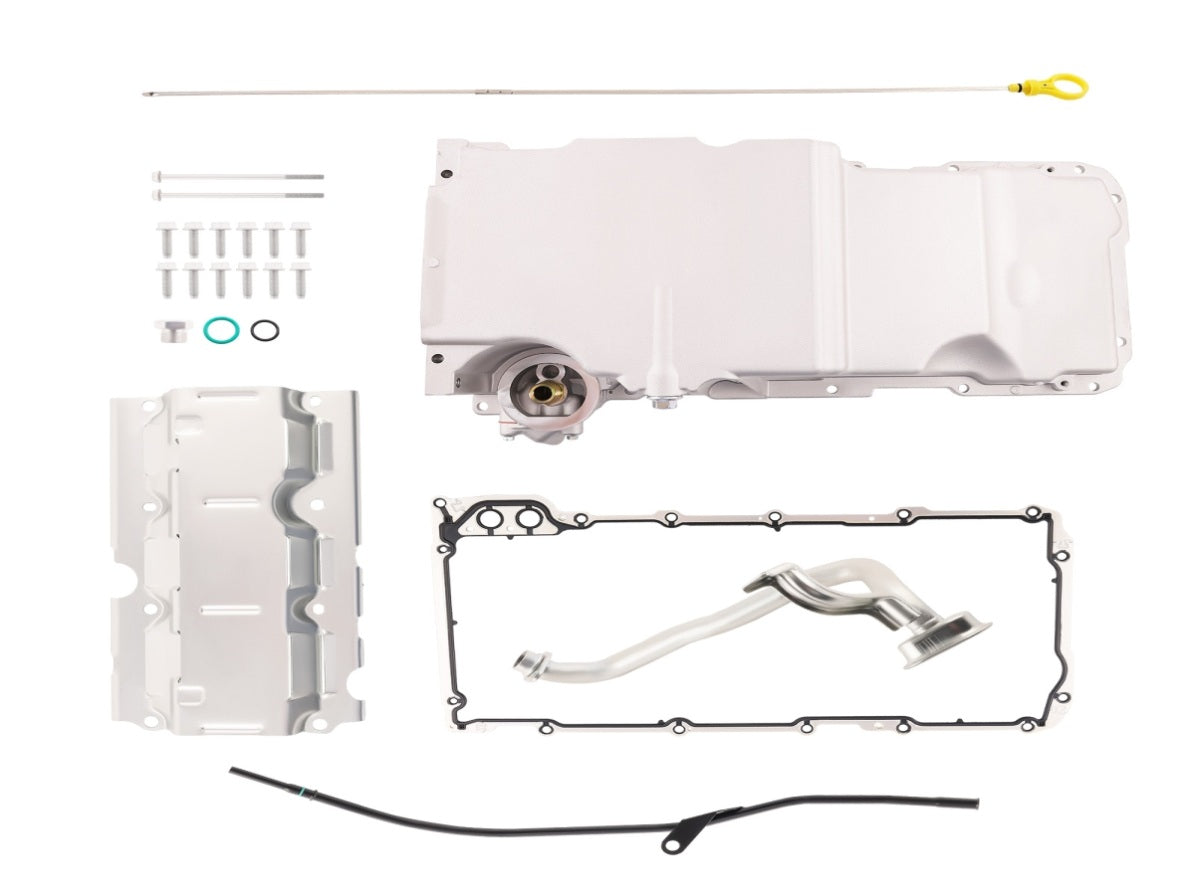

Package Includes:

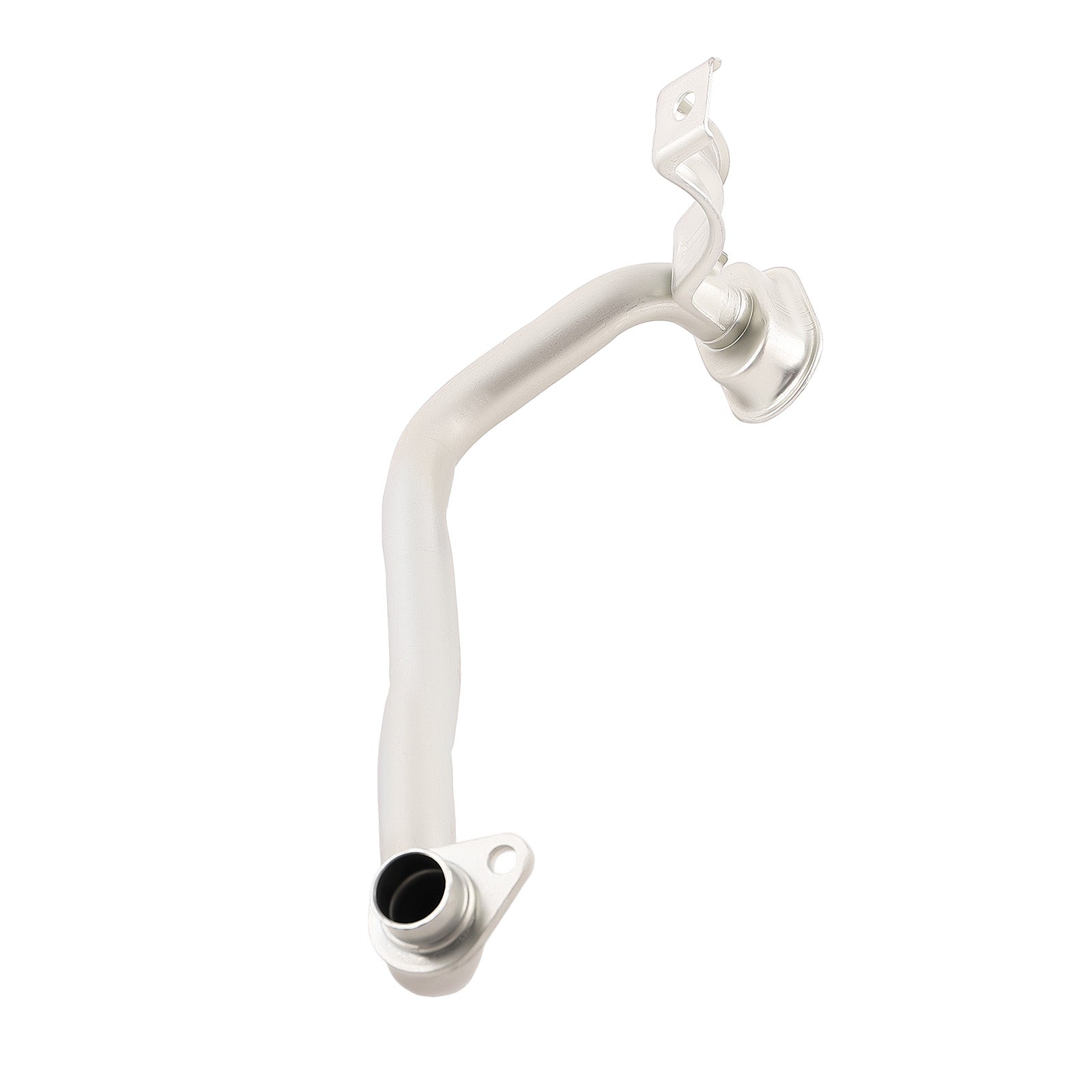

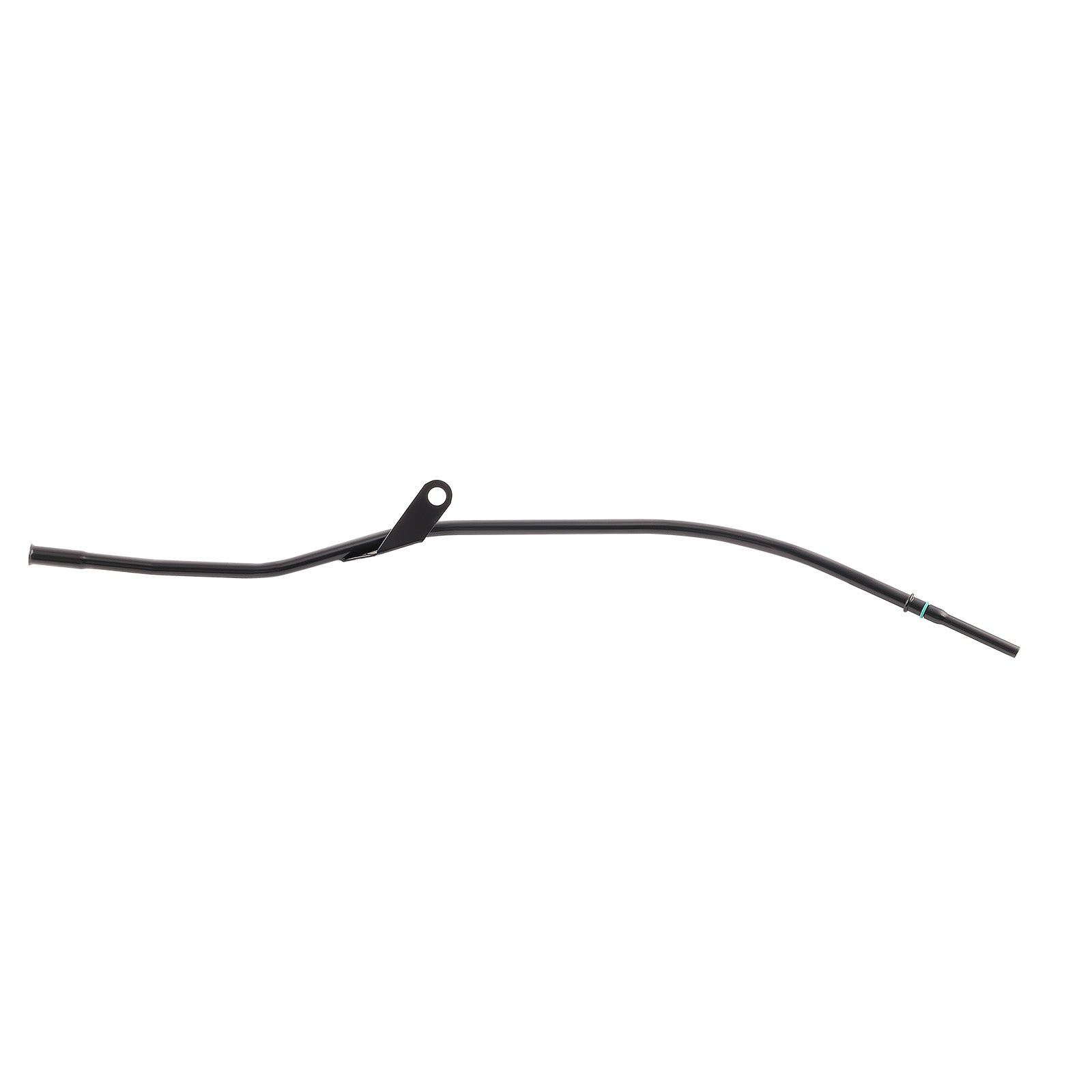

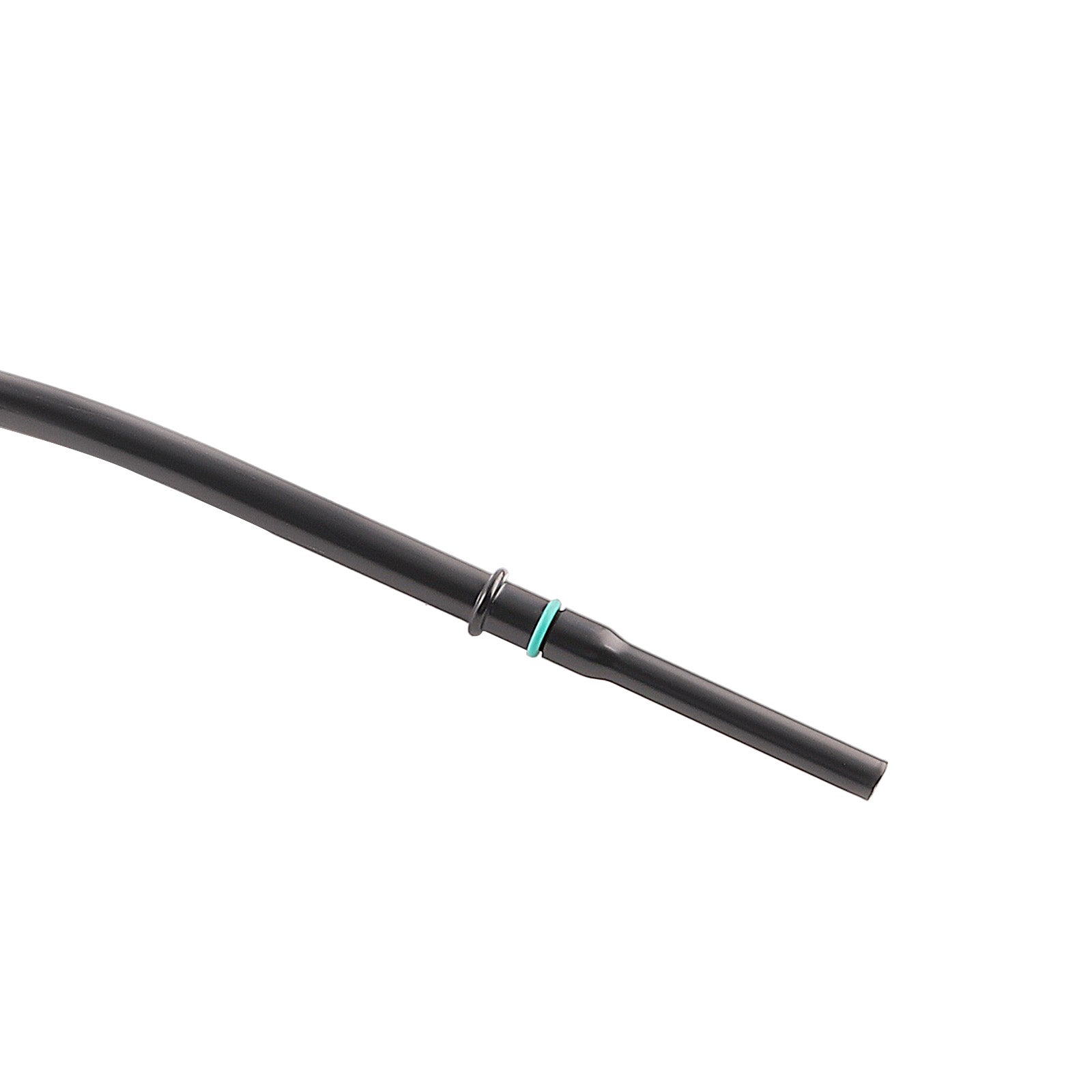

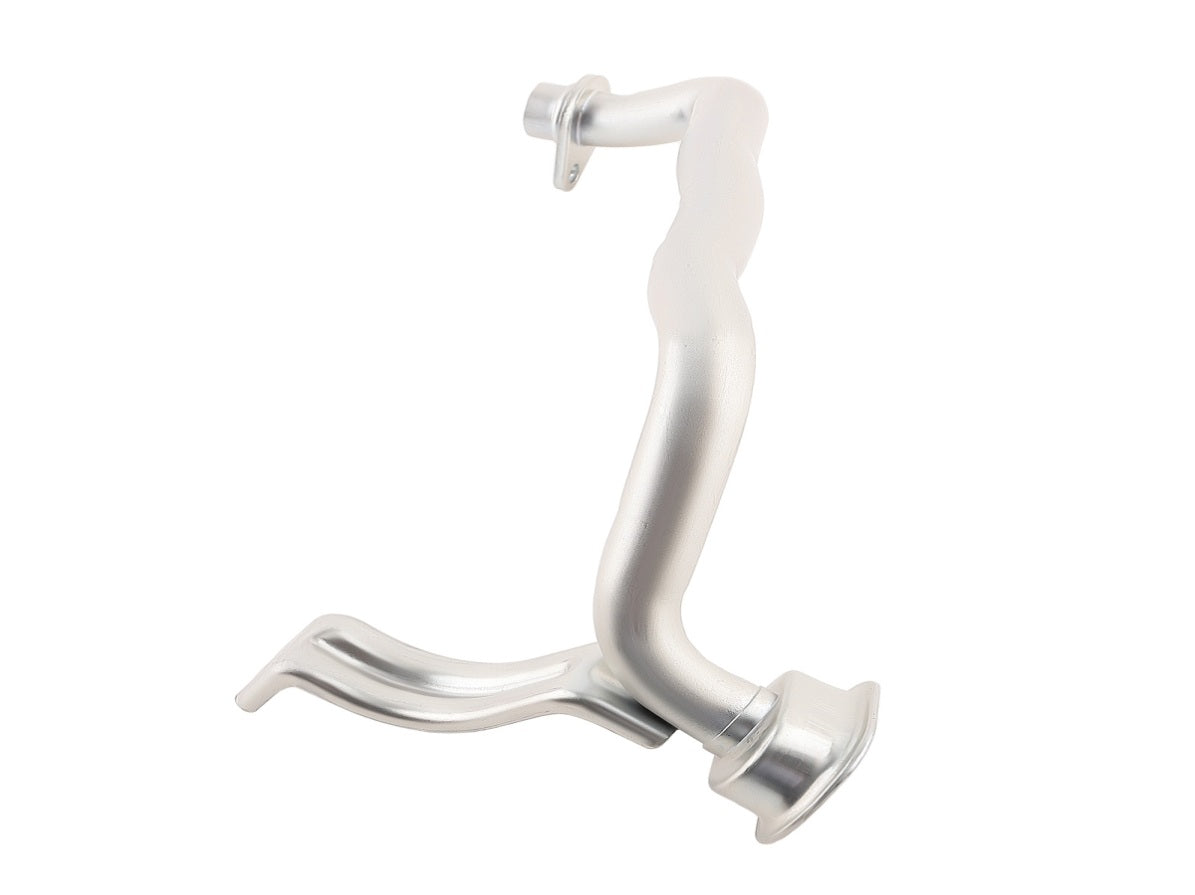

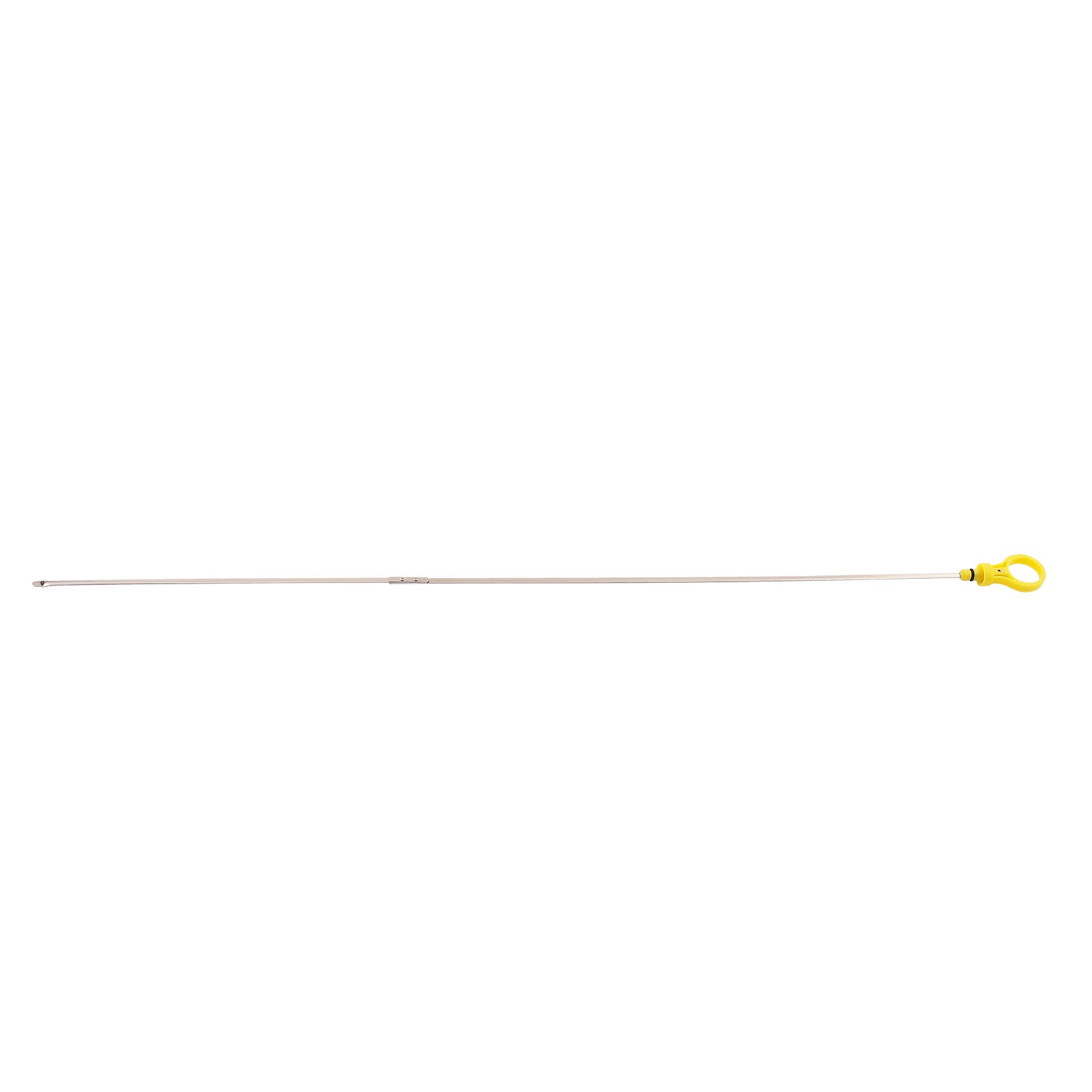

Oil pan, Gasket, Tube, Oil dipstick, Windage tray, Bolts (Showing as the picture)
Note：
●Professional installation is highly recommended
●Please Check The Product Pictures And Description Carefully Before Your Purchase.
●The oil channels of carburetors will be blocked without cleaning.
