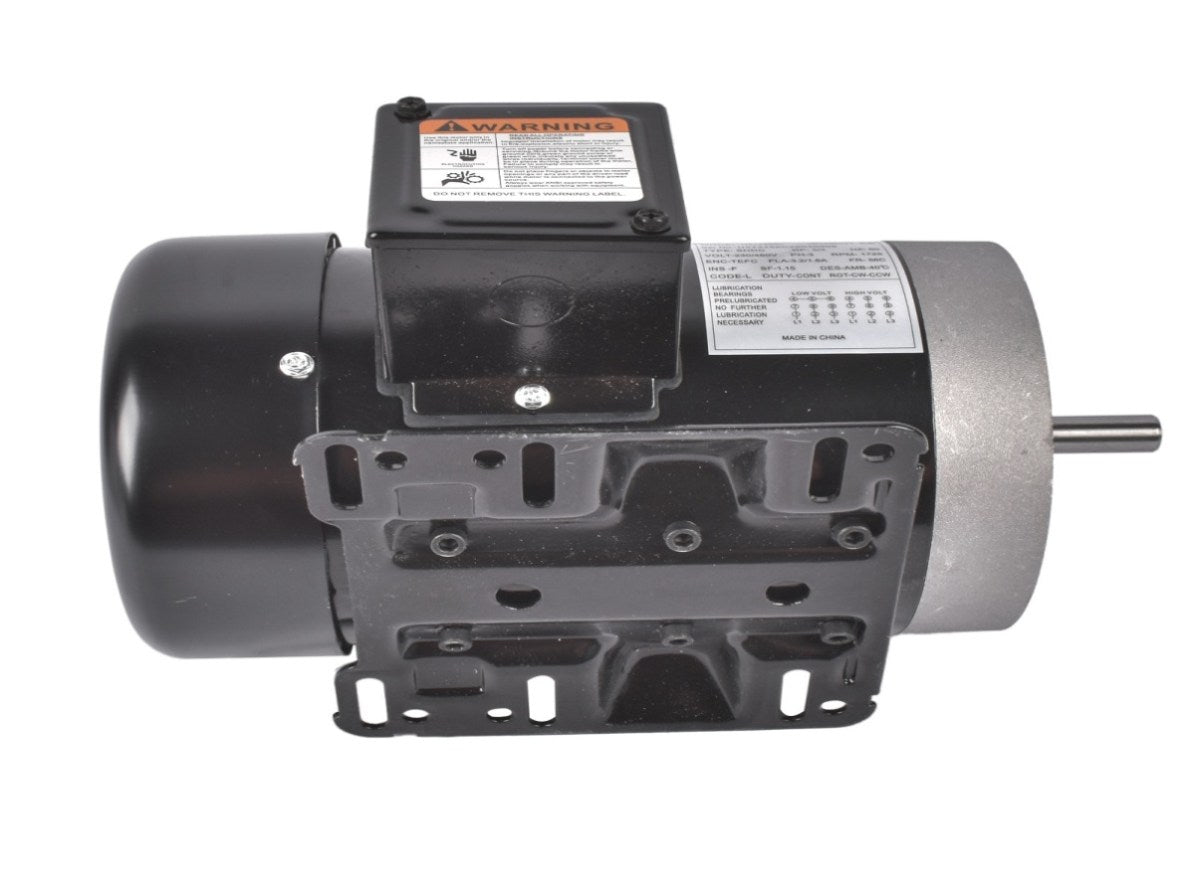

NEW MA0507E AC MOTOR, 3/4HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE 12240543
GT-12240543
4 In stock
$320.32
Part Number MA0507E Specifications HP: 3/4 Voltage: 208-230/460V RPM: 1725 Phase: 3 Frame: 56C Hertz: 60 Enclosure: TEFC Full Load Amp: 2.5/1.24 Insulation: F Overload: None Shaft size: 5/8" Service Factor: 1.15 "C" Dimension: 11.9" Rotation: Reversible Features Totally Enclosed Fan Cooled (TEFC) enclosure Dual mounting with NEMA...
customers are viewing this product
Part Number
MA0507E
Specifications
HP: 3/4
Voltage: 208-230/460V
RPM: 1725
Phase: 3
Frame: 56C
Hertz: 60
Enclosure: TEFC
Full Load Amp: 2.5/1.24
Insulation: F
Overload: None

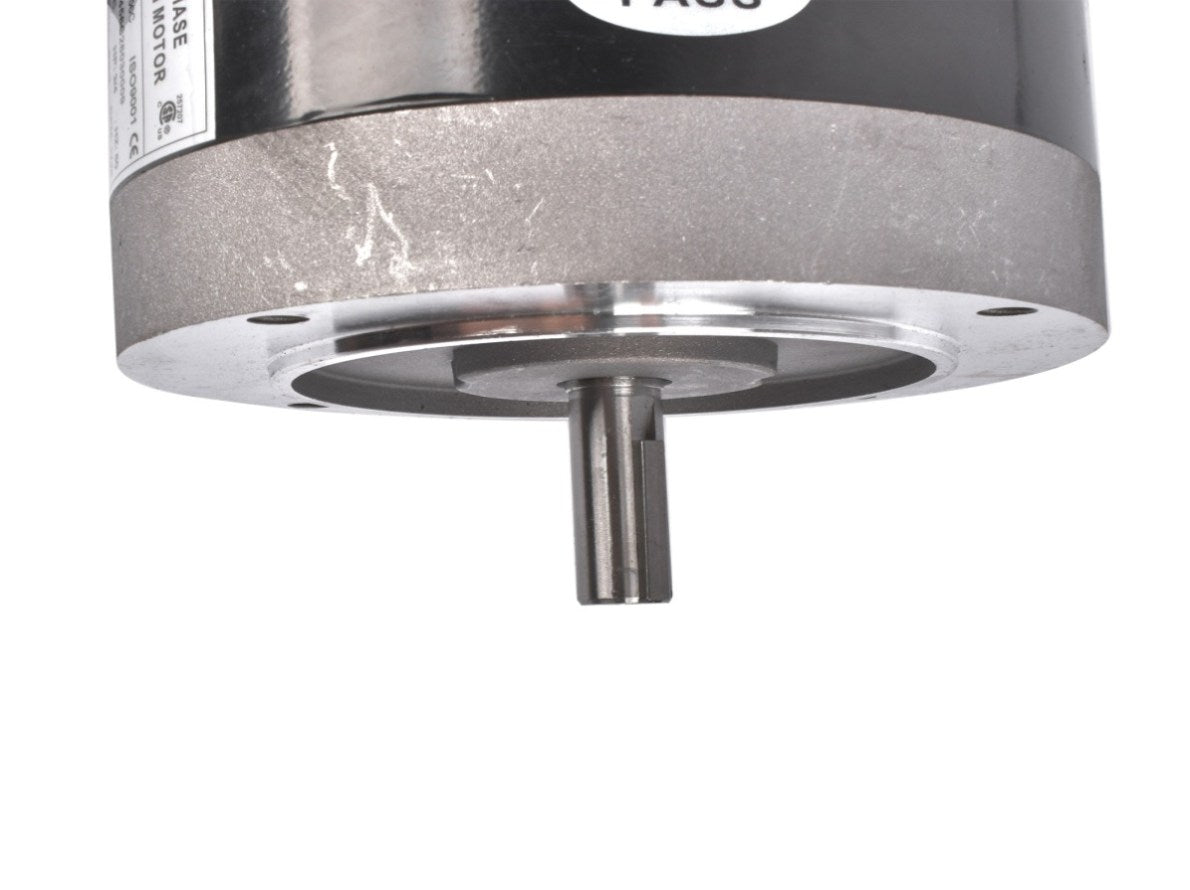

Shaft size: 5/8"
Service Factor: 1.15
"C" Dimension: 11.9"
Rotation: Reversible
Features
Totally Enclosed Fan Cooled (TEFC) enclosure
Dual mounting with NEMA 56C and removable base
Class F winding insulation
Inverter duty
Rolled steel shell frame / cast aluminum end bell
Removable base / bolt-on/bolt-off mounting feet
Large all-metal capacitor cover with rubber gasket
Large easy-to-wire junction box with rubber gasket
Heavy duty oversized ball bearings
High tensile strength steel shaft
Electrically reversible
NEMA design B
Service Factor: 1.15
Package Includes

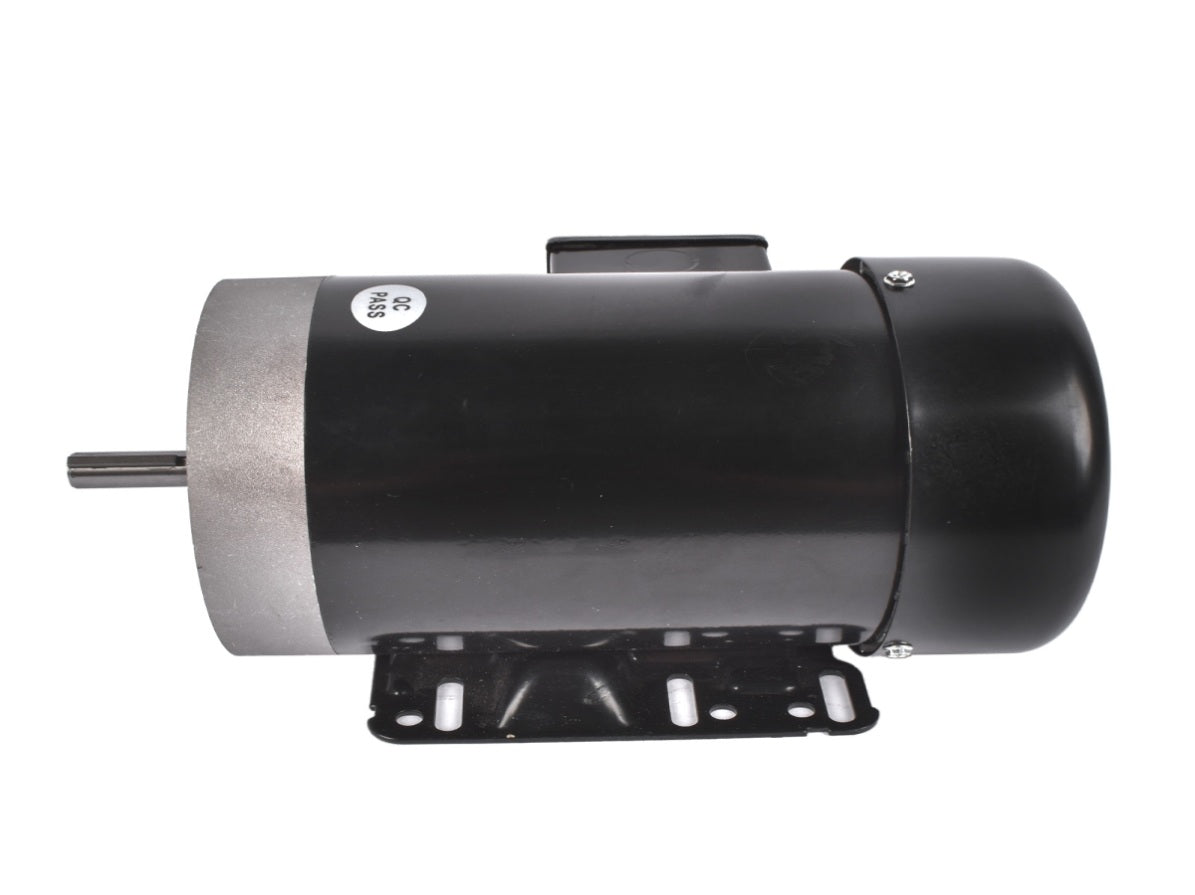

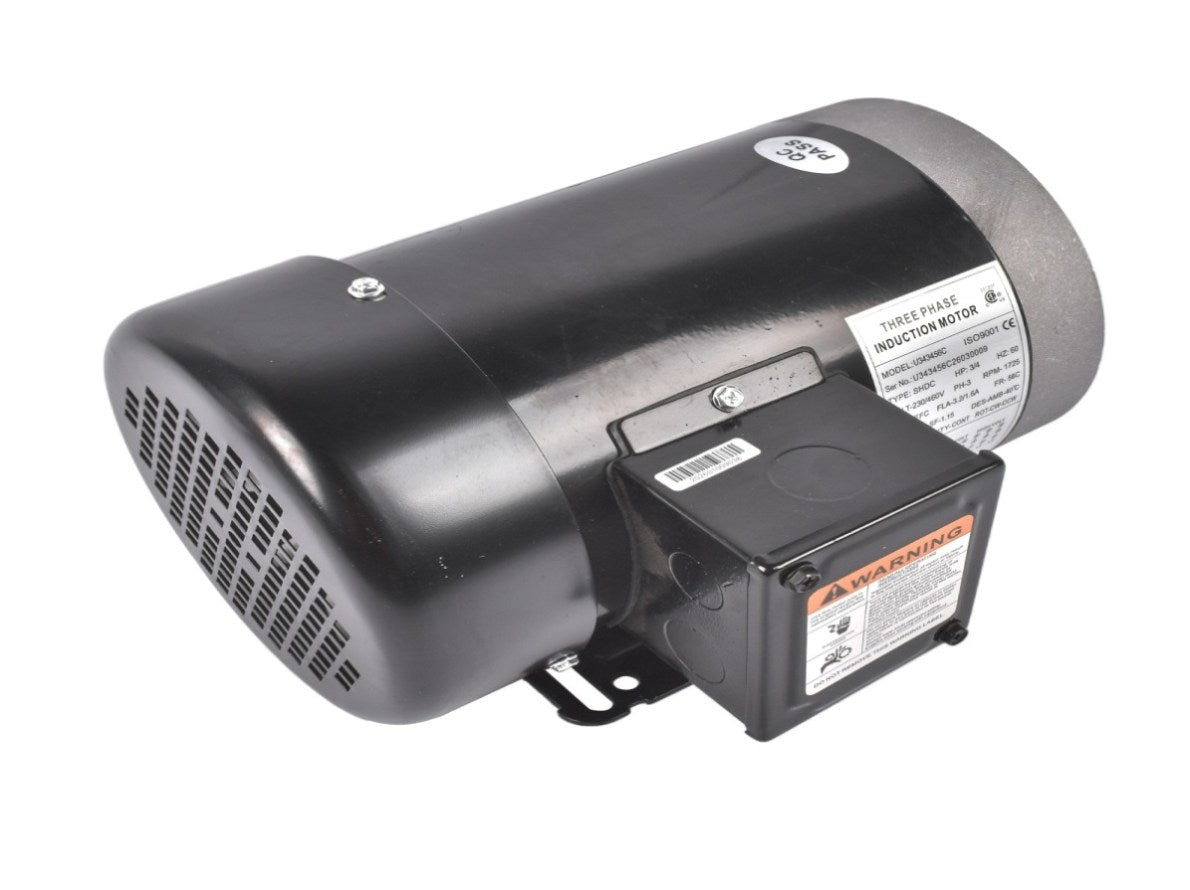

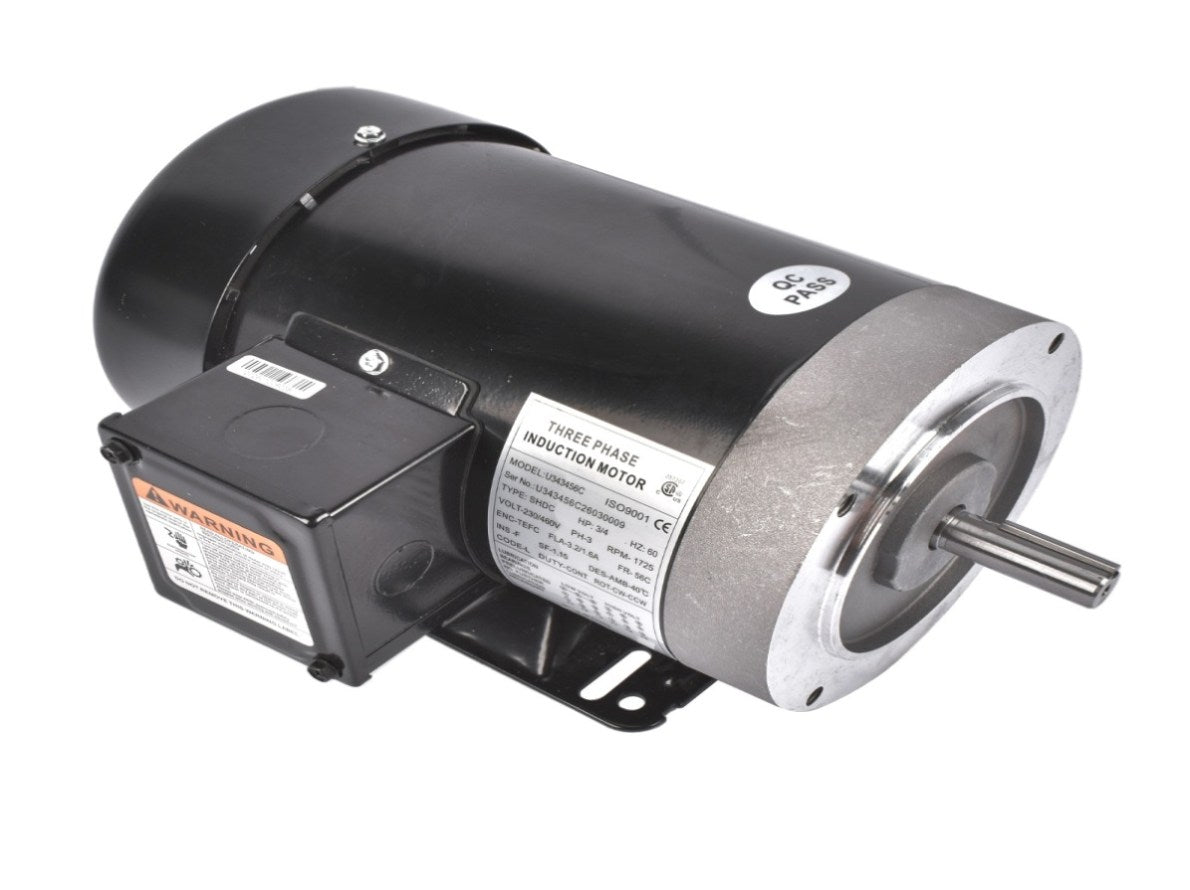

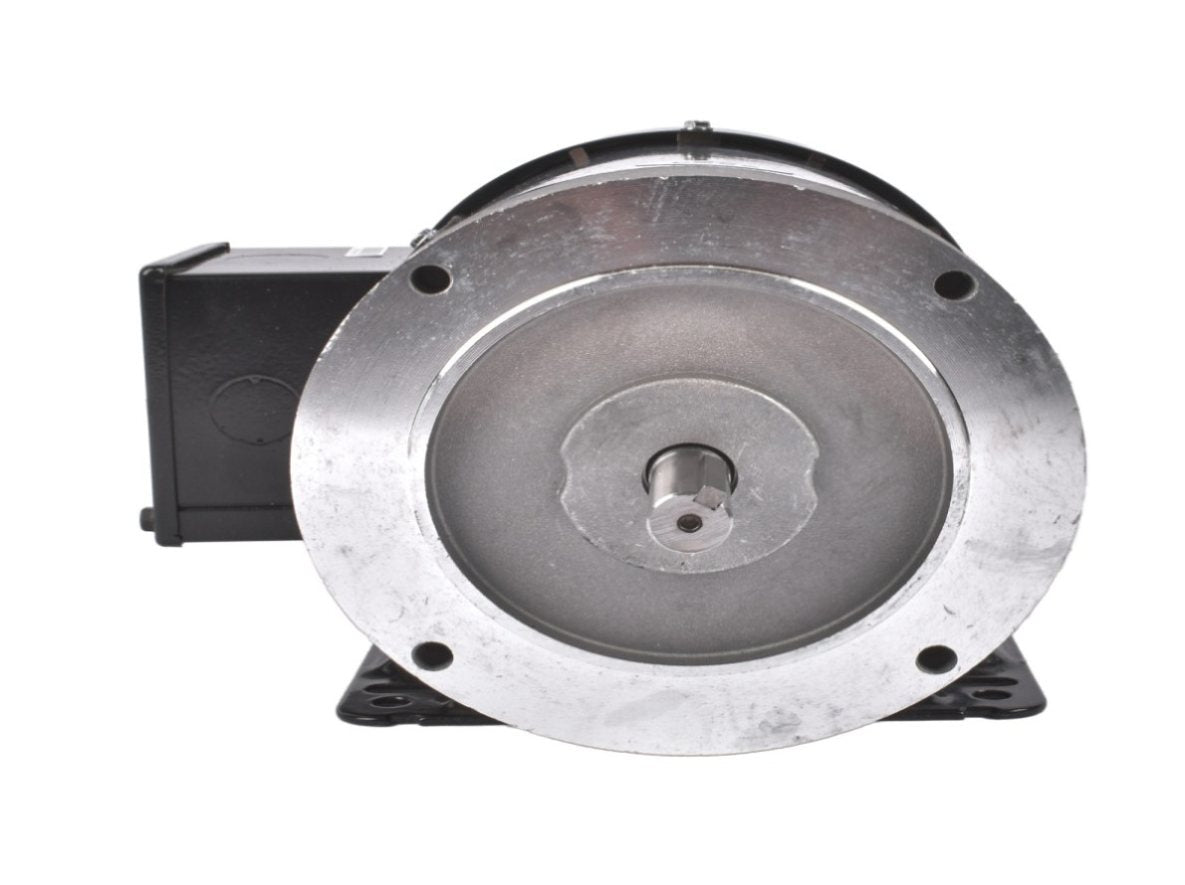

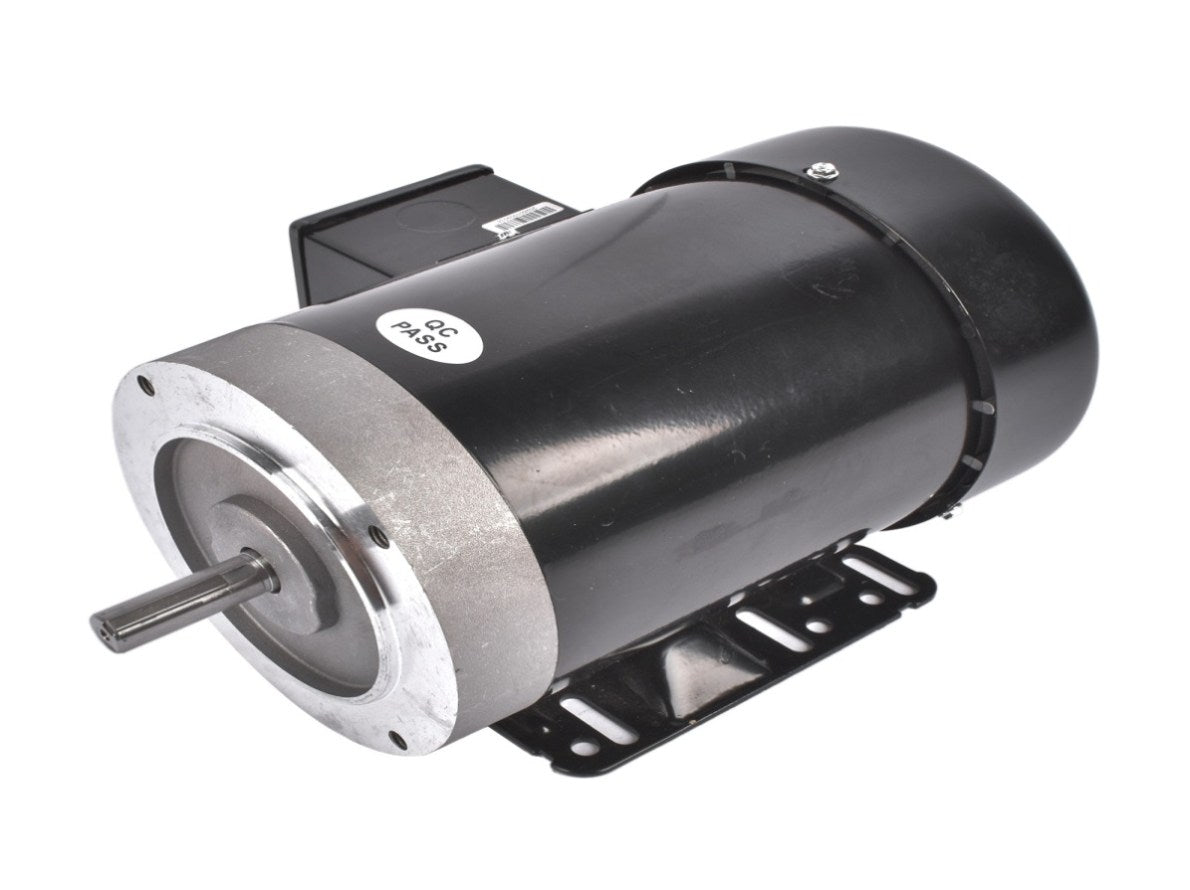

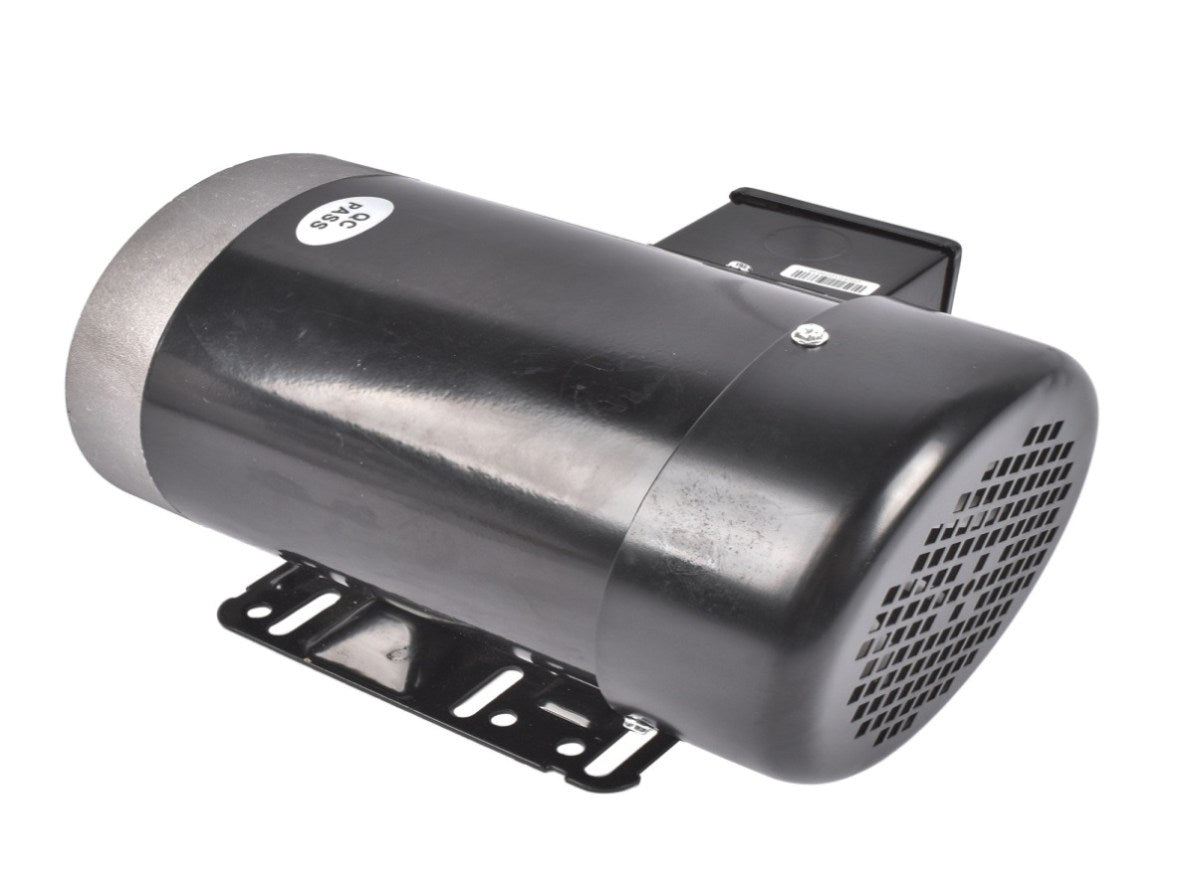

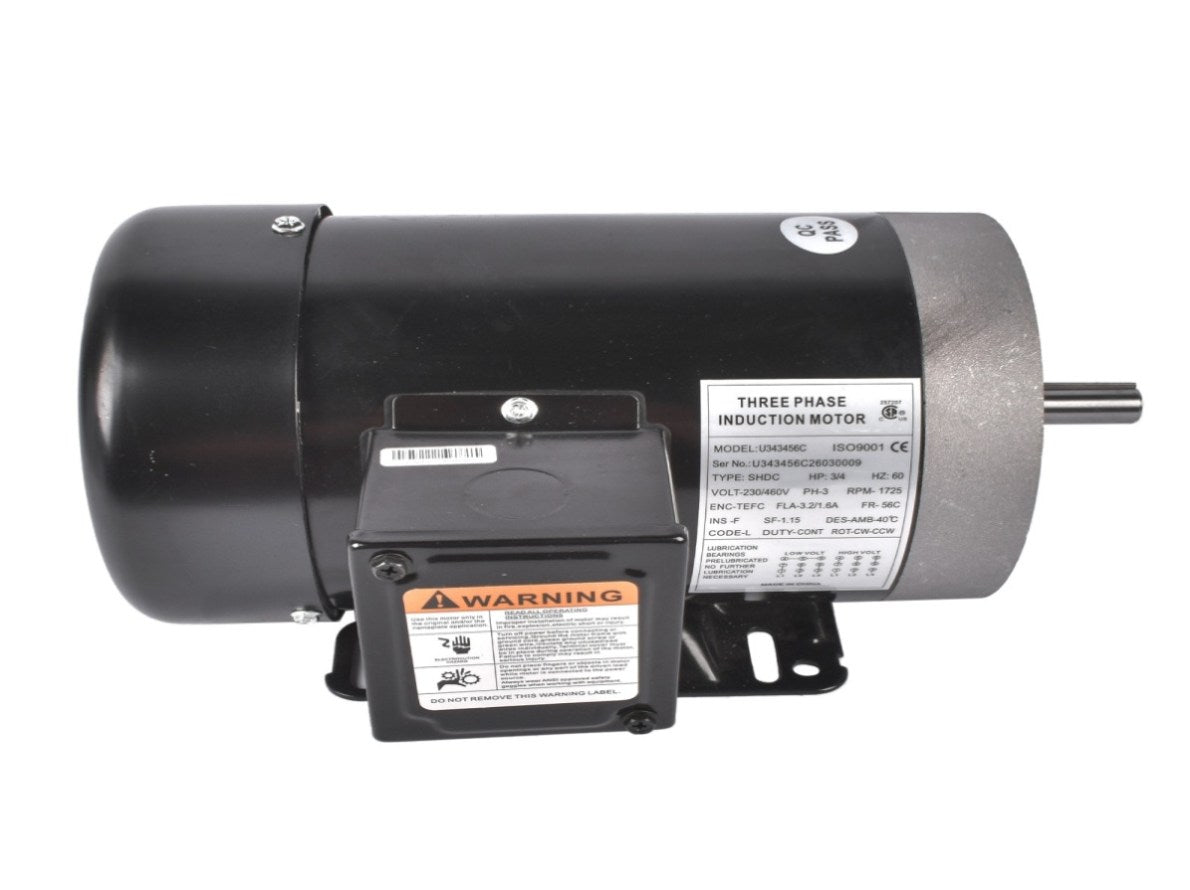

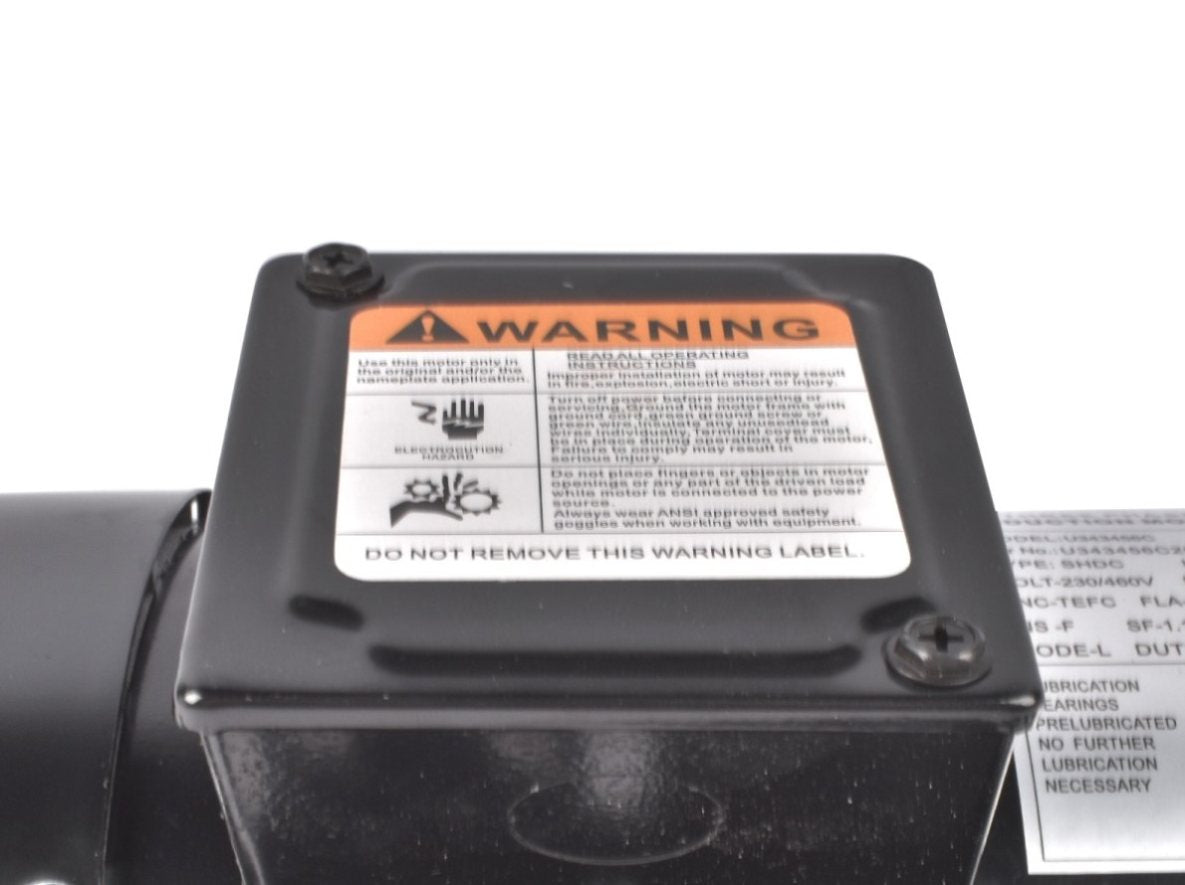

1x MA0507E AC Motor (As Pics Shown)
