MRV050 Worm Gear Speed Reducer 56C Multiple Ratio 501 06028080
GT-06028080
5 In stock
$395.20
-Item Specifics Part Name: Speed Reducer Color: Grey Material: Aluminum, Copper, Steel Flange: 56C Max. Rated RPM: 1750Input Shaft Diameter: 5/8''Input Shaft Length / Depth: 1-7/8''Output Shaft Diameter: 1''Output Shaft Length / Depth: 3-5/8'' Shaft Type: Keyed Hollow Shaft Fitment Type: Direct Replacement -Ratio Specification Ratio Max. Rated...
customers are viewing this product
-Item Specifics
|
Part Name: Speed Reducer
Color: Grey
Material: Aluminum, Copper, Steel
Flange: 56C
Max. Rated RPM: 1750
Input Shaft Diameter: 5/8'' Input Shaft Length / Depth: 1-7/8'' Output Shaft Diameter: 1'' Output Shaft Length / Depth: 3-5/8'' Shaft Type: Keyed Hollow Shaft
Fitment Type: Direct Replacement
|
 |
-Ratio Specification
|
Ratio
|
Max. Rated Input HP
|
Max. Rated Output Torque
|
|---|---|---|
|
50:1
|
0.57 HP
|
646 lb/in
|
-OEM Part Numbers
MRV050
-Features
☛ MRV050 series worm gear speed reducer with 56C mounting flange, multiple reduction ratios available
☛ Input & output shaft: Keyed Hollow Shaft, input 5/8''×1-7/8'', output 1''×3-5/8''
☛ Housing made of aluminum, internal components adopt copper and steel for durability
☛ Max rated input speed up to 1750 RPM, different HP and torque for each ratio
☛ Direct replacement design, simple installation and stable operation
☛ Grey finished housing, good heat dissipation performance
 |
 |
 |
-Package Included

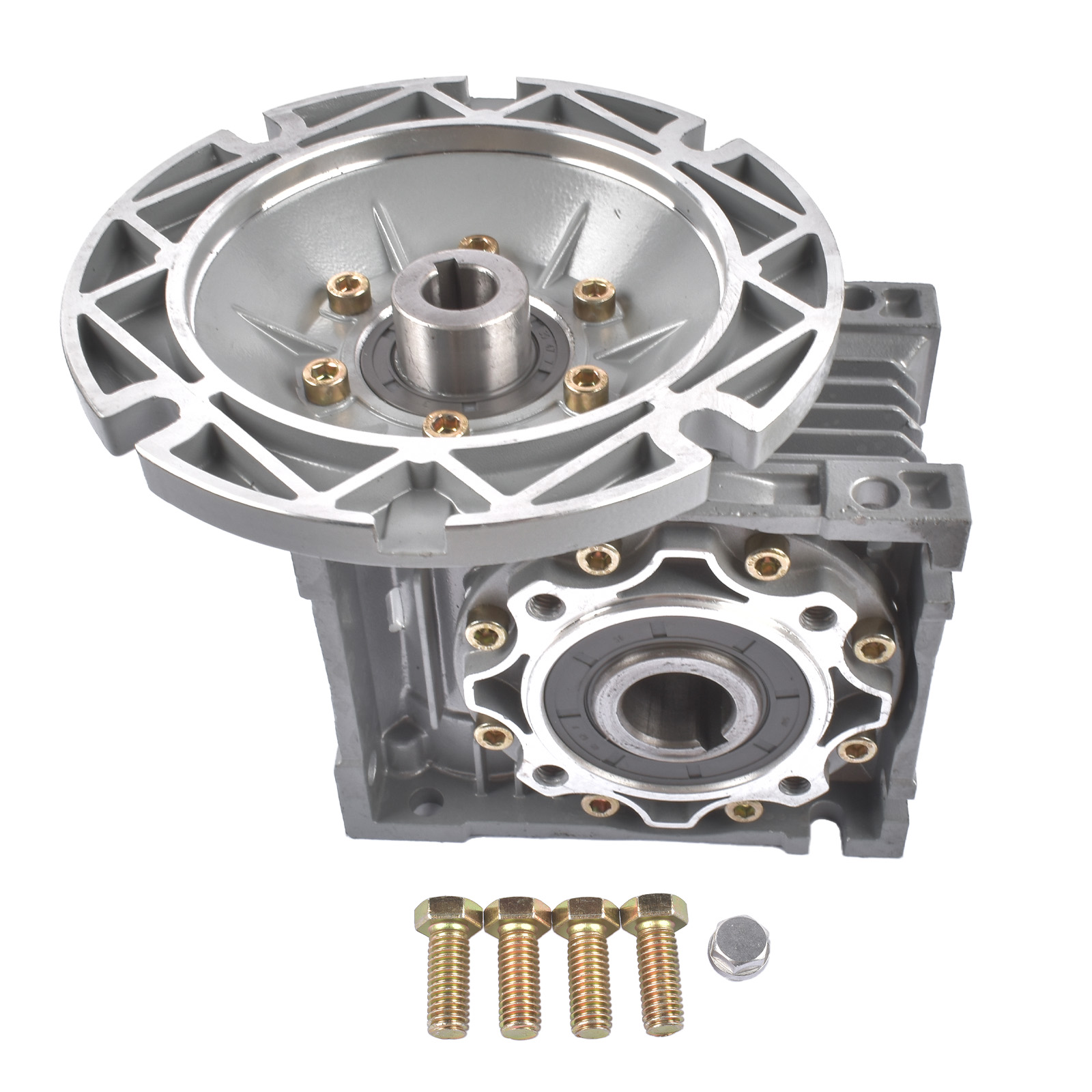

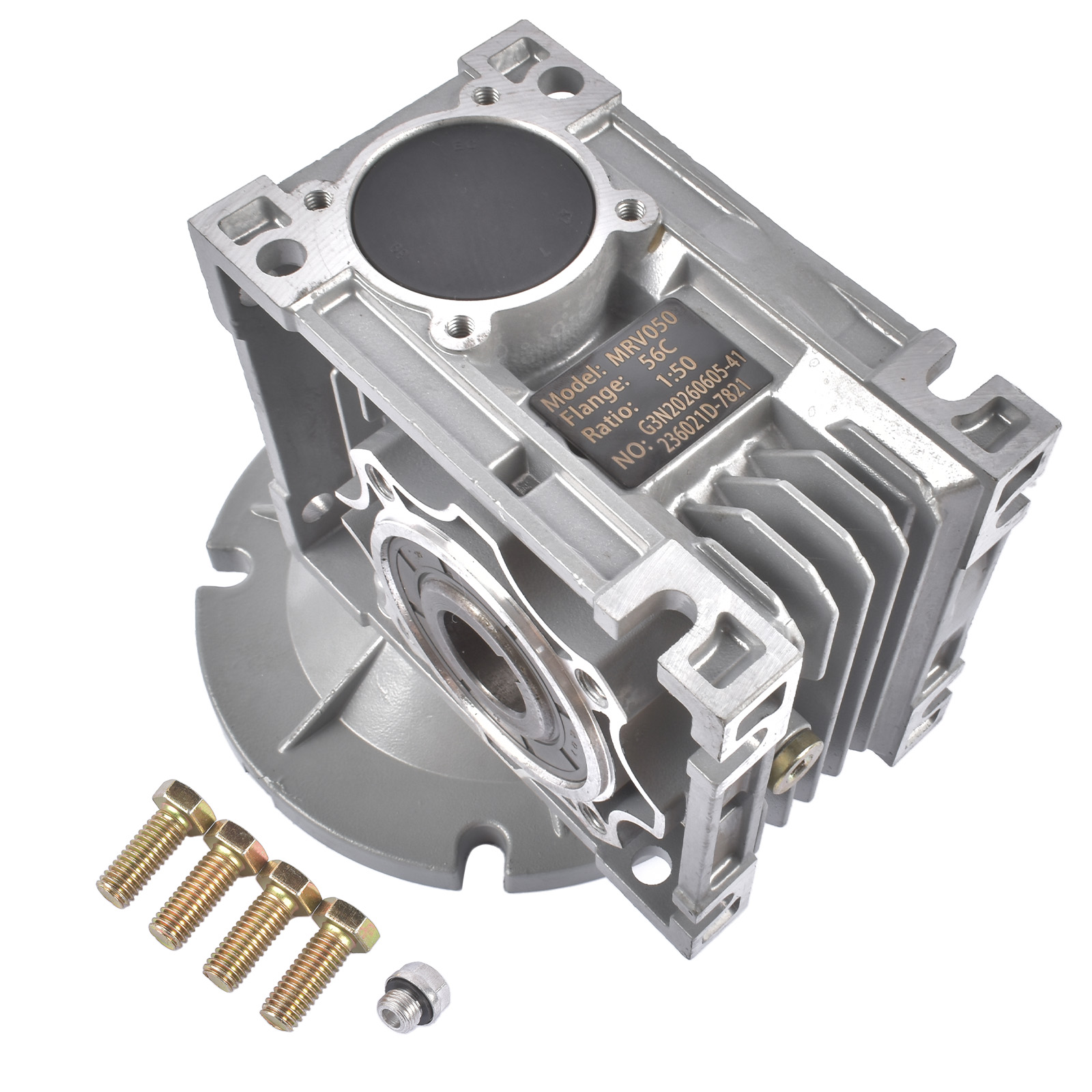

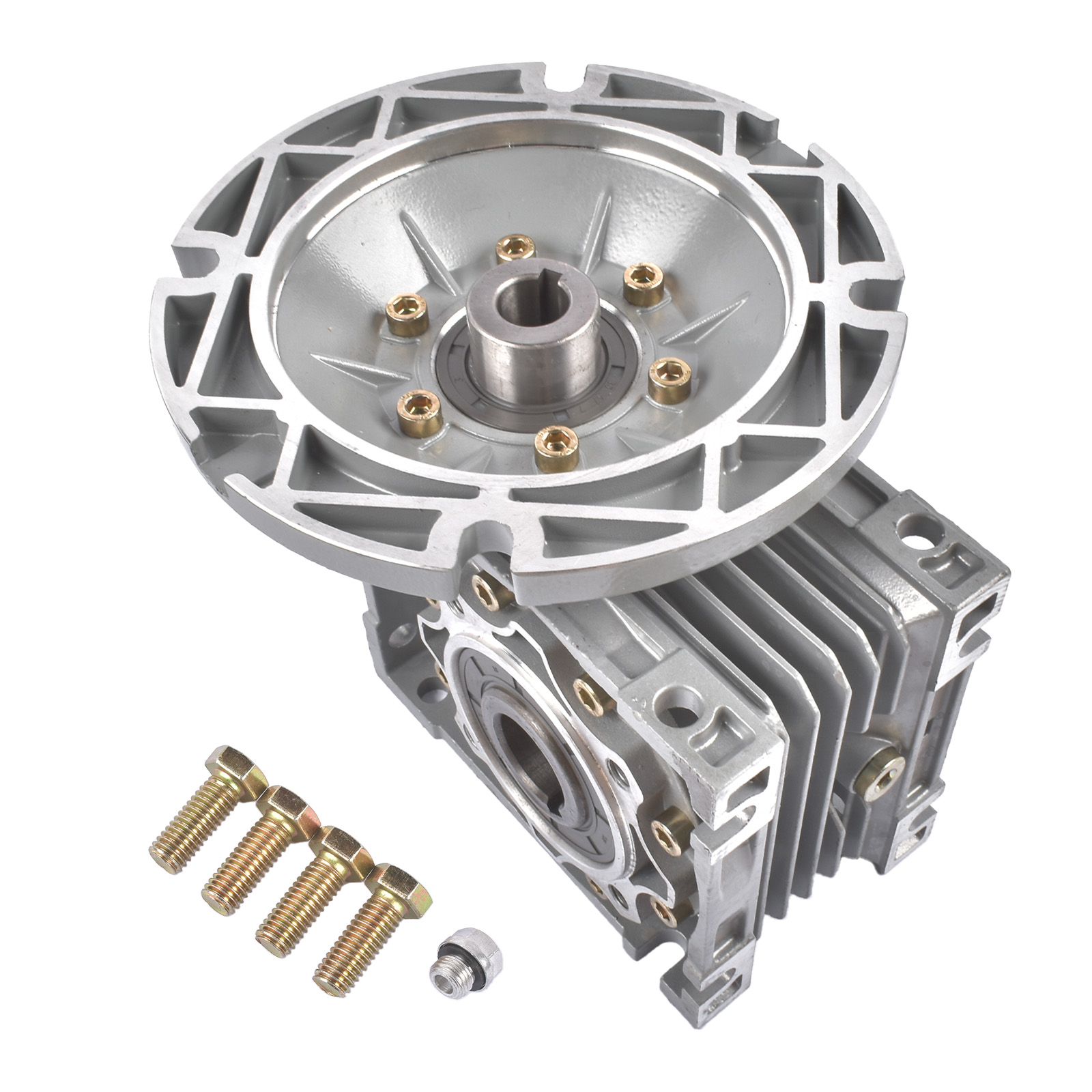

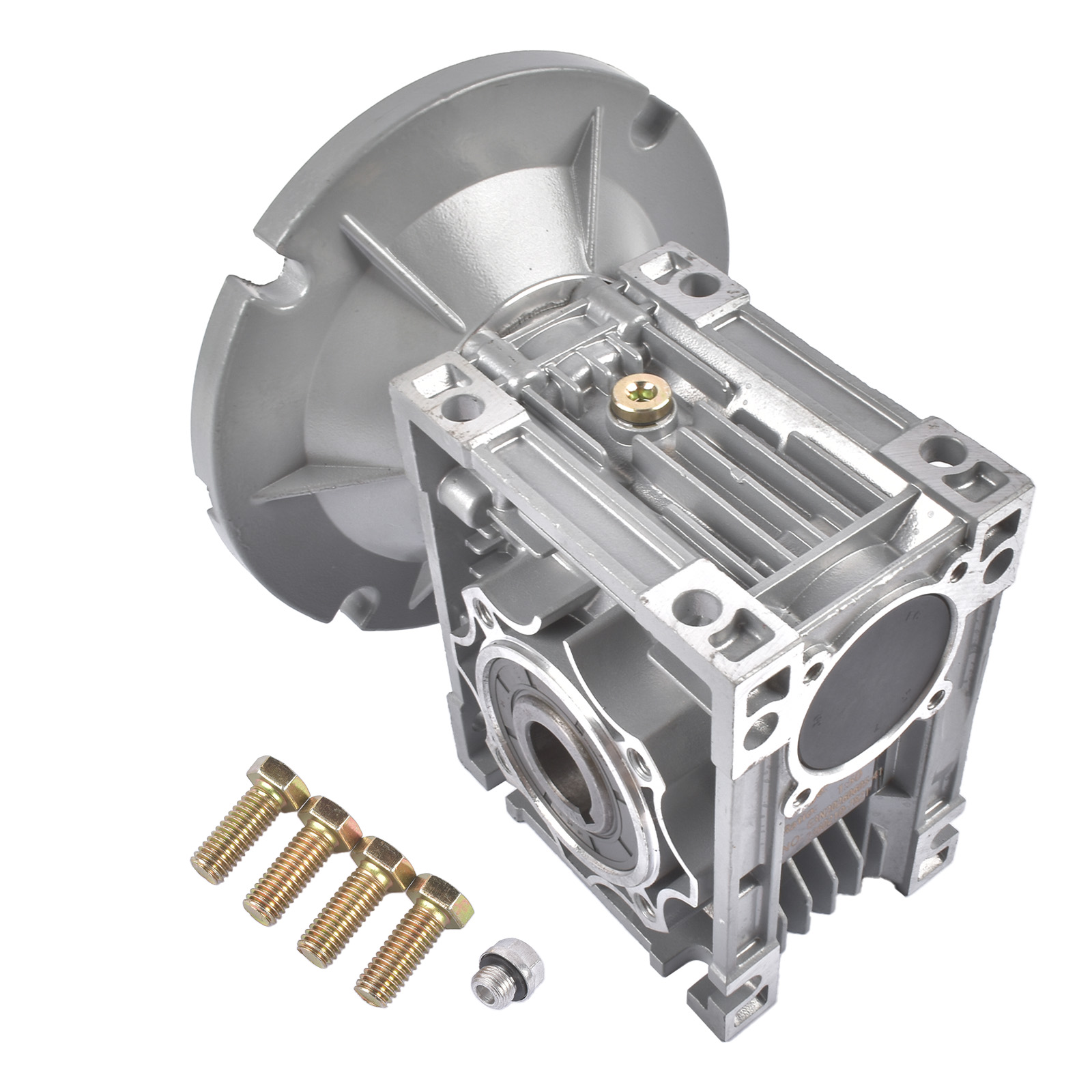

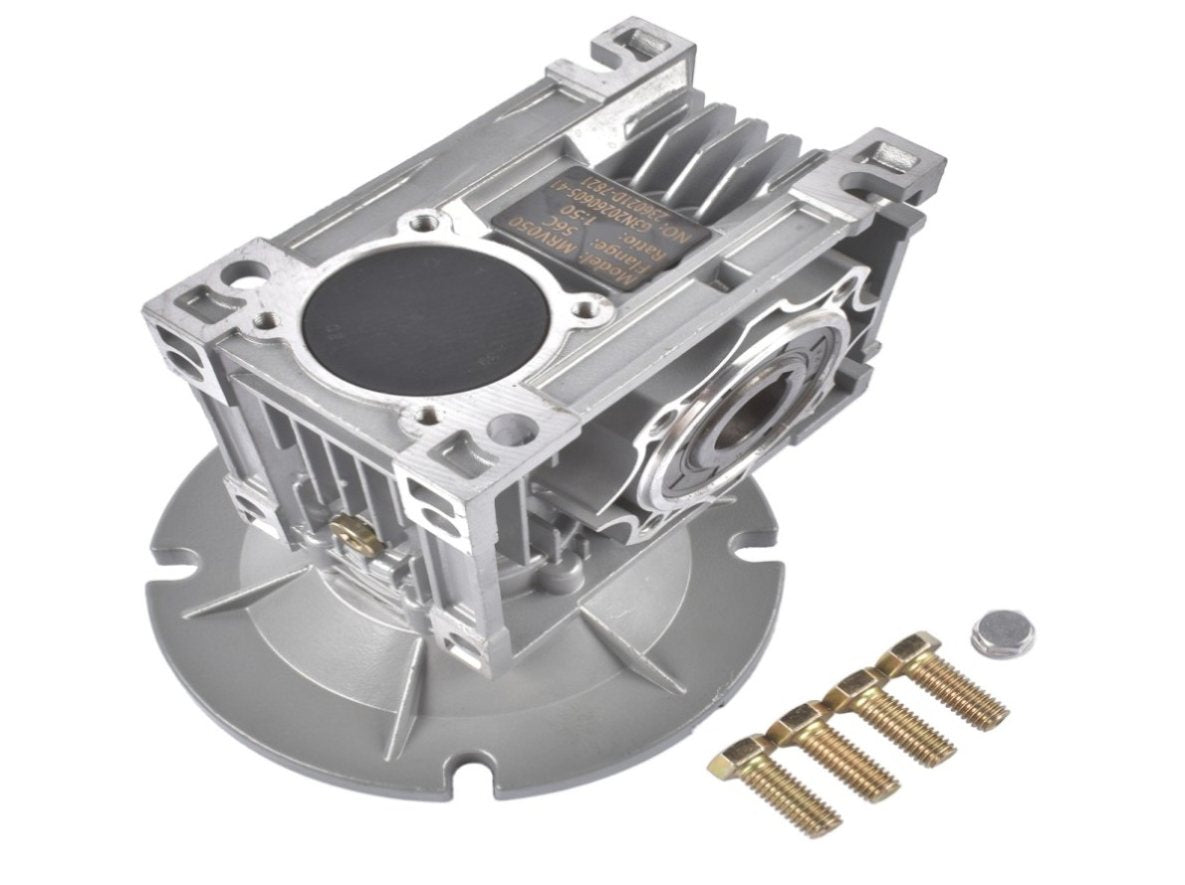

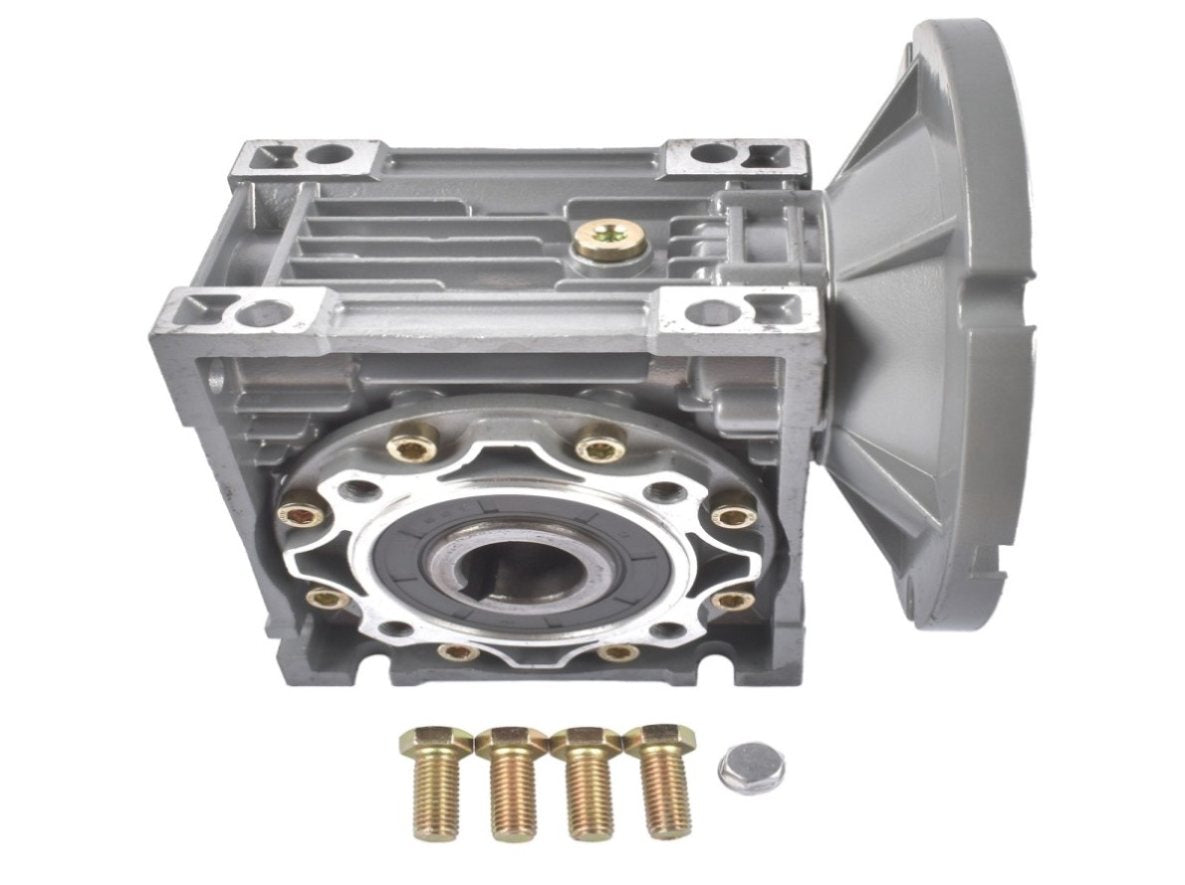

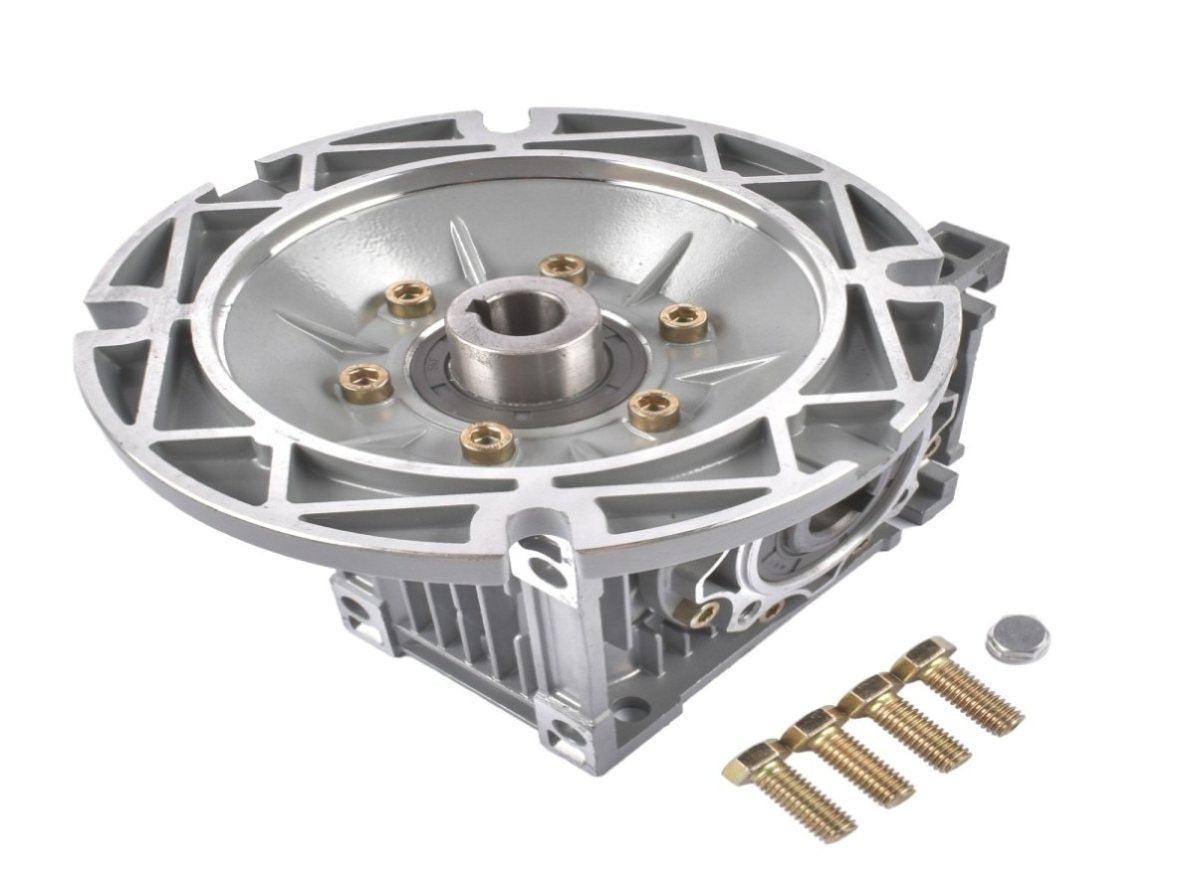

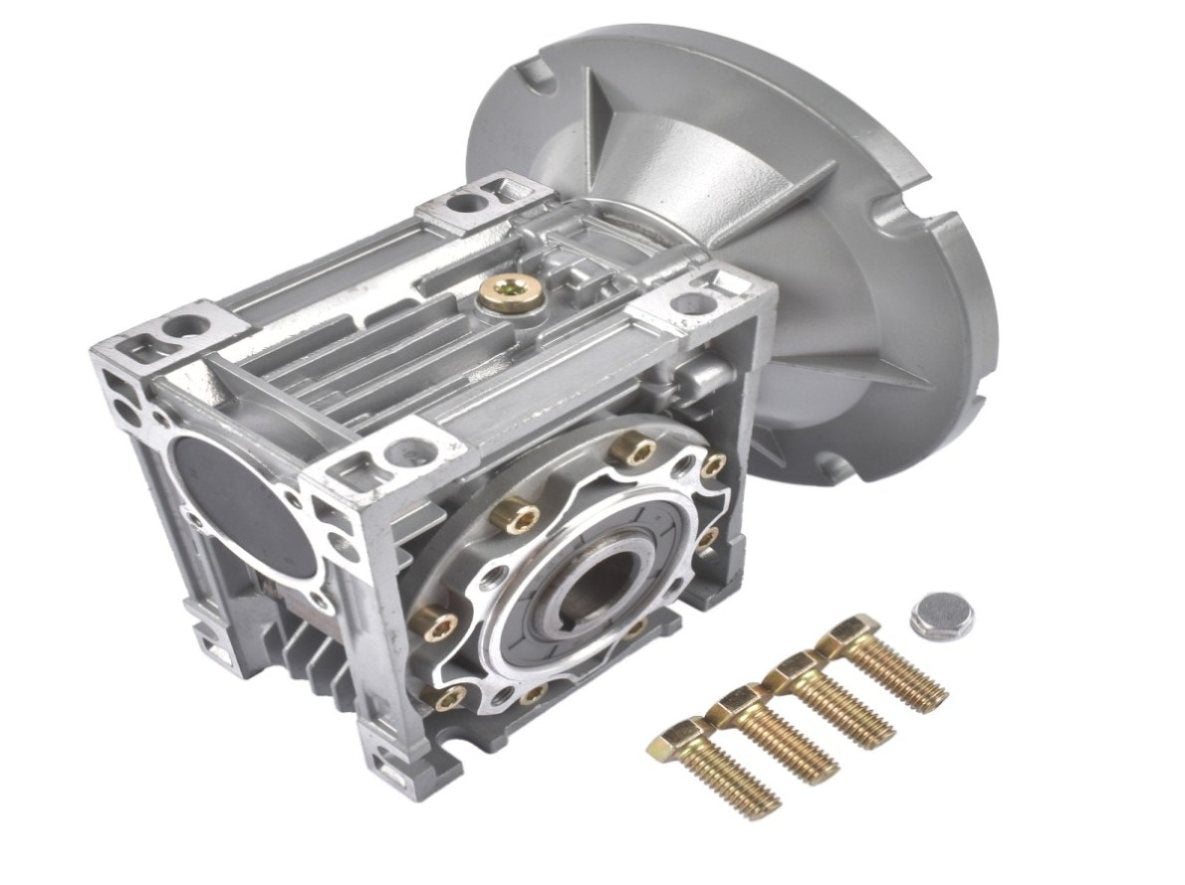

1x Worm Gear Speed Reducer (As Pics Shown)
Professional installation is recommended.
