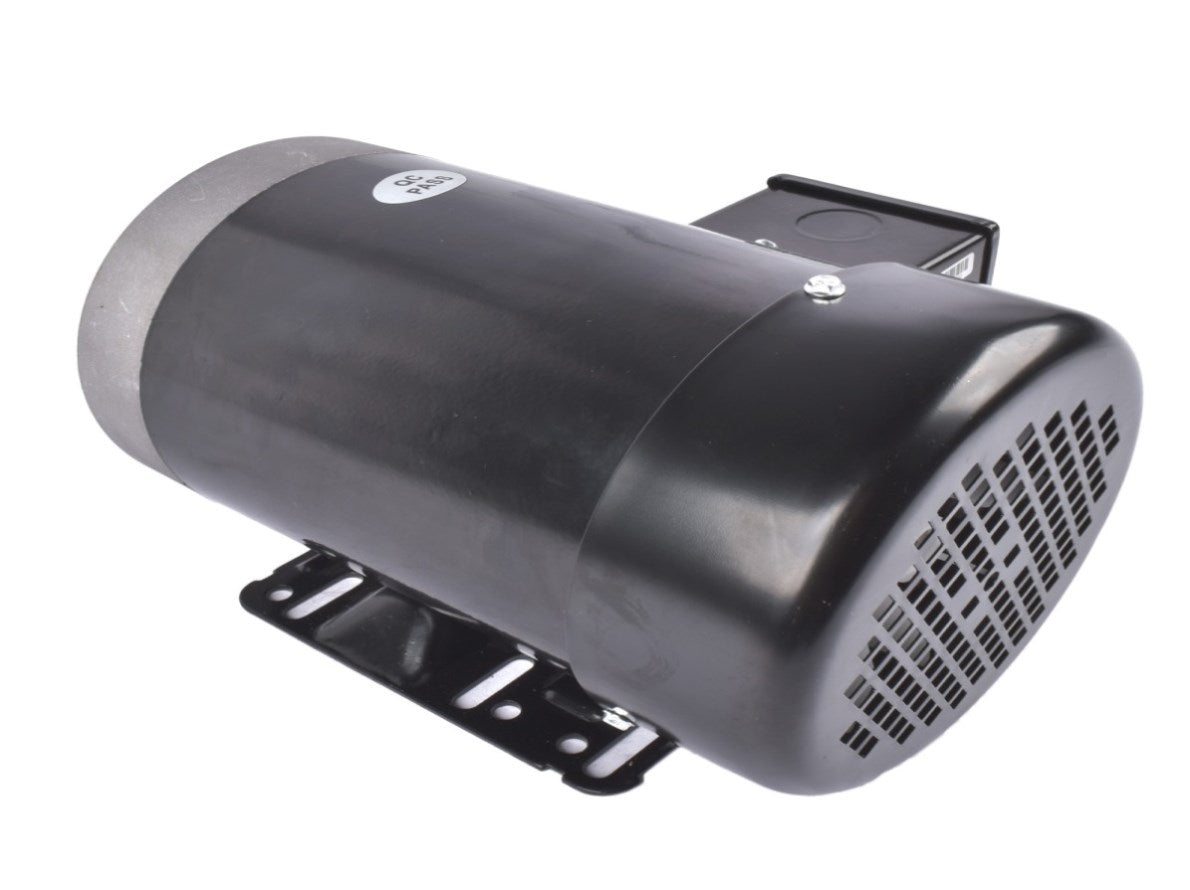

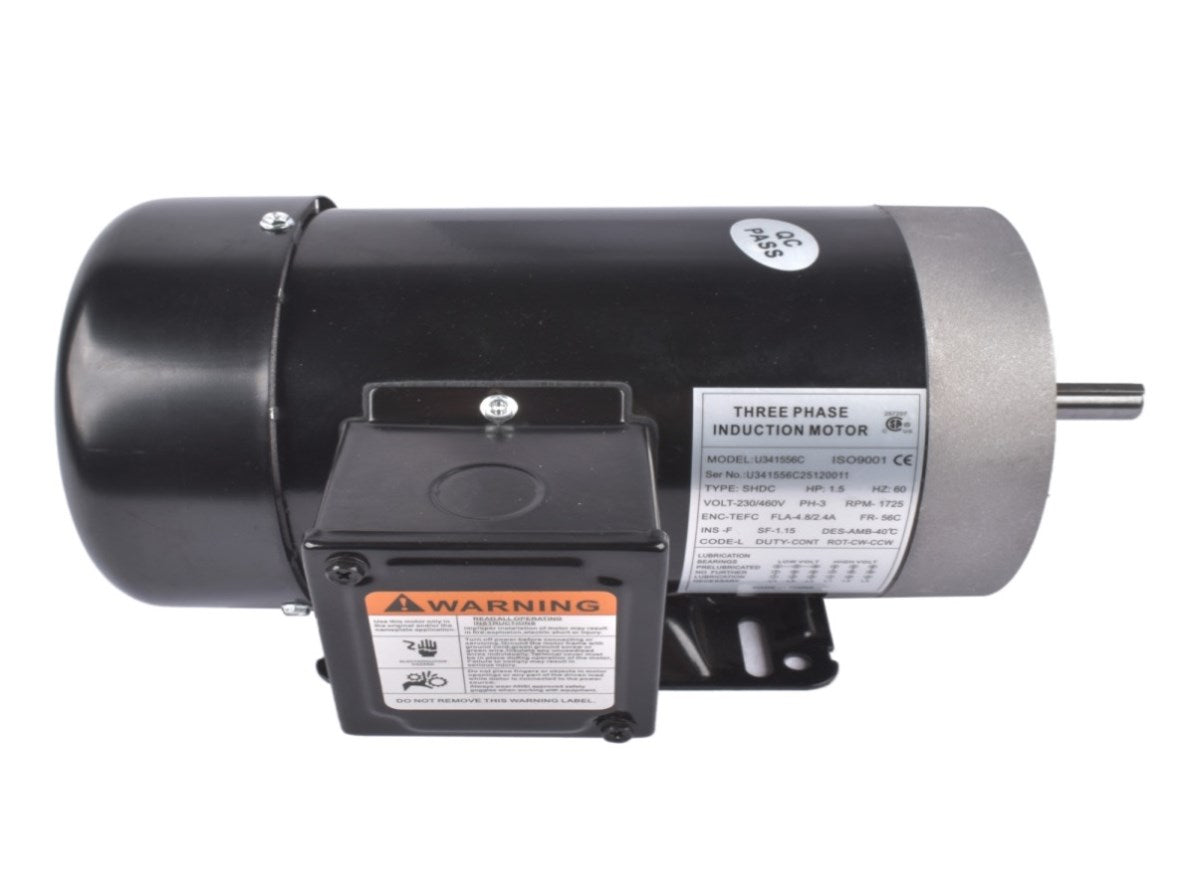

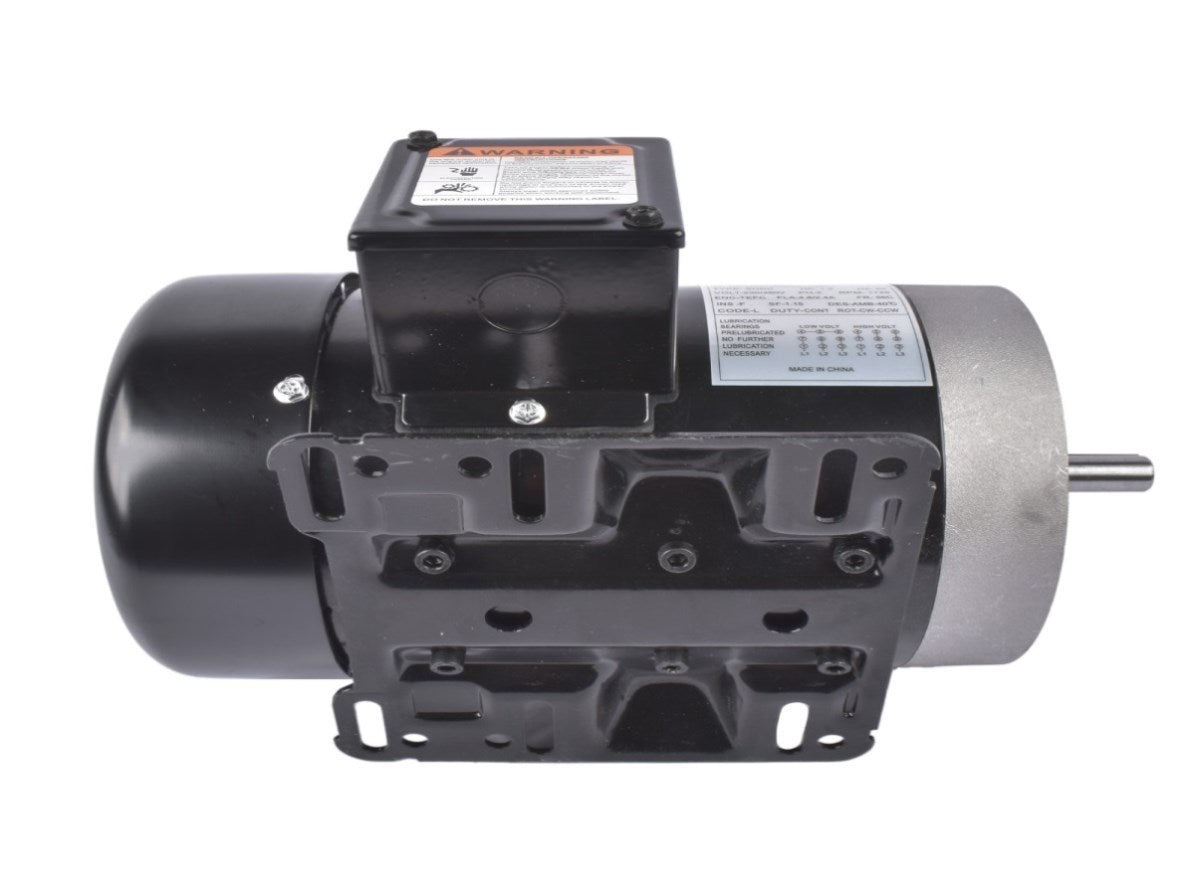

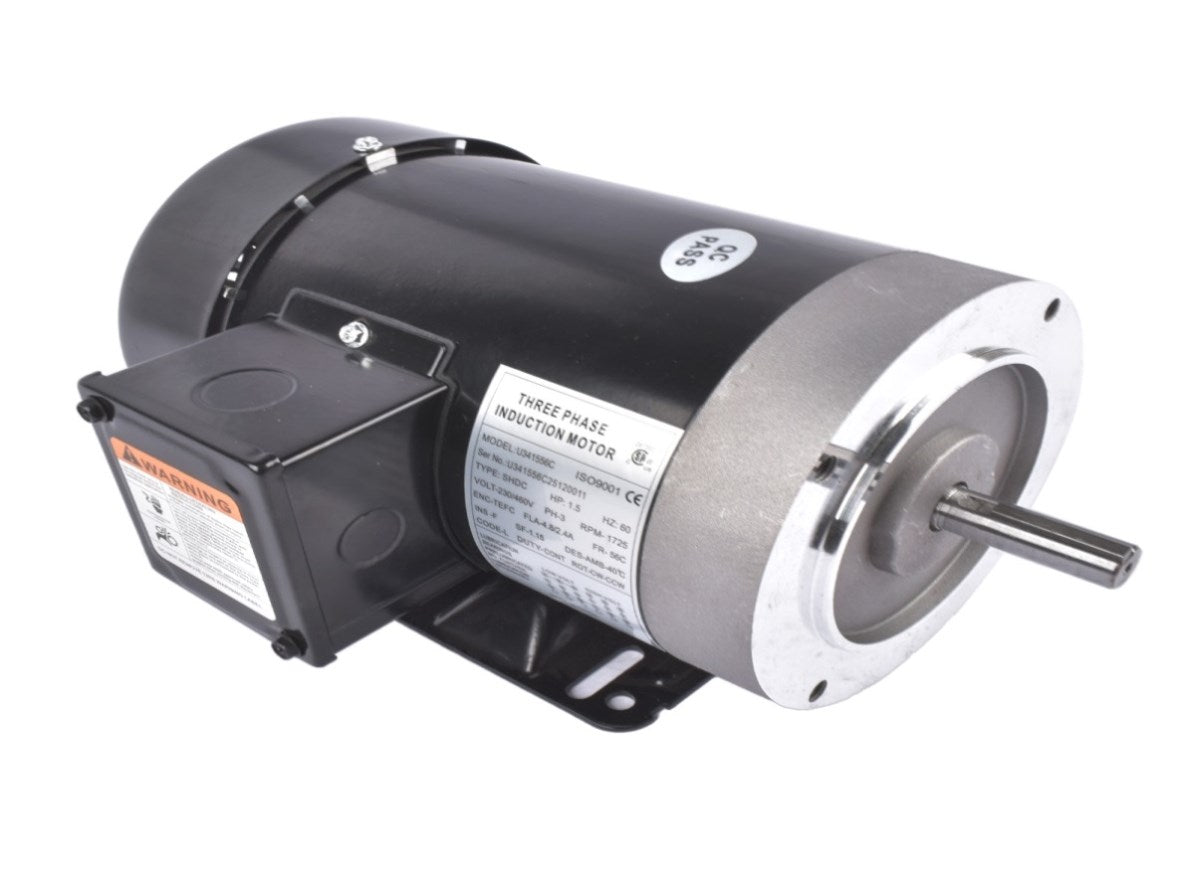

MA0515E AC Motor, 1-1/2HP, 1725RPM,3PH/60HZ, 206-230V/460V, 56C/TEFC, With Removable Base 72365416
Part Number
MA0515E
Specifications
This motor is for 3 phase 206-230V/460V
General purpose,
AC Motor,
1-1/2HP,
1725RPM,
3PH/60HZ,
460V,
56C/ TEFC,
F Insulation (for inverter duty),
with removable foot,
1.15 Service Factor,
Rolled Steel Frame,
Reversible Rotation,
10:1 Variable Torque Rating,
2:1 Constant torque Rating.
Features

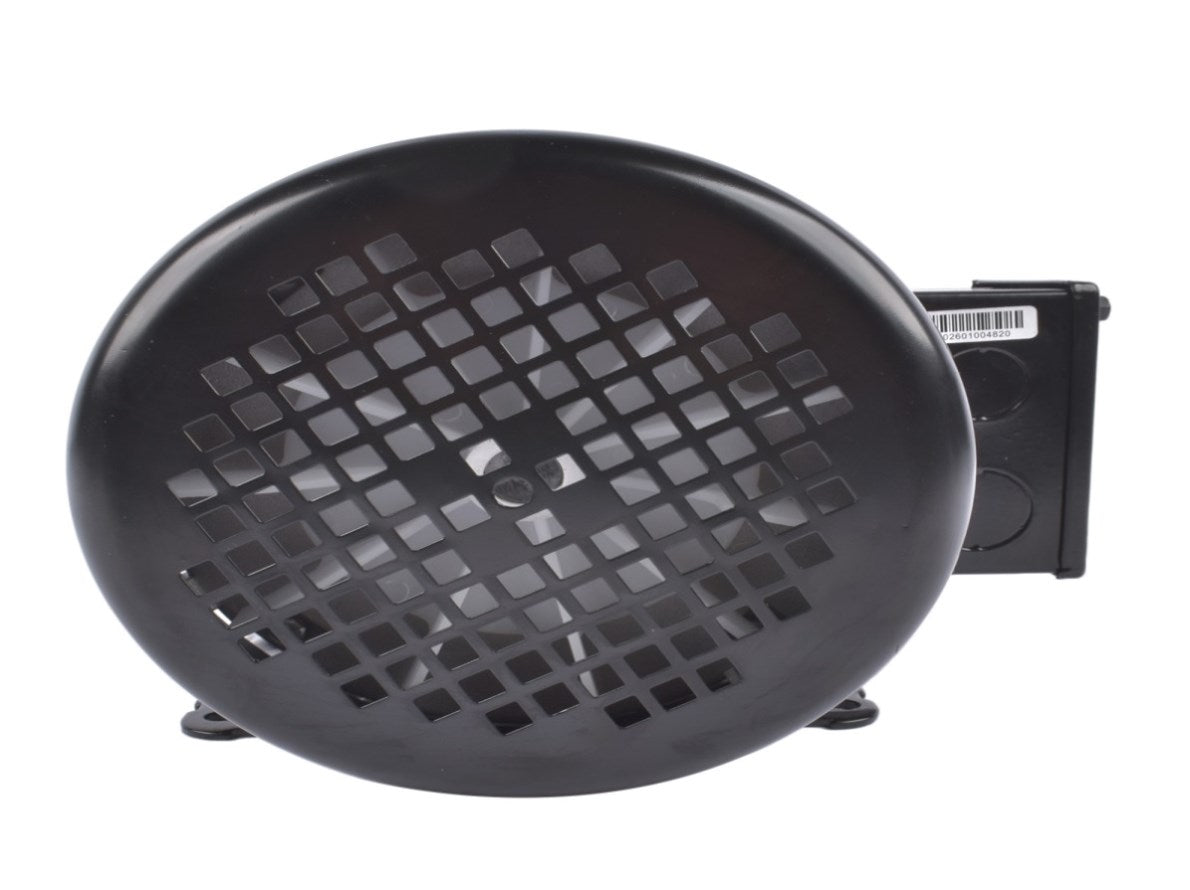

Totally Enclosed Fan Cooled (TEFC) enclosure

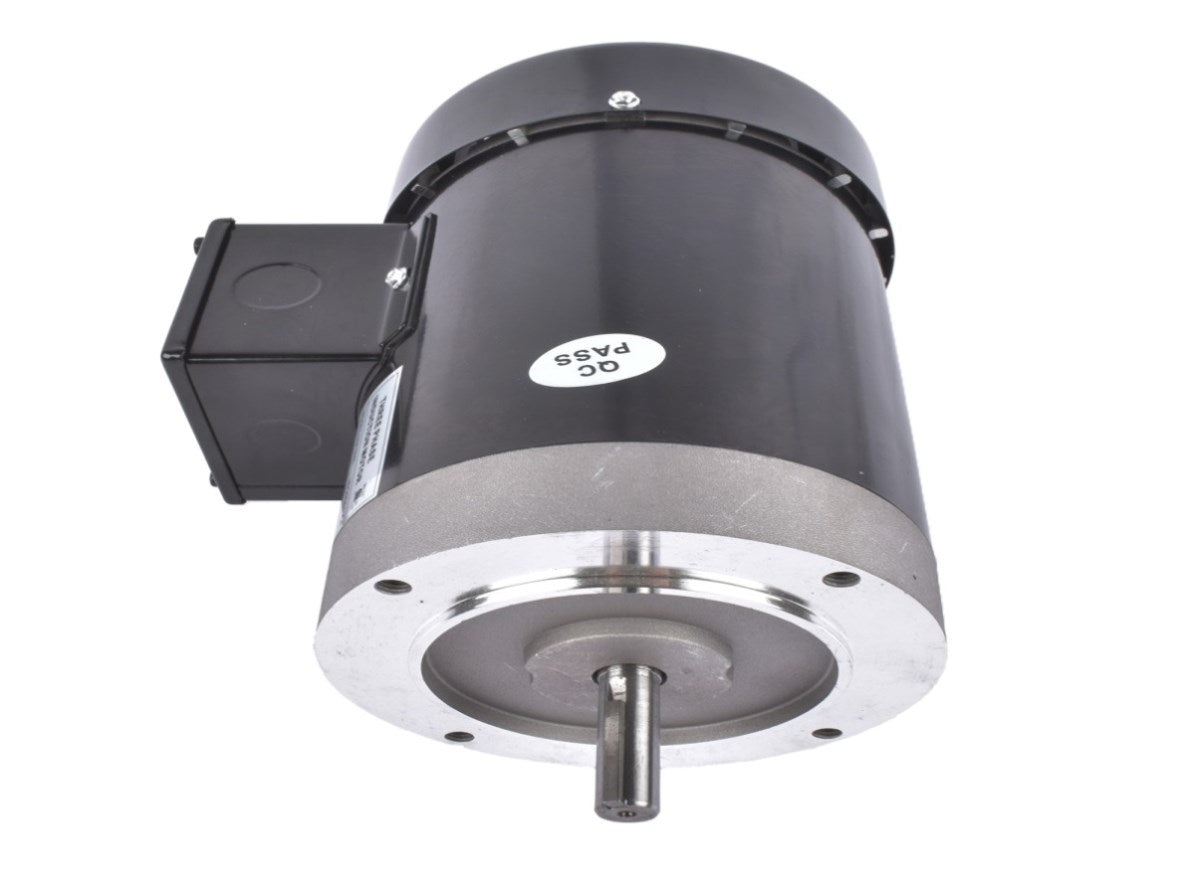

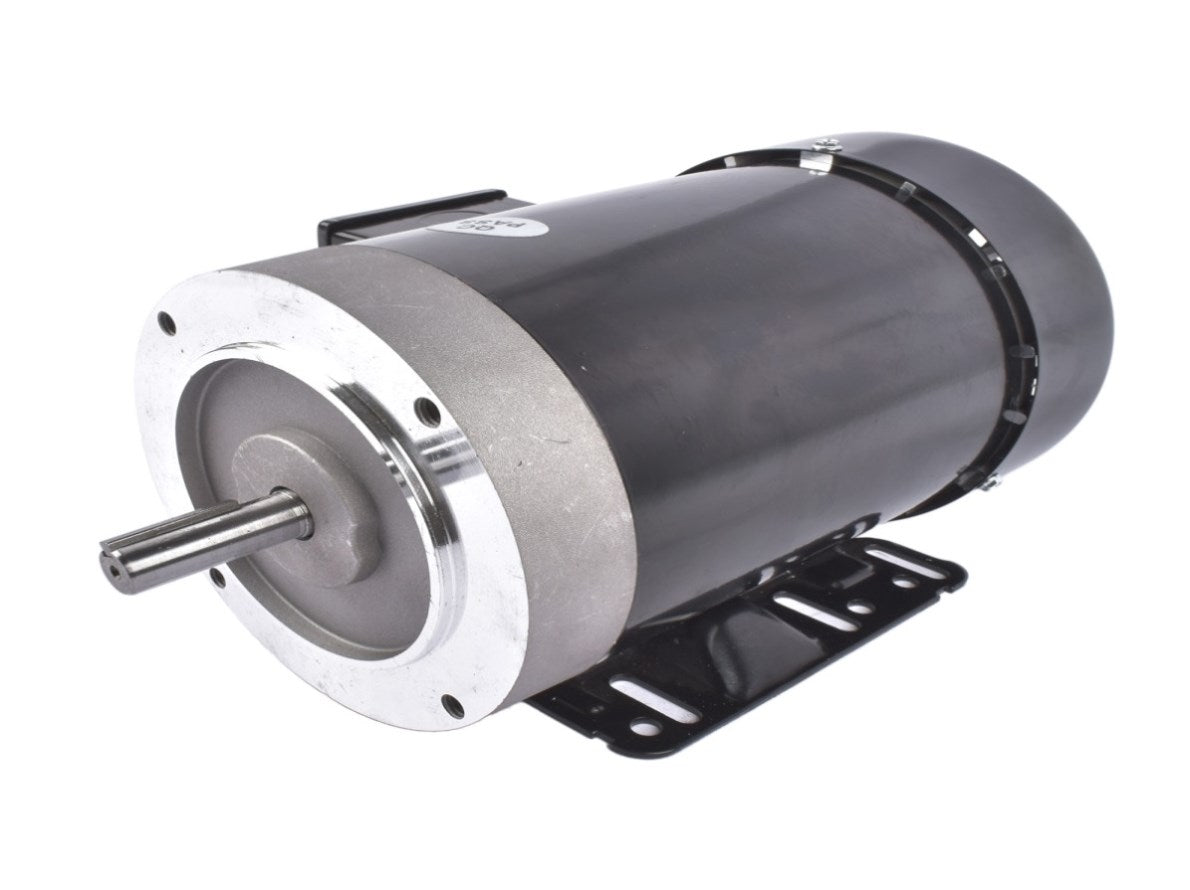

Dual mounting with NEMA 56C and removable base
Class F winding insulation
Inverter duty. 5/8" shaft OD.
Rolled steel shell frame / cast aluminum end bell
Removable base / bolt-on/bolt-off mounting feet
Large all-metal capacitor cover with rubber gasket

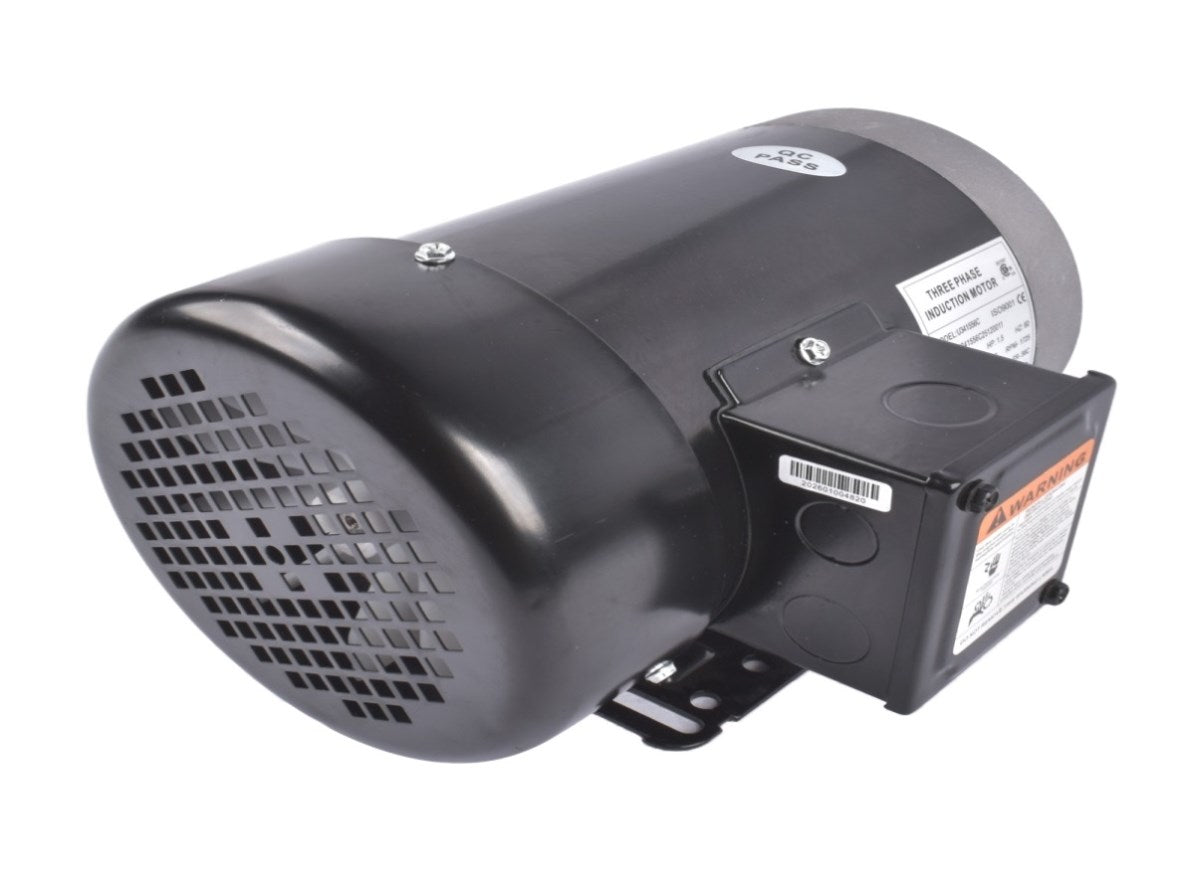

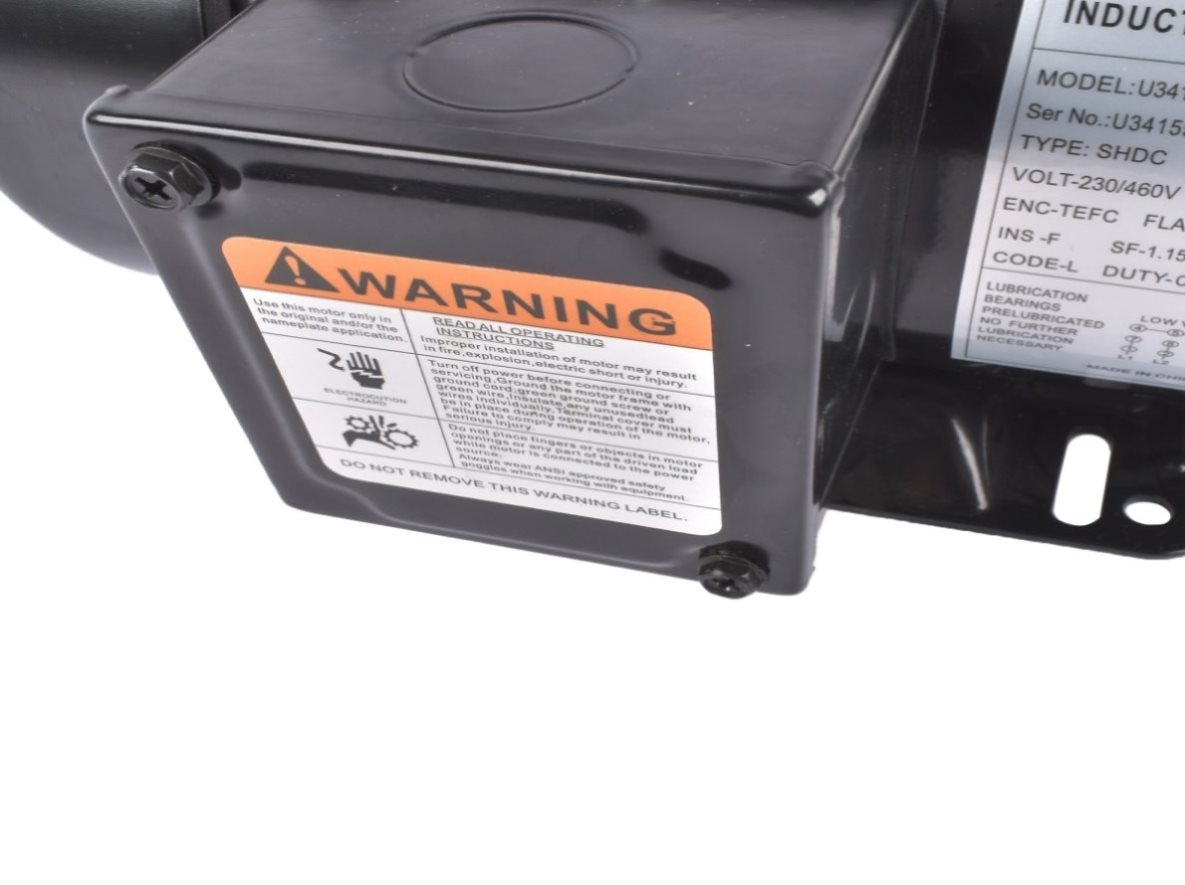

Large easy-to-wire junction box with rubber gasket
Heavy duty oversized ball bearings
High tensile strength steel shaft
Electrically reversible
UL listing
NEMA design B
Service Factor: 1.15
