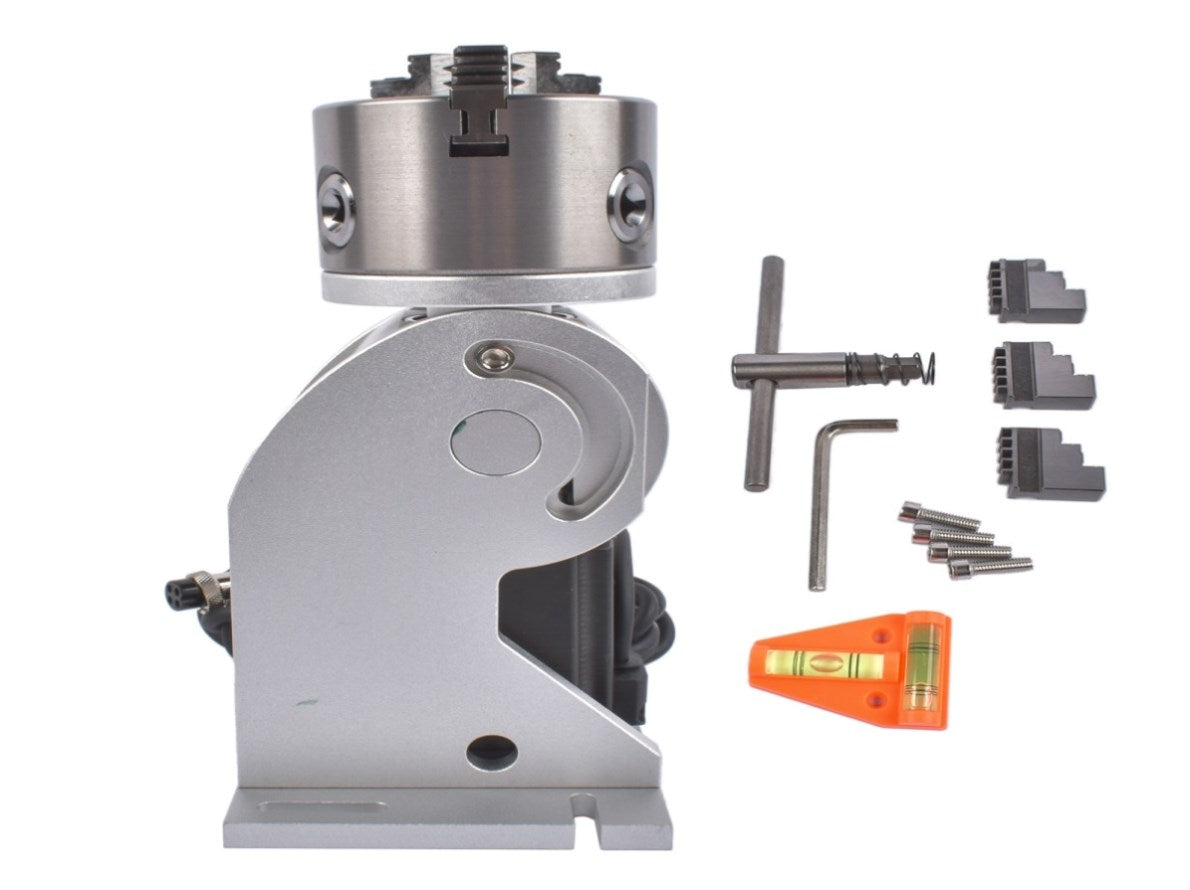

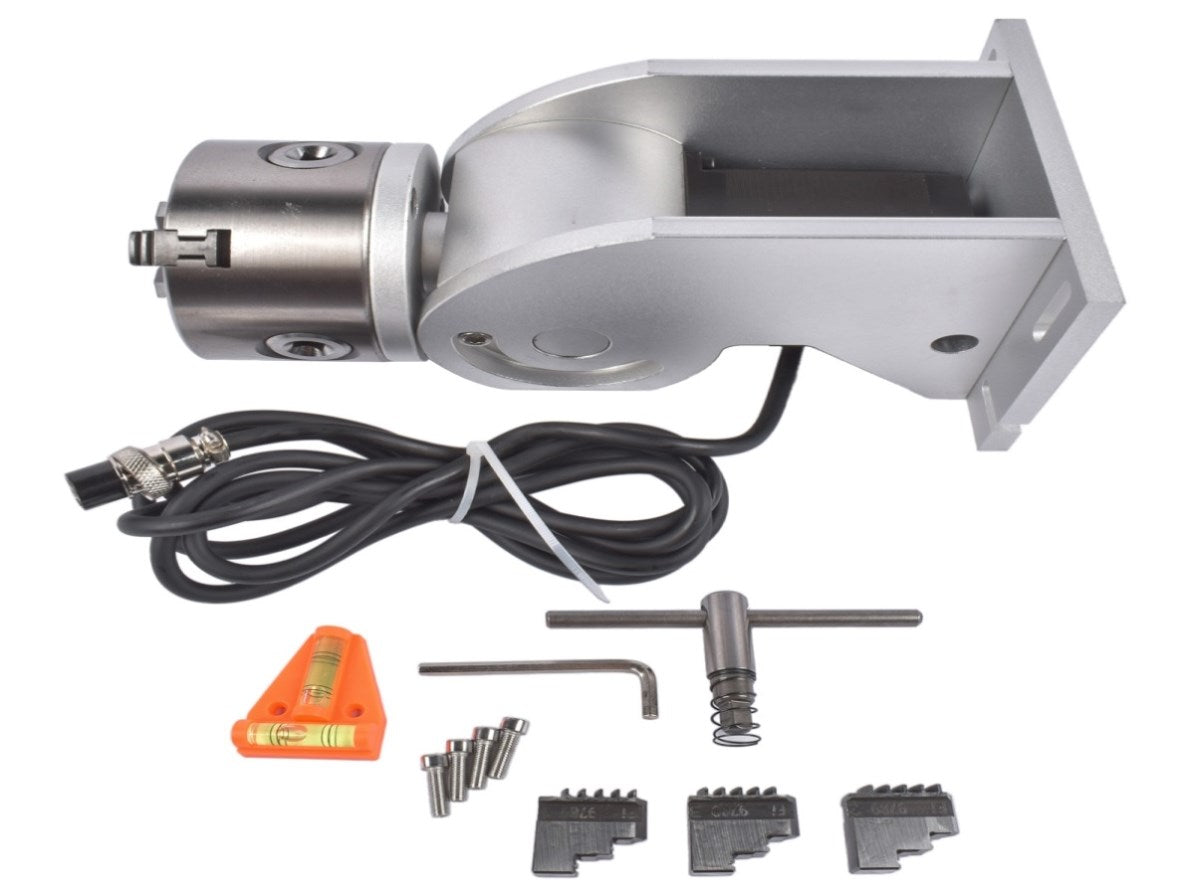

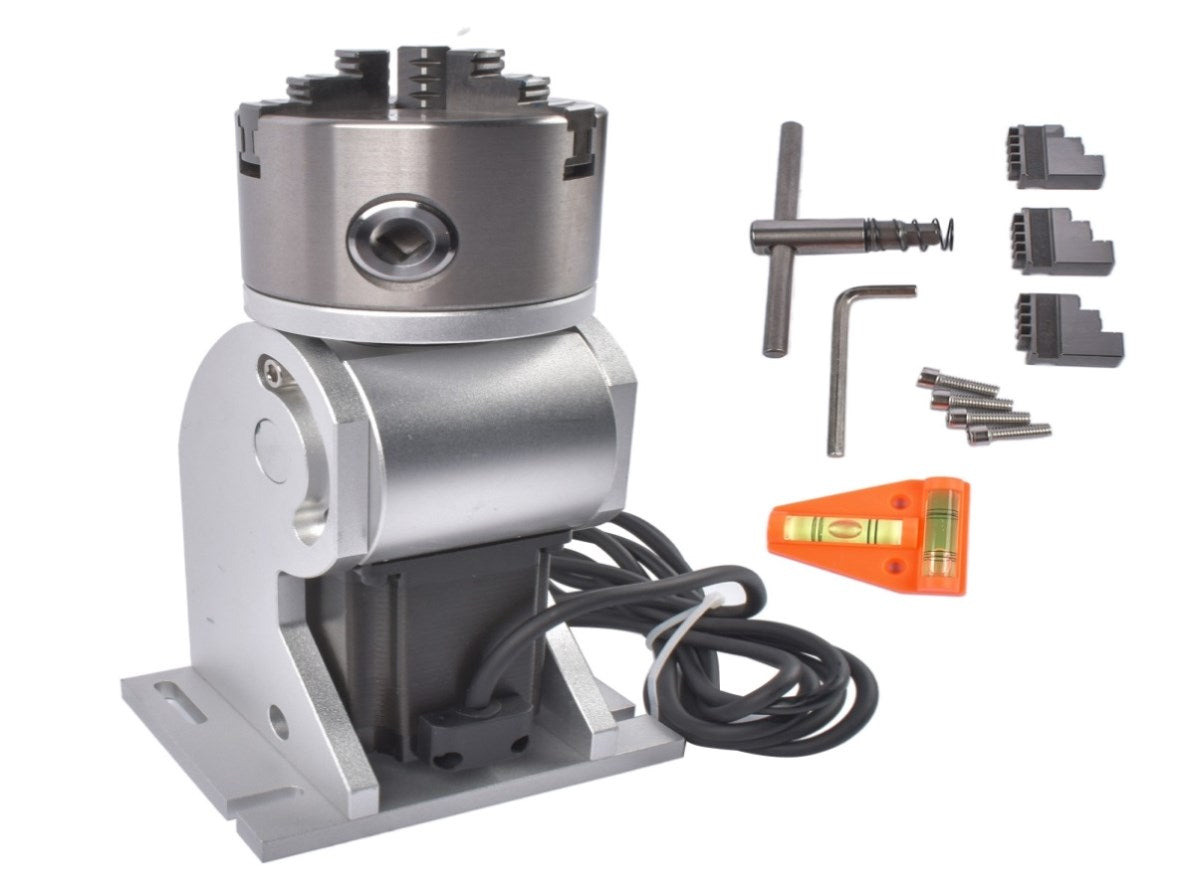

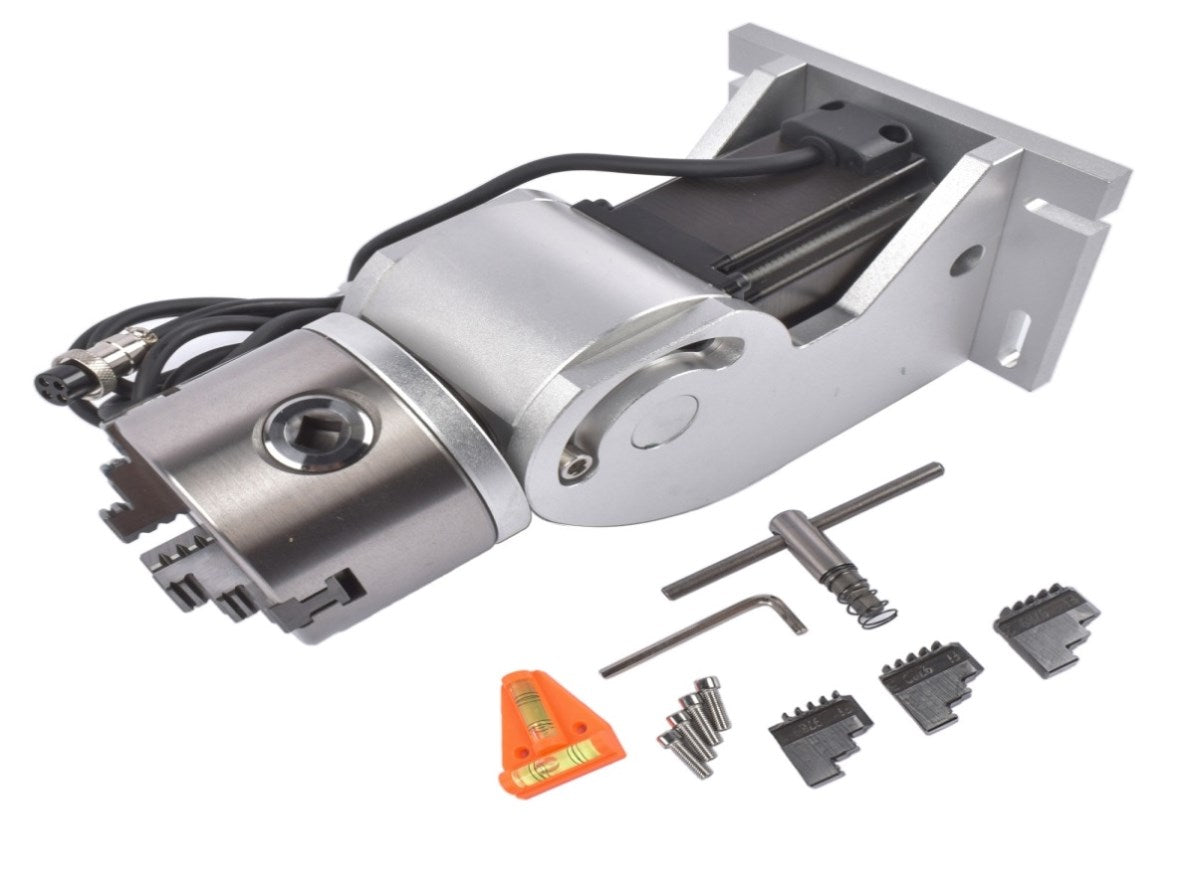

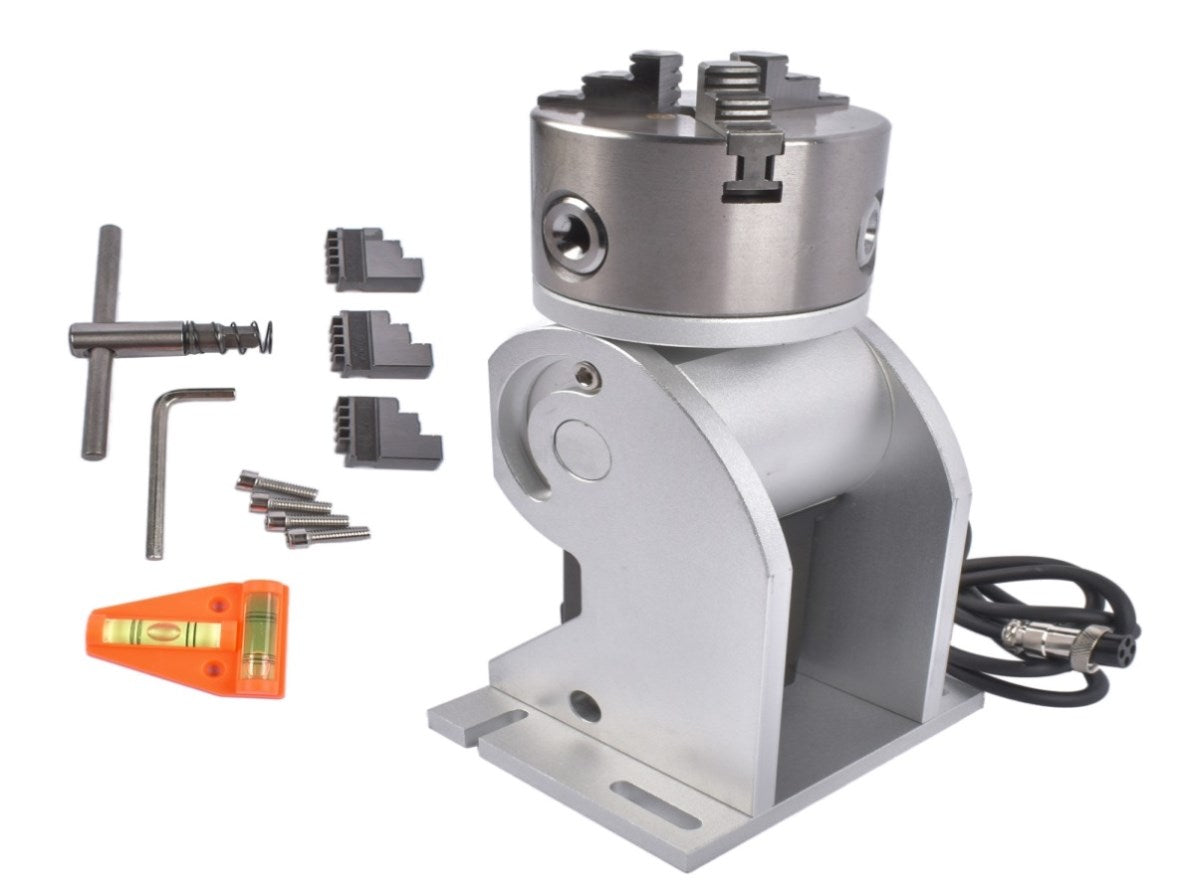

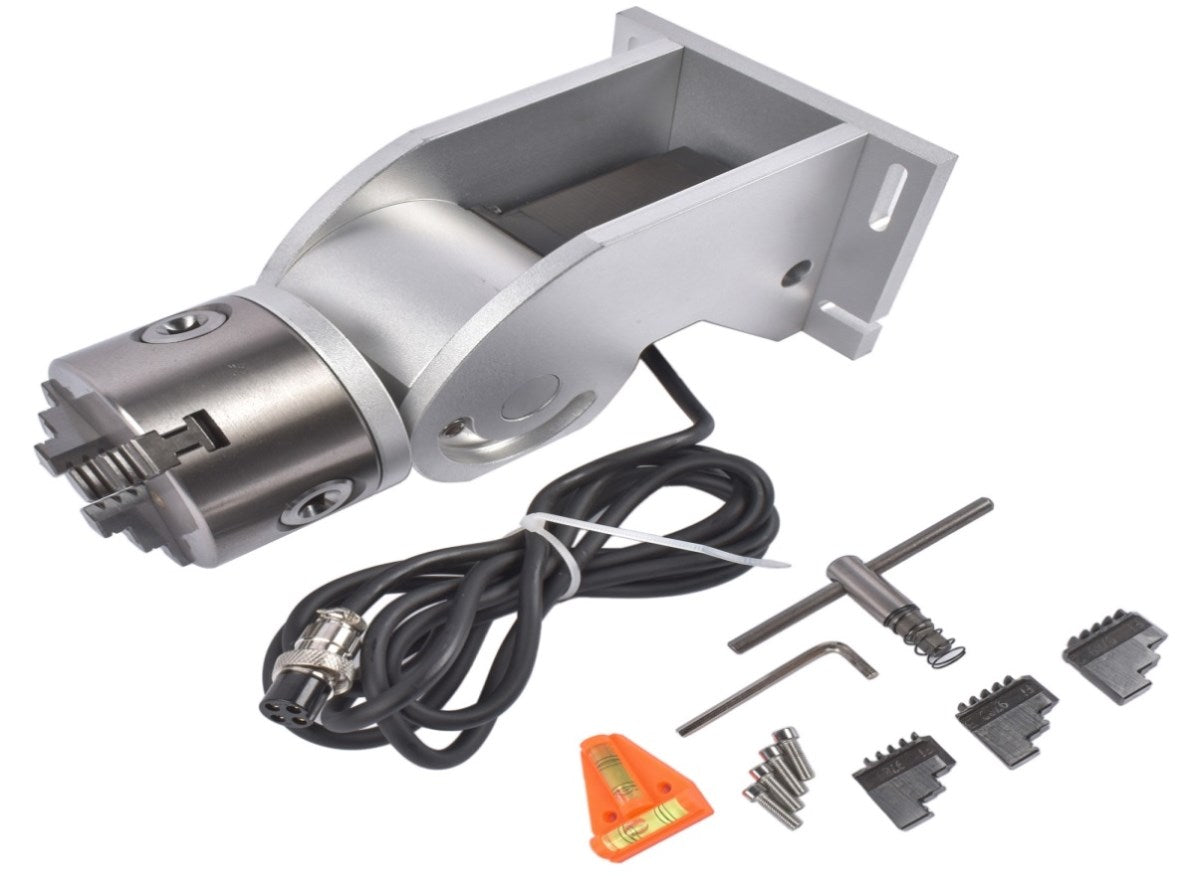

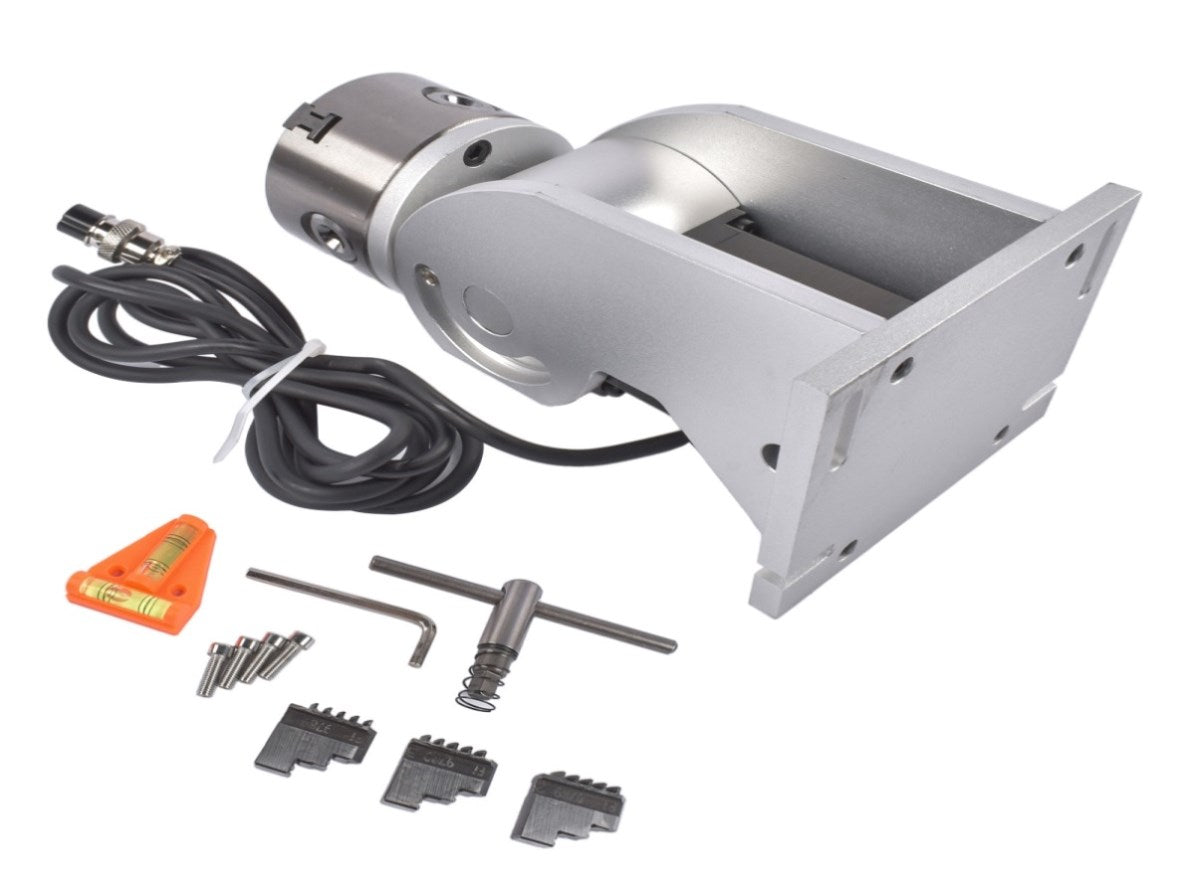

Lathe Rotary Chuck D80 360° Rotary Marking For Carving Engraving Marking Machine 54698118
GT-54698118
Out of stock
$268.11
$308.33
Rotary axis parameters: Fixture: 80mm chuck rotary fixtureConnection: Direct connectionPower supply: 24VSpecification: vertical total height of 250mm, flat centre height of 129mmReduction ratio: 1Pitch angle: -45° to +90Shaft height: 127mmMax. Engraving Rotation: 360°Max. Angle Adjustment: 180° Features: Chuck positive jaws clamping range: 2-22mmPositive jaws support range: 25-70mmReverse jaws clamping...
customers are viewing this product
Rotary axis parameters:

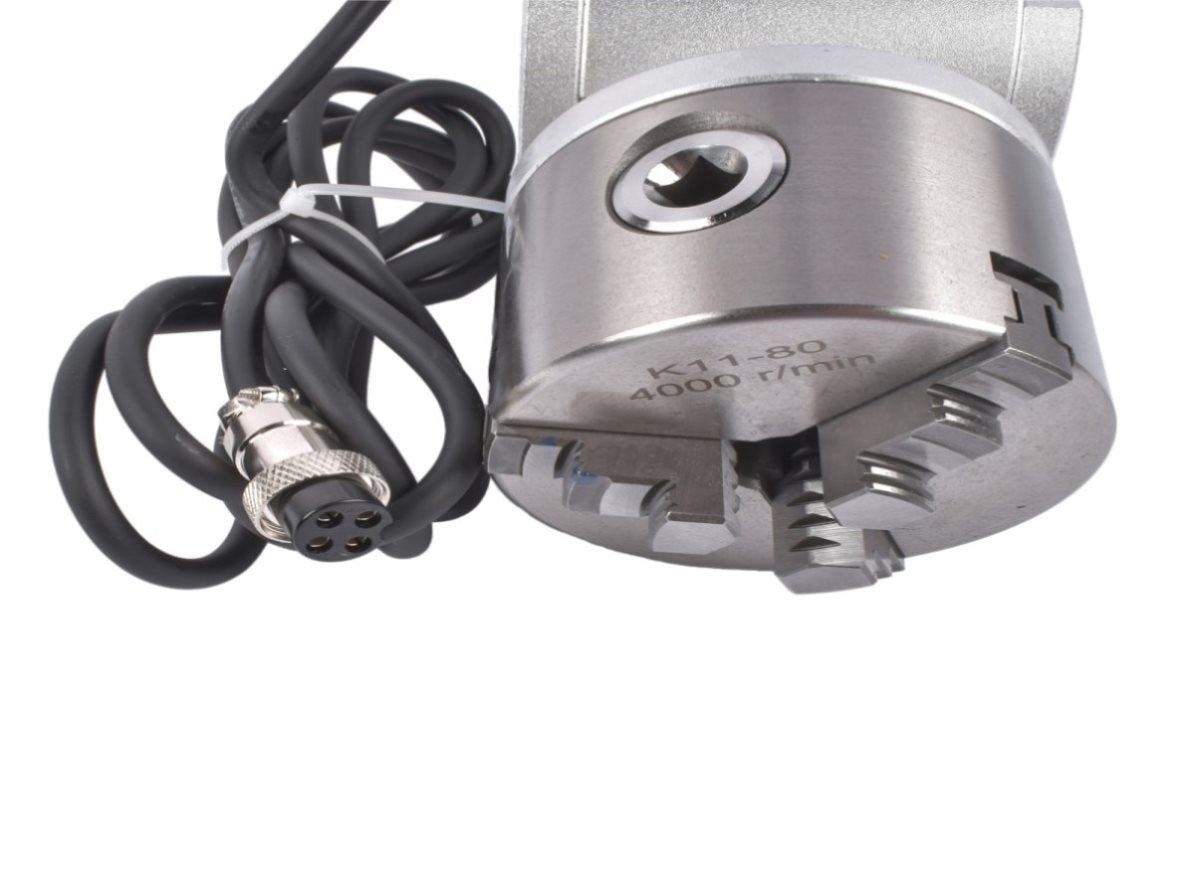

Fixture: 80mm chuck rotary fixture
Connection: Direct connection
Power supply: 24V
Specification: vertical total height of 250mm, flat centre height of 129mm
Reduction ratio: 1
Pitch angle: -45° to +90
Shaft height: 127mm
Max. Engraving Rotation: 360°
Max. Angle Adjustment: 180°
Features:
Chuck positive jaws clamping range: 2-22mm
Positive jaws support range: 25-70mm
Reverse jaws clamping range: 22-63mm
Maximum input torque: 40N.m
Maximum speed: 4000R / min
Clamping Jaw Slots: 3
