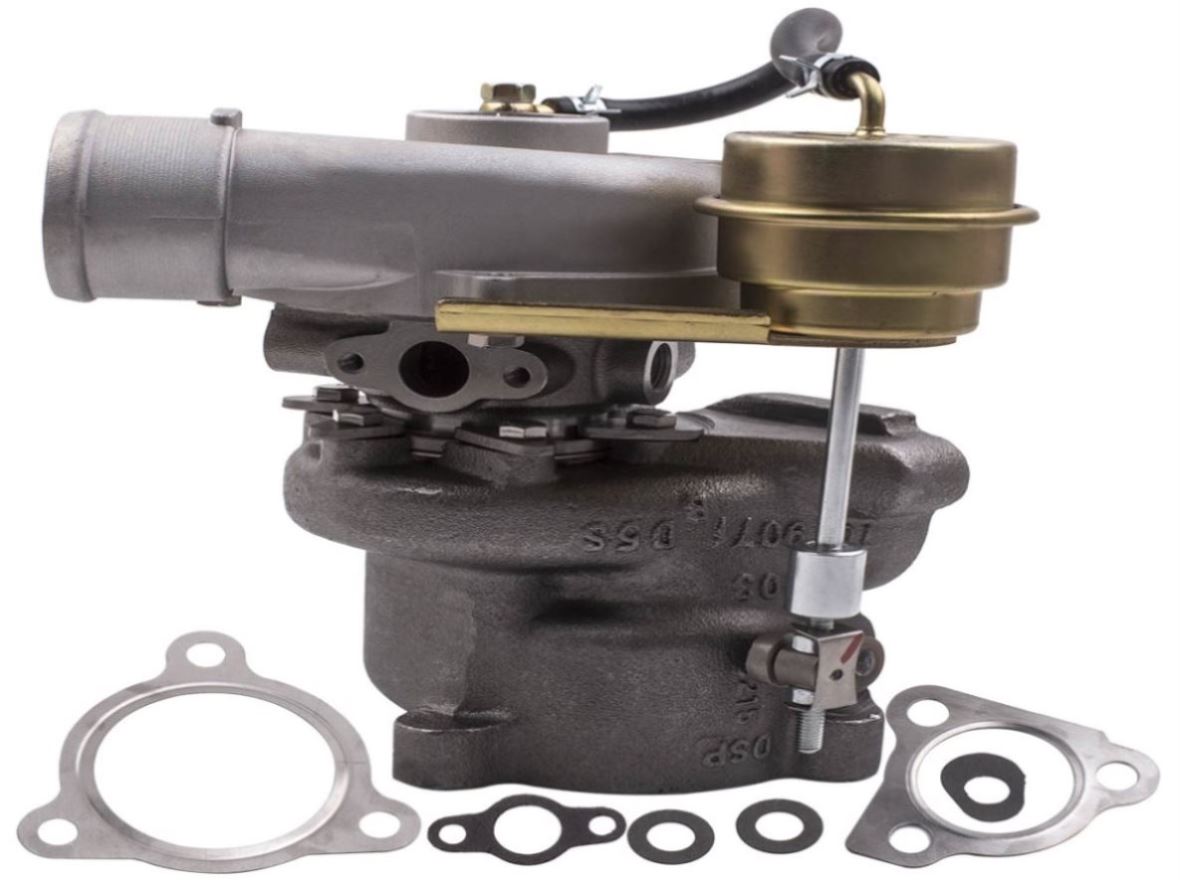

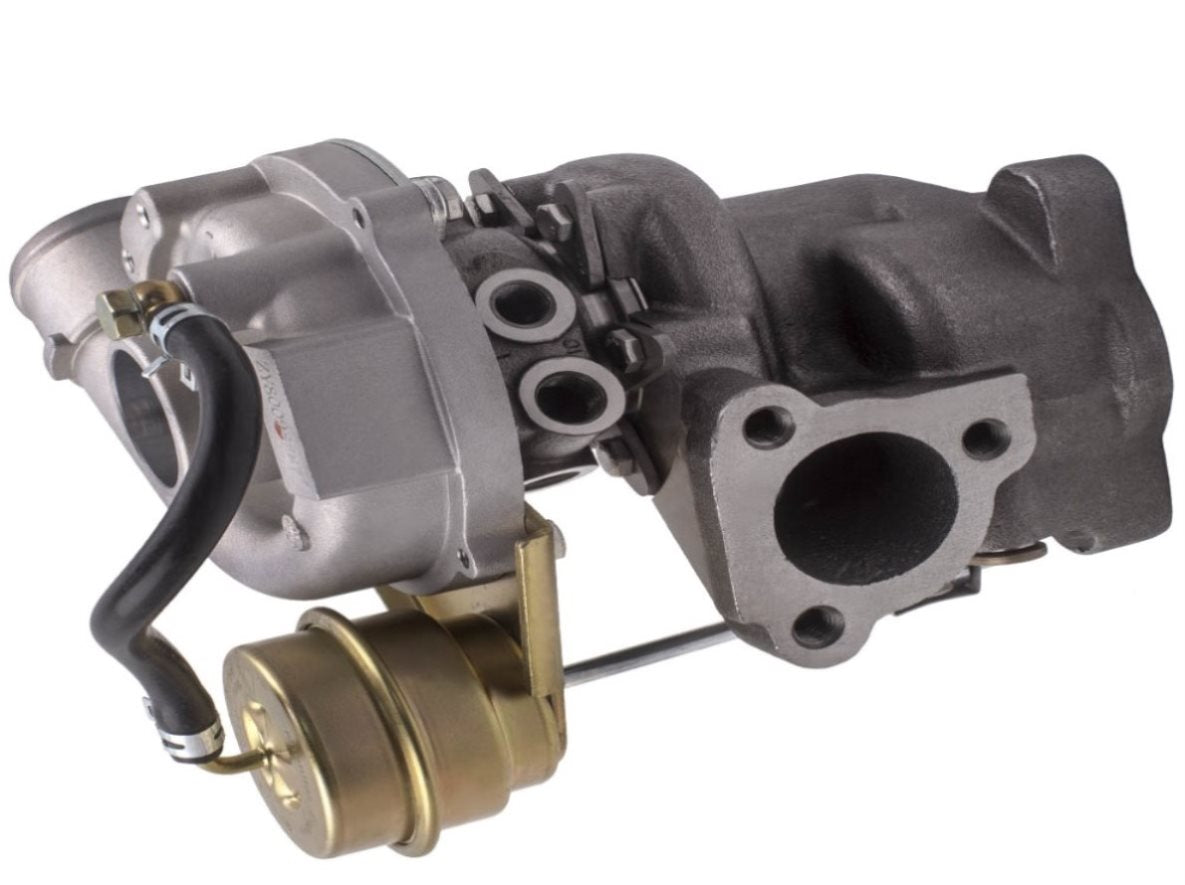

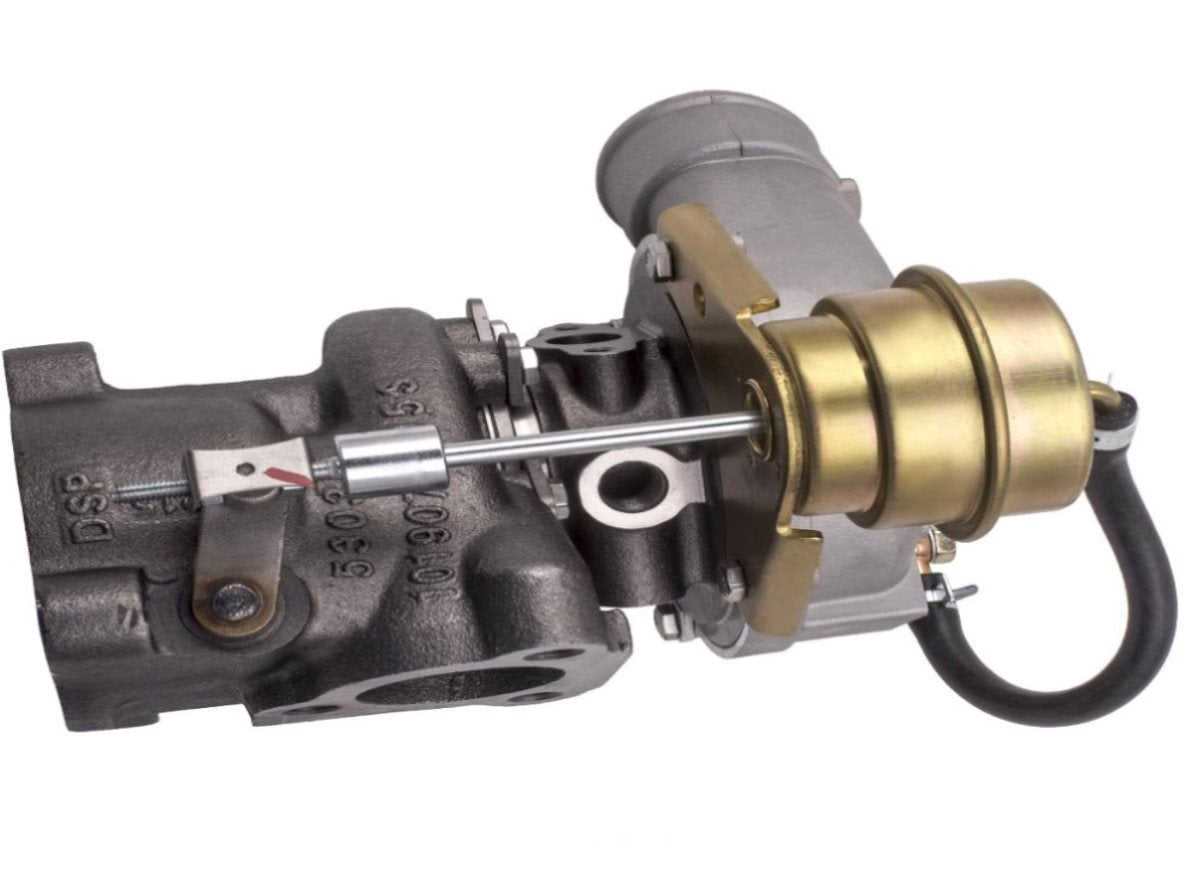

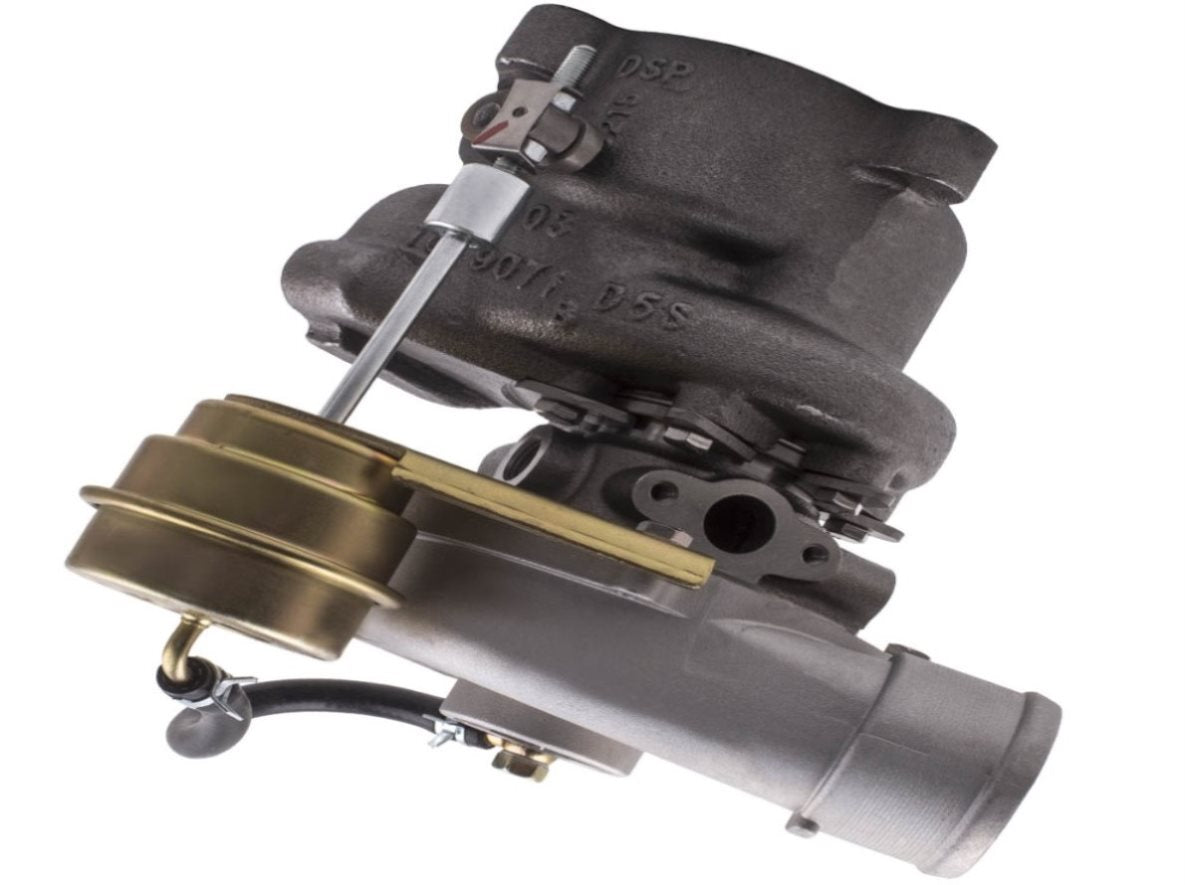

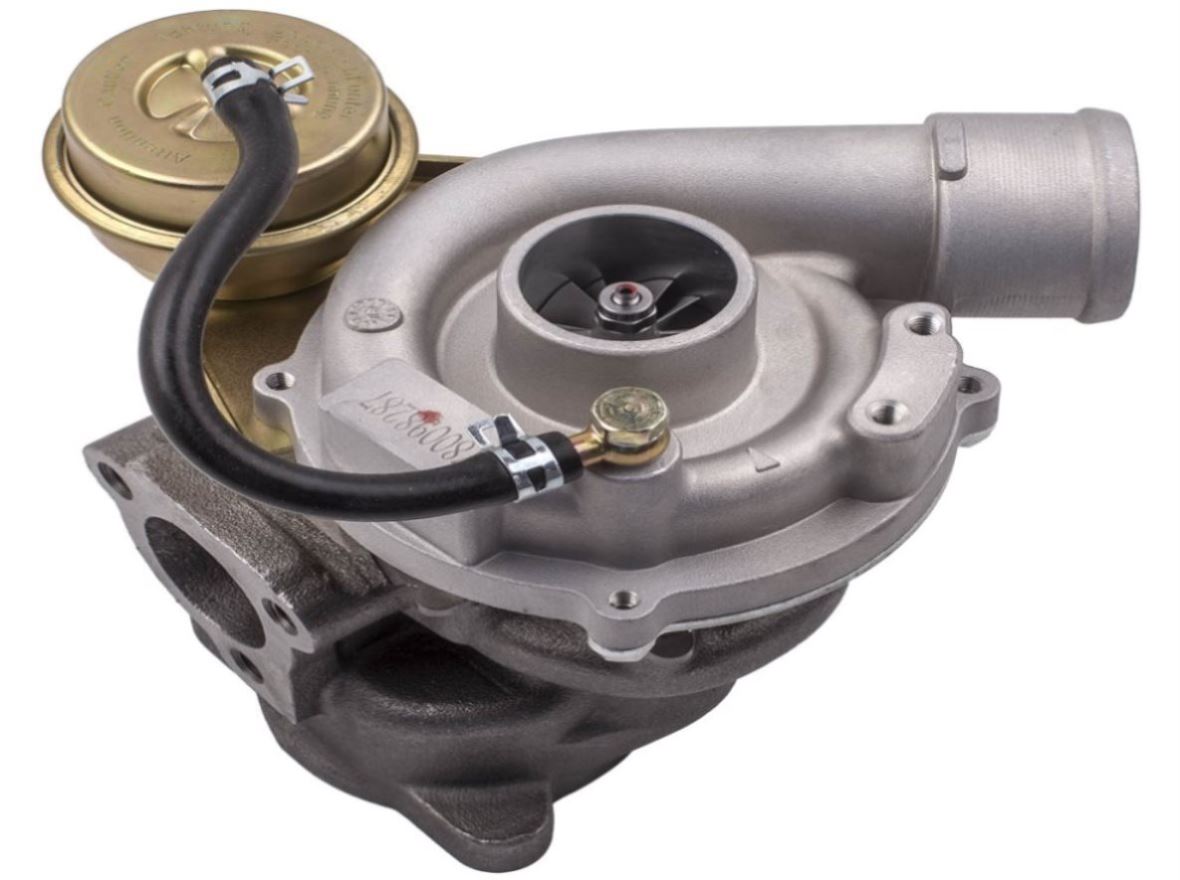

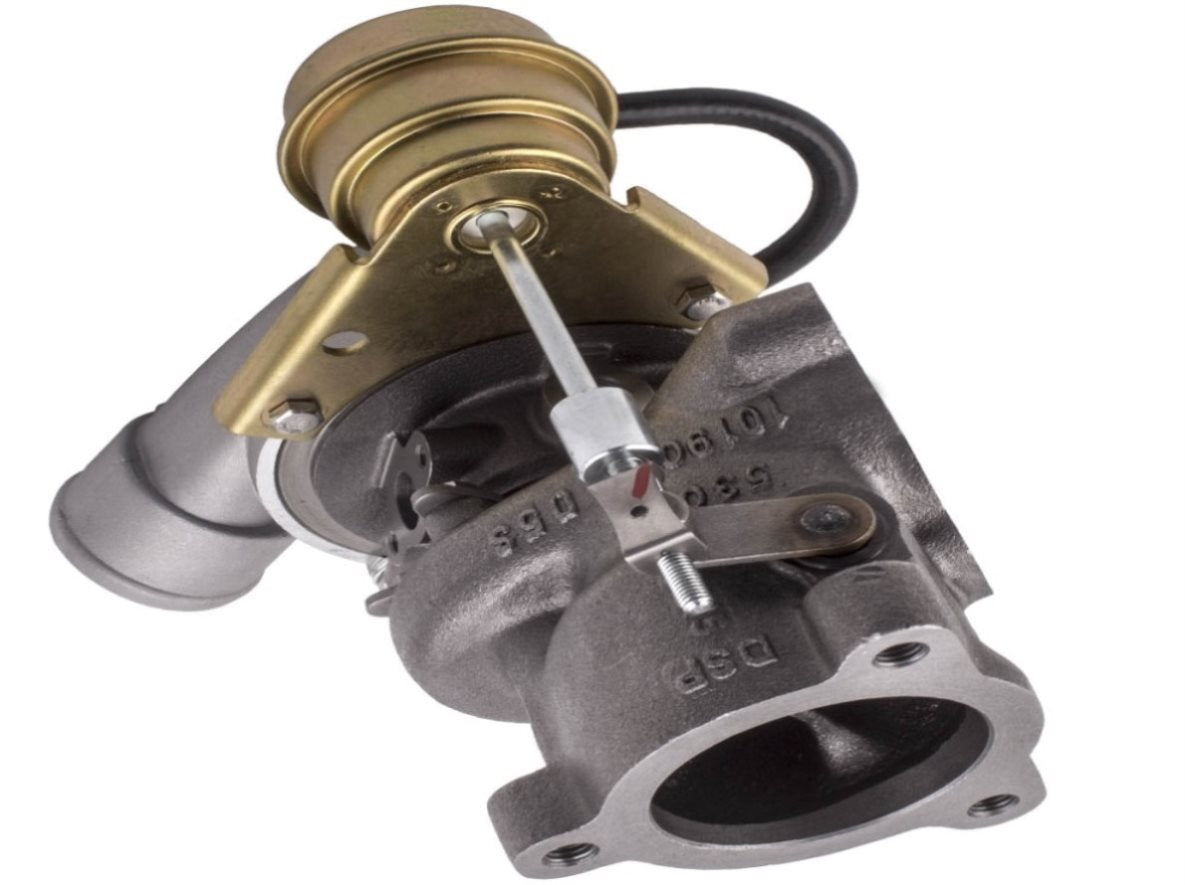

K03 Turbo Turbocharger For VW Passat Audi A4 1.8T 1996 -2004 53039880029 23487807
Turbo Model:K03
Applications:
1998-99 for Audi A4 1.8T (B5) Engine Code APU, ARK
2002-05 for Audi A4 1.8T (B6) Engine Code BFB
1998- for Audi A6 1.8T (C5) Engine Code APU, ARK
1996-00 for Volkswagen Passat B5 1.8T Engine Code APU, ARK
2000-05 for Audi A4 with AMG, AWM, ATW, AUG Engine
2000-05 for Volkswagen Passat with AMG, AWM, ATW, AUG Engine
Part Number:
53039880029, 5303-988-0029, 5303 988 0029,
53039700029, 5303-970-0029, 5303 970 0029,
53039880025, 5303-988-0025, 5303 988 0025,
53039700025, 5303-970-0025, 5303 970 0025,
058145703J, 058145703JX, 058145703JV,
058145703K, 058145703KX, 058145703KV,
058145703N, 058145703NX , 058145703NV,
058145703Q, 058145703QX, 058145703QV
Specification:
Compressor :
Wheel Diameter: 50/36 mm
Trim: 51.8
Compressor Inlet: 44.4mm
Compressor Outlet: 50mm
Blades๏ผ6 x 6 blades
Turbine :
Wheel Diameter: 44/40 mm
Trim: 82.6
Blades: 11 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange
===================================
Turbo Model: K03
Engine: APU/ARK/BFB/AMG/AWM/ATW/AUG
Fuel: Gasoline
Cooling Type: Water Oil Cooling
Horsepower Rating: up to 150 HP
Bearing Type: Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight๏ผ5700g
Package Size๏ผ26*25*23cm
Feature:
* Turbine housing adopts ductile iron QT450-10, withstand temperatures up to 700โ.
* Steel Turbine Wheel made from the special K418 alloy to achieve high oxidation resistance and stability under high temperatures up to 900โ.
* Cast aluminium blades with good air tightness and corrosion resistance
* OEM-quality and size with little modification
Note:
* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
Notice๏ผ
California Prop 65 Warning
Code:MXR02FXSY
