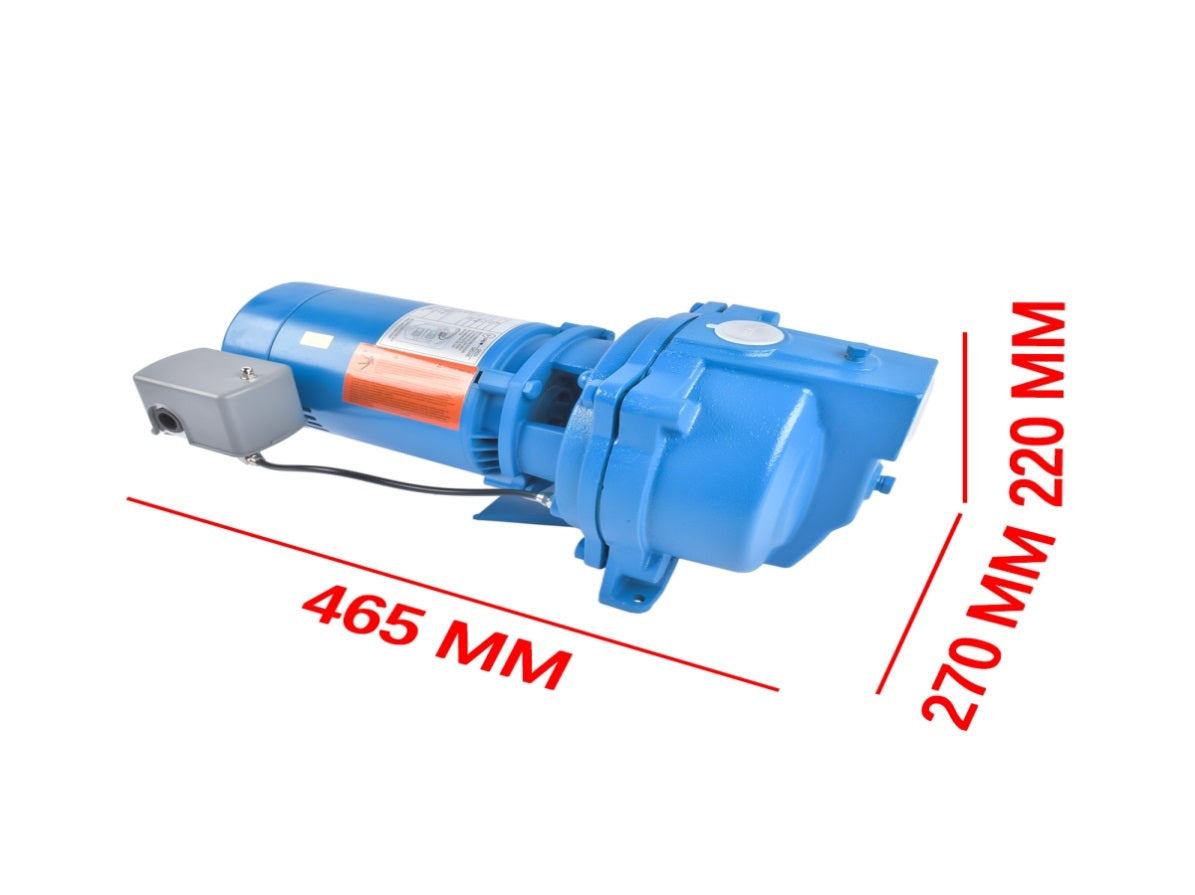

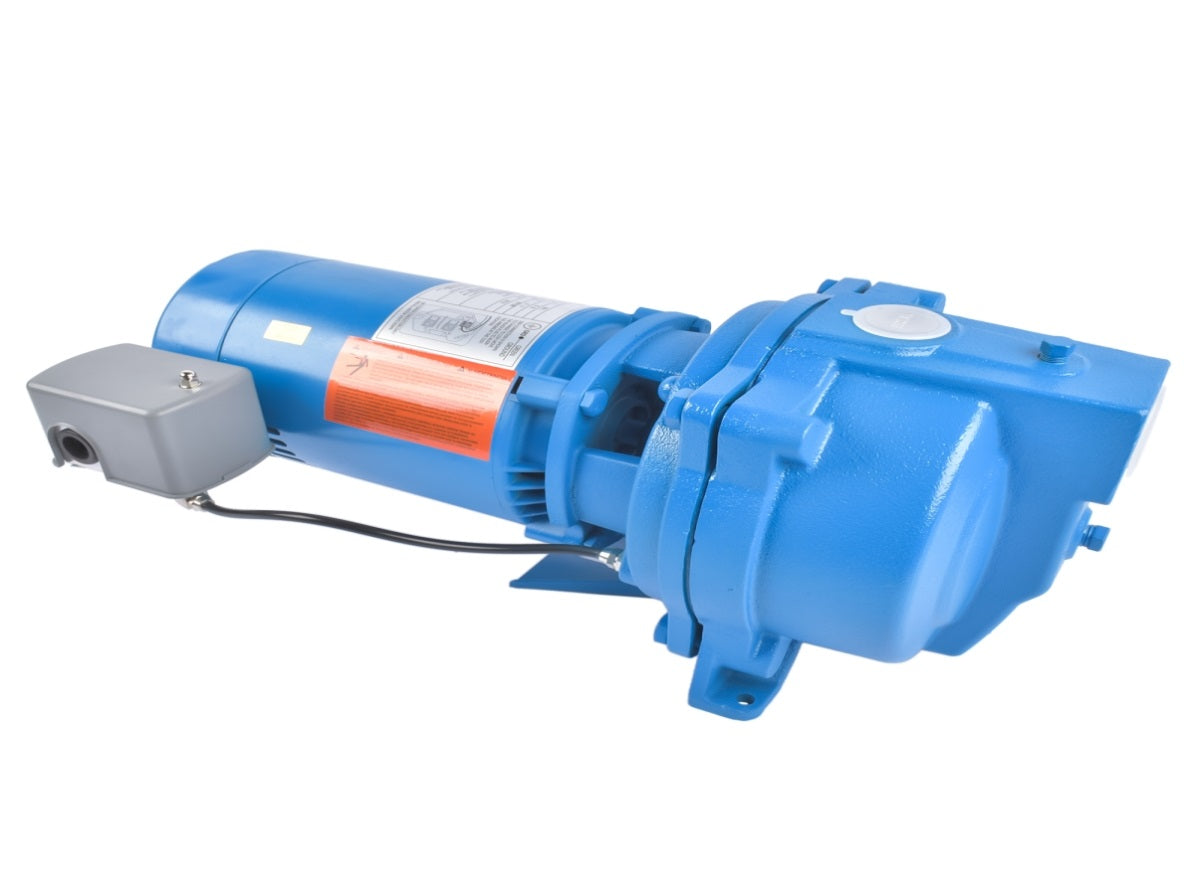

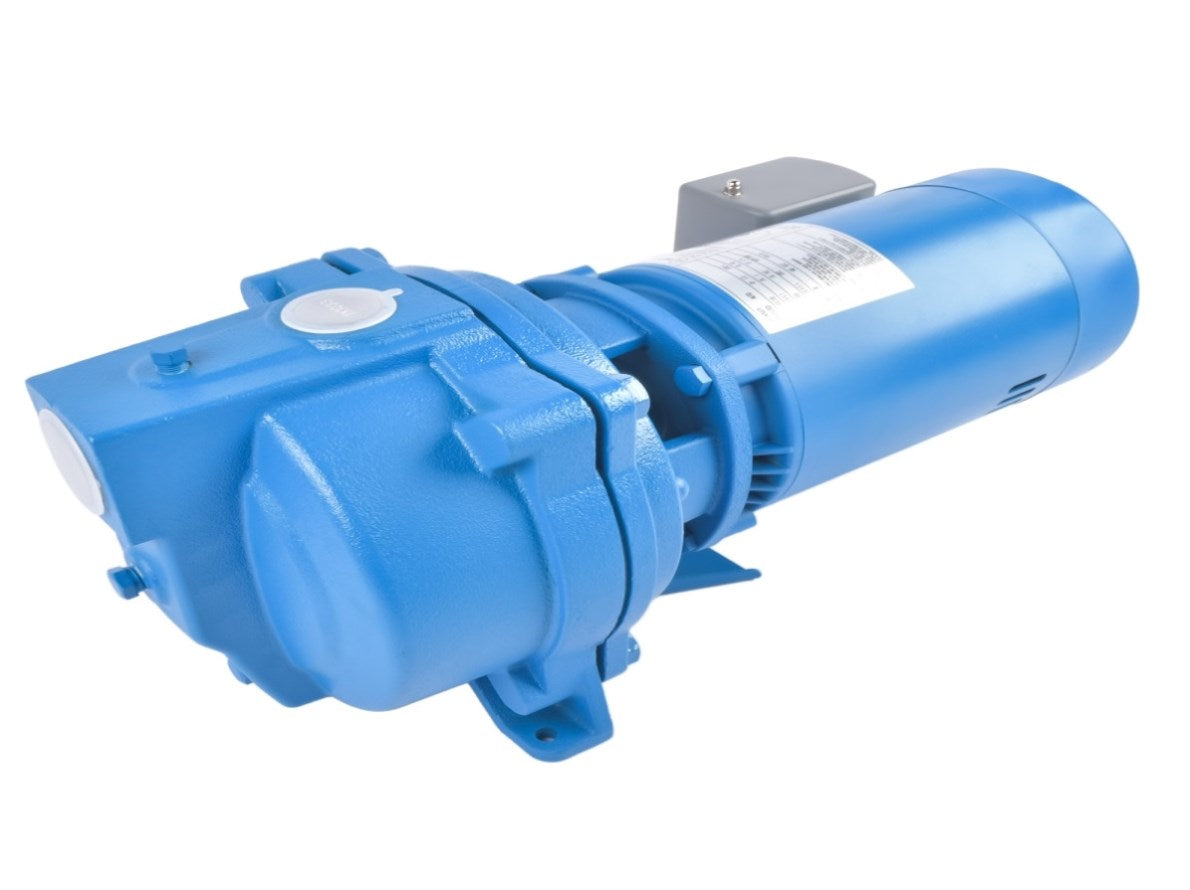

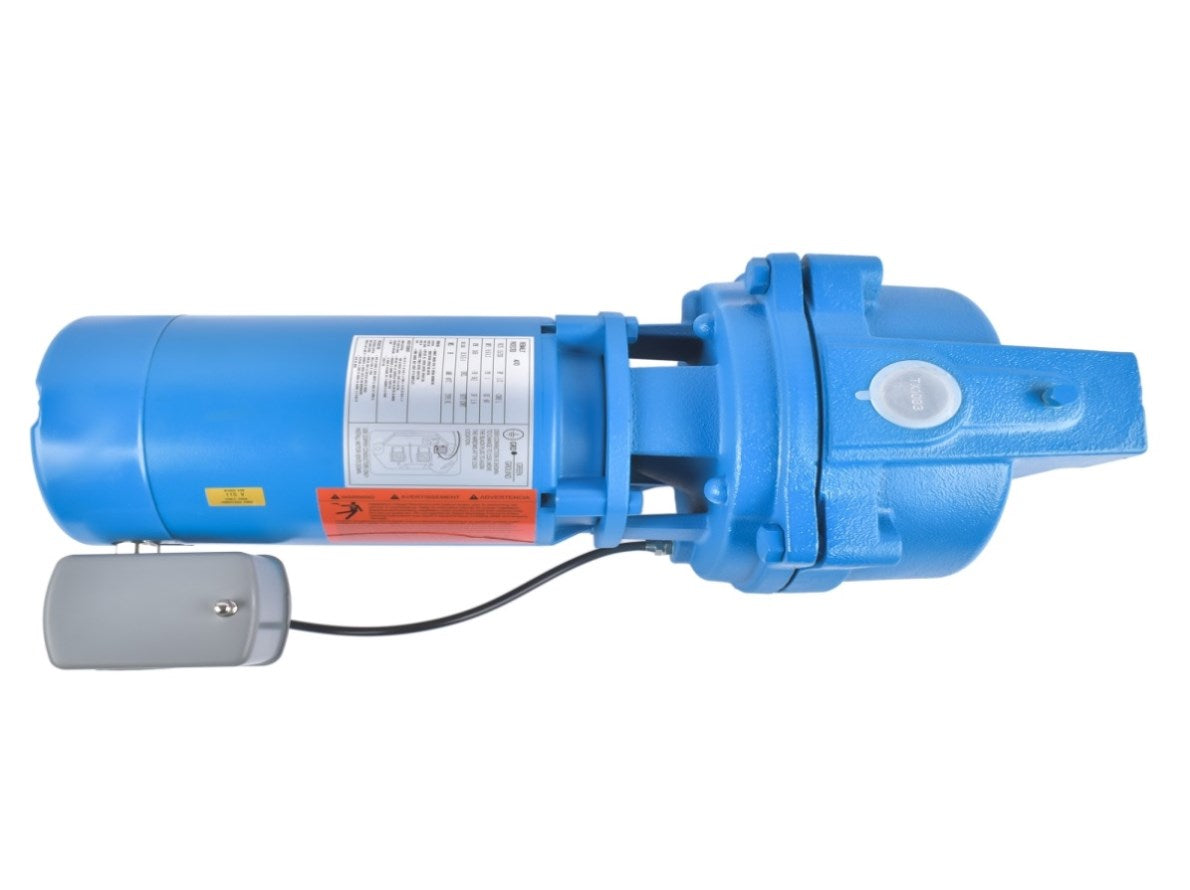

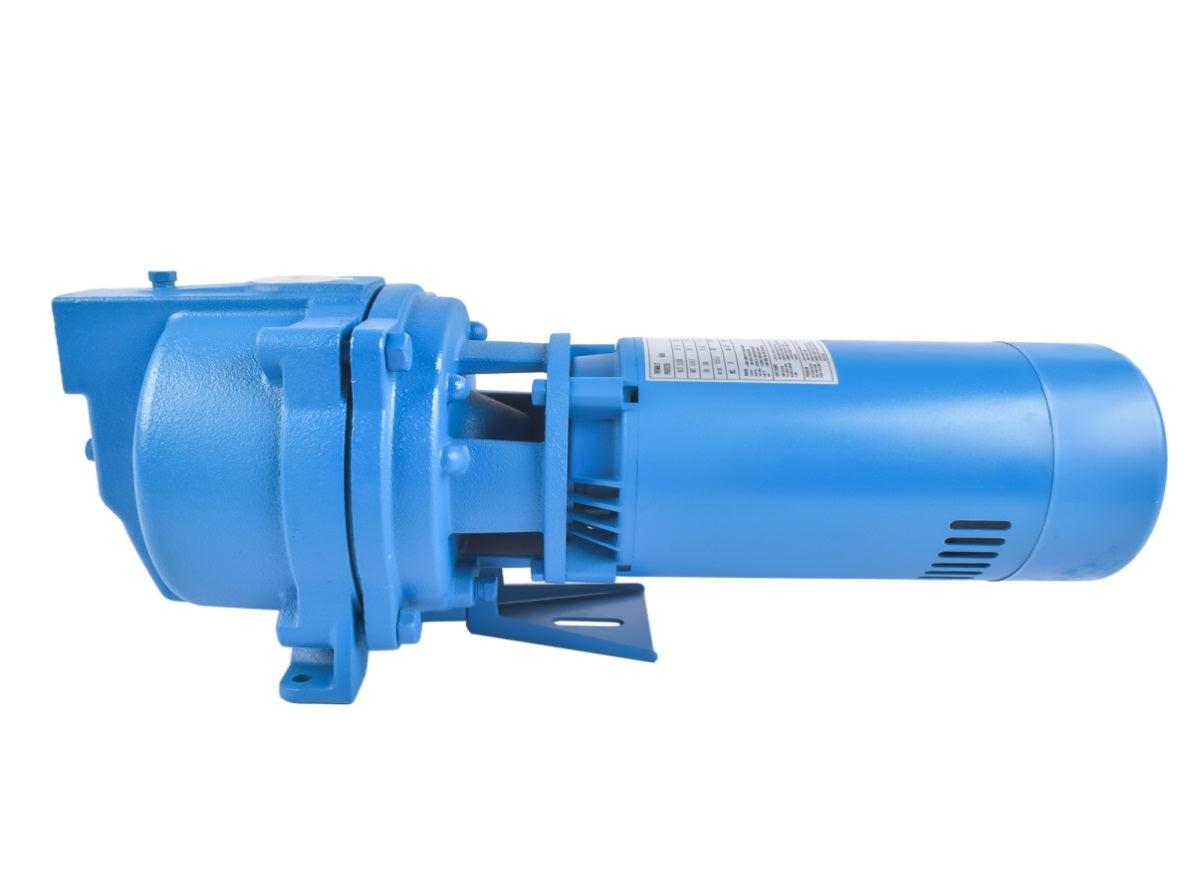

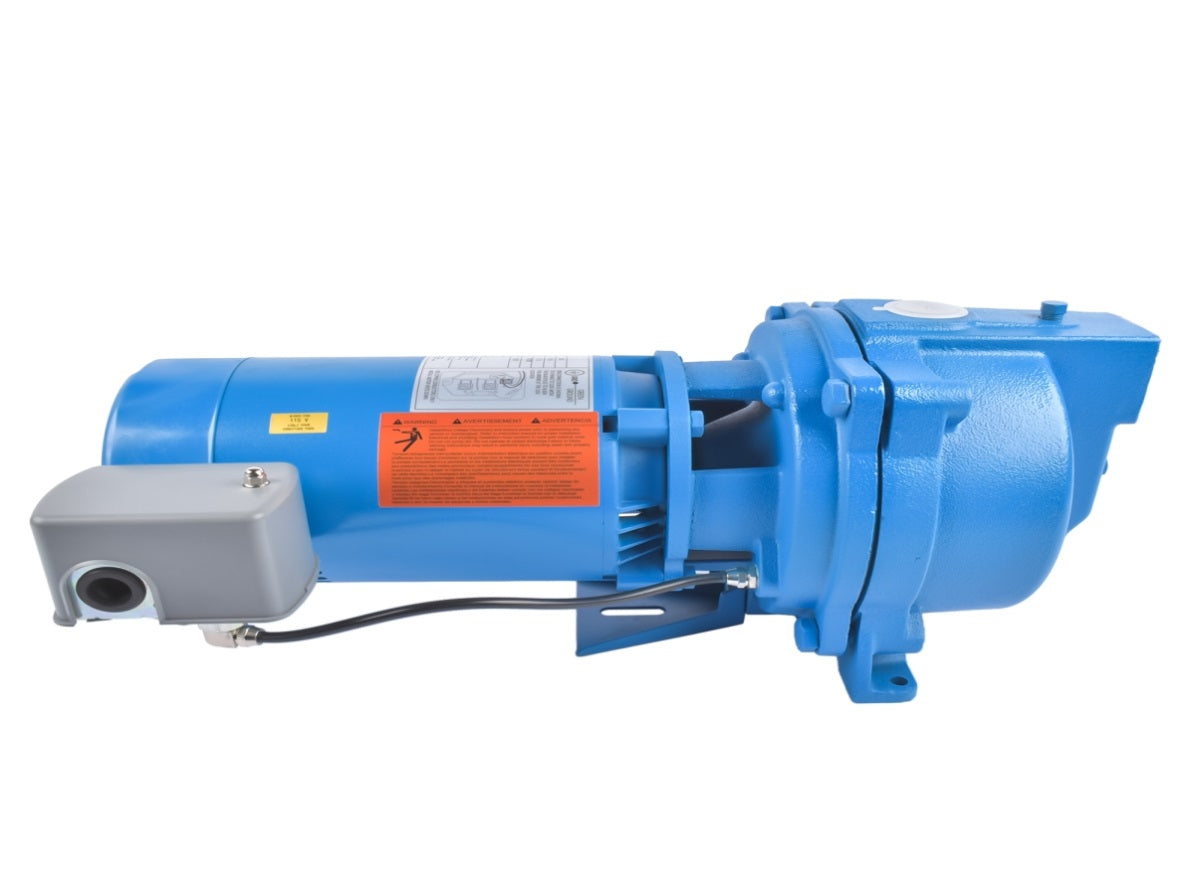

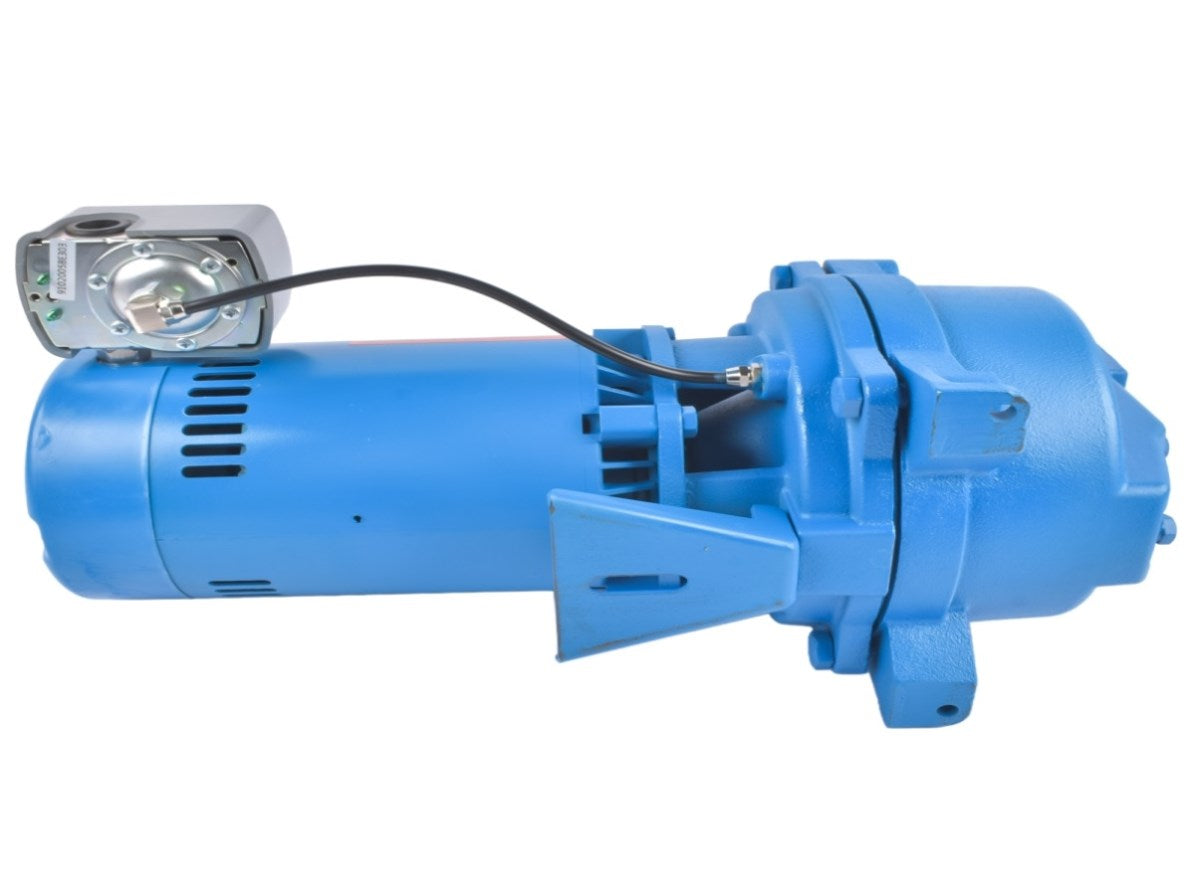

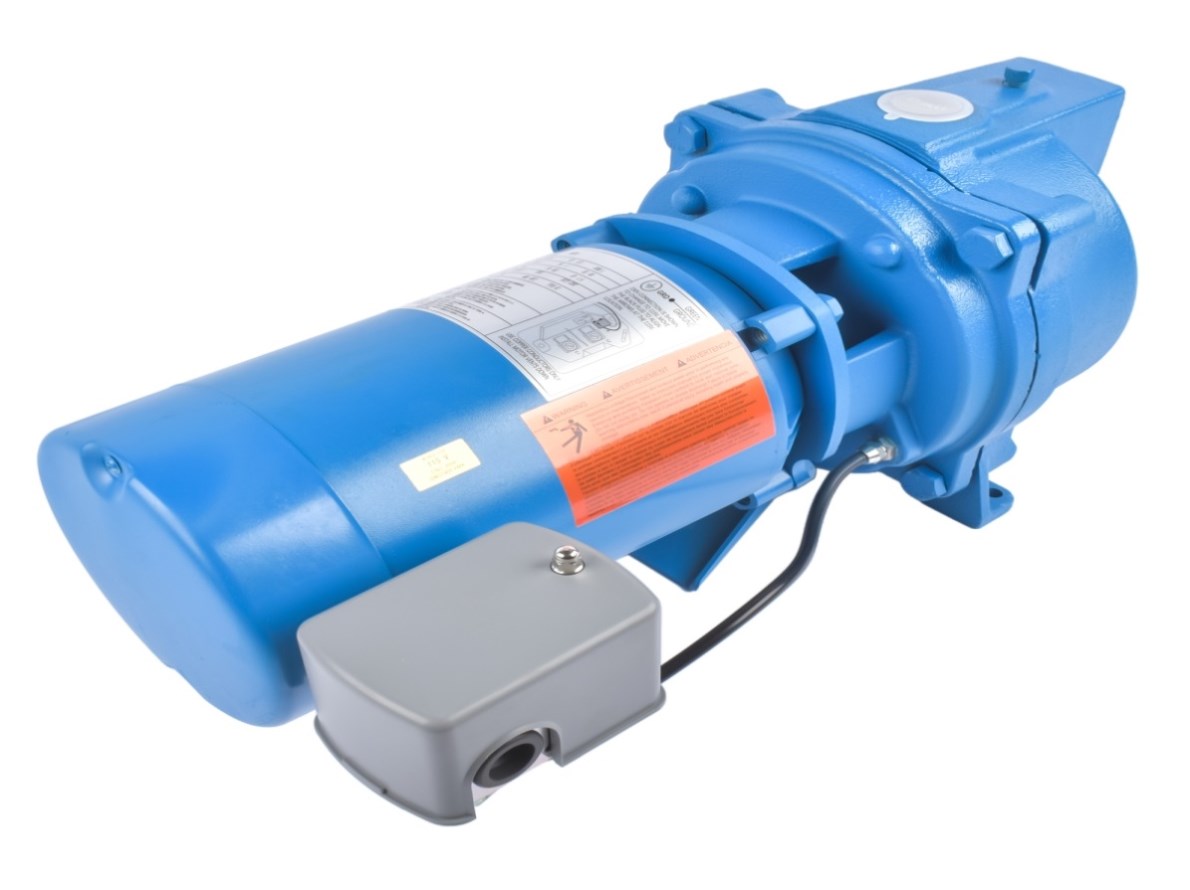

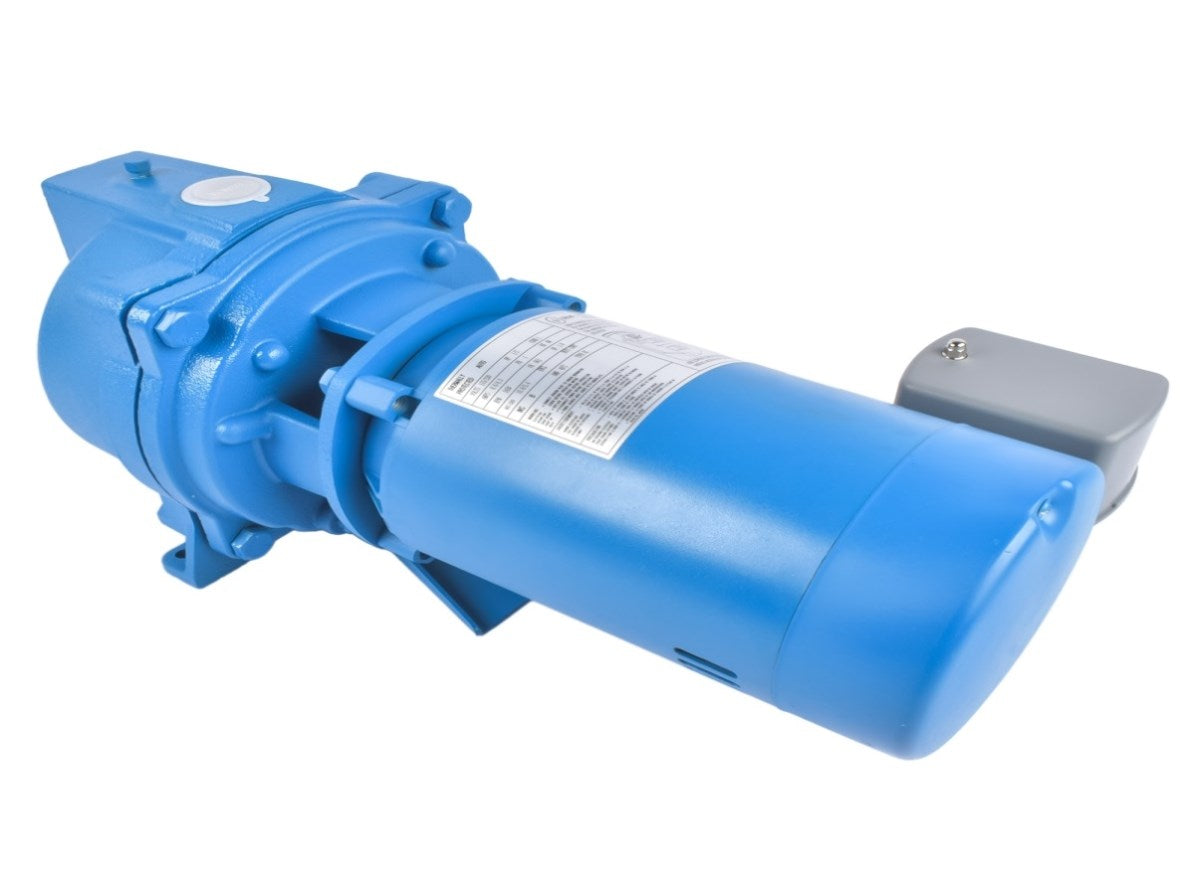

J5S 1/2 HP 115/230 V Cast Iron Shallow Water Well Jet Pump 3500 RPM Blue 96861587

The J5S pump is specifically designed for homes, cottages, and booster services. Its design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. This pump features a back pull-out design, two compartment motor for easy access to wiring, and is corrosion resistant.

Specifications

Type: Shallow Well Jet Pump
Material: Cast Iron Housing, Stainless Steel Shaft
Color: Blue
60 Hz, 1/2 HP, 115/230 V Capacitor Start, Single Phase, 3500 RPM
1.25" Npt Suction and 1" Npt Discharge
Clockwise Rotation When Viewed from Motor End

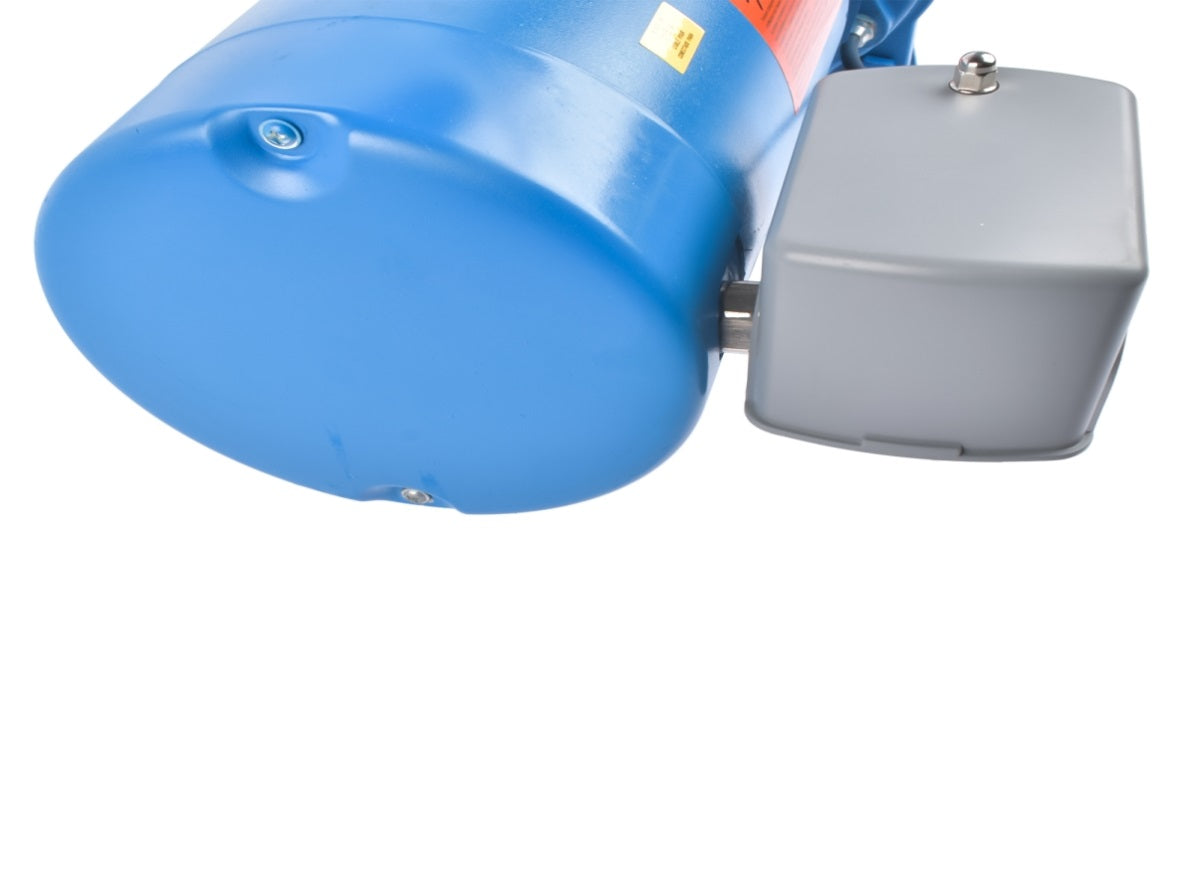

Pressure Switch Preset (30-50 psi)
Built-In Overload with Automatic Reset

Part Number

J5S

Features

Its design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter.

Two compartment motor for easy access to motor wiring and replaceable components.

Nozzle clean out plug in pump case. Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning.

Protected mechanical seal with a special diaphragm design that retains water in the casing at all times to ensure the mechanical seal can never run dry.

Bolt down diffuser provides positive alignment with impeller.

Diffuser also has stainless wear ring for extended performance in abrasive conditions.

Powered for continuous operation.

After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve.

This pump is specifically designed for homes, cottages, and booster services.

Serviceable

Back pullout design allows disassembly of pump for service without disturbing piping.
Two compartment motor for easy access to motor wiring and replaceable components.
Nozzle clean out plug in pump case.
Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning.
Premium O-ring design fittings need only be hand tight to seal.

Applications

Home
Cottage
Booster Service
