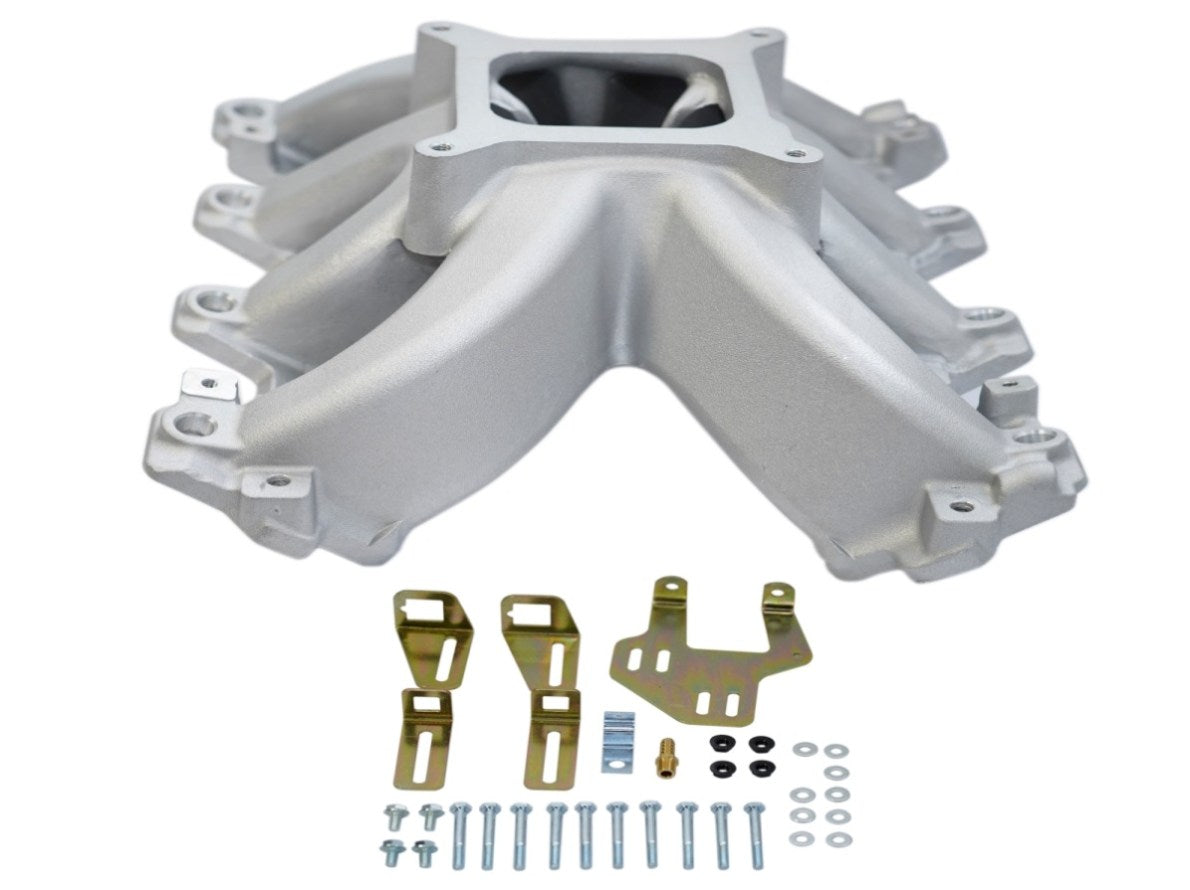

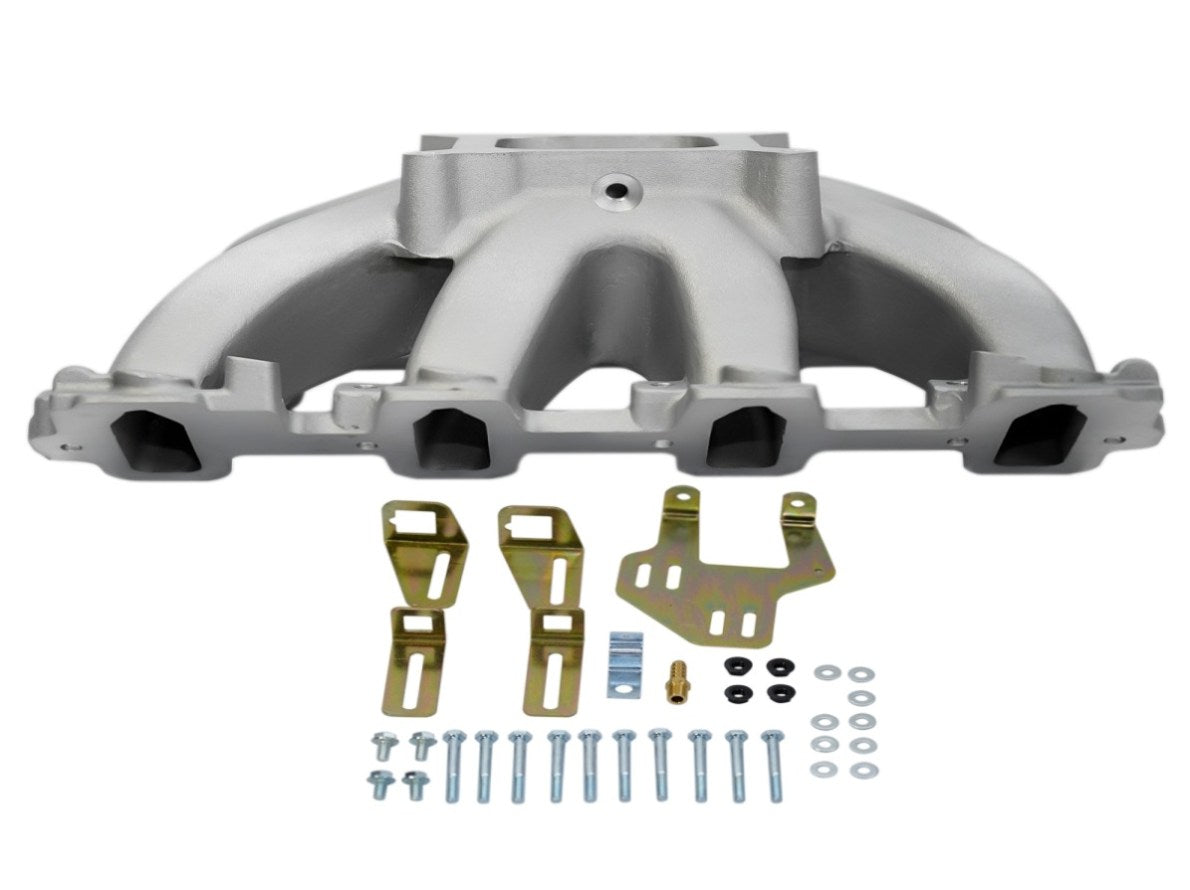

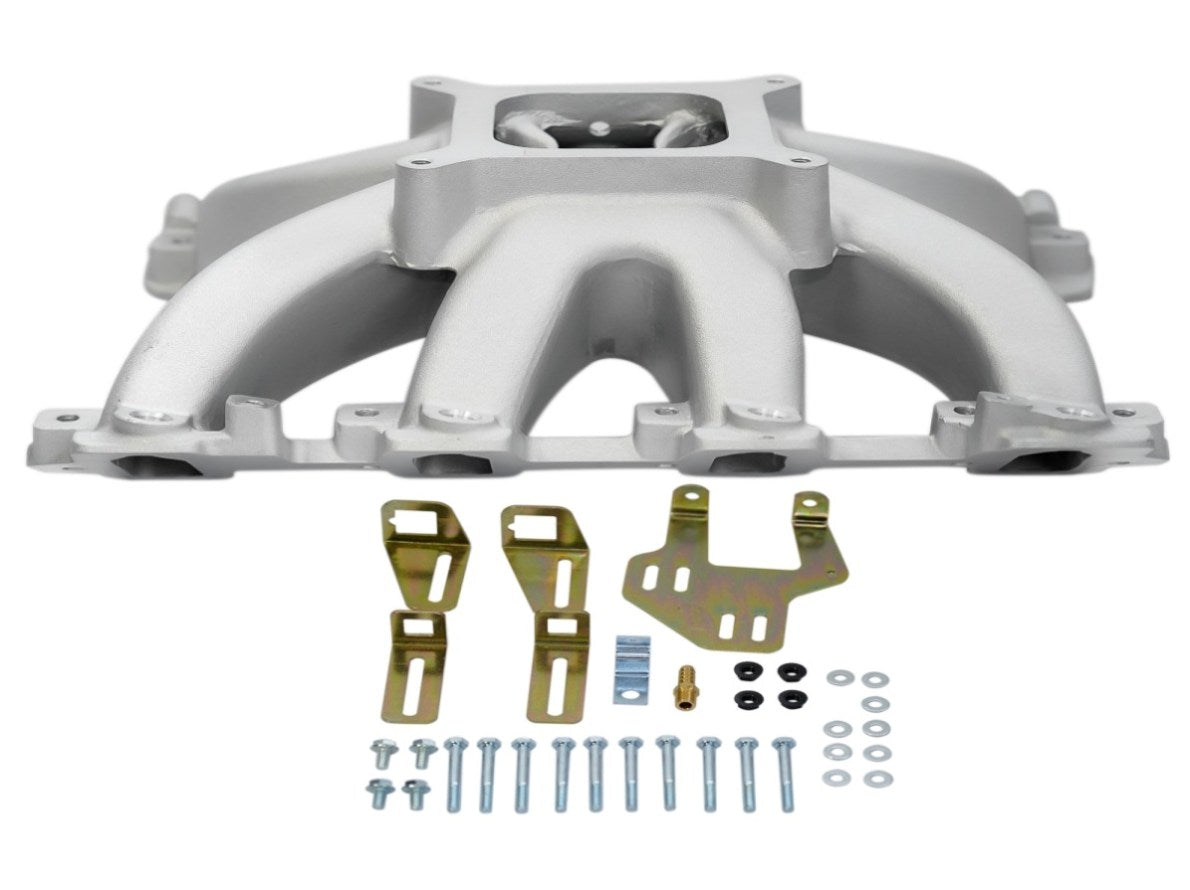

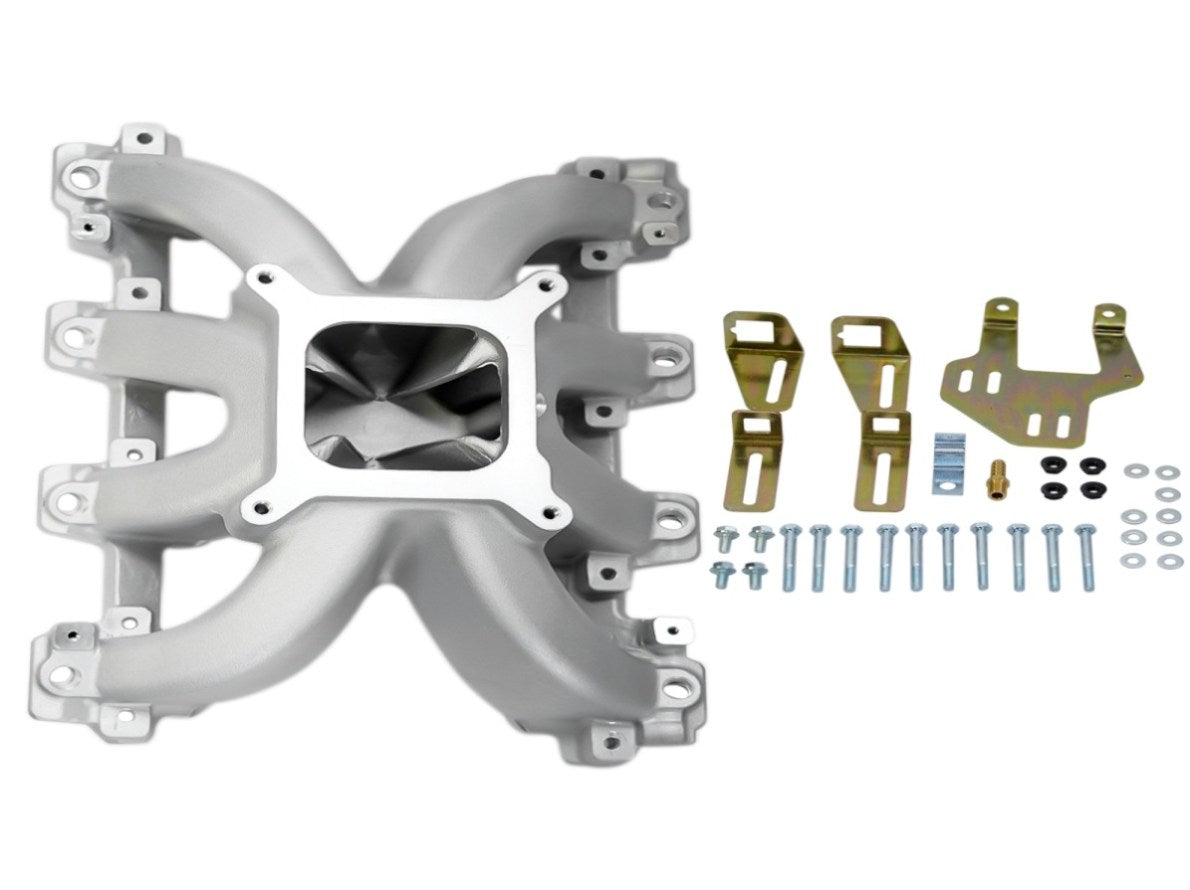

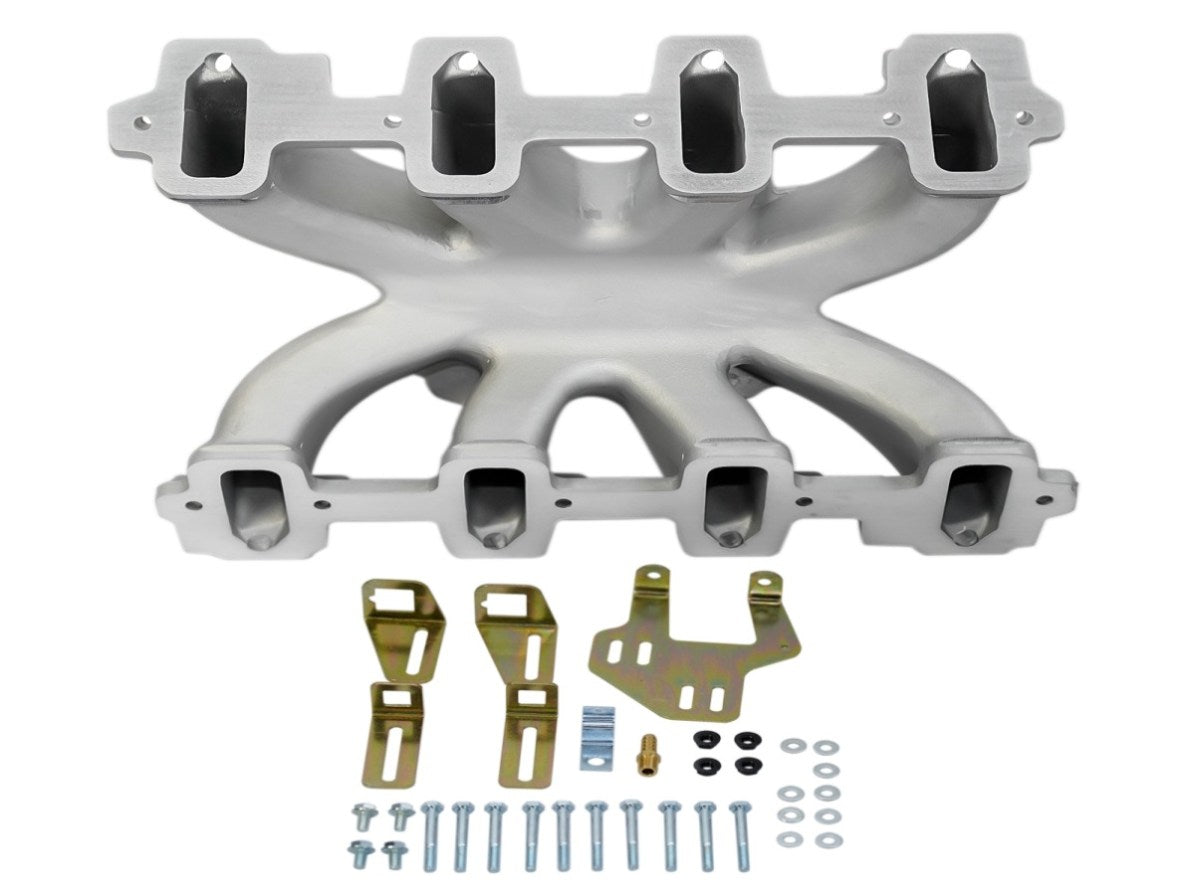

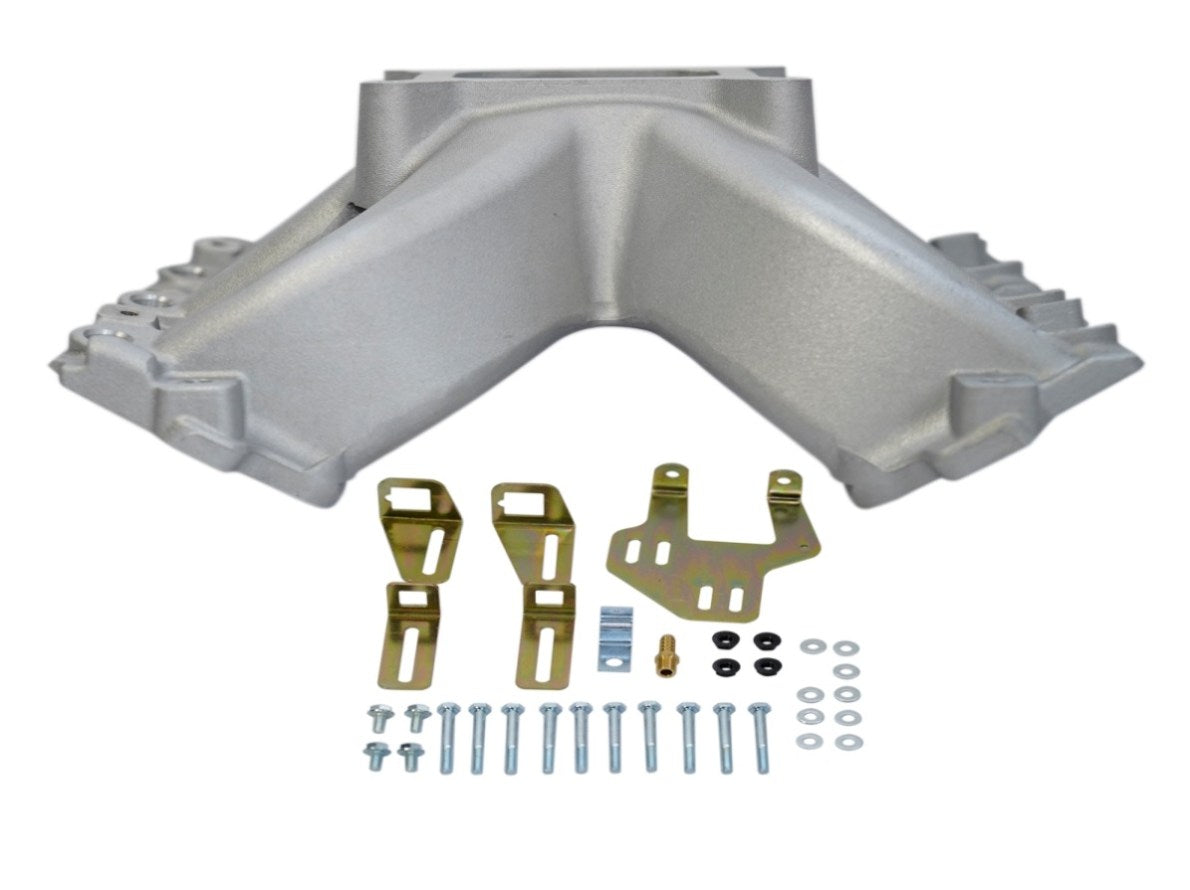

Intake Manifold 28095 EFI Single Plane Aluminum Fit for Chevy GM Gen III LS LS1/LS2 76346486
GT-76346486
10 In stock
$338.00
$388.70
OE Number 28095 Will fit Following Models DescriptionFits for GM Gen III LS4-bbl Square-Bore Throttle Body FlangeCathedral PortBasic Operating RPM Range: 3,500-8,500Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6Fuel Injection Style: Multi-portEFI Intake only Installation Notes:Carb Mount Pad is 1.12" taller than the Victor Jr. LS1Carb Pad Height: 6.07"Port Exits have been Increased To...
customers are viewing this product
OE Number
28095
Will fit Following Models
Description
Fits for GM Gen III LS
4-bbl Square-Bore Throttle Body Flange
Cathedral Port
Basic Operating RPM Range: 3,500-8,500
Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Fuel Injection Style: Multi-port
EFI Intake only
Installation Notes:
Carb Mount Pad is 1.12" taller than the Victor Jr. LS1
Carb Pad Height: 6.07"
Port Exits have been Increased To 1.08" X 2.74"
Recommended Intake Gasket: 375-1312-3
Recommended Fuel Rail: 350-3638
