Impeller Kit fit for Yamaha C75 E75 P75 C90 688-44352-03 692-W0078-A0 18-3370 87131215
Application:
fit for Yamaha Outboard 2 Stroke 70 75 80 85 90 hp Motors
fit for the Following 60HP Yamaha 2 Stroke Outboards:60hp 2004-2005 year
fit for the Following 70HP Yamaha 2 Stroke Outboards:70hp 2004-2009 year
fit for the Following 75HP Yamaha 2 Stroke Outboards:C75 1994-1999 , E75 1995-2000 , P75 1996-1999
fit for the Following 80HP Yamaha 2 Stroke Outboards:C80 1997 Year
fit for the Following 85HP Yamaha 2 Stroke Outboards:C85 1991-1996 , CV85 1989-1990
fit for the Following 90HP Yamaha 2 Stroke Outboards:90 1984-2009 ,1986-1989 , B90 1997-1999 , C90 1997-2001
OE/Part number:
692-W0078-00-00,692-W0078-01-00,692-W0078-A0,18-3370,692-W0078-02-00,688-44352-03,688-44322-00,688-44315-A0,688-44323-00,688-44324-A0,688-44316-A0,93210-46044,90119-08192,90119-08196,90280-04M04
Specification:
Type:Sea Water Pump Impeller Repair Kit
Material：Rubber+Stainless Steel+Plastic

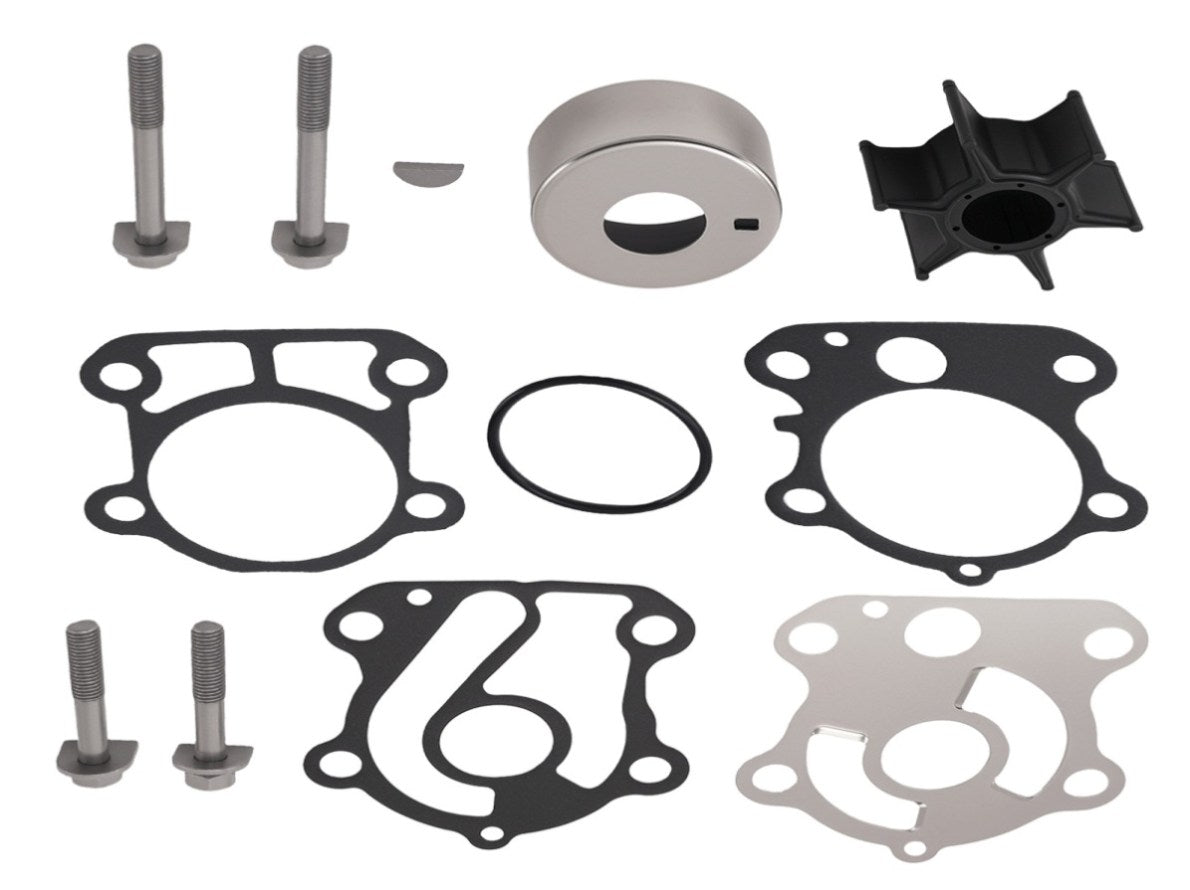

Package included:
1*Water Pump Impeller 688-44352-03

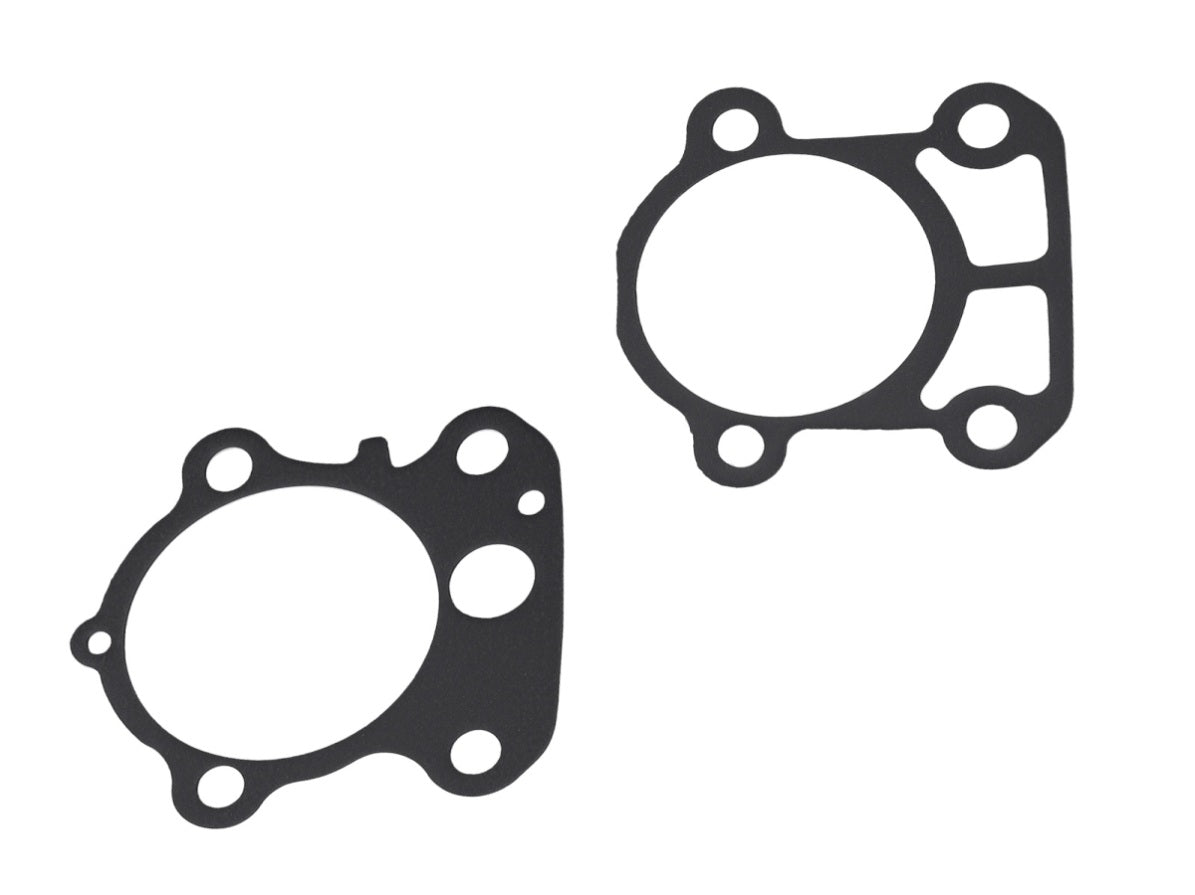

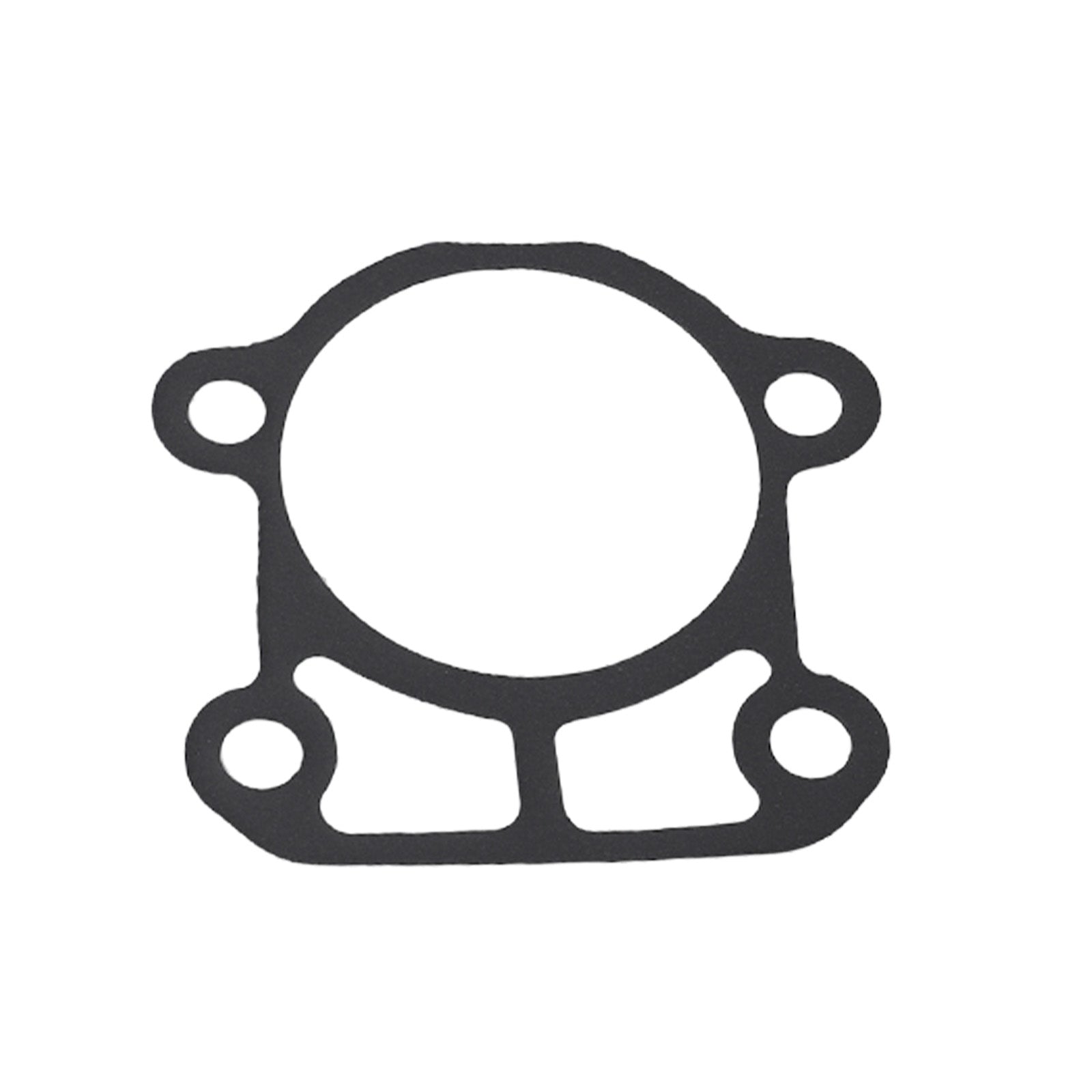

1*Gasket, Water Pump 688-44315-A0-00

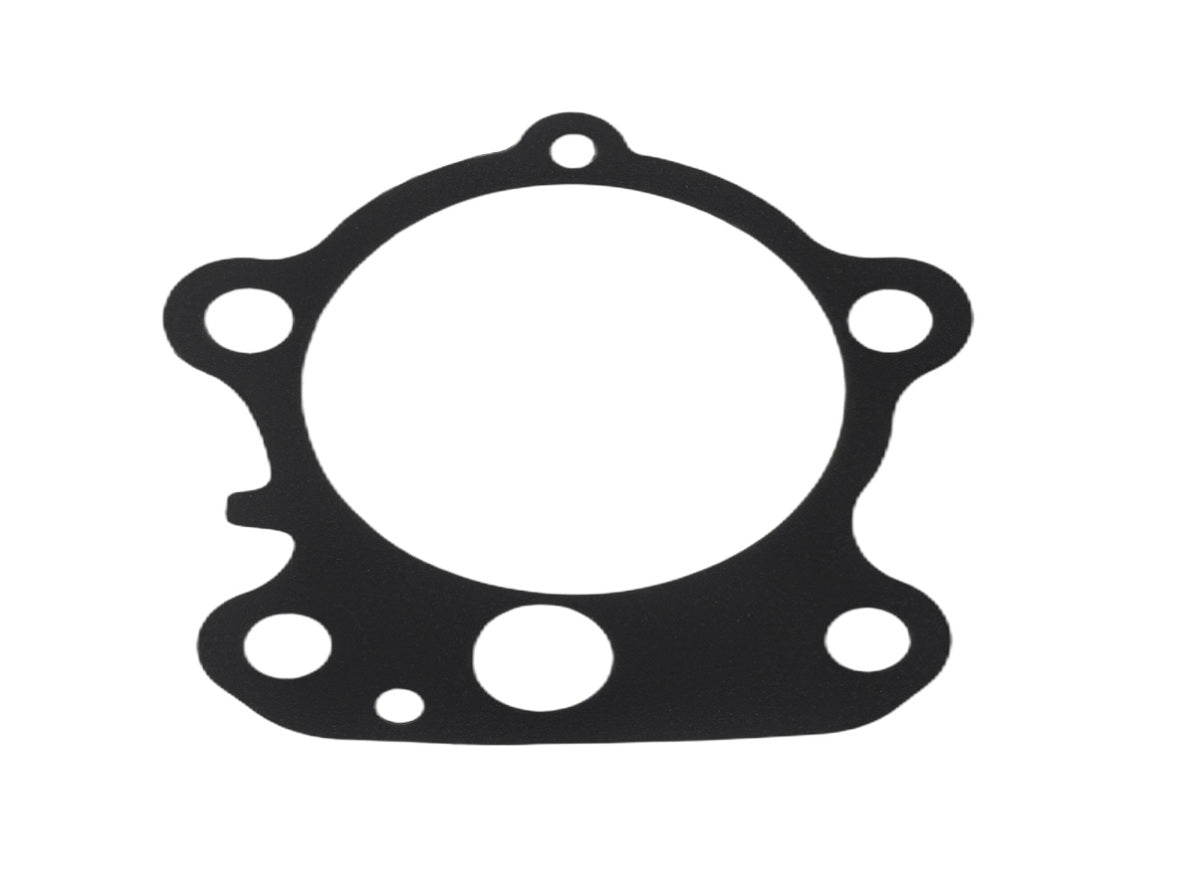

1*Gasket, Water Pump 688-44316-A0-00
1*Key, Impeller 90280-04M04-00
1*O-Ring 93210-46044-00
1*Gasket, Water Pump 688-44324-A0-00

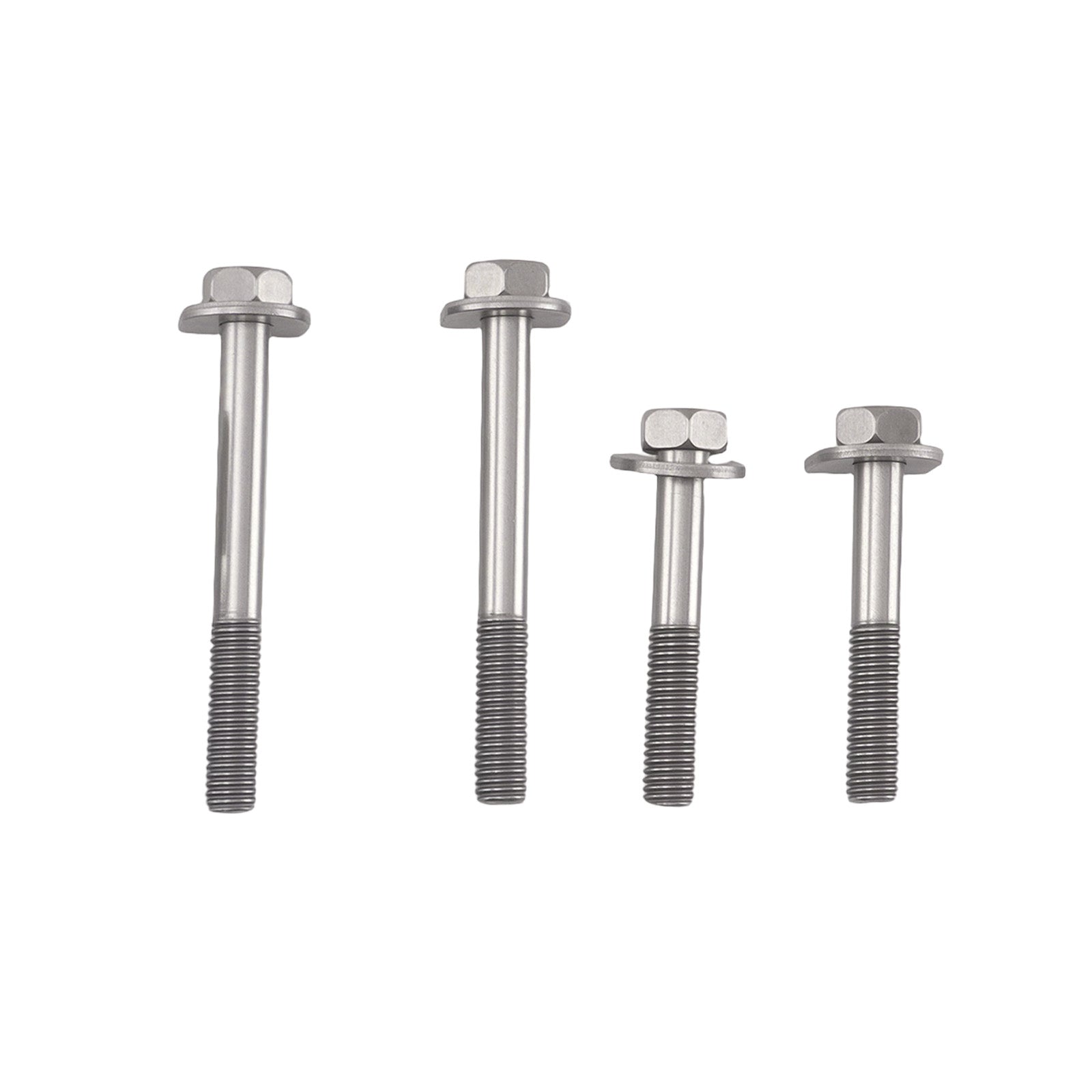

4*Bolt 97395-08050-00

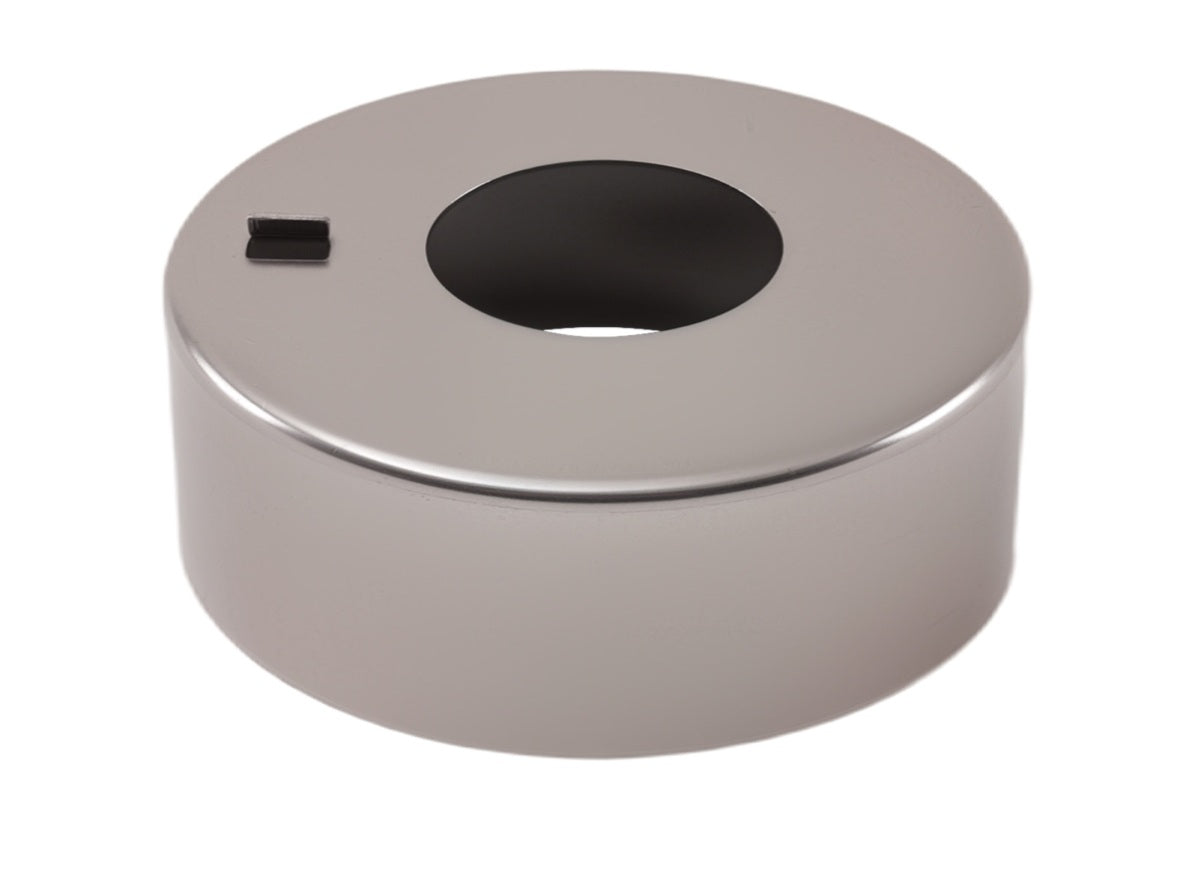

1*Cup, Insert 688-44322-00-00

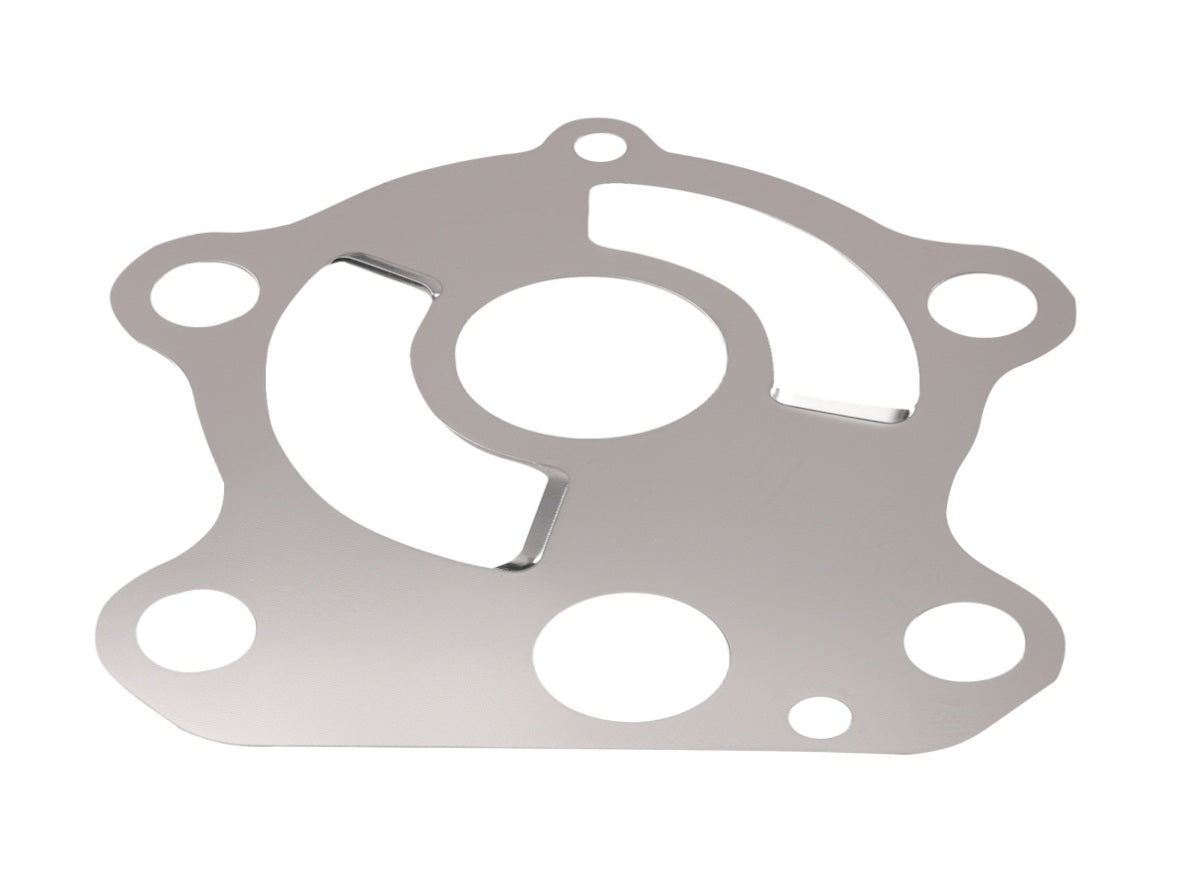

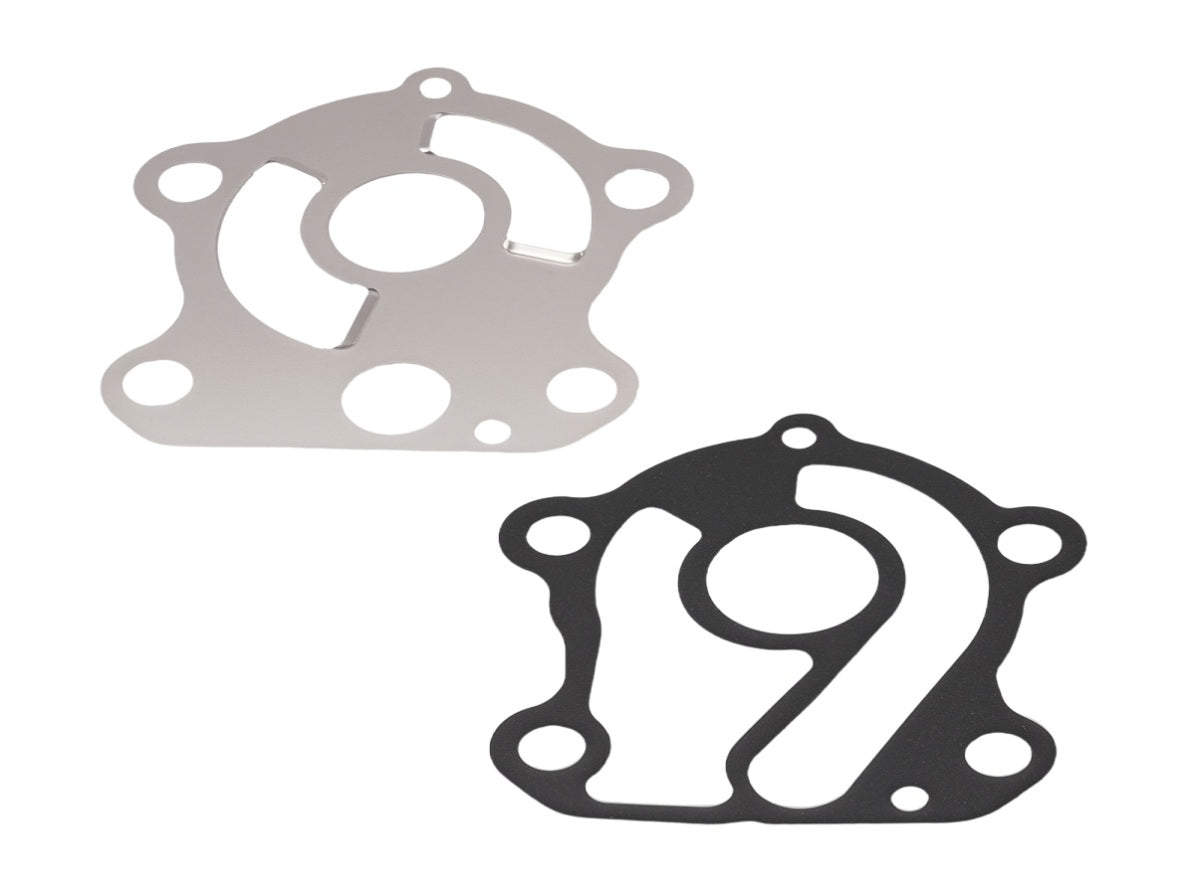

1*Plate, Wear 688-44323-00-00
