Hydraulics Third Function Valve Kit for Kubota L4600 L4701 Series Tractors 59907999

Application Vehicle:

For Kubota L4600 L4701 Series Tractors

Valve Body Features:

Solid aluminum housing designed for rugged use

Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI

Flow Rating: 15 GPM

Aluminum Body

3000 PSI Rated

#8 SAE O-Ring ports ensure solid seal and prevent blockages

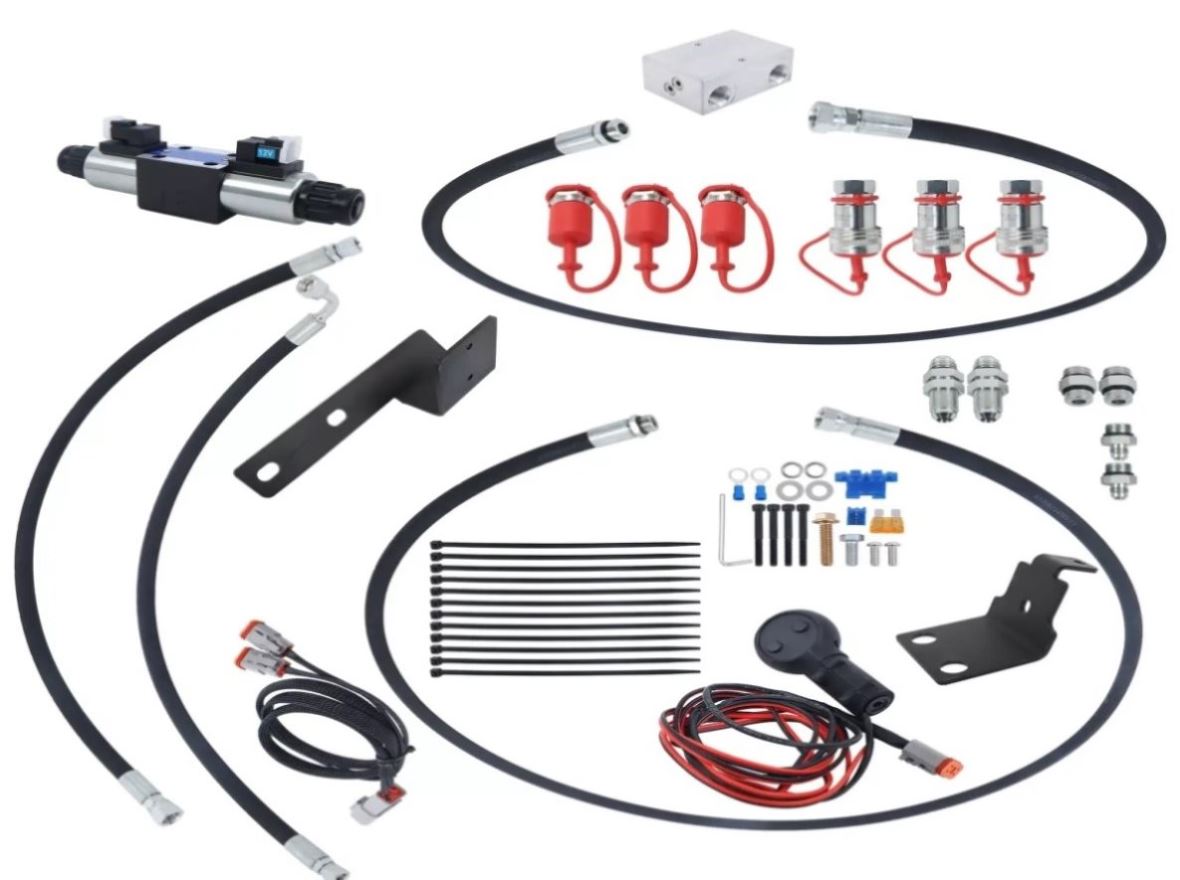

Kit Includes:

12v Solenoid Operated Valve

Joystick Handle with 2 momentary push button switches

Wiring harness with 2 weatherproof Deutsch connectors

Valve Mounting Bracket (including hardware)

Quick Coupler Mounting Bracket (including hardware)

3 – 1/2” Body Agricultural Style Female Couplers

3 – 1/2” Body Agricultural Style Male Couplers

Dust Caps

4 – Hydraulic Hose Assemblies (To Connect Valve and (1) Hydraulic Cylinder)

Zip Ties

Joystick Handle:

Ergonomic design with 2 momentary push button switches

Fully weatherproof

Mounts on existing loader joystick shaft

Removable adapter bushings designed to fit any joystick shaft

Connects to 12v power source

Package Includes：

1x Hydraulics Third Function Valve Kit
