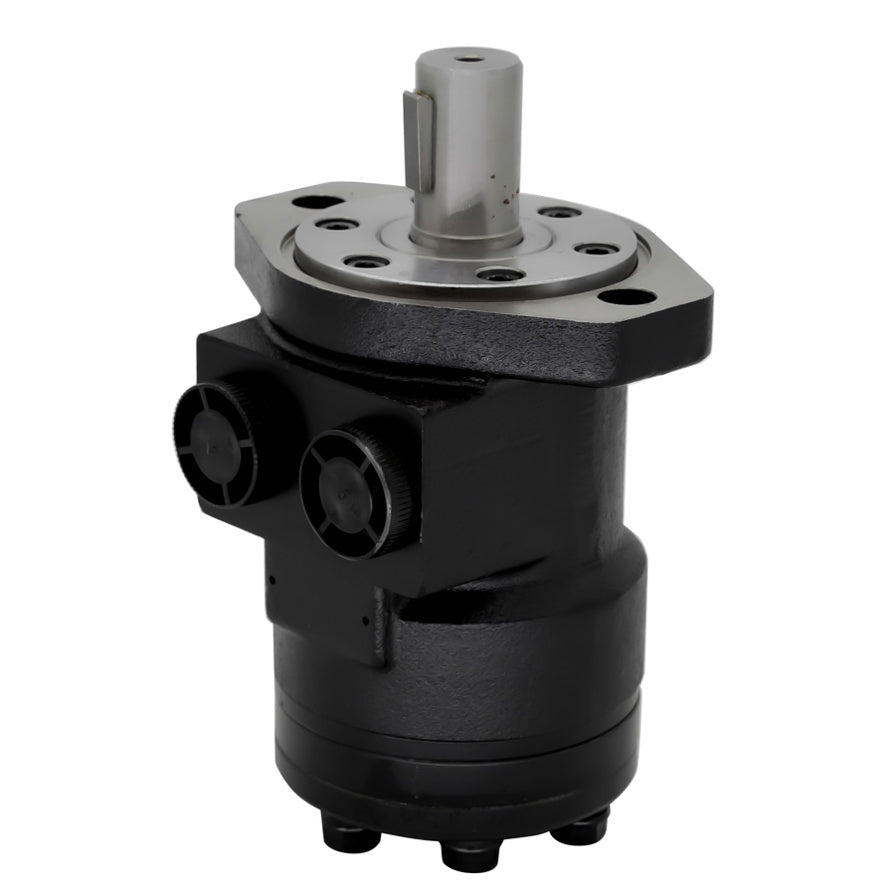

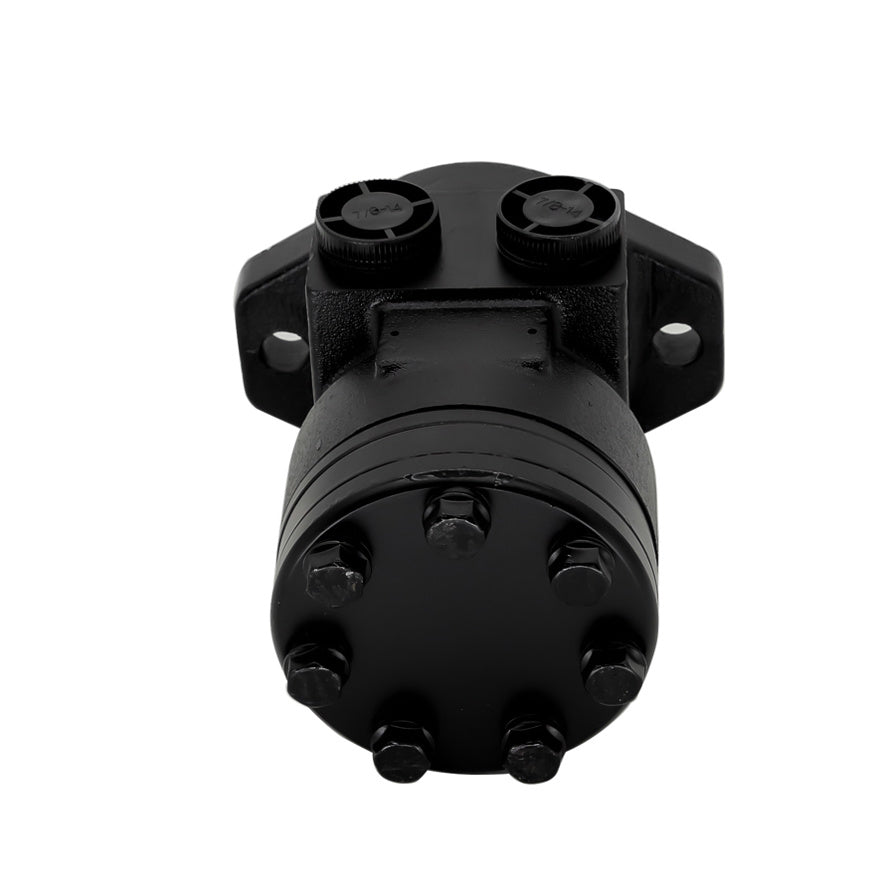

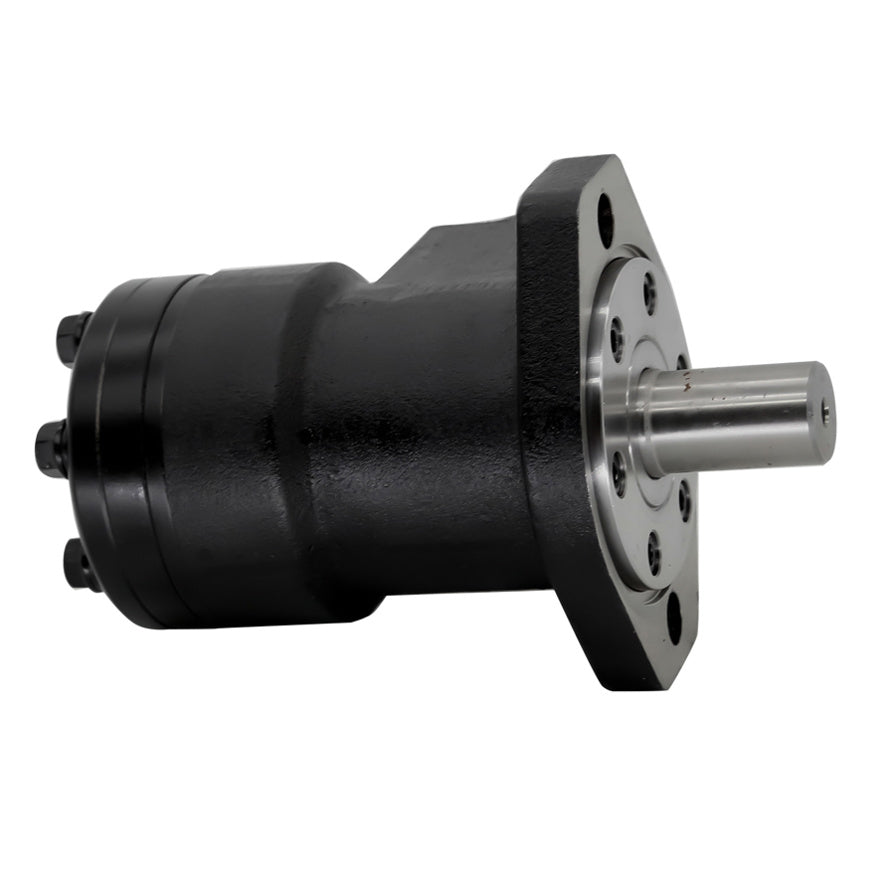

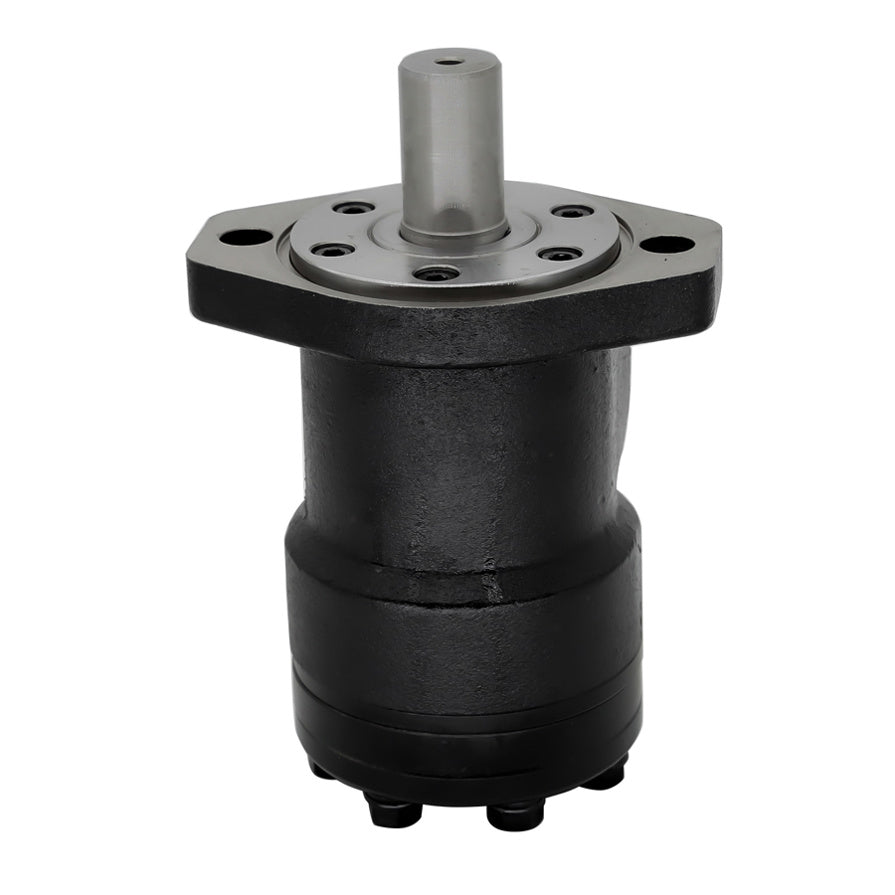

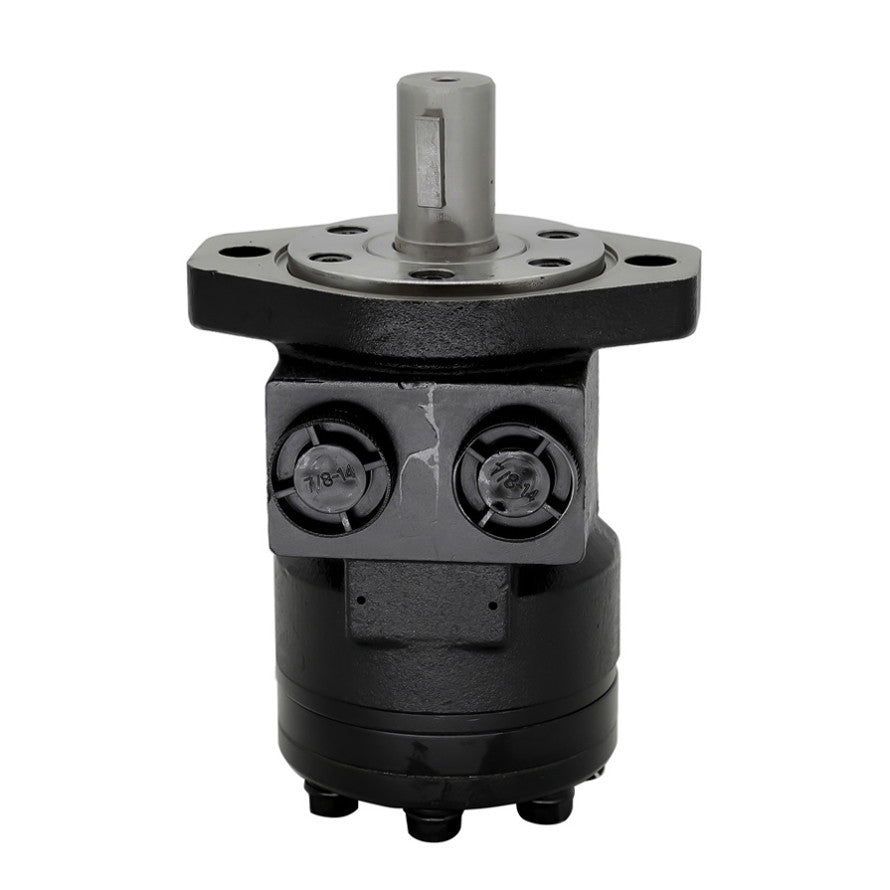

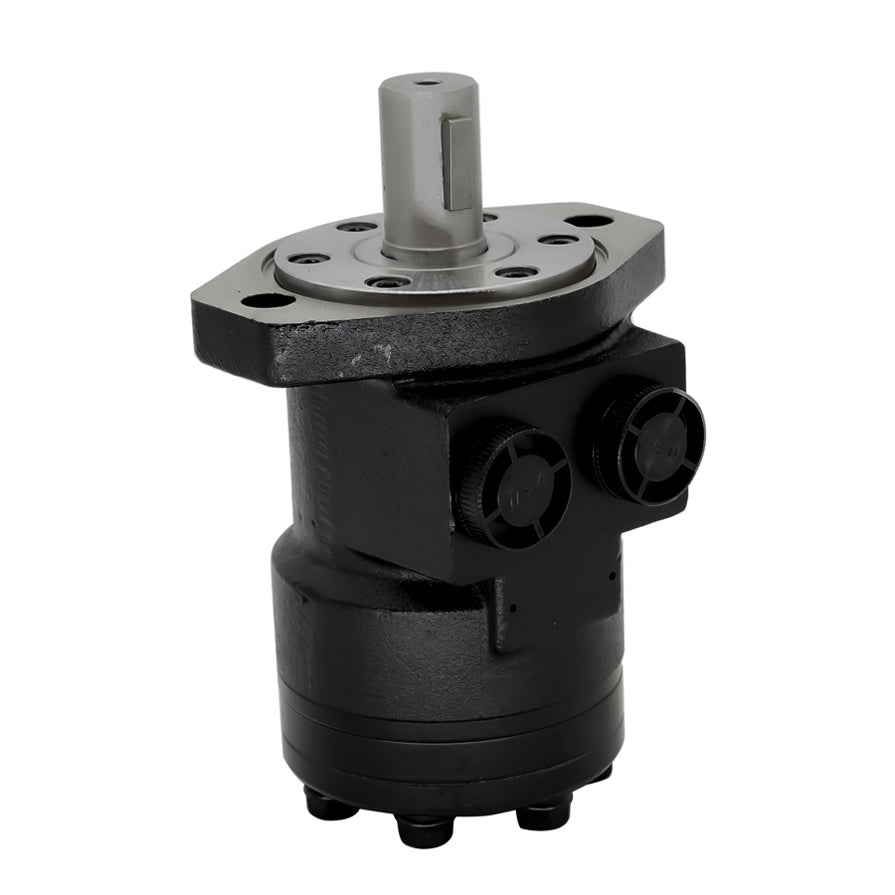

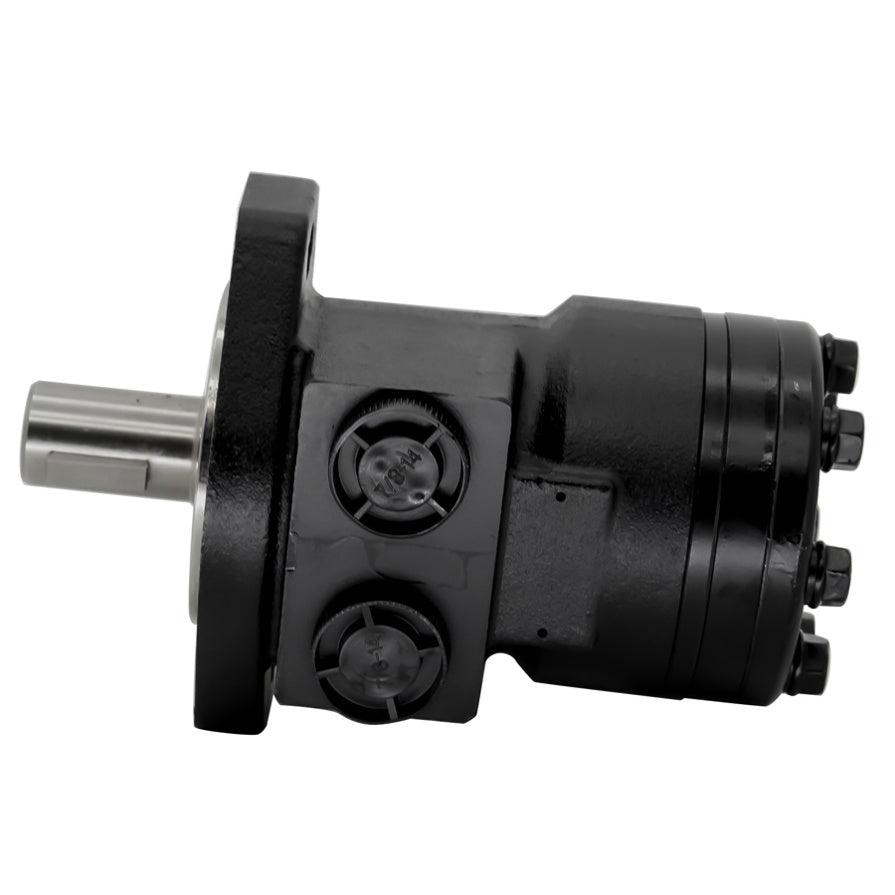

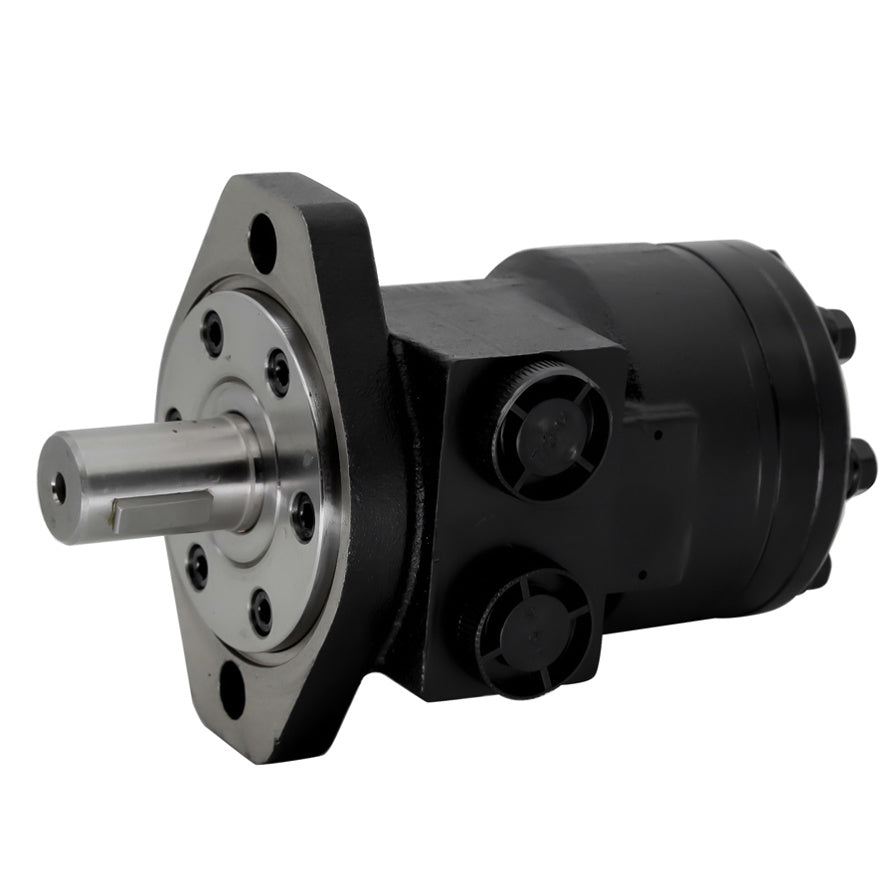

Hydraulic Low Speed High Torque Orbital Motor 100CC 551rpm 178N*m Bi-rotate 81827729
GT-81827729
Out of stock
$193.44
$222.46
Replacement Part Number: Hydraulic Low Speed High Torque Orbital Motor 100CC Displacement: (RPM)Speed: 551 (LPM)Flow: 58 (Mps)Pressure: 14 (N*m)Torque: 178 Applications:Hydraulic Orbital Motors are used for converting hydraulic energy into low-speed high torque rotary motion. Can be used for conveyors, rotating gear and chain drives, platform rotation, robotic arms,...
customers are viewing this product
Replacement Part Number:
Hydraulic Low Speed High Torque Orbital Motor 100CC
Displacement:
(RPM)Speed: 551
(LPM)Flow: 58
(Mps)Pressure: 14
(N*m)Torque: 178
Applications:
Hydraulic Orbital Motors are used for converting hydraulic energy into low-speed high torque rotary motion. Can be used for conveyors, rotating gear and chain drives, platform rotation, robotic arms, wheel drives (check maximum side load, a secondary load carrying bearing may be needed). Used in industrial, mobile, construction, agricultural plastic, and machine tool sectors.
Hydraulic Orbital Motors are used for converting hydraulic energy into low-speed high torque rotary motion. Can be used for conveyors, rotating gear and chain drives, platform rotation, robotic arms, wheel drives (check maximum side load, a secondary load carrying bearing may be needed). Used in industrial, mobile, construction, agricultural plastic, and machine tool sectors.
Specifications:
* Bi-directional rotation. Shaft can rotate clockwise or counterclockwise.
* Thrust Needle bearings for radial and axial shaft load support with a compact design.
* Internal spool valve for efficient oil distribution.
* High pressure shaft seal permits high back pressure from the low-pressure port (opposite of input pressure port).
