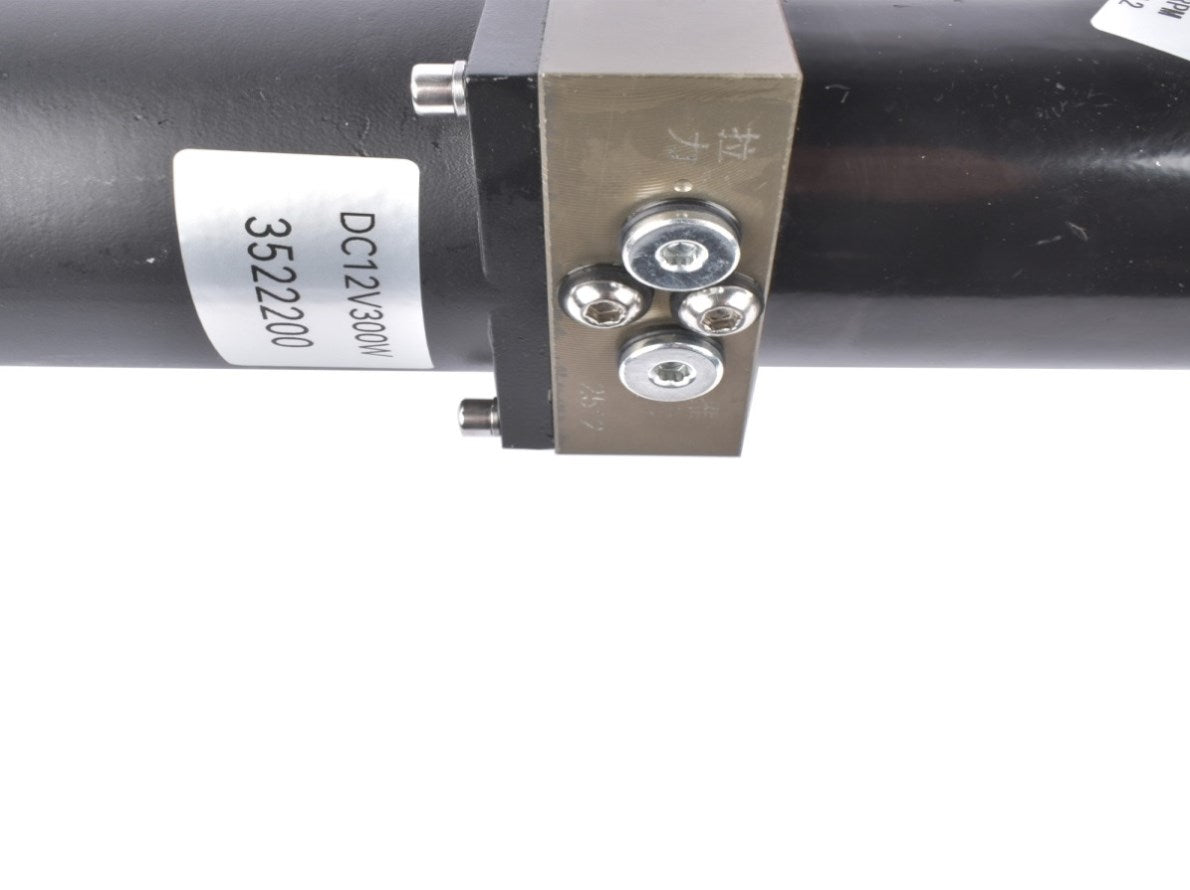

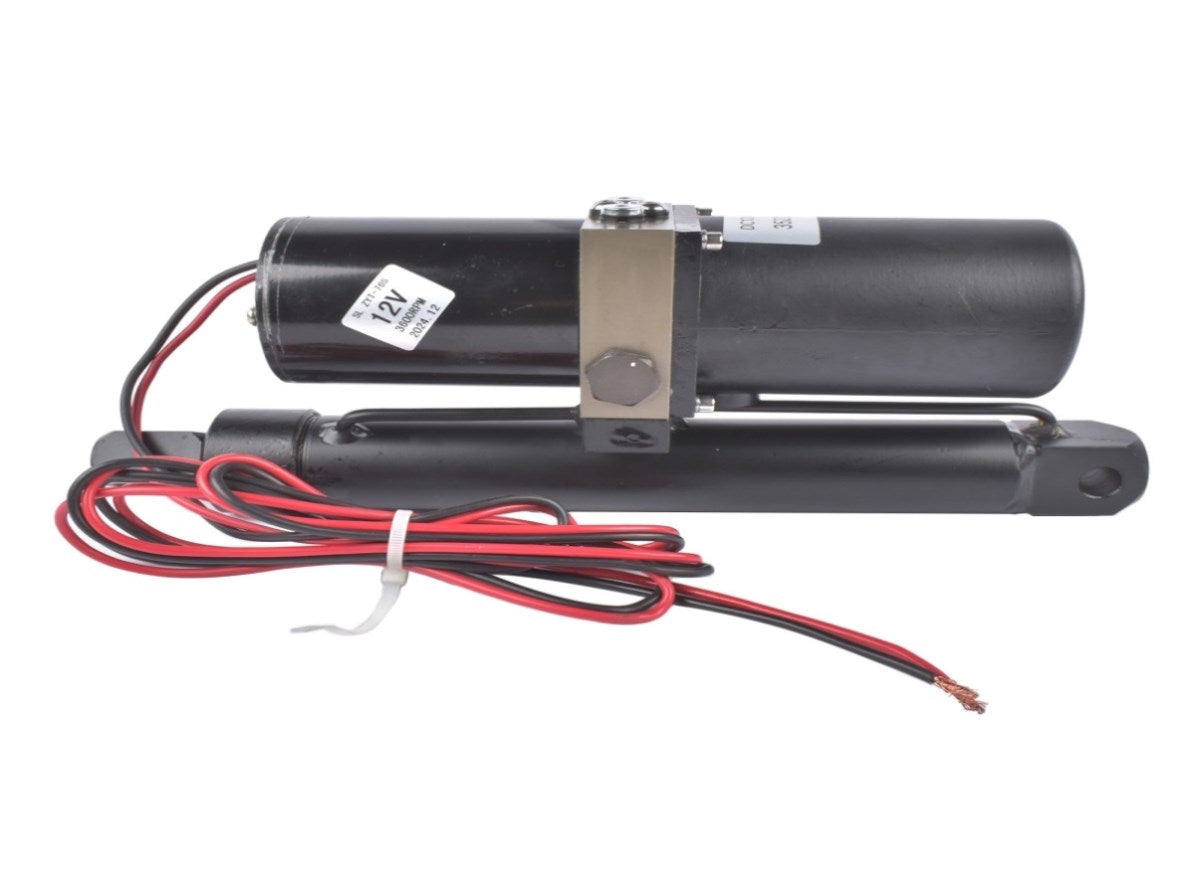

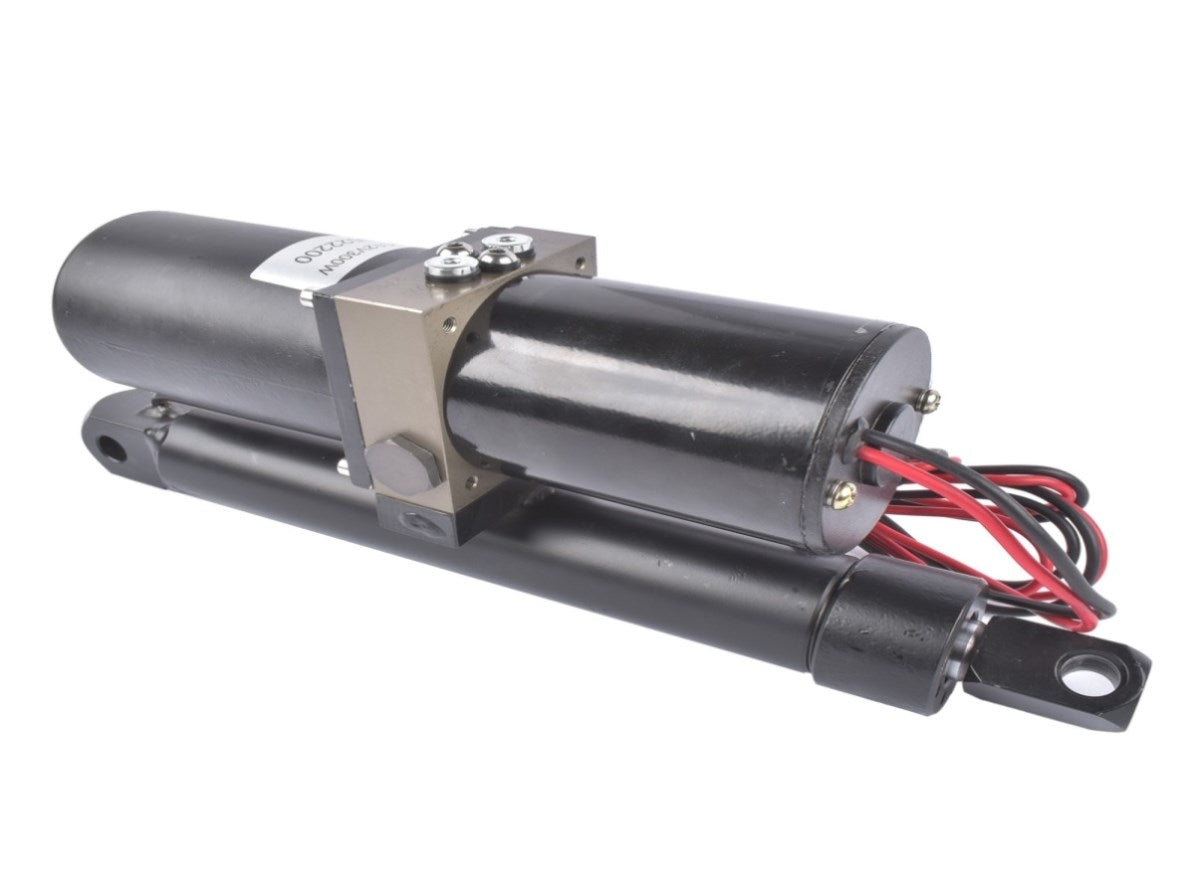

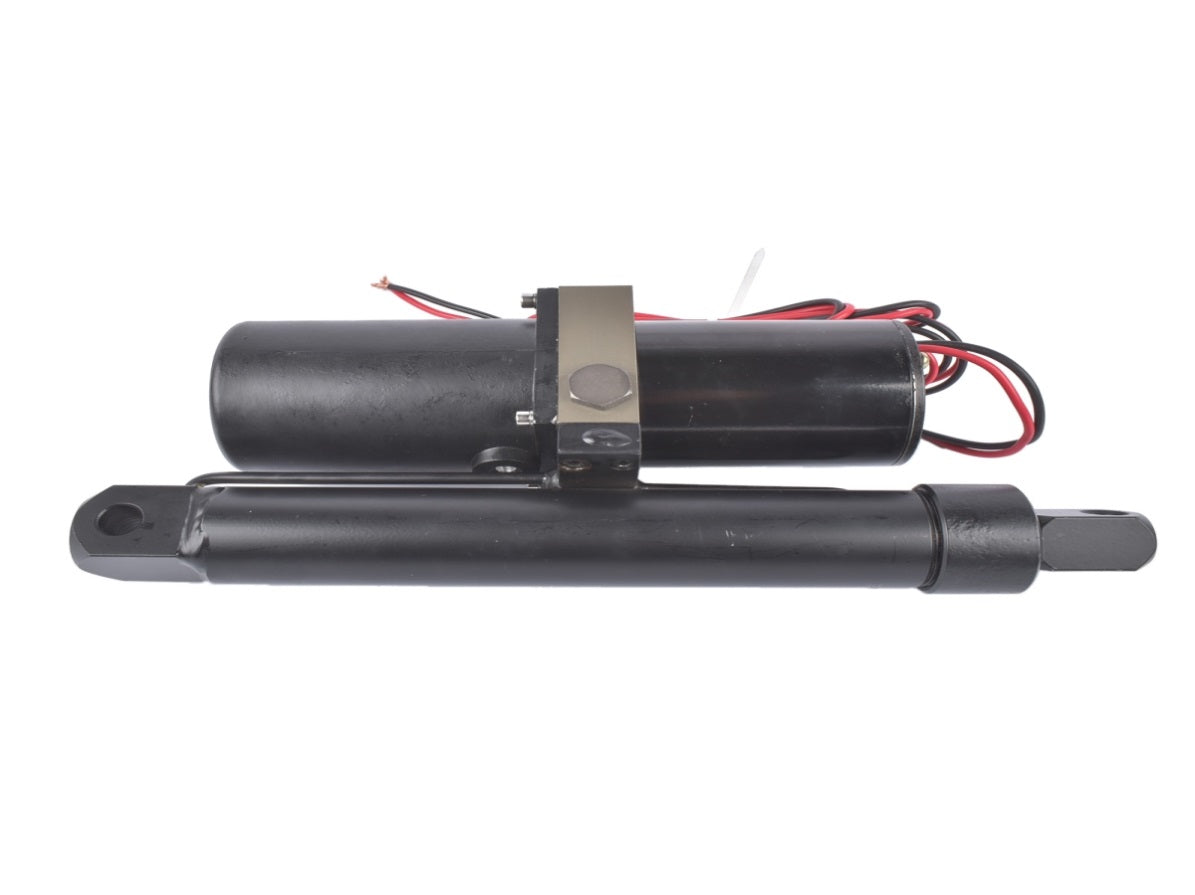

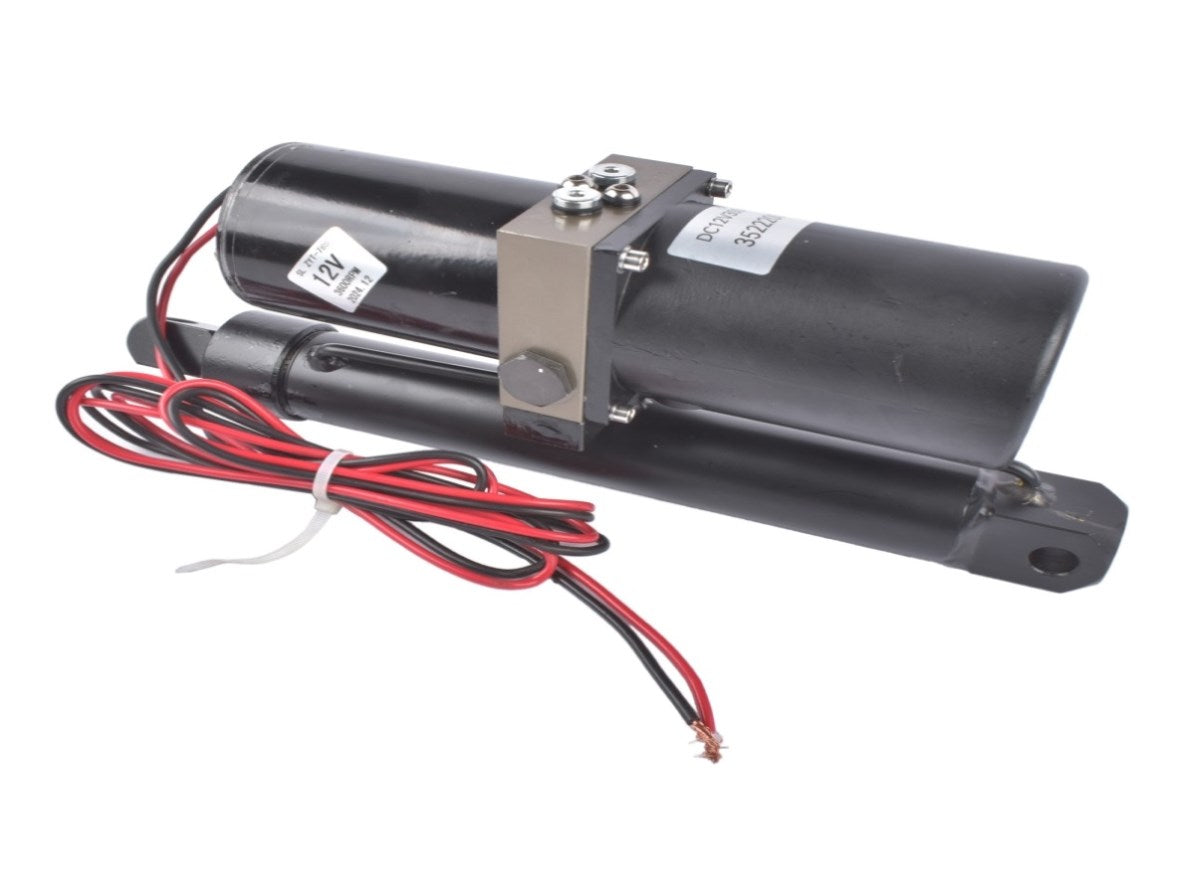

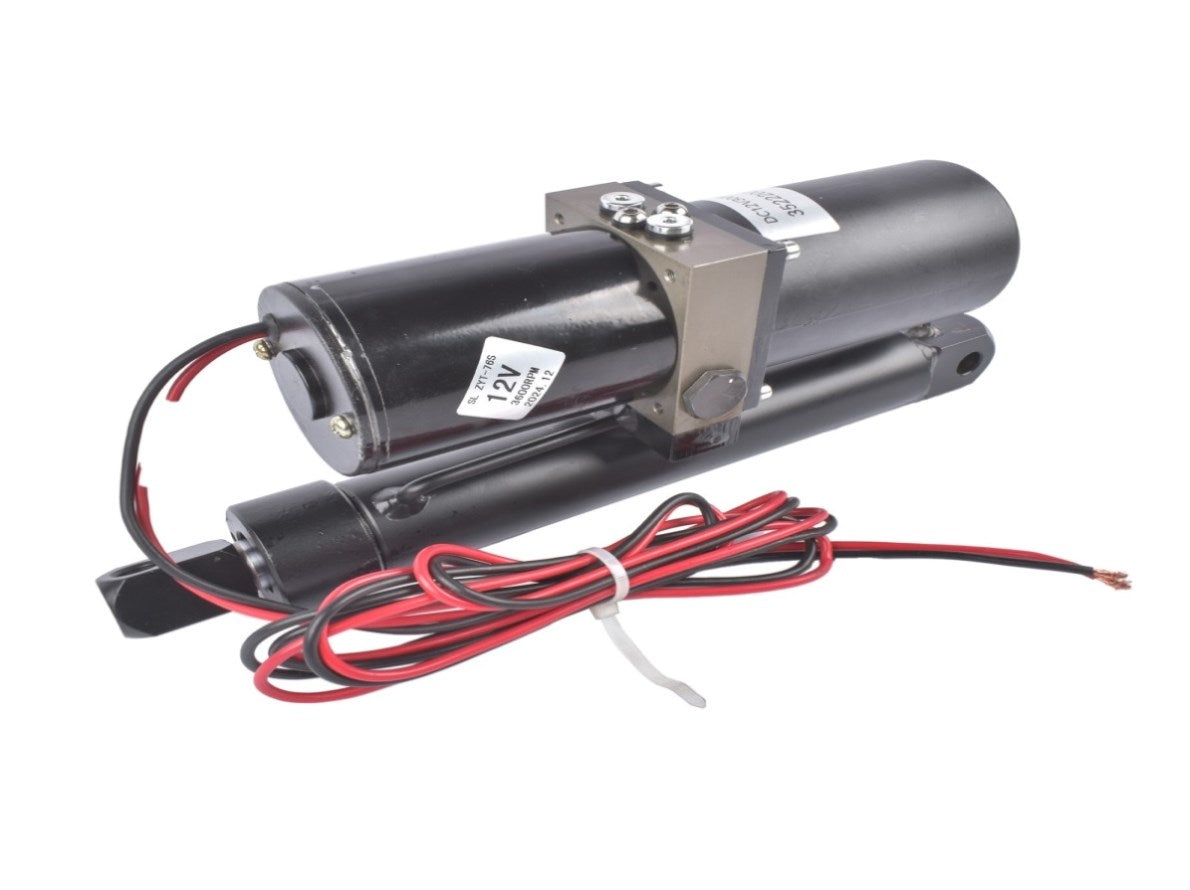

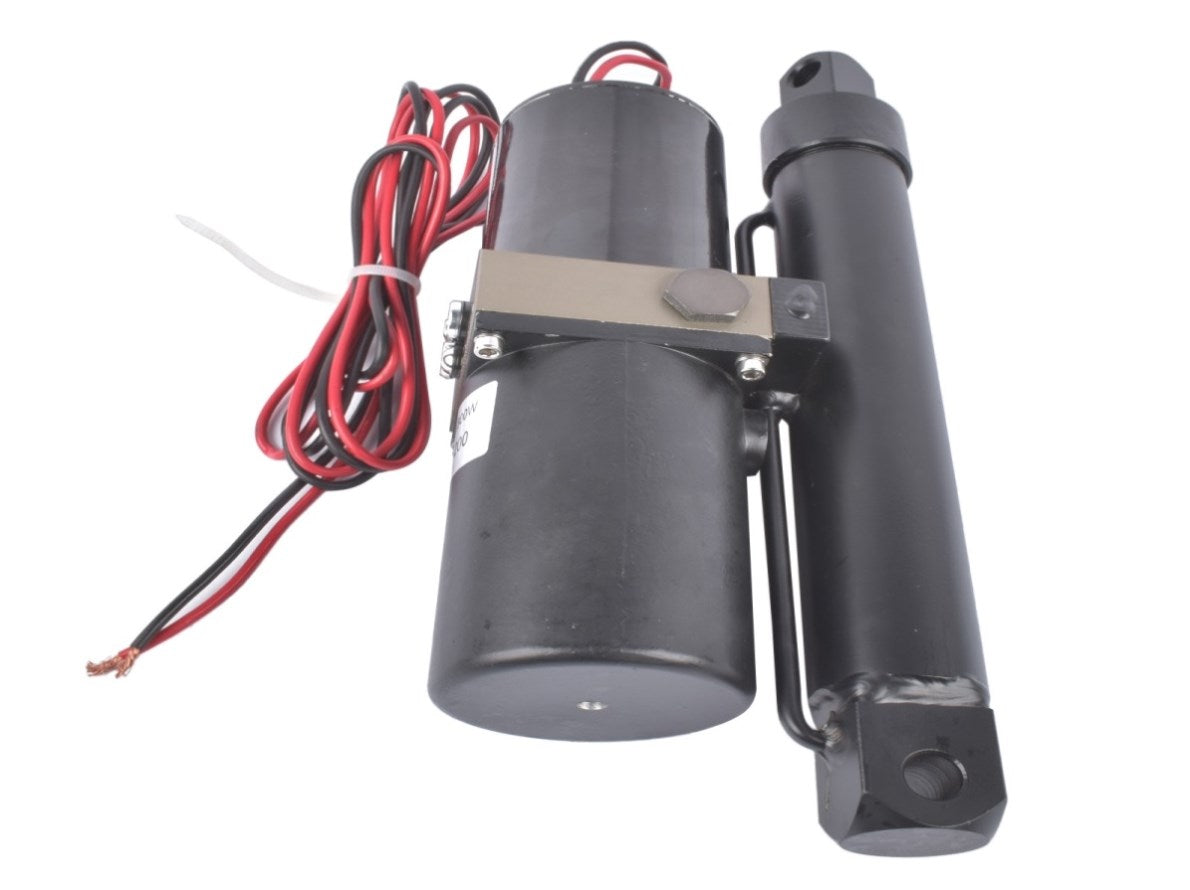

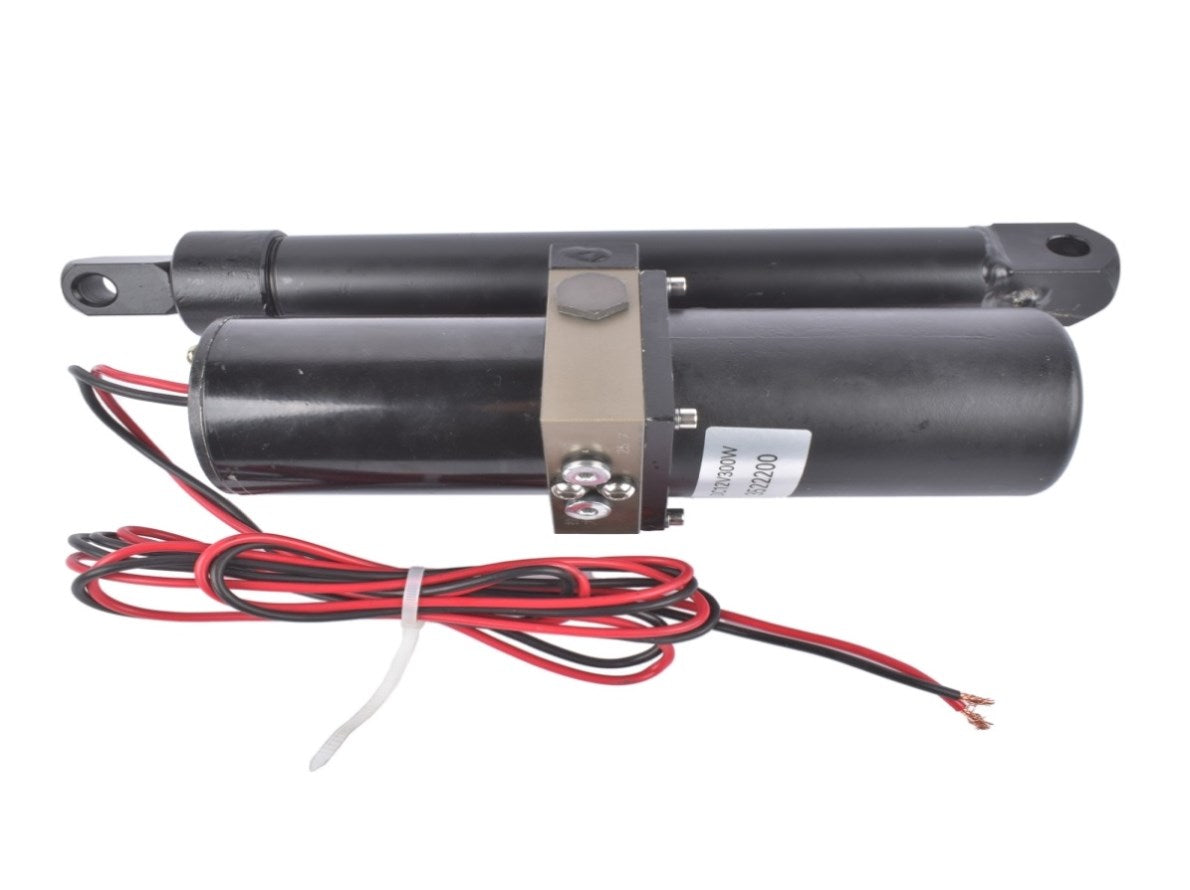

Hydraulic Linear Actuator DC 12V 8" Stroke Length 8000N 1700Lbs Stroke Length 200mm 02773716
GT-02773716
5 In stock
$342.37
$393.72
Widely Used in Farm/Garden Equipment, Utility Vehicle, Industrial Automation Equipment, Boat, Snow Blower, Lifting Platform, Adjustable Beds, Wheelchairs, Industry Mechanical Instruments, Furniture, Sporting Equipment, Etc. Maximum Thrust: 8000N (1700lbs) Running Speed: 13mm/s (unloaded) Working Voltage: DC12V Motor Power: 300W Motor Speed: 3000r/min Oil Pump Displacement: 0.3cc/r Working Pressure: 10MPa Working Stroke:...
customers are viewing this product
- Widely Used in Farm/Garden Equipment, Utility Vehicle, Industrial Automation Equipment, Boat, Snow Blower, Lifting Platform, Adjustable Beds, Wheelchairs, Industry Mechanical Instruments, Furniture, Sporting Equipment, Etc.
- Maximum Thrust: 8000N (1700lbs)
- Running Speed: 13mm/s (unloaded)
- Working Voltage: DC12V
- Motor Power: 300W
- Motor Speed: 3000r/min
- Oil Pump Displacement: 0.3cc/r
- Working Pressure: 10MPa
- Working Stroke: 200mm
- Cylinder Inner Diameter: 35mm
- Linear Actuator Diameter: 22mm
Package Includes:
1x Hydraulic Linear Actuator
