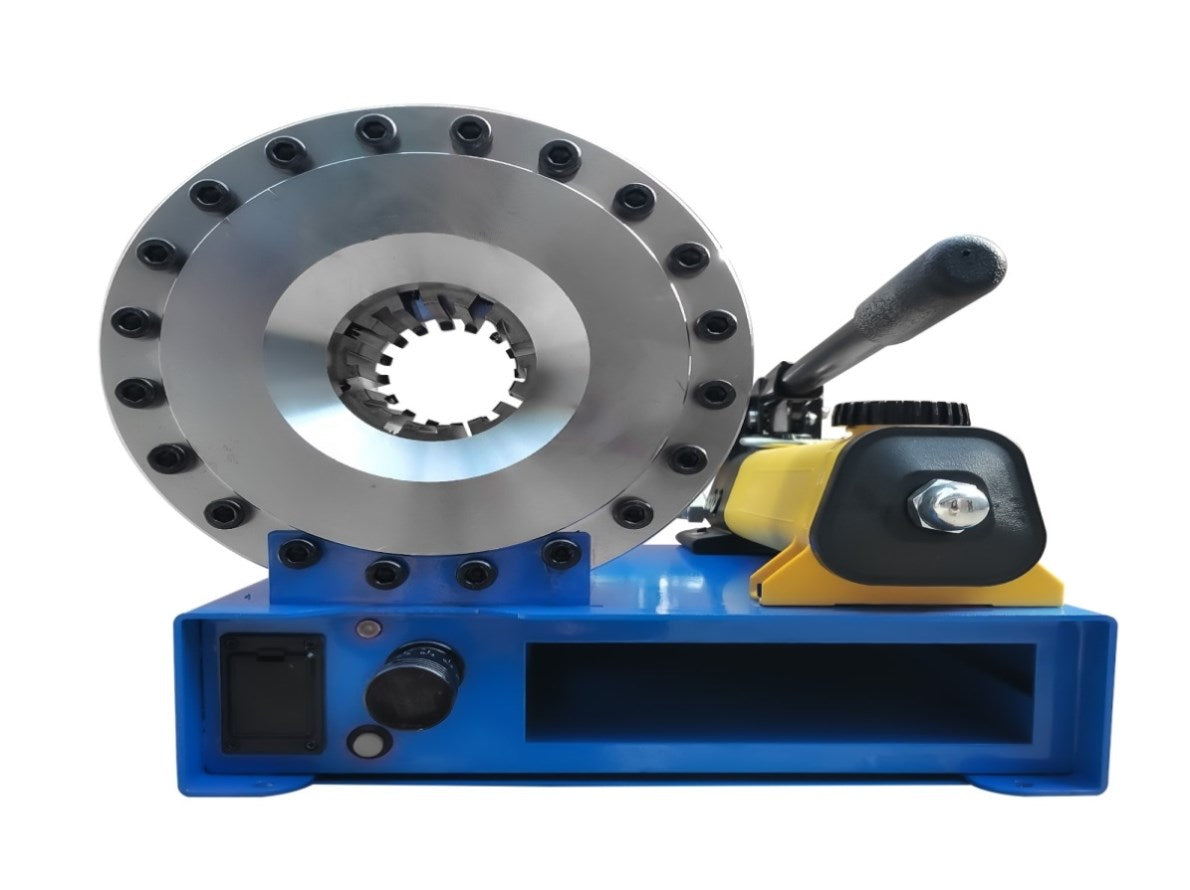

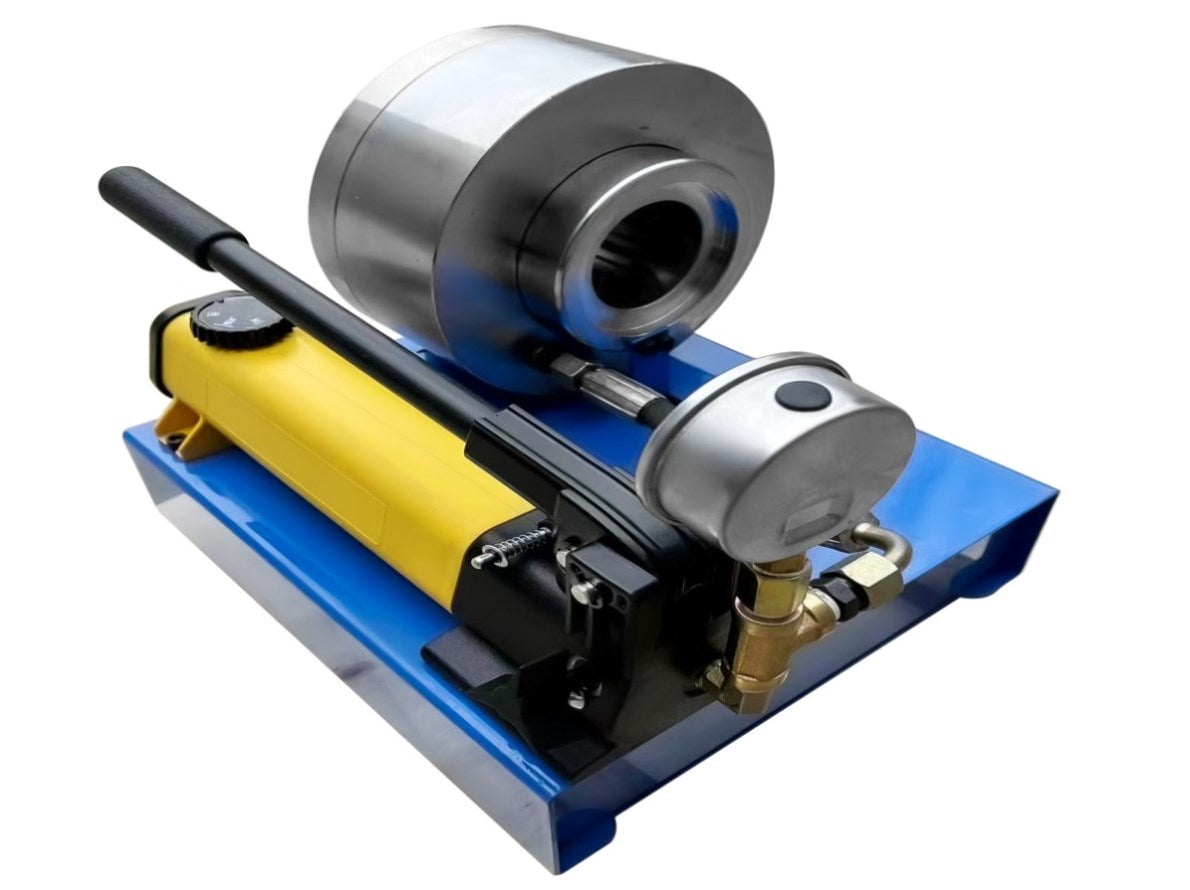

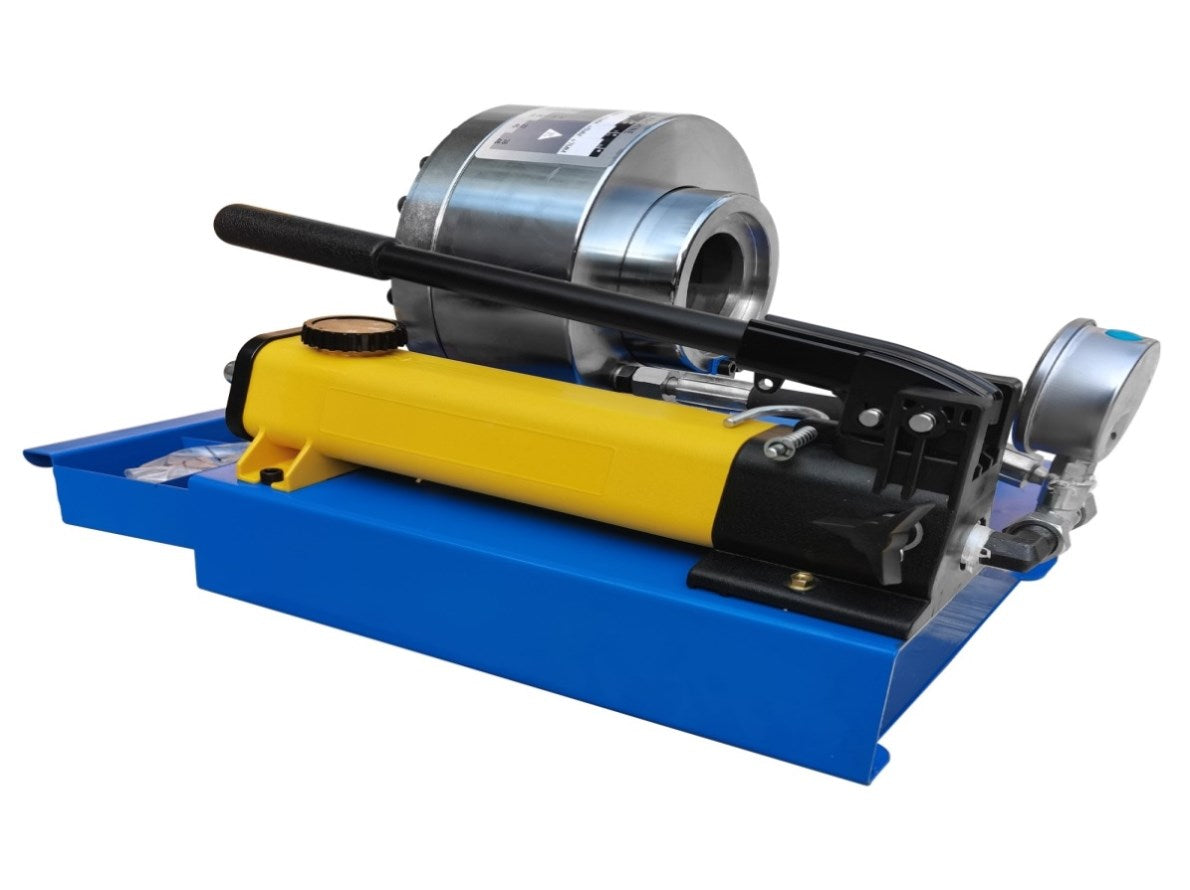

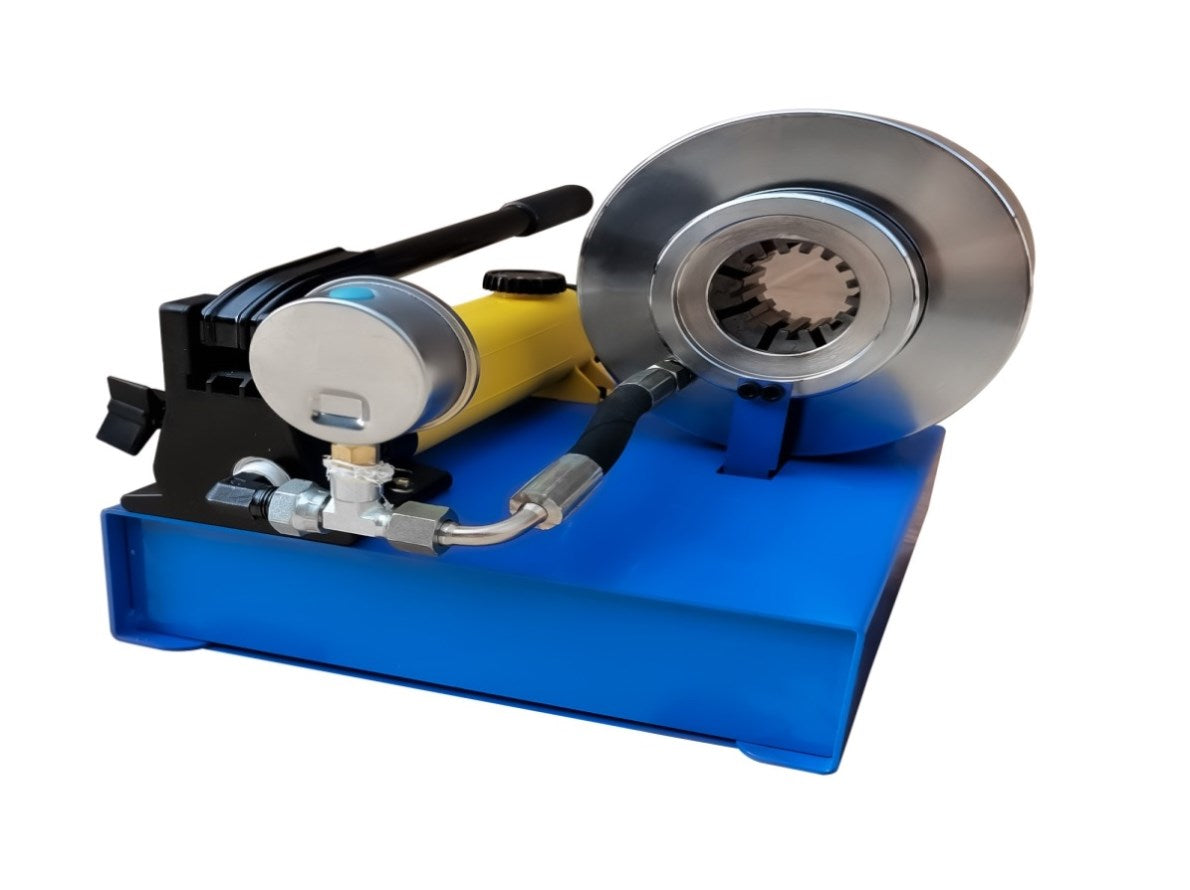

Hydraulic Hose Crimper Machine Pipe Clamping Machine 5600KN With 8 Sets Dies New 78584463

Notice:

Indicator light battery NOT Included

The manual pump operation of buckle pressure mode can flow operation, which is suitable for use without power supply

Parameters:

Buckle pressure : 5600KN

Type: Manual hydraulic hose crimper machine

Operation mode: manual

Crimping range: 6-25mm

Max opening without dies: 1.89"(48mm)

For hydraulic hose: 1/4inch to 1inch 1&2 steel wires(R1&R2)

Crimping inner diameter : 1/8-1inch

System pressure: 31.5MPa

Indicator light battery specification: 6F22 9V battery(exclude battery)

Number of molds : 8 sets (10mm, 12mm，14mm, 16mm, 19mm, 23mm, 27mm, 30mm)

Description:

1. Hydraulic manual crimping machine is compact and easy to move.

2. The manual pump operation of buckle pressure mode can flow operation, which is suitable for use without power supply.
3. Adopt the dedicated die steel material and unique heat treatment process.
4. Limit valve,rotary positioning, scaleadjustment,high precision,used toadjust the shrinkage.

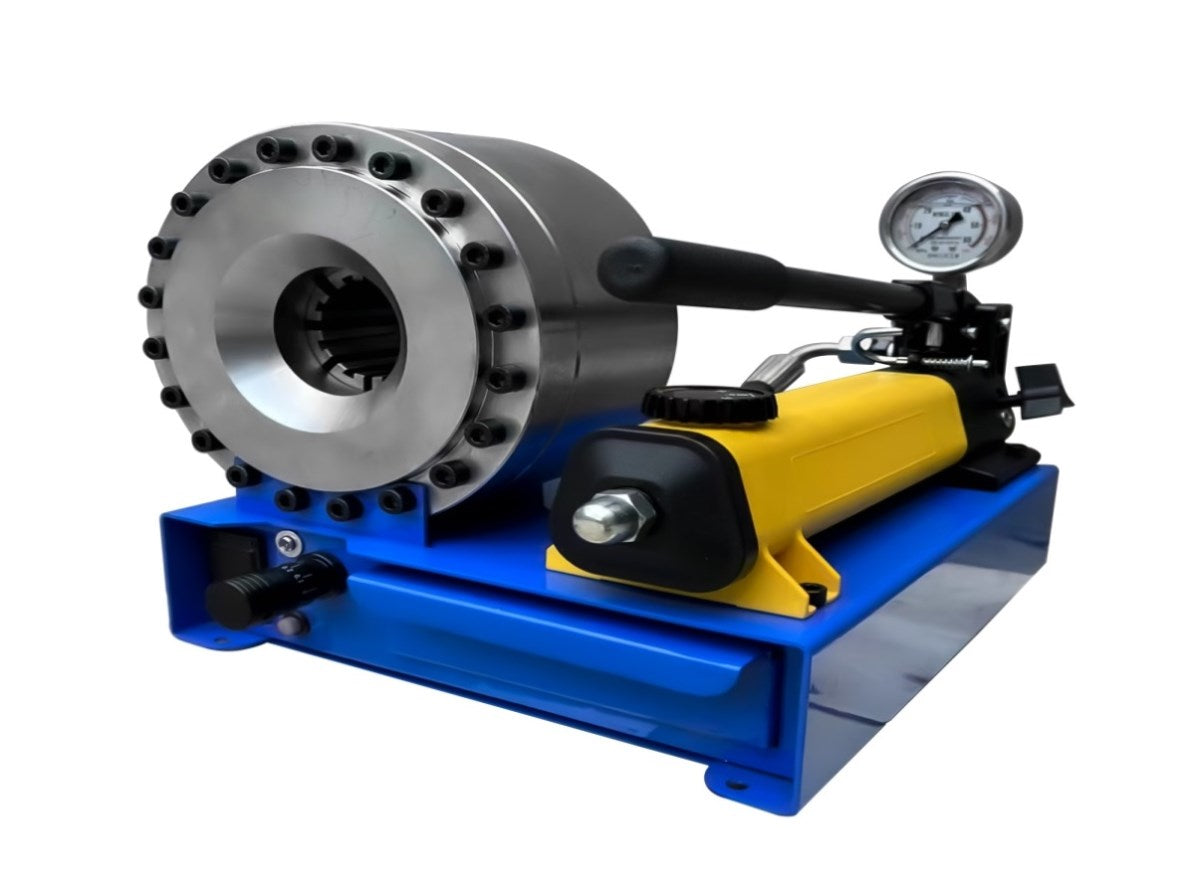

5. Hydraulic gauge real-time display the pressure to avoid pressure overload.

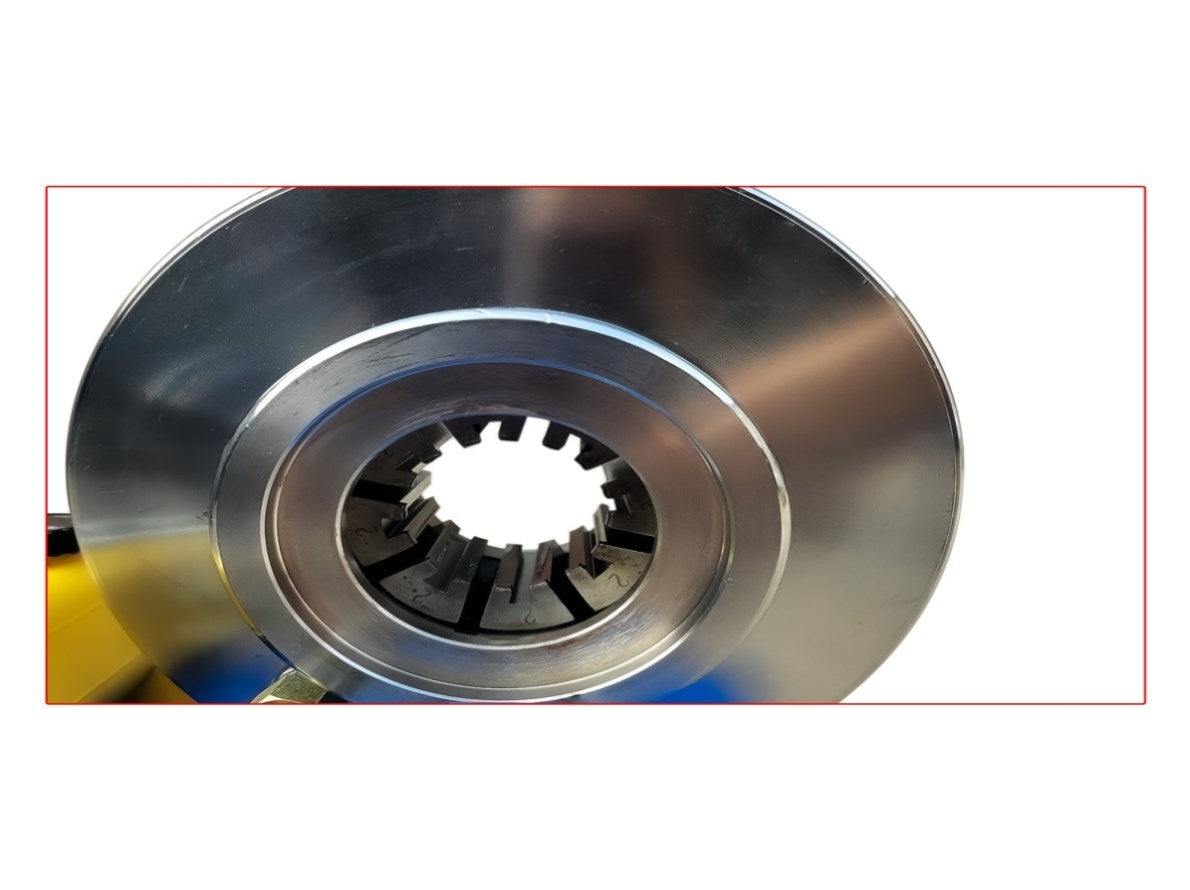

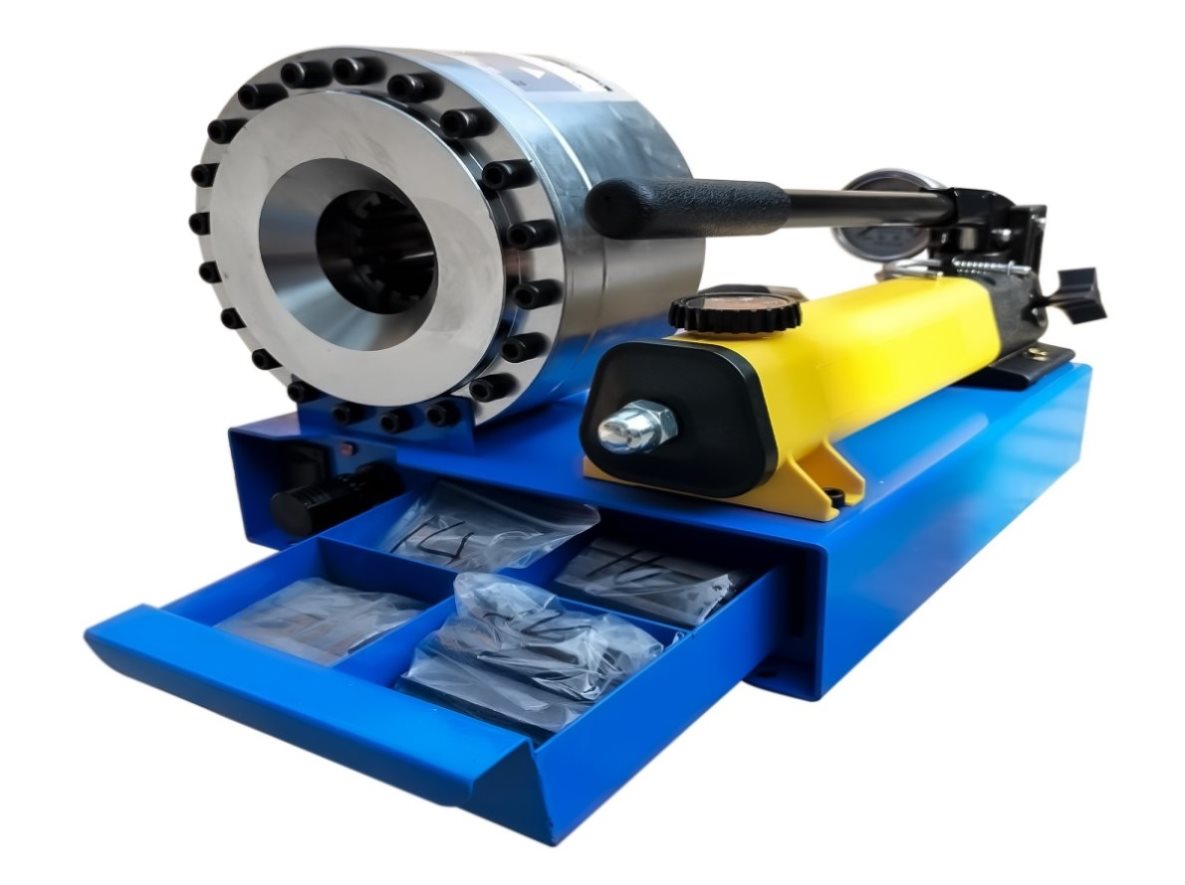

6. Euipped with 8 set of dies mould, convenient to remove and install dies.

Package Includes:

1 x Hydraulic Hose Crimping Machine

8 sets Dies
