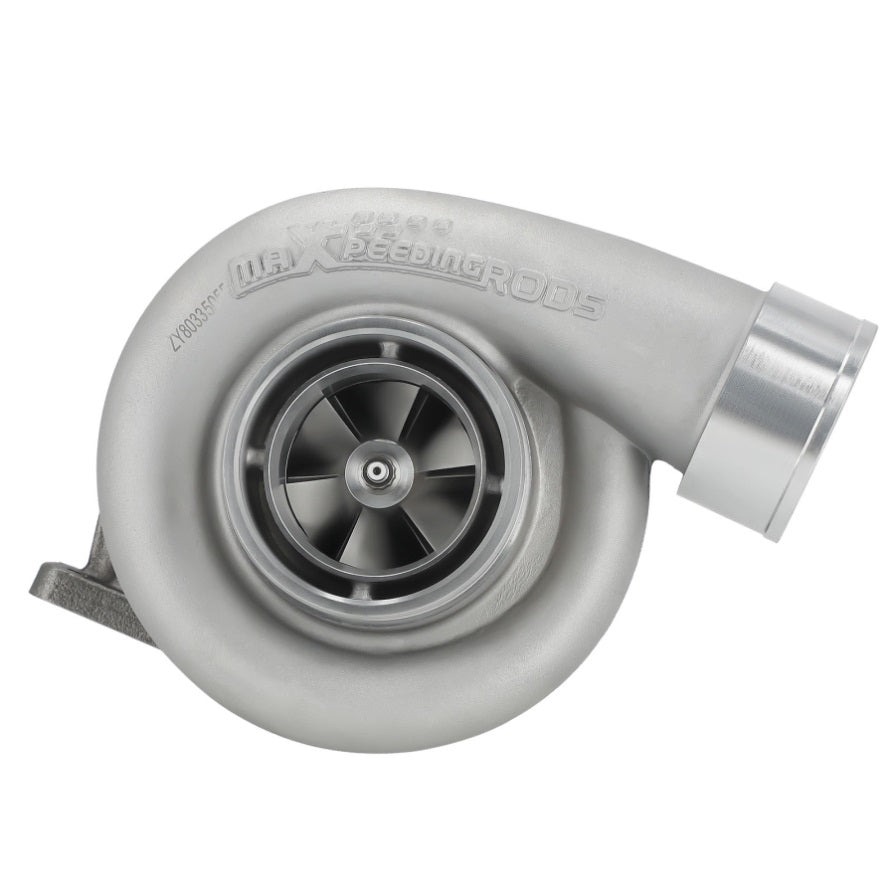

GT45 T4 V-Band 1.05 A/R 88MM Huge 600HPS Boost Upgrade Racing Turbo Charger Fit for All 4.0L-6.0L 95808767
Application:
This turbo is a universal application turbo, some modification may be required based on individual vehicle.
Perfect fit for all 4.0L-6.0L engine
Specification:

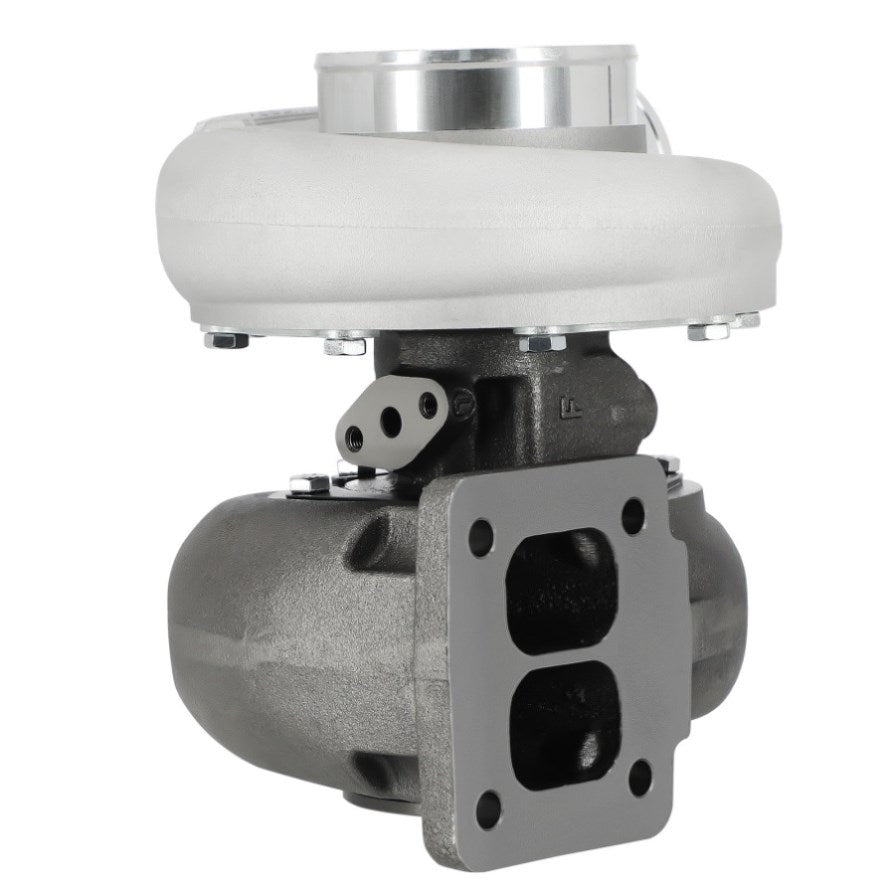

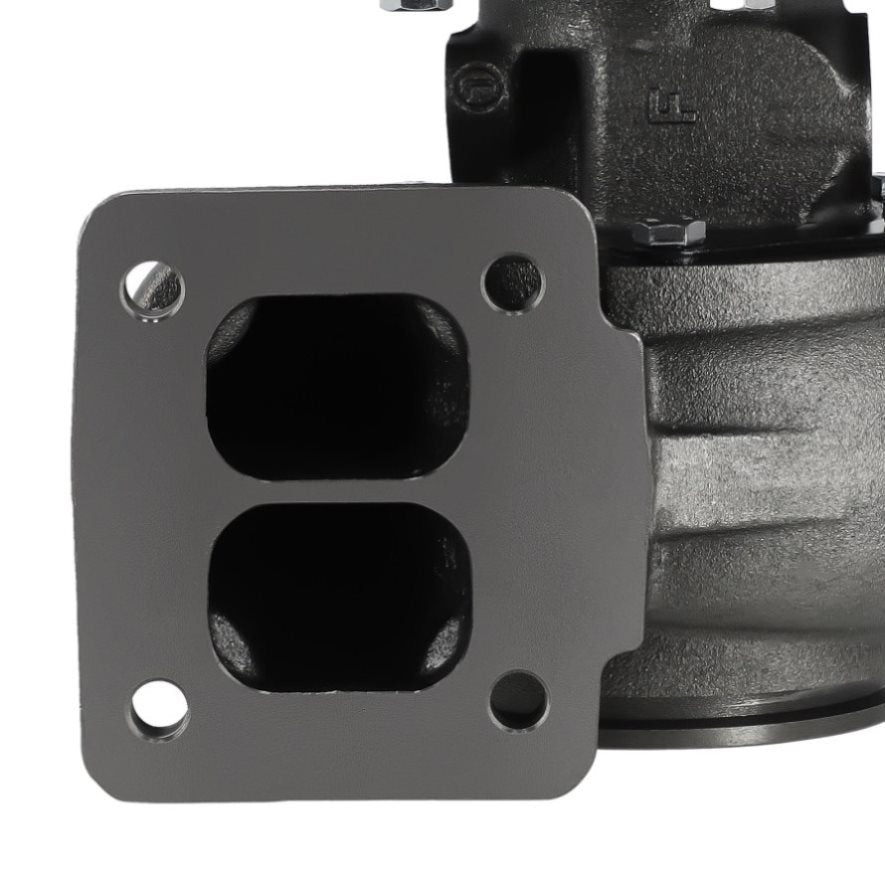

Exhaust Inlet Flange: T4 Twin Scroll Flange
Exhaust Outlet Flange: 3.25 " Inlet Flange 4.25" Clamp V-Band
Bearing Type: Wet Float
Cooling Type: Oil Cooled

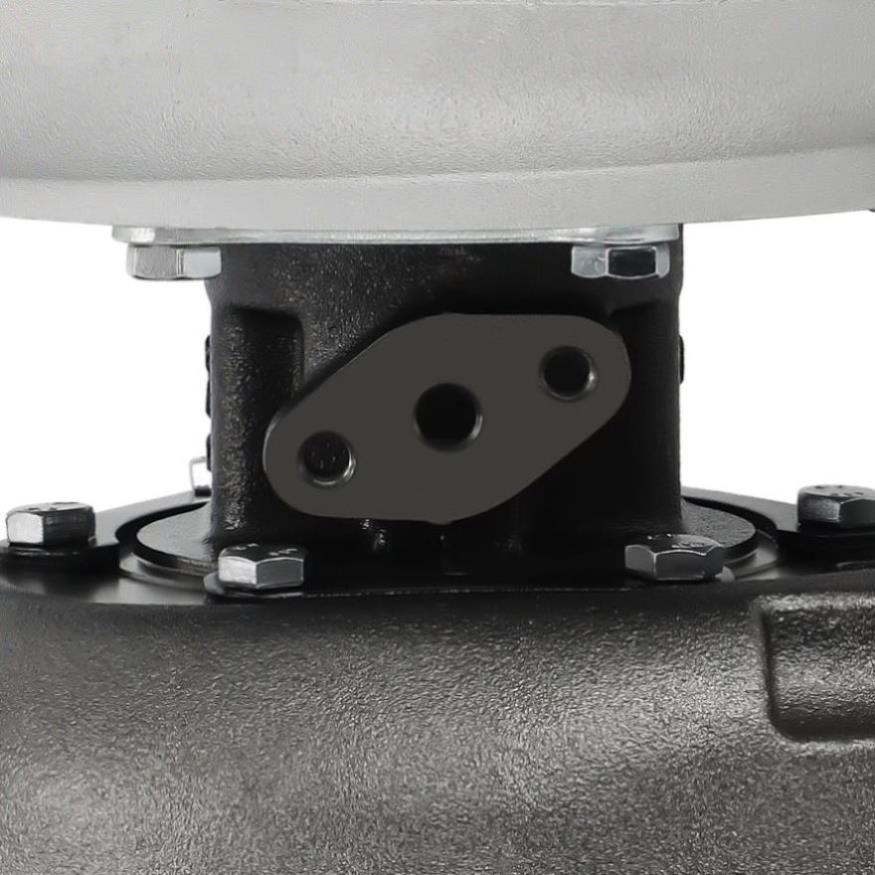

Oil Inlet: M9 & 2*M8*1.25
Oil Outlet: M19 & 2*M8*1.25
Wastegate: w/o Wastegate
Hosepower: Up to 600+HP
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New
Package Size:30x 30x 27 cm
Package Weight: 16400g
Compressor:
Compressor Trim: 49.6
Compressor Inducer Diameter: 69 mm
Compressor Exducer Diameter: 98 mm
Compressor Air Inlet Size: 107mm
Compressor Air outlet Size: 86.3mm
Compressor A/R: 0.66

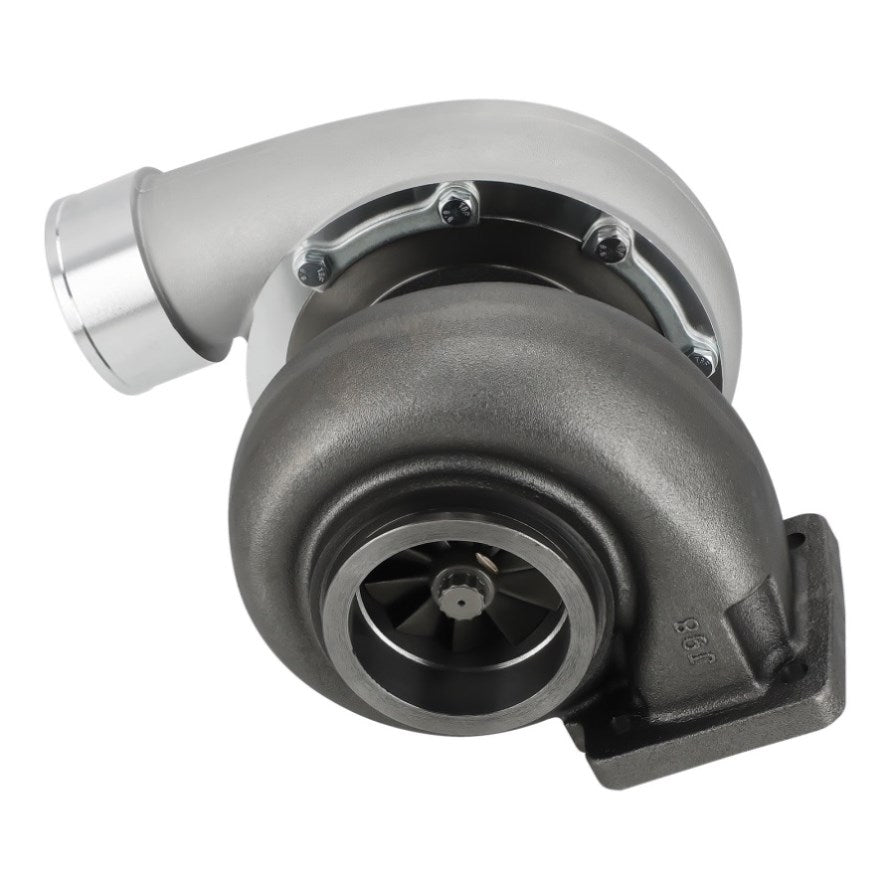

Turbine:
Turbine Trim: 77.6
Turbine Inducer Diameter: 88 mm
Turbine Exducer Diameter: 77.5 mm
Turbine A/R: 1.05
Product Material:
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
Product ：
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
NOTE：
* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
NOTIECE:
Authority ID：MXR02FXSY
Notice：California Prop 65 Warning
