Gear Hub Puller Bearing Separator Separator Removal Adapter Puller Pulley Set 90667830

Application:
fit for removing gears, hubs, ball seats, bearings, pulleys and sprockets.
fit for small engine flywheels.
fit for Vehicle repair, machinery repair, equipment repair etc.

Specification:
Product Parameters:
It includes 4 sizes of pullers: 3", 4", 6", and 8".
3" Puller with a  4.3" max reach and 3" max.    spread.
4" Puller with a  5"  max reach and 4" max.    spread.
6" Puller with a  7.3"  max reach and 6" max.    spread.
8" Puller with a  9.3"  max reach and 8" max.    spread.
Material: 40cr alloy steel
Color: red box
Product Color: Black, Silver
Operation Type: Manual

Feature:
Wide range of application: the puller kit can be assembled into 2 PAWS or 3 PAWS according to the actual operation needs, which greatly expands the use of the puller.

Good material: The use of high-quality chromium vanadium steel, 40CR die forging and heat treatment, quenching anticorrosion and rust prevention treatment, excellent corrosion resistance, high strength, can withstand high strength pressure, not easy to deformation, fracture.

2-Jaw/3-Jaw Easy Conversion&Multiple Sizes:Puller set can be assembled into 2 claws or 3 claws according to actual operation needs, which greatly expands using scope of the puller.   It includes 4 sizes of pullers: 3", 4", 6", 8".   3" puller with a 4.3" max reach and 3" max spread.   4" puller with a 5" max reach and 4" max spread.   6" puller with a 7.3" max reach and 6" max spread.   8" puller with a 9.3" max reach and 8" max spread.   Various sizes are suitable fit for different disassembly scenarios.s.

Reversible bearing separator: The jaws of the pull gear group can reverse the inner and outer pull parts by adjusting the nuts and bolts at the joint. The jaws of the pliers are connected by high-strength nuts, which are firm and not easy to loosen. Even pressure is applied to the jaws of the pulley bar to prevent damage to the removed parts. The hexagonal head loose screw of the bearing puller is suitable fit for use with a ratchet or wrench, and the oversized rotating thrust plate prevents damage to the shaft end.

Long service life: The outer surface and inner surface of the bearing tie rod are galvanized to increase corrosion resistance, and are coated with an antioxidant layer to prevent rust and provide you with a longer service life.

Easy to carry: The bearing tie rod kit comes with a heavy-duty blow molding kit fit for safe storage, easy transport and quick organization. The grooves in the case can protect the gear pullers from wear, and can make the hub pullers sorted neatly after use. You don't have to worry about the puller getting lost or messing up.
Safety and protection: The moulded kit has grooves to protect the extractor from wear and tear and allows you to neatly sort your wheel extractor after use. You don't have to worry about losing or messing up your pulley.

Detail
T-shape structure: Stable performance even under high pressure, and the rotating screw can be inserted more firmly into the object being moved.
Double hole: Double hole adjustment design, can be adjusted to reduce the use of restrictions.
End thickening: Leg end thickening, can withstand high pressure, not easy to break, more reliable and firm.
High strength bolt: used with the steel plate, the screw frame and the jaws are firmly connected to ensure safe operation.
Rounded corners: Compared with the traditional square corners, the arc design can better ensure the safety during installation and use.

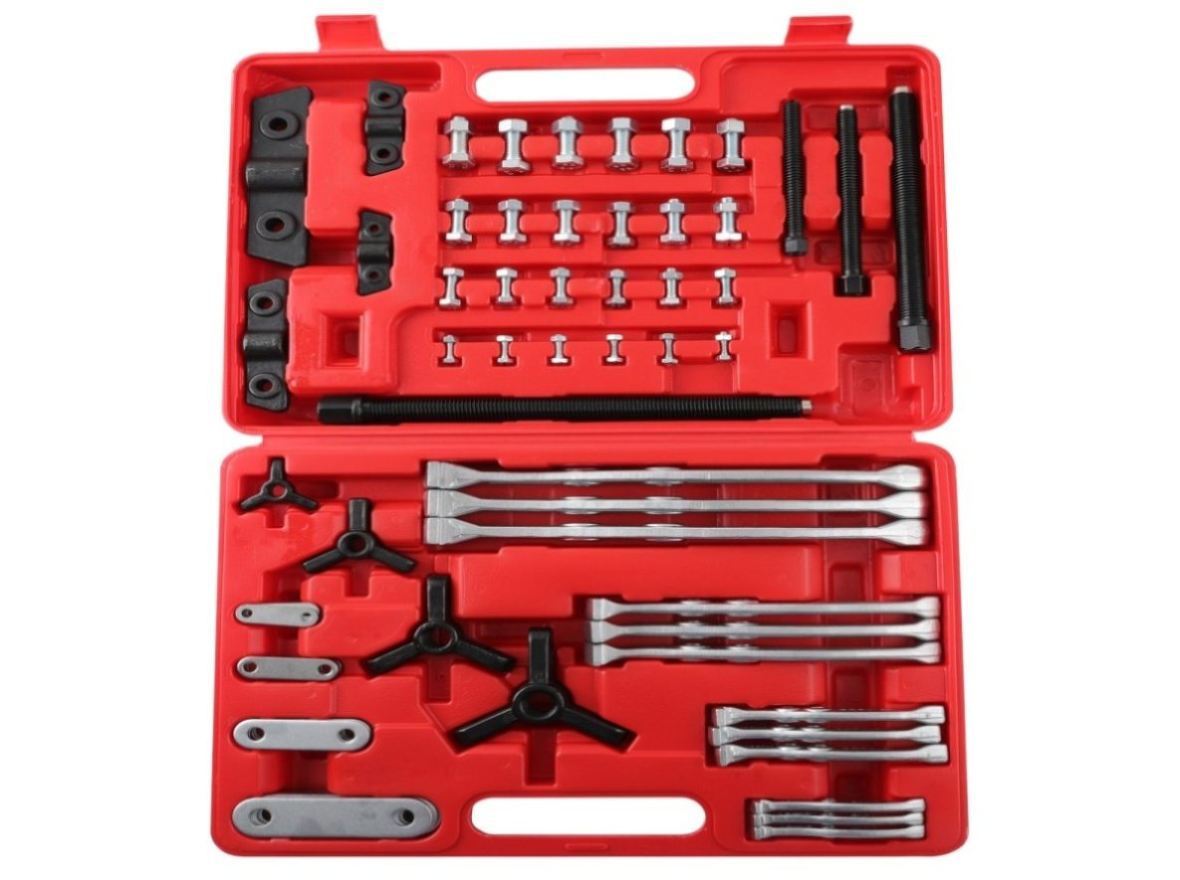

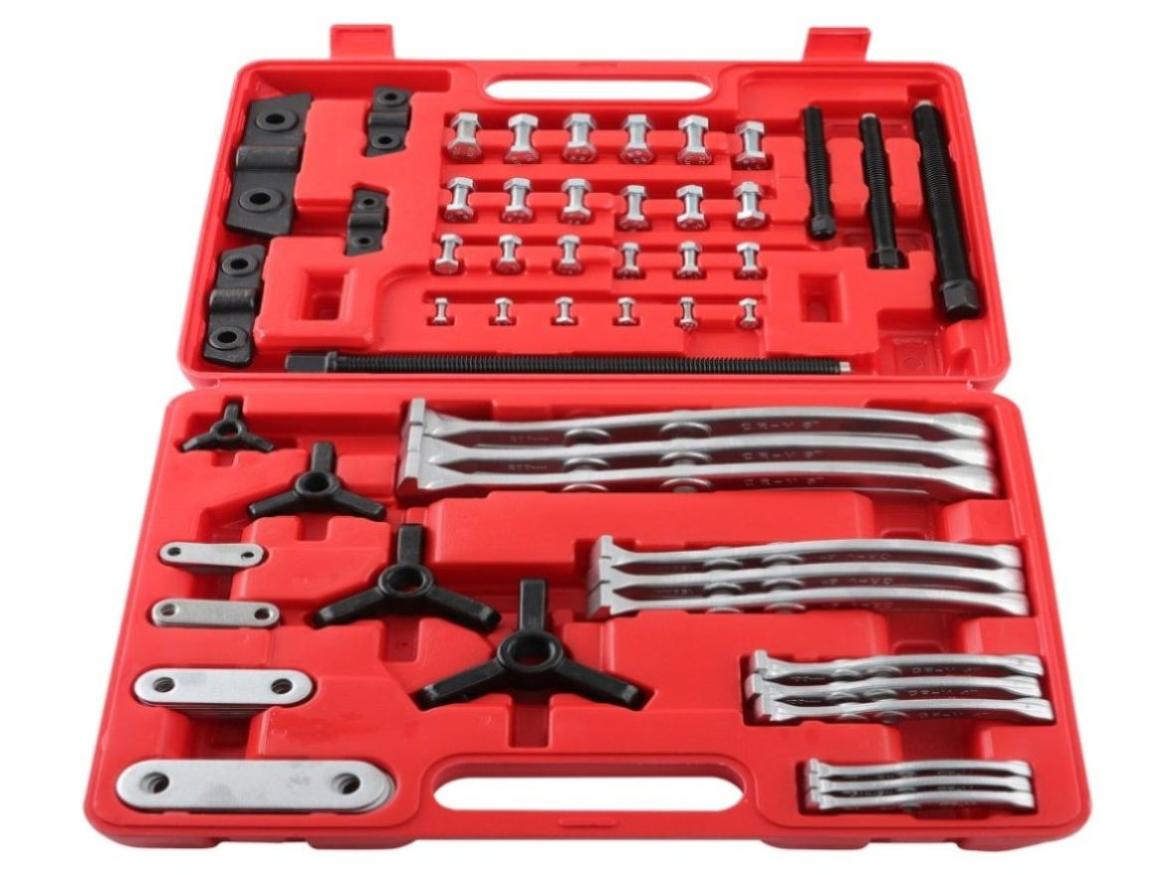

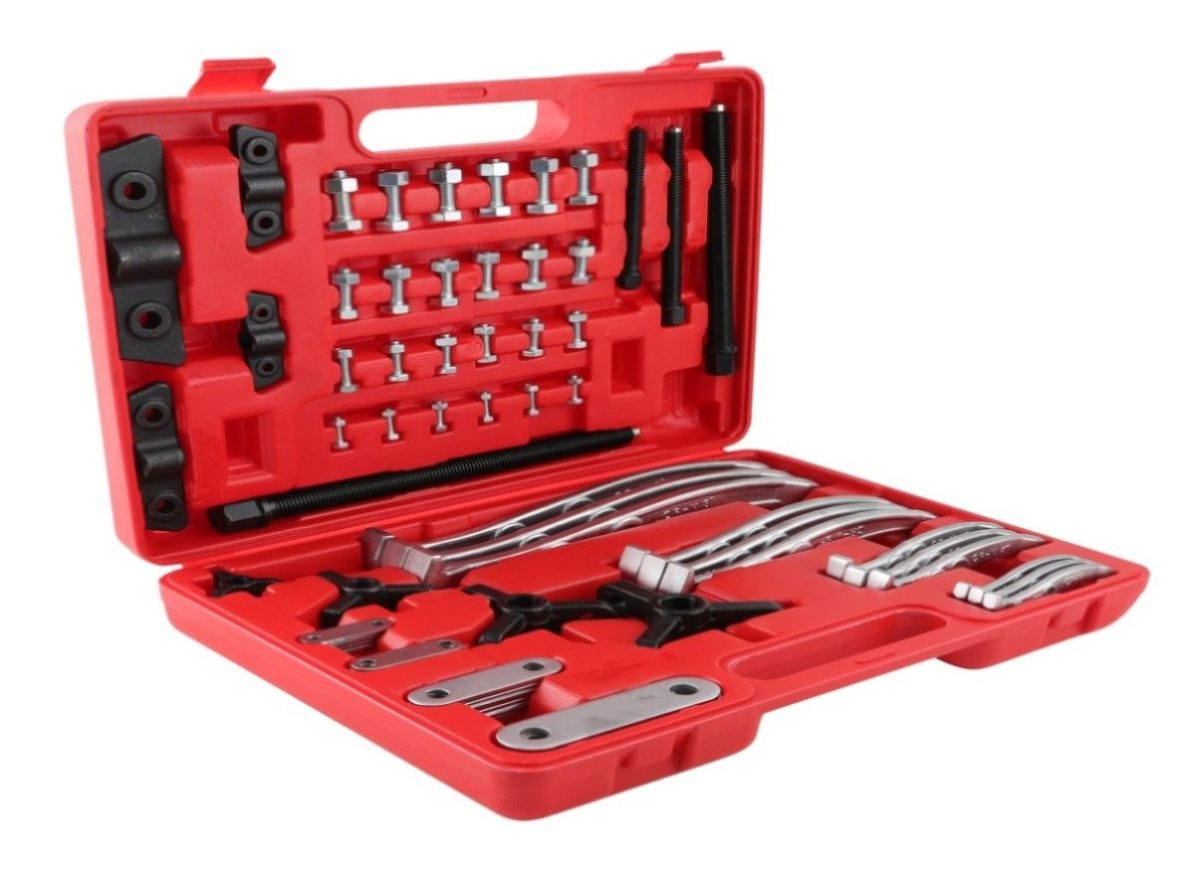

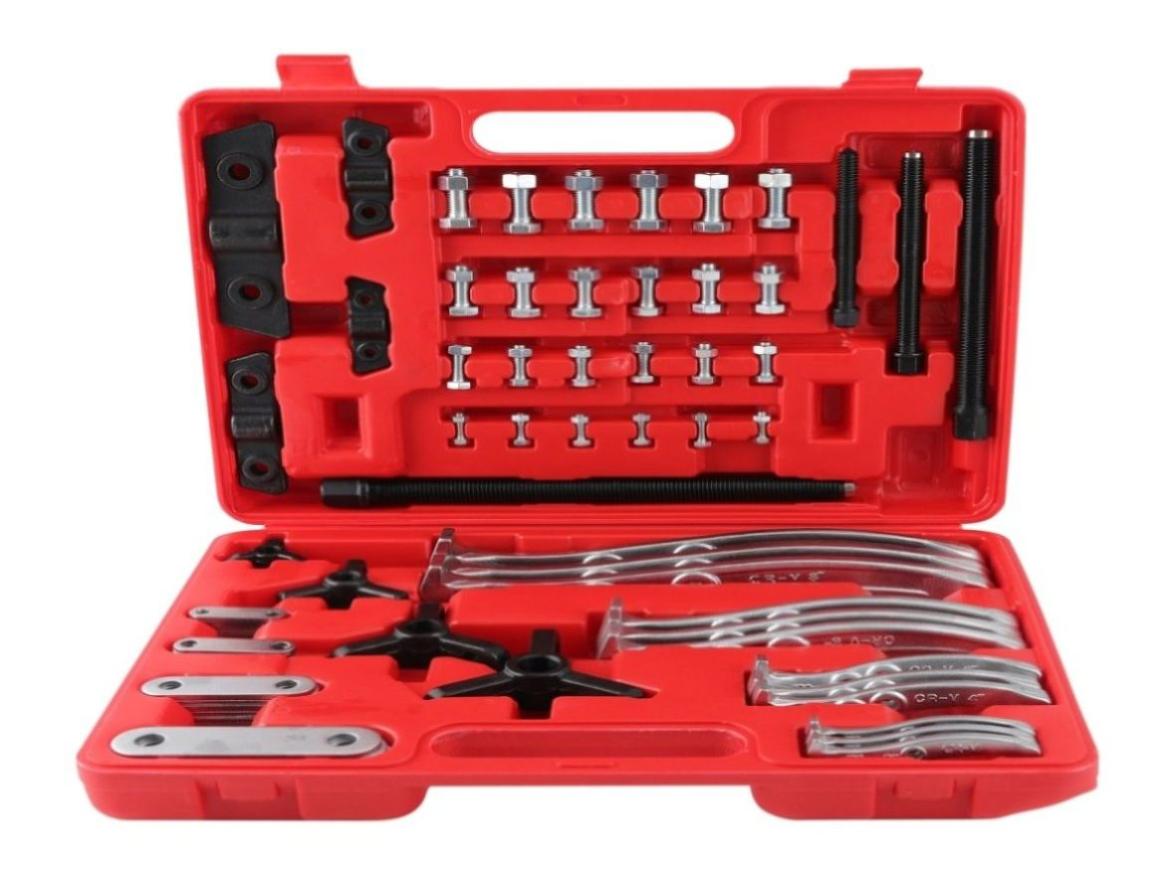

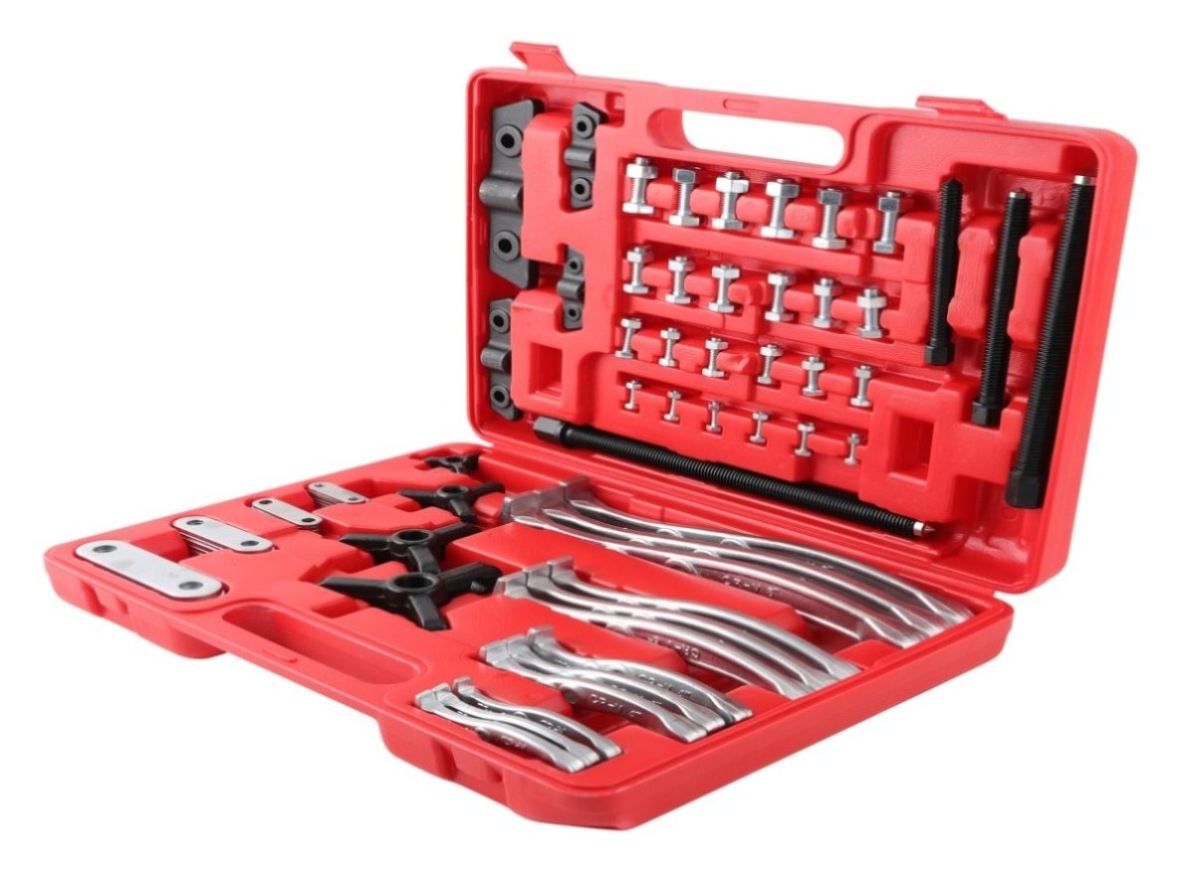

Package included:
4pcs * Hexagonal Opposite Screw Rods（1pc per specification）
4pcs * Triangular Screw Rod Holders（1pc per specification）
4pcs * Two Corner Screw Rod Holders （1pc per specification）
12pcs * Leg Puller（3pcs per specification）
24pcs * Nuts（6pcs per specification）
24pcs * Bolts（6pcs per specification）
24pcs * Metal Clips（6pcs per specification）
