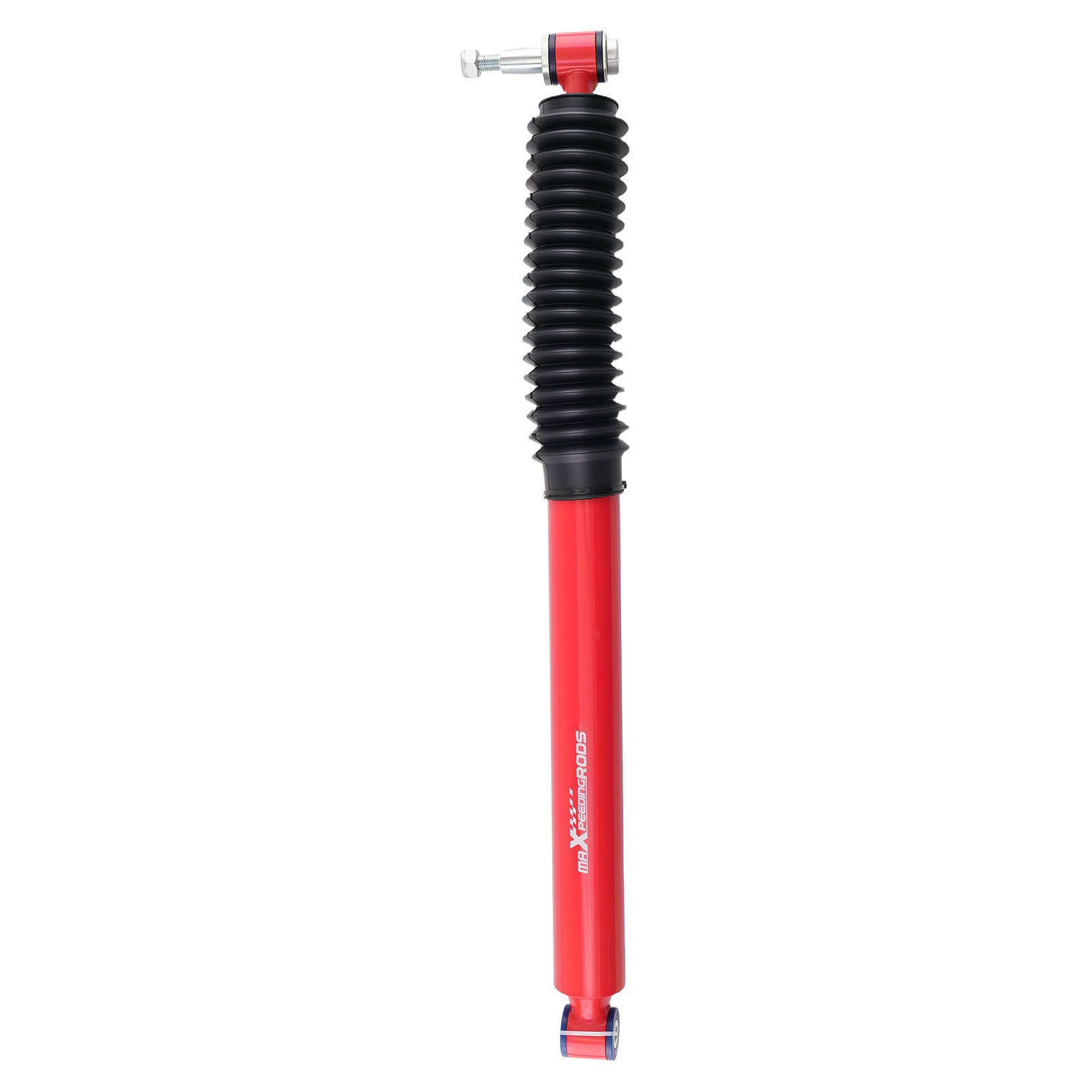

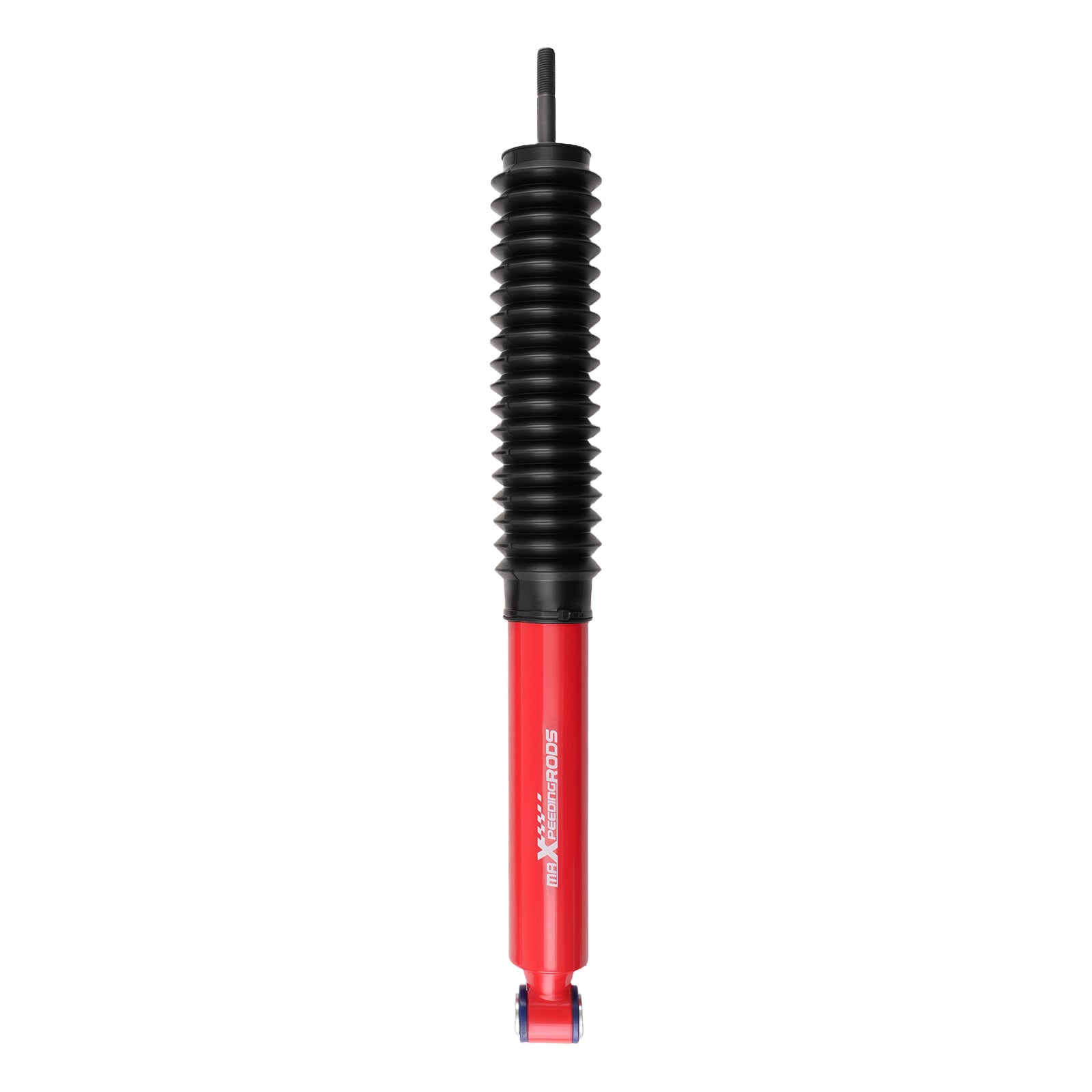

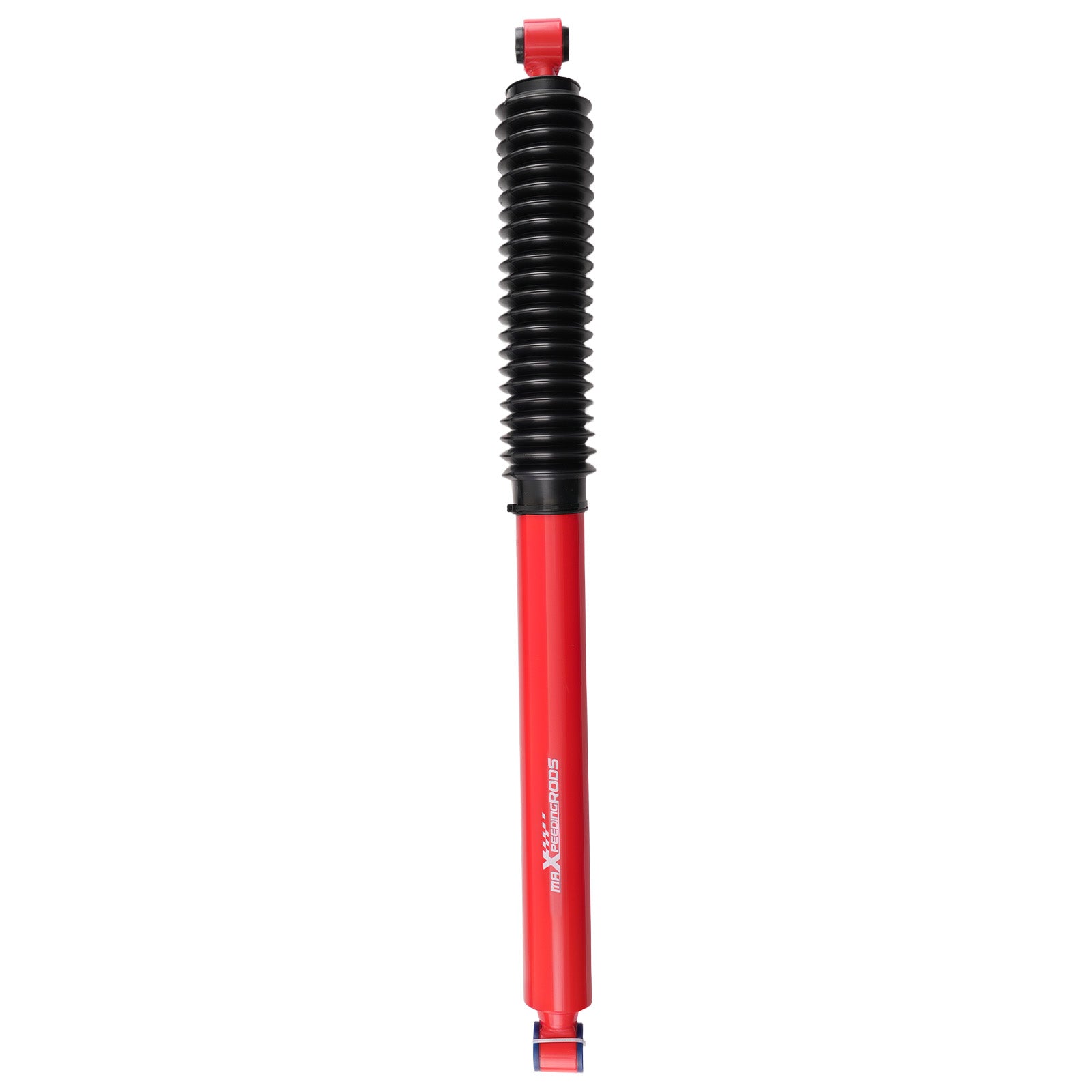

Gas G3 Lift Shock Kit fit for Ford F250 F350 SD 4WD 2008-2016 Front Rear 5PC 94051332

Application:

• fit for Ford F250/F350 SD 4WD 2008-2016

Feature:

• Monotube design Improve Heat Dissipation, Enhance Responsiveness and Control, reduce Foam and Cavitation
• 16mm Chromed Hardened Piston Rod.
• 46mm Diameter Sintered Iron Piston.
• 52mm body diameter fit for better heat dissipation.
• High quality shock oil and NOK seals ensure 100,000+ mile reliability even at 120°
• High Tensile Strength Steel fit for optimal durability and fitment.

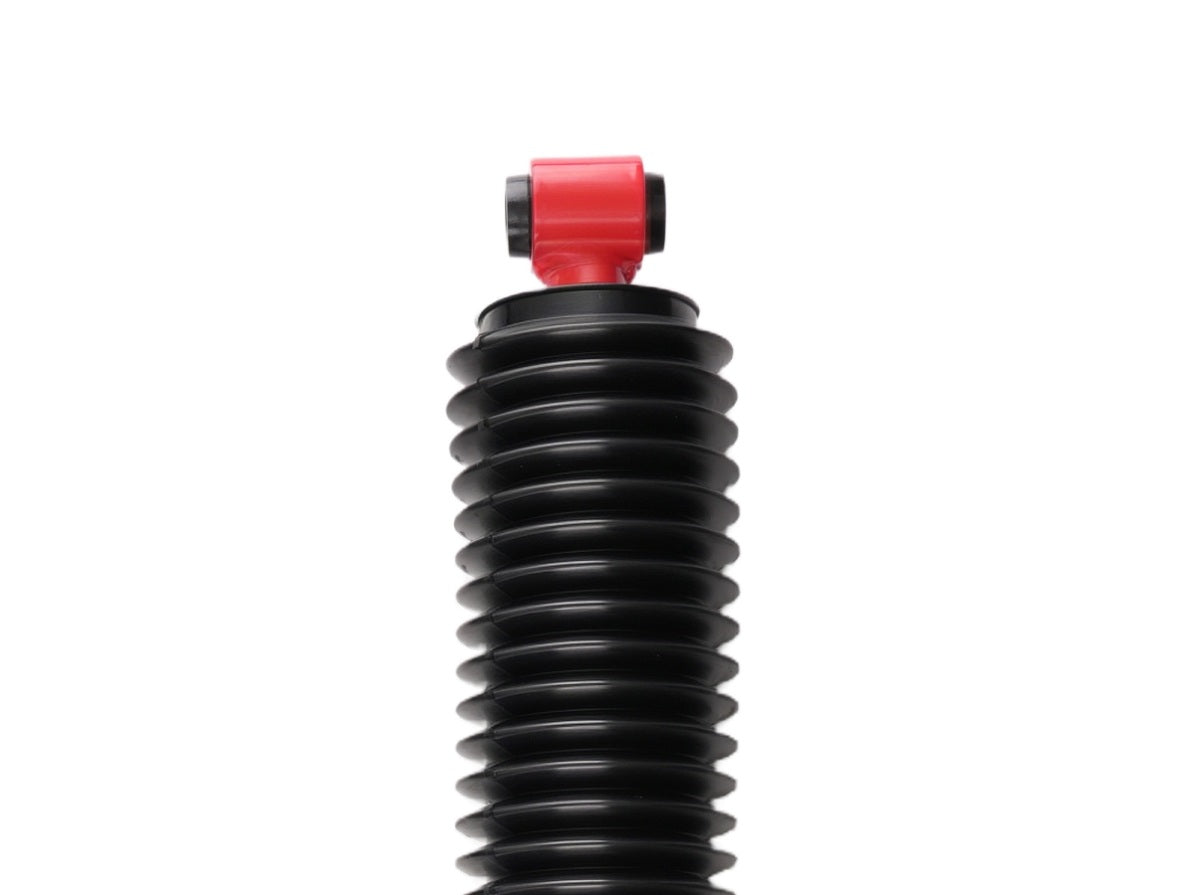

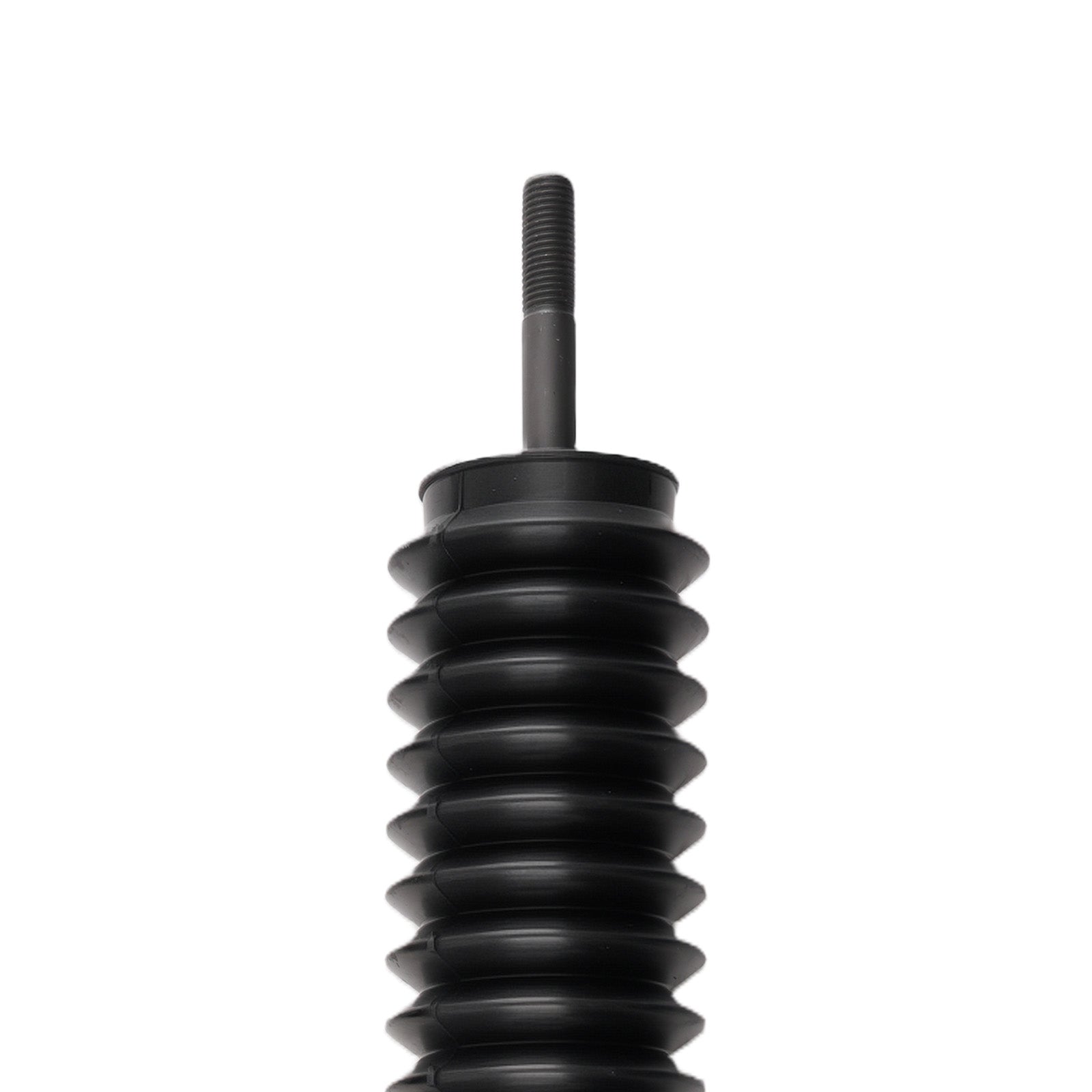

• Dust cover included prevent the shaft rod and oil seal from damaging.
• Powder-coated Finish provides superior corrosion resistance.
• Upgraded rubber bushings fit for better absorption and more durable.
• Match with lift springs and improve your off-road ride.

Specification:

Shock:

• Compatible Height：Lift Front 2", Rear 0-1"
• Material: High Tensile Strength Carbon Steel
• Finish: Powder coated
• Bushing Material:Upgraded rubber
• Diameter of piston rod: Front&Rear 16mm/0.63"
• Piston Diameter：Front&Rear 46mm/1.81"
• Outer Cylinder Diameter: Front&Rear 52mm/2.05"
• Travel: Front:200mm/7.87" Rear:285mm /11.22"
• Extended Length: Front:610mm/24.01" Rear:755mm/ 29.72"
• Collapsed Length: Front:410mm/16.14" Rear: 470mm/18.50"
• Nitrogen Charged：Yes
• Dust Cover Equipped: Yes

Damper:

• Diameter of piston rod: F&R 16mm/0.63"
• Piston diameter：F&R 46mm/1.81"
• Outer cylinder diameter: F&R 52mm/2.05"
• Travel: 220mm/8.66"
• Extended Length: 695mm/ 27.36"
• Collapsed Length:475mm/18.7"

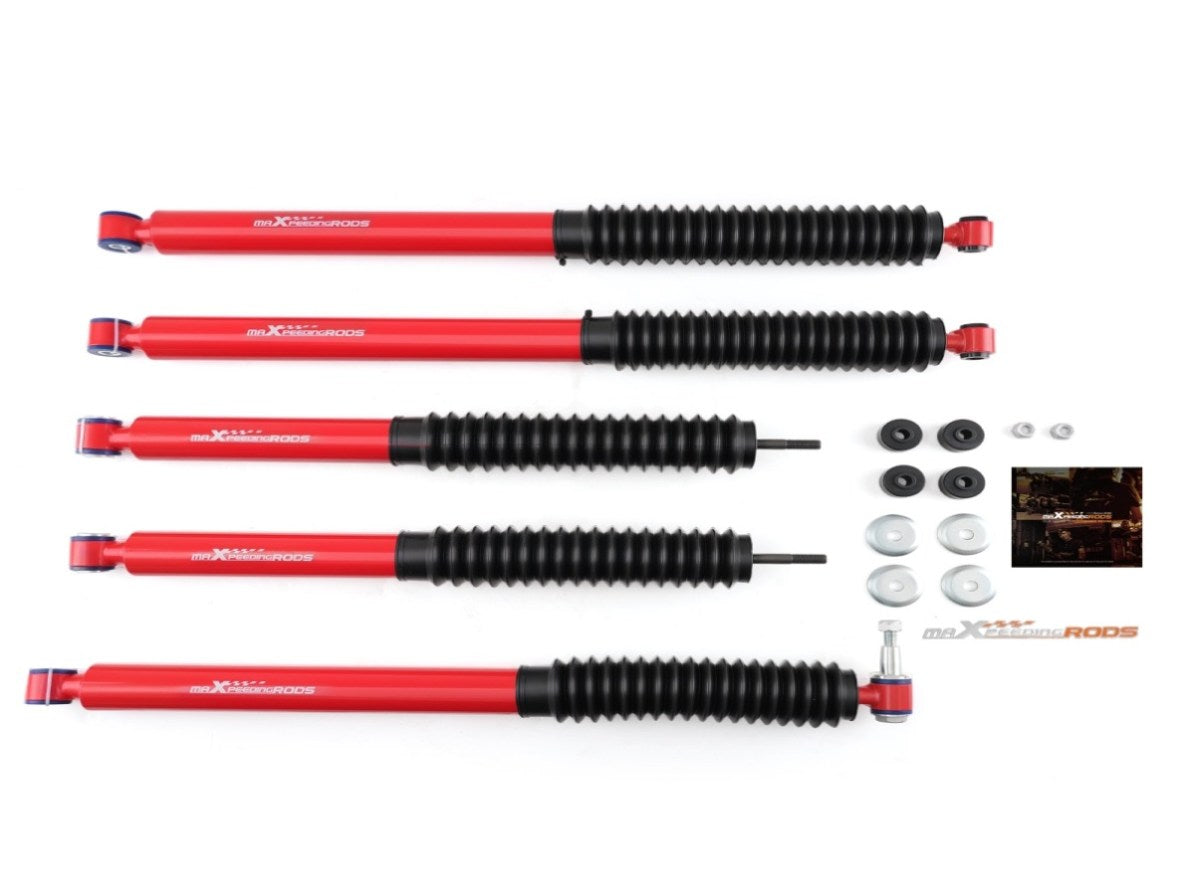

Package included:

• 2x Front Shocks
• 2x Rear Shocks
• 1x Steering Damper
