Gas Fuel Pump Assembly fit for Chrysler Town Country Dodge Caravan 04-07 67681 02911019
Application:
fit for Chrysler Voyager V6 3.3L 2004-2007
fit for Chrysler Town & Country V6 3.3L 2004-2007
fit for Chrysler Town & Country V6 3.8L 2004-2007
fit for Dodge Caravan L4 2.4L 2004-2007
fit for Dodge Caravan V6 3.3L 2004-2007
fit for Dodge Grand Caravan V6 3.3L 2004-2007
fit for Dodge Grand Caravan V6 3.8L 2004-2007
Part Numbers:
E7172M, SP7172M,P76061M,FG0482,FG0510,67681,
5127562AB,127562AC, 5127562AD, RL127562AD,
533041,TU160,5127562AB,05127562AA
Specification:
| Drive Type: | Electrical |
| Fuel Type: | Gasoline |
| Voltage(V): | 12 |
| Flow Rate(Gallons/Hour): | ≥38.3 |
| Pressure(MPa): | 0.35 |
| Weight(kg): | 1.40 |
| Inlet Type: | / |
| Inlet Quantity: | 0 |
| Outlet Type: | SAE J2044 2009 |
| Outlet Quantity: | 1 |
| Material: | Plastic |
| Housing Material: | Plastic |
| Fuel Sending Unit Included: | Yes |
| Fuel Pressure Sensor Included: | No |
| Fuel Level Sensor Included: | Yes |
| Float Included: | Yes |
| Fuel Reservoir Included: | Yes |
| Fuel Strainer Included: | Yes |

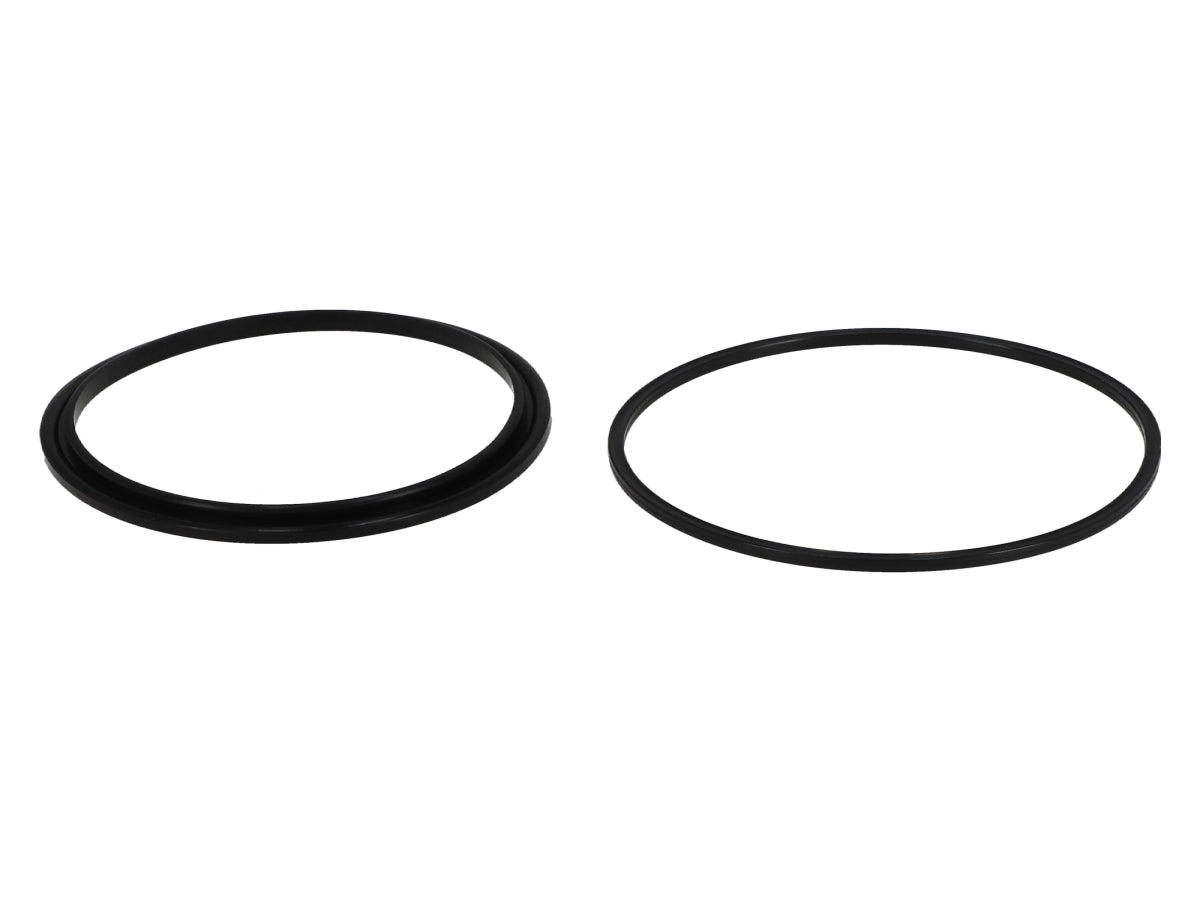

| Seal Ring Included: | Yes |
| Certifications: | CE IATF16949 IOS14001 |
Package included:

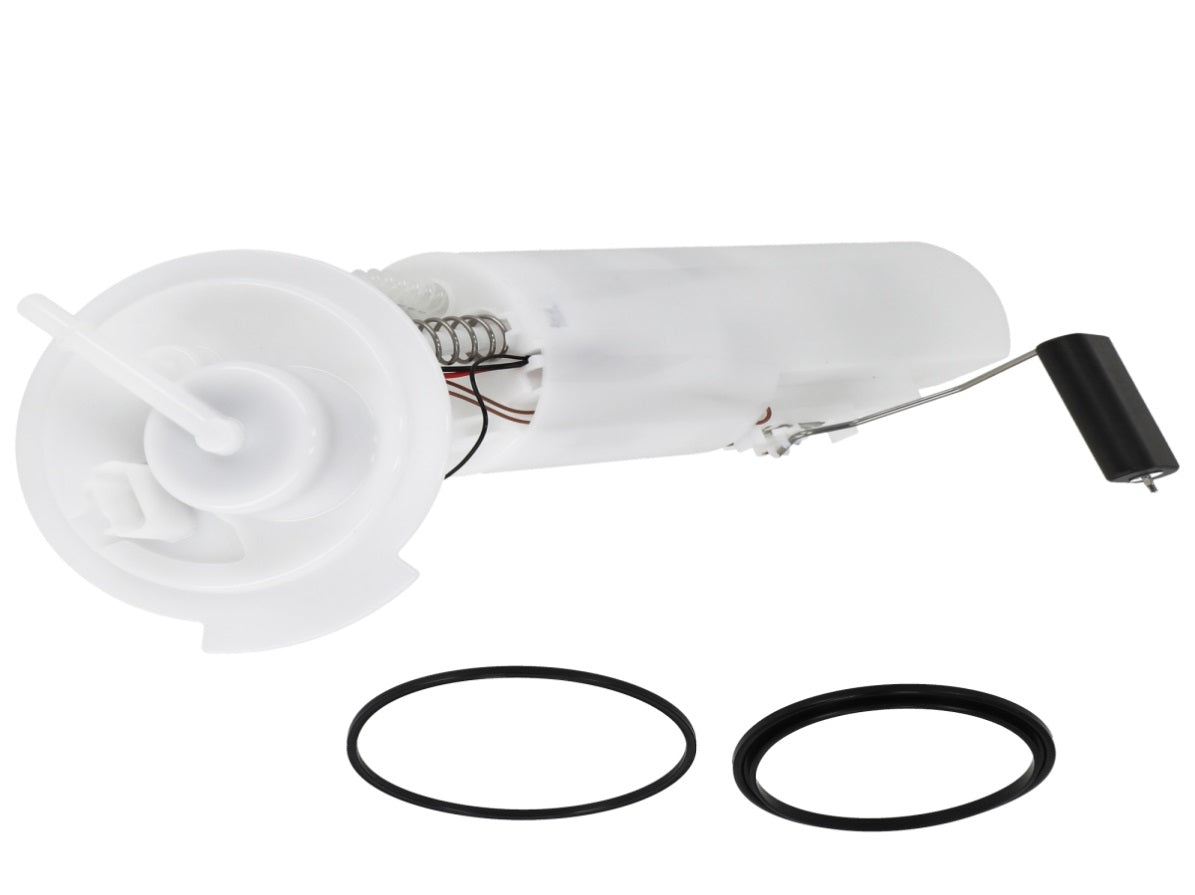

1x Fuel Pump Module Assembly (as shown in the pictures)
Feature:
1.High-precision automotive grade fuel tank pressure sensor
(CMOS technology and MEMS hybrid technology, modular design, waterproof and dustproof, -40~125°C zero drift, 2% FSO precision measurement, 1ms extremely fast response, to ensure the national six emission standards.)
2.Dual-channel long-life level sensor
(Dual-channel dual-contact design, more stable and longer life.
HERAEUS conduction tape, Dupont resistance, laser cutting process, liquid level
display is more accurate.)
3.Low level design
(The minimum tank liquid level of 10mm still continuously maintains the fuel supply pressure to ensure the safety of driving at low liquid levels.)
4.High dust holding layer filter
(Nylon skeleton one-time injection molding process, low temperature resistance, low resistance, high toughness, long life.
Imported SEFAR mesh fabric, dust holding capacity of 575g/㎡, 60μm particle filtration efficiency of more than 90%.)
5.Platform R&D
(Patented products, standardized design, data and OE are fully interoperable, good stability, high recognizability, low noise, and work efficiency increased by 20%.)
Note:
1.Attached installation manual.
2.Professional Installation Is Highly Recommended.
3.Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
