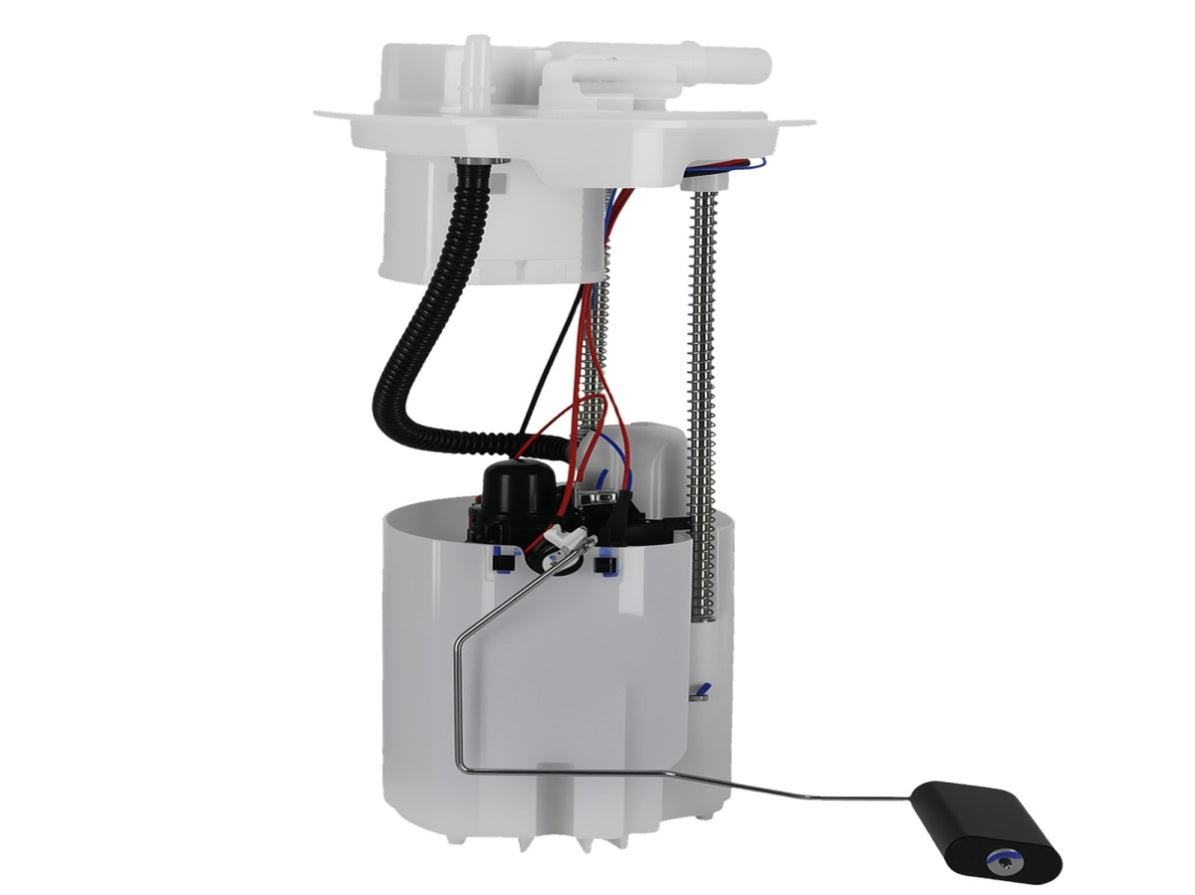

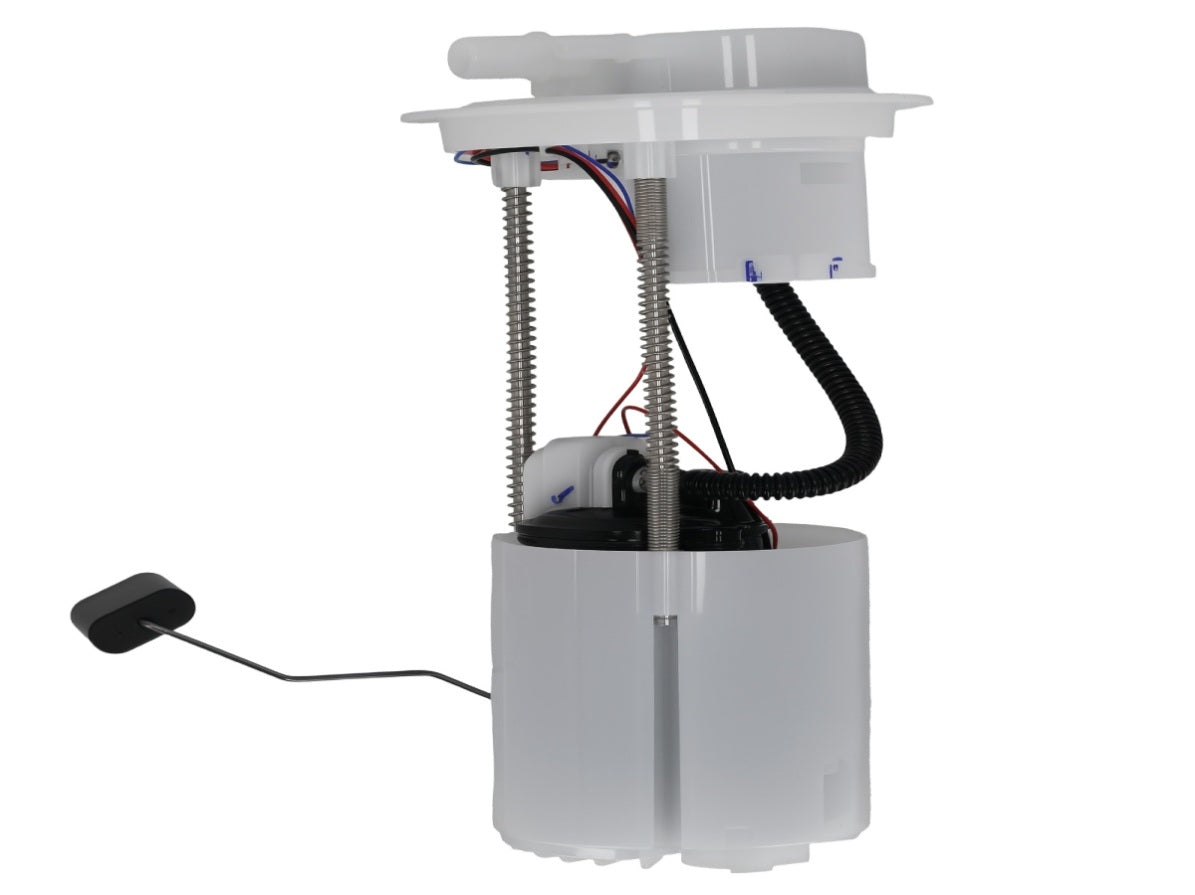

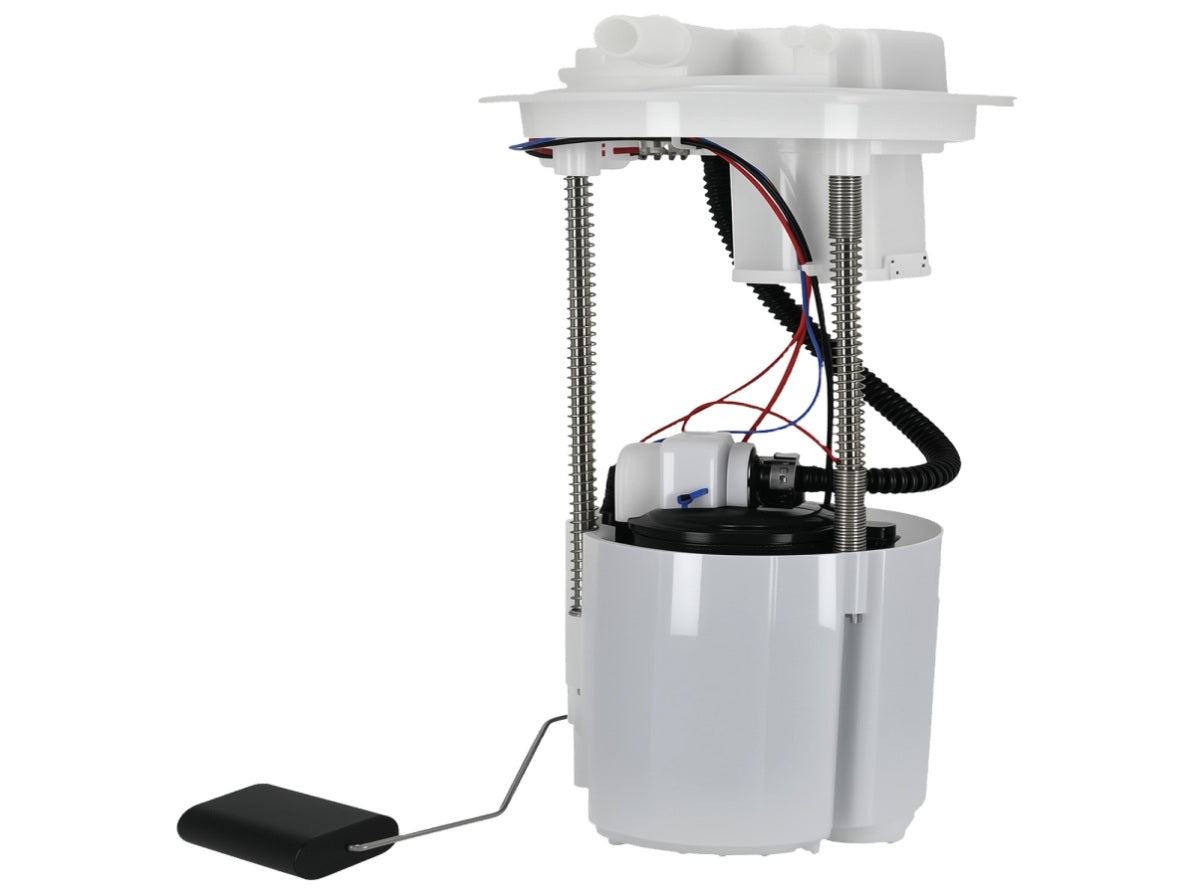

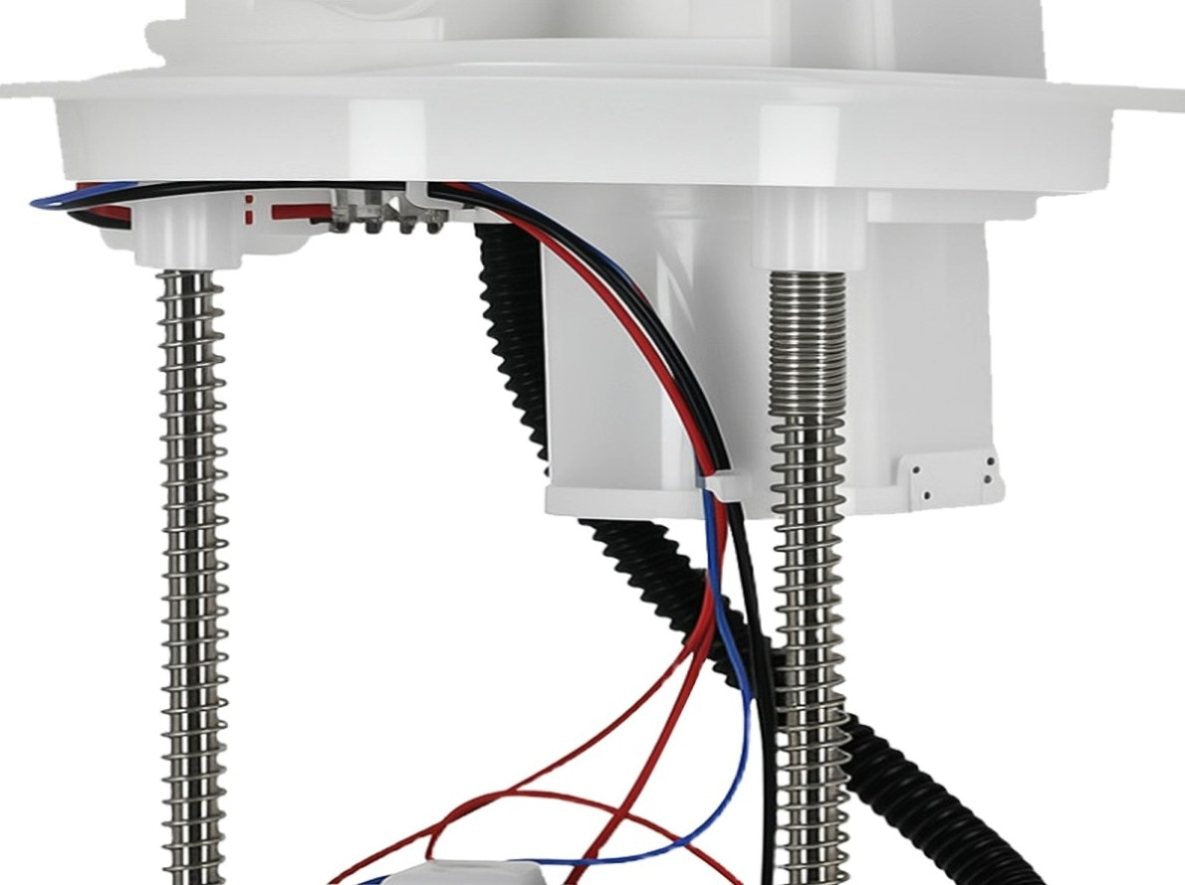

Fuel Pump Assembly fit for Fiat 500 / 500 Abarth 1.4L I4 2012-2017 68143629AB 41876310

Compatibility

fit for Fiat 500 1.4L L4 2012-2017

fit for Fiat 500 Abarth 1.4L L4 Turbocharged 2012-2017

OE/Part Number

68104562AA

68104562AB

68104562AC

68143629AA

68143629AB

68143629AC

68070715AB

RL104562AA

358146281

44543YN

E9133M

F00HK00737

F00HK01431

P77071M

SP7085M

SP7245M


Technical Data

Fuel Type: Gasoline

Drive Type: Electrical

Voltage: 12V

Flow Rate: ≥23.76 GPH

Pressure: 43.5 PSI

Inlet Type: Strainer

Outlet Type: Quick connect

Outlet Quantity: 1

Outlet Outside Diameter: 5/16″

Fuel Sending Unit Included: Yes

Fuel Pressure Sensor Included: No

Fuel Level Sensor Included: Yes

Float Included: Yes

Fuel Reservoir Included: Yes

Fuel Strainer Included: Yes

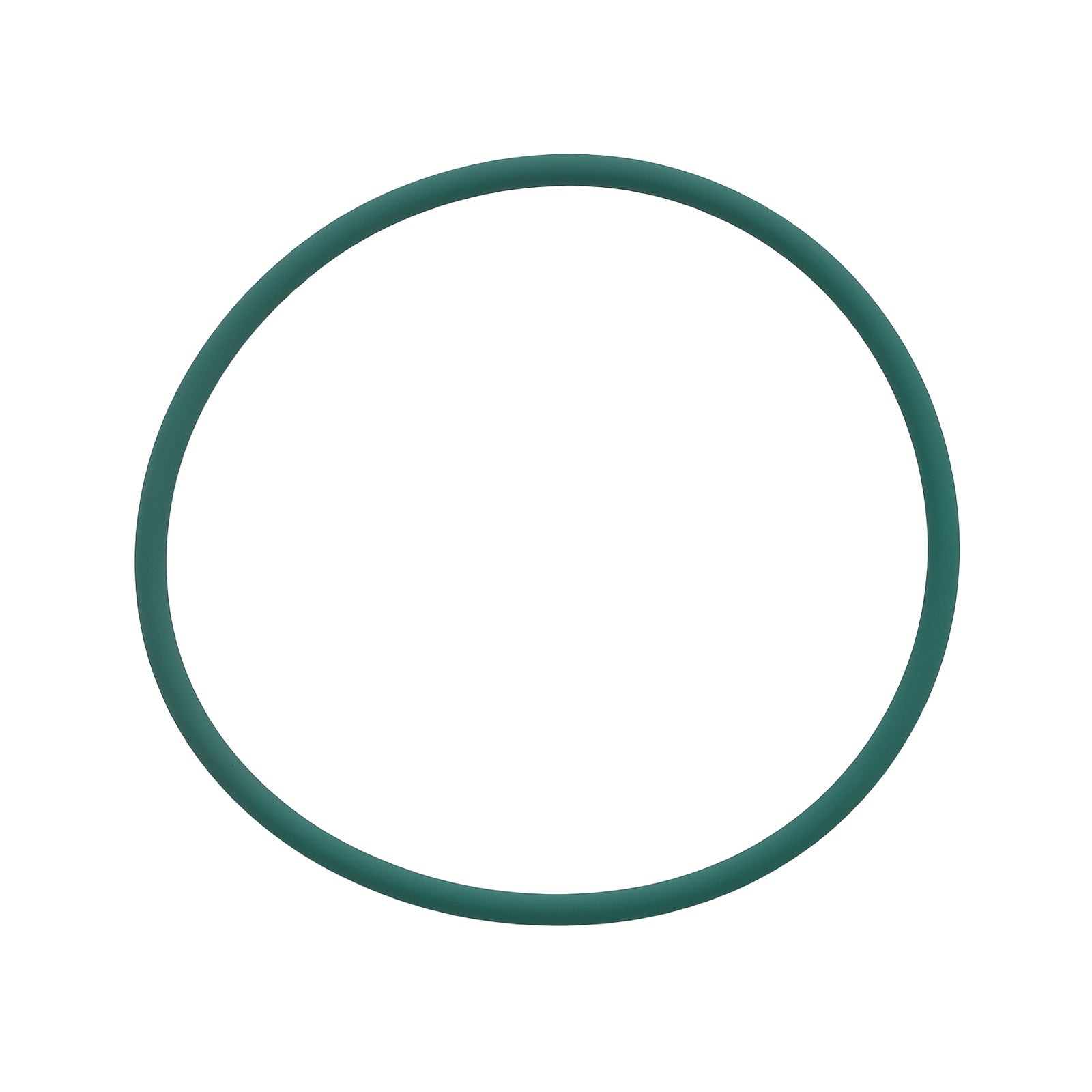

Seal Ring Included: Yes

Terminal Gender: Male

Terminal Quantity: 4

Terminal Type: Blade

Package Included

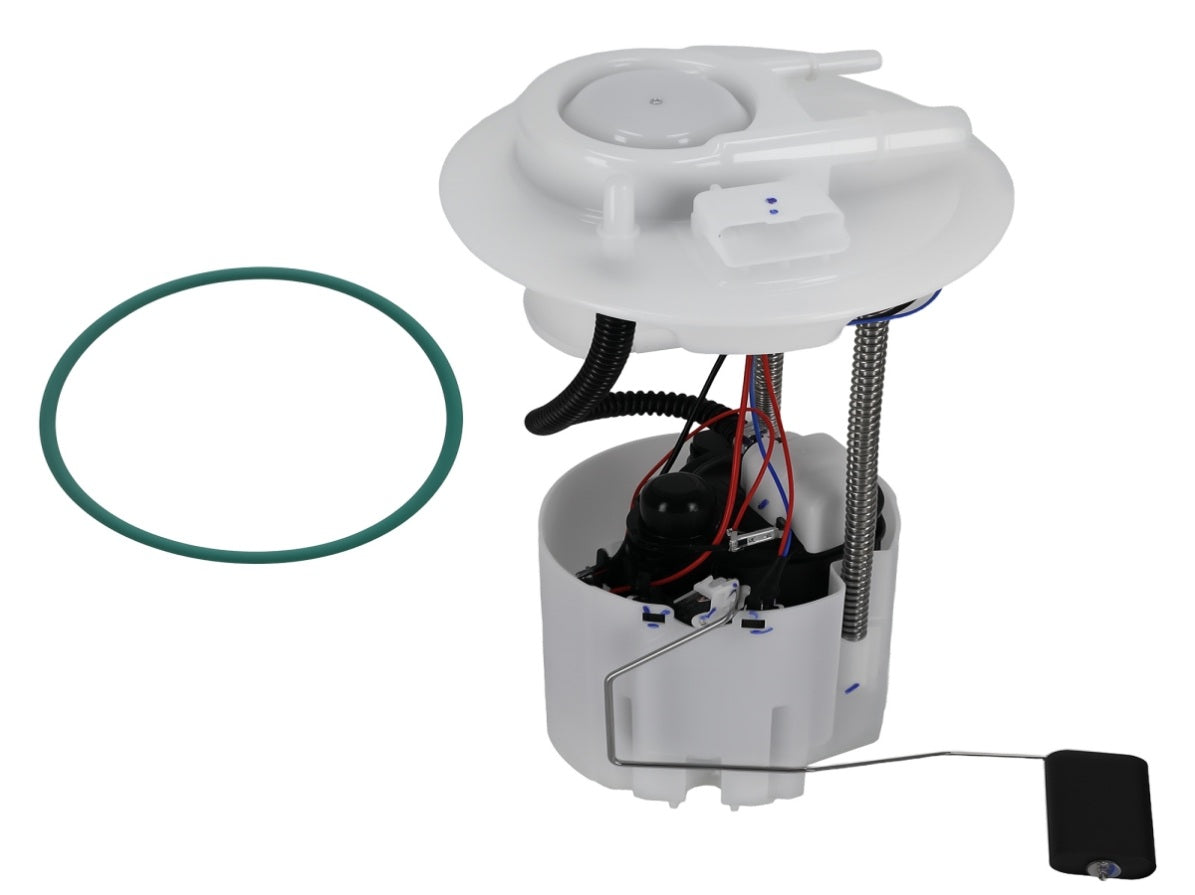

1x Fuel Pump Module Assembly

Notice

- Professional installation is suggested.

- Please double confirm the fitment details before purchasing.

- Please feel free to contact us fit for whatever we can help fit for you.
