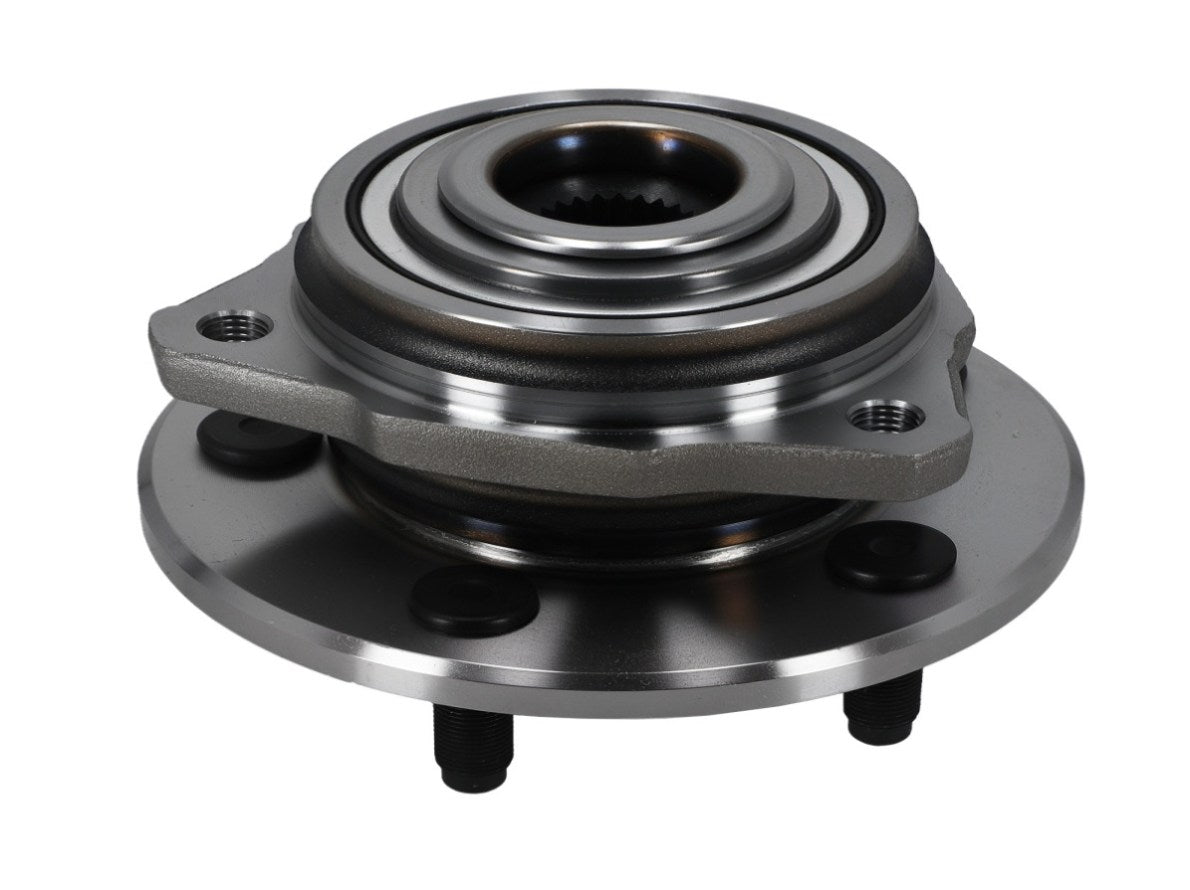

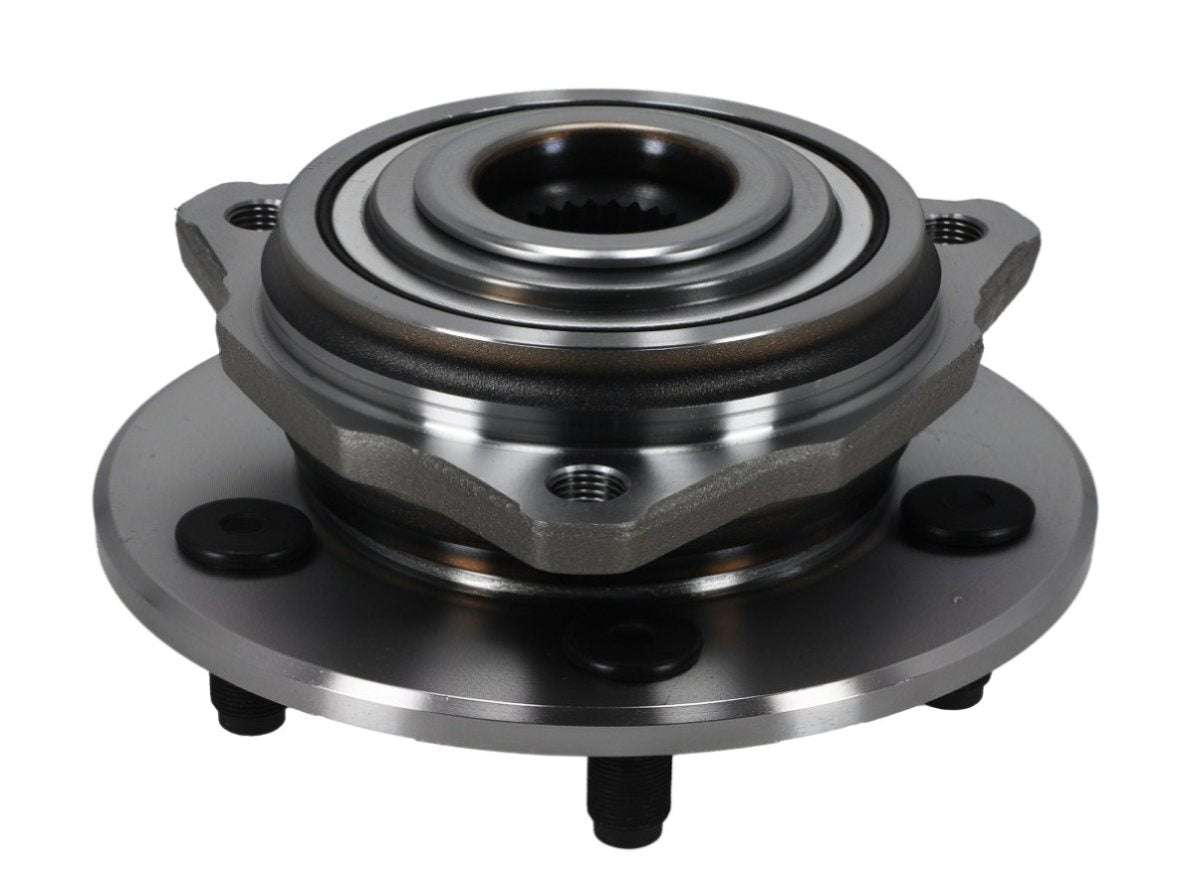

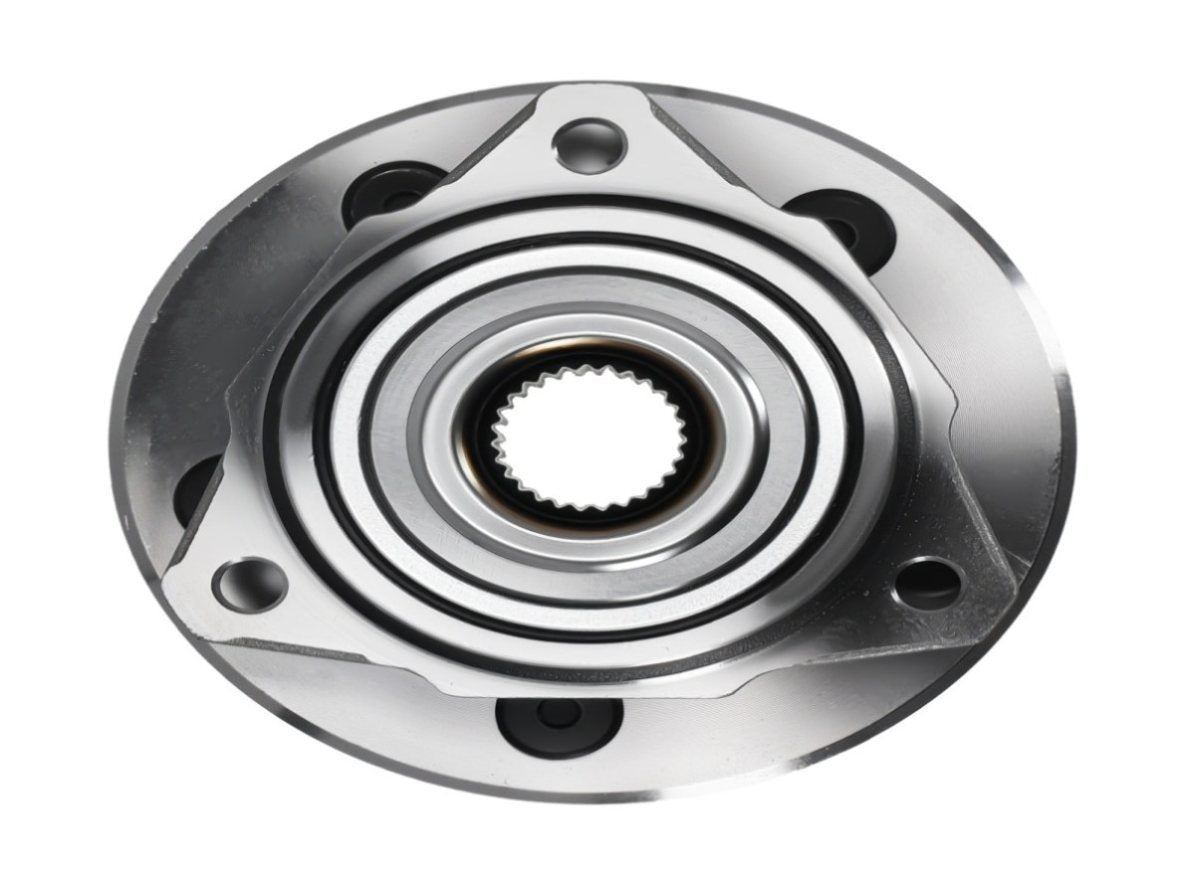

Front Wheel Hub Bearing Assembly fit for JEEP LIBERTY 02-05 513178 951-024 90540869
Application:
fit for JEEP LIBERTY NON-ABS MODELS 2002-2005
OE/Part number:
513178,BR930325,H513178,HA590452,HA590458,WA513178,951-024
Specification:
Position: Front Left and Right
ABS on Hub: No
Bolt Circle Diameter: 115.000mm
Bolt Circle Diameter: 4.530 IN
Brake Pilot Diameter: 70.600mm
Flange Bolt Hole Quantity: 3
Flange Diameter: 150.000mm
Flange Offset: 42.000mm

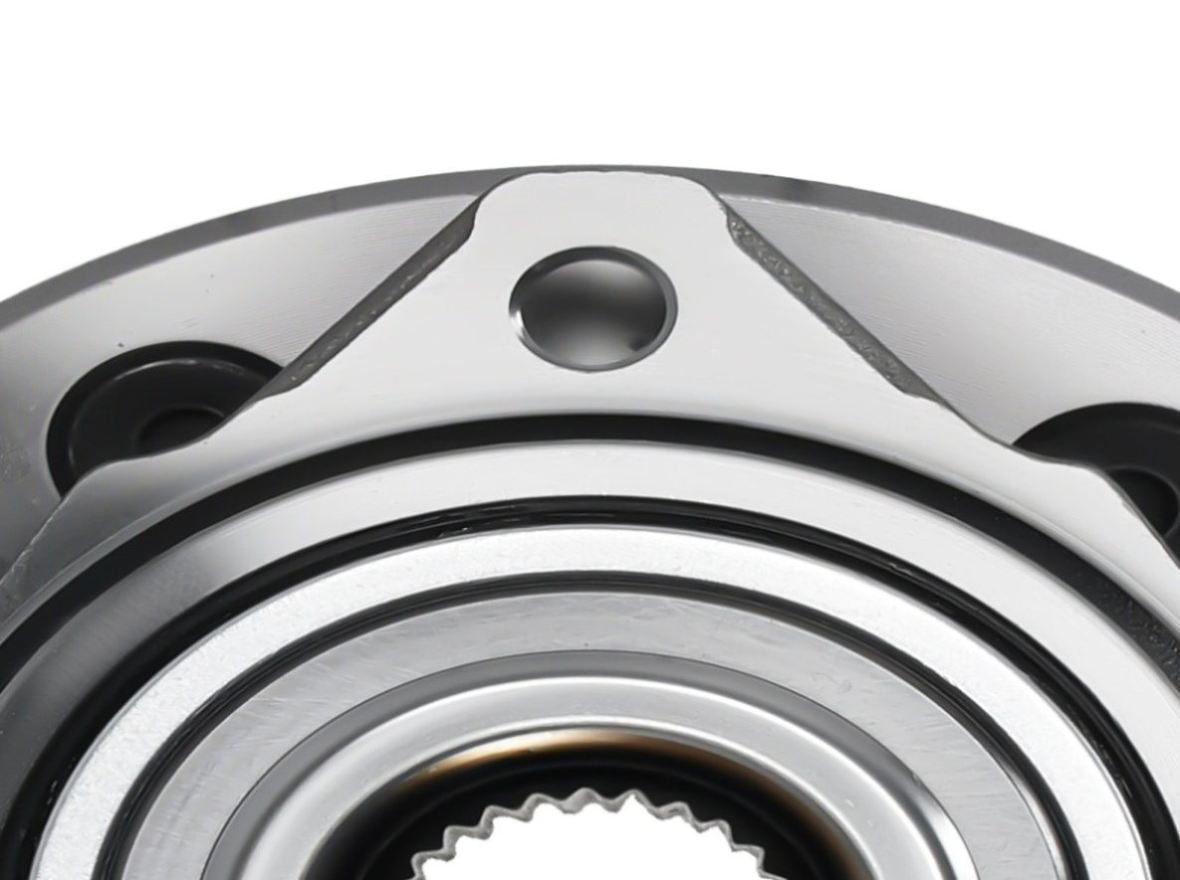

Flange Shape: TRIANGULAR
Hub Pilot Diameter: 90.200mm

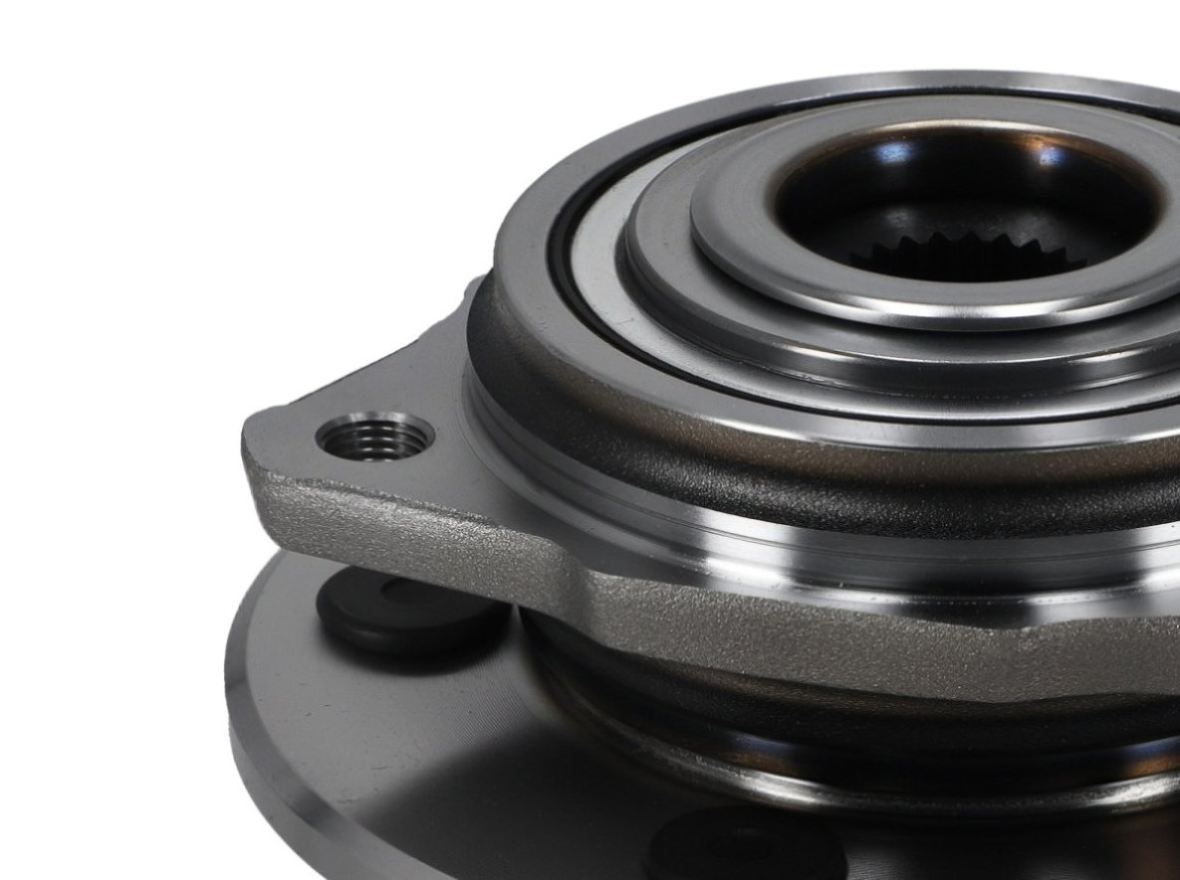

Spline Quantity: 33
Wheel Pilot Diameter: 70.100mm

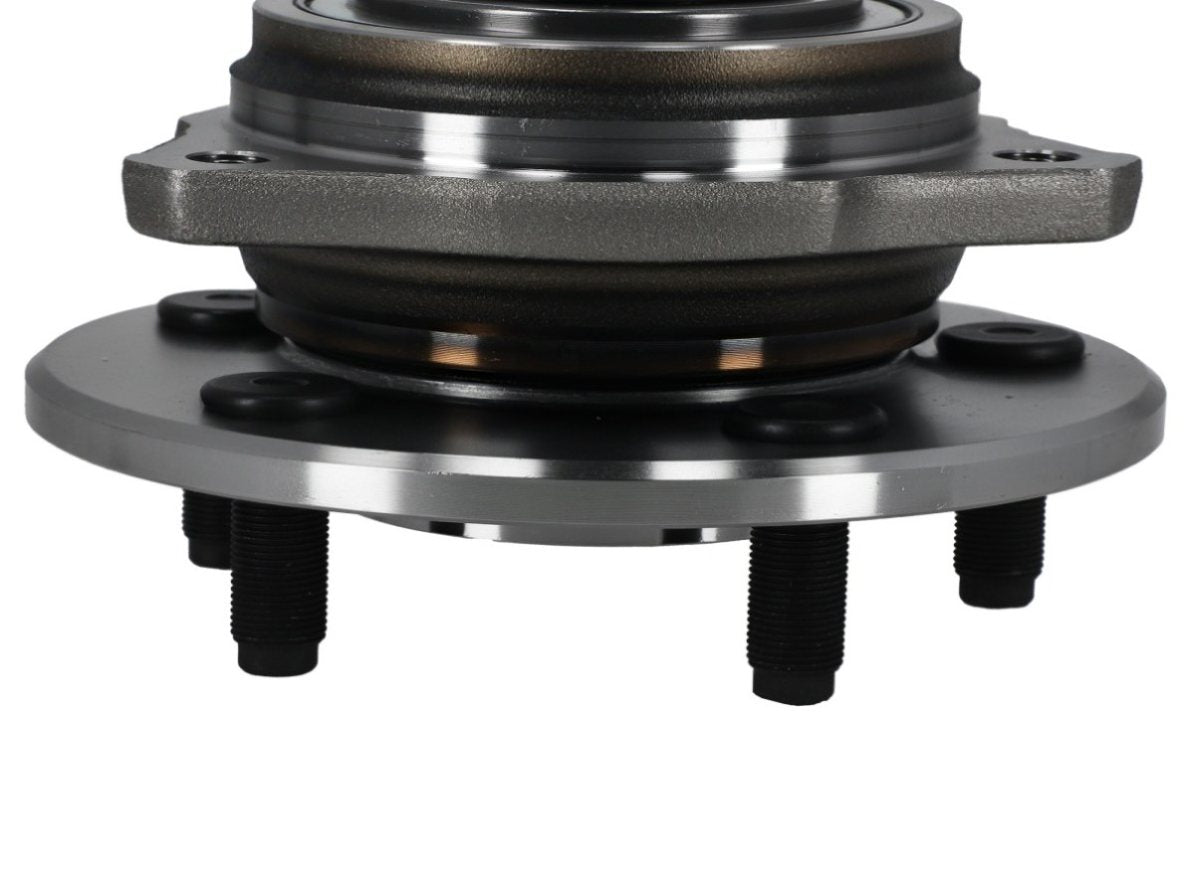

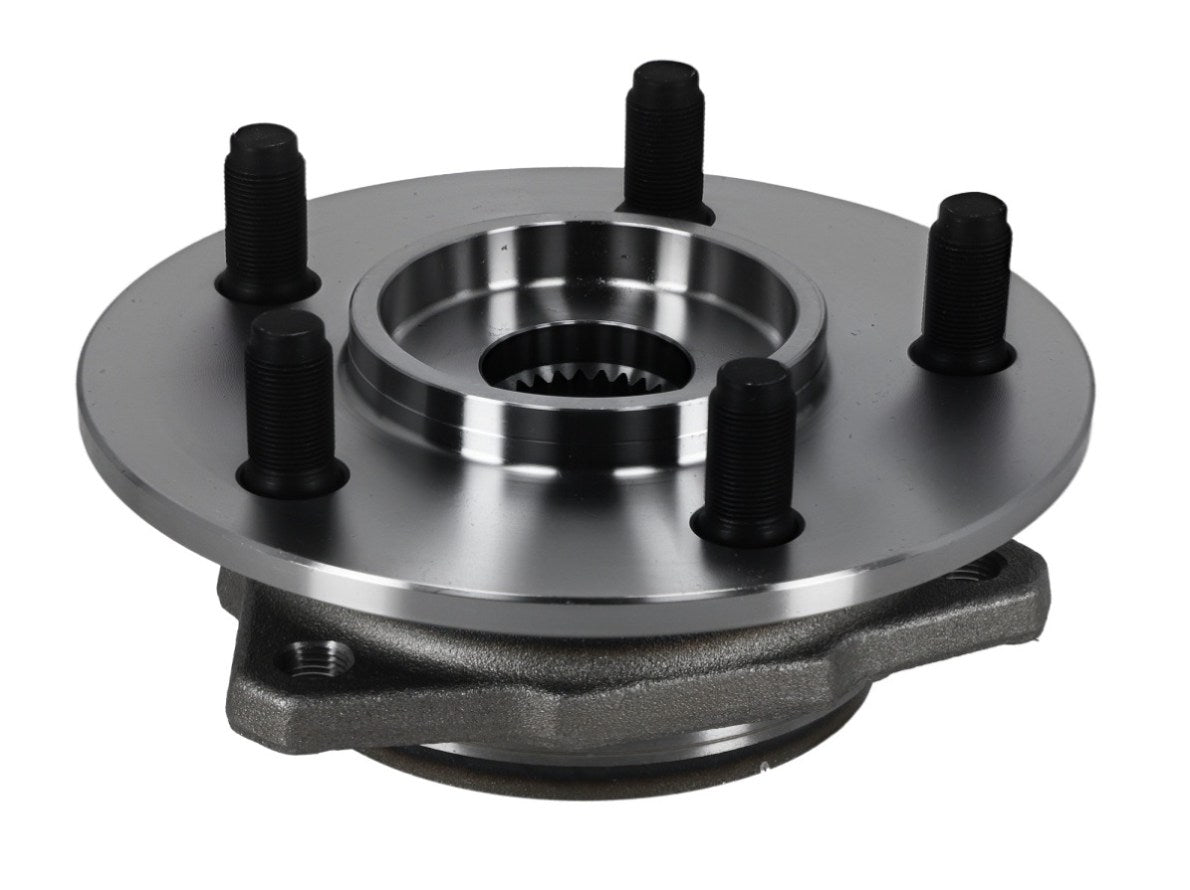

Wheel Stud Quantity: 5
Type: Wheel Hub & Bearing Assembly
Package included:

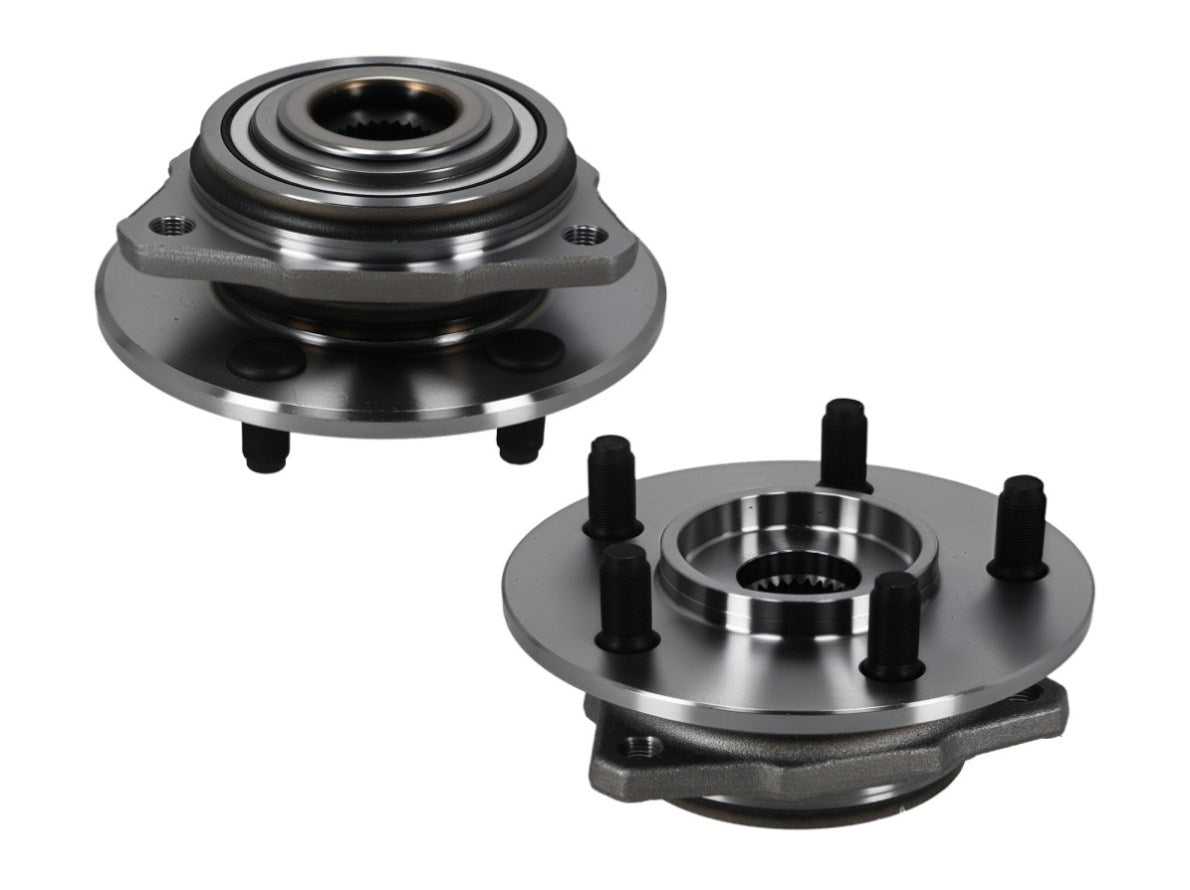

2x Front Wheel Hub and Bearing Assembly - Driver and Passenger Side - 513178
Feature:
・OEM Standard Specifications
Meet OE performance standards
・High-Quality Steel Materials
Provide optimal performance and durability
・Bolt Design
Balance force better, boost safety

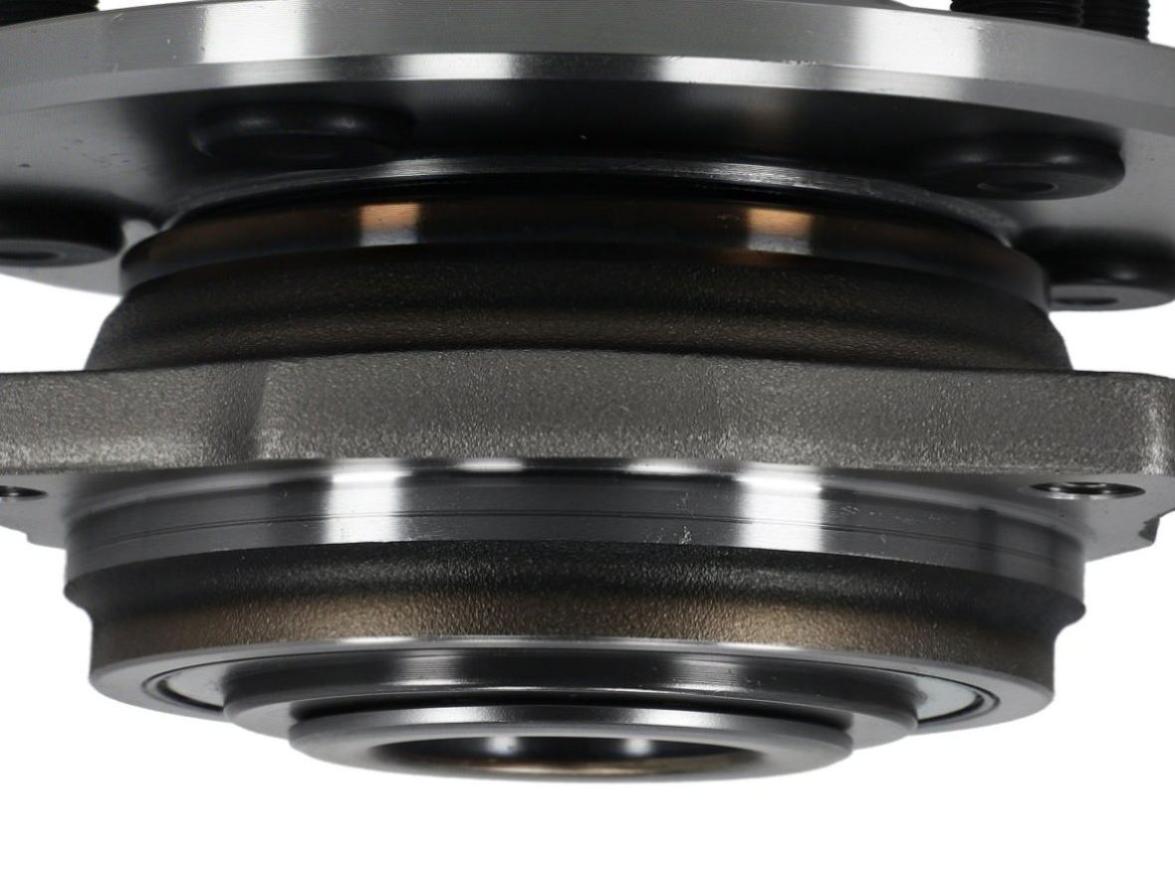

・Built-In Seals
Stop contaminants and keep lubrication
Note:
Professional installation is highly recommended.
Please double confirm the compatibility as well as the OEM number before purchasing
