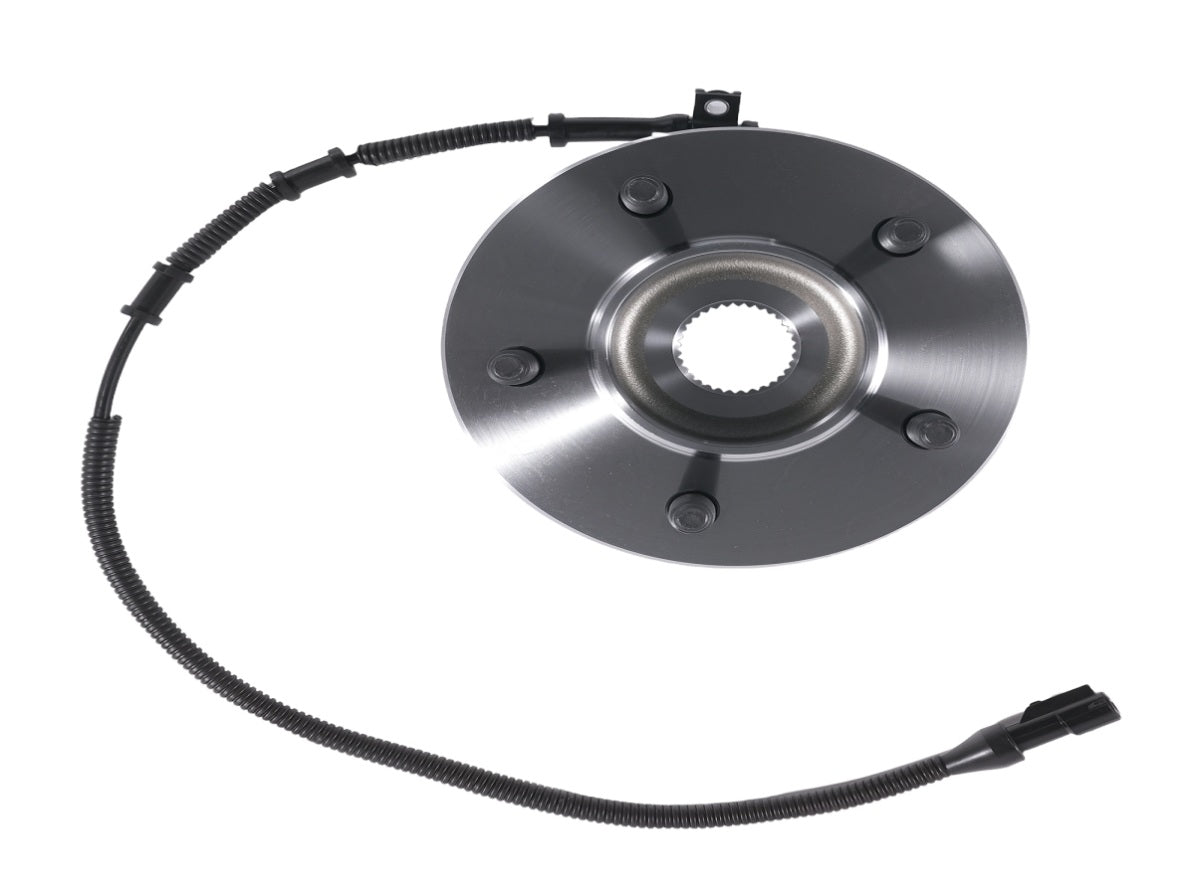

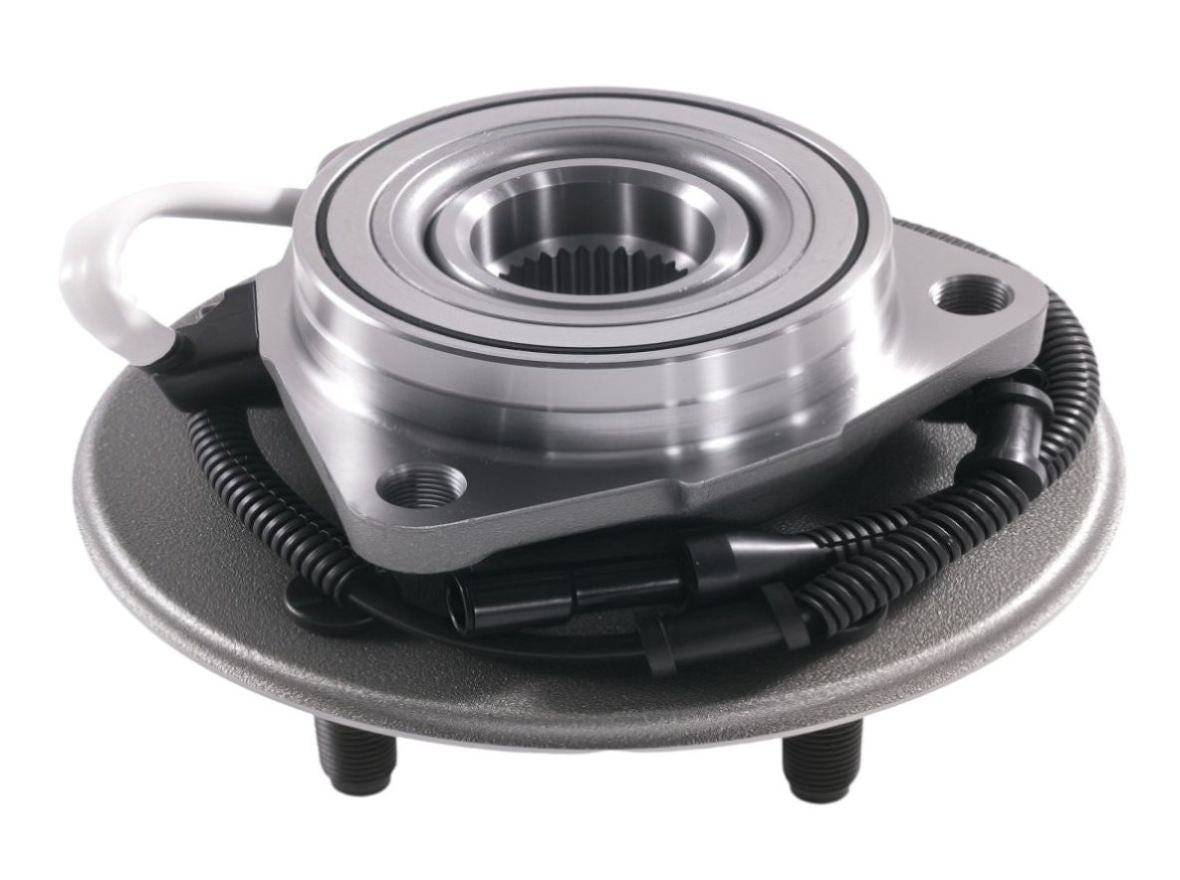

Front Wheel Hub Bearing Assembly fit for Ford F-150 4WD 2000-2003 515029 ABS 42444422

Application:

fit for FORD F-150 5 Studs, M14 Studs, 4x4, 4-Wheel ABS 2000-2003

OE/Part number:

515029,WE61560,715029,BR930423,WB15029,1L341104AA,XL3Z1104AA,YL341104AA,YL3Z1104AA,1L34-1104AA,538-01546

Specification:

Position: Front Left and Right

Drive Type: 4x4 / 4WD

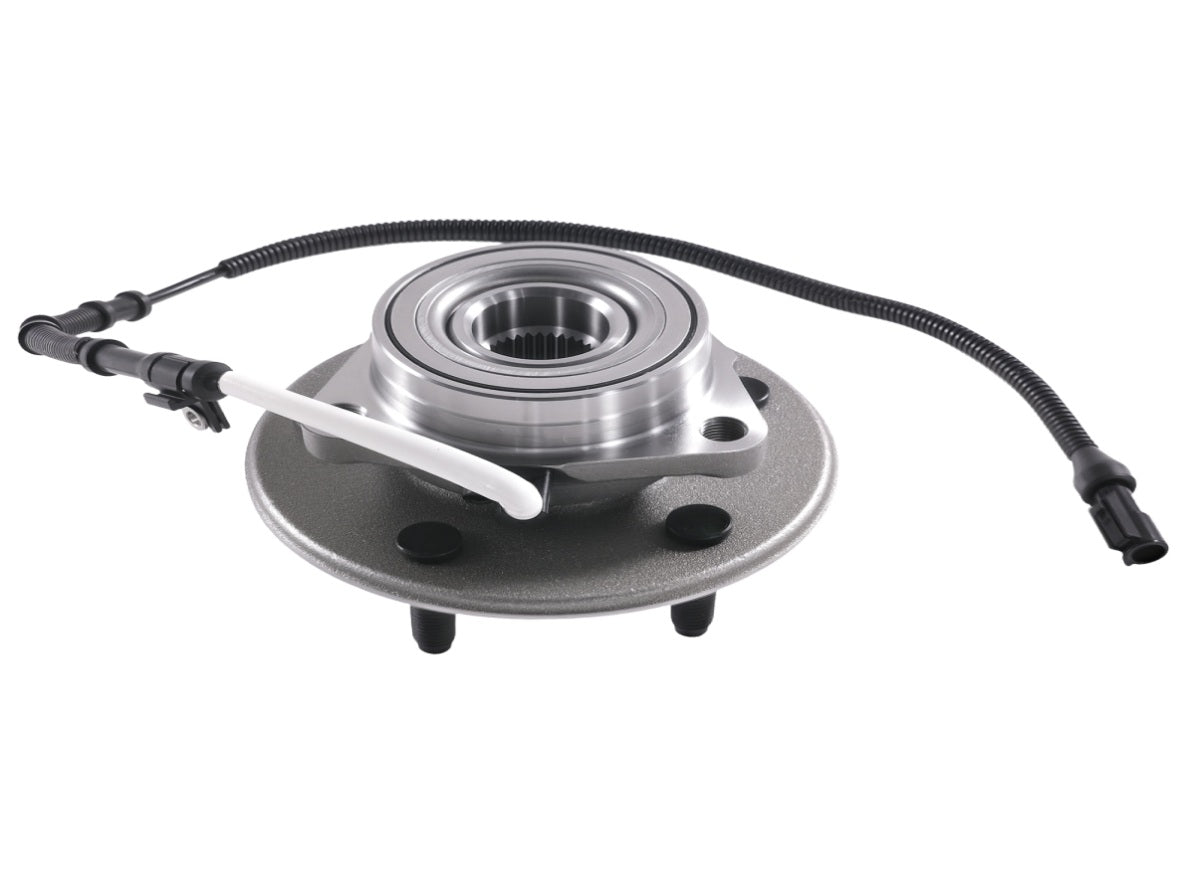

ABS Type: Sensor Wire

Bolt Circle Diameter (IN): 5.31

Bolt Circle Diameter (mm): 135

Brake Pilot Diameter (IN): 3.53

Brake Pilot Diameter (mm): 89.7

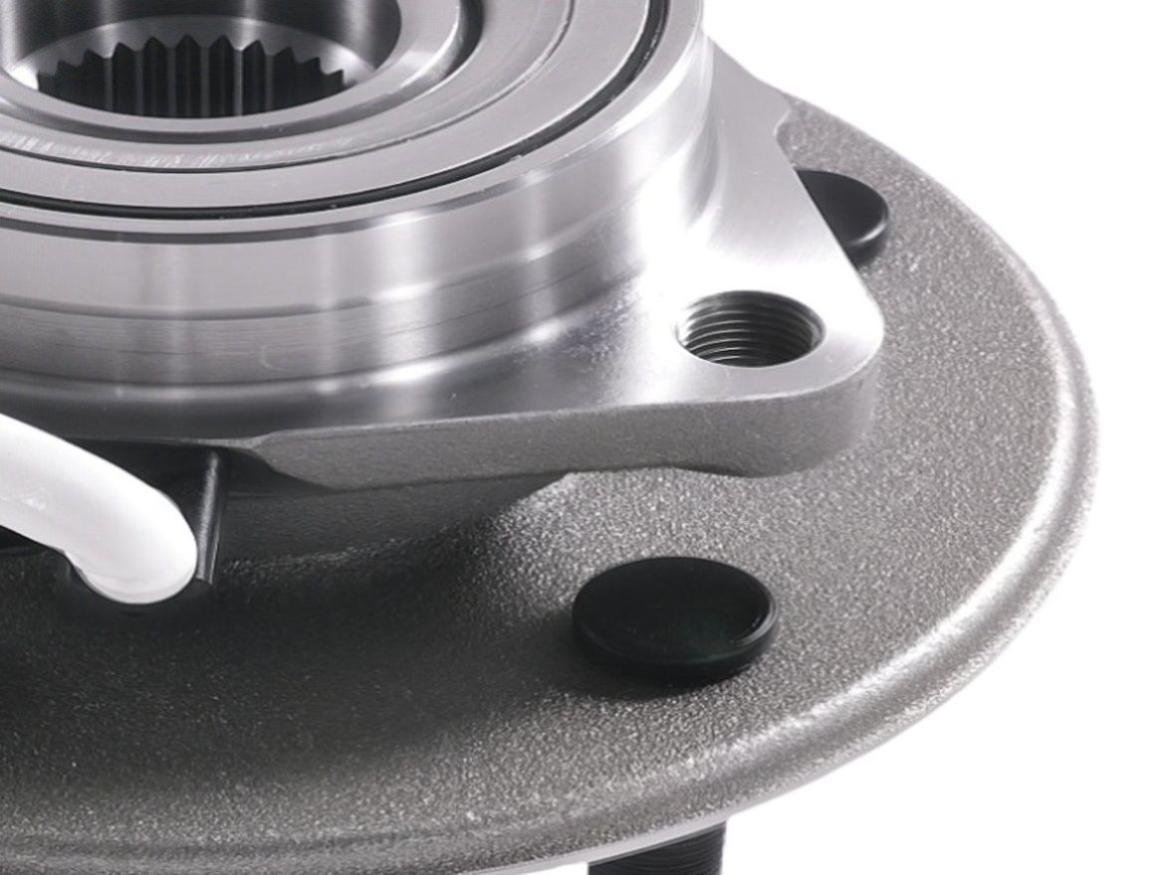

Flange Bolt Hole Quantity: 3

Flange Bolt Size (mm): M14 x 1.5

Flange Bolts Included: No

Flange Diameter (IN): 7.13

Flange Diameter (mm): 181

Flange Offset (IN): 1.95

Flange Offset (mm): 49.5

Flange Shape: TRIANGLE

Hub Pilot Diameter (IN): 3.91

Hub Pilot Diameter (mm): 99.3

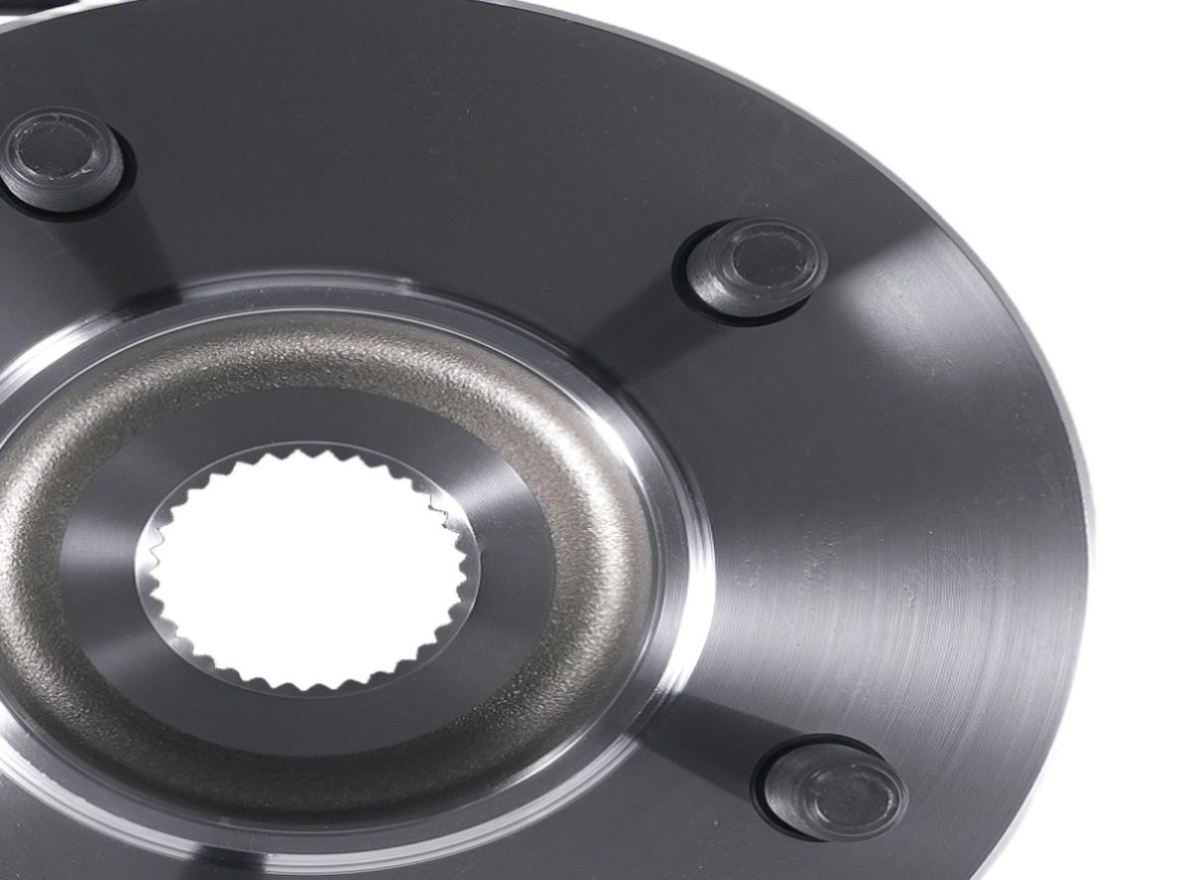

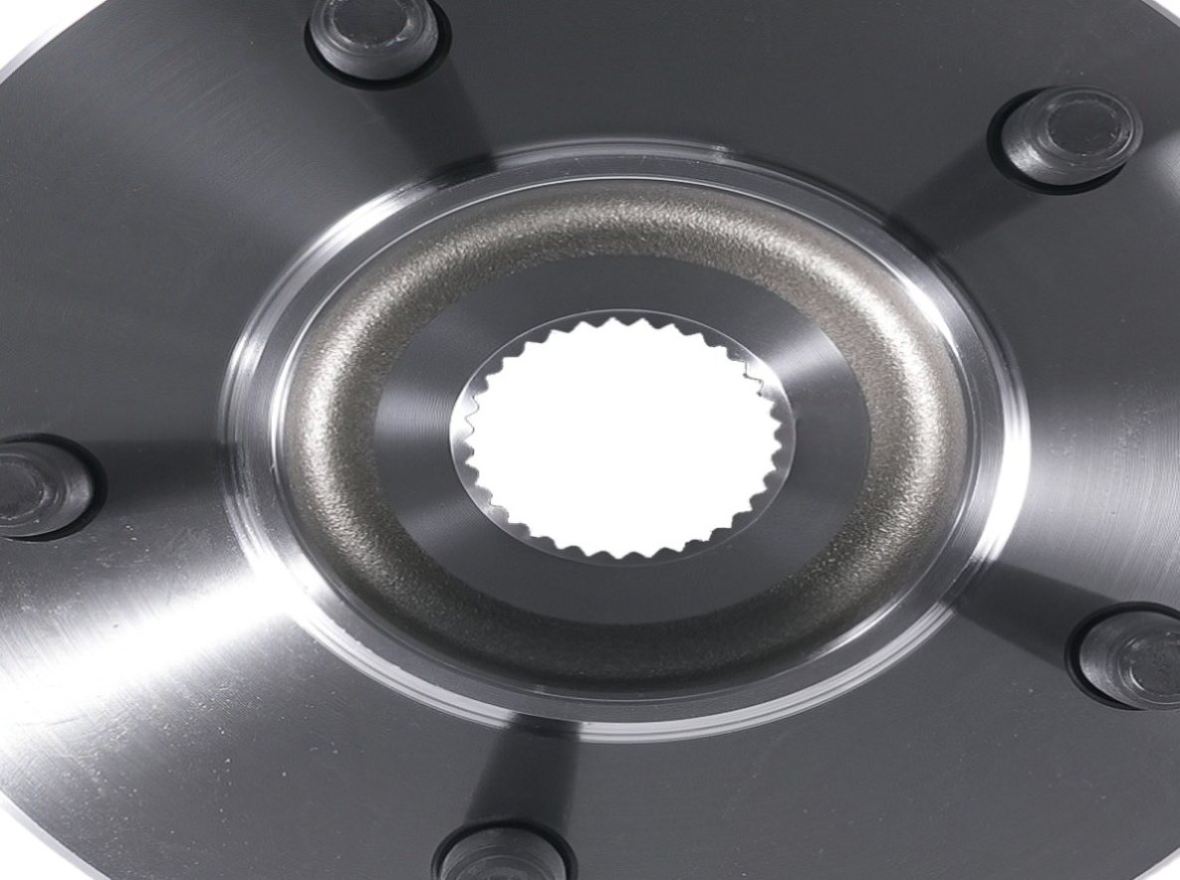

Spline Quantity: 33

Wheel Pilot Diameter (IN): 3.42

Wheel Pilot Diameter (mm): 86.8

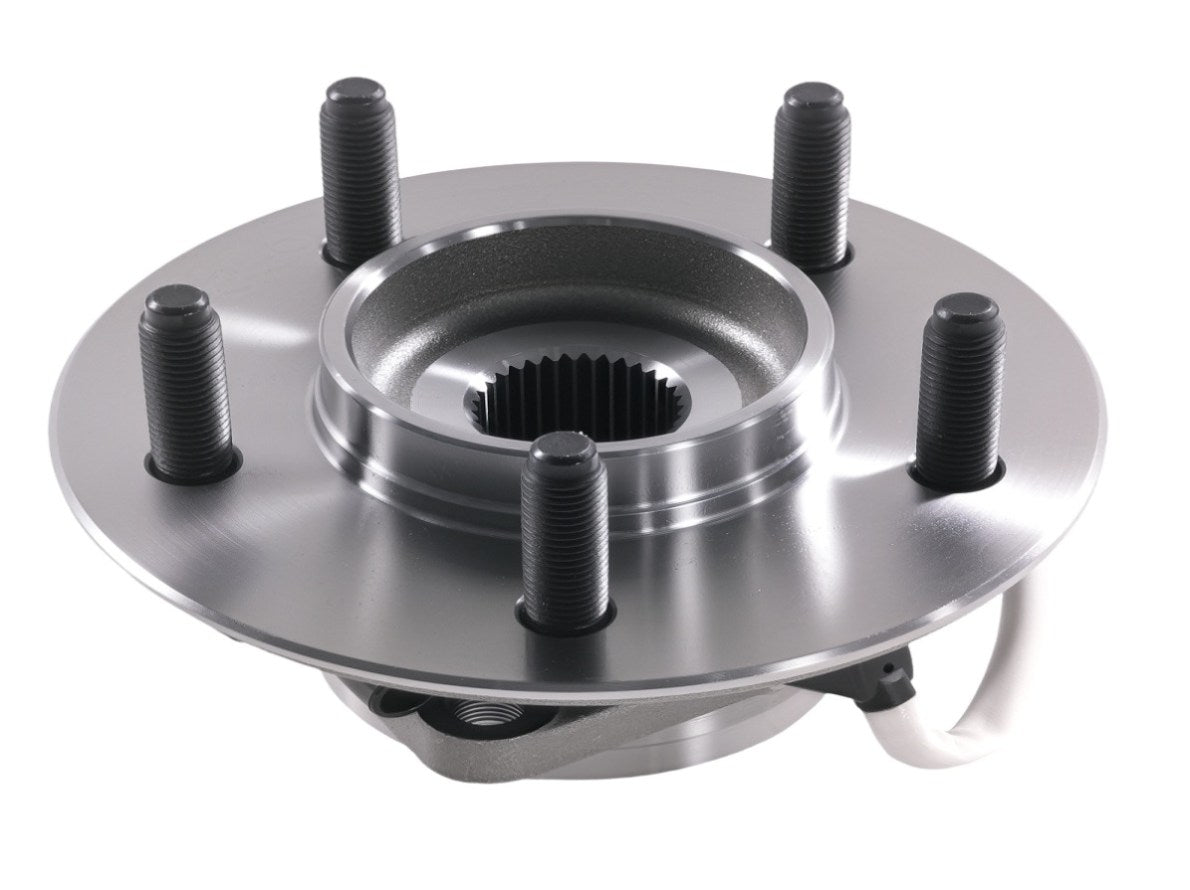

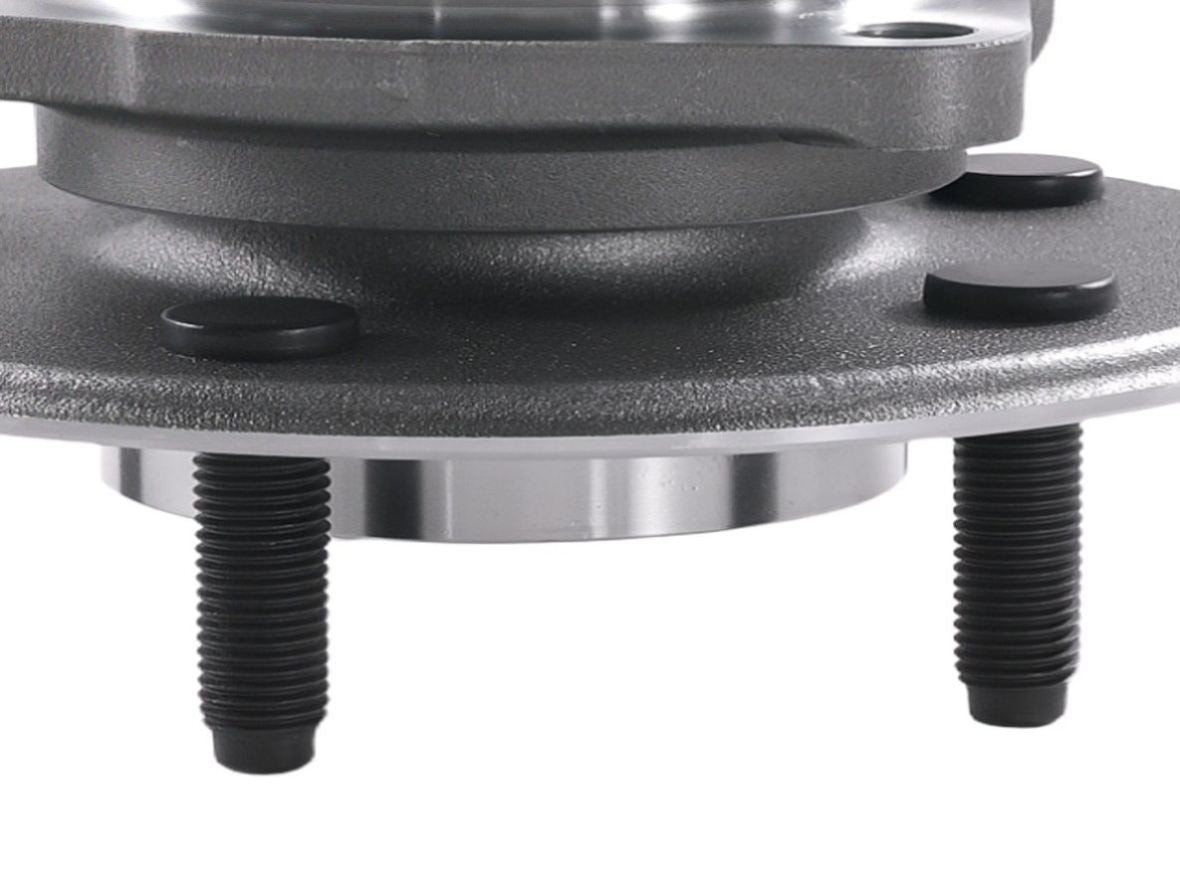

Wheel Stud Quantity: 5

Wheel Stud Size (mm): M14 x 2

Type: Wheel Hub & Bearing Assembly

Package included:

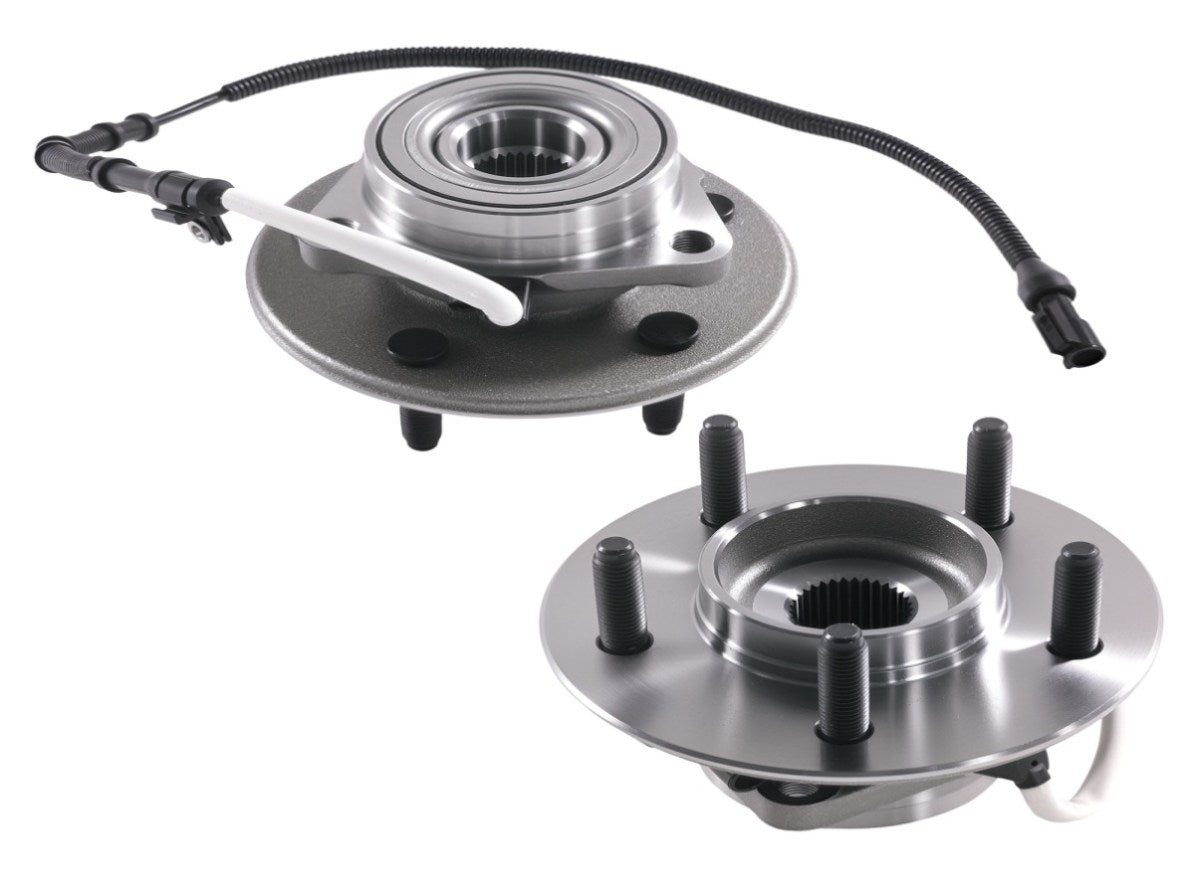

2x Front Wheel Bearing and Hub Assembly - 515029

Feature:

・OEM Standard Specifications

Meet OE performance standards

・High-Quality Steel Materials

Provide optimal performance and durability

・Bolt Design

Balance force better, boost safety

・Built-In Seals

Stop contaminants and keep lubrication

Note:

Professional installation is highly recommended.

Please double confirm the compatibility as well as the OEM number before purchasing
