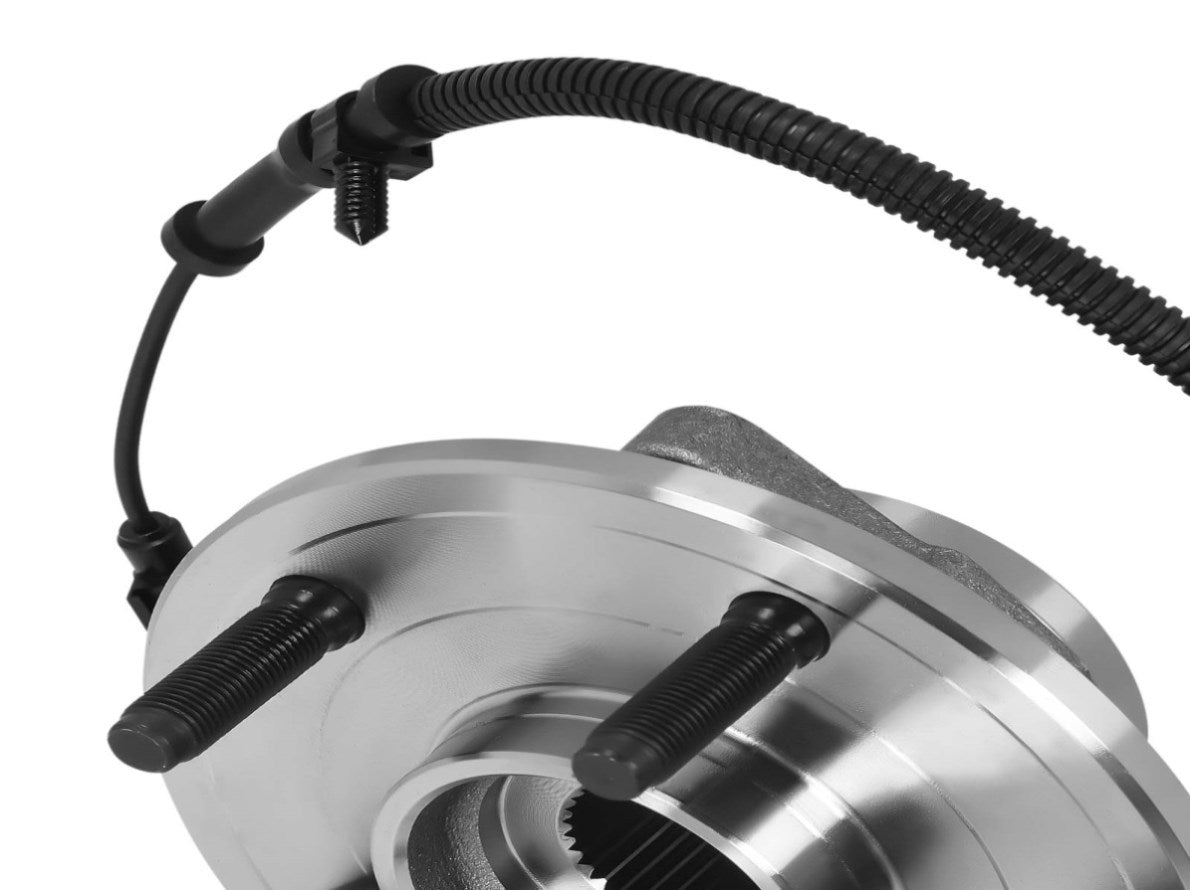

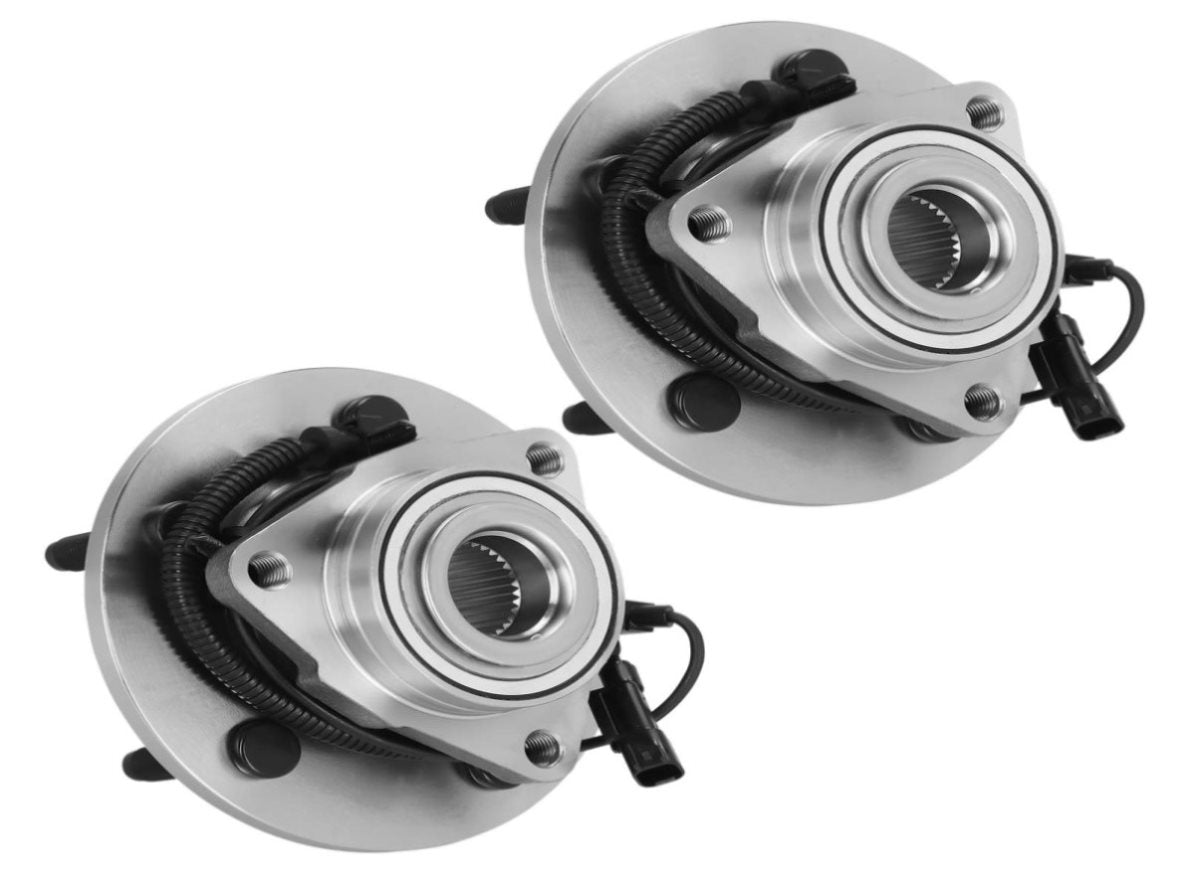

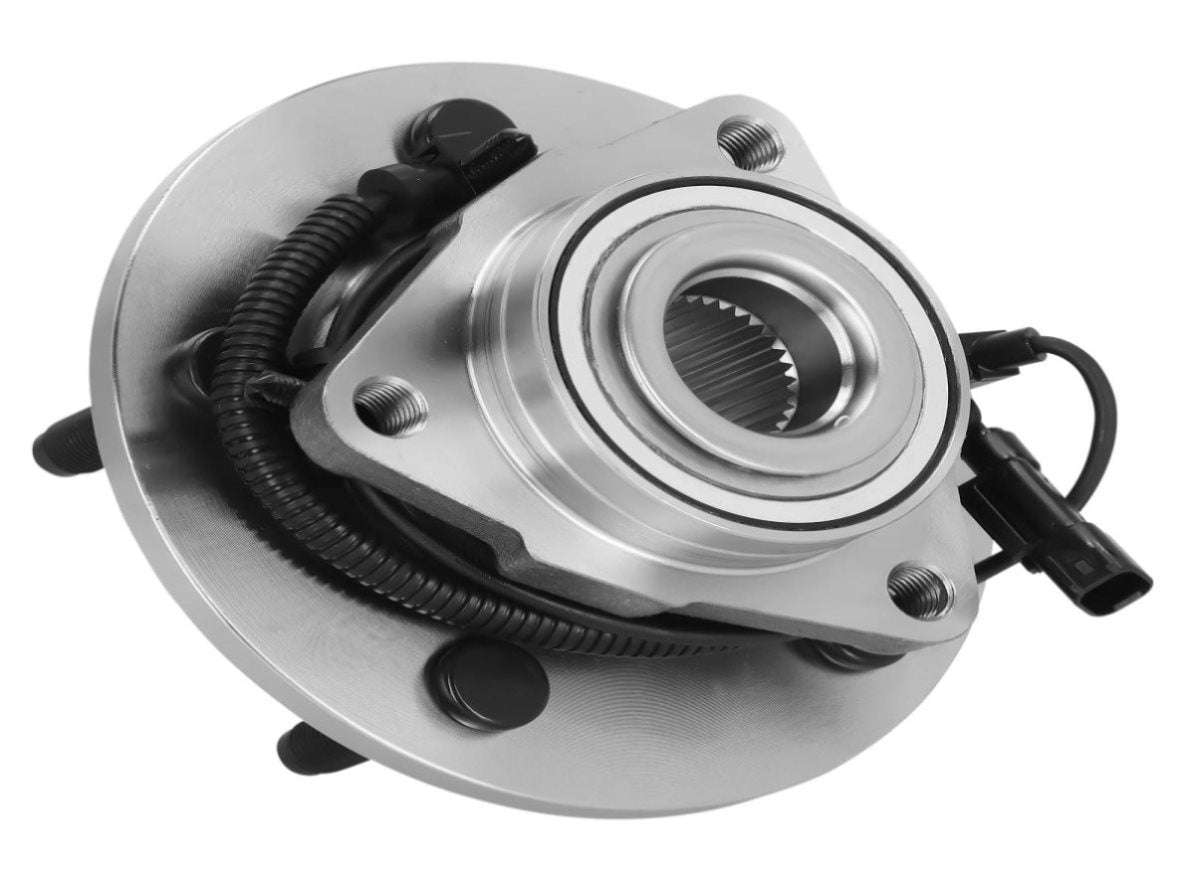

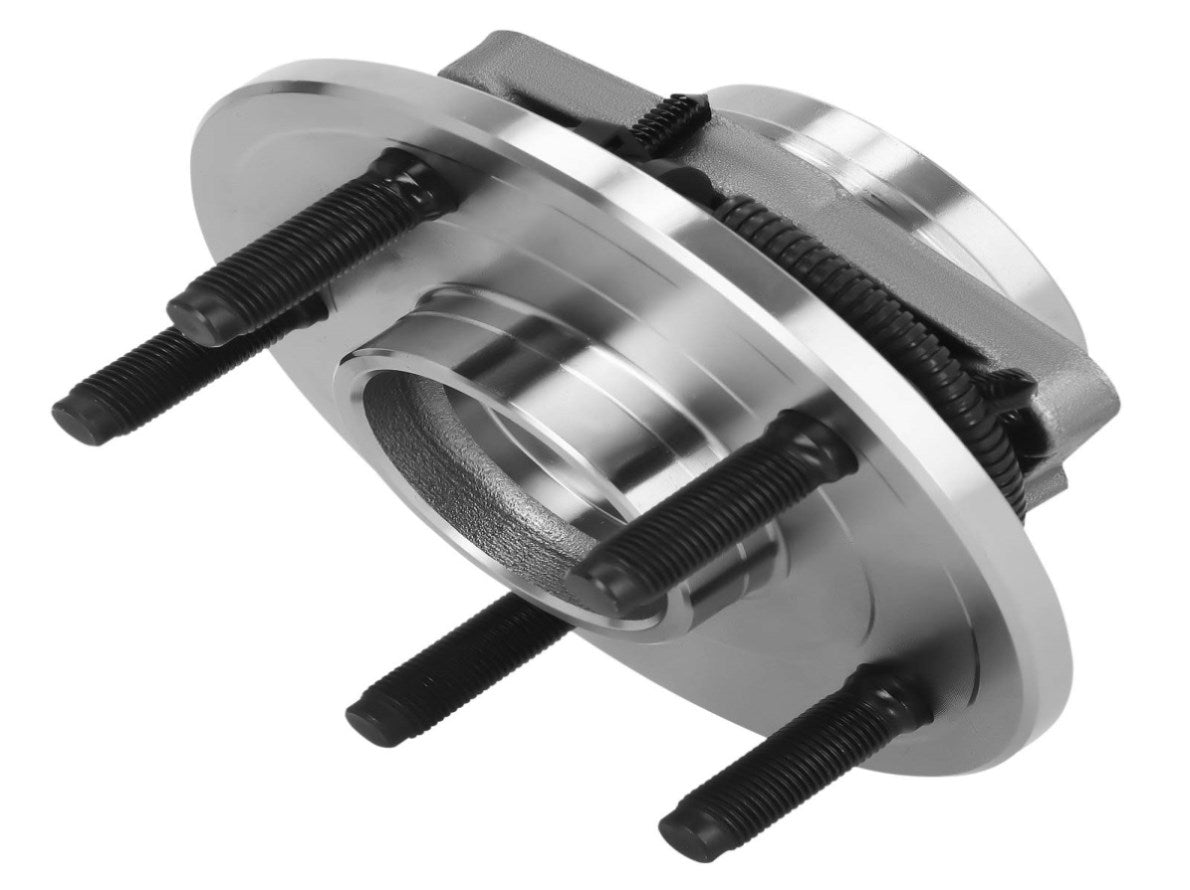

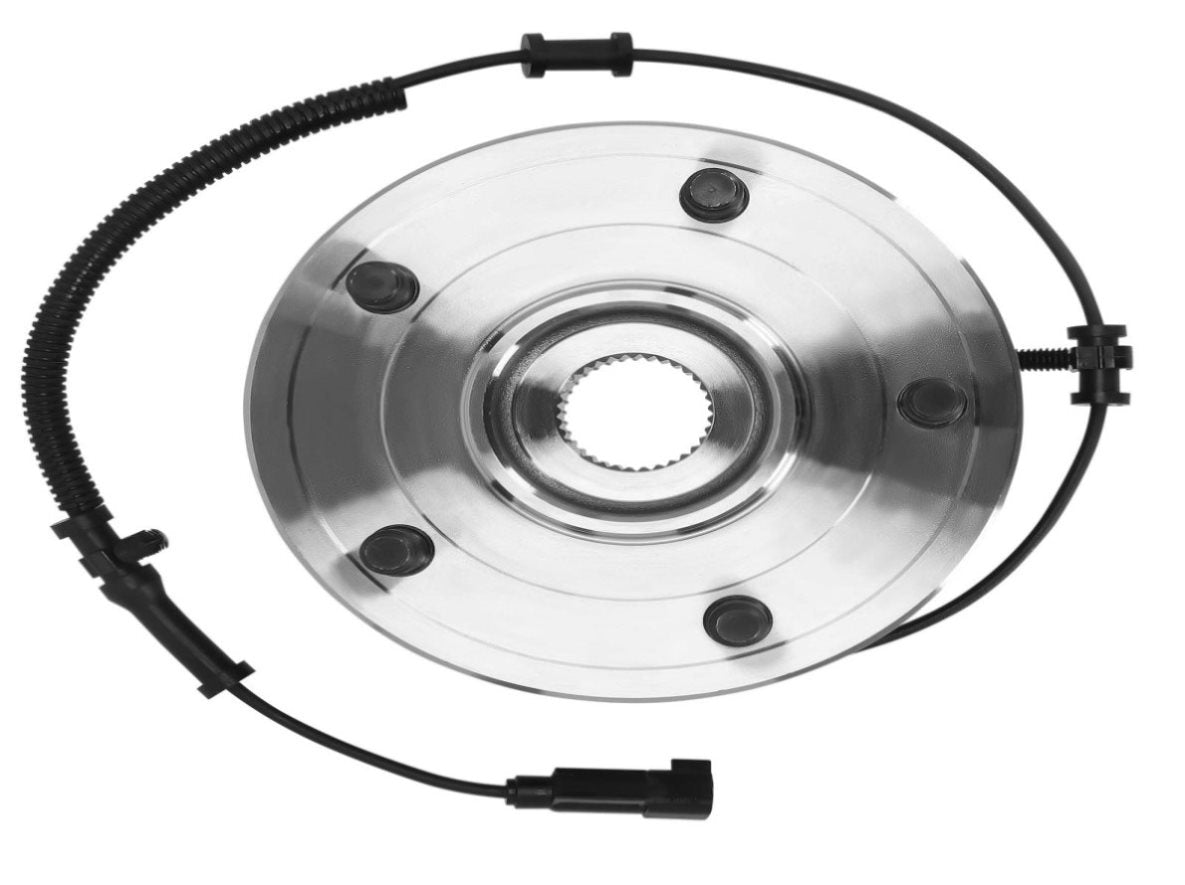

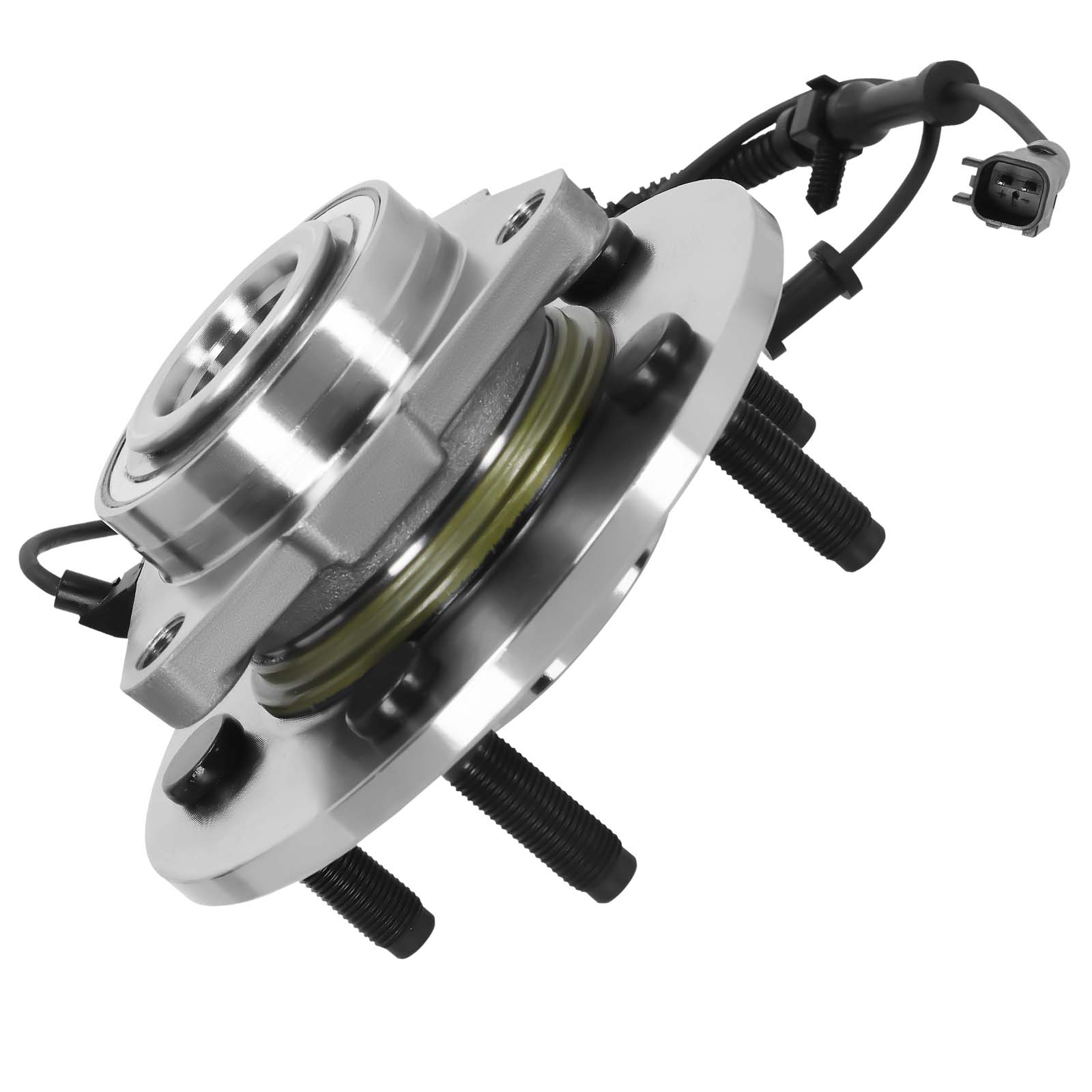

Front Wheel Bearing Hub fit for Ram 1500 2012- 2017 2018 515151 4779829AD 5154171AA 45034217
fit for Ram 1500 Classic 2019-2022 (All Models)
096509615096515096
Specifications:
Condition: Brand New
Location: Front Wheel
Material: Bearing Steel (5 Lug Bolts with ABS)
Number of Flange Bolts Hole: 3
Flange Bolt Thread Size: M14x1.5
Surface Finish: Polished, Rust-Protected
Position: Front Left and Right
Bolt Count: 5
Anti Lock Brake Sensor Included: Yes
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Brake Pilot Diameter (MM): 78.4
Flange Diameter (IN): 7.2
Flange Diameter (MM): 183
Flange Offset (IN): 1.843
Flange Offset (MM): 46.8
Flange Shape: Triangle
Height (IN): 7.5
Hub Pilot Diameter (MM): 90
Length (IN): 9
Weight (lb): 12.2
Wheel Pilot Diameter (MM): 77.7
Width (IN): 8.5
Spline Quantity: 33
Wheel Stud Quantity: 5
Package including:
Feature:
2.Rigorously controlled manufacturing processes ensure exact matching of bearing raceways and rolling elements to consistently deliver superior performance and minimize noise and vibration.
3.Premium quad-lip seal design ensures maximum protection from contamination.
4.Abrasion-resistant ABS cord (where applicable) is manufactured from a blended material that offers increased abrasion resistance and better protection from adverse conditions.
5.Wheel studs, where included, have a protective coating that helps prevent rust and corrosion, enabling easier removal and proper torqueing of wheel nuts.
6.High carbon clean steel makes fit for a smooth and quiet operation.
Note:
1. Before placing the order, please view compatability tab including the notes,or send us a message to make sure it matches exactly.
2. If you have any questions, please feel free to contact us!
