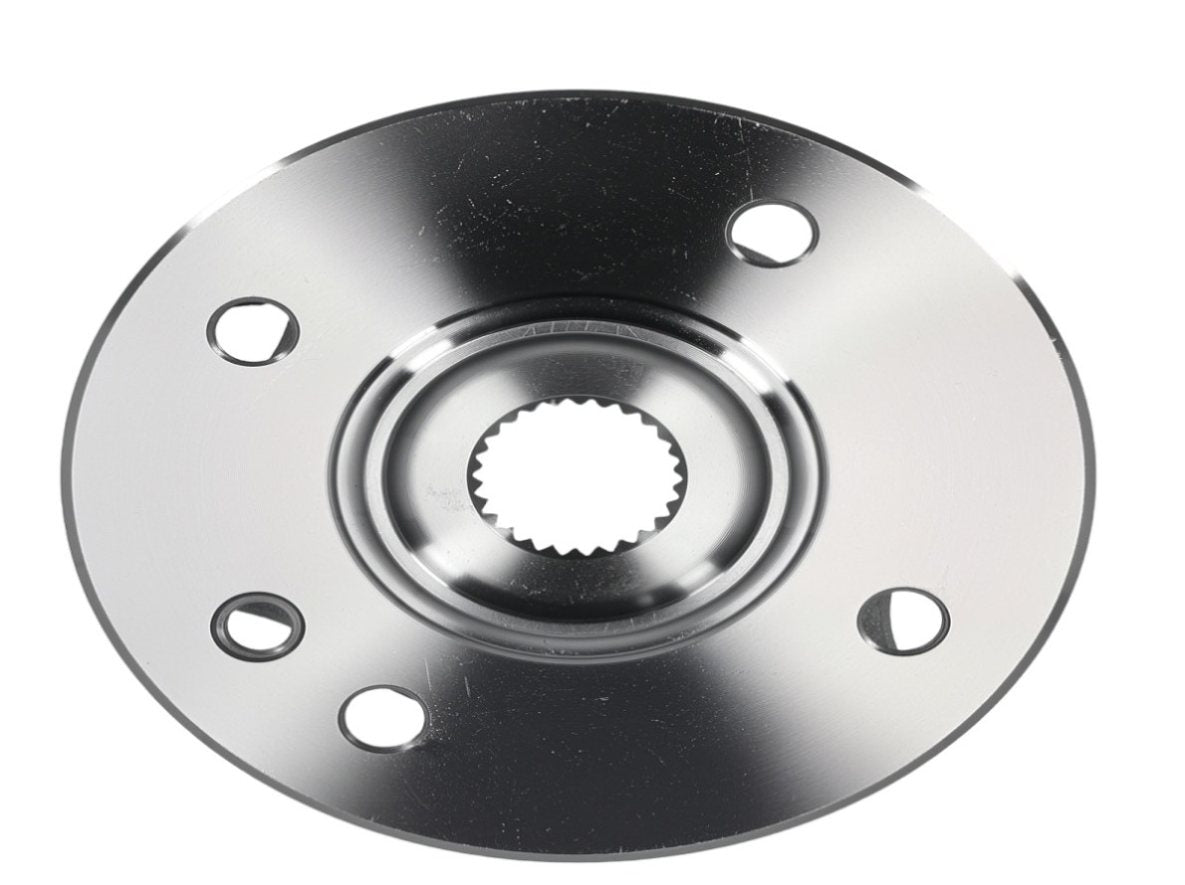

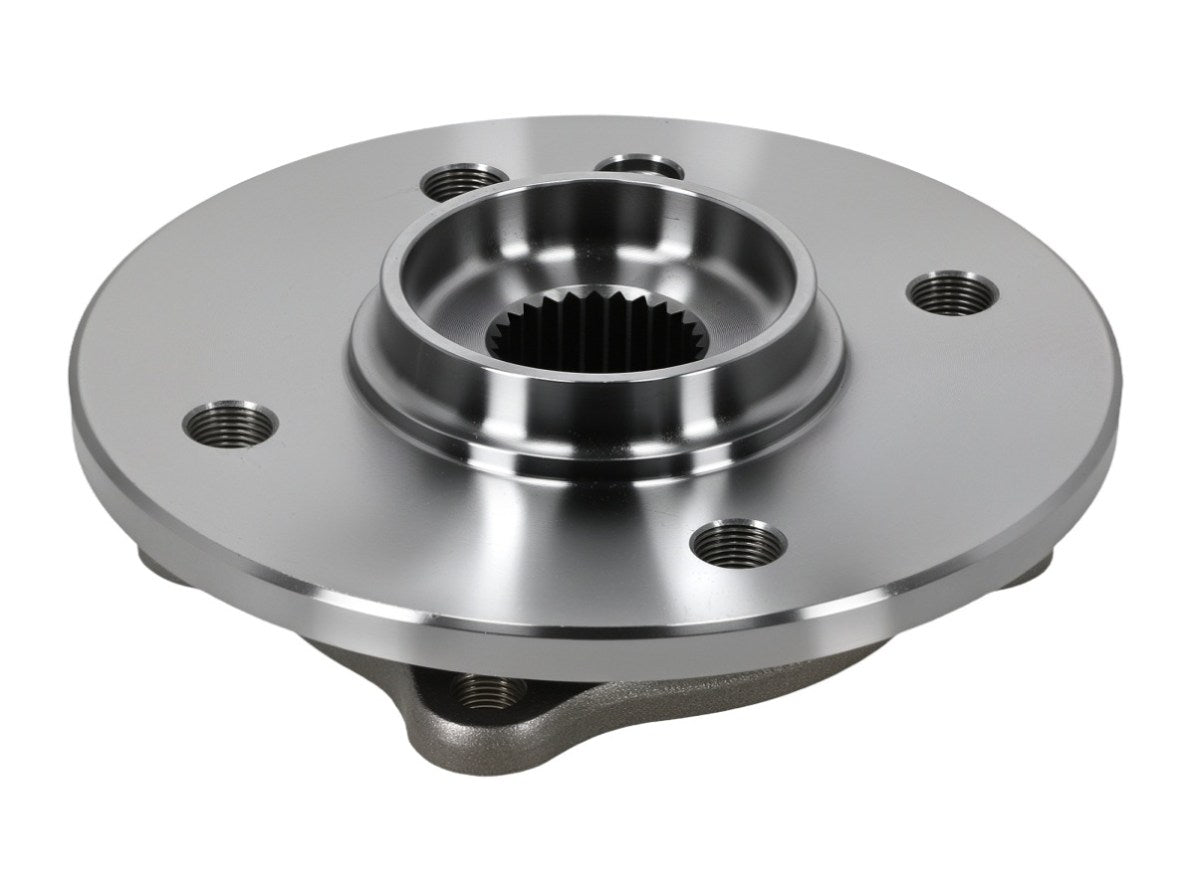

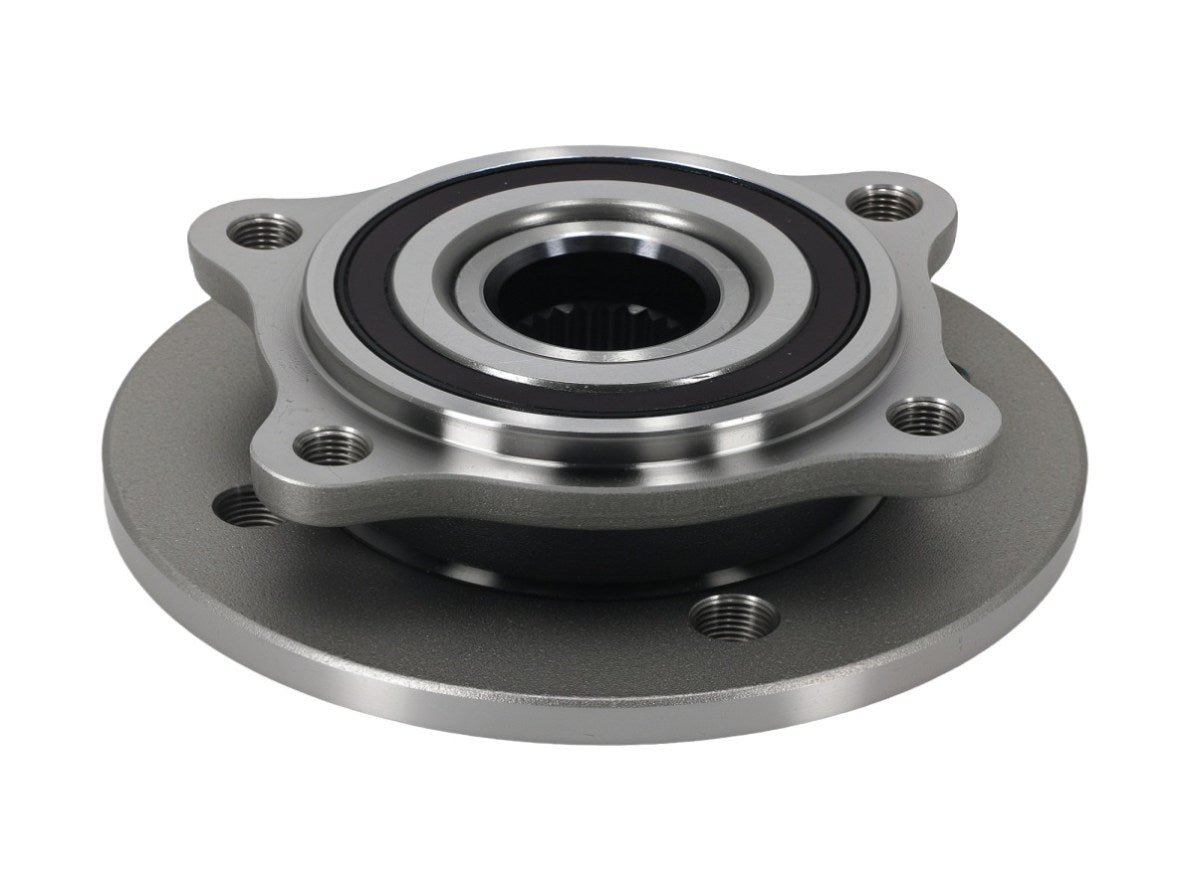

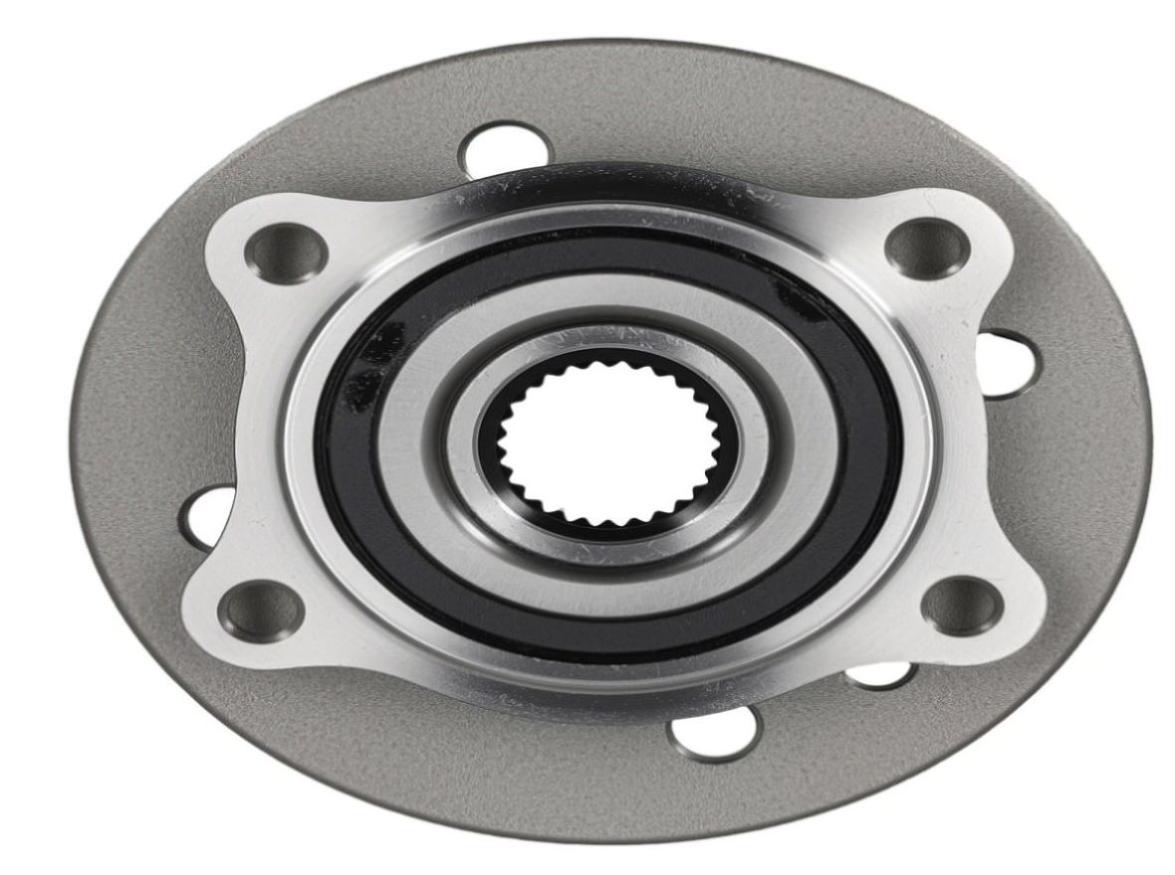

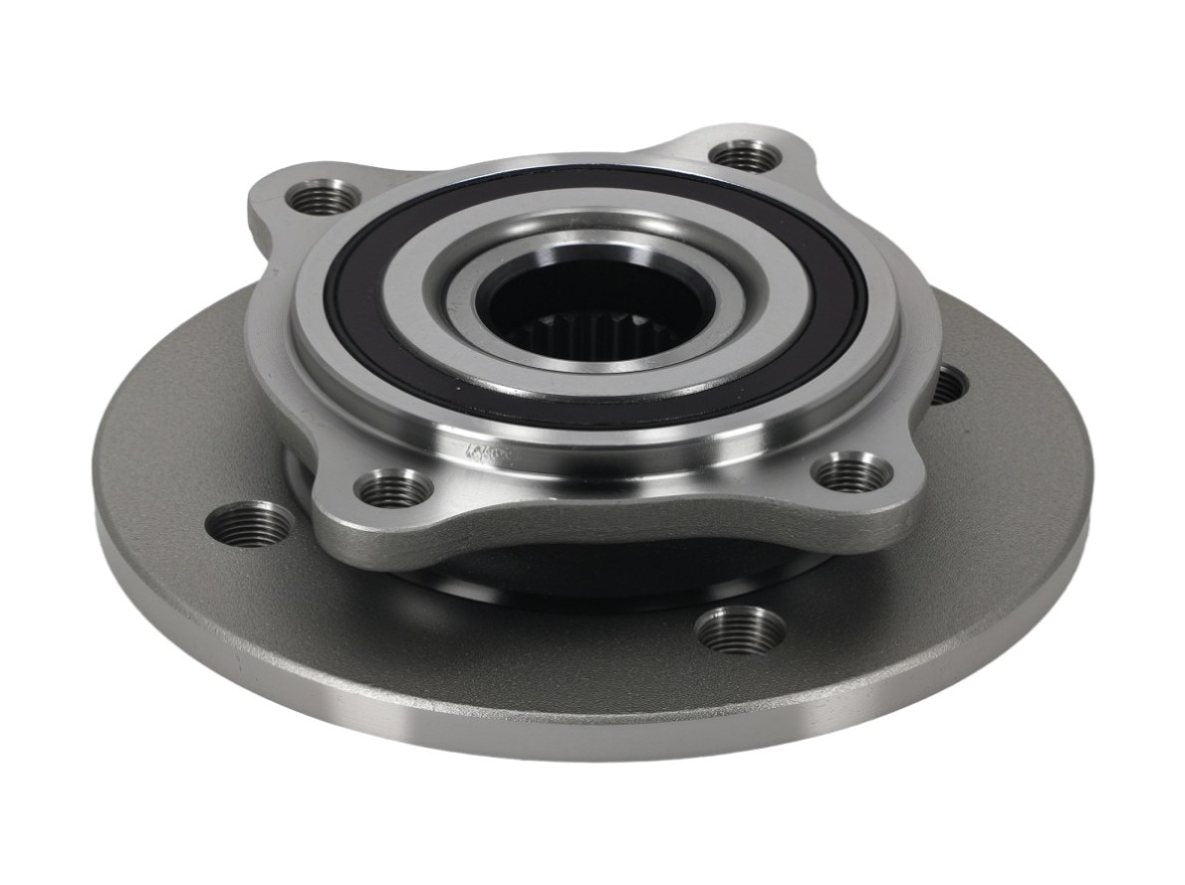

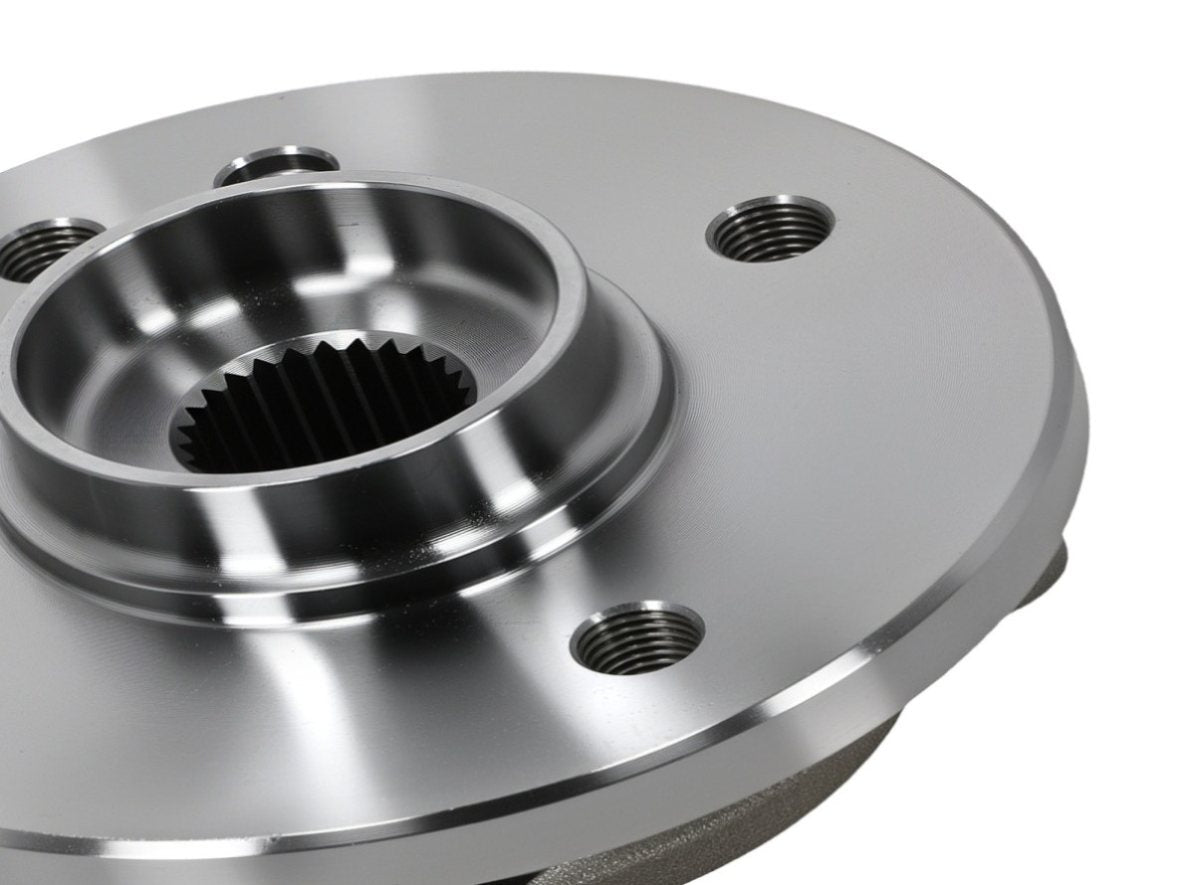

Front Wheel Bearing Hub Assembly fit for MINI COOPER 2002-06 513226 29513226 71325175
Application:
fit for MINI COOPER 2002-2006
OE/Part number:
513226,WA513226,SK513226,29513226,WH513226,7200362,40034000E,H513226,62BWKH01A1,BR930374,713226,WE61653,0516372,40034000,31226756889,051-6372
Specification:
Position: Front Left and Right
ABS Type: Encoder
Bolt Circle Diameter (IN): 3.94
Bolt Circle Diameter (mm): 100
Brake Pilot Diameter (IN): 2.52
Brake Pilot Diameter (mm): 64
Driven Or Non-Driven Type Hub Assembly: Driven
Flange Bolt Hole Quantity: 4
Flange Bolt Size (mm): M10 x 1.5
Flange Bolts Included: No
Flange Diameter (IN): 5.41
Flange Diameter (mm): 137.5
Flange Offset (IN): 1.73
Flange Offset (mm): 44
Flange Shape: Modified
Hub Pilot Diameter (IN): 3.19
Hub Pilot Diameter (mm): 81
Spline Quantity: 26
Wheel Pilot Diameter (IN): 2.2
Wheel Pilot Diameter (mm): 56
Wheel Stud Quantity: 4
Wheel Stud Size (mm): M12 x 1.5
Type: Wheel Hub & Bearing Assembly
Package included:
2x Front Wheel Hub and Bearing Assembly - 513226
Feature:
・OEM Standard Specifications
Meet OE performance standards
・High-Quality Steel Materials
Provide optimal performance and durability
・Bolt Design
Balance force better, boost safety
・Built-In Seals
Stop contaminants and keep lubrication
Note:
Professional installation is highly recommended.
Please double confirm the compatibility as well as the OEM number before purchasing
