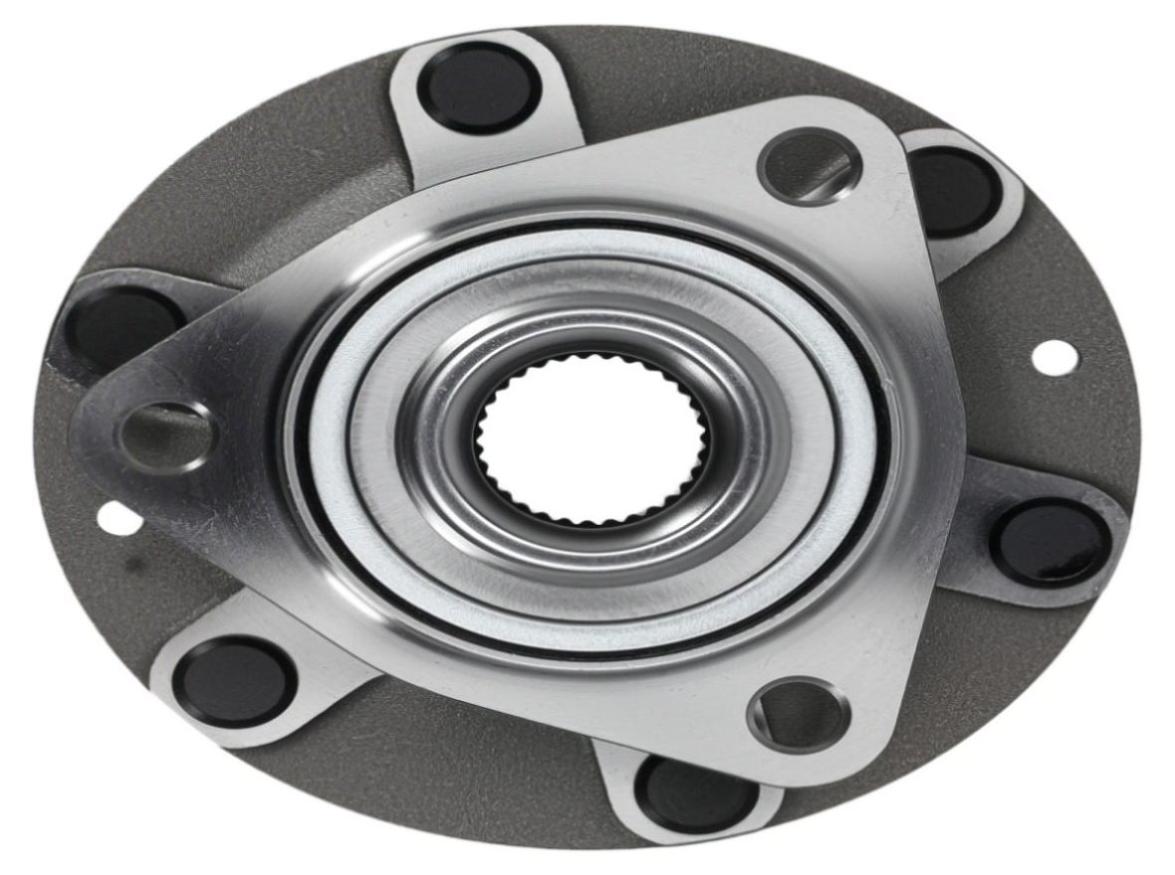

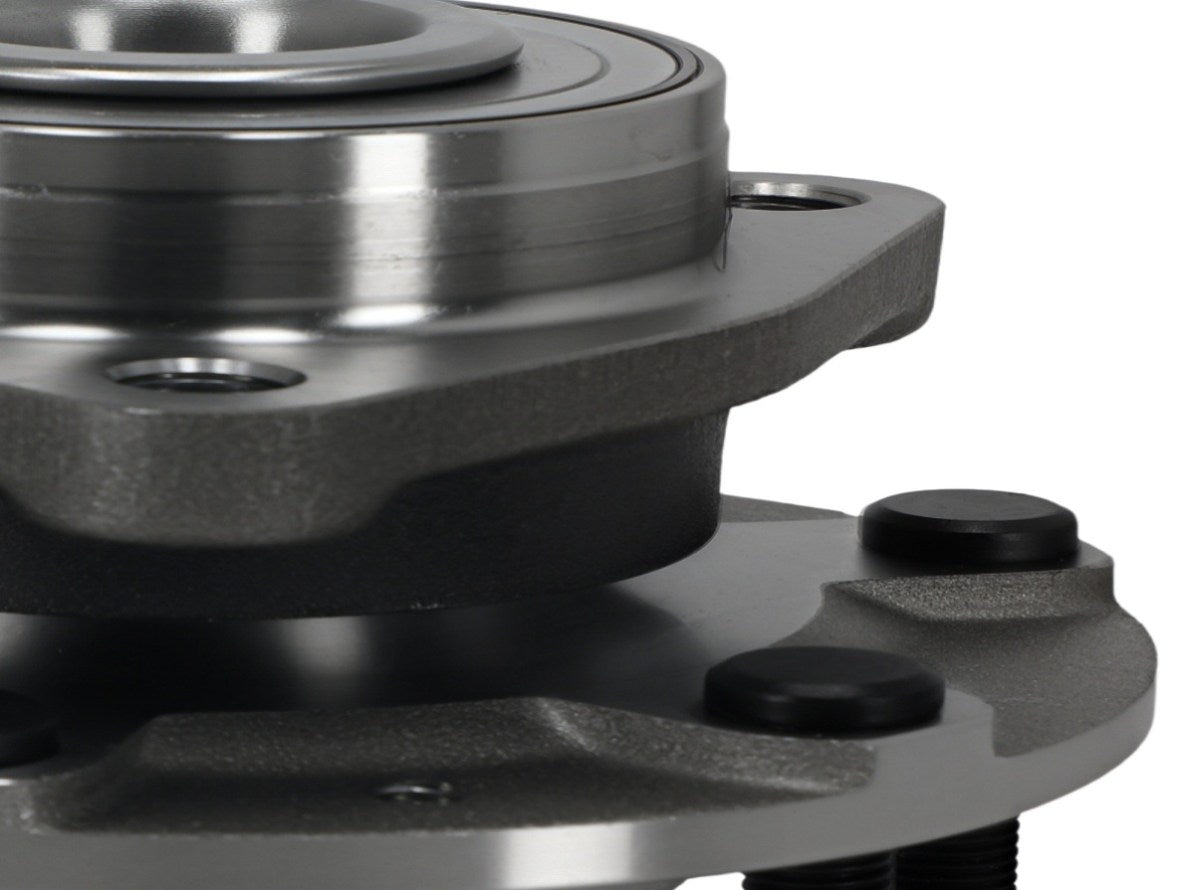

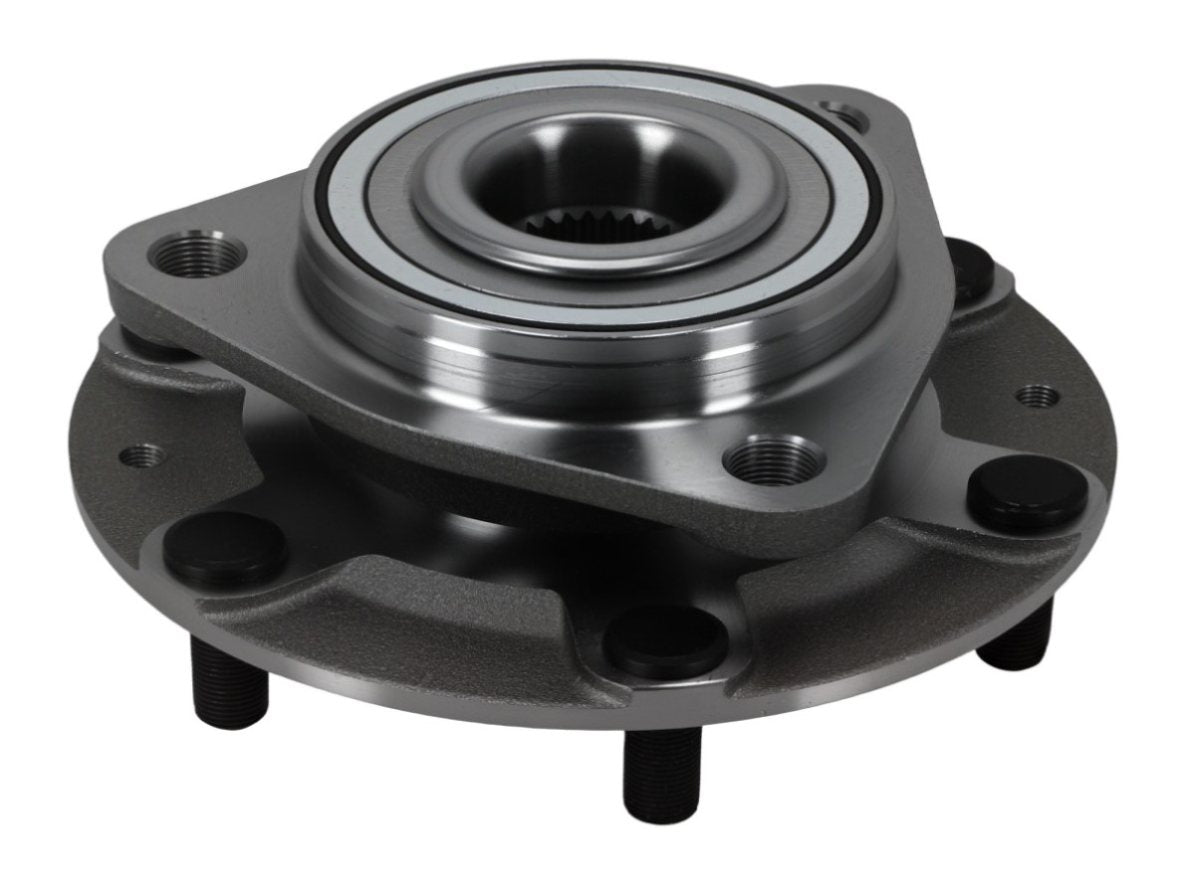

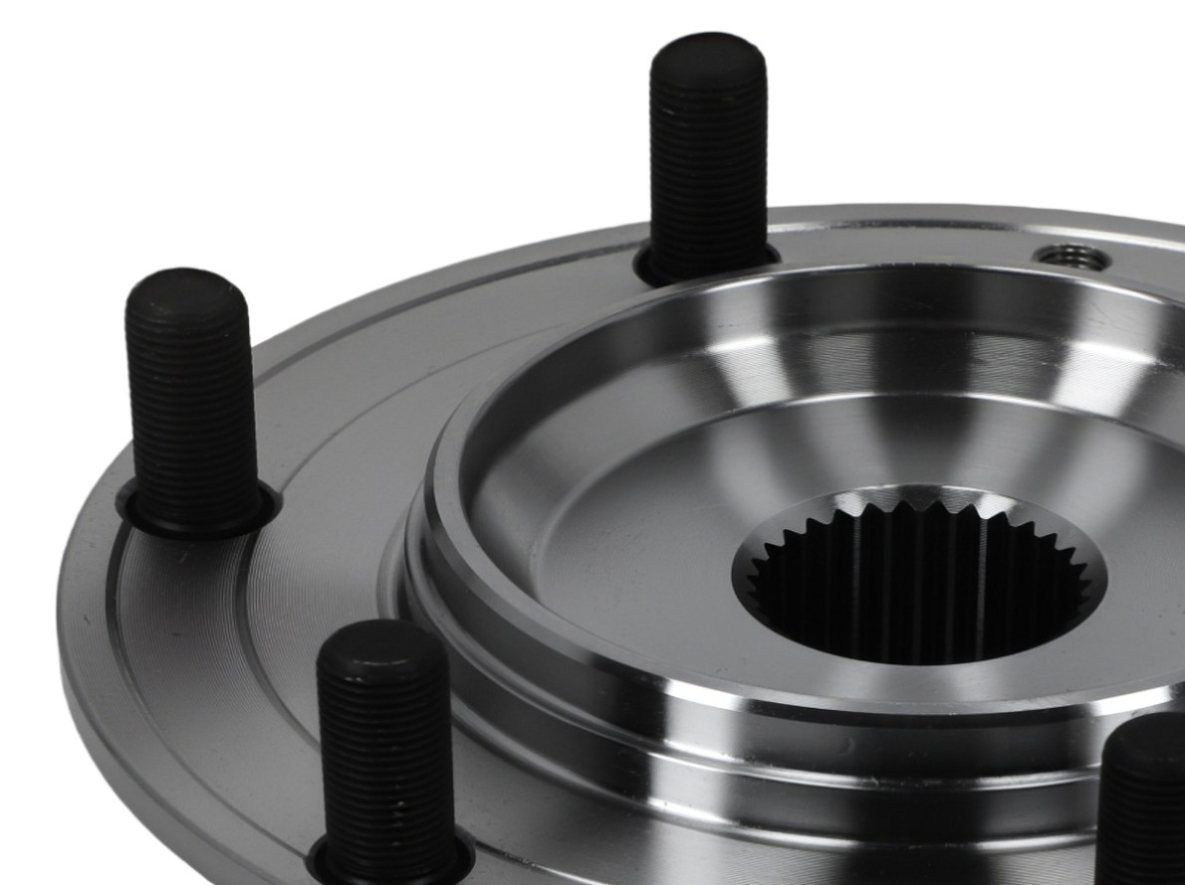

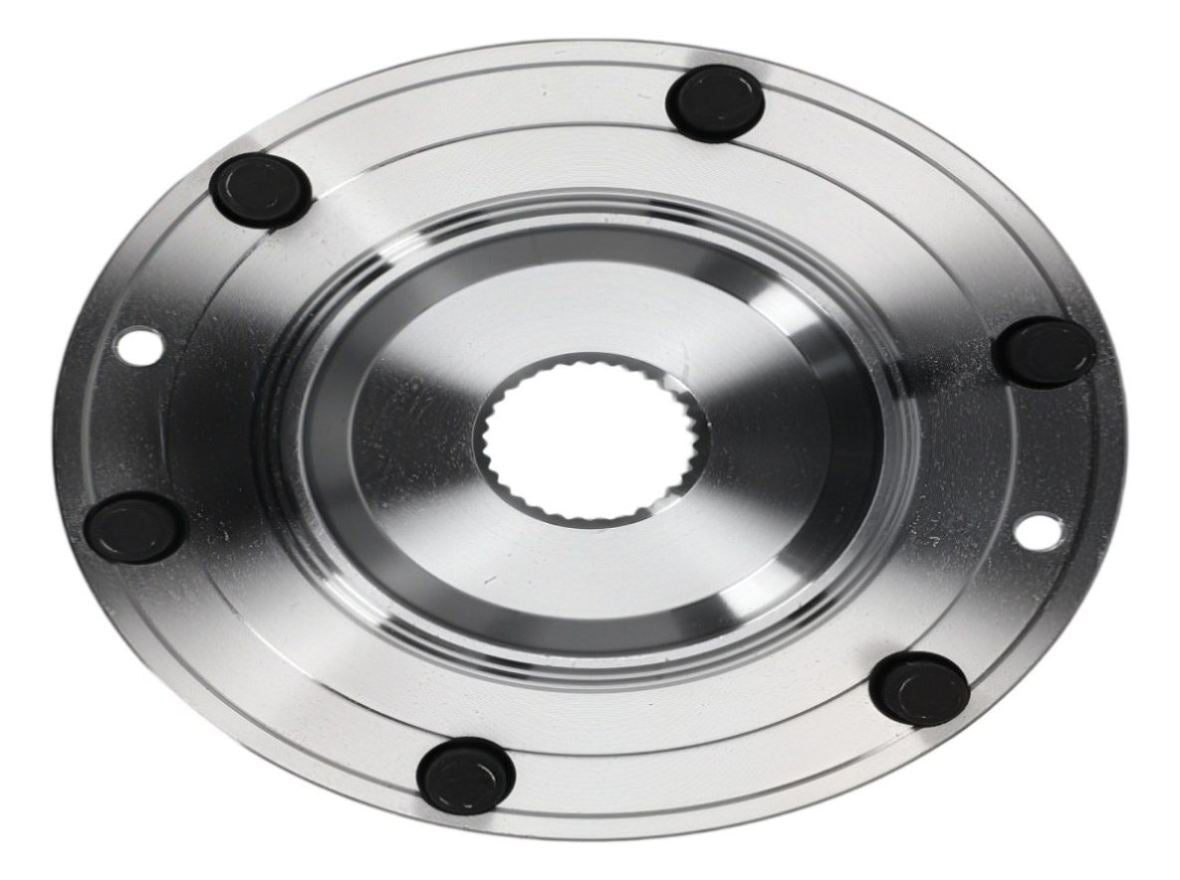

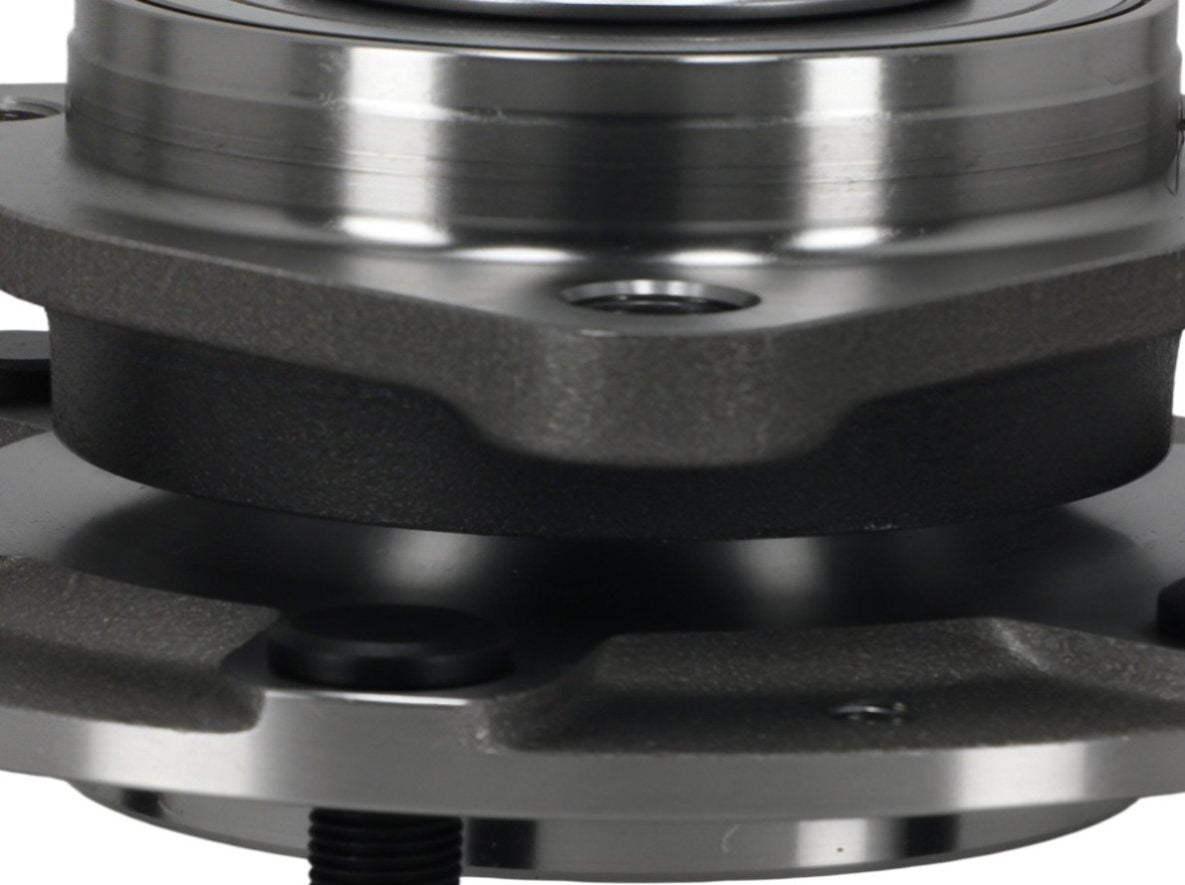

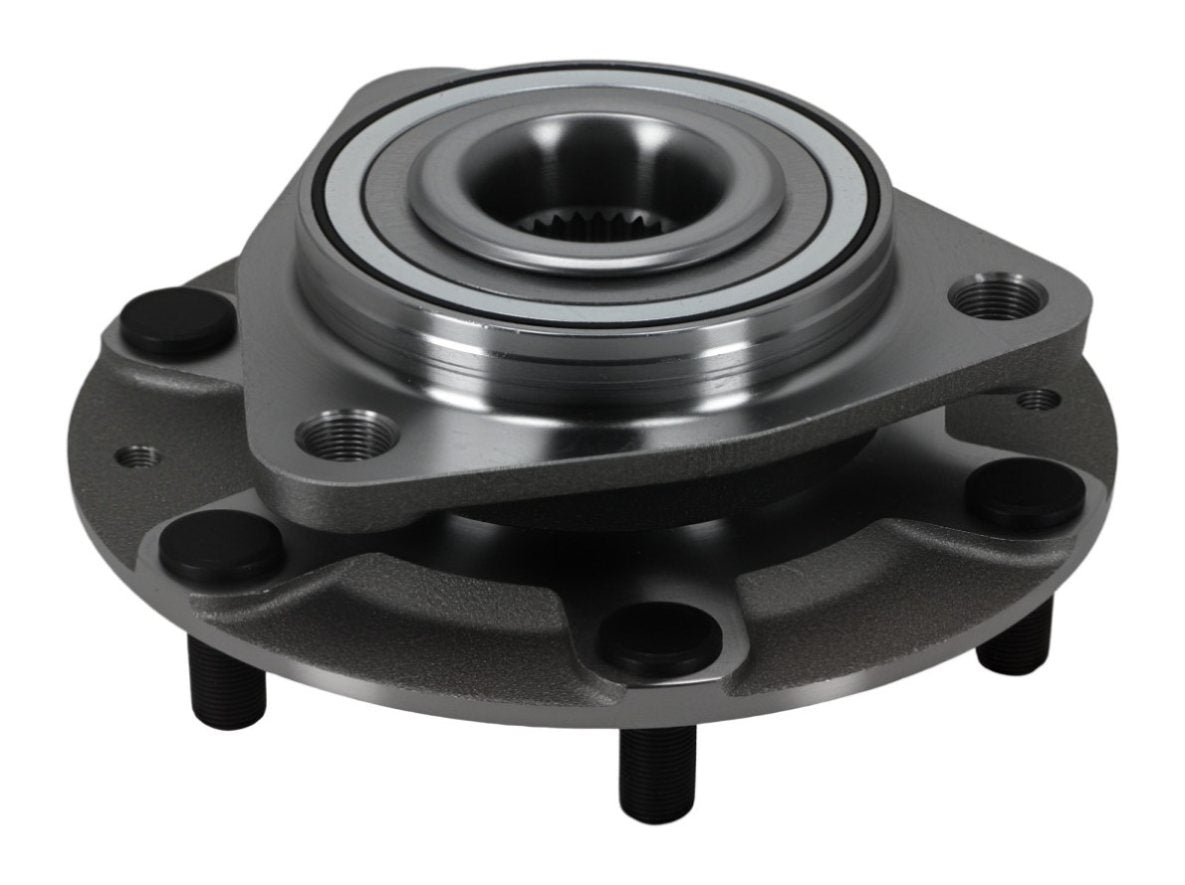

Front Wheel Bearing Hub Assembly fit for Hyundai Entourage 07-10 517504D000 92455034
Application:
fit for HYUNDAI ENTOURAGE All Models 2007-2010
fit for KIA SEDONA All Models 2006-2014
OE/Part number:
515090,517504D000,805648C,BHA50014,376090,H515090,SK515090,HA590206,BR930462,WE60958,WA515090,746-0349,1411-248707,051-6148
Specification:
Position: Front Driver & Passenger
ABS on Hub: No
Flange Type: Triangular
Bolt Circle Diameter (mm): 139.7
Brake Pilot Diameter (IN): 3.79
Brake Pilot Diameter (mm): 96.2
Flange Bolt Hole Quantity: 3
Flange Bolt Size (mm): M14 x 1.5
Flange Bolts Included: No
Flange Diameter (IN): 6.35
Flange Diameter (mm): 161.2
Flange Offset (IN): 1.9
Flange Offset (mm): 48.2
Flange Shape: TRIANGLE
Hub Pilot Diameter (IN): 3.5
Hub Pilot Diameter (mm): 89
Spline Quantity: 31
Wheel Pilot Diameter (IN): 3.63
Wheel Pilot Diameter (mm): 92.2
Wheel Stud Quantity: 6
Wheel Stud Size (mm): M12 x 1.5
Type: Wheel Hub & Bearing Assembly
Package included:
2* Front Wheel Hub and Bearing Assembly - 515090
Feature:
・OEM Standard Specifications
Meet OE performance standards
・High-Quality Steel Materials
Provide optimal performance and durability
・Bolt Design
Balance force better, boost safety
・Built-In Seals
Stop contaminants and keep lubrication
Note:
Professional installation is highly recommended.
Please double confirm the compatibility as well as the OEM number before purchasing
