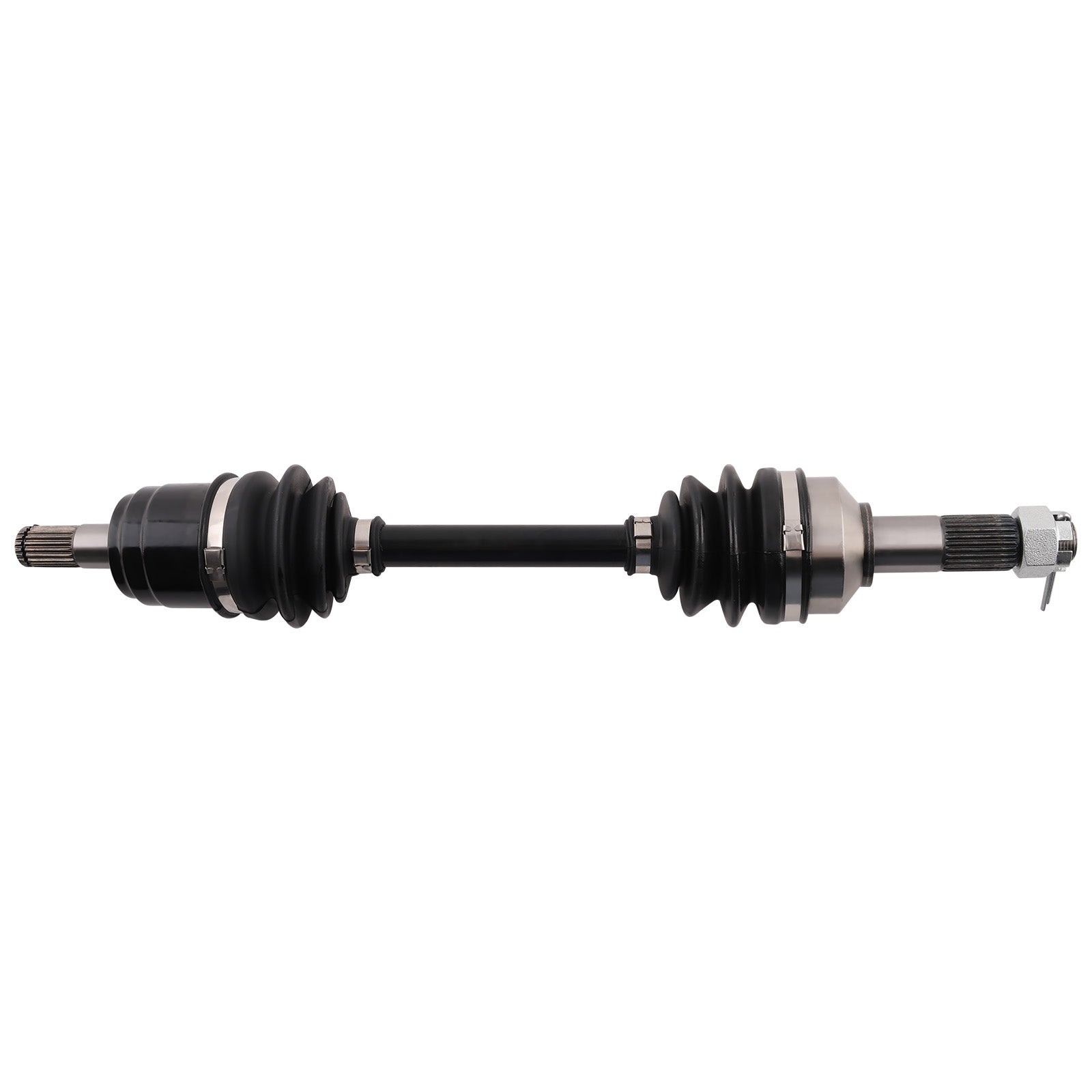

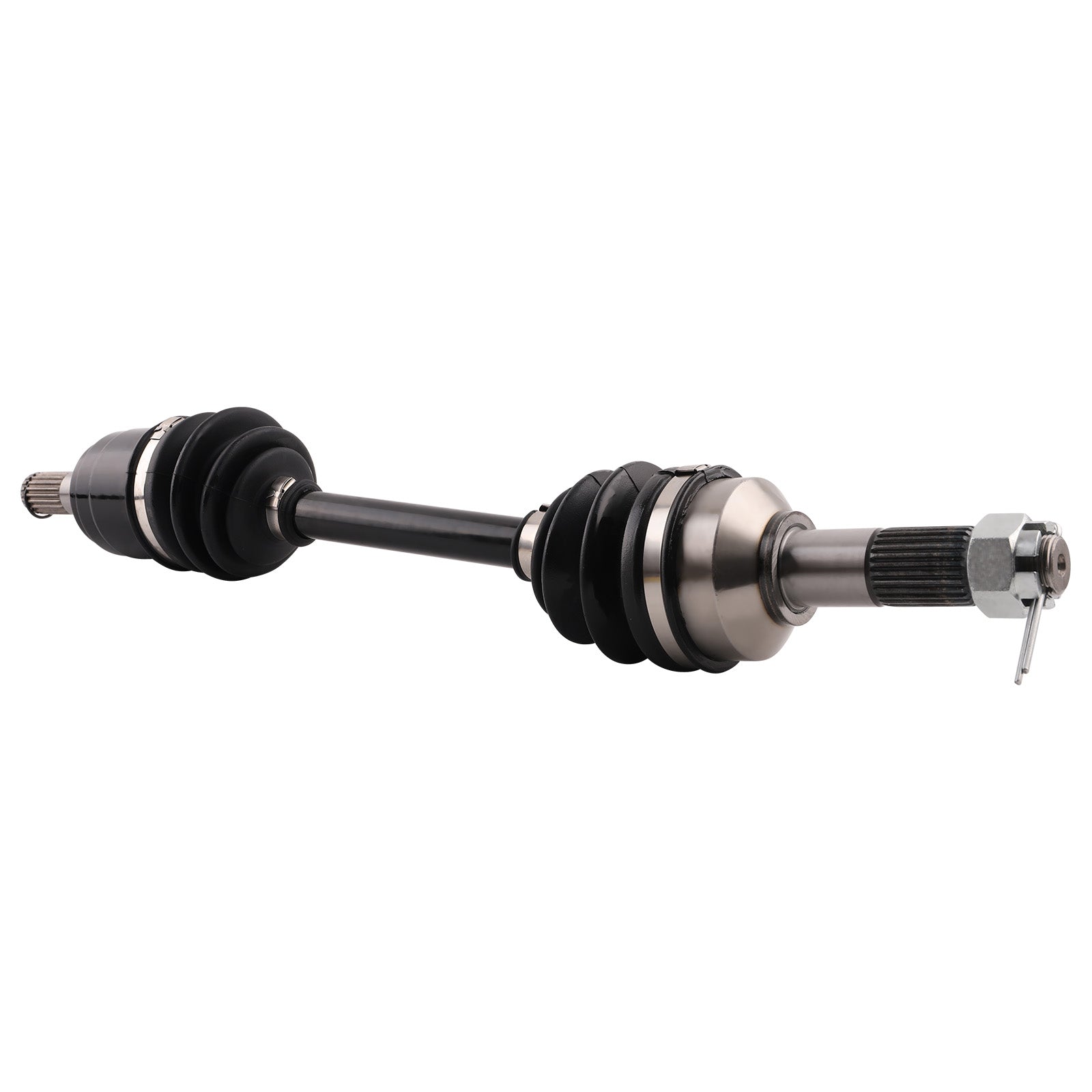

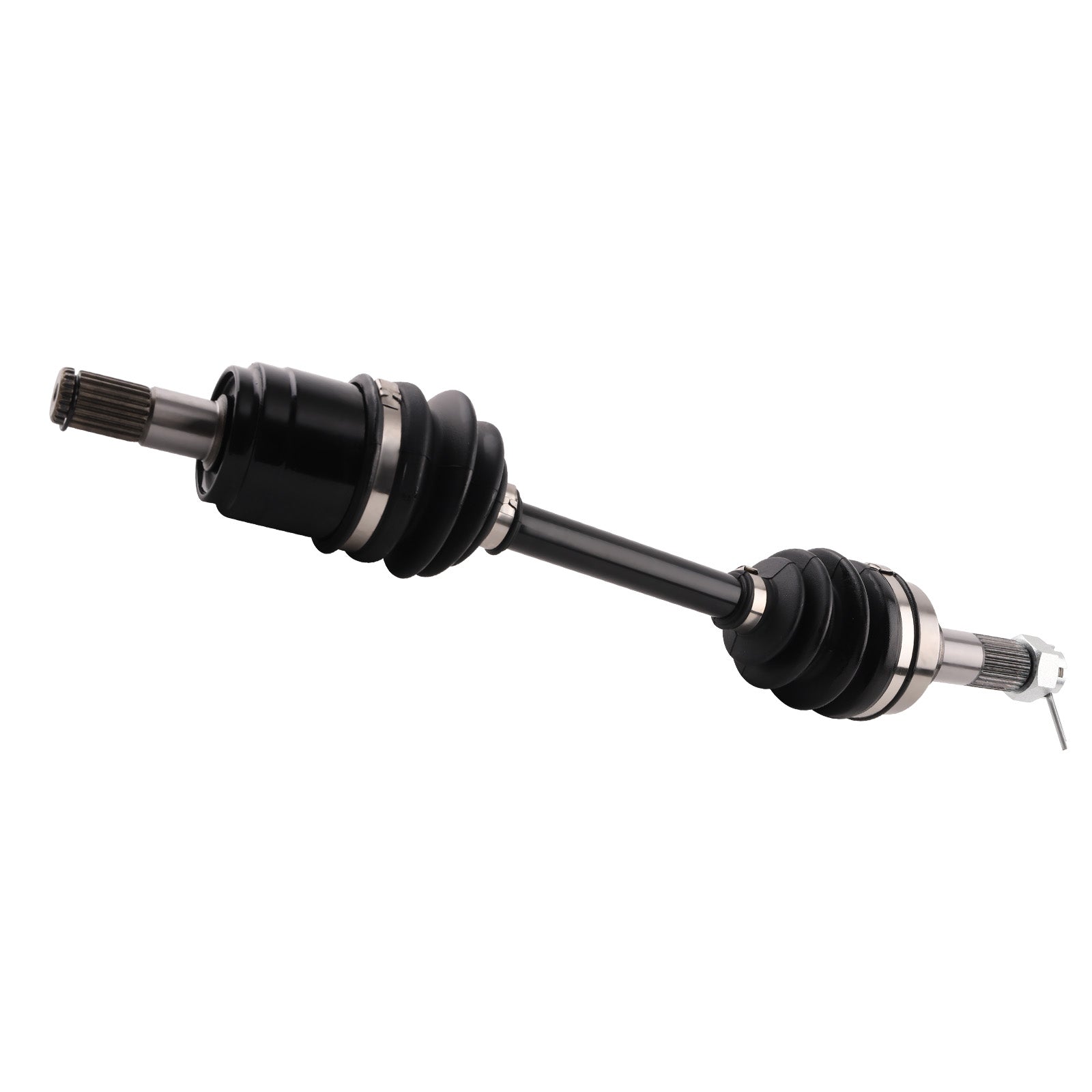

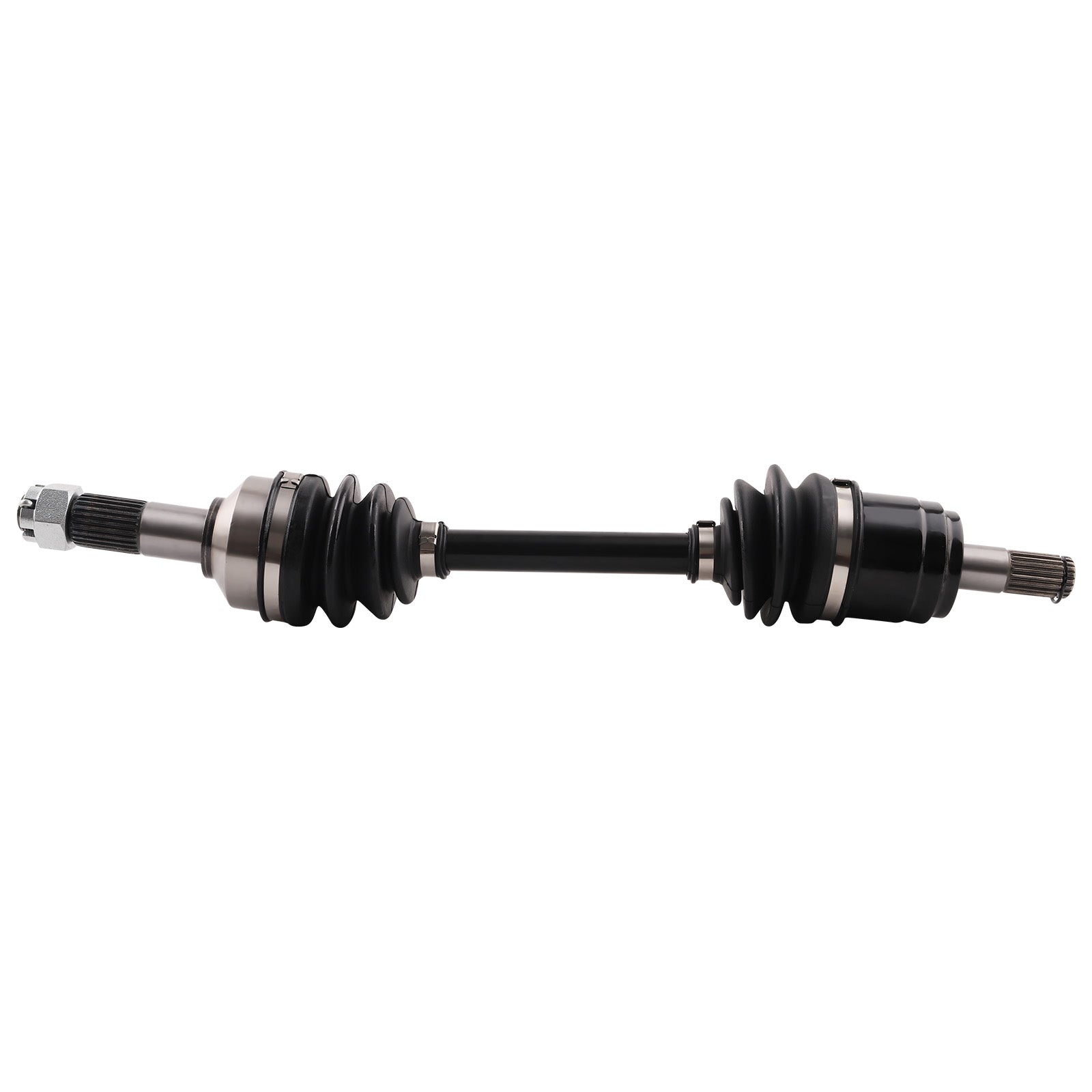

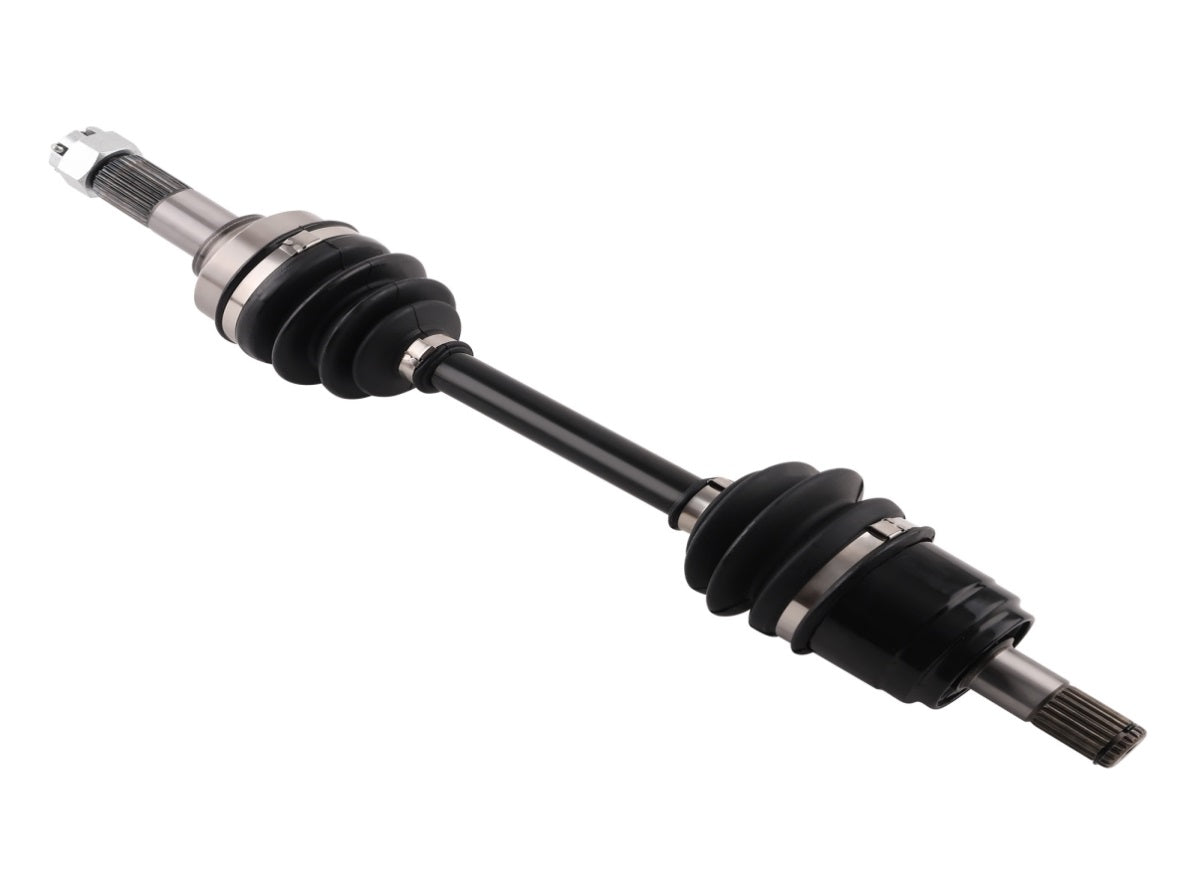

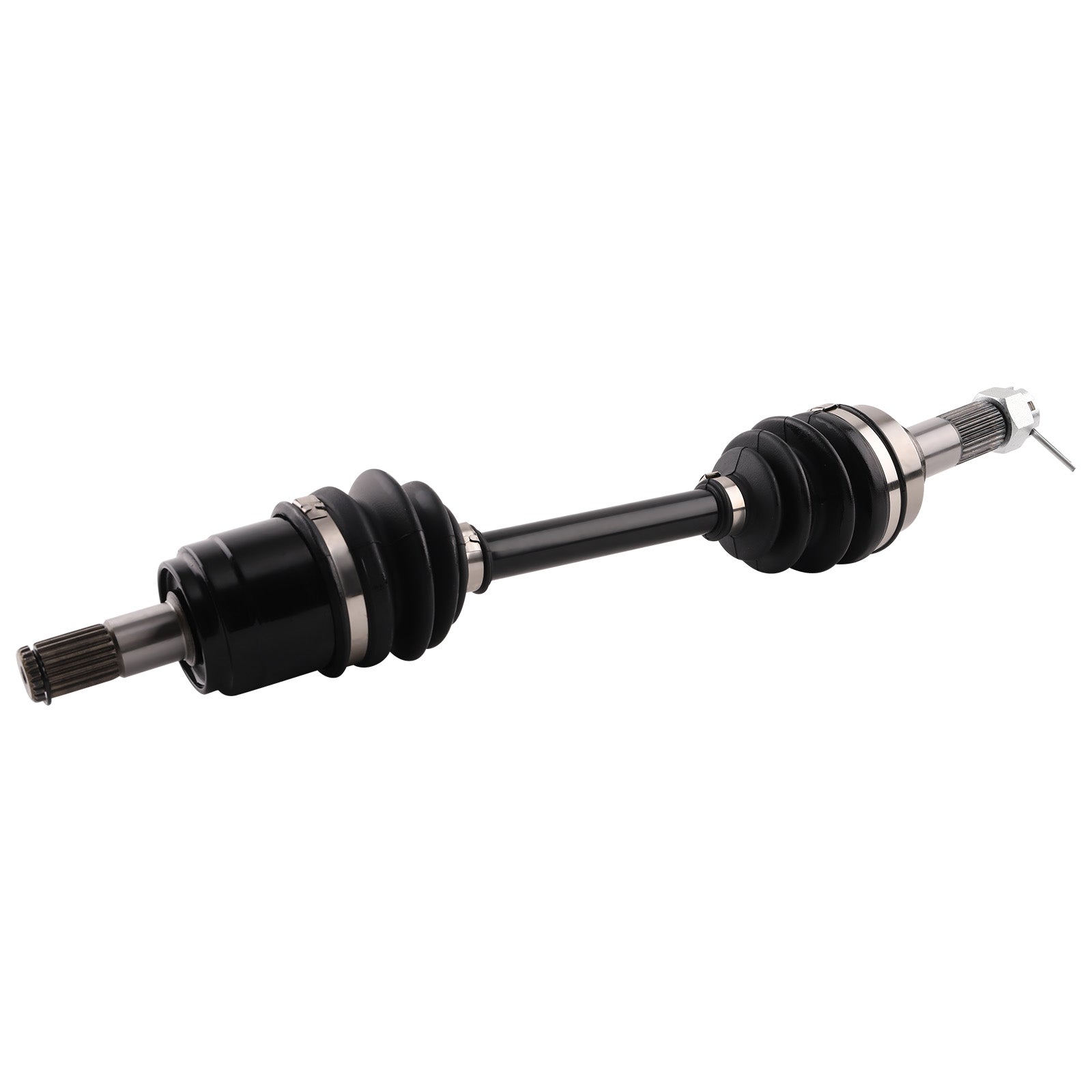

Front R/LCV Axle Shaft fit for Honda Rancher 420 TRX420FM1 4x4 14-19 44220-HR3-A21 16971394
GT-16971394
54 In stock
$107.02
Application: fit for Honda Rancher 420 TRX420FA1 4x4 Auto DCT Front Right 2015-2016 ， fit for Honda Rancher 420 TRX420FE 4x4 ES Front Right 2015 ， fit for Honda Rancher 420 TRX420FE1 4x4 ES Front Right 2014 ， fit for Honda Rancher 420 TRX420FM1 4x4 Front Right 2014-2016 ， fit for Honda Rancher 420 TRX420FM2 4x4 EPS Front Right 2014-2016 ， fit for Honda Rancher 420 TRX420FE1 4x4 ES Front Right 2016 ， ...
customers are viewing this product
Application:
fit for Honda Rancher 420 TRX420FA1 4x4 Auto DCT Front Right 2015-2016 ，
fit for Honda Rancher 420 TRX420FE 4x4 ES Front Right 2015 ，
fit for Honda Rancher 420 TRX420FE1 4x4 ES Front Right 2014 ，
fit for Honda Rancher 420 TRX420FM1 4x4 Front Right 2014-2016 ，
fit for Honda Rancher 420 TRX420FM2 4x4 EPS Front Right 2014-2016 ，
fit for Honda Rancher 420 TRX420FE1 4x4 ES Front Right 2016 ，
Part Number
HO-231, 44250-HR3-A21, 44250-HR3-A22，44250HR3-A21, 44250HR3A22，HO231
| Product Details | |
| Type | CV Axle Assembly |
| Compatible Type | ATV; UTV |
| Color | Black |
| Placement on Vehicle | Front,Right |
| Axle Nut Hex Size | 1.06 in / 27 mm |
| Axle Nut Locking Type | Split Pin |
| Axle Nut Thread Size | M20×1.0 |
| Shaft Material | 40CR |
| Surface Finish | Black Coating |
| Inboard / Outboard Splines | 20 / 26 Teeth |
| Overall Compressed Length | 489 mm |
| Axle Nut Socket Size | 27 mm |
| Surface Finish | Black Coating |
Package Includes:
1* Front Right CV Axle Shafts
(Showing as the picture)
Notice:
* Professional installation is highly recommended (No Instruction Included)
