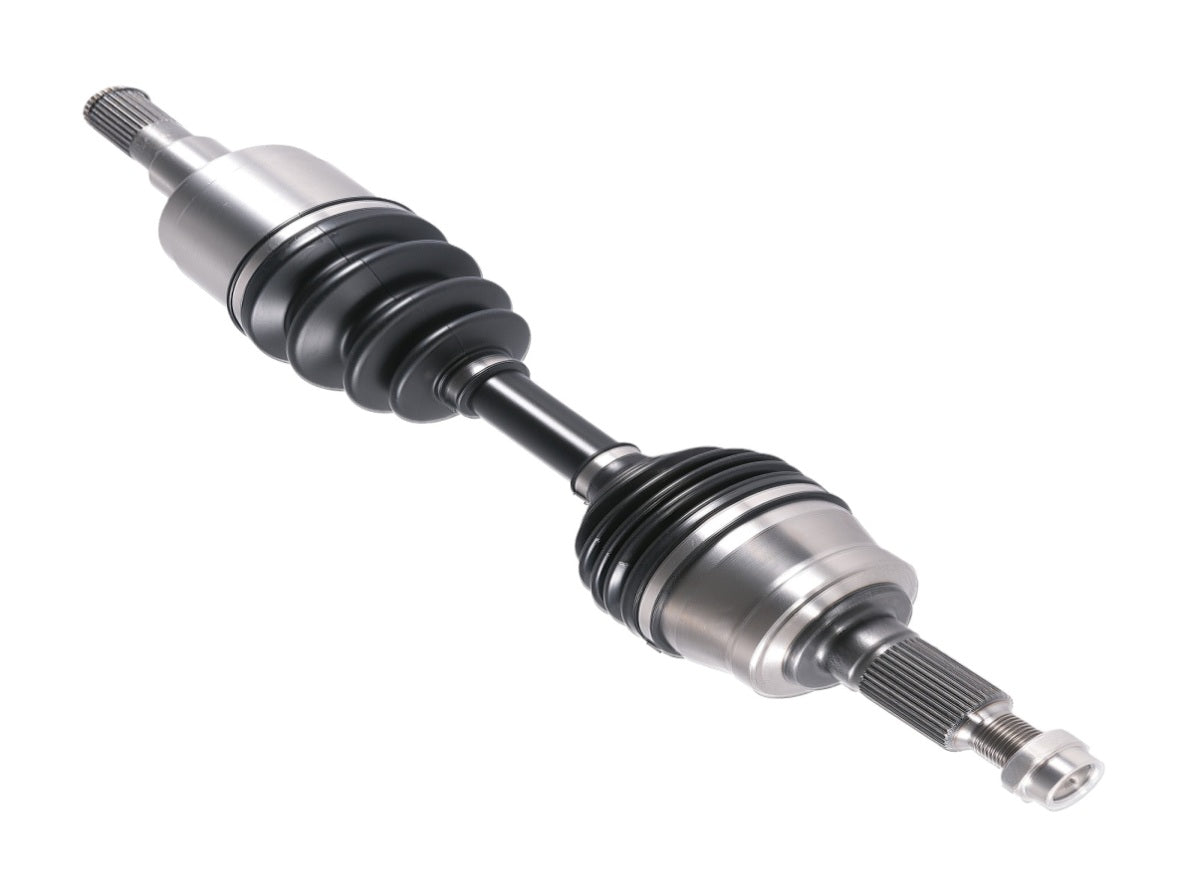

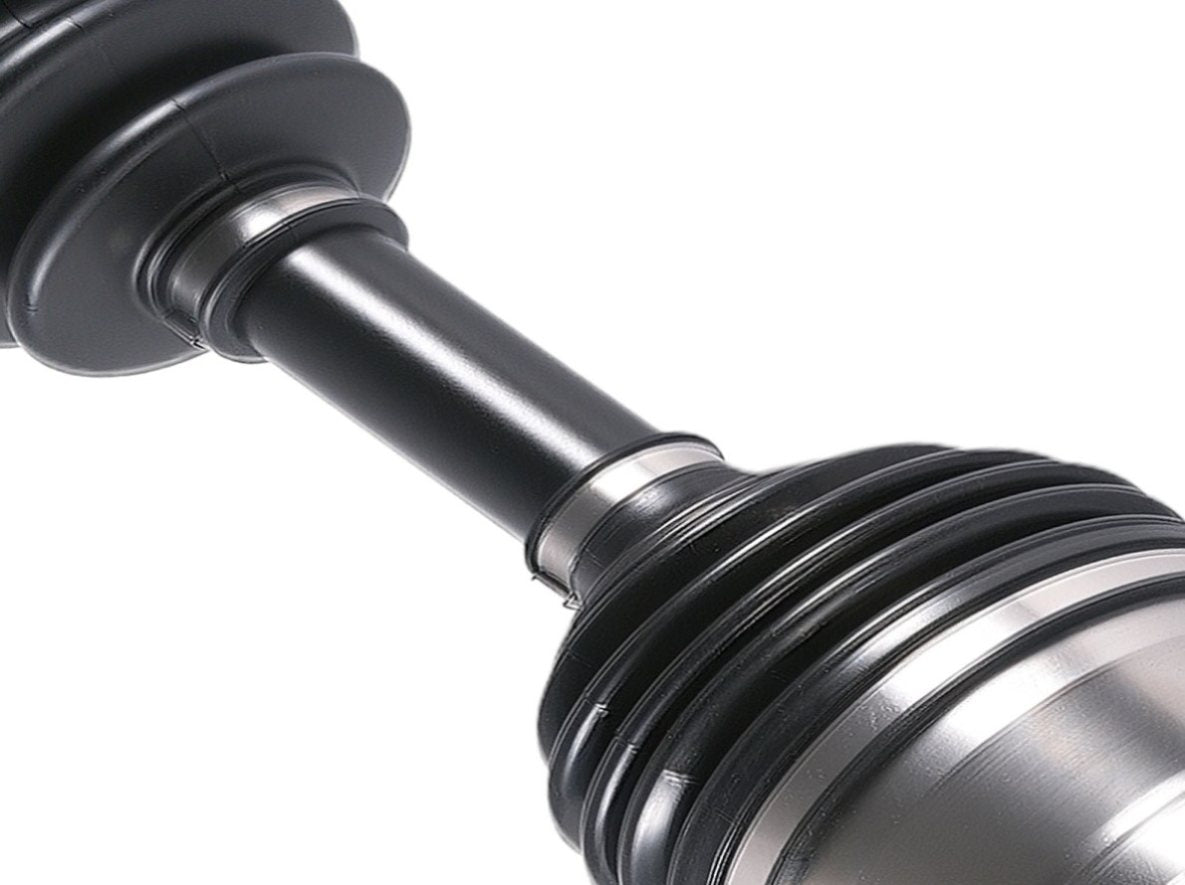

Front CV Axle Shaft fit for GMC Canyon, Chevy Colorado 2.8L 3.6L 2015-2022 84275039 07091010

Due to the surface heat treatment process, the product color may vary between batches, appearing as black or gray. The product color is shipped randomly and does not affect installation or use.

Function:

CV Axles serve as the final link between the engine and the wheels, transferring power from the vehicle's transmission and differential to the wheels to drive the vehicle forward.And ensure the stability and safety of the car when turning or driving on uneven roads.

Application

fit for GMC Canyon ALL Front Left or Right 2015-2022
CODE ACD5, ABHH, ACJX, ADGJ; 2 Speed Active Part Time 4WD Left Hand Drop Transfer Case(NQ6)

fit for Chevrolet Colorado L4 2.5L Front Left or Right 2015
fit for Chevrolet Colorado V6 3.6L Front Left or Right LT 2015
fit for Chevrolet Colorado V6 3.6L Front Left or Right WT 2015
fit for Chevrolet Colorado V6 3.6L Front Left or Right Z71 2015
CODE ACD5, ABHH, ACJX, ADGJ; 2 Speed Switch Activated Part Time 4WD L/H Drop Transfer Case(NQ7)

fit for Chevrolet Colorado L4 2.5L Front Left or Right 2016-2022
fit for Chevrolet Colorado L4 2.8L Front Left or Right 2016
fit for Chevrolet Colorado L4 2.8L Front Left or Right LT 2017-2022
fit for Chevrolet Colorado L4 2.8L Front Left or Right WT 2017-2022
fit for Chevrolet Colorado L4 2.8L Front Left or Right Z71 2017-2022
fit for Chevrolet Colorado L4 2.8L Front Left or Right ZR2 2022
fit for Chevrolet Colorado V6 3.6L Front Left or Right 2016
fit for Chevrolet Colorado V6 3.6L Front Left or Right LT 2017-2022
fit for Chevrolet Colorado V6 3.6L Front Left or Right WT 2017-2022
fit for Chevrolet Colorado V6 3.6L Front Left or Right Z71 2017-2022
fit for Chevrolet Colorado V6 3.6L Front Left or Right ZR2 2022
CODE ACD5, ABHH, ACJX, ADGJ; NQ7 or NQ6

Note：
2 Speed Active Part Time 4WD Left Hand Drop Transfer Case(NQ6)
2 Speed Switch Activated Part Time 4WD L/H Drop Transfer Case(NQ7)




OE/Part number

84275039,66-1633,60-1633,661633,601633

Specification

Condition: New
Type: CV Axle Assembly
Color: Black
Location: Front Driver or Passenger
Spindle Nut Included: No

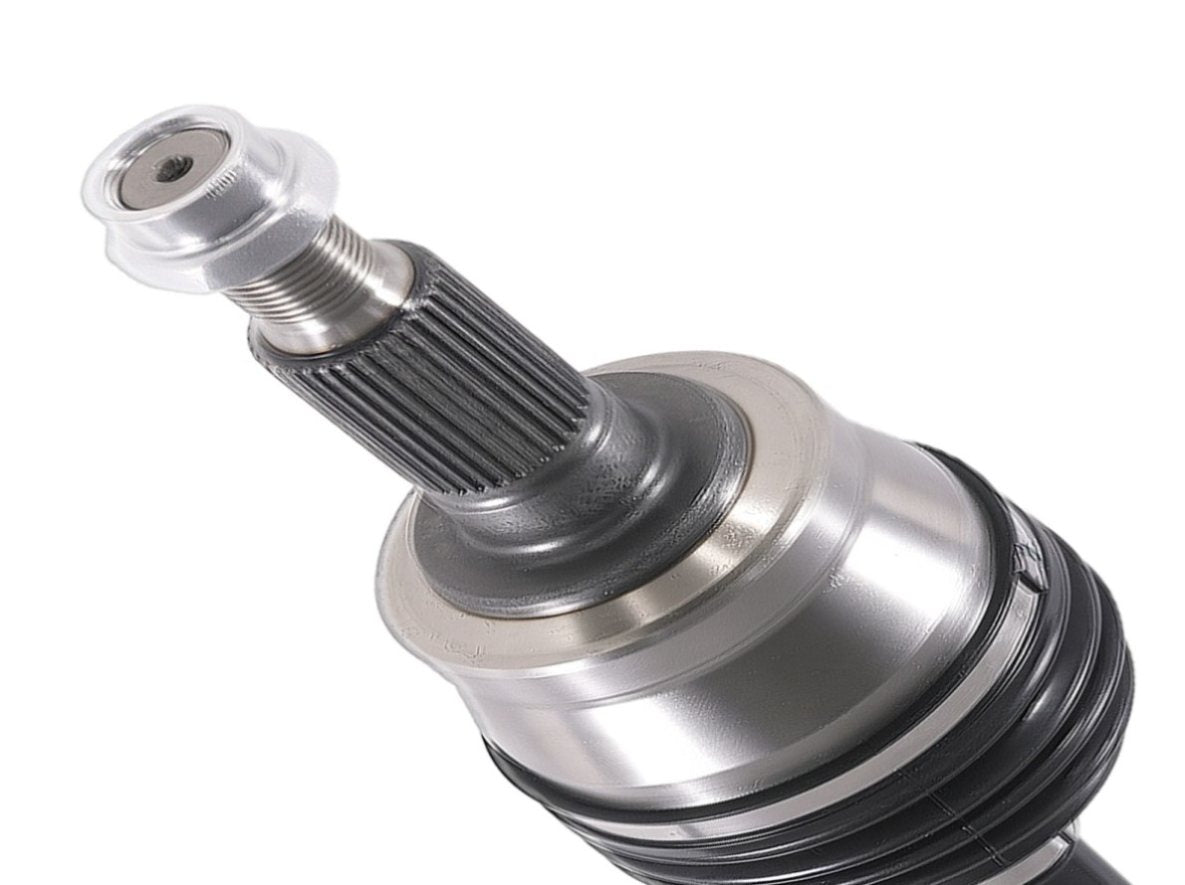

Spindle Nut Thread Size: M24X2.0
Axle Nut Locking Type: Self-Lock

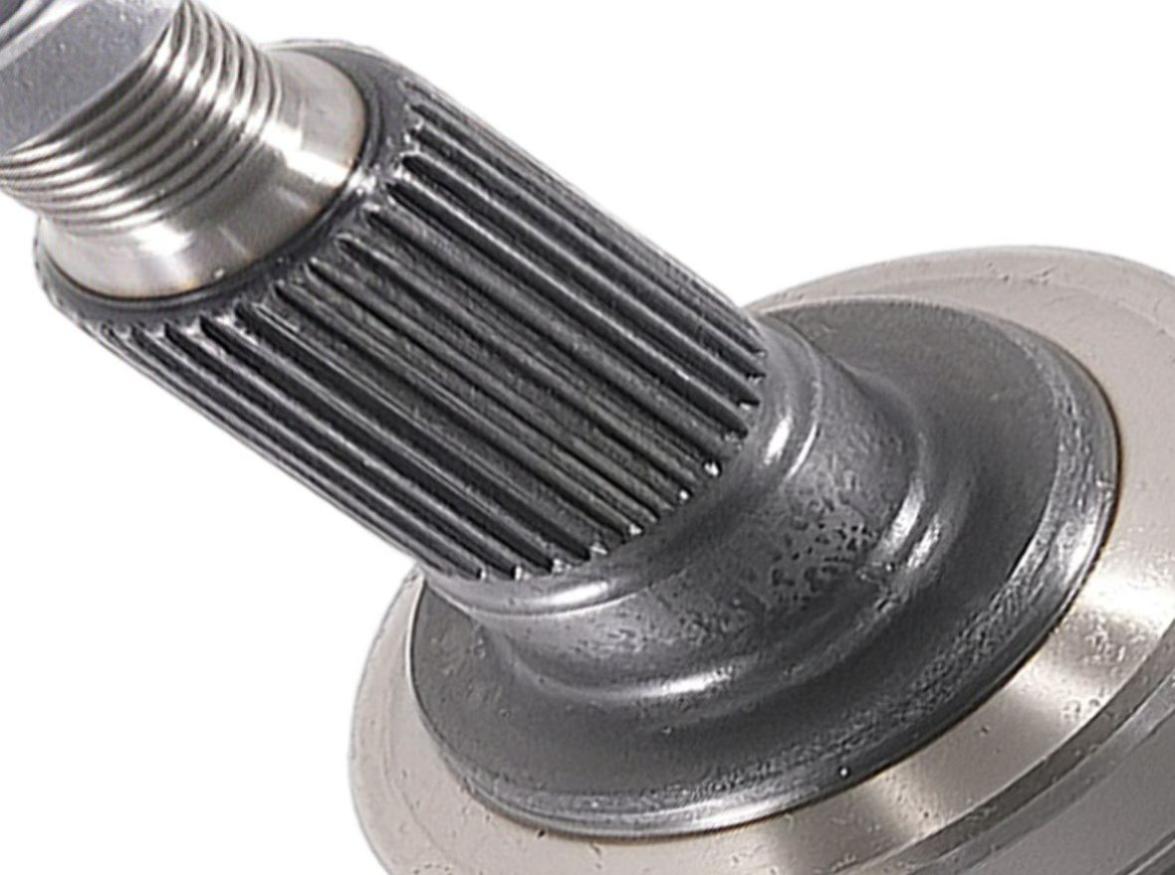

Input Shaft Spline Quantity: 28 Teeth

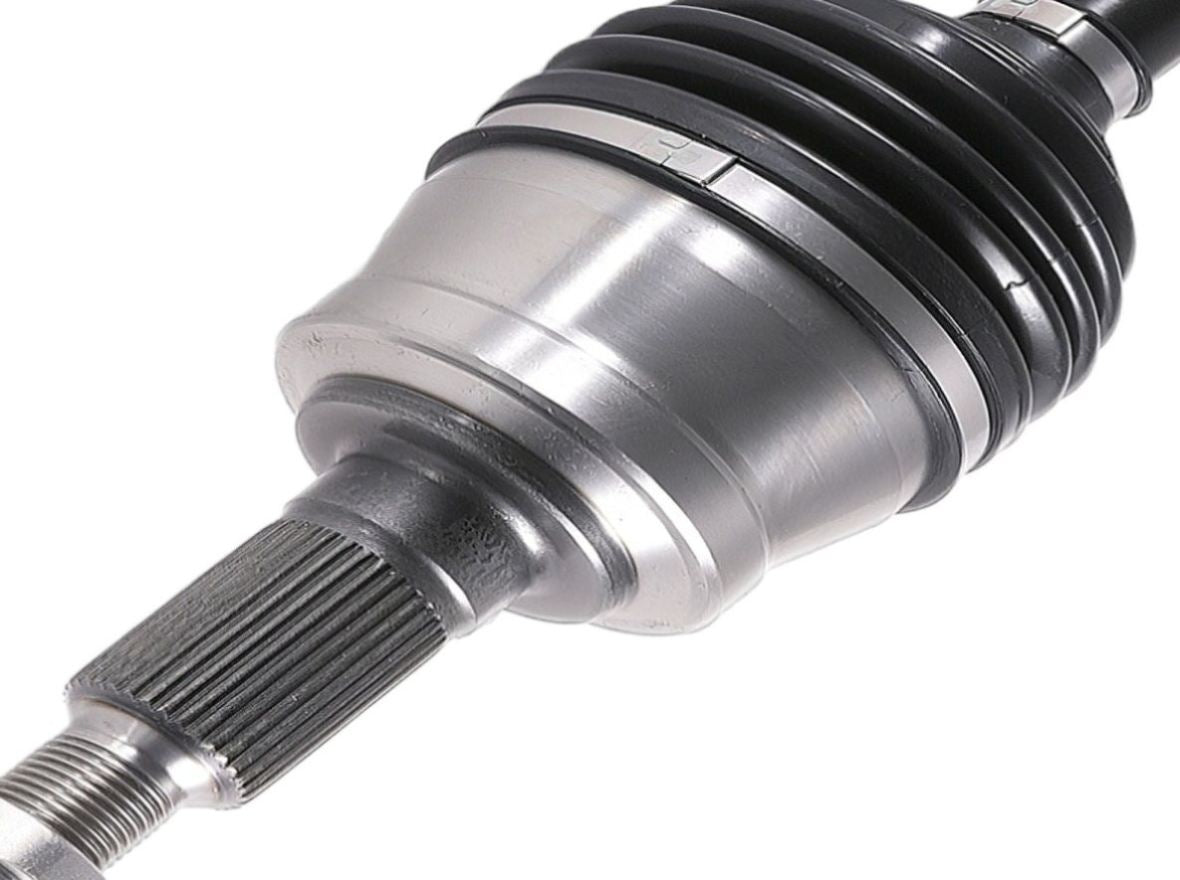

Output Shaft Spline Quantity: 33 Teeth
Input Shaft Connection Style：Spline
Output Shaft Connection Style：Spline
Compressed Length: 24.37''/599mm

Package included

       1Pcs CV Axle Assemblies (Front Left or Right)

Feature

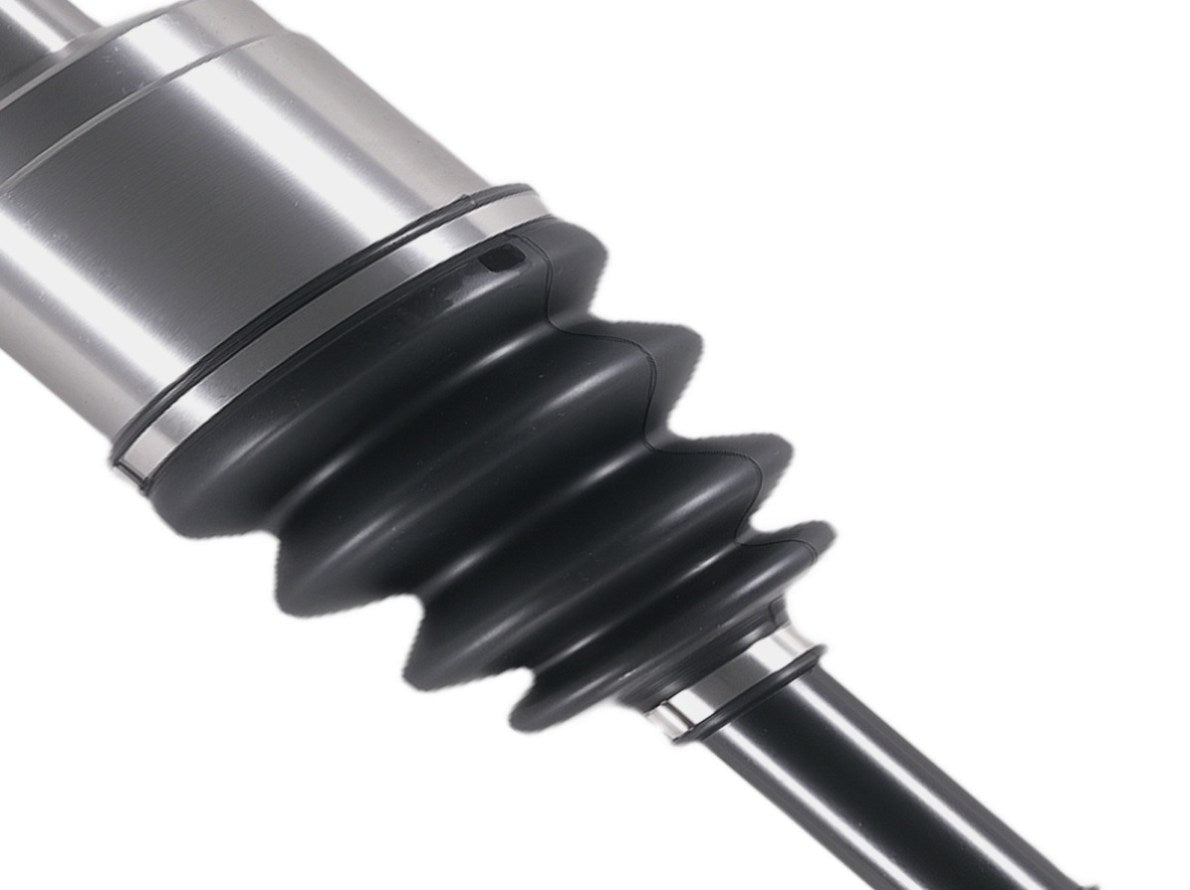

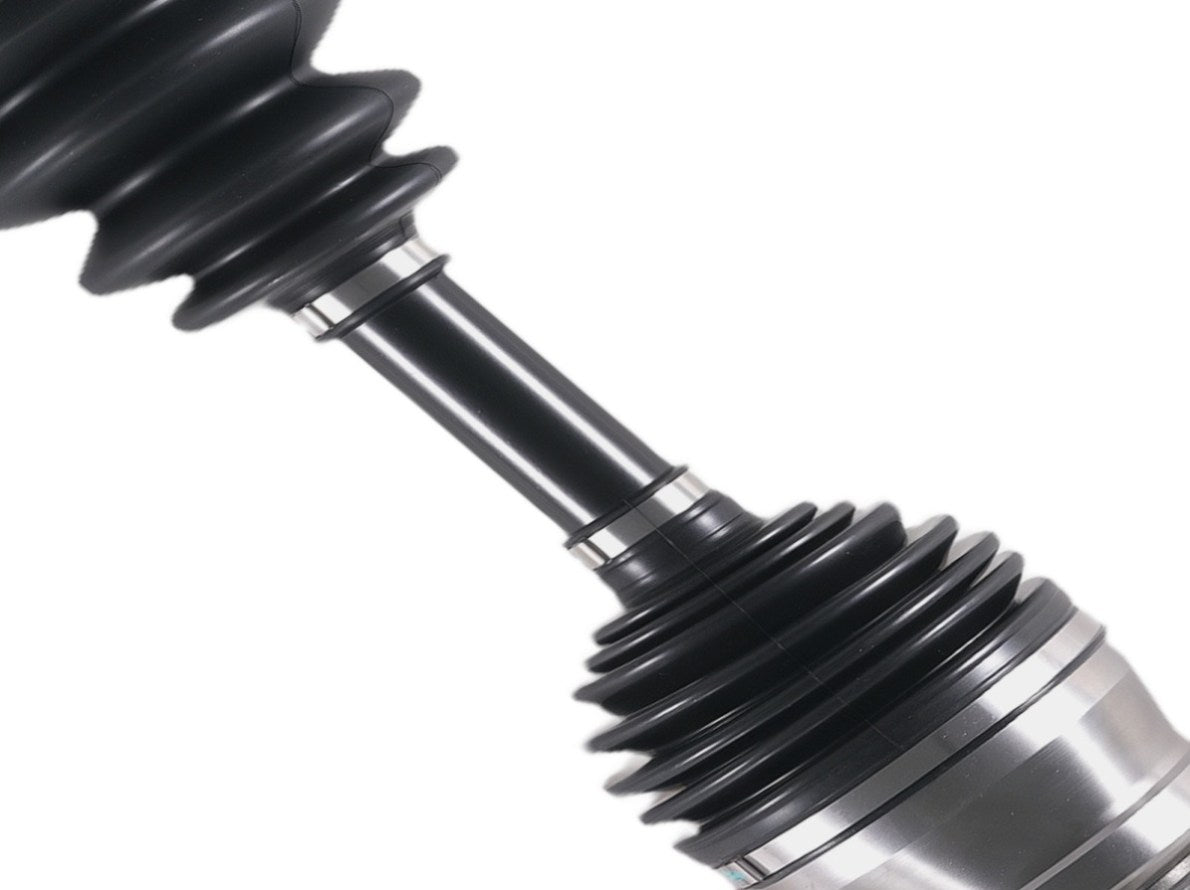

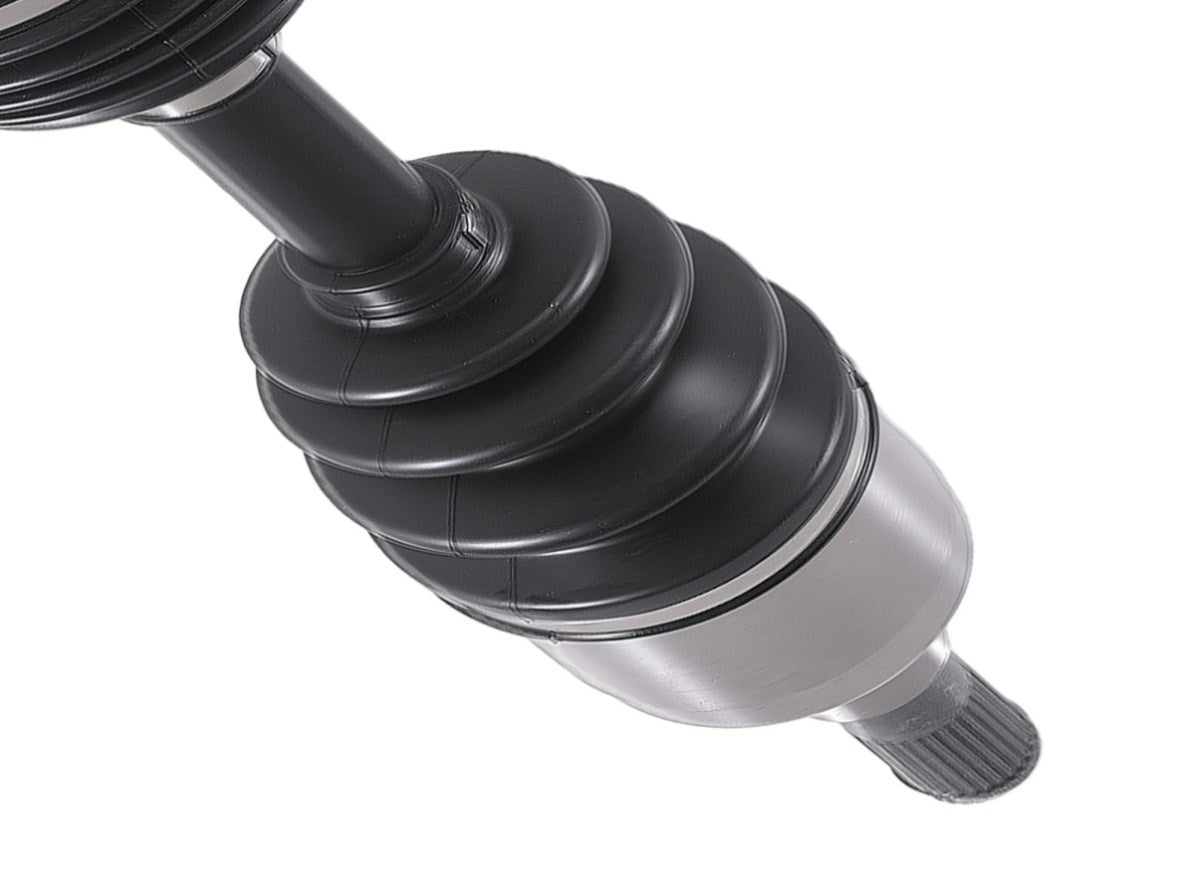

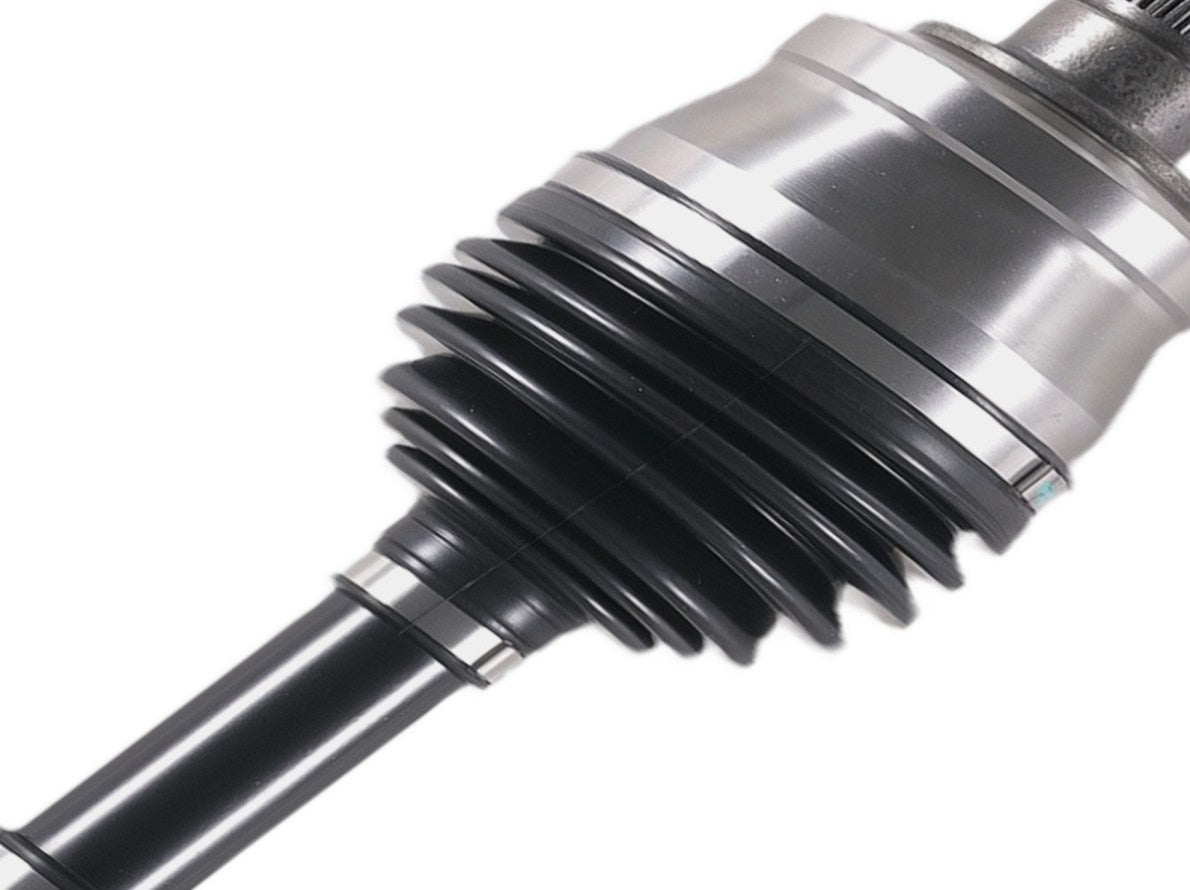

1.Unparalleled Performance:precision Machining,professional heat-treating,high-performance Neoprene Material can resist to grease and extremes of temperature and superior flexibility minimizing wear and tear.It realizes excellent durability and longevity．

2.Durable structural design：Steel 55 Ball Cage,Constant Velocity,Smooth Transmission.

3.Safe and Pleasing Experience: CV Joint Axle improve stability and comfort fit for driving.

4.Direct Replacement:Complete set CV alxe assembly easy to install.

5.Superior Package Design：With good cushioning and isolation performance, effectively protect products from damage, environmentally friendly and recyclable.

Note

*Please confirm your vehicle condition and OE number before placing an order!
*Please note that this is an after-sales part, not an original part.
*We suggest that you seek professional installation to avoid unnecessary trouble.
*.
