FIT For T04E T3 .63 Turbo Turbocharger Compressor 420HP W/ Internal Wastegate V-band 26481178

Perfect fit for all 4 or 6 CYL, 1.5L-2.5L Engines

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Product Specific:

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet  Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Side:

Turbine Trim: 74.2

Turbine A/R: 0.63

Turbine Inducer: 64.8mm

Turbine Exducer: 55.8mm

Turbine exhaust outlet : 79mm

Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width)

Compressor Side:

Compressor Trim: 48.1

Compressor A/R: 0.5

Compressor Inducer: 52.7mm

Compressor Exducer: 76mm

Compressor outlet:78 mm

Compressor inlet:51.5 mm

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Bearing: Journal Bearing

Cooling Type: Oil Cooled

Wastegate: w/ Wastegate

Thrust Bearings: 270 Degrees

Hosepower: Up to 420 HP

Turbo Type: Individual

Condition: 100% Brand New

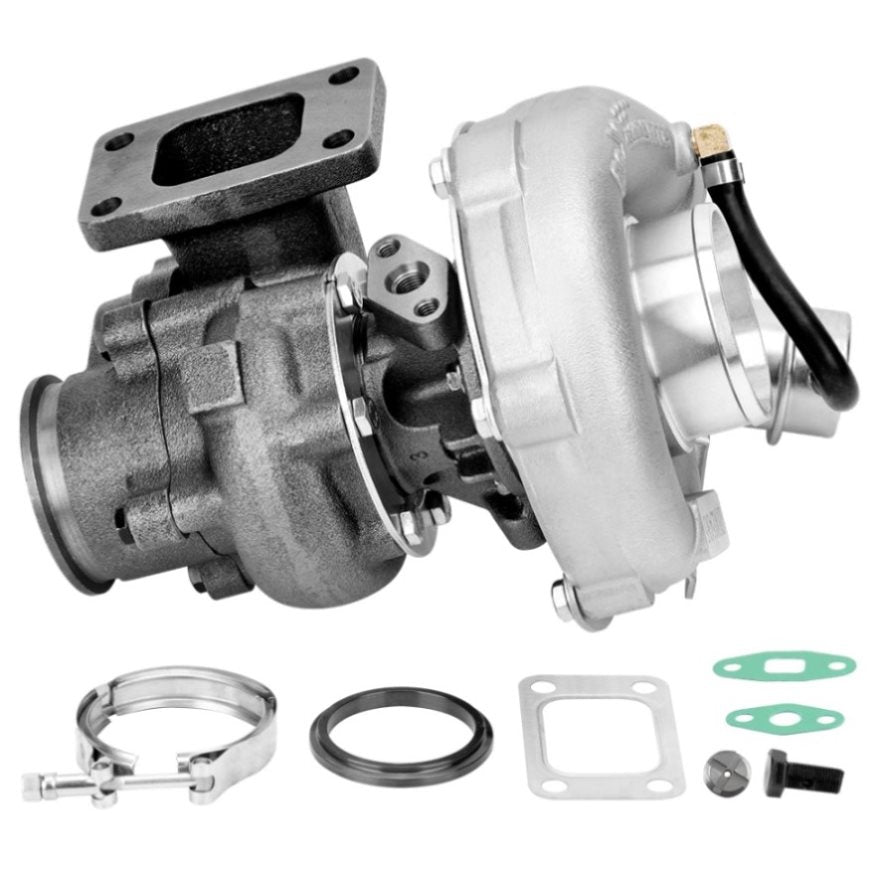

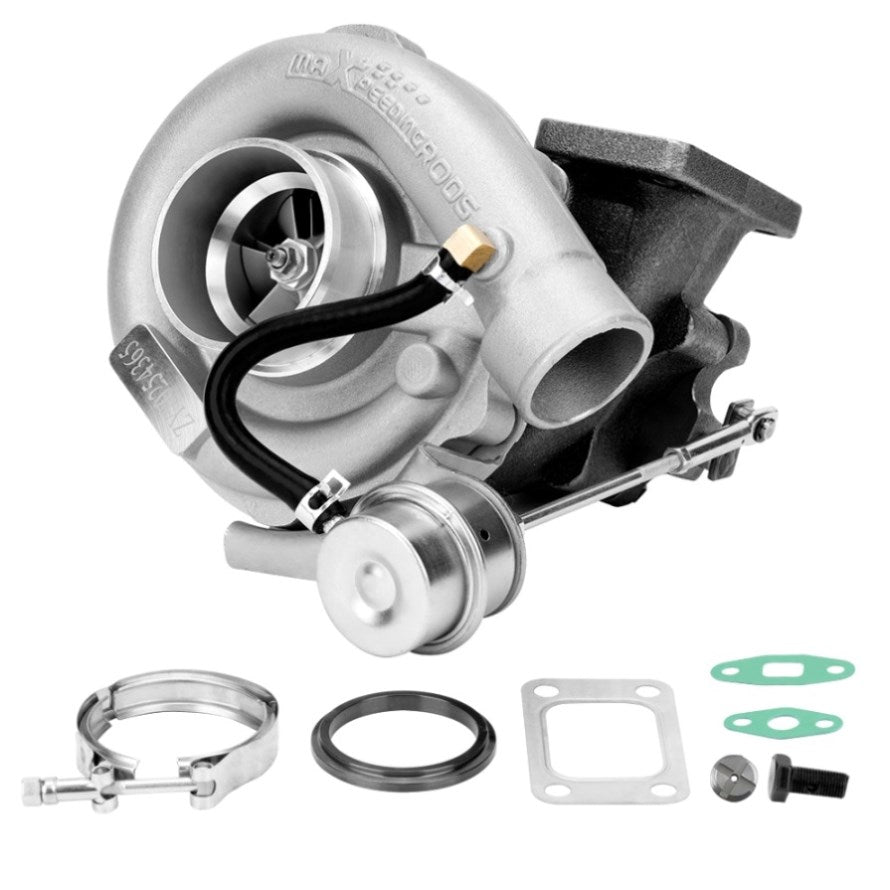

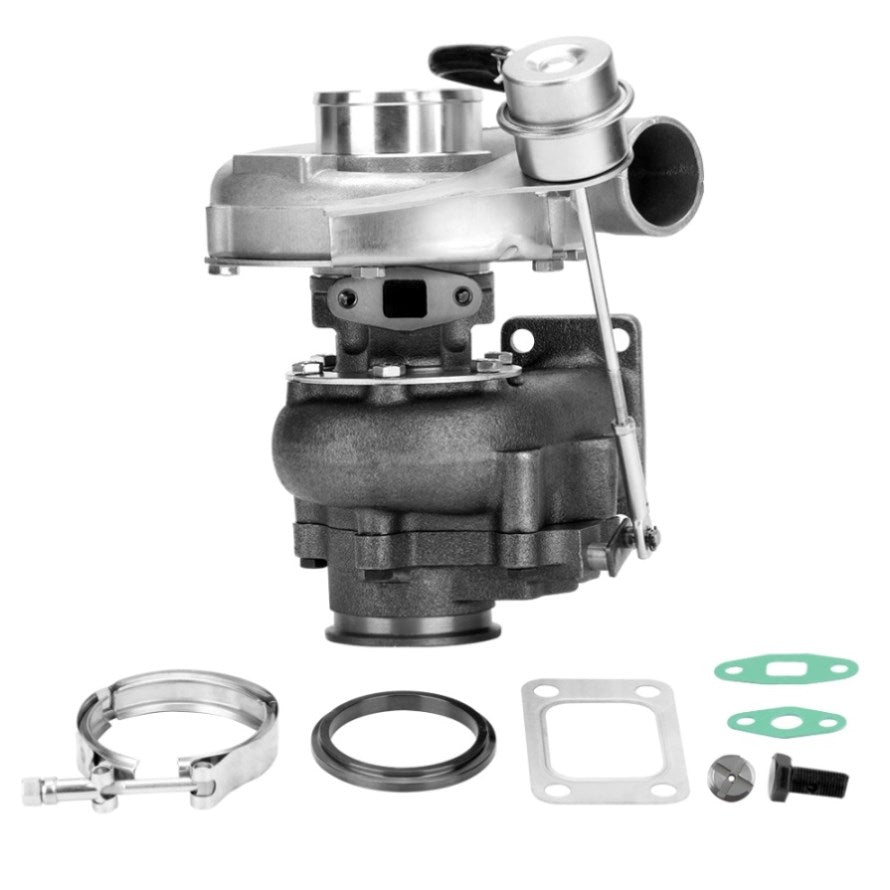

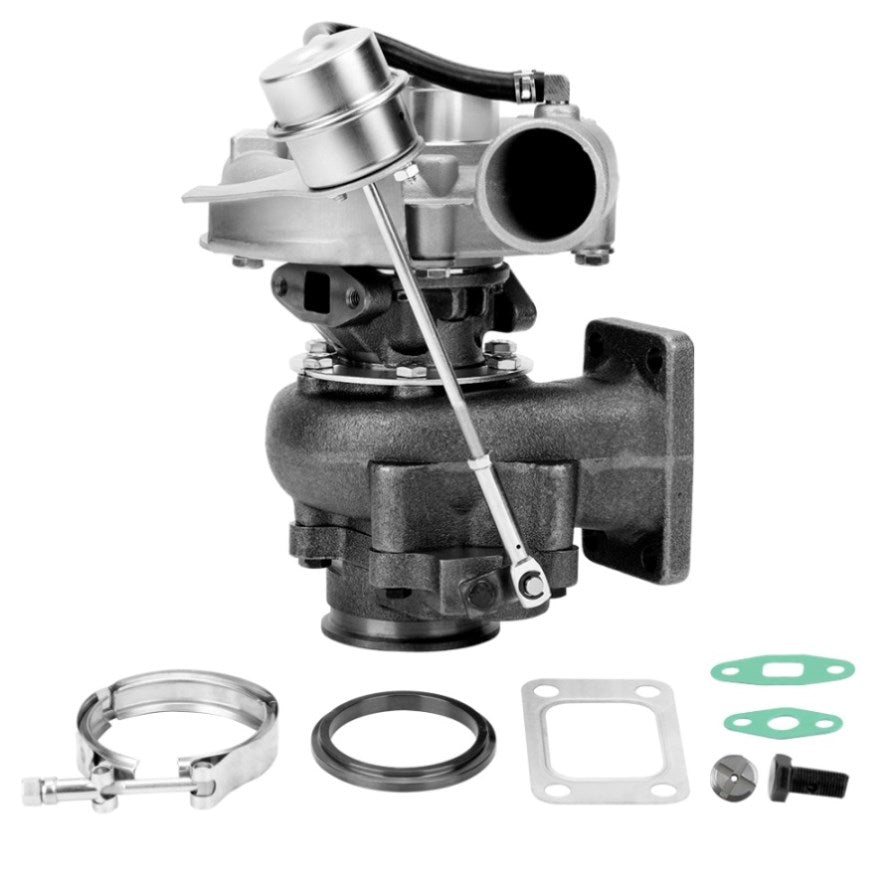

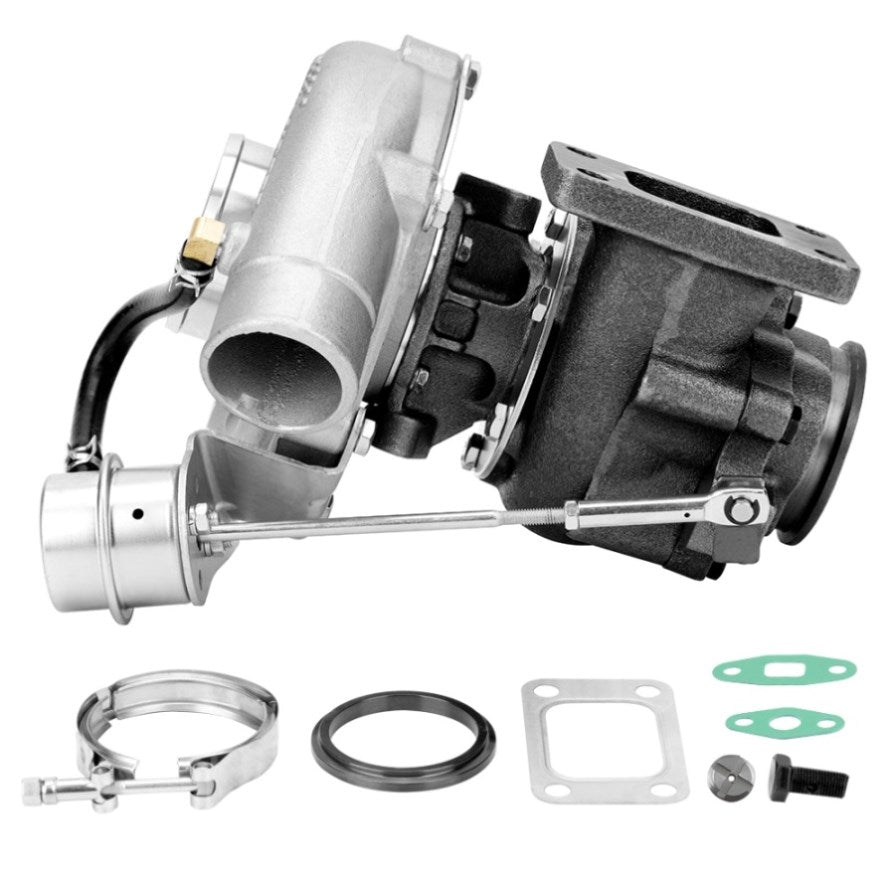

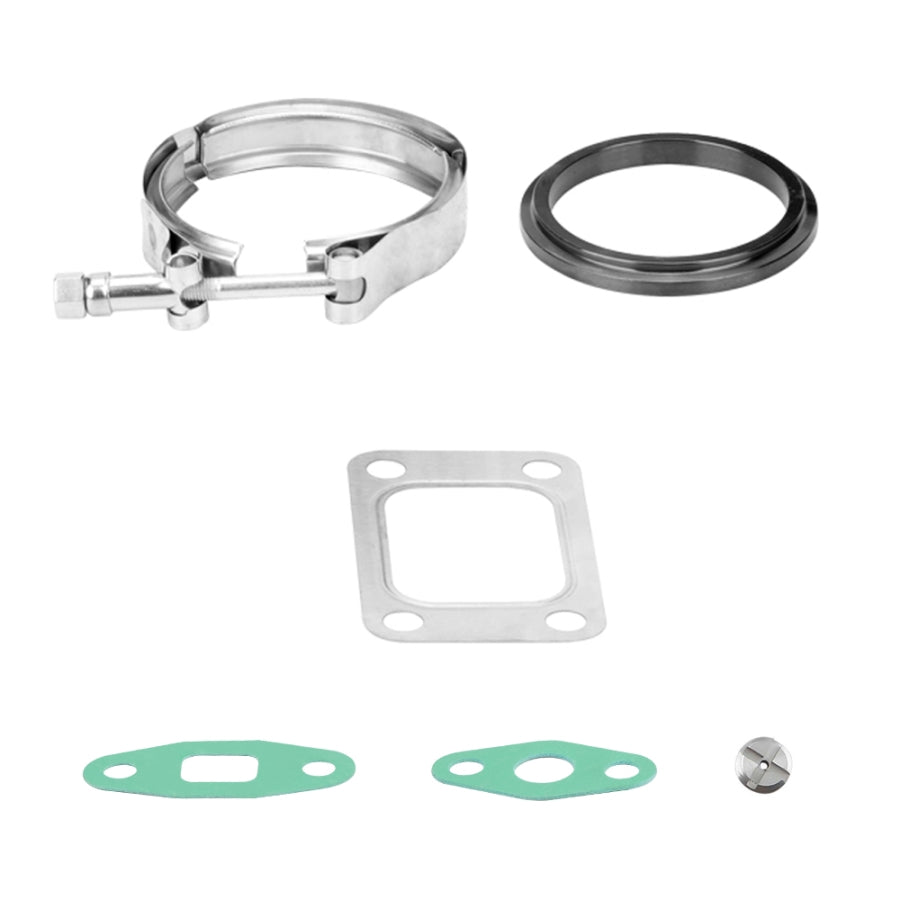

Accessories: You will get exactly as shown as picture above

Package Size: 30x 28x 24 cm

Package Weight: 9180g

Features:

*Product Material

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing: ZL104 aluminum with lightweight

4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Features

1. Rich experience in turbo production and own factory

2. High-Speed oil seal ring and Precision clearance

3. Built for durability and strength

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2. G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

* Make sure the oil drain line is lower than the turbo itself.

* Ensure exhaust outlet are well sealed by welding

* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
