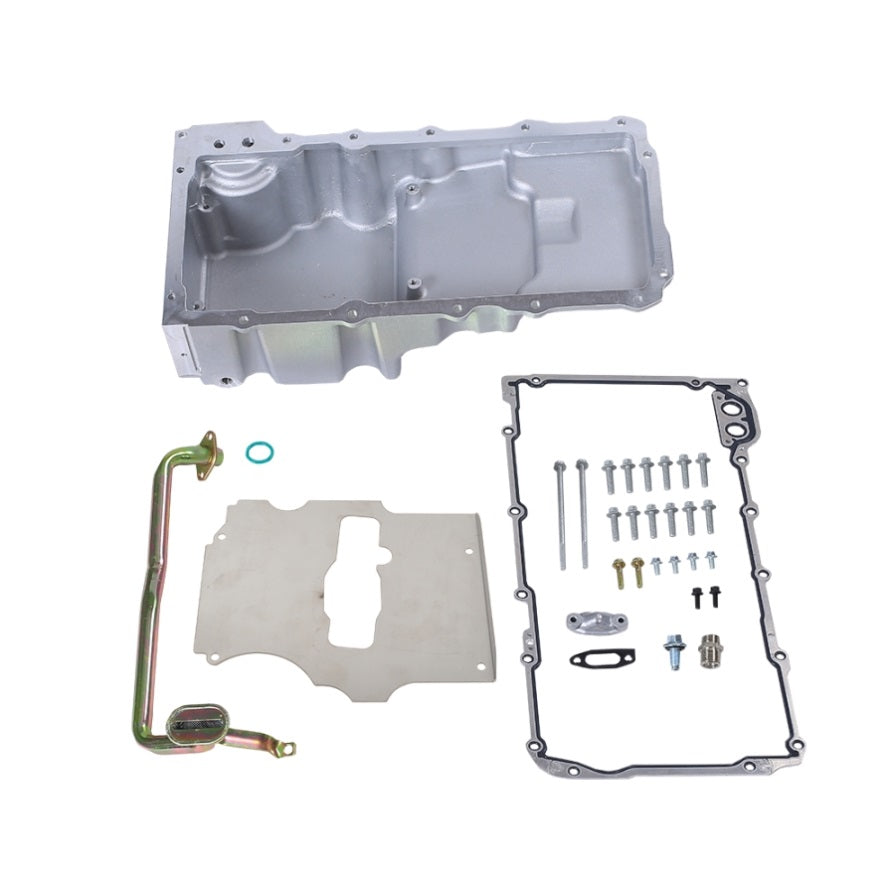

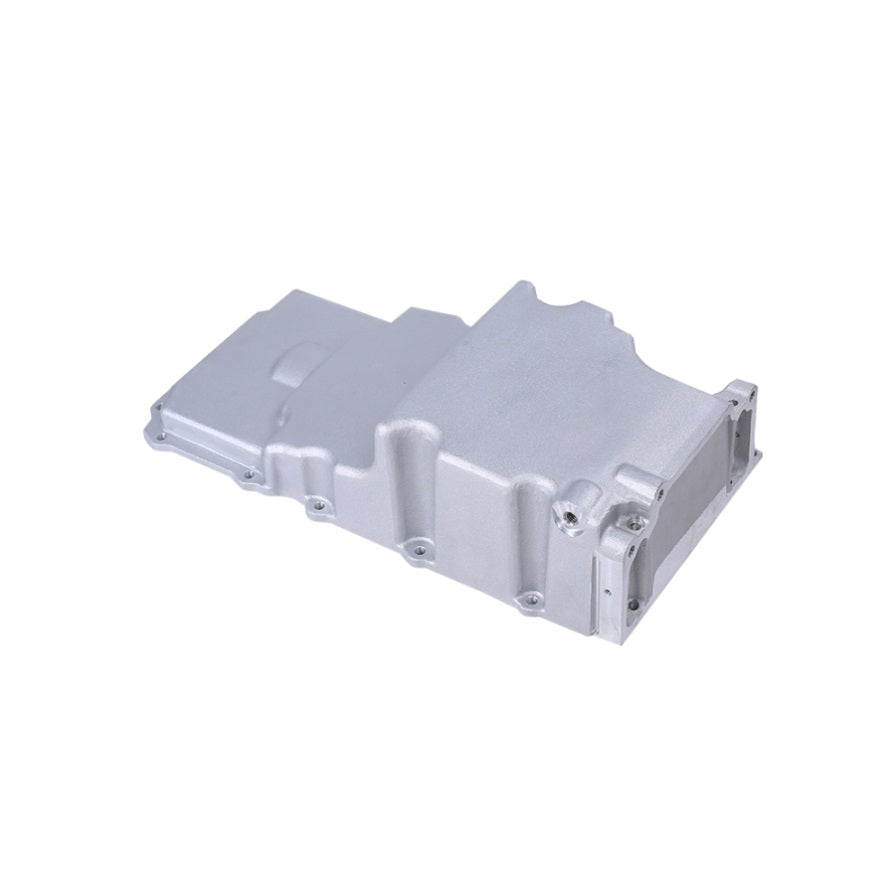

Fit For Oil Pan GM LS Retro LS1 LS2 LS3302-2 MT024001 67340741
Specifications:
Sump Style: Wet
Sump Location: Rear
Sump Depth: 5.46"
Maximum Stroke: 3.62"
Oil Filter Location: Stock
Sump Oil Capacity: 5.7 Quarts
Total Oil Capacity: 6.2 Quarts with Stock Filter

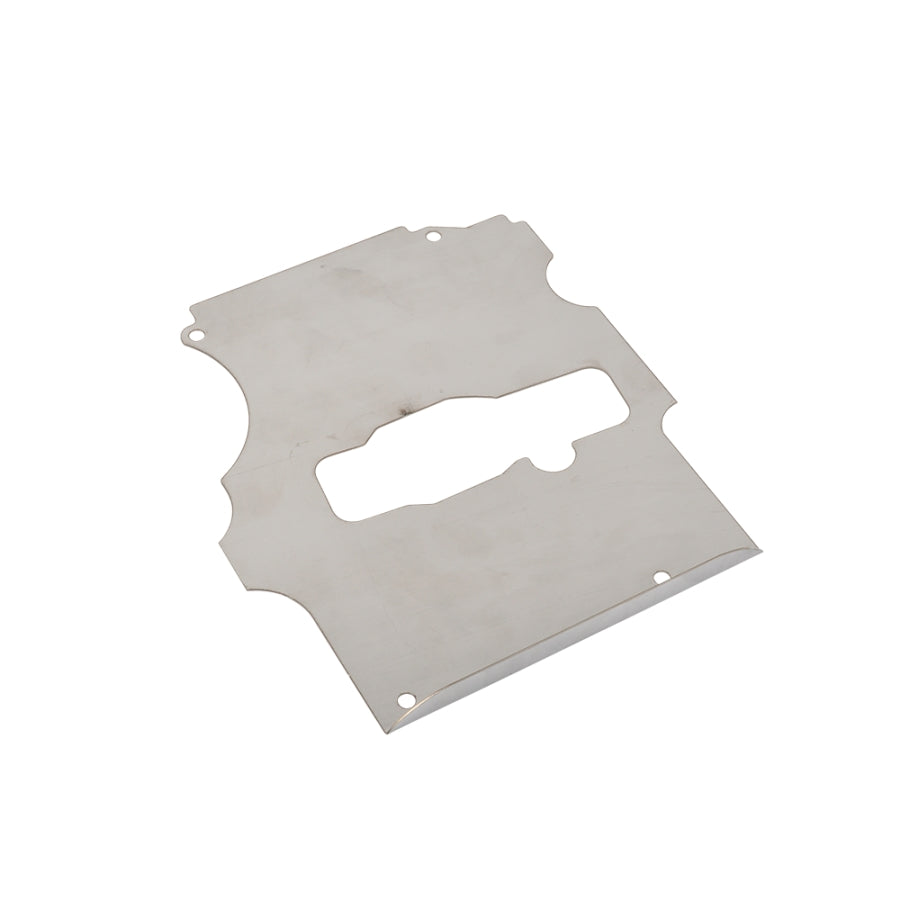

Baffled: Yes
Windage Tray: Not Included
Fitment:
For LS Engine LS1 LS2 LS3 LS6 4.8L 5.3L 5.7L 6.0L 6.2L
For most LS engines, except LS7 or LS9 dry sump applications
For Camaro/Firebird ('67-'69), Nova/Apollo/Ventura/Omega ('82-'92), GM A-body ('64-'72), G-body ('78-'87), and F-body ('82-'92)

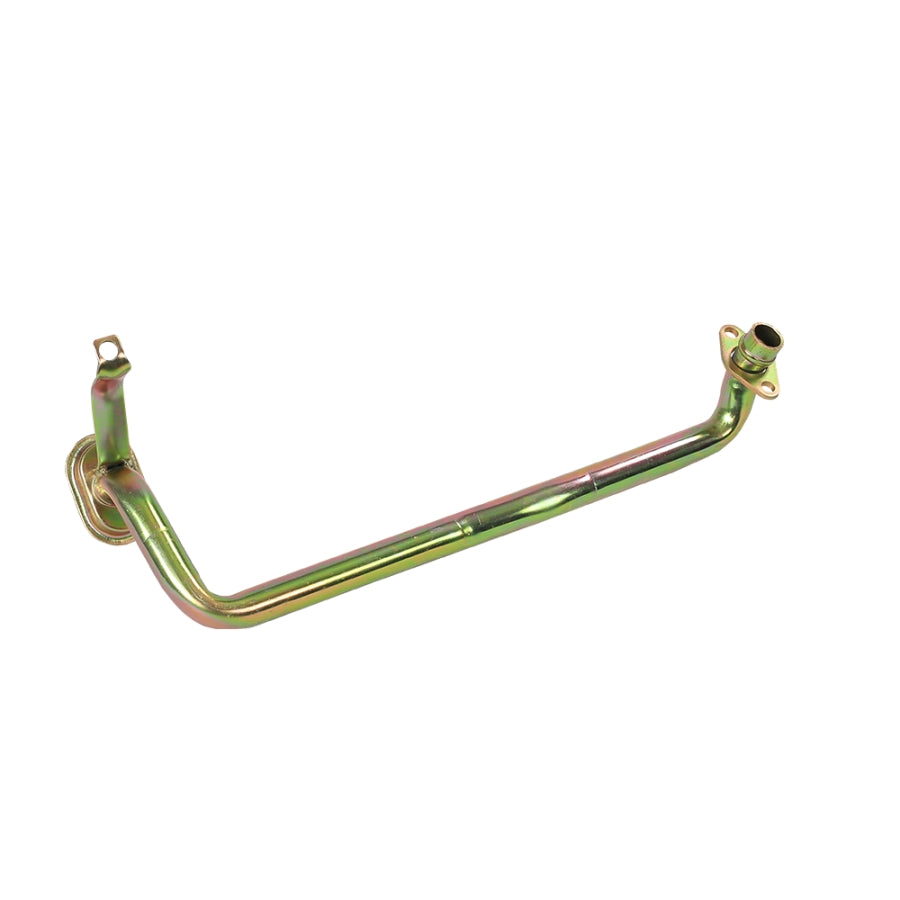

Designed for use with GM #12558253 windage tray, which must be altered to add clearance for the pick-up tube
Requires the use of LS3 style dipstick and tube: GM #12669528 and 12625031
Engine position (fore/aft or height) may need to be adjusted for clearance, depending on application
