Engine Rebuild Piston Gasket Timing Kit w/ Crankshaft fit for Toyota 4Runner 2.7L 32890563

Application

fit for Toyota 4Runner 2.7L 2694CC L4 DOHC, (16 VALVE), ENG. CODE "2TRFE"  2010
fit for Toyota Tacoma 2.7L 2694CC L4 DOHC, (16 VALVE), ENG. CODE "2TRFE" 2005-2016

OE/Part numbers

Crankshaft Part Number:
13401-75020, 13401-75021, 13401-75041, 13401-75040
1340175020, 1340175021, 1340175041, 1340175040

Connecting Rods Number:
13201-79617,  13201-79578, 13201-79617, 13201-79615, 13201-79576
1320179616, 1320179577, 1320179575, 1320179545, 1320179535

Gasket Seals Bolts Kit Part Number:
CS26537, ES72182, HS26357PT

Pistons & Rings Kit Part Number:
13101-75130

Main & Rod Bearings Part Number:
11701-75031, 13041-75050, 1304175030, 1304175040

CON: 13041-75050, MAIN: 11701-75031

Intake & Exhaust Valve Part Number:
EM4465,13209,EVTO48,IM4464,13208,IVTO48

Timing Kit Part Number:
13597-75020, 13521-75021, 13506-75070, 13507-75030, 13550-75010
13540-75041, 13554-75021, 13563-75021, 13561-75060, 13559-75060

Specification:

Condition: New

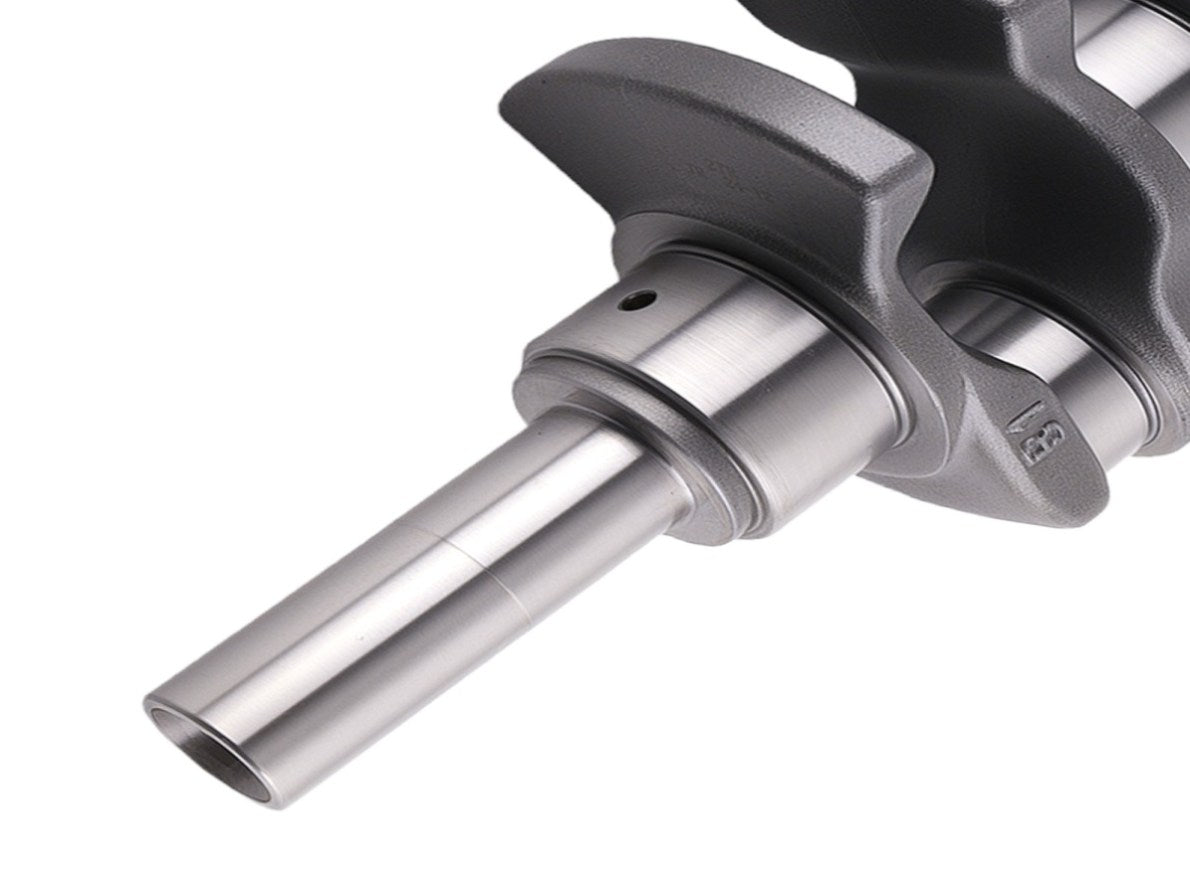

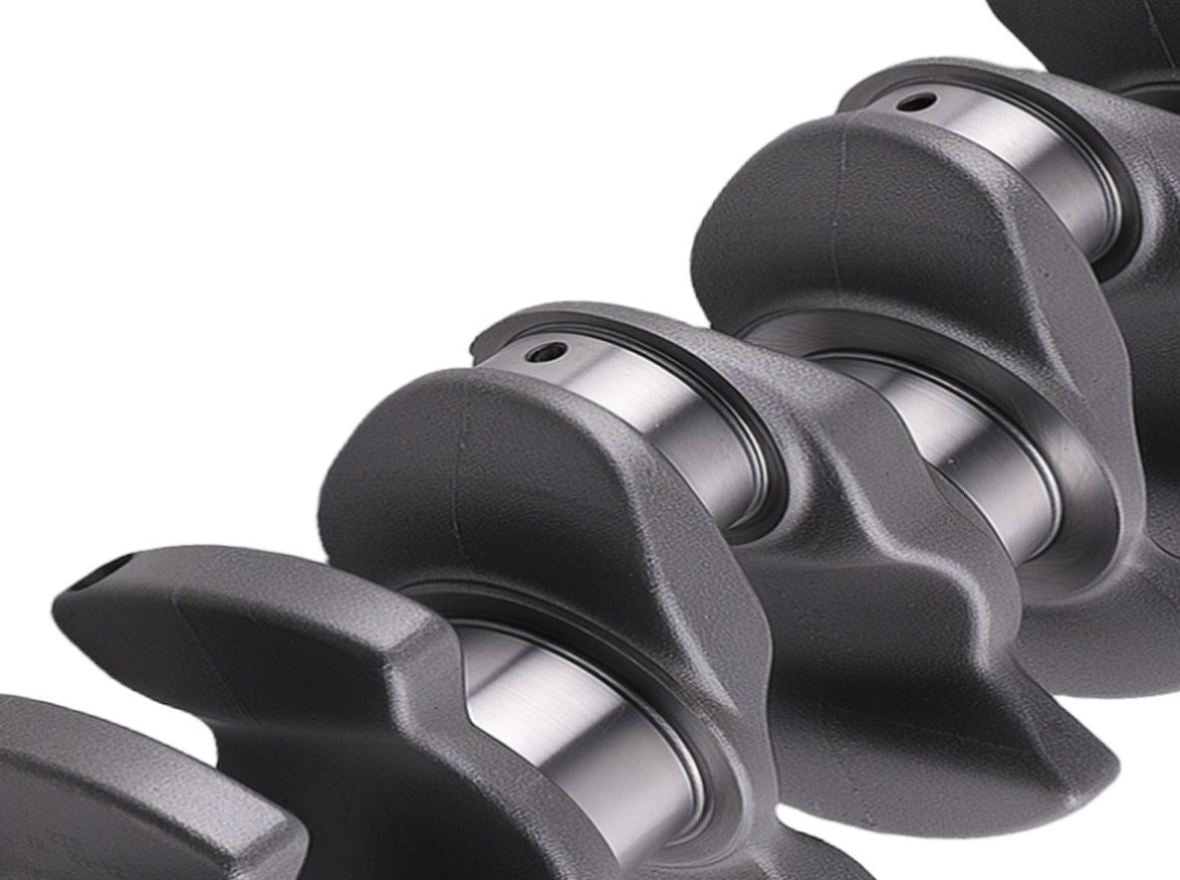

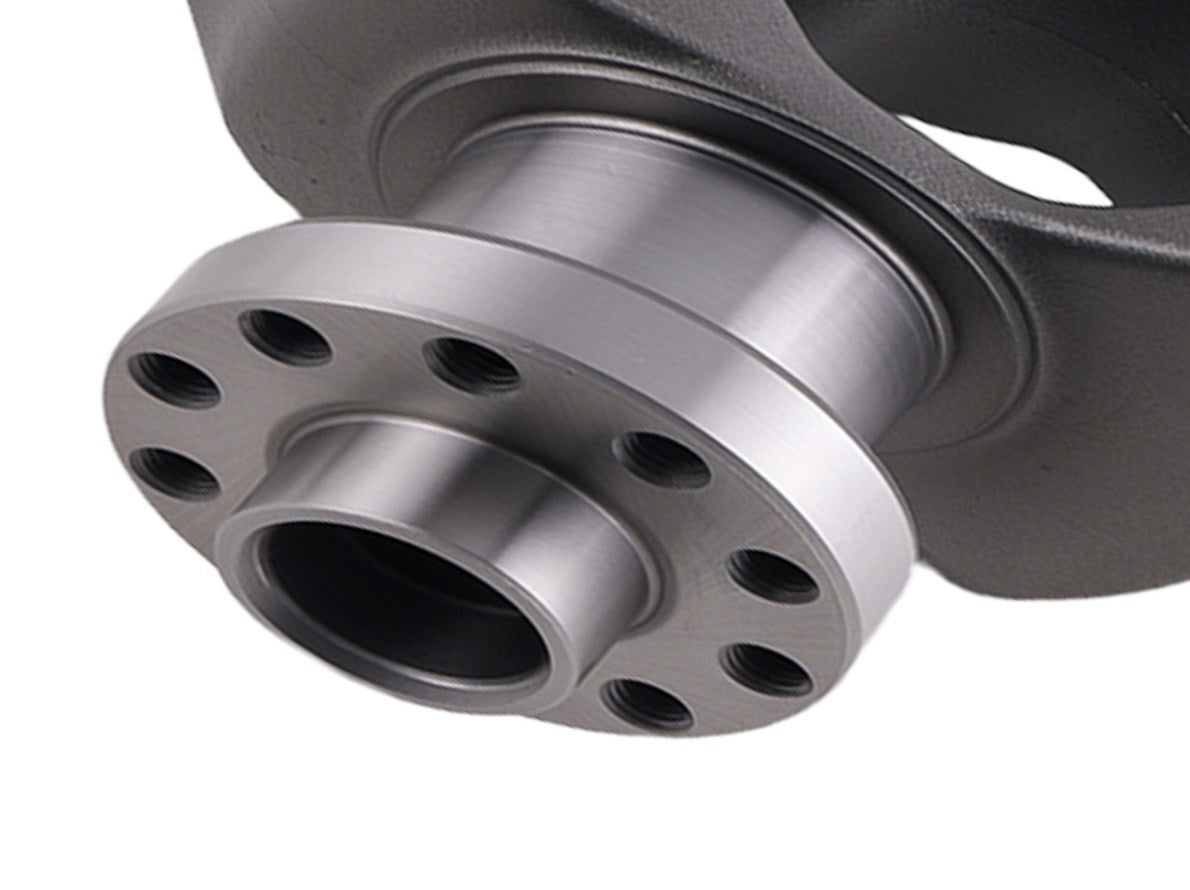

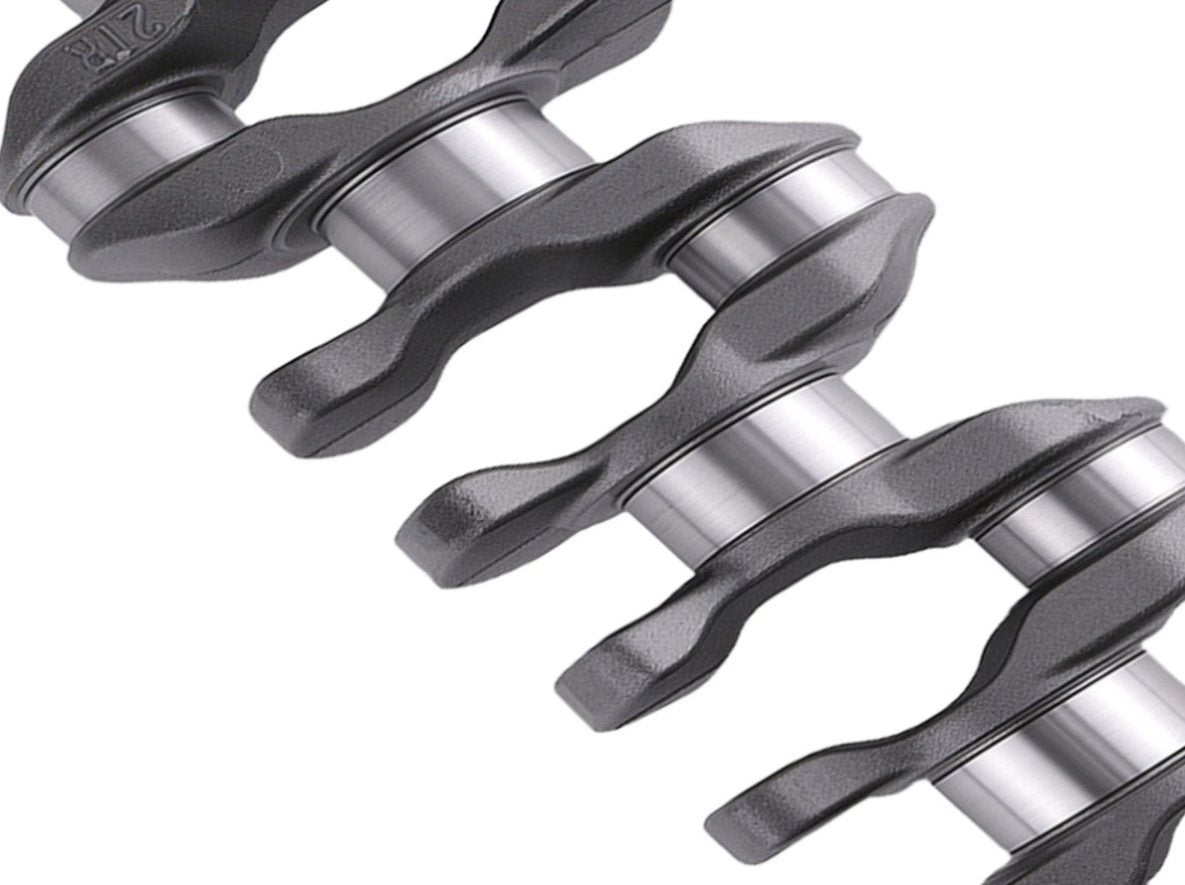

Crankshaft:
Main shaft diameter: 60mm
Connecting rod diameter: 53mm
Eccentricity: 47.5mm
Total length: 576.5mm

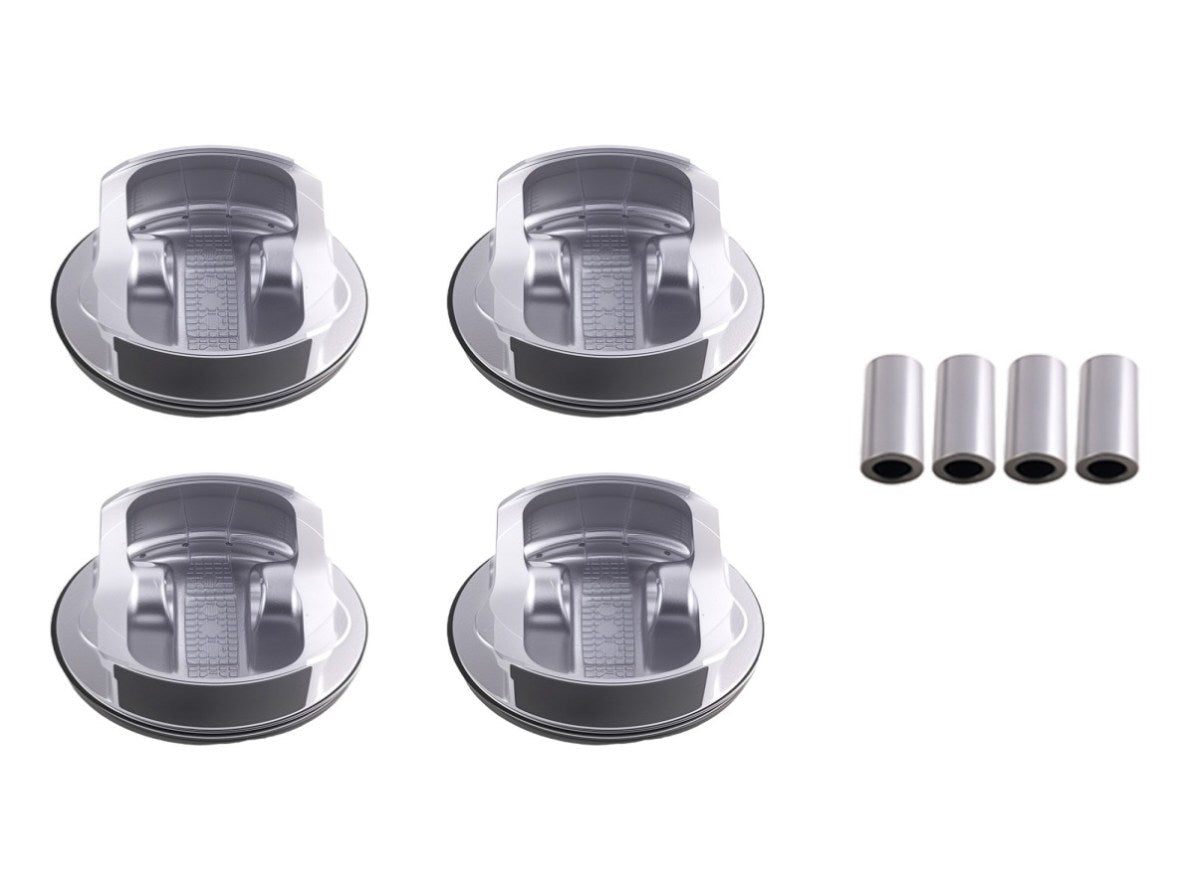

Piston & Piston Rings:
Cylinder Bore: 95mm
Piston Compression Height: 22 mm
Piston Width: 95 mm
Piston Height: 60 mm
Piston Pin Diameter: 22 mm
Piston Pin Length: 62 mm
Piston ring size: 95*1.2*1.2*2.0mm
Radial wall thickness (a1):2.9+2.9+2.9mm

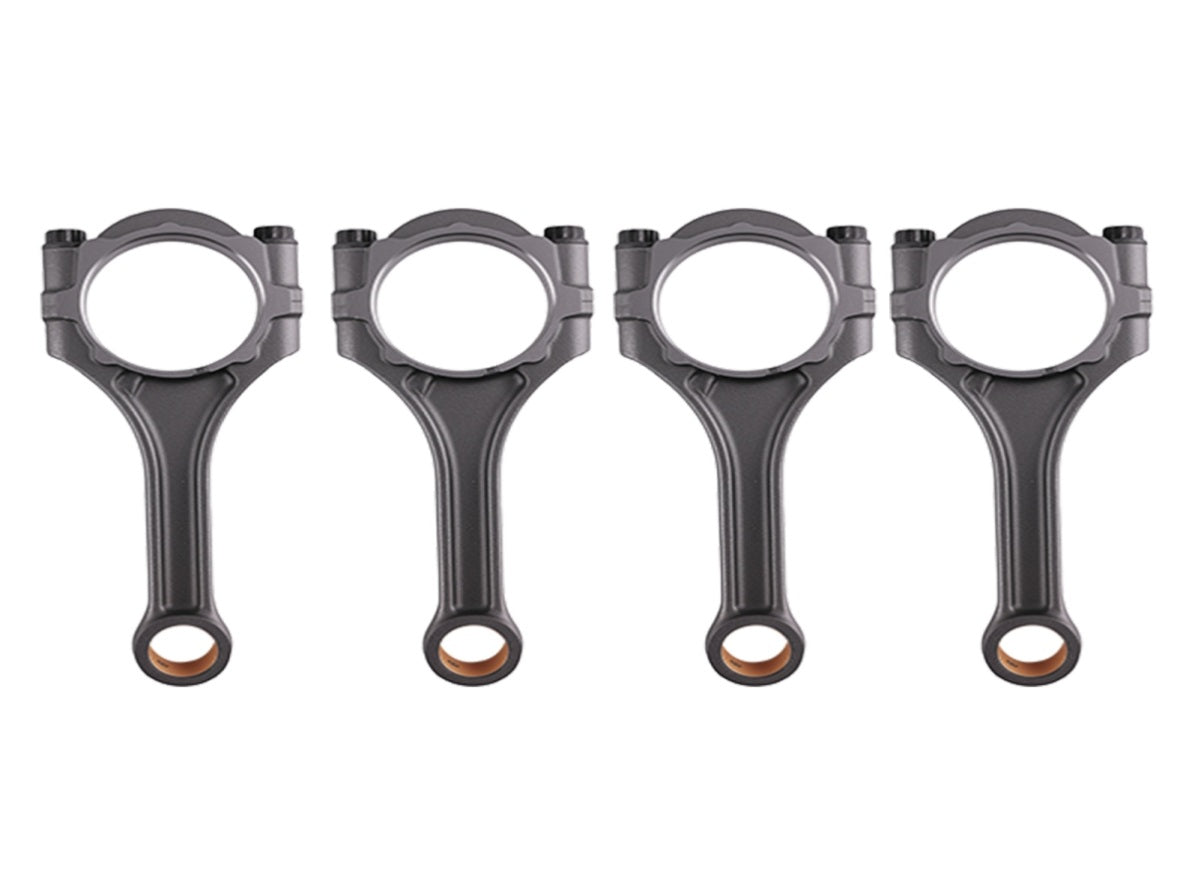

Connecting Rods:
Center to center distance:147.8mm
Inner diameter of the big end:56mm
Inner diameter of the small head:22mm

Features:

1.High quality Metal and constructed fit for Anti-rust and Anti-corrosion.
2. High quality and durable fit for stable performance and long time use.

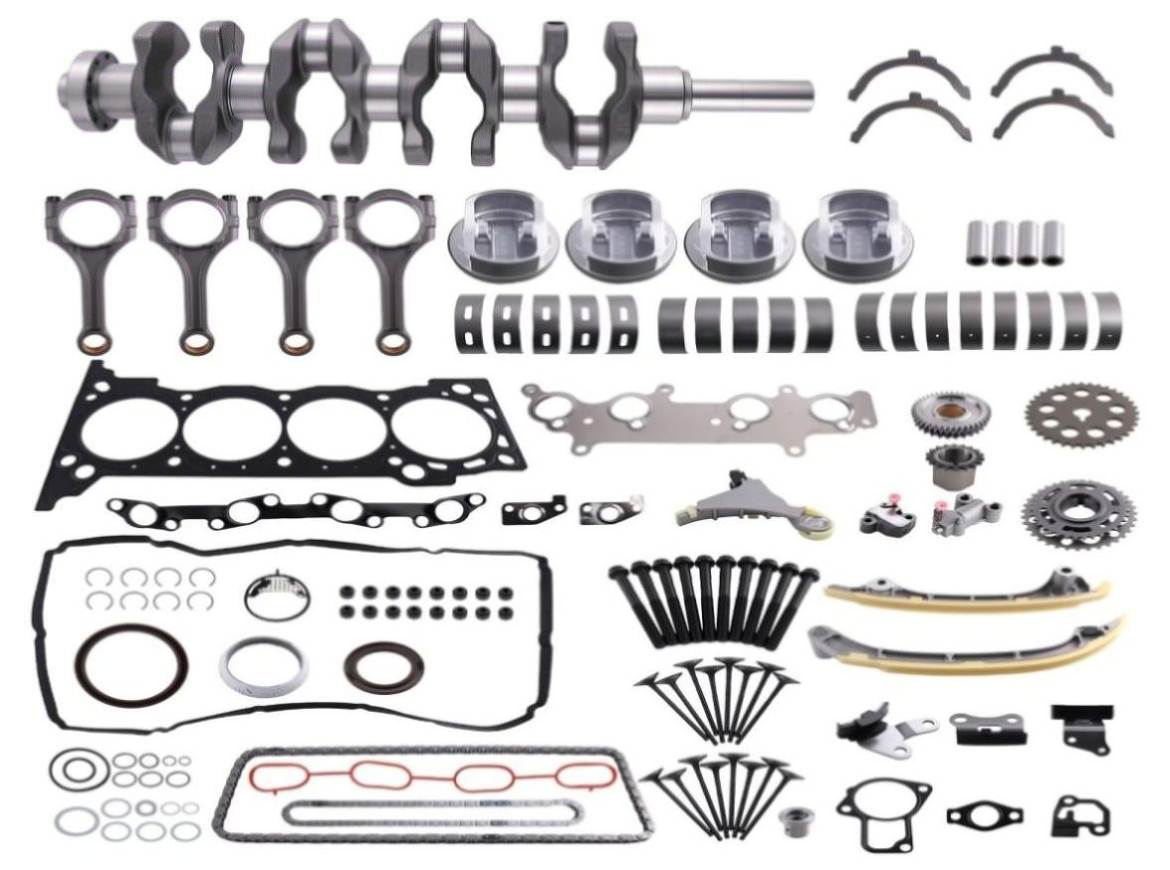

Package Includes:

1pcs x Crankshaft

4pcs x Connecting Rods

1set x Pistons & Rings Kit

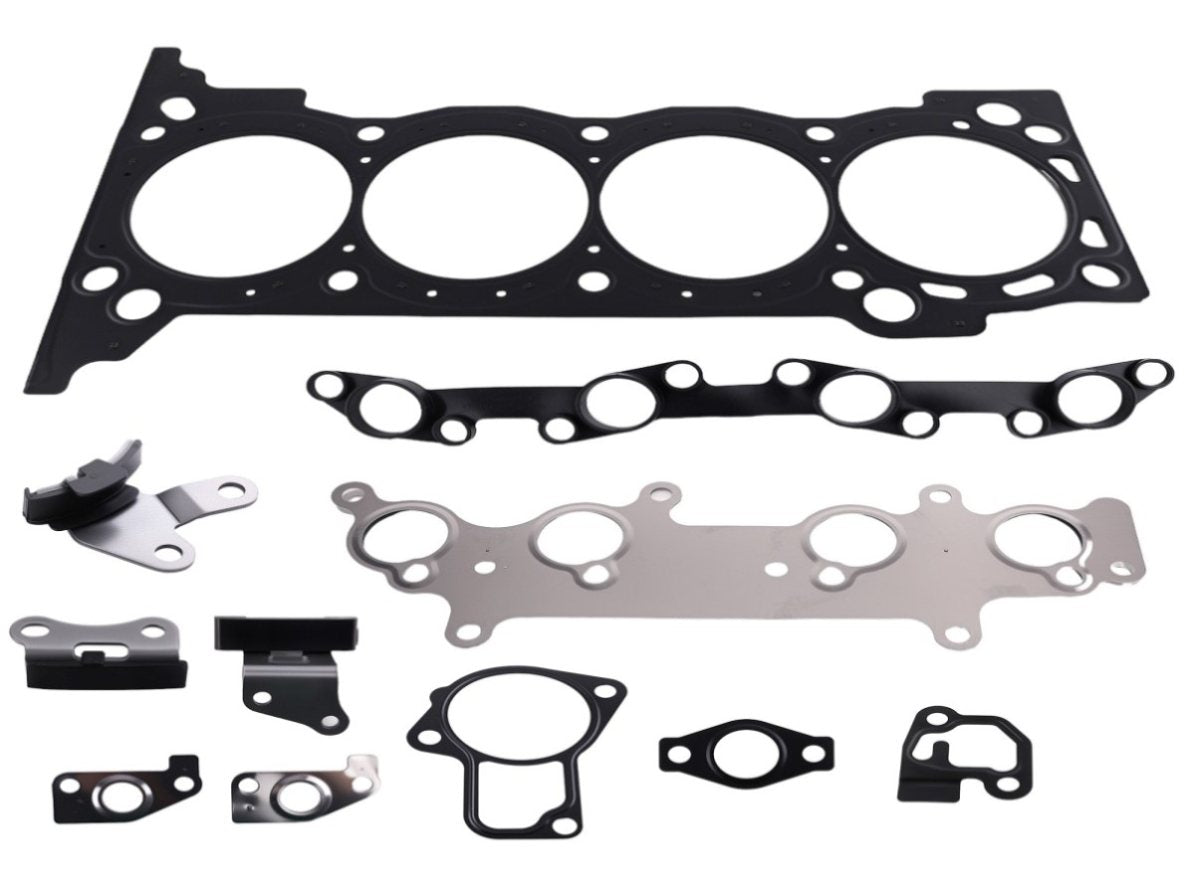

1set x Gasket Seals Bolts Kit

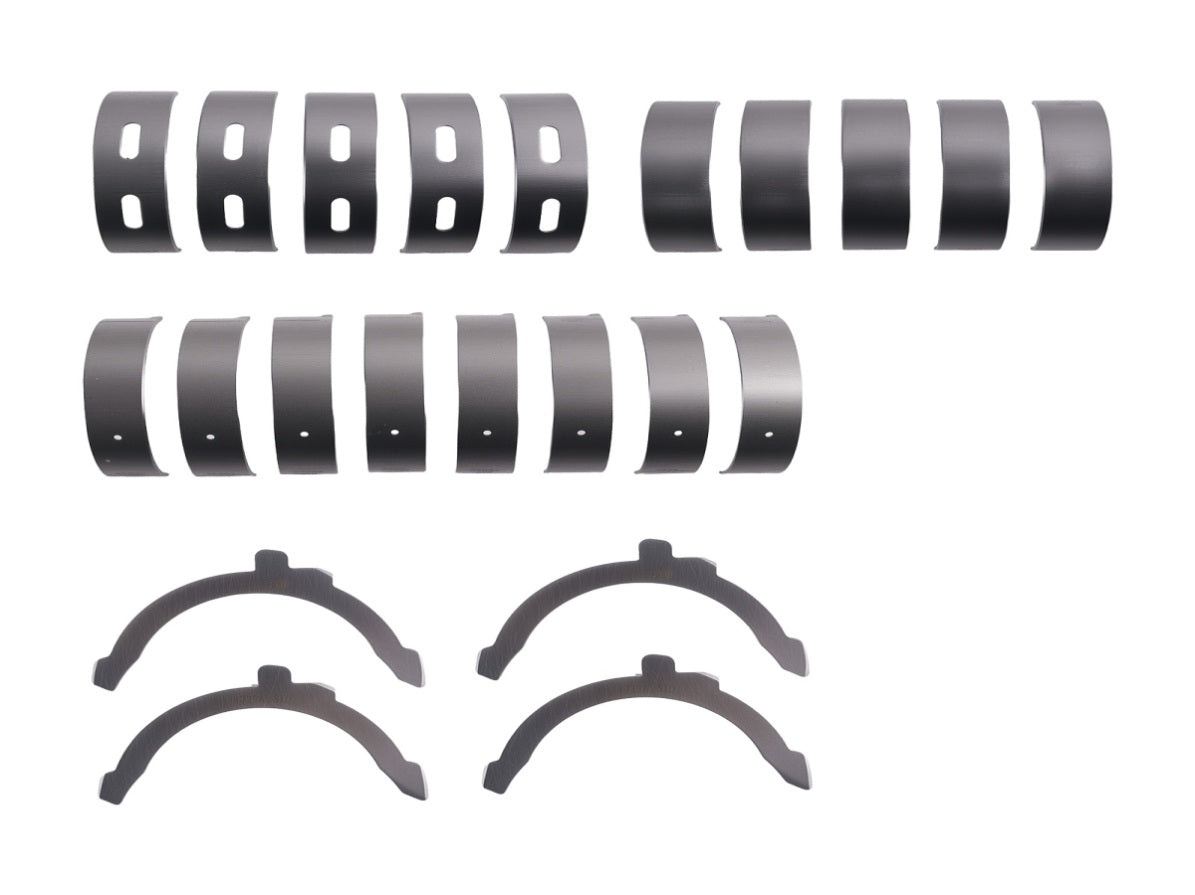

1set x Main & Rods Bearings Kit (with Thrust Washers)

1set x Intake & Valve Kit

1set x Timing Chain Kit (with VVT Sprocket)：
1 Timing Chain (outer - crank to cams)

1 Tensioner (ratchet style)

1 Cam Sprocket (exhaust 36 teeth)

1 Crank Sprocket (outer 18 teeth)

1 Guide Rail right (tensioner rail)

1 Guide Rail left (fixed rail)

1 Guide Rail upper (rail between the cams)

1 Timing Chain inner (crank to bal. shafts)

1 Tensioner shaft (bal. shaft chain tensioner)

1 Bal Shaft Idler Sprocket (dual, sprocket & gear)

1 Bal Shaft Gear (driven gear)

1 Bal Shaft Sprocket (left- driven sprocket)

1 Crank Sprocket inner

1 Guide Rail upper (bal. shaft upper rail)

1 Guide Rail center (bal. shaft left center rail)

1 Guide Rail lower (bal. shaft lower rail)

1 CAM PHASER VVT Actuator
(Showing as the picture)

Note:

1. Even if your car is shown in the compatibility, pls also double check the fitment details and photos before ordering.
2. No Instruction Included, professional installation is highly recommended.
